P68ADB2383188Bluetooth Transceiver

Http://www.audextelecom.com Made in China. User’s Guide Headset ADB-2383 Bluetooth 1 Introduction Audex Bluetooth headset ADB-2383portable hand-free device with advanced Bluetooth wireless communication technology. Bluetooth V1.2 compliant. Supply faster connection speed and much more better tone. ADB2383 power supplied by a single high capability Li-ion battery, and can supply longer talking and standby time. Recharged via PC. ADB2383 can connect all Bluetooth headset profile or the hand-free profile device.For example: cell phone, PC etc. And your hands are free. You can receive and reject call, or adjust volume by the headset. 2 Specifications: Compliance: Bluetooth v 1.2 Power class: class 2 2dB Frequency range: 2.4 2.48 GHz Sensitivity of microphone: < 95dB Talk time: max 6 hours Standby time: 150 hours Compatibility: Bluetooth headset and hands-free profiles. Specifications: 3 Features 44 55 33 77 11 22 66 77 33 55 22 1. Multi-function button. 2. USB recharging port 3. Ear hook 4. LED indicator light 5. Microphone 6. Speaker 7. Volume control 4 Recharging The headset will begin charging when connected to the USB port via the cable. The red LED will remain lit when charging; it will flash when fully recharged. USB USBUSB NoteThe headset must be charged for about 2.5 hours before the first use. * Specifications and features are subject to change without prior notice. Front Back Wearing the Headset To wear the headset on your right ear: 1) Open the ear hook 45from the headset.. 2Place the hook over your ear. 3Close the ear hook against the headset. 4) Point the microphone towards your mouth for best reception. 45 1 2 3 4 5 Wearing the Headset To wear the headset on your left ear: 1) Open the hook 90from the headset. 2Rotate the hook 180 3Slide the hook towards the microphone 4) Place the hook over your left ear as with the right ear. 90 0 180 6 Switching the Headset on/off 1. Switching on Press and hold the multi-function button for about 6 seconds. The green LED will flash and there will be a short tone from the speaker. The headset is now in standby mode. Note: The red LED will flash when the battery power is low. 2. Switching off Press and hold the multi-function button for about 2 seconds The red LED will flash and there will be a short tone from the speaker. The headset is now off. 6 seconds 2 seconds 7 Pairing 8 ® Bluetooth passkey ® ® The Bluetooth passkey (or PIN ) is used to validate two Bluetooth devices to each other and create a trusted relationship between them. It prevents the ® unauthorized use of a Bluetooth device. The process of creating a trusted ® relationship between two Bluetooth devices is called “pairing” . ® Each Audex Bluetooth headset has a default passkey [1234], which is stored in its internal memory. Whether you need to input the passkey or not during ® pairing depends on the kind of Bluetooth device that the headset will be connected to. ® If you want to use the headset with a Bluetooth mobile phone or other devices ® with built-in Bluetooth capability , you are usually required to enter the passkey on that device during pairing. Bluetooth 11 22 33 44 55 66 77 88 99 00 ** ## <30 cm> Pairing 9 Pairing the headset ® To use the headset with a Bluetooth enabled device for the first time, you must pair the headset with that device, for example , a mobile phone. Different devices may require different pairing procedures. The pairing procedure for the headset is described in this User's Guide. Please refer to the user's manual of the other device(s) for specific pairing method. To complete pairing , you need to enter the correct passkey when required by the other device during pairing. To pair the headset with the device: ® 1. Activate the Bluetooth function in the other device if necessary. Please refer to the user's manual of the device. 2. Turn the headset off first. Press and hold the multi-function button of the headset for 8 seconds until the indicator lights on the headset alternately flash green and red. The headset is now ready for pairing. Make sure the headset and the other device are not too far apart (i.e. 30cm or less). Pairing the headset (cont.) ® 3. Initiate Bluetooth pairing in the other device to pair it with the headset . Please refer to the user's manual of the respective device for specific operation procedures. Once the headset is detected, a message will be displayed with the following information: 4. When asked by the device, enter the headset passkey and then confirm if necessary. If pairing is successful , the headset indicator light flashes green and the headset is now ready to use. 5. If no pairing is possible for a period of time (approx. two minutes), the headset will automatically turn off. Previous pairing (if any) remains. You may need to repeat steps 2 thru 4 until pairing is successful (Note: ® for Bluetooth enabled mobile phones, it is recommended to reset the phone by turning it off first). 6. You can abort pairing any time by pressing and holding the multi-function button for about 2 seconds until the red and green lights go off and the headset is now turned off. Previous pairing (if any) remains. “Audex-2383”. Pairing 10 8 seconds Adjusting the volume During a call, the volume can be increased with the volume button, which will be accompanied by a short tone. When the volume is at maximum, you will be alerted with two short tones. When reducing the volume with the volume button, there will be a short accompanying tone. There will be two brief tones when the volume is at its lowest level. 11 Low High Multi-function button Volume Volume Status Press briefly Switch on/off N/AN/AN/AN/AN/A Switch on (about 6 second) Enter pairing statutes about 8 seconds Standby Enter voice dial Switch off about 2 seconds Volume increaseVolume decrease N/AN/A Pairing status Cancel pairing Switch off N/AN/AN/AN/A Voice dial Cancel voice dial Switch off N/AN/AN/AN/A Accept Reject Incoming call N/AN/AN/AN/A Switch off for Sony Ericsson Accept for…

Text truncated - open the document above for the full version.

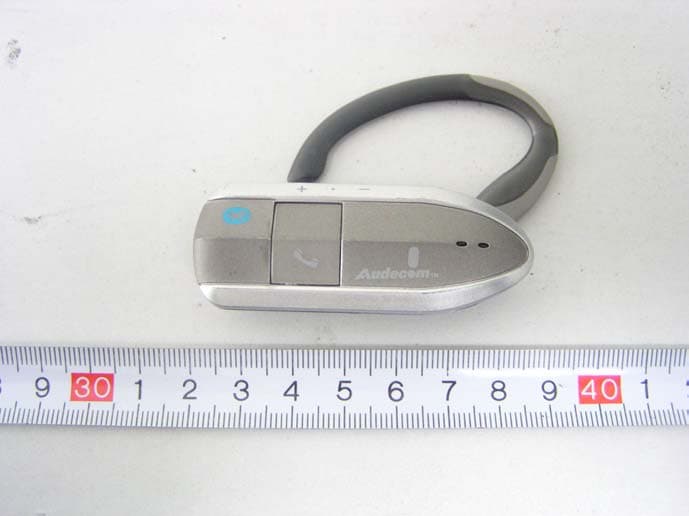

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Rear Side of EUT / Proposed Label Location FCC ID: P68ADB2383188

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncovered View EUT – Inside View (1) EUT – Inside View (2) EUT – Mainboard View (1) EUT – Mainboard View (2) EUT – Mainboard View (3)

ACX Advanced Ceramic X AT5020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain （XZ-V） Average Gain （XZ-V） VSWR Impedance AT5020 -B2R8HAA_ 2400 ~ 2500 0 dBi typ. -1 dBi typ. 2 max. 50 Ω Q’ty/Reel (pcs) : 2,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 5020 - B 2R8 HAA ‡ ‡ i ghfe dc c Type AT : Antenna d Dimensions ( L × W ) 5.0× 2.0 mm e Material Code B f Frequency Range 2R8=2800MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 5.0±0.2 2.0±0.2 1.1±0.2 0.5±0.3 (a) Without Matching Circuits 1.0 * 3.9 5.9 1.0 * * 1.8 1.0 (b) With Matching Circuits * 3.9 8.9 1.8 4.0 1.0 1.0 * * *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board Antenna No Ground Ground 18mm 18mm 30mm 50Ω Feed Line 9.6mm ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits ACX Radiation Patterns Advanced Ceramic X 180 o 270 o 0 o 90 o X Z Y XY-cut scanning direction 180 270 o 0 o 90 o X Z Y XZ-cut scanning direction 180 270 0 o 90 o X Z Y YZ-cut scanning direction XY cut @2.45GHz Vertical Horizontal XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ-V/YZ-H XZ-V/XZ-H XY-V/XY-H Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Audex Telecom Industrial Co., Ltd. 4/F., Chuangye Center, Kangle Rd., Zhongshan Torch Hi-Tech Industrial Zone, Zhongshan China FCC ID: P68ADB2383188 December 19, 2005 This Report Concerns: Original Report Equipment Type: Bluetooth Transceiver Test Engineer: Kamn Hu and Lisa Zhu Report No.: RSZ05111602 Test Date: December 8-13, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Audex Telecom Industrial Co., Ltd. FCC ID: P68ADB2383188 Report # RSZ05111602 Page 2 of 35 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 §15.205, §15.209, §15.247 - RADIATED EMISSION .................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 §15.247(a)(1)-CHANNEL SEPARATION TEST .....................................................................................................15 A PPLICABLE S TANDARD ............................................................................................................................................15 T EST E QUIPMENT L IST AND D ETAILS .........................................................................................................................15 TEST PROCEDURE......................................................................................................................................................15 TEST DATA................................................................................................................................................................15 §15.247(a)(1) –20dB BANDWIDTH TESTING ........................................................................................................19 APPLICABLE STANDARD.......................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View (30 MHz-1 GHz) Radiated Emission - Rear View (30 MHz-1 GHz) Radiated Emission - Front View (Above 1 GHz) Radiated Emission - Rear View (Above 1 GHz)
