P.G. TM0026AE OPERATOR'S MANUAL PCS REPEATER MODEL R231 P/N 001-0231-001 MARCH 2002 electronics RESTRICTION ON DISCLOSURE OF DATA This document contains information proprietary to P.G. Electronics and any disclosure or use of this information or any reproduction of this document for other than the specific purpose for which it is intended is expressly prohibited except as P.G. Electronics may otherwise agree in writing. P.G. TM0026AE GUARANTEE This unit is guaranteed for a period of one year from the date of shipment against failure due to defective parts or improper assembly. This guarantee is limited to replacement of defective material and does not cover damages or other costs resulting from the use of this material whether used correctly or otherwise. i P.G. TM0026AE TABLE OF CONTENTS Paragraph Page SECTION 1. GENERAL INFORMATION 1.1 INTRODUCTION 1-1 1.1.1 Scope of Manual 1-2 1.1.2 Purpose of Equipment 1-3 1.1.3 Physical Description 1-3 1.1.4 Electrical Description 1-3 1.2 TECHNICAL SUMMARY 1-3 SECTION 2. INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS 2.1 UNPACKING AND INSPECTION 2-1 2.2 INSTALLATION 2-1 2.3 OPERATING INSTRUCTIONS 2-1 ii P.G. TM0026AE LIST OF FIGURES Figure Title Page 2-1 Installation Data 2-2 LIST OF TABLES Table Title Page 1-1 Performance Characteristics and Salient Features of the 1-2 R231 PCS Repeater 1-2 Rated Power Output for Linear Operation 1-3 iii P.G. TM0026AE SECTION 1. GENERAL INFORMATION 1.1 INTRODUCTION 1.1.1 Scope of Manual. - This manual is intended to familiarize personnel installing the R231 PCS Repeater with all pertinent aspects of the amplifier. Included in this manual are a brief physical description, a technical summary, installation and operating data. 1.1.2 Purpose of Equipment. - The R231 Repeater is used as a drop-in booster for PCS signals. It will simultaneously amplify signals in the PCS transmit band in one direction and the PCS receive band in the opposite direction. A typical use of the R231 is to provide PCS phone coverage in enclosed areas. 1.1.3 Physical Description. - The unit, shown in Figure 3-1, is designed to be mounted on a flat surface. The unit has two N connectors for antenna connections. Four color coded indicators provide visual display of the unit's operating status. 1.1.4 Electrical Description. - The unit provides approximately 43 dB of gain for signals in the 1850 - 1910 MHz band in the direction of J1 to J2 (distribution to base) and the same amount of gain for signal in the 1930 - 1990 MHz band in the opposite direction (J2 to J1). 1.1.4.1. - An AC-DC external power source is used to provide power via a power jack on the unit. 1.1.4.2. - The unit monitors bias conditions of all active devices in the RF path. Under normal operating condition the green indicators will be on. If one of these devices draws more or less than a predetermined limit then a red indicator will go on. 1.2 TECHNICAL SUMMARY The power requirements, performance characteristics and dimensions and weight of the R231 Repeater are summarized in Table 1-1. 1-1 P.G. TM0026AE TABLE 1-1. Performance Characteristics and Salient Features of the R231 PCS Repeater Parameter Specification 1. Input Power: 15 to 32 VDC @ 500 mA Max. 2. Frequency Range: - Base Receive (Uplink) 1851MHz to 1909 MHz - Base Transmit (Downlink) 1931 MHz to 1989 MHz 3. Rated RF Input: -32 dBm Maximum (single channel) Note: The following specifications apply in both directions 4. Gain: 43 dB ±3 dB 5. Impedance (Input and Output): 50 Ohms 6. VSWR: 2:1 Typical 7. Rated Output Power: +12 dBm Typical (1 signal) 8. 3 rd Order Output IP: +30 dBm Typical 9. Environmental Limits (a) Ambient Temperature Range: -30°C to 60°C Operating (b) Ambient Relative Humidity: Up to 90% 10. Dimensions: (a) Enclosure Dimensions: 10” L x 9.1” W x 2” H 254.0mm L x 231.6mm W x 50.8mm H (b) Mounting Holes Dimensions: 8.4” x 8.0” (213.4mm x 203.2mm) (c) Weight: 2.0 Lbs (0.9 Kg) 11. Connections: RF Input/Output: Type N Female DC Supply: DC Power Jack NOTE: Specifications apply only across the customer’s actual bands, not across the whole PCS spectrum. 1-2 P.G. TM0026AE NOTE IMPORTANT RATING INFORMATION Manufacturer’s rated output power of this equipment if for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced as per Table 1-2, especially where the output signal is re-radiated and can cause interference to adjacent band users. This output power reduction is to be achieved by reduction of input power. TABLE 1-2 Rated Power Output for Linear Operation (for intermodulation products 50 dB down) The Total Composite output power in multiple tone or wideband signals shall NOT exceed the following level or else it may result in improper operation of the device and cause interference. Parameter Specification Base Transmit (Downlink) Power: +6 dBm Portable Transmit (Uplink) Power: +6 dBm 1-3 P.G. TM0026AE SECTION 2. INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS 2.1 UNPACKING AND INSPECTION The following checks are recommended after receipt of the equipment from shipping agent: 1. Check for any external damage that could have occurred in transit. If damage is found, report to the shipping agent and to the supplier immediately. 2. Check that all items on the packing slip are present. If any are missing, report to the supplier immediately. 2.2 INSTALLATION The Repeater is designed for mounting on a flat surface. The unit can be mounted in any orientation as desired although it is practical to select a mounting position which allows the indicators to be seen. Proceed as follows: 1. Locate a suitable mounting location, allow a clearance of at least 5 inches (13 cm) to route mating cable and connectors to the unit. Drill four pilot holes on a 8.4 x 8 inch center for No.10 fasteners. 2. Connect J2, "BASE ANTENNA" to the cable leading to the base antenna. 3. Connect J1, "DISTRIBUTION ANTENNA" to the cable leading to the distribution antenna(s). 4. Co…

Text truncated - open the document above for the full version.

UltraTech Group of La bs February 27, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Type Acceptance Application under FCC CFR 47, Parts 2 and 24 (Subpart E) – Broadband Personal Communications Services in the Frequency Band 1850 - 1910 MHz (uplink) and 1930-1990 MHz (downlink). Product: PCS Repeater Model: R231 FCC ID: P6T1901 Dear Sir/Madam, As appointed agent for P.G. Electronics Ltd., we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to the FCC OET website for detailed information. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.: 1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/MT Encl. 31040/SIT A96/TH/0093 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

P. G. Electronics FCC ID: P6T1901 P6T1901CL2 March 11, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: P. G. Electronics Product: PCS Repeater Model: R231 FCC ID: P6T1901 Dear Sir/Madam, We, P. G. Electronics, would like to request that the following documents, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials that would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No. Description 1 Schematics 2 Parts List 3 Operational Description 4 Block Diagram If you have any queries, please do not hesitate to contact us by our number: OUR TELEPHONE NO.: 416-741-7682 Yours truly, P. G. Electronics Ltd. Gerry Graham, P. Eng President P. G. Electronics 800 Arrow Road, Unit 8 Toronto, Ontario M9M 2Z8 Canada

P. G. Electronics FCC ID: P6T1901 P6T1901CL1 March 11, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: P. G. Electronics Product: PCS Repeater Model: R231 FCC ID: P6T1901 Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required. Regards P. G. Electronics Ltd. Gerry Graham, P. Eng President P. G. Electronics 800 Arrow Road, Unit 8 Toronto, Ontario M9M 2Z8 Canada

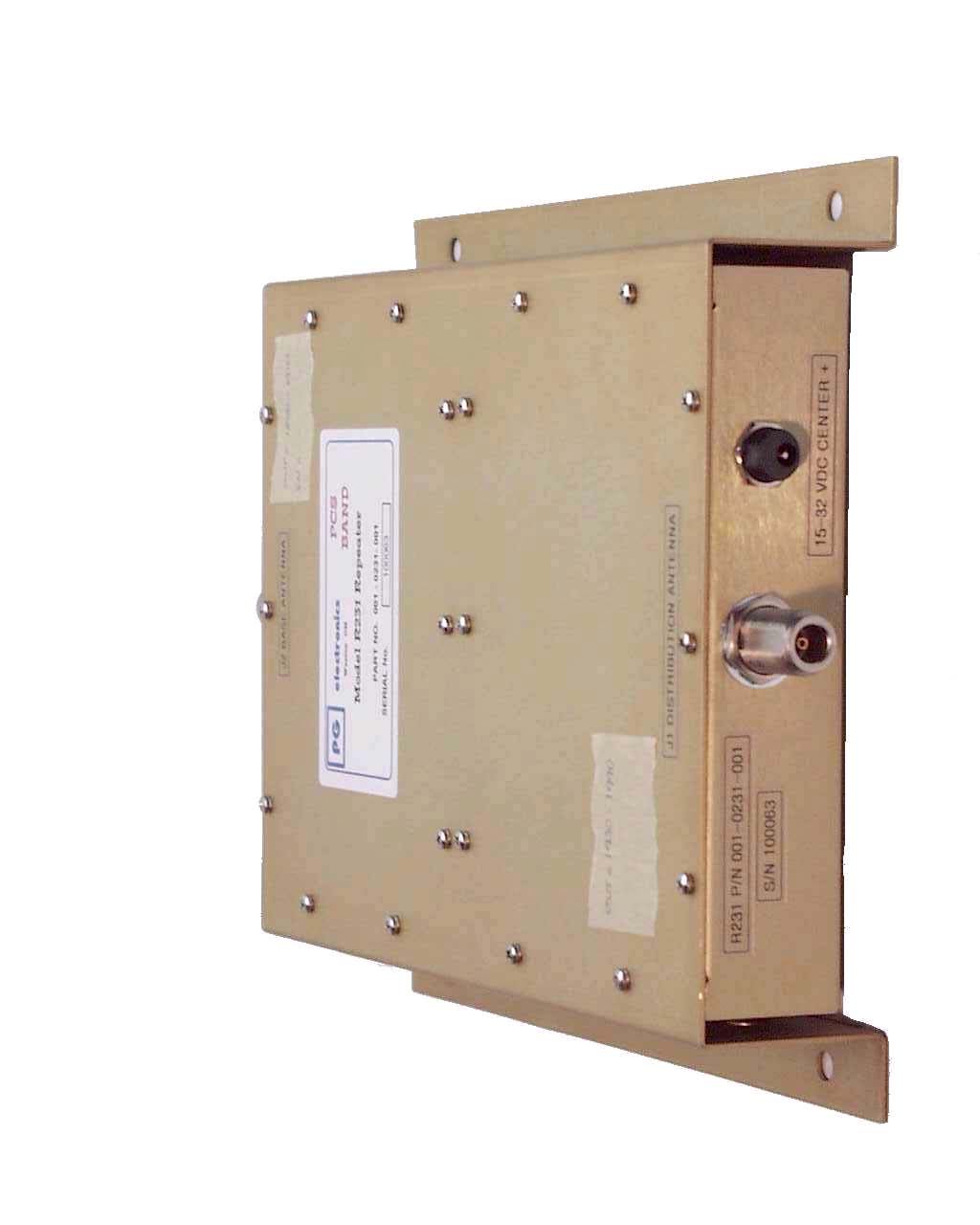

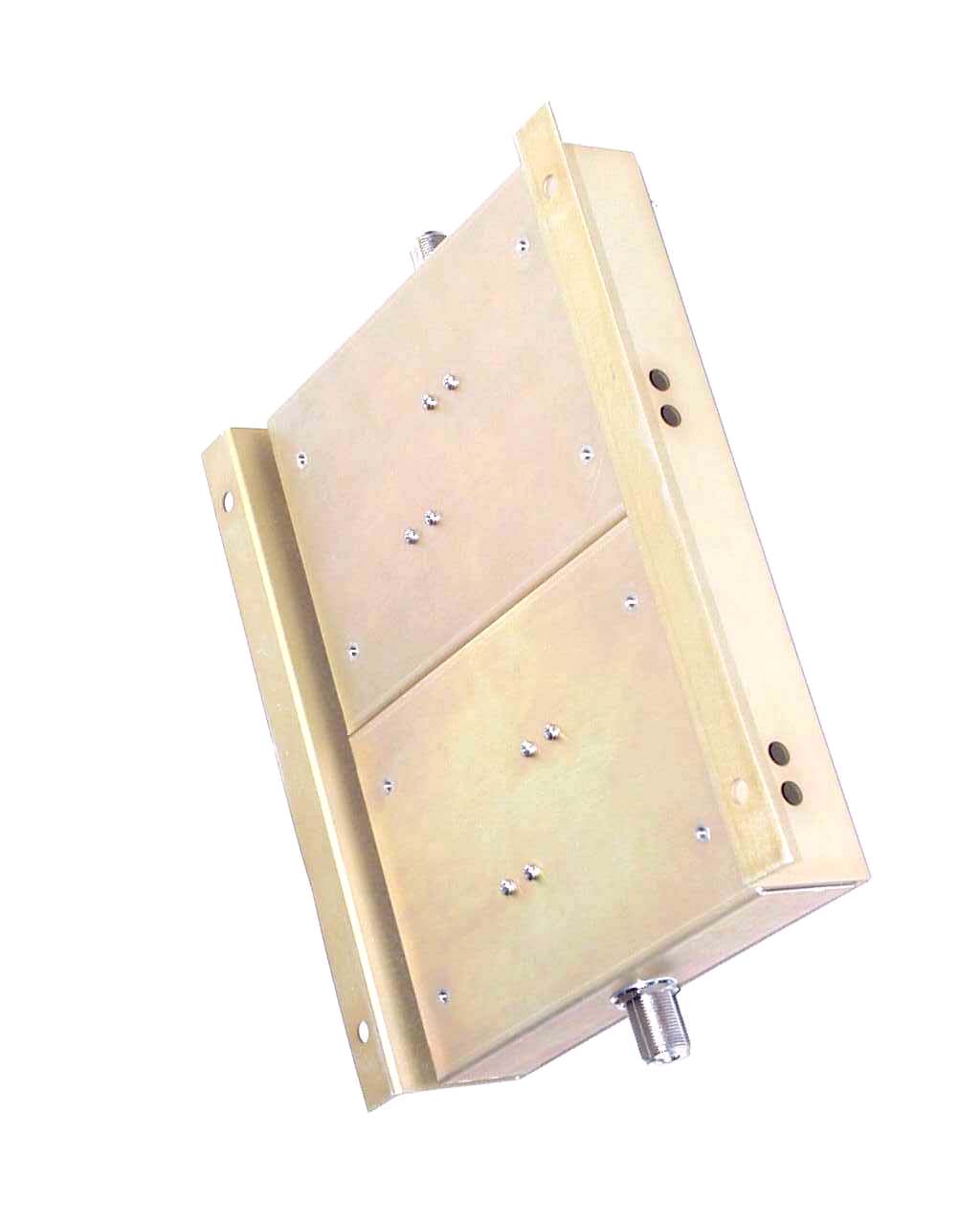

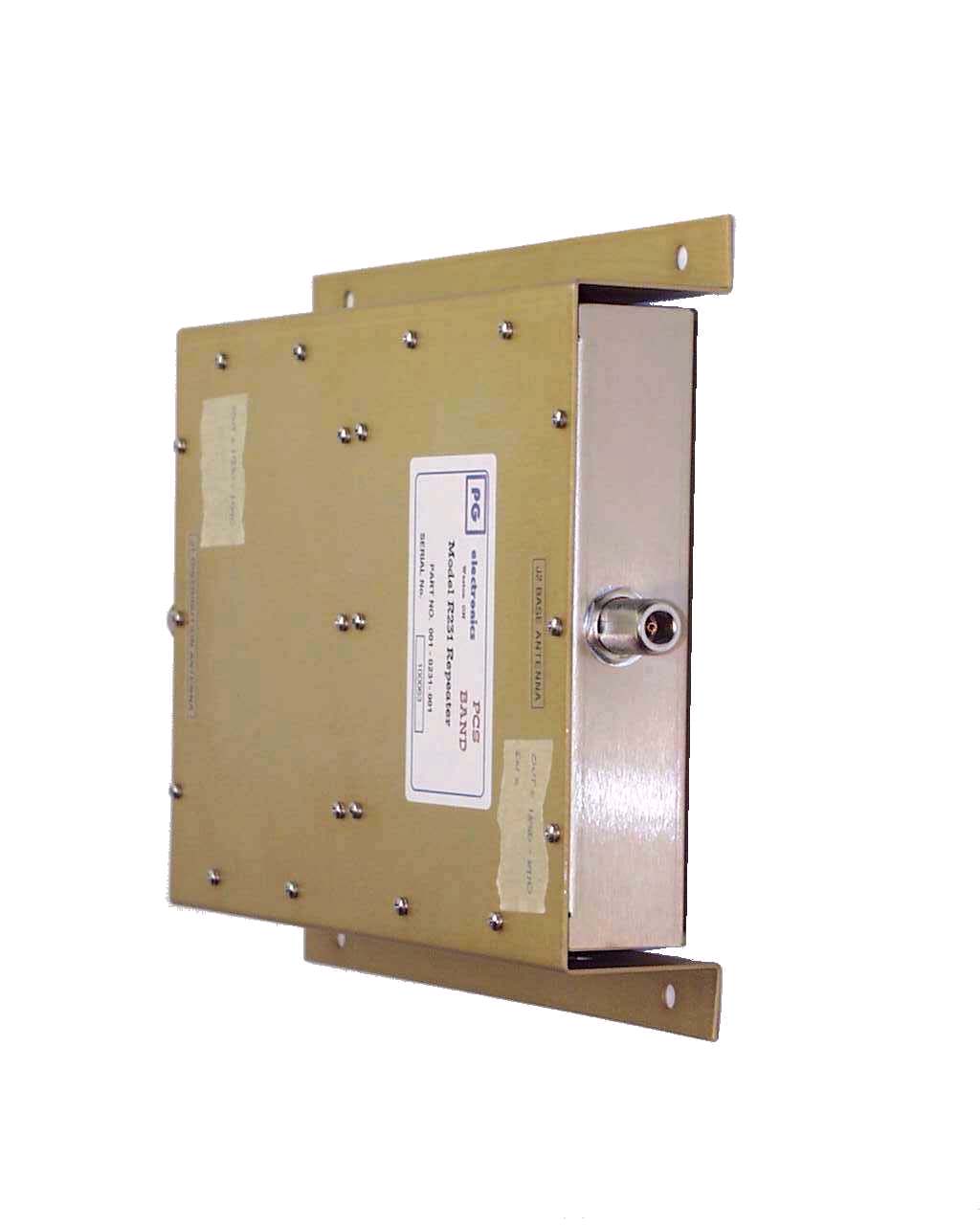

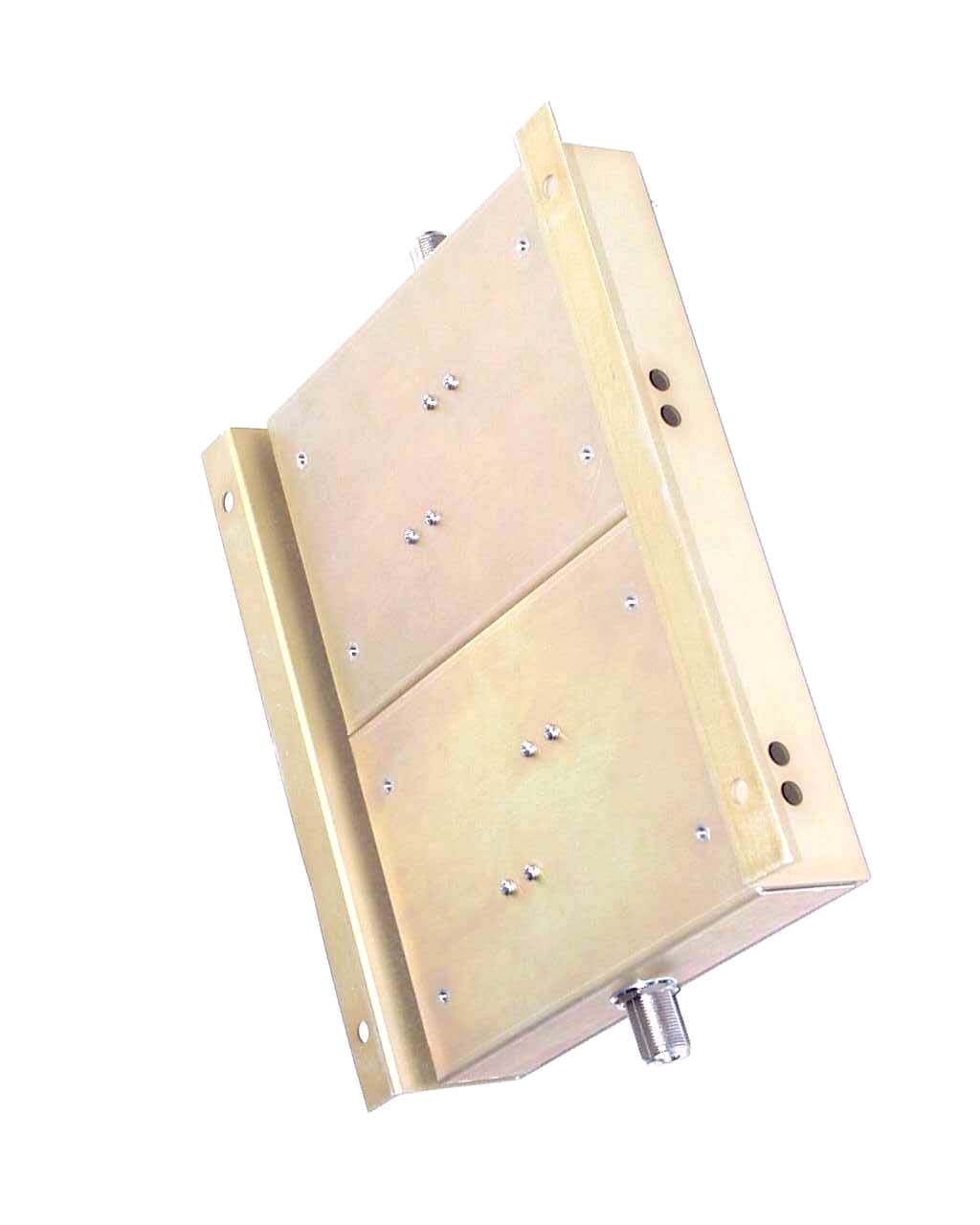

ANNEX 3 – EXTERNAL PHOTOGRAPHS OF EUT FCC ID: P6T1901 PG ELECTRONICS LIMITED PCS REPEATER, MODEL R231 PHOTO #1 ¾ FRONT VIEW ANNEX 3 – EXTERNAL PHOTOGRAPHS OF EUT FCC ID: P6T1901 PG ELECTRONICS LIMITED PCS REPEATER, MODEL R231 PHOTO #2 ¾ REAR VIEW ANNEX 3 – EXTERNAL PHOTOGRAPHS OF EUT FCC ID: P6T1901 PG ELECTRONICS LIMITED PCS REPEATER, MODEL R231 PHOTO #3 FRONT VIEW OF J2 BASE ANTENNA ANNEX 3 – EXTERNAL PHOTOGRAPHS OF EUT FCC ID: P6T1901 PG ELECTRONICS LIMITED PCS REPEATER, MODEL R231 PHOTO #4 FRONT VIEW OF J1 DISTRIBUTION ANTENNA AND DC JACK
