P7QRM-980VCellular Telephone

USER GUIDE VERSION 2.0 Contents Introduction5 Your Signature Touch phone5 Help and support5 Safety6 Safety6 Your phone7 Package contents7 Featuresand keys7 Antenna locations9 Headset9 Change the volume10 Getting started11 Insert the SIM card11 Charge the phone12 Switch the phone on or off13 Touch screen actions14 Start-up process15 Use your phone when it islocked16 Explore17 About the home screen17 Statusand notification bar17 Statusand notification icons18 Clockwidget19 Back, home and recent apps19 Add widgetsto the home screen19 Favouritestray20 Aeroplane mode20 Voice actions20 Apps21 About apps21 Recommended apps21 Google Play™21 Appsprecautionaryadvice22 Update apps22 Manage and restore apps22 Close apps22 Uninstallapps23 Vertu Services24 About Vertu Services 24 Text entry26 Keyboard entry26 Predictive text26 Gesture typing27 Dictionaries27 Change the keyboard language27 Calls28 About calls28 Make and answer calls28 Callthe last number dialled29 Quicklycallyour favourites29 Listen to your voicemail29 Divert callsto another number30 Make a conference call30 Contacts31 About contacts31 Call, text or emailcontacts31 Add contacts32 Join contacts32 Edit or delete a contact32 Save a number from a callor message32 Markcontactsasfavourites33 Personalise contacts33 Transfer contacts33 Messaging and email35 About messaging35 Send and read messages35 Send a message to a group35 Instant messages35 Manage messages36 Corporate emailsetup36 Google mailsetup36 Personalemailsetup37 Music38 About music38 Adding songsor albumsto PlayMusic38 Playmusic39 Contents © 2014 Vertu Corporation Limited. Allrightsreserved.2 Maps and navigation41 Google Maps™ 41 Google Maps™with Navigation beta41 Personalising your phone42 Widgets42 Shortcuts42 Ringtones42 Wallpapers43 Assign soundsto actions43 Displaysettings43 Auto-rotate43 Screen lock44 Date and time settings44 Language and region settings44 Social networks45 Add an account45 Delete an account45 Synchronise contacts45 Managing accounts46 Configure syncoptions46 Add and delete accounts46 Backup and restore accounts46 Browser47 About the web browser47 Browse the web47 Connect to the internet48 Add a bookmark48 Widget feeds48 Privacyand security48 Downloads49 Camera50 About camera50 Take and share photos50 Camera settings51 Record and share a video51 Video settings52 Gallery53 About gallery53 View and edit photosand videos53 Share photosand videos53 View an album 53 Create a folder54 Assign contact imagesand wallpaper54 Take a screen shot54 Office tools55 Clock55 Calculator55 Calendar55 Connectivity57 Wi-Fi57 Bluetooth57 Location services58 Set your phone to syncwith your computer59 Copybetween the phone and a PC59 Tethering and portable hotspot59 NFC60 Phone management61 System update61 Free up phone memory61 Optimise data usage61 Data roaming settings62 Backup and restore your phone62 Set your phone to lockautomatically62 Change your PIN code62 Accesscodes63 Master reset63 Tips and tricks64 Generaltips64 Extend batterylife65 FAQs66 Questions66 How can I extend the batterylife of my phone?66 Do I need a Google™account to use my phone?67 How can I reduce mydata costs, especiallywhen abroad?67 Contents © 2014 Vertu Corporation Limited. Allrightsreserved.3 How do I transfer musicfrom my computer to myphone?68 How can I listen to myiTunesmusic libraryon myphone? 68 How do I setup an emailaccount on my phone?69 How do I transfer contactsto myphone?69 How do I transfer photosfrom myphone to mycomputer?70 How do I set mymusicasringtone?71 How do I change the font size on my phone?71 How do I checkif I have the latest software updateson myphone?71 Whyhave I got no connectivity?71 Whyismyinternalstorage lessthan advertised?72 How do I protect myphone from unauthorised use?72 How do I find the IMEI number of my phone?72 How can I clear the log of mycallsor the list of people I have contacted frequently?72 Whydoesmyphone get warm?72 How do I know how much storage I have on myphone?72 How do I set a photo asmywallpaper?72 Can I stilluse Google Maps if I do not have a data connection?73 Accessories74 Batterycharger74 Data cable74 Wired stereo headset75 Specifications76 Specifications76 Care of your phone78 Generalcare78 Embroidery78 Exoticleathers79 Leather79 Non-preciousmetals79 Preciousmetals 79 Preciousstones80 Sapphire and ceramics80 Safety and warranty81 Safetytext81 Additionalcare and maintenance85 Manufacturer'sLimited Warranty86 Software application noticesfor the phone89 Environmental91 Export and controls92 Copyright and trademarknotices92 SAR (SpecificAbsorption Rate) notice - RM-980V93 Declaration of Conformity94 Contents © 2014 Vertu Corporation Limited. Allrightsreserved.4 Introduction Your Signature Touch phone Thisuser guide isintended to provide you with detailson how to use the prominent featureson your Signature Touch. To accessthe exclusive privilegesand benefitssuch asVertu Life, Vertu Concierge, and Vertu Certainty, you must register your phone. The picturesused in thisuser guide are provided for illustration purposesonly. Theymaydiffer from the exact appearance of your Signature Touch. Help and support To find out more about using your phone: l Contact Vertu Customer Service byeither pressing the Vertu keyor through the Vertu Certainty app. l Refer to the user guide on your phone from the Vertu Certaintyapp, or on the Vertu website at http://www.vertu.com/help-and-support/user-guides-and-downloads.aspx. l Use the setup wizardsavailable on the phone to help you with registration to create an email account. Compliance information You can find compliance information on a retractable metalflap that islocated in the SIM compartment. For instructionson accessing the SIM compartment, see "Insert the SIM card" on page 11. The information displayed includesthe IMEI number, serialnumber, product name and 2D barcode. Introduction © 2014 Vertu Corporation Limited. Allrightsreserved.5 Safety Safety Read these simple guidelines. Not following them maybe dangerousor …

Text truncated - open the document above for the full version.

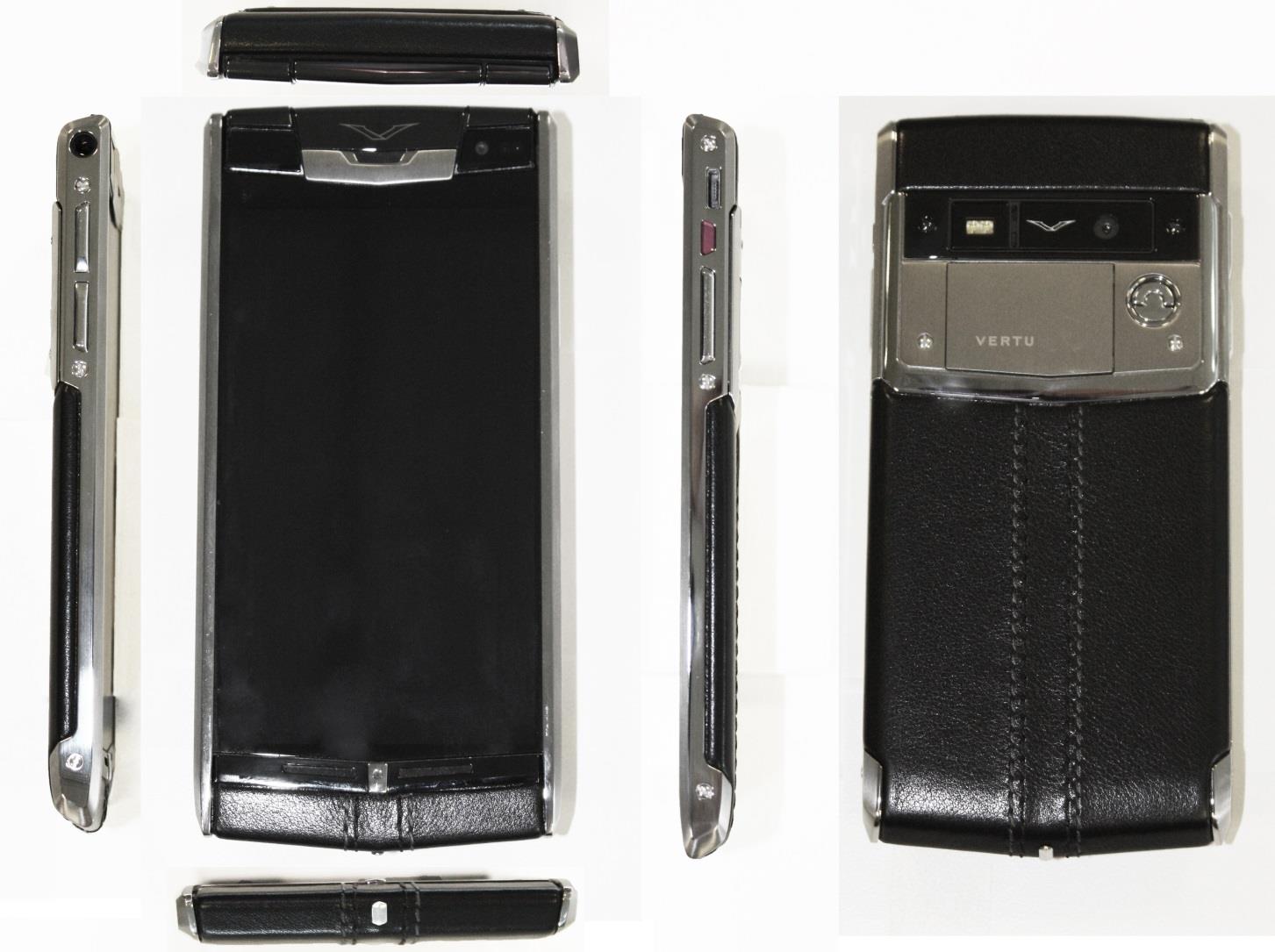

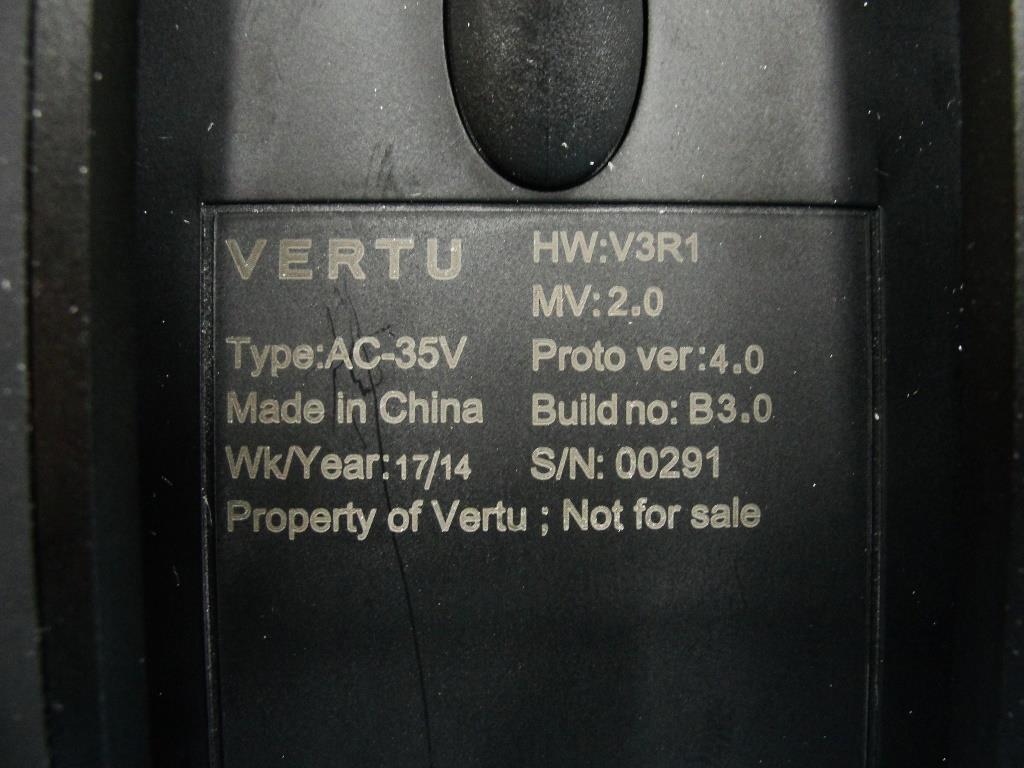

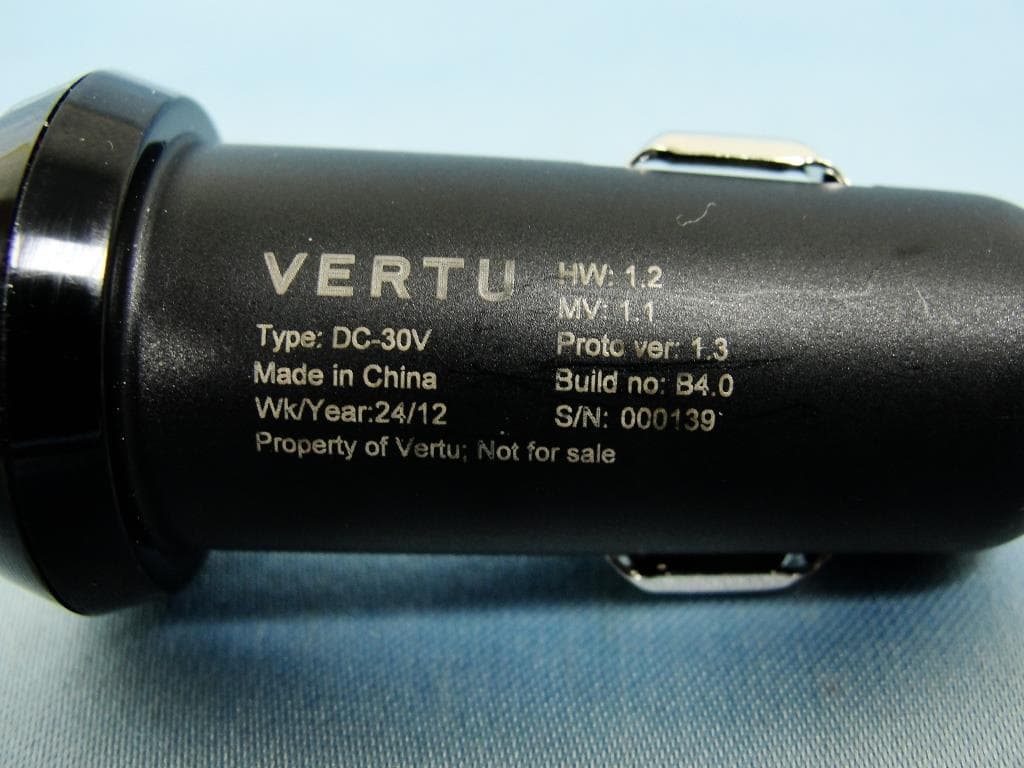

Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 1 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 2 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Specification of Accessory AC Adapter Brand Name VERTU Model Name AC-32V Car Charger Brand Name VERTU Model Name DC-30V Battery Brand Name VERTU Model Name BP-9V Earphone 1 Brand Name VERTU Model Name WH-4V Earphone 2 Brand Name VERTU Model Name WH-5V USB Cable Brand Name VERTU Model Name CA-225DV Portable Power Charger Brand Name VERTU Model Name DC-15V Wireless Charger Brand Name VERTU Model Name AC-35V Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 3 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 720510 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 4 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 AC Adapter Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 5 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Battery Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 6 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Car Charger Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 7 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Portable Power Charger Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 8 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 720510 Wireless Charger Remark: The Wireless charger (Type: AC-35V) is not part of the application for FCC ID: P7QRM-980V/ IC: 4299A-RM980V certification. Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 9 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02

Back of the Devcie Cover of SIM card slot The label locates on the front and back surface of SIM slot cover and it is visible to the users as they open the cover to install the SIM card.

Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 10 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 11 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Sample 1 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 12 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 13 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 14 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 15 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 16 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 17 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 18 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 19 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 20 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 21 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 22 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 23 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 24 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 25 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 26 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 27 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 28 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 29 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 30 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC : 4299A-RM980V Report Version : Rev. 02 Remark : For Sample 2, only show the difference part with sample 1 Sample 2 Photographs of EUT Report No.: EP430314 Brand Name: VERTU / Model Name: RM-980V SPORTON INTERNATIONAL INC. Page Number : 31 of 44 TEL : 886-3-327-3456 Report Issued Date : May 29, 2014 FAX : 886-3-328-4978 FCC ID : P7QRM-980V IC …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page 1 of 78 Issued Date : May 23, 2014 TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Form version. : FAA140305 FCC ID : P7QRM-980V FCC SAR Test Report Report No. : FA430314 FCC SAR Test Report APPLICANT : VERTU Corporation Limited BRAND NAME : VERTU MODEL NAME : SIGNATURE TOUCH EQUIPMENT : Cellular Telephone TYPE NAME OF LTE : RM-980V TYPE NAME OF WCDMA : RM-980C FCC ID : P7QRM-980V STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page 2 of 78 Issued Date : May 23, 2014 TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Form version. : FAA140305 FCC ID : P7QRM-980V FCC SAR Test Report Report No. : FA430314 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Maximum Tune-up Limit ......................................................................................................................................... 8 4.3 General LTE SAR Test and Reporting Considerations ..........................................................................................13 5. RF Exposure Limits......................................................................................................................................................15 5.1 Uncontrolled Environment .....................................................................................................................................15 5.2 Controlled Environment .........................................................................................................................................15 6. Specific Absorption Rate (SAR) ..................................................................................................................................16 6.1 Introduction ...........................................................................................................................................................16 6.2 SAR Definition .......................................................................................................................................................16 7. System Description and Setup ...................................................................................................................................17 8. Measurement Procedures ...........................................................................................................................................18 8.1 Spatial Peak SAR Evaluation ................................................................................................................................18 8.2 Power Reference Measurement............................................................................................................................19 8.3 Area Scan .............................................................................................................................................................19 8.4 Zoom Scan ............................................................................................................................................................20 8.5 Volume Scan Procedures ......................................................................................................................................20 8.6 Power Drift Monitoring ...........................................................................................................................................20 9. Test Equipment List .....................................................................................................................................................21 10. System Verification ....................................................................................................................................................22 10.1 Tissue Verification ...............................................................................................................................................22 10.2 System Performance Check Results ...................................................................................................................24 11. RF Exposure Positions ..............................................................................................................................................25 11.1 Ear and handset reference point .........................................................................................................................25 11.2 Definition of the cheek position ............................................................................................................................26 11.3 D…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/26 System Check_Head_750MHz_140326 DUT: D750V3-1099 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_131205 Medium parameters used: f = 750 MHz; σ = 0.885 S/m; ε r = 40.799; ρ = 1000 kg/m 3 23.7 22.7 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(10.24, 10.24, 10.24); Calibrated: 2013/11/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: SAM Left; Type: QD000P40CD; Serial: S/N:1796 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.44 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.257 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 2.84 W/kg SAR(1 g) = 1.99 W/kg; SAR(10 g) = 1.35 W/kg Maximum value of SAR (measured) = 2.46 W/kg 0 dB = 2.46 W/kg = 3.91 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/23 System Check_Body_750MHz_140323 DUT: D750V3-1099 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_140323 Medium parameters used: f = 750 MHz; σ = 0.97 S/m; ε r = 54.633; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.24, 10.24, 10.24); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: SAM Left; Type: QD000P40CD; Serial: S/N:1796 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.71 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.629 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.17 W/kg SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 2.74 W/kg 0 dB = 2.74 W/kg = 4.38 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/7 System Check_Body_750MHz_140407 DUT: D750V3-1099 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_140407 Medium parameters used: f = 750 MHz; σ = 0.966 S/m; ε r = 53.934; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.24, 10.24, 10.24); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: SAM Left; Type: QD000P40CD; Serial: S/N:1796 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.70 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.629 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.15 W/kg SAR(1 g) = 2.2 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.72 W/kg 0 dB = 2.72 W/kg = 4.35 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/25 System Check_Head_835MHz_140325 DUT: D835V2-4d162 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_140325 Medium parameters used: f = 835 MHz; σ = 0.893 S/m; ε r = 40.876; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(9.86, 9.86, 9.86); Calibrated: 2013/12/23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: SAM Left; Type: QD000P40CD; Serial: S/N:1796 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.73 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.322 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.52 W/kg; SAR(10 g) = 1.67 W/kg Maximum value of SAR (measured) = 3.19 W/kg 0 dB = 3.19 W/kg = 5.04 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/20 System Check_Body_835MHz_140320 DUT: D835V2-4d162 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_140320 Medium parameters used: f = 835 MHz; σ = 0.981 S/m; ε r = 55.337; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.08, 6.08, 6.08); Calibrated: 2013/9/24; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2013/8/21 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (6);SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.90 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.223 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.47 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.89 W/kg 0 dB = 2.89 W/kg = 4.61 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/7 System Check_Body_835MHz_140407 DUT: D835V2-4d162 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_140407 Medium parameters used: f = 835 MHz; σ = 0.965 S/m; ε r = 54.468; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.02, 10.02, 10.02); Calibrated: 2013/6/12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2013/5/8 - Phantom: SAM Right; Type: QD000P40CC; Serial: TP:1383 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configurati…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/25 #01_GSM 850_GPRS (4 Tx slots)_Right Cheek_Ch251 Communication System: GSM850 ; Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_140325 Medium parameters used: f = 849 MHz; σ = 0.908 S/m; ε r = 40.696; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(9.86, 9.86, 9.86); Calibrated: 2013/12/23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: SAM Left; Type: QD000P40CD; Serial: S/N:1796 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch251/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.220 W/kg Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.493 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.257 W/kg SAR(1 g) = 0.186 W/kg; SAR(10 g) = 0.139 W/kg Maximum value of SAR (measured) = 0.218 W/kg 0 dB = 0.218 W/kg = -6.62 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/24 #02_GSM 1900_DTM Multi-slot class 11_Left Cheek_Ch810 Communication System: PCS ; Frequency: 1909.8 MHz;Duty Cycle: 1:2.77 Medium: HSL_1900_140324 Medium parameters used: f = 1910 MHz; σ = 1.438 S/m; ε r = 39.178; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(8.23, 8.23, 8.23); Calibrated: 2013/12/23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: SAM RIGHT; Type: SAM; Serial: 1801 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch810/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.257 W/kg Configuration/Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.988 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.328 W/kg SAR(1 g) = 0.207 W/kg; SAR(10 g) = 0.127 W/kg Maximum value of SAR (measured) = 0.271 W/kg 0 dB = 0.271 W/kg = -5.67 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/3/25 #03_WCDMA V_RMC 12.2Kbps_Left Cheek_Ch4182 Communication System: WCDMA ; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_850_140325 Medium parameters used: f = 836.4 MHz; σ = 0.894 S/m; ε r = 40.859; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(9.86, 9.86, 9.86); Calibrated: 2013/12/23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: …

Text truncated - open the document above for the full version.
