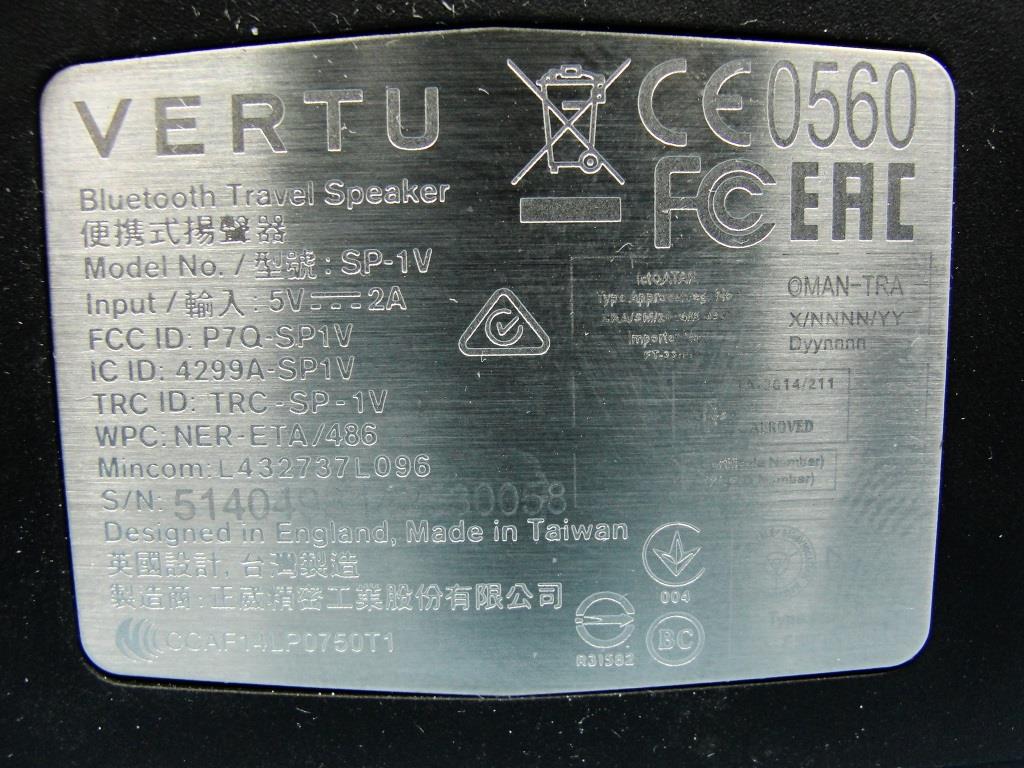

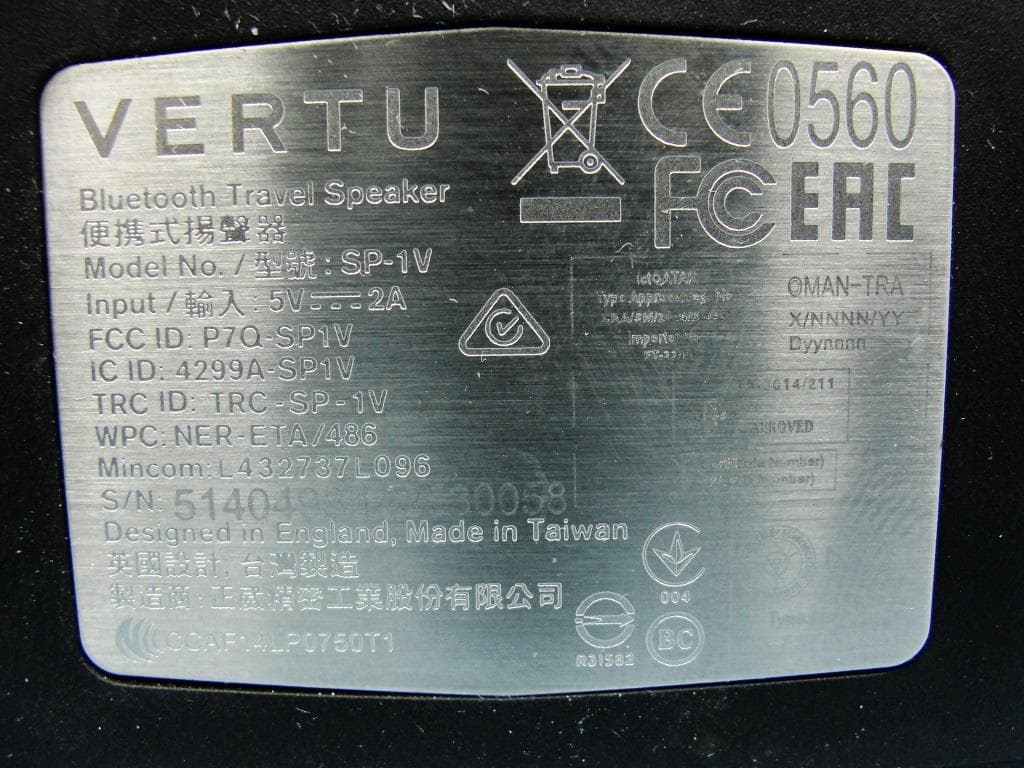

Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 1 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 2 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 Specification of Accessory AC Adapter Brand Name VERTU Model Name AC-32V Car Charger Brand Name VERTU Model Name DC-30V Battery Brand Name VERTU Model Name BP-9V USB Cable Brand Name VERTU Model Name CA-225DV Earphone 1 Brand Name VERTU Model Name WH-4V Earphone 2 Brand Name VERTU Model Name WH-5V Earphone 3 Brand Name VERTU Model Name HP-1V Portable Power Charger Brand Name VERTU Model Name DC-15V Wireless charger Brand Name VERTU Model Name AC-35V Wireless Speaker Brand Name VERTU Model Name SP-1V Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 3 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 4 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 AC Adapter Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 5 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Car Charger Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 6 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Battery Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 7 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 8 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Portable Power Charger Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 9 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 Remark: The Wireless charger (Type: AC-35V) is not part of the application for FCC ID: P7QVM-01/ IC: 4299A-VM01 certification. 720510 Wireless Charger Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 10 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 11 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 12 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Wireless Speaker

Label is inside of the open backplate Back of the device

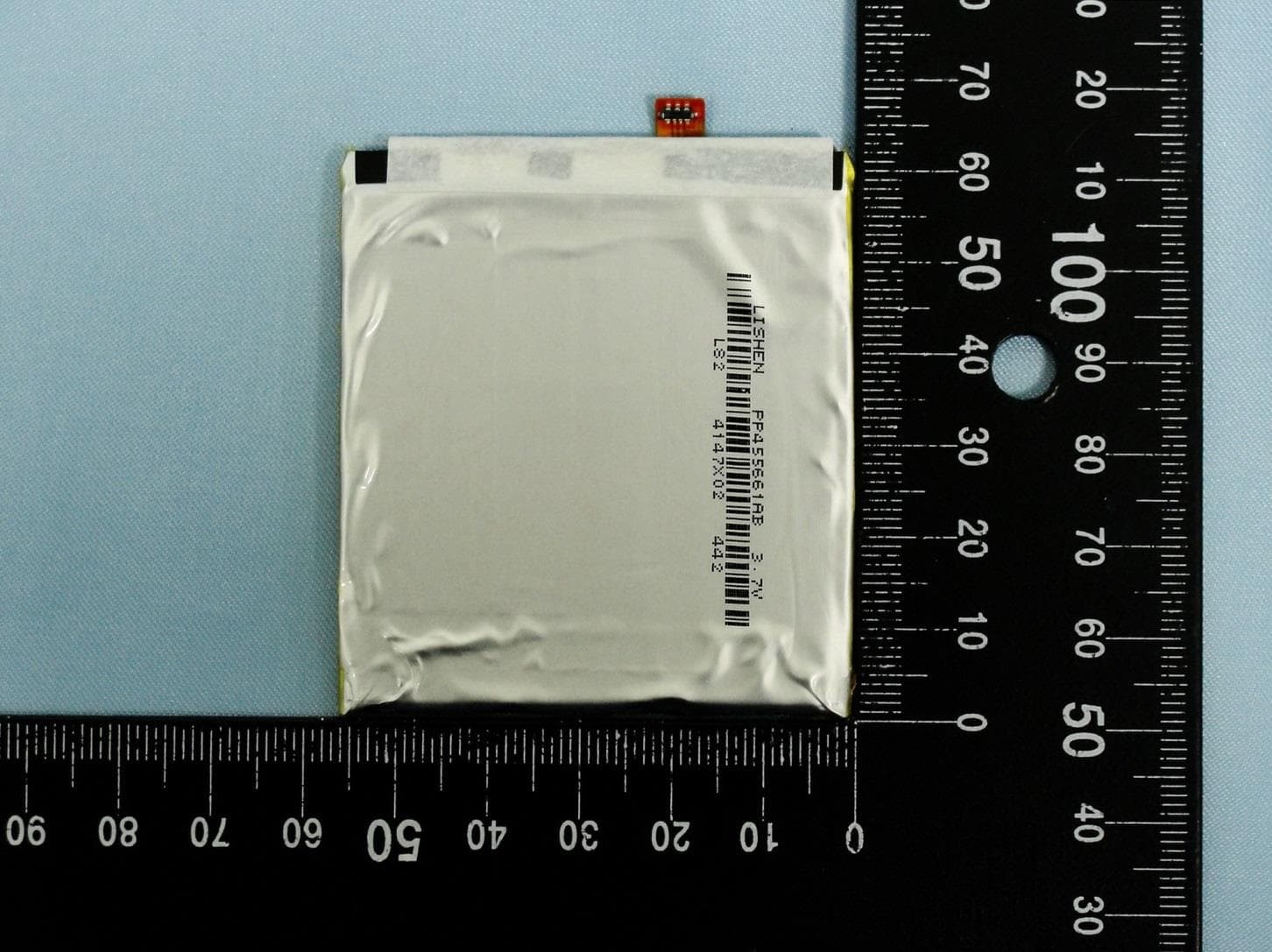

Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 13 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 14 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 15 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 16 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 17 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 18 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 19 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 20 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 21 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 22 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 23 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 24 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 25 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 26 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 27 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 28 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 29 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 30 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 31 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photographs of EUT Report No.: EP462340 Brand Name: VERTU / Model Name: ASTER / Type (LTE): VM-01 / Type (WCDMA): VM-01C SPORTON INTERNATIONAL INC. Page Number : 32 of 42 TEL : 886-3-327-3456 Report Issued Date : Aug. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-01 720510 Photograph…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jul. 30, 2014 FCC ID : P7QVM-01 Page 1 of 71 Form version. : 140422 FCC SAR Test Report Report No. : FA462340 FCC SAR Test Report APPLICANT : VERTU Corporation Limited EQUIPMENT : Cellular Telephone BRAND NAME : VERTU MODEL NAME : ASTER TYPE NAME of LTE : VM-01 TYPE NAME of WCDMA : VM-01C FCC ID : P7QVM-01 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jul. 30, 2014 FCC ID : P7QVM-01 Page 2 of 71 Form version. : 140422 FCC SAR Test Report Report No. : FA462340 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Maximum Tune-up Limit ......................................................................................................................................... 7 4.3 General LTE SAR Test and Reporting Considerations ..........................................................................................12 5. RF Exposure Limits......................................................................................................................................................14 5.1 Uncontrolled Environment .....................................................................................................................................14 5.2 Controlled Environment .........................................................................................................................................14 6. Specific Absorption Rate (SAR) ..................................................................................................................................15 6.1 Introduction ...........................................................................................................................................................15 6.2 SAR Definition .......................................................................................................................................................15 7. System Description and Setup ...................................................................................................................................16 8. Measurement Procedures ...........................................................................................................................................17 8.1 Spatial Peak SAR Evaluation ................................................................................................................................17 8.2 Power Reference Measurement............................................................................................................................18 8.3 Area Scan .............................................................................................................................................................18 8.4 Zoom Scan ............................................................................................................................................................19 8.5 Volume Scan Procedures ......................................................................................................................................19 8.6 Power Drift Monitoring ...........................................................................................................................................19 9. Test Equipment List .....................................................................................................................................................20 10. System Verification ....................................................................................................................................................21 10.1 Tissue Verification ...............................................................................................................................................21 10.2 System Performance Check Results ...................................................................................................................23 11. RF Exposure Positions ..............................................................................................................................................24 11.1 Ear and handset reference point .........................................................................................................................24 11.2 Definition of the cheek position ............................................................................................................................25 11.3 Definition of the tilt…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/17 System Check_Head_750MHz_140717 DUT: D750V3-1012 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_140717 Medium parameters used: f = 750 MHz; σ = 0.883 S/m; ε r = 40.81; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.26, 10.26, 10.26); Calibrated: 2014/5/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2014/5/19 - Phantom: SAM_RIGHT; Type: SAM; Serial: 1801 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.49 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.30 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 2.89 W/kg SAR(1 g) = 1.98 W/kg; SAR(10 g) = 1.34 W/kg Maximum value of SAR (measured) = 2.48 W/kg 0 dB = 2.48 W/kg = 3.94 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/18 System Check_Body_750MHz_140718 DUT: D750V3-1012 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_140718 Medium parameters used: f = 750 MHz; σ = 0.97 S/m; ε r = 54.646; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(9.92, 9.92, 9.92); Calibrated: 2014/5/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2014/5/19 - Phantom: SAM_RIGHT; Type: SAM; Serial: 1801 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.57 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.75 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 2.97 W/kg SAR(1 g) = 2.02 W/kg; SAR(10 g) = 1.35 W/kg Maximum value of SAR (measured) = 2.53 W/kg 0 dB = 2.53 W/kg = 4.03 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/17 System Check_Head_835MHz_140717 DUT: D835V2-499 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_140717 Medium parameters used: f = 835 MHz; σ = 0.912 S/m; ε r = 40.642; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.76, 9.76, 9.76); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1425; Calibrated: 2014/3/3 - Phantom: SAM_RIGHT; Type: SAM; Serial: 1801 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.10 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.75 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 3.47 W/kg SAR(1 g) = 2.46 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 3.04 W/kg 0 dB = 3.04 W/kg = 4.83 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/17 System Check_Head_835MHz_140717 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_140717 Medium parameters used: f = 835 MHz; σ = 0.912 S/m; ε r = 40.642; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(9.87, 9.87, 9.87); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/5/15 - Phantom: SAM_RIGHT; Type: SAM; Serial: 1801 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.91 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.02 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.29 W/kg SAR(1 g) = 2.34 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.88 W/kg 0 dB = 2.88 W/kg = 4.59 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/9 System Check_Body_835MHz_140709 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_140709 Medium parameters used: f = 835 MHz; σ = 0.983 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5°C; Liquid Temperature：22.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3955; ConvF(9.81, 9.81, 9.81); Calibrated: 2013/12/23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.43 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.7 V/m; Power Drift = -0.108 dB Peak SAR (extrapolated) = 3.46 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 3.04 mW/g 0 dB = 3.04mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/9 System Check_Body_835MHz_140709 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_140709 Medium parameters used: f = 835 MHz; σ = 0.962 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：23.6°C; Liquid Temperature：22.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.61, 9.61, 9.61); Calibrated: 2013/11/4 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1425; Calibrated: 2014/3/3 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.8…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/17 #01_GSM850_GPRS (4 Tx slots)_Left Cheek_Ch251 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_140717 Medium parameters used: f = 849 MHz; σ = 0.925 S/m; ε r = 40.501; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(9.87, 9.87, 9.87); Calibrated: 2013/9/10; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/5/15 - Phantom: SAM_RIGHT; Type: SAM; Serial: 1801 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Ch251/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.302 W/kg Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.94 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.309 W/kg SAR(1 g) = 0.268 W/kg; SAR(10 g) = 0.215 W/kg Maximum value of SAR (measured) = 0.289 W/kg 0 dB = 0.289 W/kg = -5.39 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/7/15 #02_GSM1900_DTM Multi-slot class 11_Left Cheek_Ch661 Communication System: PCS; Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium: HSL_1900_140715 Medium parameters used: f = 1880 MHz; σ = 1.407 S/m; ε r = 38.133; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(5.08, 5.08, 5.08); Calibrated: 2013/9/24; - Sensor-Surface: 3mm (Mechanical Surface Detec…
