HANDMADE IN ENGLAND S I G N A T U R E T O U C H U S E R G U I D E V E R S I O N 1 . 0 Contents Introduction5 Your SignatureTouchphone5 Helpandsupport5 Safety6 Safety6 Your phone7 Packagecontents7 Featuresandkeys7 Antennalocations8 Headset9 Changethevolume9 Getting started10 InserttheSIMcard10 Accessexternalmemorycard11 Chargethephone12 Switchthephoneonor off13 Start-upprocess13 Useyour phonewhenitislocked15 Explore16 Aboutthehomescreen16 Statusandnotificationbar16 Statusandnotificationicons17 Interruptionsandprioritymode18 Notifications18 Clockwidget18 Back,homeandrecentapps19 Addwidgetstothehomescreen19 Favouritestray19 Quicksettings20 Sharingyour SignatureTouch20 Voiceactions20 Apps21 Aboutapps21 RecommendedApps21 GooglePlay™21 Appsprecautionaryadvice22 Updateapps22 Manageandrestoreapps22 Closeapps 22 Uninstallapps23 Vertu Services24 AboutVertuServices24 Text entry26 Keyboardentry26 Predictivetext26 Gesturetyping27 Dictionaries27 Changethekeyboardlanguage27 Calls28 Aboutcalls28 Makeandanswer calls28 Callrecentnumber29 CallusingSpeedDial29 Listentoyour voicemail29 Divertcallstoanother number29 Makeaconferencecall30 Contacts31 Aboutcontacts31 Call,textor emailcontacts31 Addcontacts32 Joincontacts32 Editor deleteacontact32 Saveanumber fromacallor message32 Markcontactsasfavourites33 Personalisecontacts33 Transfer contacts33 Messaging and email35 Aboutmessaging35 Sendandreadmessages35 Sendamessagetoagroup35 Instantmessages35 Managemessages36 Setupyour email36 Music37 Aboutmusic37 Addingsongsor albumstoPlayMusic37 Contents ©2015VertuCorporationLimited.Allrightsreserved.2 Playmusic38 Maps and navigation 40 GoogleMaps™40 Personalising your phone41 Widgets41 Shortcuts41 Ringtones41 Wallpapers41 Assignsoundstoactions42 Displaysettings42 Pulsenotificationlight42 Auto-rotate43 Screenlock43 Dateandtimesettings43 Languageandinputoptions43 Social networks44 Addanaccount44 Deleteanaccount44 Synchronisecontacts44 Managing accounts45 Configuresyncoptions45 Deleteaccounts45 Backupandrestoreaccounts45 Browser46 Aboutthewebbrowser46 Connecttotheinternet46 Addabookmark47 Privacyandsecurity47 Downloads47 Camera48 Aboutcamera48 Takeandsharephotos49 Camerasettings49 Recordandshareavideo49 Videosettings50 Gallery51 AboutGallery51 Viewandeditphotosandvideos51 Sharephotosandvideos51 Viewanalbum51 Createafolder 52 Assigncontactimagesandwallpaper52 Takeascreenshot52 Office tools53 Clock53 Calculator53 Calendar53 Connectivity55 Wi-Fi55 Bluetooth55 Locationservices56 Setyour phonetosyncwithyour computer56 CopybetweenthephoneandaPC57 Tetheringandportablehotspot57 NFC57 Phone management58 Systemupdate58 Freeupphonememory58 Optimisedatausage58 Dataroamingsettings59 Backupandrestoreyour phone59 Setyour phonetolockautomatically59 Changeyour PINcode59 Accesscodes59 Master reset60 Bootvalidation60 FAQs61 Questions61 HowcanIextendthebatterylifeof my phone?62 DoIneedaGoogle™accounttouse my phone?63 HowcanIreducemydatacosts, especiallywhenabroad?63 HowdoItransfer musicfrommy computer tomyphone?63 HowcanIlistentomyiTunesmusic libraryonmyphone?64 Contents ©2015VertuCorporationLimited.Allrightsreserved.3 HowdoIsetupanemailaccounton my phone?64 HowdoItransfer contactstomyphone?64 HowdoIsetmymusicasringtone? 65 HowdoIchangethefontsizeon my phone?65 HowdoIcheckifIhavethelatest softwareupdatesonmy phone?65 WhyhaveIgotnoconnectivity?65 Whyismyinternalstoragelessthan advertised?66 HowdoIprotectmyphonefrom unauthoriseduse?66 HowdoIfindtheIMEInumber of my phone?66 HowcanIclear thelogofmycallsor the listofpeopleIhavecontacted frequently?66 Whydoesmyphonegetwarm?66 HowdoIsetaphotoasmywallpaper?66 CanI stilluse GoogleMaps ifIdonot haveadataconnection?66 Accessories68 Batterycharger68 Datacable69 Wiredstereoheadset69 Specifications70 Specifications70 Care of your phone72 Generalcare72 Embroidery72 Exoticleathers73 Leather73 Non-preciousmetals73 Preciousmetals73 Preciousstones74 Sapphireandceramics74 Safety and warranty75 Safetytext75 Additionalcareandmaintenance79 Manufacturer'sLimitedWarranty80 Softwareapplicationnoticesfor the phone83 Environmental 85 Exportandcontrols86 Copyrightandtrademarknotices86 SAR(SpecificAbsorptionRate) notice- VM-0387 DeclarationofConformity88 Contents ©2015VertuCorporationLimited.Allrightsreserved.4 Introduction Your Signature Touch phone Thisuser guideisintendedtoprovideyouwithdetailsonhowtousetheprominentfeaturesonyour SignatureTouch. ToaccesstheexclusiveprivilegesandbenefitssuchasVertuLife,VertuConcierge,andVertuCertainty, youmustregister your phone. Thepicturesusedinthisuser guideareprovidedfor illustrationpurposesonly.Theymaydiffer fromthe exactappearanceofyour SignatureTouch. Help and support Tofindoutmoreaboutusingyour phone: lContactVertuCustomer Servicebyeither pressingtheVertukeyor throughtheVertuCertainty app. lRefer totheuser guideonyour phonefromtheVertuCertaintyapp,or ontheVertuwebsiteat http://www.vertu.com/gb/en/product-support/user-guides-and-downloads/. lUsethesetupwizardsavailableonthephonetohelpyouwiththingssuchasregistration,or to createanemailaccount. Compliance information YoucanfindcomplianceinformationonametalplatethatislocatedintheSIMcompartment.For instructionsonaccessingtheSIMcompartment,see"InserttheSIMcard"onpage10.Theinformation displayedincludestheIMEInumber,serialnumber,productnameand2Dbarcode. Introduction ©2015VertuCorporationLimited.Allrightsreserved.5 Safety Safety Readthesesimpleguidelines.Notfollowingthemmaybedangerousor illegal.Readthecompleteuser guidefor further information. Switch off in restricted areas Switchthedeviceoffwhenmobilephoneuseisnotallowedor whenitmaycause interferenceor danger,for example,inaircraft,inhospitalsor near medical equipment,fuel,chemicals,or blastingareas.Obeyallinstructionsinrestricted areas. Road safety comes first Obeyalllocallaws.Alwayskeepyour handsfreetooperatethevehiclewhile driving.Your firstconsiderationwhiledrivingshouldberoadsafety. Interference Allwirelessdevicesmaybesusceptibletointerference,whichcouldaffect performance. Qualified…

Text truncated - open the document above for the full version.

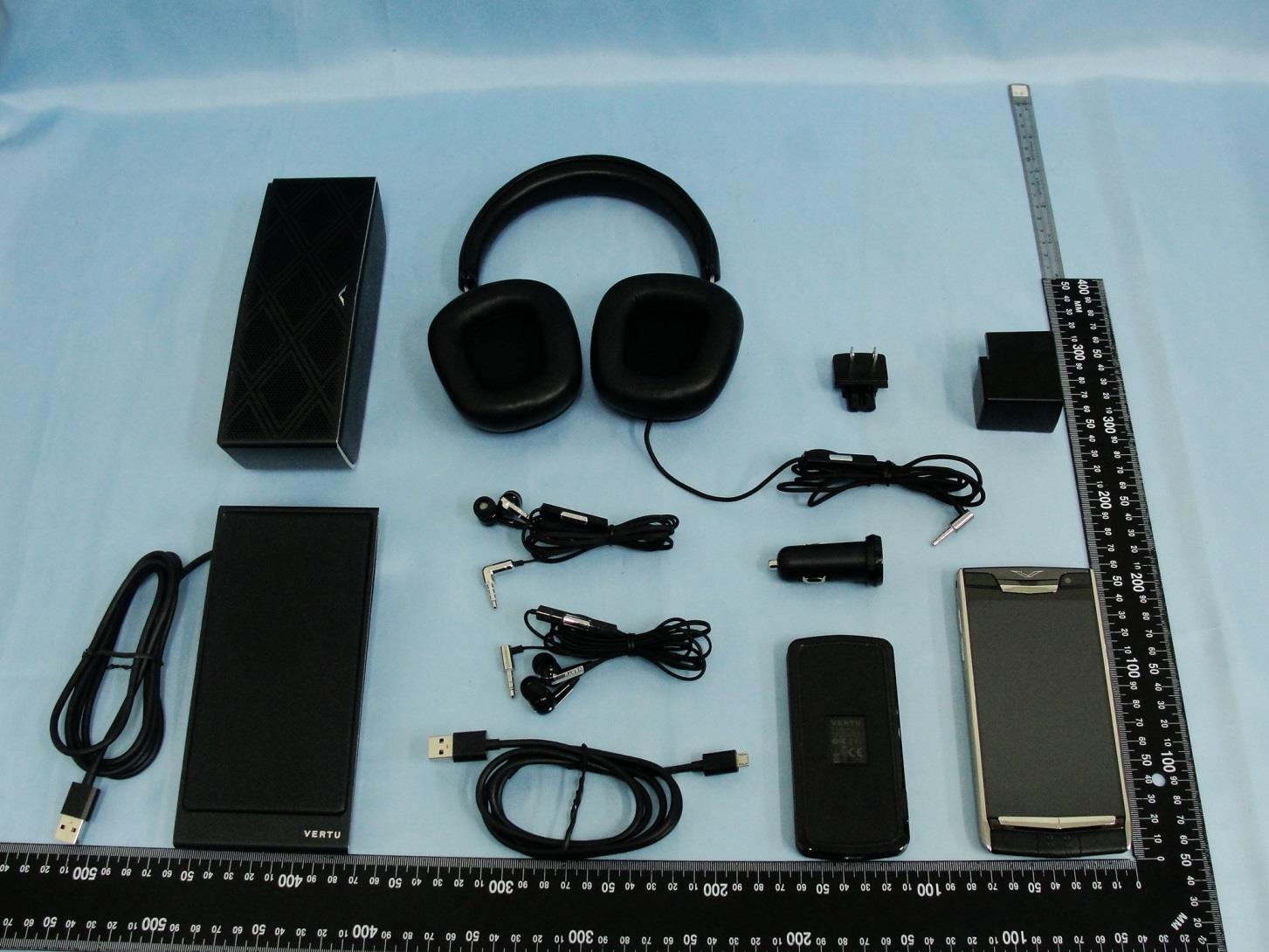

Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 Specification of Accessory AC Adapter Brand Name VERTU Model Name AC-32V Car Charger Brand Name VERTU Model Name DC-30V Battery Brand Name VERTU Model Name VBL-02 Portable Power Charger Brand Name VERTU Model Name DC-15V Earphone 1 Brand Name VERTU Model Name WH-4V Earphone 2 Brand Name VERTU Model Name WH-5V Earphone 3 Brand Name VERTU Model Name HP-1V USB Cable Brand Name VERTU Model Name CA-225DV Wireless Charger Brand Name VERTU Model Name AC-35V Wireless Speaker Brand Name VERTU Model Name SP-1V Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 3 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 4 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 AC Adapter Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 5 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Car Charger Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 6 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Battery Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 7 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Portable Power Charger Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 8 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Wireless Speaker Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 9 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Wireless Charger

Back of the Devcie Cover of SIM card slot The label locates on the front and back surface of SIM slot cover and it is visible to the users as they open the cover to install the SIM card.

Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 10 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 11 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 12 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 13 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 14 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 15 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 16 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 17 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 18 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 19 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 20 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 21 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 22 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 23 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 24 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 25 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 26 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 27 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 WWAN Antenna Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 28 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 29 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 GPS and Bluetooth and WLAN and Diversity Antenna Photographs of EUT Report No.: EP570205 Brand Name: VERTU / Model Name: SIGNATURE TOUCH / Type: VM-03 SPORTON INTERNATIONAL INC. Page Number : 30 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 27, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QVM-03 720510 Photographs of EUT Report No.: EP570205 Brand Nam…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Sep. 07, 2015 FCC ID : P7QVM-03 Page 1 of 79 Form version. : 150415 FCC SAR Test Report Report No. : FA570205 FCC SAR Test Report APPLICANT : VERTU Corporation Limited EQUIPMENT : Cellular Telephone BRAND NAME : VERTU MODEL NAME : SIGNATURE TOUCH TYPE : VM-03 FCC ID : P7QVM-03 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Sep. 07, 2015 FCC ID : P7QVM-03 Page 2 of 79 Form version. : 150415 FCC SAR Test Report Report No. : FA570205 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Maximum Tune-up Limit ......................................................................................................................................... 7 4.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 9 5. RF Exposure Limits......................................................................................................................................................11 5.1 Uncontrolled Environment ..................................................................................................................................... 11 5.2 Controlled Environment ......................................................................................................................................... 11 6. Specific Absorption Rate (SAR) ..................................................................................................................................12 6.1 Introduction ...........................................................................................................................................................12 6.2 SAR Definition .......................................................................................................................................................12 7. System Description and Setup ...................................................................................................................................13 8. Measurement Procedures ...........................................................................................................................................14 8.1 Spatial Peak SAR Evaluation ................................................................................................................................14 8.2 Power Reference Measurement............................................................................................................................15 8.3 Area Scan .............................................................................................................................................................15 8.4 Zoom Scan ............................................................................................................................................................16 8.5 Volume Scan Procedures ......................................................................................................................................16 8.6 Power Drift Monitoring ...........................................................................................................................................16 9. Test Equipment List .....................................................................................................................................................17 10. System Verification ....................................................................................................................................................18 10.1 Tissue Verification ...............................................................................................................................................18 10.2 System Performance Check Results ...................................................................................................................20 11. RF Exposure Positions ..............................................................................................................................................21 11.1 Ear and handset reference point .........................................................................................................................21 11.2 Definition of the cheek position ............................................................................................................................22 11.3 Definition of the tilt position...................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/19 System Check_Head_750MHz_150819 DUT: D750V3-1012 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_150819 Medium parameters used: f = 750 MHz; σ = 0.894 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY4 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.75, 10.75, 10.75); Calibrated: 2014/9/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.47 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.1 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 2.90 W/kg SAR(1 g) = 2 mW/g; SAR(10 g) = 1.35 mW/g Maximum value of SAR (measured) = 2.49 mW/g 0 dB = 2.49mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/15 System Check_Body_750MHz_150815 DUT: D750V3-1012 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_150815 Medium parameters used: f = 750 MHz; σ = 0.962 S/m; ε r = 56.194; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration - Probe: EX3DV4 - SN3697; ConvF(8.83, 8.83, 8.83); Calibrated: 2014/9/29; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1388; Calibrated: 2014/9/24 - Phantom: SAM_Right; Type: QD000P40CD; Serial: S/N:1801 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.58 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.88 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.01 W/kg SAR(1 g) = 2.05 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.57 W/kg 0 dB = 2.57 W/kg = 4.10 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/19 System Check_Head_835MHz_150819 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_150819 Medium parameters used: f = 835 MHz; σ = 0.89 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.32, 10.32, 10.32); Calibrated: 2014/9/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.94 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.3 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.93 mW/g 0 dB = 2.93mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/14 System Check_Body_835MHz_150814 DUT: D835V2-499 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_150814 Medium parameters used: f = 835 MHz; σ = 0.969 S/m; ε r = 56.528; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.13, 10.13, 10.13); Calibrated: 2014/9/25; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1801 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.04 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.24 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.50 W/kg SAR(1 g) = 2.44 W/kg; SAR(10 g) = 1.64 W/kg Maximum value of SAR (measured) = 3.02 W/kg 0 dB = 3.02 W/kg = 4.80 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/19 System Check_Head_1750MHz_150819 DUT: D1750V2-1068 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_150819 Medium parameters used: f = 1750 MHz; σ = 1.37 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY4 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.48, 8.48, 8.48); Calibrated: 2014/9/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.8 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.0 V/m; Power Drift = 0.058 dB Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 9.35 mW/g; SAR(10 g) = 4.98 mW/g Maximum value of SAR (measured) = 13.2 mW/g 0 dB = 13.2mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/14 System Check_Body_1750MHz_150814 DUT: D1750V2-1068 Communication System: CW ; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: MSL_1750_150814 Medium parameters used: f = 1750 MHz; σ = 1.468 S/m; ε r = 53.165; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.26, 8.26, 8.26); Calibrated: 2014/9/25; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.8 W/…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/19 #01_GSM850_GPRS (4 Tx slots)_Left Cheek_Ch251 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_150819 Medium parameters used: f = 849 MHz; σ = 0.904 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.32, 10.32, 10.32); Calibrated: 2014/9/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Ch251/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.317 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.8 V/m; Power Drift = 0.185 dB Peak SAR (extrapolated) = 0.340 W/kg SAR(1 g) = 0.258 mW/g; SAR(10 g) = 0.199 mW/g Maximum value of SAR (measured) = 0.305 mW/g 0 dB = 0.305mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/18 #02_GSM1900_EDGE (4 Tx slots)_Left Cheek_Ch512 Communication System: PCS; Frequency: 1850.2 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900_150818 Medium parameters used: f = 1850.2 MHz; σ = 1.38 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY4 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.17, 8.17, 8.17); Calibrated: 2014/9/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - ;Postprocessing SW: SEMCAD, V1.8 Build 159 Ch512/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.373 mW/g Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.8 V/m; Power Drift = 0.073 dB Peak SAR (extrapolated) = 0.406 W/kg SAR(1 g) = 0.284 mW/g; SAR(10 g) = 0.180 mW/g Maximum value of SAR (measured) = 0.369 mW/g 0 dB = 0.369mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/8/19 #03_WCDMA V_RMC 12.2Kbps_Left Cheek_Ch4233 Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: HSL_850_150819 Medium parameters used: f = 847 MHz; σ = 0.902 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.32, 10.32, 10.32); Calibrated: 2014/9/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: D…
