Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Appendix 5. Block Diagram EZMAX Co.,Ltd. Appendix 5 MP3 PLAYER JM-200

Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT EZMAX Co.,Ltd. MP3 PLAYER JM-200

Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Made in Korea Model No : M-200 J FCC ID : P9BJM-200 This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. EZMAX Co., Ltd. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC Label EZMAX Co.,Ltd. Appendix 2 MP3 PLAYER JM-200

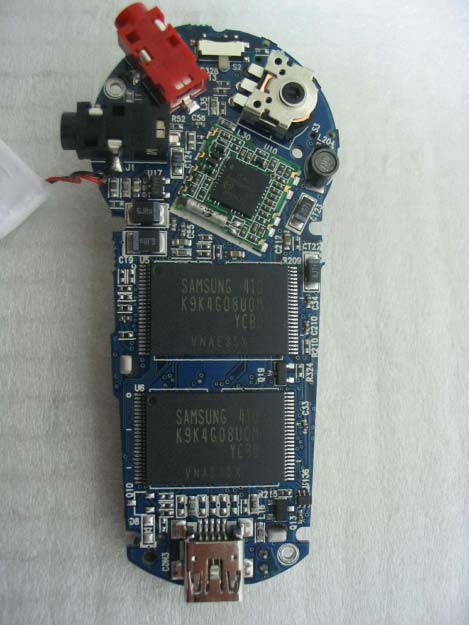

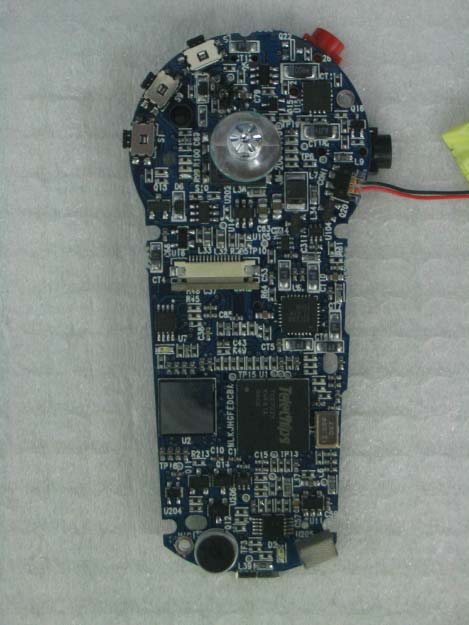

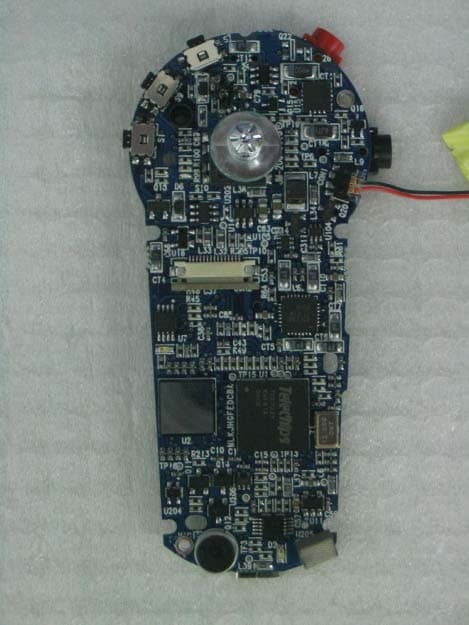

Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Appendix 4. Internal Photographs of EUT Top of main PCB side - 1 GB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Bottom of main PCB side - 1 GB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 LCD PCB side - 1 GB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Top of main PCB side - 512 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Bottom of main PCB side - 512 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 LCD PCB side - 512 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Top of main PCB side – 256 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Bottom of main PCB side - 256 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 LCD PCB side – 256 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Top of main PCB side - 128 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Bottom of main PCB side - 128 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 LCD PCB side - 128 MB EZMAX Co.,Ltd. Appendix 4 MP3 PLAYER JM-200

Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 3. Product Information 3.1 Equipment Description Range of Freguency 20Hz ~ 20KHz Earphone 1 : (L)12mW + (R)12mW(16Ohm), Volume Max Earphone Output Earphone 2 : (L)8mW + (R)8mW(16Ohm), Volume Max Audio Signal to Noise Ratio 90dB Frequency Range 76.0MHz ~ 108.0MHz Earphone 1 : (L)12mW + (R)12mW(16Ohm), Volume Max Output Earphone 2 : (L)8mW + (R)8mW(16Ohm), Volume Max FM Radio Signal to Noise Ratio 50dB USB Device USB1.1 (Read Speed : 700MB/S, Write Speed : 500MB/S) Removable Disk USB HOST USB1.1 File Format MPEG 1/2/2.5 Layer 3, WMA, OGG Bit Rate 8Kbps ~ 384Kbps File Support Tag ID3 Tag V1.0, 2.x Product Size 84.5mm(width) * 42mm(length) * 23mm(height) Product Weight Approximately 56g (Including battery) Operation Temperature Range -5 ~ 50 Memory 128MB, 256MB, 512MB,1GB This products are different in memory size only.(Other specification is same) Play Time Play 15 hours(128Kbps MP3, Vol 20, EQ Normal) Voice Recording 512MB over 130 hours(8Kbps) General Items Battery Li-Polymer 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : Tested by 1GB - This products are different in memory size only.(Other specification is same) 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. Jungsoft Co., Ltd. MP3 PLAYER JM-200

Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : MP3 PLAYER MODEL/TYPE NO : JM-200 FCC ID : P9BJM-200 TRADE NAME : Jungsoft APPLICANT : Jungsoft Co., Ltd. 274-5, Seohyun-dong, Bundang-gu, Seongnam-city, Kyunggi-do 463-824, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : May 1, 2004 DATES OF ISSUE : May 10, 2004 TEST REPORT No. : BWS-04-EF-0031 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Portable Digital Audio Player(MP3&Voice Recoder) has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. May 10, 2004 (Date) Kang, Bong-Chul Chief Engineer LaboratoryDivision BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 This report only respoe and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Page 1 of 16 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Jungsoft Co., Ltd. MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Company Name : Jungsoft Co., Ltd. Company Address : 274-5, Seohyun-dong, Bundang-gu, Seongnam-city, Kyunggi-do 463-824, Korea Phone/Fax : Phone : +82-31-788-5271 / Fax : +82-31-708-3477 Manufacturer Information Company Name : Jungsoft Co., Ltd. Company Address : 274-5, Seohyun-dong, Bundang-gu, Seongnam-city, Kyunggi-do 463-824, Korea Phone/Fax : Phone : +82-31-788-5271 / Fax : +82-31-708-3477 z EUT Type : MP3 PLAYER z Model Number : JM-200 z FCC Identifier : P9BJM-200 z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2000 z Date of Tests : May 1, 2004 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea TEL: +82-31-762-0124 FAX: +82-31-762-0126 z Test Report No. : BWS-04-EF-0031 Jungsoft Co., Ltd. MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the Jungsoft Co., Ltd. MP3 PLAYER Model : JM-200. Jungsoft Co., Ltd. MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 3. Product Information 3.1 Equipment Description Range of Freguency 20Hz ~ 20KHz Earphone 1 : (L)12mW + (R)12mW(16Ohm), Volume Max Earphone Output Earphone 2 : (L)8mW + (R)8mW(16Ohm), Volume Max Audio Signal to Noise Ratio 90dB Frequency Range 76.0MHz ~ 108.0MHz Earphone 1 : (L)12mW + (R)12mW(16Ohm), Volume Max Output Earphone 2 : (L)8mW + (R)8mW(16Ohm), Volume Max FM Radio Signal to Noise Ratio 50dB USB Device USB1.1 (Read Speed : 700MB/S, Write Speed : 500MB/S) Removable Disk USB HOST USB1.1 File Format MPEG 1/2/2.5 Layer 3, WMA, OGG Bit Rate 8Kbps ~ 384Kbps File Support Tag ID3 Tag V1.0, 2.x Product Size 84.5mm(width) * 42mm(length) * 23mm(height) Product Weight Approximately 56g (Including battery) Operation Temperature Range -5 ~ 50 Memory 128MB, 256MB, 512MB,1GB This products are different in memory size only.(Other specification is same) Play Time Play 15 hours(128Kbps MP3, Vol 20, EQ Normal) Voice Recording 512MB over 130 hours(8Kbps) General Items Battery Li-Polymer 3.2 Variations covered by this report Model Difference : N/A Technical Deviation…

Text truncated - open the document above for the full version.

Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Appendix 1. Test Setup Photographs Conducted Emission Test Setup EZMAX Co.,Ltd. Appendix 1 MP3 PLAYER JM-200 Report No: BWS-04-EF-0031 FCC ID : P9BJM-200 Date of Test : May 1, 2004 Radiated Emission Test Setup EZMAX Co.,Ltd. Appendix 1 MP3 PLAYER JM-200
