P9BPSD303USB Storage Device

Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 Appendix 6. User Manual Refer to the following pages A. If you remove NEXDISK while the LED indicator is red, data might be lost or corrupted B. It is impossible to use NEXDISK again if you lose your password, so please take caution not to forget password. C. JUNGSOFT is not responsible for lost data even if product is defective. Please test the product initially. 274-5, Seohyun-Dong, Bundang-Gu,Seongnam-City, Kyunggi-Do, Korea Tel: 82-31-788-5120 Fax: 82-31-708-3477 Mail: [email protected] http://www.nexdisk.com Caution Jungsoft warrants the hardware aspects of NEXDISK to be free from defects in material and workmanship for a period of two(2) years from the original date of purchase. THIS WARRANTY SHALL NOT APPLY TO AND JUNGSOFT MAKES NO WARRANTY WITH RESPECT TO ANY SOFTWARE PRODUCTS OR ANY SOFTWARE ASPECT OF NEXDISK SUPPLIED BY JUNGSOFT WHICH ARE PROVIDED "AS-IS". This warranty is valid anytime within the two(2) years of the purchase date as evidence by the original purchase receipt form the retail outlet, Jungsoft designate reseller, or Jungsoft. If purchase finds a defect in NEXDISK, purchaser must notify Jungsoft within the warranty period. This warranty shall not apply to any failure or defect caused by misuse, abuse, alteration, improper installation, unauthorized repair or modification, improper testing, accident or causes external to the product such as but not limited to excessive heat or humidity, power failure or surges. Warrnty Registration Product : NEXDISK MB Customer's Name : Address : Email : Date of Purchase : Vendor's Name : Interface Transfer Rate Size & Weight Power OS Support Application Standard Certification Operating Environment USB 2.0 / 1.1 USB2.0 - Read : MAX 8 MB/Sec Write : MAX 3 MB/Sec USB1.1 - Read : MAX 950 KB/Sec Write : MAX 900 KB/Sec 256MB~1 GB - 87 20 11mm Weight 18g 32MB~128MB - 80 20 9.5mm Weight 12g USB Power MS-DOS, Windows 98 / SE / Me / 2000 / XP Mac 9 / X, Linux 2.4.2 / 2.4.7 / 2.4.18, WinCE3.0 Desktop PC, Note Book, PDA etc. All PCs that support USB MIC, FCC, CE, WHQL Operating Temp : 0~45 Storage Temp: -20~80 Relative Humidity: 5%-90% Detailed Part Description A. Driver(for Windows 98) & Utility Program Installation - Installation with Installation CD or Download from our Website (www.nexdisk.com) - Insert CD into CD-Rom. The NEXDISK utility program and Device Driver install automatically. B. Hardware Installation - Connect NEXDISK to PC. - Or Connect extended USB cable to PC and connect NEXDISK through it. - Comes up in My Computer as Removable Media. - In "Windows Explorer", the device is recognized as "Removable Disk" in Windows Explorer and "Untitled" in Macintosh. CAP LED Indicator Write Protect Switch CAP Nonskid Groove LED Indicator Write Protect Switch Portable Neck Strap Pocket Clip NonSkid Groove 1.CAP : To protect USB connection head. 2.LED: a.Green LED: Lit when NEXDISK is connected to PC b.Red LED: Lit when NEXDISK is in activity 3.Write Protect Switch: To prevent NEXDISK to write, switch to 4.Pocket Clip: To securely clip to pocket or backpack, etc 5.Portable Neck Strap: NEXDISK Portable Neck Strap hook Product Installation Product Installation Product Specification For more detail info, please read the manual in CD. For USB 2.0 support, the main board should support USB 2.0. Portable Neck Strap Pocket Clip Detailed Part Description A. If you remove NEXDISK while the LED indicator is red, data might be lost or corrupted B. It is impossible to use NEXDISK again if you lose your password, so please take caution not to forget password. C. JUNGSOFT is not responsible for lost data even if product is defective. Please test the product initially. 274-5, Seohyun-Dong, Bundang-Gu,Seongnam-City, Kyunggi-Do, Korea Tel: 82-31-788-5120 Fax: 82-31-708-3477 Mail: [email protected] http://www.nexdisk.com Caution Jungsoft warrants the hardware aspects of NEXDISK to be free from defects in material and workmanship for a period of two(2) years from the original date of purchase. THIS WARRANTY SHALL NOT APPLY TO AND JUNGSOFT MAKES NO WARRANTY WITH RESPECT TO ANY SOFTWARE PRODUCTS OR ANY SOFTWARE ASPECT OF NEXDISK SUPPLIED BY JUNGSOFT WHICH ARE PROVIDED "AS-IS". This warranty is valid anytime within the two(2) years of the purchase date as evidence by the original purchase receipt form the retail outlet, Jungsoft designate reseller, or Jungsoft. If purchase finds a defect in NEXDISK, purchaser must notify Jungsoft within the warranty period. This warranty shall not apply to any failure or defect caused by misuse, abuse, alteration, improper installation, unauthorized repair or modification, improper testing, accident or causes external to the product such as but not limited to excessive heat or humidity, power failure or surges. Warrnty Registration Product : NEXDISK MB Customer's Name : Address : Email : Date of Purchase : Vendor's Name : Interface Transfer Rate Size & Weight Power OS Support Application Standard Certification Operating Environment USB 2.0 / 1.1 USB2.0 - Read : MAX 8 MB/Sec Write : MAX 3 MB/Sec USB1.1 - Read : MAX 950 KB/Sec Write : MAX 900 KB/Sec 256MB~1 GB - 87 20 11mm Weight 18g 32MB~128MB - 80 20 9.5mm Weight 12g USB Power MS-DOS, Windows 98 / SE / Me / 2000 / XP Mac 9 / X, Linux 2.4.2 / 2.4.7 / 2.4.18, WinCE3.0 Desktop PC, Note Book, PDA etc. All PCs that support USB MIC, FCC, CE, WHQL Operating Temp : 0~45 Storage Temp: -20~80 Relative Humidity: 5%-90% Detailed Part Description A. Driver(for Windows 98) & Utility Program Installation - Installation with Installation CD or Download from our Website (www.nexdisk.com) - Insert CD into CD-Rom. The NEXDISK utility program and Device Driver install automatically. B. Hardware Installation - Connect NEXDISK to PC. - Or Connect extended USB cable to PC and connect NEXDISK through it. - Comes up in My Computer as Removable Media. - In "Windows Explorer", the device i…

Text truncated - open the document above for the full version.

Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 Appendix 5. Block Diagram Refer to the following pages NEXDISK BLOCK DIAGRAM

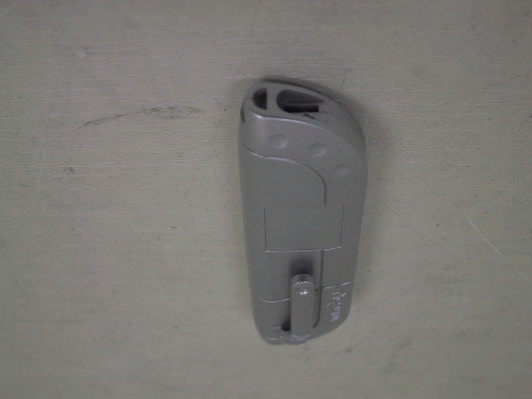

Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT

Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) JUNGSOFT Co., Ltd. USB Storage device Model:PSD303 FCC ID:P9BPSD303 JUNGSOFT Co., Ltd. USB Storage device Model:PSD303 FCC ID:P9BPSD303

Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 Appendix 4. Internal Photographs of EUT 128MB Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 64MB Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 32

BWS TECH Inc. 5 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. PSD303 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the JUNGSOFT Co., Ltd USB storage device(128MB, 64MB, 32MB) Model : PSD303. (FCC ID : P9BPSD303). This USB storage device is portable data storage device plugged-in the USB port of the Personal Computer , provide read/write data and move anytime, anyplace. 3.2 General Specification - List of Each OSC. Or X-Tal. Freq.(>=1MHz) : X1:12.000 MHz - Memory Capacity : 32/64/128 MB - USB Interface : USB 2.0 (Hi-Speed) USB 1.1 (Full-Speed) -.Transmission Speed : Write : 3 MB/Sec, Read : 8 MB/Sec - Power Source : USB bus from the PC - Interface : USB Port - Operating Environment : Temp. 0~45 Humidity: 5~90%RH 3.3 Variations covered by this report Model Difference : N/A Technical Deviation : A various kinds of memory size could be adopted at the same circuit layout. All the mechanical and electrical characteristic is identical except the memory chip capacity. 3.4 Additional Information Related to Testing N/A

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC PART15 CERTIFICATION PRODUCT : USB storage device MODEL/TYPE NO : PSD303 FCC ID : P9BPSD303 TRADE NAME : NEXDISK APPLICANT : JUNGSOFT Co., Ltd. #274-5, Seohyun-Dong, Bundang-Gu, Seongnam-City, Kyunggi-Do, Korea Attn. : Kim, Young-Uk / General Manager FCC CLASSIFICATION : JBP : Part 15 Class B Computing Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification DATES OF TEST : July 28, 2003 DATES OF ISSUE : July 31, 2003 TEST REPORT No. : BWS-03-EF-0035 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This USB storage device has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. K.Young Kim Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. 2 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. PSD303 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual BWS TECH Inc. 3 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. PSD303 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer l EUT Type : USB storage device l Model Number : PSD303 l FCC Identifier : P9BPSD303 l S/N : Prototype l FCC Rule Part(s) : CFR Title 47 Part 15 Subpart B l Test Procedure : ANSI C63.4-2000 l FCC Classification : JBP : Part 15 Class B Computing Device Peripheral l Dates of Tests : July 28, 2003 l Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 l Test Report No. : BWS-03-EF-0035 Company Name : JUNGSOFT Co., Ltd Company Address : #274-5, Seohyun-Dong, Bundang-Gu, Seongnam-City, Kyunggi-Do, Korea. Phone/Fax : Phone : +82 32 574 6600 Fax : +82 32 574 0536 Company Name : JUNGSOFT Co., Ltd Company Address : #274-5, Seohyun-Dong, Bundang-Gu, Seongnam-City, Kyunggi-Do, Korea. Phone/Fax : Phone : +82 32 574 6600 Fax : +82 32 574 0536 BWS TECH Inc. 4 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. PSD303 2. Description of Test Facility The measurement test for radiated and conducted emission test were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the JUNGSOFT Co., Ltd USB storage device Model : PSD303. BWS TECH Inc. 5 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. PSD303 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the JUNGSOFT Co., Ltd USB storage device(128MB, 64MB, 32MB) Model : PSD303. (FCC ID : P9BPSD303). This USB storage device is portable data storage device plugged-in the USB port of the Personal Computer , provide read/write data and move anytime, anyplace. 3.2 General Specification - List of Each OSC. Or X-Tal. Freq.(>=1MHz) : X1:12.000 MHz - Memory Capacity : 32/64/128 MB - USB Interface : USB 2.0 (Hi-Speed) USB 1.1 (Full-Speed) -.Transmission Speed : Write : 3 MB/Sec, Read : 8 MB/Sec - Power Source : USB bus from the PC - Interface : USB Port - Operating Environment : Temp. 0~45 Humidity: 5~90%RH 3.3 Variations covered by this report Model Difference : N/A Technical Deviation : A various kinds of memory size could be adopted at the same circuit layout. All the …

Text truncated - open the document above for the full version.

Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 Appendix 1. Test Setup Photographs Radiated Emission Test Setup Report No : BWS-03-EF-0035 FCC ID : P9BPSD303 Date of Test : July 28, 2003 JUNGSOFT Co., Ltd. USB Storage Device PSD302 Conducted Emission Test Setup
