RFN430EL-A3 (1W) User’s Guide Document Number XXXX Revision 1 Cooper Power Systems 910 Clopper Road, Suite 201-S Gaithersburg, MD 20878 USA www.cooperpowereas.com Tel (301) 515-7118 Fax: (301) 515-4965 XXXXX-01 2 RFN430EL-A3 (1W) User’s Guide Contents 1 About the RFN430EL-A3 (1W) ........................................................................................................... 3 2 Regulatory Notices ............................................................................................................................... 4 3 RFN430EL-A3 (1W) Specifications .................................................................................................... 7 XXXXX-01 3 RFN430EL-A3 User’s Guide 1 About the RFN430EL-A3 (1W) The RFN430EL-A3 (1W) is a radio communications device designed for use in Elster A3 meters. The RFN430EL-A3 (1W) contains a 1W, 915 MHz radio interface to an RF mesh network. The RFN430EL-A3 (1W) operates from a power source of 13.5 VDC, received from the host device. The radio module operates in license-free bands at 915 MHz (902.75 to 927.25 MHz) with an output power of 1W. RFN430EL-A3 (1W) Nodes are fully compatible with mesh network hardware, protocols and operations. Two radio transmission data rates are available: 76.8 kb/s and153.6 kb/s. The transmission power of the 915 MHz radio is adjustable from 30 dBm to -20 dBm. XXXXX-01 4 RFN430EL-A3 (1W) User’s Guide 2 Regulatory Notices Warning The Original Equipment Manufacturer (OEM) must ensure that FCC Labeling requirements are met. This includes a clearly visible label on the outside of the OEM enclosure specifying the Cooper Power Systems FCC identifier (FCC ID: P9X-430ELA31W) and IC Number (IC: 6766A-430ELA31W) as well as the FCC Notice below. Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. XXXXX-01 5 RFN430EL-A3 (1W) User’s Guide Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Warning The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb. XXXXX-01 6 RFN430EL-A3 (1W) User’s Guide Warning To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operate in conjunction with any other antenna or transmitter.” As such, the radio component of this device is intended only for OEM integrators under the following two conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users. The transmitter module may not be co-located with any other transmitter or antenna. As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (e.g., digital device emissions, PC peripheral requirements). In the event that these conditions cannot be met (for example, co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re- evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems, certain laptop configurations, and similar equipment). The final end product must be labeled in a visible area with the following: “Contains FCC ID: P9X-430ELA31W, IC: 6766A-430ELA31W”. The radio component is an integral part of the RFN430EL-A3 (1W) and cannot be removed. Warning Transmitters with Detachable Antennas This device has been designed to operate with the antennas listed below, and having a maximum gain of 6 dB. Antennas not included in this li…

Text truncated - open the document above for the full version.

910 Clopper Road ● Suite 201-S ● Gaithersburg, MD 20878 ● Tel. (301) 515-7118 ● Fax (301) 515-4965 ● www.coopereas.com November 27, 2012 Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 Tel: (613) 952-3200 / Fax: (613) 952-1088 Declaration of Compliance To Whom it May Concern: We, Cooper Power Systems, declare that the RFN430EL-A3 (1W) complies with the RF exposure limits for humans, as specified in Health Canada’s Safety Code 6 and reproduced in RSS-102. Sincerely yours, Steven Seymour Certification Engineer Cooper Power Systems (240) 454-9845 [email protected]

910 Clopper Road ● Suite 201-S ● Gaithersburg, MD 20878 ● Tel. (301) 515-7118 ● Fax (301) 515-4965 ● www.coopereas.com November 19, 2012 American Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Cooper Power Systems in Gaithersburg, Maryland authorizes Washington Laboratories, Ltd. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). The following personnel of Washington Laboratories, Ltd. are authorized:  Michael F. Violette, President  Steven D. Koster, EMC Operations Manager We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Steven Seymour Certification Engineer Cooper Power Systems (240) 454-9845 [email protected]

910 Clopper Road ● Suite 201-S ● Gaithersburg, MD 20878 ● Tel. (301) 515-7118 ● Fax (301) 515-4965 ● www.coopereas.com November 19, 2012 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, MD 21046 RE: Certification Application FCC ID: P9X-430ELA31W Please be advised that under the provision of 47 CFR 0.457 and 0.459 the following exhibits are to be held confidential on behalf of Cooper Power Systems: • Schematics (RFN430EL-A3 Schematics - Sheet 3.pdf, RFN430EL-A3 Schematics - Sheet 4.pdf, RFN430EL-A3 Schematics - Sheet 5.pdf and RFN430EL-A3 Schematics - Sheet 6.pdf) • Block diagram (RFN430EL-A3 (1W) Block Diagram.pdf) • Theory of Operation/Technical Description (RFN430EL-A3 (1W) Circuit Description and Operation.pdf and RFN430EL-A3 (1W) Circuit Description and Operation - Appendix A.pdf) Rationale for request for confidentiality: Cooper Power Systems wishes to keep these items confidential to maintain a competitive advantage in the marketplace. These items will always be professionally installed. In addition, the device will always be in a controlled, inaccessible environment and are not available to the general public. Sincerely, Steven Seymour Certification Engineer Cooper Power Systems (240) 454-9845 [email protected]

910 Clopper Road ● Suite 201-S ● Gaithersburg, MD 20878 ● Tel. (301) 515-7118 ● Fax (301) 515-4965 ● www.coopereas.com Subject: Modular Approval Request FCC ID: P9X-430ELA31W November 19, 2012 Dear Application Examiner: Cooper Power Systems, model RFN430EL-A3 (1W), FCC ID P9X-430ELA31W, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. "The modular transmitter must have its own RF shielding." - The radio portion of this module has been shielded. Please see exhibition External Photo. 2. "The modular transmitter must have buffered modulation/data inputs." - The RFN430EL-A3 (1W) contains buffered data inputs; it is integrated into Cooper Power System's RF design. 3. "The modular transmitter must have its own power supply regulation." - The RFN430EL-A3 (1W) contains a regulator in the DC input port; it is integrated into Cooper Power Systems’ RFN430EL-A3 (1W) design. 4. "The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c)." - The RFN430EL-A3 (1W) meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the application exhibits. 5. "The modular transmitter must be tested in a stand-alone configuration." - The RFN430EL-A3 (1W) was tested in a stand-alone configuration via an adapter board. Please see exhibit "Test Setup Photos". 6. "The modular transmitter must be labeled with its own FCC ID number." - Please see exhibit "FCC Label" for the FCC ID of this module. 7. "The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements." - The RFN430EL-A3 (1W) is compliant with all applicable FCC rules. Detailed instructions for maintaining compliance are given in the Users Manual. 8. "The modular transmitter must comply with any applicable RF exposure requirements." - The RFN430EL-A3 (1W) is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the exhibit "MPE Data". Please contact me if you have any further questions. Thank you for your attention. Sincerely, Steven Seymour Certification Engineer Cooper Power Systems (240) 454-9845 [email protected]

Internal and External Photos ©2008 Washington Laboratories, Ltd FCC ID: P9X-430ELA31W Internal and External Photos ©2008 Washington Laboratories, Ltd FCC ID: P9X-430ELA31W Internal and External Photos ©2008 Washington Laboratories, Ltd FCC ID: P9X-430ELA31W Internal and External Photos ©2008 Washington Laboratories, Ltd FCC ID: P9X-430ELA31W Internal and External Photos ©2008 Washington Laboratories, Ltd FCC ID: P9X-430ELA31W Internal and External Photos ©2008 Washington Laboratories, Ltd FCC ID: P9X-430ELA31W

Cooper Power Systems Labels RFN430EL-A3 (1W) (Elster A3) November 19, 2012 1 A label showing the manufacturer’s name (Cooper Power Systems), the FCC ID (P9X-430ELA31W), and the IC Number (6766A-430ELA31W), and containing the information shown in Figure 1 below, will be affixed to products that incorporate the RFN430EL-A3 (1W), as shown in Figure 2. Cooper Power Systems RFN430EL-A3 (1W) Contains FCC ID: P9X-430ELA31W / IC: 6766A-430ELA31W This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. Figure 1: External Label Information Figure 2: External Label Location

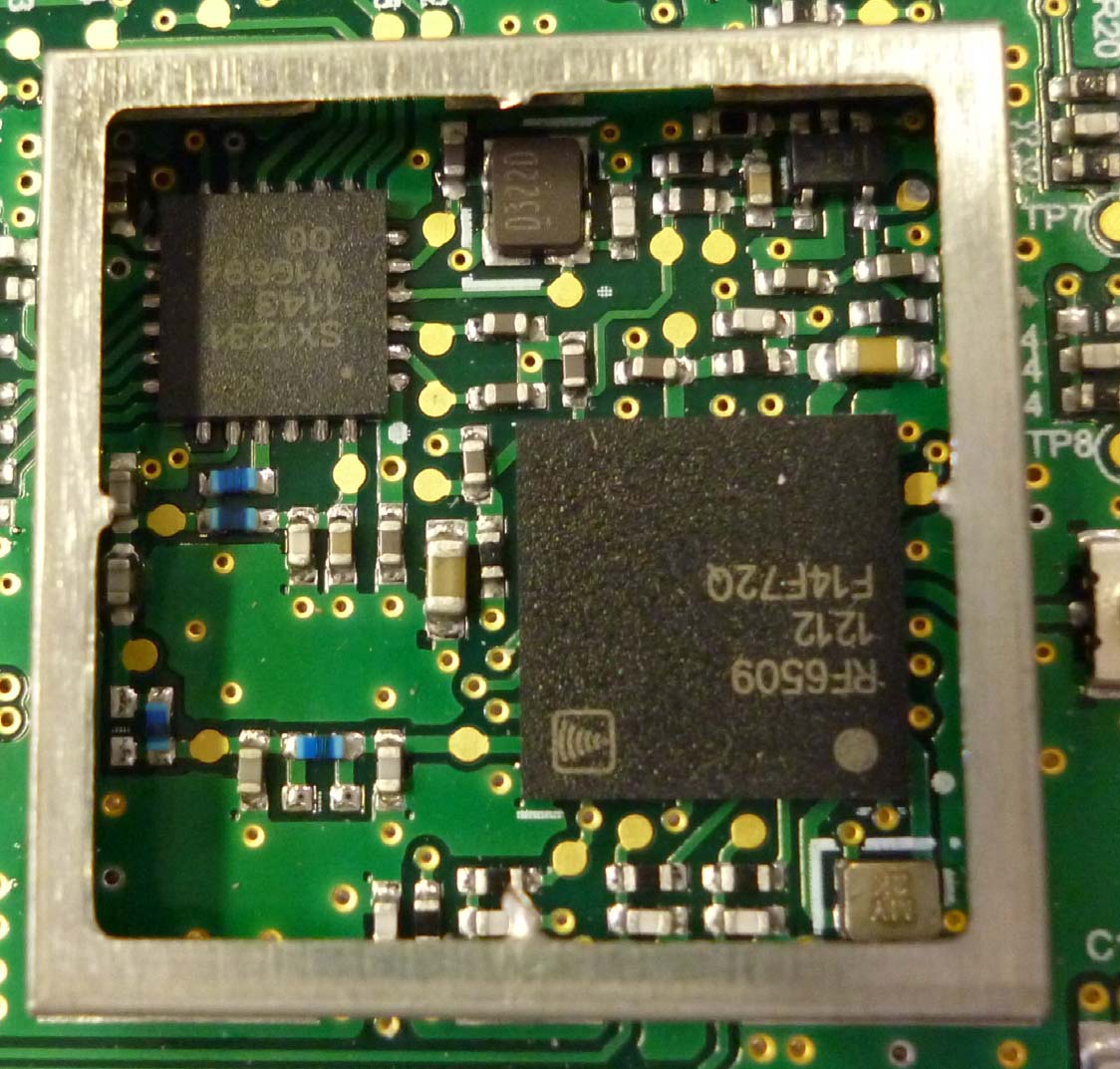

Cooper Power Systems Photos RFN430EL-A3 (1W) (Elster A3) November 19, 2012 3 Figure 3: RFN430EL-A3 (1W) – Top, shields removed

Cooper Power Systems Photos RFN430EL-A3 (1W) (Elster A3) November 19, 2012 4 Figure 4: RFN430EL-A3 (1W) (1W) – Label Detail
