P9Y00089790000Inductive Toy Drum

Capable Toys Limited

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Aug 29, 2006
Application Purpose: Original Equipment
Date of Application: Aug 29, 2006
Equipment Note: Inductive Toy Drum
Frequency Range: 13.56000000 - 13.56000000
Company: Capable Toys Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

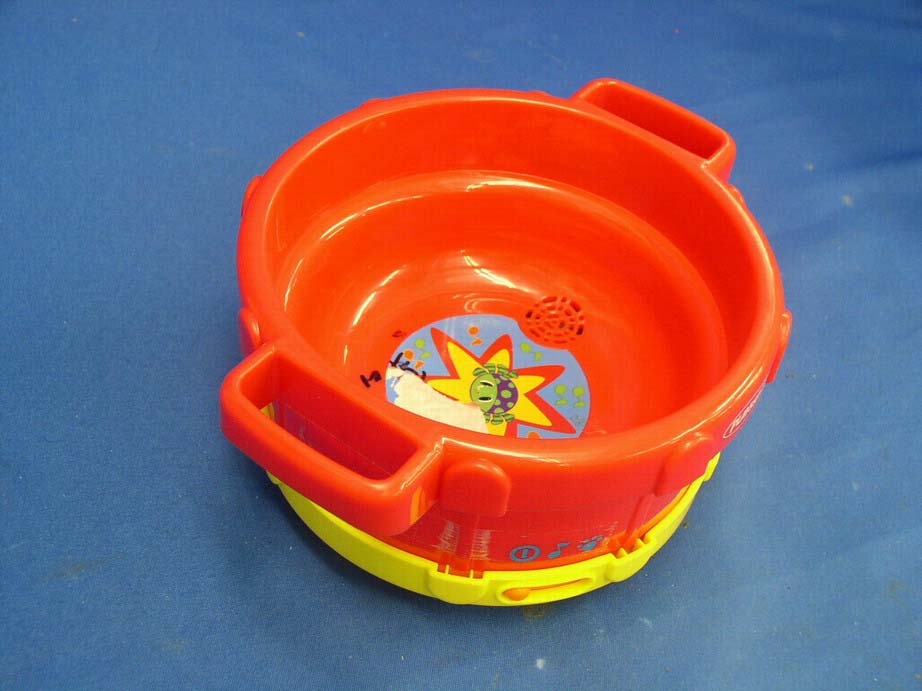

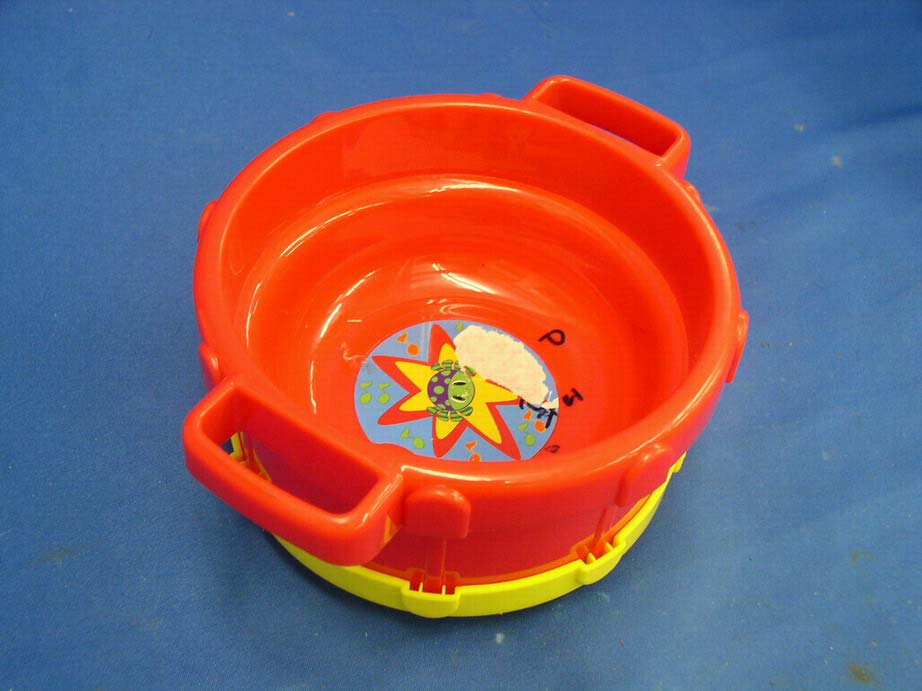

External Photos

FCC ID: P9Y00089790000 Ophoto1 Ophoto2 FCC ID: P9Y00089790000 Ophoto3 Ophoto4 FCC ID: P9Y00089790000 Ophoto5

Internal Photos

FCC ID: P9Y00089790000 Iphoto1 Iphoto2 FCC ID: P9Y00089790000 Iphoto3 Iphoto4 FCC ID: P9Y00089790000 Iphoto5 Iphoto6 FCC ID: P9Y00089790000 Iphoto7 Iphoto8 FCC ID: P9Y00089790000 Iphoto9 Iphoto10 FCC ID: P9Y00089790000 Iphoto11 Iphoto12

Operational Description

FCC ID: P9Y00089790000 Technical Description : The brief circuit description is listed as follows : - Antenna, C10, C25 and associated circuit act as Loop Antenna. - L1, L3, C6 and C24 act as RF Filter. - D1, D2, C8 and R1 act as Commutate Filter. - U1 acts as RFID reader. - Y1, C12 and C13 and associated circuit act as 13.56 MHz Oscillator. - U2 acts as MCU with Voice Synthesizer. - Q2 and associated circuit act as Audio Amplifier. - Ball switch and music/animal sound mode switch act as Control Keys. Antenna Used : A loop antenna has been used.

Test Setup Photos

INTERTEK TESTING SERVICES Front View Back View
