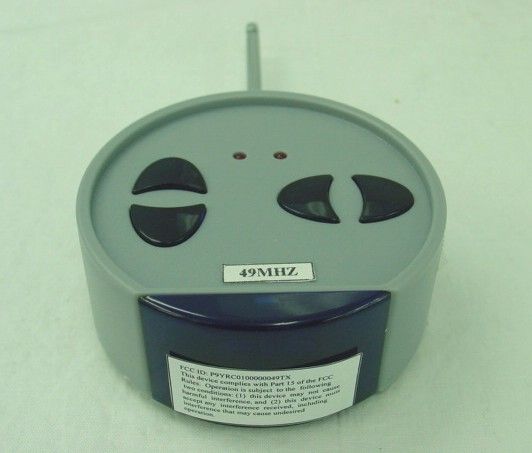

P9YRC0100000049TXRadio Control Mini Racer

Capable Toys Limited

Click to zoom

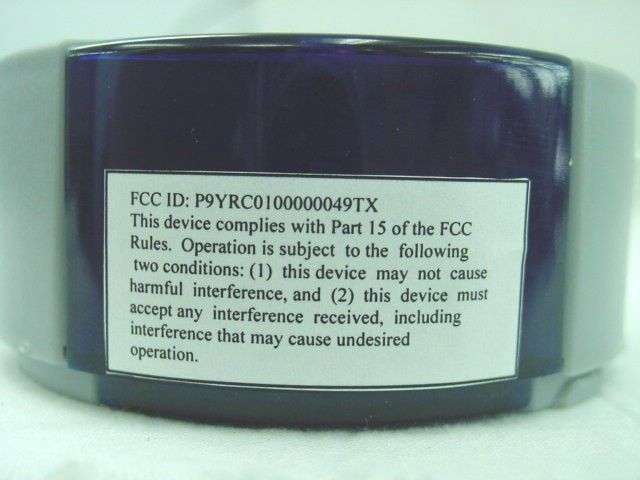

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 14, 2002
Application Purpose: Original Equipment
Date of Application: Apr 14, 2002
Equipment Note: Radio Control Mini Racer
Frequency Range: 49.82000000 - 49.90000000
Company: Capable Toys Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

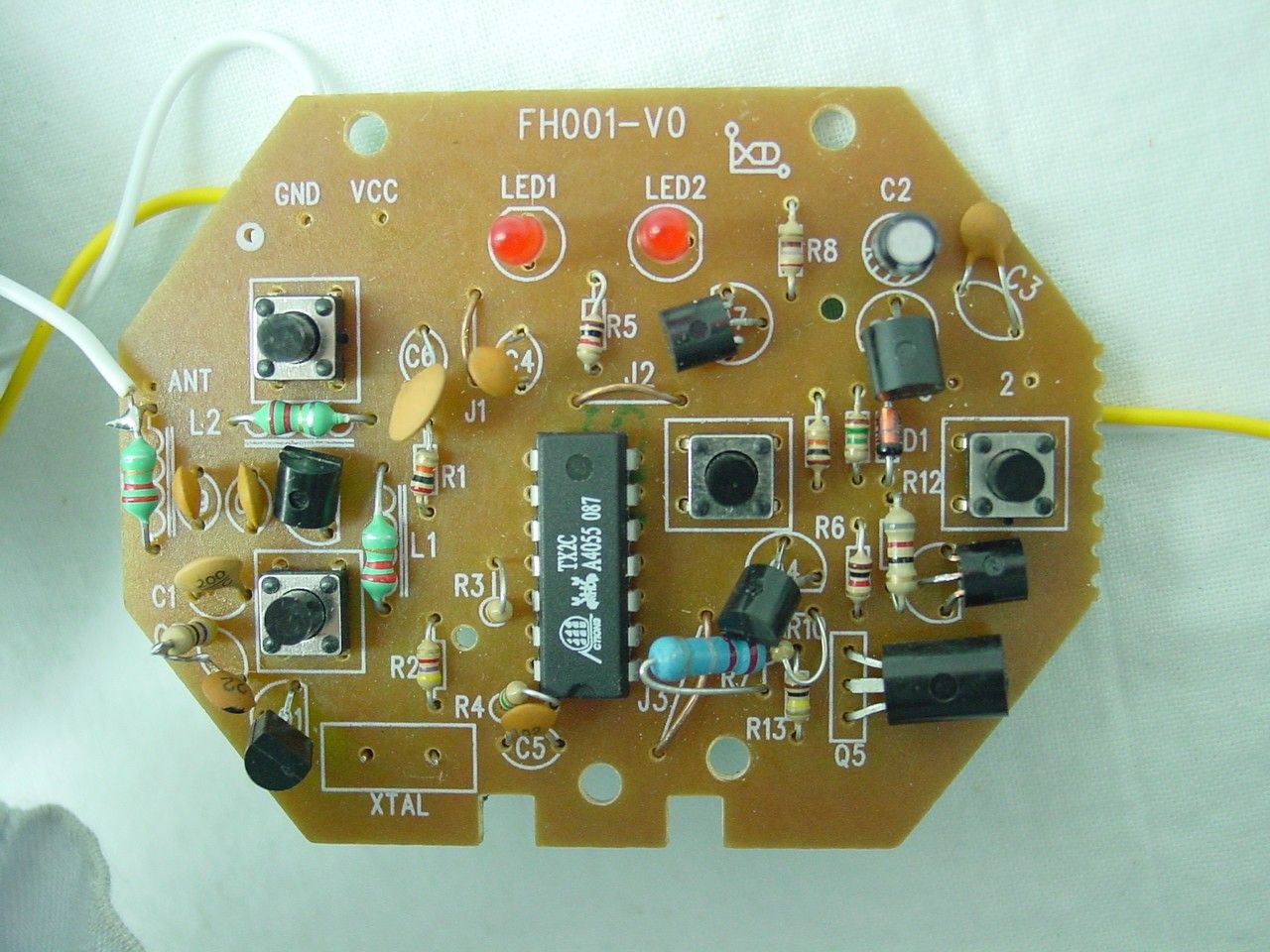

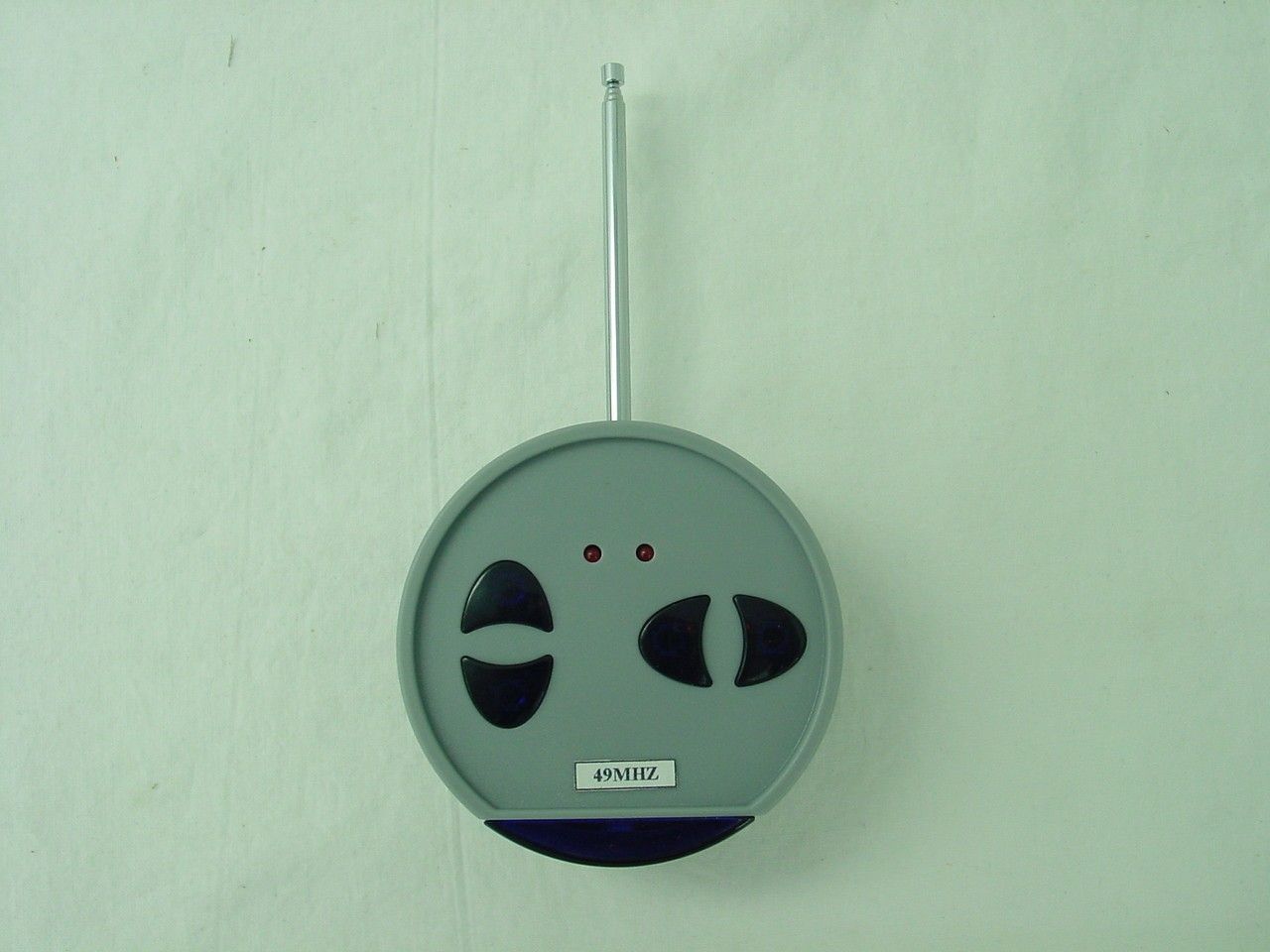

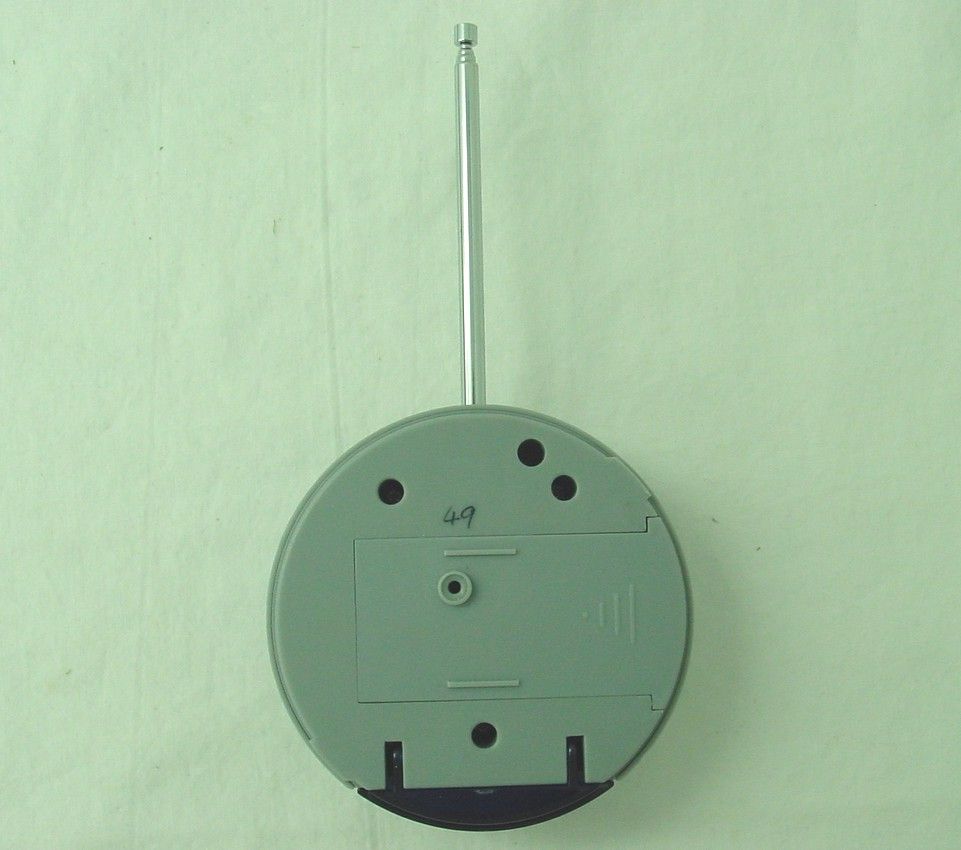

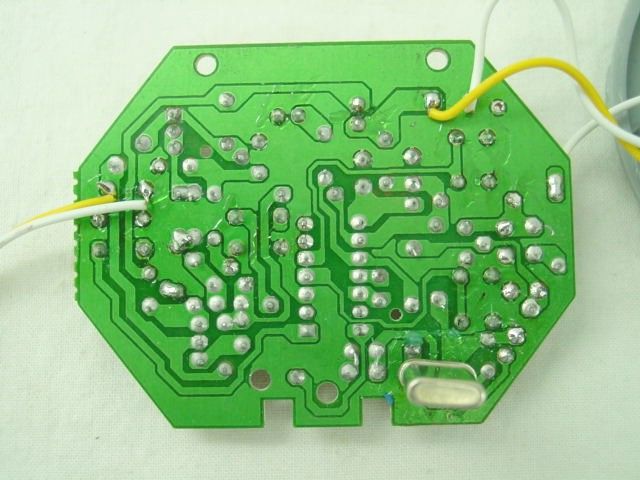

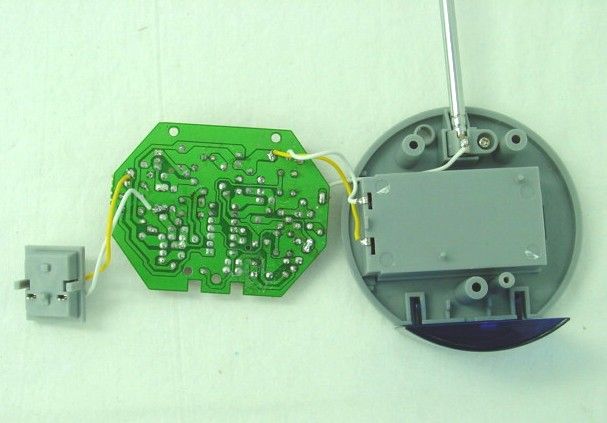

Operation Description of transmitter for Radio Control Mini Racer The transmitter for remote control toy car operates at 49.860 MHz which is controlled by a crystal. It is powered two 1.5 V AA size batteries. It has auto power off feature, and there are four main buttons to control forward, backward, left and right movement. It also has a charging terminal at the bottom of the product for charging the toy car. Refer to the circuit design, the circuit description is listed as follows : - TX2 and associated circuit act as encoding - A 49,860 MHz Oscillator, Q1 and associated circuit act as oscillation - Q2 and associated circuit act as amplification

Schematics

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:5-Apr-2002 Sheet of File:D:\D-jacky\\TX-2C.ddbDrawn By: 49.86MHz C2 22uF L2 4.7uH L1 3.3uH Q3 K117 R2 56K R5 1K Q1 C945 Q7 1815 Q2 C945 R4 150 R3 120K R6 1K R9 1.2M R10 1.5K R11 10K R1 20K R12 56 R8 270 R13 100K C7 50p C5 102 C9 101 C1 200p C4 101 C3 103 C8 50p LEFT RIGHT BACKWARD FORWARD 1 2 3 4 5 6 78 9 10 11 12 13 14 Q5 A1160 Q4 1015 Q6 1015 LED1 D3 1N4148 LED2 B+ R7 0.22R L3 4.7uH 1/2 W T X - 2 C6 104 + - CH.BAT 49.86MHZ R20 49

Test Report

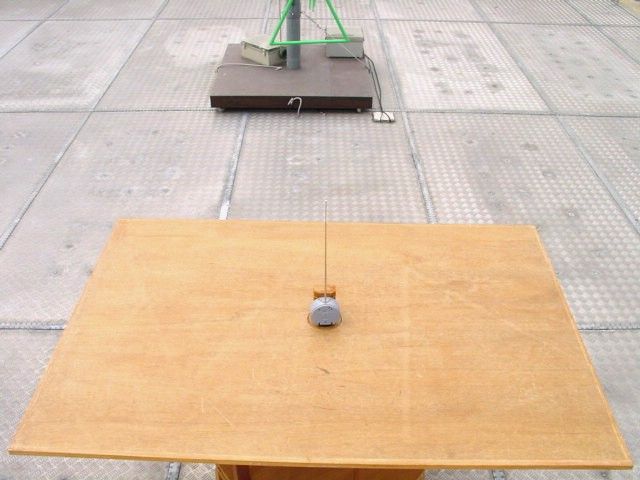

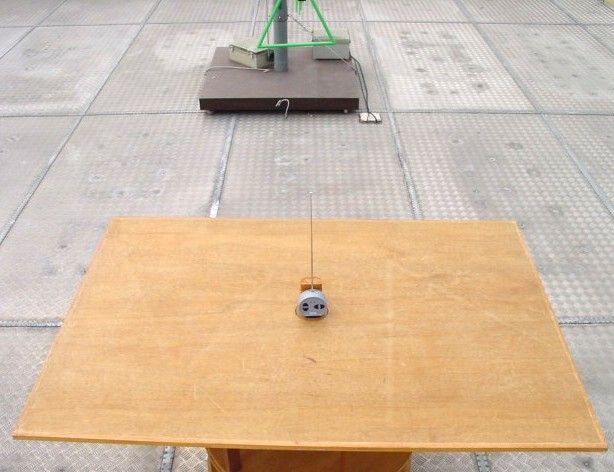

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC002170-3 Date : 2002 April 09 Client : Capable Toys Ltd. Unit 2, 11/F., Yau Lee Centre, 45 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong. Sample Description : Sample stated to be : Description : Radio Control Mini Racer Model No. : RC01 Rating : 2 x 1.5 V AA size batteries Buyer : Daka Development Ltd. No. of sample(s) : Three(3) set(s) *** Date Received : 2002 February 19. Test Period : 2002 February 19 – 2002 March 20. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2001 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 10. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 10 Danny Chui EMC Engineer - EL. Division FCC ID : P9YRC0100000049TX TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC002170-3 Date : 2002 April 09 Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ................................................................................................................ 3 1.2 Related Submittal Grants ........................................................................................................ 3 1.3 Location of the test site ........................................................................................................... 4 1.4 List of measuring equipment .................................................................................................. 5 2 Description of the radiated emission test ..................................................................................... 6 2.1 Test Procedure ........................................................................................................................ 6 2.2 Test Result .............................................................................................................................. 6 2.3 Radiated Emission Measurement Data ................................................................................... 7 3 Description of the Line-conducted Test .......................................................................................8 3.1 Test Procedure ........................................................................................................................ 8 3.2 Test Result .............................................................................................................................. 8 3.3 Graph and Table of Conducted Emission Measurement Data................................................ 8 4 Photograph.................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ................. 9 4.2 Photographs of the External and Internal Configurations of the EUT.................................... 9 5 Supplementary document .............................................................................................................. 9 5.1 Bandwidth............................................................................................................................... 9 6 Appendices .................................................................................................................................. 10 Page 2 of 10 FCC ID : P9YRC0100000049TX TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC002170-3 Date : 2002 April 09 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for remote control toy car operating at 49.860 MHz which is controlled by a crystal. The EUT is powered two 1.5 V AA size batteries. The EUT has auto power off feature, and there are four main buttons to control forward, backward, left and right movement. It also has a charging terminal at the bottom of the EUT for charging the toy car. The brief circuit description is listed as follows : - TX2 and associated circuit act as encoding - A 49.860 MHz Oscillator, Q1 and associated circuit act as oscillation - Q2 and associated circuit act as amplification 1.2 Related Submittal Grants This is single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 10 FCC ID : P9YRC0100000049TX TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC002170-3 Date : 2002 April 09 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 1992. An Open Area Testing Site is set up for inve…

Text truncated - open the document above for the full version.
