PAREV-256MPNMP3 Player

EV-256MPN Portable MP3 Player User’s Manual Rev. 2002-04-11 2 FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 3 CONTENTS EV-128MPN PLAYER..............................................................................3 Packing contents Technology and features System requirements Safety instructions Overview.....................................................................................................7 Preparation................................................................................................12 Inserting the battery; inserting the memory cards Installing the software Audio Manager..........................................................................................15 Playback.....................................................................................................17 Starting playback Select next track/Search mode Select previous track/Search mode Additional playback functions Special functions.......................................................................................22 Back light Button lock Information.................................................................................................23 4 EV-MPN256 PLAYER Packing contents • EV-128MPN Player • USB adapter cable for connecting to a PC • Headphones • Installation CD • User’s Manual / Warranty card • Battery • Carrying bag Technology and features • Multi codec MP3, WMA, (AAC-ready starting in 2002 software updates will be available from the Internet at http://www.nowevolution.com) • Shock-resistant playback • Updateable firmware • USB port • Two card slots for MMC and SDC memory cards • 256 MB of built-in flash memory 5 The EV-256MPN Player is a new, portable device for playing back digital music that conforms to the MP3 standard. The EV- 256MPN Player can also playback WMA and ACC data formats. In the following chapters, MP3 will be referred to as the standard format. The player is completely shock-resistant and easy to operate. The music is stored in flash memory or in exchangeable and re- writeable memory cards. These cards are small in size, lightweight yet sturdy. MP3 has become a standard format for saving digital music, particularly in the Internet. Numerous Web sites offer MP3 music files that can be downloaded free of charge. The MP3 files that are stored on your PC's hard disk are sent to the EV-256MPN via the USB interface using the enclosed adapter cable. 6 System requirements • Windows 98/ME/2000 • Pentium 233 MHz or faster • USB port • CD-ROM drive • 64 MB RAM • 64 MB free hard disk space for installing the software • 300 MB free hard disk space for music files • 16 Bit DirectX (r) compatible soundcard • Netscape Navigator or Microsoft Internet Explorer (v4.x or higher) • 28.8 kbps modem (ISDN, LAN - recommended) 7 Safety instructions This EV-256MPN player set is designed to play back audio signals in the form of MP3, WMA or ACC files. Any other use is expressly prohibited. The EV-256MPN Player with headphones meets the requirements set out in Articles LL44.5 and 6 of the German safety regulations. The rated output of the device guarantees the best possible sound at medium volume. Prolonged listening at loud volumes on headphones can damage your hearing. The EV-256MPN Player is an electronic device. It is designed for use in dry rooms. If you do use it outdoors, please ensure that it is protected from Moisture, such as rain or splashing water. Do not expose the EV-256MPN Player to any moisture. Do not operate the EV-256MPN Player near a heater or in direct sunlight. NOTES : Never open the EV-256MPN Player under any circumstances. The manufacturer will not accept any liability for damage resulting from improper handling. Use only a dry cloth to clean the player. Do not use any chemical cleaning agents Avoid any static discharges on or near the EV-256MPN Player. 8 OVERVIEW Buttons on the front [ON OFF] Press and hold to switch on the player; [] Press again to play back; Press again to pause; Press longer to stop; Press longer again to switch off the player. Buttons under the cover [F.REW. ] Press briefly to go to start of track; Press again for previous track; Press longer for fast reverse. [F.FWD. ] Press briefly to forward to next track; Press longer for fast forward. 9 [MODE ] Selects either [EQ Mode] (equaliser), [Play Mode] (repeat functions), [Treble] (treble), [Bass] and [Back Light]. Change the selected setting with [SELECT] [SELECT] Select operating modes: Tone control (…

Text truncated - open the document above for the full version.

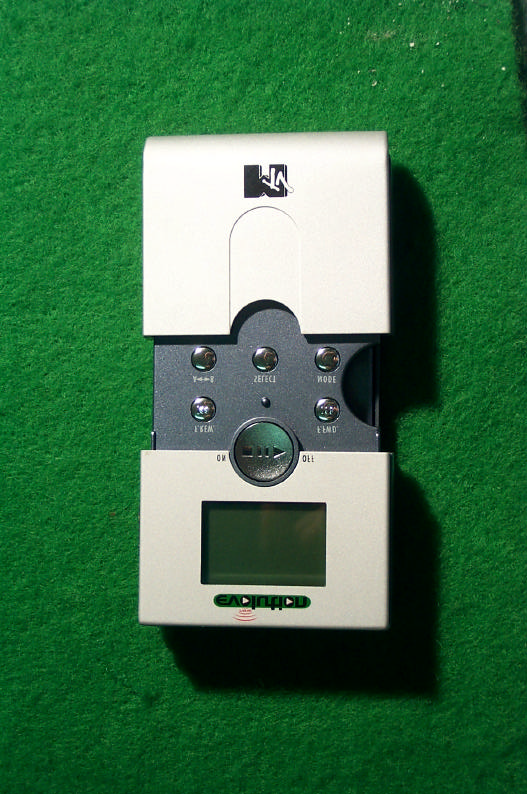

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-02034 FCC ID : PAREV-256MPN External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-02034 FCC ID : PAREV-256MPN

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02034 FCC ID : PAREV-256MPN FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02034 FCC ID : PAREV-256MPN FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PAREV-256MPN This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 5 SKT SKTOS-02034 FCC ID : PAREV-256MPN Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 5 SKT SKTOS-02034 FCC ID : PAREV-256MPN SK TECH CO., LTD. Page 3 of 5 SKT SKTOS-02034 FCC ID : PAREV-256MPN SK TECH CO., LTD. Page 4 of 5 SKT SKTOS-02034 FCC ID : PAREV-256MPN SK TECH CO., LTD. Page 5 of 5 SKT SKTOS-02034 FCC ID : PAREV-256MPN

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-02034 FCC ID : PAREV-256MPN Certificate of Compliance Test Report No.: SKTOS-02034 NVLAP CODE : 200220-0 Applicant: mpman.com, Inc. Applicant Address: 2 nd Floor, ASEM Tower 159-1, Samsung-Dong, Kangnam-Ku, Seoul, Korea Product: MP3 Player FCC ID: PAREV-256MPN Model No.: EV-256MPN Receipt No.: SKE20020321-191 Date of receipt: Mar. 21, 2002 Date of Issue: Apr. 11, 2002 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2000 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by:Y.B.Kim/Engineer Approved by: K.S.Kim/Manager & Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-02034 FCC ID : PAREV-256MPN Contents Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. EMISSION Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-02034 FCC ID : PAREV-256MPN 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:TTI-P-G155/97-10 SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-02034 FCC ID : PAREV-256MPN 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment l Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 02.2003 Artificial Mains Network ESH3-Z5 834549/001 10.2002 EMI Receiver ESHS10 835871/002 10.2002 Artificial Mains Network ESH3-Z5 836679/018 10.2002 Conducted Cable N/A N/A N/A l Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2003 EMI Receiver ESVS 10 834468/008 11.2002 Spectrum Analyzer R3361A 11730187 06.2002 Amplifier 8447F 3113A05153 05.2002 Log Periodic Antenna UHALP9107 1819 02.2003 Biconical Antenna BBA9106 91031626 02.2003 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cables N/A N/A N/A 50 Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : Mar. 21, 2002 Date of Test : Apr. 10, 2002 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-02034 FCC ID : PAREV-256MPN 3. Description of the tested samples The EUT is the MP3 Player. 3.1 Rating and Physical Characteristics System requirements • Windows 98/ME/2000 • Pentium 233 MHz or faster • USB port • CD-ROM drive • 64 MB RAM • 64 MB free hard disk space for installing the software • 300 MB free hard disk space for music files • 16 Bit DirectX (r) compatible soundcard • Netscape Navigator or Microsoft Internet Explorer (v4.x or higher) • 28.8 kbps modem (ISDN, LAN - recommended) 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-02034 FCC ID : PAREV-256MPN 4. Measurement Conditions Operating of EUT voltage is 1.2V DC supplied by the adaptor which is structural element for EUT. (Adaptor Input Voltage : AC 120V, 60Hz) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The EUT was connected with the PC with USB cable. The test was made on the mode of uploading, downloading and playing MP3 files. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Personal Computer LG IBM W8S 202KI10585 DoC Monitor Comtec CT-151B N/A DoC Keyboard Jing Mold LKB-0107 102009670 N/A Mouse Samsung P801 01030680 FSUGHZFT Printer H.P. 2225C 3245S12493 DSI6XU2225 Adapter 1 (for EUT) Safety Co. AK-1215 N/A N/A Adapter 2 (for Monitor) ILAN Elec. F1650K N/A N/A Adapter 3 (for Printer) Dream Electronics DR-05600U N/A N/A SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-02034 FCC ID : PAREV-256MPN 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark PC Power cable 1.6m Non-Shield None AC/DC Adapter cable 1.8m Non-Shield None For Monitor AC/DC Adapter cable 1.9m Non-Shield None For Printer AC/DC Adapter cable 1.8m Non-Shield None For EUT VGA cable 1.8…
