PARMM-RX400MP3 Player

OPERATING INSTRUCTIONS BEDIENUNGSANLEITUNG MODE D’EMPLOI INSTRUCCIONES DE MANEJO GEBRUIKSAANWIJZING MM-RX400 MEMORY AUDIO PLAYER/FM RADIO ##REPRODUCTOR DE AUDIO DE MEMORIA ENGLISH DEUTSCH FRANÇAIS ESPAÑOL NEDERLANDS 2 ENGLISH WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Copyright Notices Under the copyright laws, neither the documentation nor the software for this product may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of AIWA Co., Ltd. Copyright © 2001 AIWA Co., Ltd. All rights reserved. • Microsoft, Windows, Windows Media and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation. • Intel and Pentium are registered trademarks of Intel Corporation. • MultiMediaCard is a trademark of Infineon Technologies AG. • The names of systems and products appearing in this manual may be registered trademarks or trademarks of their respective companies or organizations. In this manual, the TM or ® mark is not always explicitly described. Disclaimer AIWA Co., Ltd. will not be responsible for any loss or damage of music files due to their transfer to the MM-RX400 player. About the supplied software •For using the supplied Audio Manager software, follow the terms of License Agreement that you can view during the installation of the software. • You need software upgrades in order to support emerging new compression methods other than WMA and MP3. Some software upgrades may not be free of charge. * For FAQs and downloading the new software for the MM-RX400 player, refer to http://www.aiwa.co.jp/mm/rx400/. Warning You must be aware that distributing copies of WMA- or MP3-format music files to any other person without permission is against the copyright laws. You can use the software in the supplied installation CD- ROM for personal use only. COPYRIGHT Please check the laws on copyright relating to recordings from discs, radio or external tape for country in which the machine is being used. MM-RX400 player is designed to be ready for the SDMI (Secure Digital Music Initiative). NOTICE TO USERS ENGLISH 3 ENGLISH PRECAUTIONS The following are precautions that you should always keep in mind. Any violation of one or more of the following precautions may cause damage and will void the warranty. To maintain good performance • Avoid exposure to heat, moisture and static electricity. • Do not use the player in places that are extremely hot, cold, dusty, or humid. • In particular, do not keep the player in a high humidity area such as a bathroom, near a heater or in an area exposed to direct sunlight (e.g., inside a parked car). • When you carry the battery in your pocket, do not have other metal objects such as coins or keys in the same pocket. Friction caused by the metal and the battery rubbing together may cause a fire. • Make sure that pins or other foreign objects do not get inside the player. Caution of impact Do not drop the player or allow any sharp impact. This may cause serious damage to the player. Note on listening with the headphones • Listening to the player at full power for extended periods of time can result in hearing damage. • Do not wear the headphones while driving or cycling. This may create a traffic hazard. • You should use extreme caution or temporarily discontinue use in potentially hazardous situations, such as walking, jogging, etc. • Wear them properly; L is left and R is right. • The in-ear type headphones should be worn with the longer cord behind your neck. To clean the cabinet Do not use chemicals to clean the cabinet. This may change the color of the player or damage the surface. Use a soft towel to clean the surface of the player. 4 ENGLISH TABLE OF CONTENTS INTRODUCTION Main features ............................................. 5 Accessories ............................................... 5 System requirements ................................. 6 About this manual ...................................... 6 Viewing Help .............................................. 7 PREPARATION Installing the Audio Manager and driver software .................................... 8 Uninstalling the Audio Manager and driver software ....................................... 10 Preparing the MM-RX400 player ........ 10 Charging the battery ................................ 10 Inserting the battery ................................. 11 Installing a MultiMediaCard ..................... 12 Formatting a MultiMediaCard .................. 12 Connecting the MM-RX400 player to your computer ................................... 13 Disconnecting the MM-RX400 player ...... 13 USING AUDIO MANAGER Starting Audio Manager ...................... 14 Switching between the Audio Manager window and small player ....................... 14 To exit Audio Manager ............................. 14 Changing the appearance of the Audio Manager window ................................... 14 Identification of Audio Manager controls .............................................. 15 Audio Manager window ........................... 15 Recording tracks from a music CD ... 17 Read a CD window .................................. 17 Recording tracks ...................................... 18 Obtaining track information about a music CD automatically ......................... 22 Obtaining music files via the Internet ........................................ 23 Organizing tracks using play list ....... 25 Play List window ...................................... 25 Creating a play list ................................... 27 Creating a play list so that it contains music files already on your computer .... 29 Adding tracks to the previously created play list ................................................... 30 Deleting tracks from the previously created play list ...................................... 31 Deleting tracks and play lists from your…

Text truncated - open the document above for the full version.

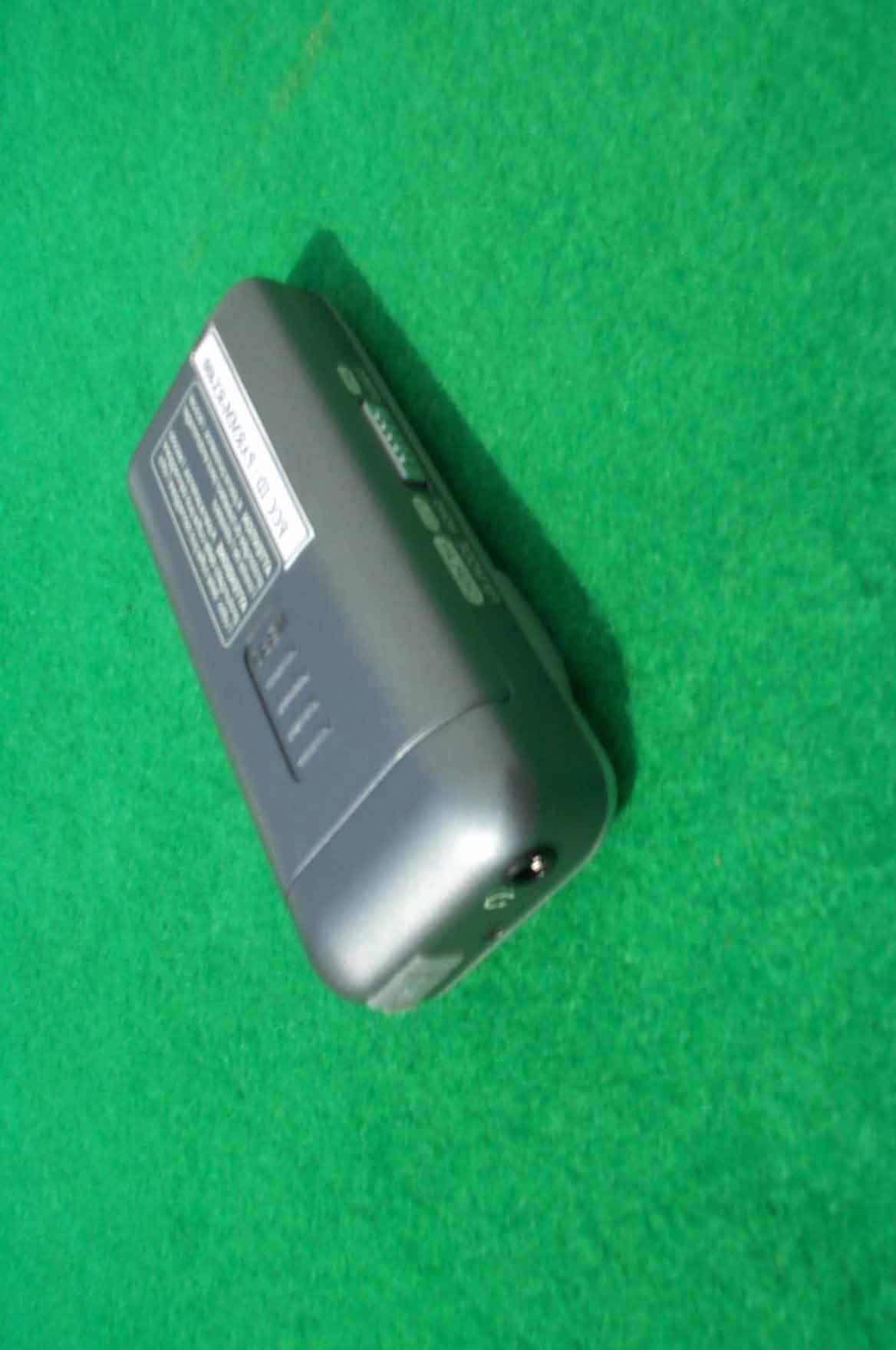

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01054 FCC ID : PARMM-RX400 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01054 FCC ID : PARMM-RX400

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01054 FCC ID : PARMM-RX400 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PARMM-RX400 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 3 SKT SKTOS-01054 FCC ID : PARMM-RX400 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTOS-01054 FCC ID : PARMM-RX400 SK TECH CO., LTD. Page 3 of 3 SKT SKTOS-01054 FCC ID : PARMM-RX400

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-01054 FCC ID : PARMM-RX400 Certificate of Compliance Test Report No.: SKTOS-01054 NVLAP CODE : 200220-0 Applicant: MPMan. Com, Inc. Applicant Address: 2 nd Floor, ASEM Tower 159-1, Samsung-Dong, Kangnam-Ku, Seoul, Korea Product: MP3 Player FCC ID: PARMM-RX400 Model No.: MM-RX400 Receipt No.: SKE20010319-211 Date of receipt: Mar. 19, 2001 Date of Issue: Apr. 19, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:E.K.Seong Tested by:K.H.Nam/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-01054 FCC ID : PARMM-RX400 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. EMISSION Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-01054 FCC ID : PARMM-RX400 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-01054 FCC ID : PARMM-RX400 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 04.2001 Artificial Mains Network KNW-407 M63284 07.2001 EMI Receiver ESHS10 385871/002 11.2001 Artificial Mains Network ESH3-Z5 836679/018 11.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Mar. 19, 2001 Date of Test : Apr. 16, 2001 ~ Apr. 17, 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-01054 FCC ID : PARMM-RX400 3. Description of the tested samples The EUT is MP3 Player. 3.1 Rating and Physical Characteristics z Storage : Built-in 32MB Flash Memory MultiMediaCard slot for a removable 16MB, 32MB or 64MB MultiMediaCard z Maximum output level : 5mW + 5mW (16 ohms) z Frequency range : 20Hz ~ 20kHz z Load impedance : 16 ~ 32 ohms z S/N ratio : 85 dB z Distortion rate : 0.35 or less z FM tuner : 87.5MHz ~ 108.0MHz (50kHz steps) z Tuner preset : 20 stations z Power supply : 1.2 V DC using the supplied MHB-901 Ni-MH rechargeable battery z Continuous playing time with a fully charged battery : Approx. 5 hours z Display : Graphic LCD (69 x 32 dots) z PC interface : USB cable z Maximum outside dimensions : 41.6mm (W) x 90.5 mm (H) x 22.7m (D) (not including projecting parts and controls) z Weight : Approx. 72g without battery 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-01054 FCC ID : PARMM-RX400 4. Measurement Conditions Operating of EUT voltage is 1.2 V DC using the supplied MHB-901 Ni-MH rechargeable battery. 4.1 Modes of Operation The EUT was in the following operation mode during all testing; EUT is connected with PC by USB port. Test is made on the mode of downloading and playing MP3 files. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID CRT Monitor SAMSUNG SyncMaster750P PG17H3NK700247 DOC Keyboard SAMSUNG SDK3500 0B000004 DOC Mouse Logitech M-S48 LZA91450139 DZL211153 Printer H.P 2225C 3245S12493 DS16XU2225 Printer Adaptor ID Fone AP1612-UV 0A24B08 N/A INNO Dispenser Biopia BD-2000 N/A DOC Personal Computer Mother board Micro-Star MS-6161 96K6262664G1144716 DoC Power supply HIPRO HP-235ATXA6 F3-9911252206 DoC FDD Drive Panasonic JU-257A604P 62638 DoC HDD Quantum Pro Drive LPS 9442203B DoC CD-ROM Drive LG GCD-R560B 6…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01054 FCC ID : PARMM-RX400 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01054 FCC ID : PARMM-RX400 Photograph 2: Setup for Radiated Emissions
