PBJV284Subscriber WMU

Document Version 1.05 November 2004 A Vyyo Inc. Technical Document V284 WIRELESS MODEM UNIT User’s Guide Vyyö V284 WMU User’s Guide www.vyyo.com i DOCUMENT DETAILS Copyright and Trademark Information: © 2004 Vyyo Inc. All rights reserved. Vyyo Inc. reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed part of any contract or warranty unless specifically incorporated by reference into such contract or warranty. The information contained herein is merely descriptive in nature, and does not constitute a binding offer for the sale of the product described herein. Any use of the Vyyo Inc. logo or trademarks is forbidden without prior written approval from Vyyo Inc. All trademarks mentioned herein are the property of their respective owners. Vyyo Inc.ís trademarks include, but are not limited to, ìVyyoî and ìWireless liberty for all.î Details: Product Name: V284 WMU (Wireless Modem Unit) Software Version: Document Type: Userís Guide Document Number: Document Version: Author: Document File Name: Date: Total Pages: Status: Production Change History: # Date Changed By Update 1 2004-11-04 Doug Broussard 2 2004-11-15 Doug Broussard 3 2004-12-14 Doug Broussard Added FCC Comp. Statement Distribution and Approval: Approved By Approval Type Date √ Baruch Leiman Content √ Yoel Halimi Technical √ Aharon Avrahami Overall Vyyö V284 WMU User’s Guide www.vyyo.com ii FCC Compliance Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • -Consult the dealer or an experienced radio/TV technician for help. Warning! Changes or modifications to this equipment not expressly approved by Vyyo, Inc. could void the user’s authority to operate the equipment. Warning! This product was tested and shipped with shielded coaxial cable and Category 5 Ethernet cable equipped with a shielded RJ-45 connector. These cables must be used with the unit to ensure compliance. Vyyö V284 WMU User’s Guide www.vyyo.com iii CONTENTS 1 Overview and Purpose ..................................................... 1 1.1 Purpose of This Userís Guide .......................................... 1 1.2 Target Audience............................................................... 1 1.3 Vyyo ................................................................................. 1 2 Modem Features and Components ................................. 2 2.1 Front Panel Indicators ...................................................... 2 2.2 Back Panel Ports.............................................................. 1 3 Using the Modem .............................................................. 2 4 Technical Specifications .................................................. 3 5 Problem Troubleshooting ................................................ 5 6 Warranty Information ........................................................ 7 7 FCC Declaration of Conformity........................................ 9 8 Contacting Vyyo................................................................ 10 Vyyö V284 WMU User’s Guide www.vyyo.com 1 1 OVERVIEW AND PURPOSE Welcome to the Userís Guide for the Vyyo Inc. V284 Modem. Figure 1. The Vyyo V284 Wireless Modem Unit 1.1 Purpose of This Userís Guide The purpose of this Userís Guide is to provide clear and concise instructions for operating the Vyyo Inc. V284 modem. 1.2 Target Audience This Userís Guide is intended for users of the V284 modem. 1.3 Vyyo Vyyo Inc. provides fixed wireless broadband end-to-end telephony and high-speed data connections to business and residential subscribers. Vyyo Inc. technology uses point-to- multipoint architecture to deliver circuit-switched telephony and data over IP to commercial and private customers throughout the world. Vyyö V284 WMU User’s Guide www.vyyo.com 2 2 MODEM FEATURES AND COMPONENTS The V284 modem offers the following features: • Point-to-multipoint broadband wireless Internet access • Superior operations over a wide range of modulation formats and IF bandwidths, including noisy channels • Easy installation • Robust RF performance • Internal radio for UHF bands 2.1 Front Panel Indicators Four Light Emitting Diode (L.E.D.) indicators are located at the front of the modem. The L.E.D.s provide information about the type and status of modem operations, as described in Table 1. Figure 2 ñ V284 WMU Front Panel L.E.D. Indicators Vyyö V284 WMU User’s Guide www.vyyo.com 1 Table 1. L.E.D. Status and Functions L.E.D. Indicator Function POWER • On = Power On • Off = Power Off • Flashing = Fatal Error STATUS • On = Modem is connected to the Internet • Off = Modem is not connected to the Internet RF LINK When Status L.E.D. is Off: • RF On = The downstream link is operational • RF Off = The modem has not yet begun downstream acquisition, the downstream link is idle, or there is a problem with data reception • RF Flashing = Downstream link is being acquired When Status L.E.D. is On: • RF Flashing = Data is transferring in either in the Upstream or …

Text truncated - open the document above for the full version.

Vyyo Inc. FCC ID:PBJV284 Page 1 of 1 DPLX 713/743 MHz Transceiver Chip Set BPF PA BPF 743MHz 44MHz713MHz V284 UHF Transciever Modem Block Diagram 743MHz 669MHz VTCXO 13MHz Synthesizer 669MHz XTAL 10.35MHz 713 MHz 743 MHz 713MHz Crystal Osc.24MHz Tuner Chip

September 20, 2005 American TCB 6731 Whittier Ave. Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality for Wireless Modem Unit, FCC ID:PBJV284 Dear Gentlemen, In regards the exhibits submitted in support of the application for FCC ID:PBJV284, please classify the following as confidential under the provision of 47 CFR 0.459: 1) Schematic diagram, file “Schematics_16109” (1 page); 2) BOM, file “Part_list_16109” (2 pages); 3) File “Circuitry_description_16109” (2 pages). The above material contains trade secrets or technical data which Vyyo Inc. deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Sincerely, Dr. Mike Ritter V.P. Marketing

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 27, 2005 RE: Vyyo Inc. FCC ID: PBJV284 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide an internal photograph #5 with all shields removed. 2) Please explain how the 75 to 50 ohm conversions were taken into account in any testing done with a direct attachment to the antenna port (i.e. power, conducted spurious, bandedge etc.). The concern is that many measurements are marginal to limits, and typically the insertion of a minimum-loss pad (75 to 50 ohms) requires a correction of about 5.72 dB. 3) Please explain how power output was calibrated in terms of RMS equivalent voltage according to 27.50(c)(4). 4) Users manual should contain antenna installation instructions regarding RF exposure conditions necessary for the installer/user to be in compliance with RF exposure requirements and/or any co- location limitations. Please update. 5) Please define and justify the use of the emissions designators given on the 731. Note that the measured bandwidths appear different than on the 731. Additionally, please clarify which is intended for QPSK and which is intended for QAM. 6) Please provide both current and voltage applied into the several elements of the final radio frequency amplifying device for normal operation over the power range per (2.1033(c)(8)). 7) FYI....The AC power conducted emissions appear to have an extension between the LISN and Adapter. Generally every effort should be made to plug the adapter as close to the LISN as possible. Please be careful of this in future applications. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

HERM O N LA BO RA TO RIES November 8, 2005 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. Timothy Johnson, Examining Engineer RE: your e-mail dated October 27, 2005; Vyyo Ltd. FCC ID: PBJV284, ATCB002867 Dear Mr. Johnson, Please find below the answers to your questions. 1) The revised file “Internal_photographs_16109_rev1” with additional photograph #6 of Tuner without shields was uploaded on November 8, 2005 via Internal Photographs folder. 2) We didn't use any impedance matching network as it is problematic to find one to cover the entire frequency band of measurements (up to 10 th harmonic). We used attenuator to improve return loss and added correction factor of 1.9 dB to spectrum analyzer readings to compensate voltage division between 75 Ohm source and 50 Ohm load. 3) There is no true RMS detector in the spectrum analyzer we used for the test as well as in the most spectrum analyzers of Agilent. Peak detector was used for testing. The peak detector is calibrated in terms of equivalent RMS voltage/power of the envelope detector . 4) The revised “User_Guide_16109_rev1” with corrected Section 3 “Using the Modem” was uploaded on November 8, 2005 via “Users Manual” folder. 5) We used the Emission Designator notation for the maximum channel BW (3.2 MHz), for both 16QAM and QPSK. The Emission Notation is 3M20D1W for 3.2 MHz 16QAM, and 3M20G1W for 3.2 MHz QPSK. The user has several Symbol Rate options (2560, 1280, 640, 320, 160 Ksps), which are related to maximum channel BW (3200, 1600, 800, 400, 200 KHz), for both QPSK and 16QAM. The actual measured occupied BWs were bellow the maximum channel BW for all channel BW and modulation. 6) Please refer to the document “RF_specifications_16109”, page 1, Table “General”, Power Amplifier: 6 V, 650 mA. 7) Thank you for help. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories

HERM O N LA BO RA TO RIES November 15, 2005 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. Timothy Johnson, Examining Engineer RE: your e-mail dated November 14, 2005; Vyyo Ltd. FCC ID: PBJV284, ATCB002867 Dear Mr. Johnson, Please find below the answer to your question. 1). The 1.9 dB voltage division correction factor generally represents the worst case for ideal source, internal impedance 75 Ohm and load. In this configuration the difference between measurements at 50 Ohm and 75 Ohm loads will be expressed by the following equation: V@50 Ohm / V@75 Ohm= Vemf(50/(75+50))/ Vemf(75/(75+75))= 0.8 or in logarithmic units 20 log 0.8 = -1.9 dB. For power correction the situation is even better: P@75 Ohm (dBm) = V@75 Ohm (dBuV) - 108.7 dB P@50 Ohm (dBm) = V@50Ohm (dBuV) - 107 dB Assuming the correction factor will be added, we obtain P@50 Ohm (dBm) = V@50 Ohm (dBuV) - 107 dB - 1.9 dB = V@50 Ohm (dBuV) - 108.9 dB or 0.2 dB correction. The similar corrections used in ESA series of spectrum analyzers from Agilent for 50 and 75 Ohm inputs. The 75 Ohm to 50 Ohm direct transaction corresponds to VSWR=1.5 or 0.2 reflection coefficient. The most of spectrum analyzers yields the same VSWR, so generally saying this is still uncertain will it give the result closer to the "true" one or not. Moreover, the VSWR of the EUT output port is not considered at all, which may be much higher than at the spectrum analyzer input. That is why, we used VSWR=1.5 0.2 reflection coefficient for spectrum analyzer and VSWR=2 0.33 reflection coefficient for EUT antenna port in the measurement uncertainty calculations. These parameters fully cover the range of measurements. Sincerely, Michael Nikishin, EMC& Radio group leader Hermon Laboratories

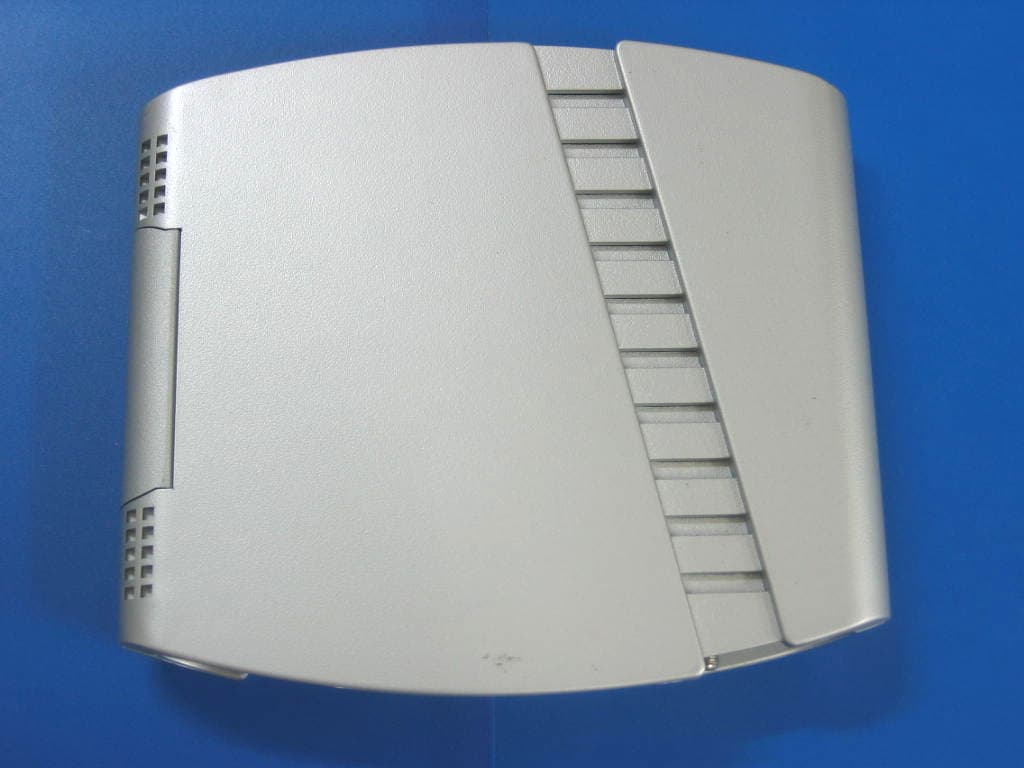

Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 2 of 5 Photograph No.1 Top view Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 3 of 5 Photograph No.2 Rear view Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 4 of 5 Photograph No.3 Antenna connector Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 5 of 5 Photograph No.4 Front view

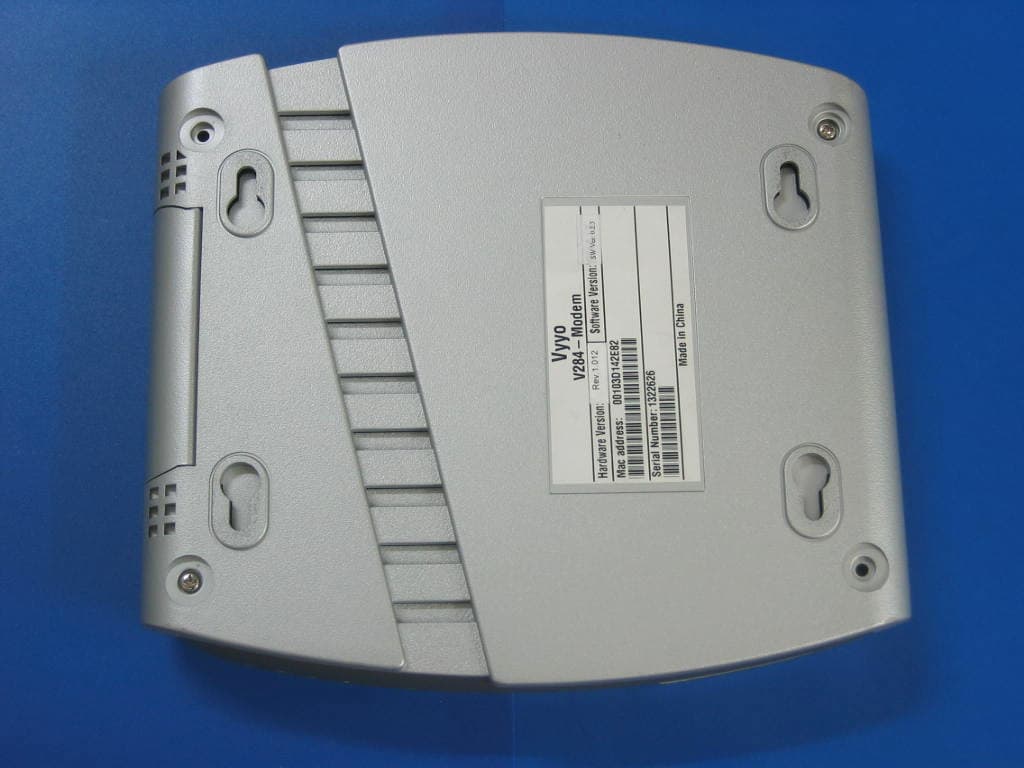

Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 1 of 2 LABEL The label shown below is affixed on the bottom of the V284 unit. The label material is PVC with a permanent adhesive. Label location on the V284 bottom, FCC ID:PBJV284 V284 - Modem. H/W Ver.: S/W Ver.: Mac Address Serial No.: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation FCC ID: PBJV284 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numarique de la classe B est conforme a la norme NMB-003 du Canada. DC Input:12VDC/1.25A Made in China

Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 1 of 8 INTERNAL PHOTOGRAPHS, Rev1 This document contains 7 photographs Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 2 of 8 Photograph No.1 Internal view Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 3 of 8 Photograph No.2 Internal view Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 4 of 8 Photograph No.3 RF part of PCB Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 5 of 8 Photograph No.4 Component side of the PCB Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 6 of 8 Photograph No.5 Component side of the RF PCB Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 7 of 8 Photograph No.6 RF part with shields removed Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 8 of 8 Photograph No.7 Print side of the PCB

Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 87 Report ID: VYYRAD_FCC.16109_rev1.doc Date of Issue: December 2004 Electrical TEST REPORT ACCORDING TO: FCC part 27: 2003 FCC part 15: 2004 subpart B FOR: Vyyo Ltd. Wireless modem V284 710.4 – 715.6 MHz This report is in conformity with ISO/ IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: VYYRAD_FCC.16109_rev1.doc Date of Issue: December 2004 Project: 16109 Page 2 of 87 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Operating frequencies ................................................................................................................................................... 5 6.5 Changes made in the EUT ............................................................................................................................................ 5 6.6 Test configuration.......................................................................................................................................................... 6 6.7 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter characteristics ............................................................................................................................................ 8 7.1 Peak output power test.................................................................................................................................................. 8 7.2 RF exposure................................................................................................................................................................ 11 7.3 Spurious emissions at RF antenna connector test ...................................................................................................... 13 7.4 Radiated spurious emission measurements................................................................................................................ 28 7.5 Frequency stability test................................................................................................................................................ 40 7.6 Occupied bandwidth test ............................................................................................................................................. 46 8 Emissions tests according to 47CFR part 15 subpart B requirements ........................................................................ 58 8.1 Conducted emissions .................................................................................................................................................. 58 8.2 Radiated emission measurements .............................................................................................................................. 61 8.3 Antenna power conducted measurements for receiver ............................................................................................... 66 9 APPENDIX A Test equipment and ancillaries used for tests....................................................................................... 69 10 APPENDIX B Measurement uncertainties................................................................................................................... 71 11 APPENDIX C Test facility description ......................................................................................................................... 72 12 APPENDIX D Specification references ....................................................................................................................... 72 13 APPENDIX E Abbreviations and acronyms................................................................................................................. 73 14 APPENDIX F Test equipment correction factors ......................................................................................................... 74 Report ID: VYYRAD_FCC.16109_rev1.doc Date of Issue: December 2004 Project: 16109 Page 3 of 87 1 Applicant information Cl…

Text truncated - open the document above for the full version.

Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 1 of 9 SETUP PHOTOGRAPHS This document contains 8 photographs Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 2 of 9 Photograph No.1 Peak output power and spurious emissions at RF antenna connector test setups Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 3 of 9 Photograph No.2 Maximum permissible exposure (MPE) measurement setup Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 4 of 9 Photograph No.3 Setup for spurious emission field strength measurements in 9 kHz to 30 MHz range Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 5 of 9 Photograph No.4 Setup for spurious emission field strength measurements in 30 MHz to 1 GHz range in the anechoic chamber Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 6 of 9 Photograph No.5 Setup for spurious emission field strength measurements above 1 GHz in the anechoic chamber Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 7 of 9 Photograph No.6 Setup for spurious emission field strength measurements at the OATS Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 8 of 9 Photograph No.7 Setup for substitution ERP measurements of spurious Vyyo Inc. FCC ID:PBJV284 Date: September 2005 Page 9 of 9 Photograph No.8 Setup for conducted emission measurements at the mains power port
