PBR-SZHHG3CC2530 based ZigBee Scanning Handheld

SRHHG3 User Guide SRHHG3 User Guide Page 2 The Kroger Co. Release 1.0 Version 1.0 Copyright © 2015, The Kroger Co. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from The Kroger Co. All copyright, confidential information, patents, design rights and all other intellectual property rights of whatsoever nature contained herein are and shall remain the sole and exclusive property of The Kroger Co. The information furnished herein is believed to be accurate and reliable. However, no responsibility is assumed by The Kroger Co. for its use, or for any infringements of patents or other rights of third parties resulting from its use. The Kroger Co. name and The Kroger Co. logo are trademarks or registered trademarks of The Kroger Co. All other trademarks are the property of their respective owners. SRHHG3 User Guide Page 3 Table of Content 1 INTRODUCTION ............................................................................................................ 5 2 SRHHG3 SPECIFICATIONS .............................................................................................. 6 2.1 PROCESSING ............................................................................................................................... 6 2.2 POWER ...................................................................................................................................... 6 2.3 CUSTOMER APPLICATIONS ............................................................................................................. 6 2.4 FIRMWARE UPDATES .................................................................................................................... 6 2.5 OPERATING CONDITIONS ............................................................................................................... 6 2.6 DIMENSIONS ............................................................................................................................... 6 2.7 APPROVALS ................................................................................................................................ 7 3 POWER REQUIREMENTS ............................................................................................... 8 4 INTERFACE DETAILS ...................................................................................................... 9 4.1 USER INTERFACES ........................................................................................................................ 9 4.2 ZIGBEE INTERFACE: ...................................................................................................................... 9 5 FCC COMPLIANCE STATEMENTS.................................................................................. 10 6 OPERATIONAL INSTRUCTION ...................................................................................... 10 SRHHG3 User Guide Page 4 Revision History Date Change Description Revision 21-Jan-15 Initial Revision 0.1 30-Jan-15 Sent for Kroger’s review 0.2 SRHHG3 User Guide Page 5 1 Introduction SRHHG3 is a rechargeable battery operated shopping device. Gen3 Handheld has two ZigBee modules for wireless connectivity. Benefits • SRHHG3 device can be used for shopping without associate help/interference. • Scan barcode of any product in Kroger store and get product details from server and add/remove to your shopping list. • Product detail will transfer over Zigbee network through nearest Zigbee access point. • Handheld can be used as a walkie-talkie for voice communication. • It support vibrator to give a feeling of a button press events SRHHG3 User Guide Page 6 2 SRHHG3 Specifications 2.1 Processing • 456-MHz ARM926EJ-S RISC Core SoC • 256MB DDR2 RAM • 256MB NAND FLASH • FCC Certified ZigBee Modules (2 Nos.) 2.2 Power • Battery :- o Input Voltage to handheld system: 3.7 V@2100mAH Li-Io Battery ( Rechargeable ) o Input Current to handheld system: 450mA (MAX.) • Charging :- o Charging Voltage: 5VDC through mini-USB connector or charging pins o Charging Current: 550mA Note: Battery charger is not a part of supplied item with this device. 2.3 Customer Applications • Barcode Laser Scanner • Data transfer over Zigbee network • Voice communication over Zigbee network 2.4 Firmware Updates • Firmware updates over Zigbee network 2.5 Operating Conditions • Temperature: 5 to 45º C (41 to 113 ºF) • Humidity: 20 to 80% RH • Indoor (store) use only 2.6 Dimensions • Height: 142 mm • Width: 73mm • Depth: 28 mm SRHHG3 User Guide Page 7 2.7 Approvals • EMI o FCC Wireless subpart C SRHHG3 User Guide Page 8 3 Power Requirements The SRHHG3 is powered by a rechargeable Li-Io battery. This can be recharge through mini USB connector OR Charging pins. Battery Charger is not part of standard packaging. The standard FCC/CE/UL certified off-the- shelf USB charging devices or certified charging cradle should be used. SRHHG3 User Guide Page 9 4 Interface Details SRHHG3 Device provides Network terminal access only through debug board connection which is in-turn password protected. 4.1 User Interfaces • Key Interface : Key board for function operation and Power ON/OFF Button • Display : 2.8” RGB Graphic LCD • Microphone : Omani directiona mic • Speaker : 1 Watt , SMD • Barcode scanner : Laser base barcode scanner 4.2 ZigBee Interface: SRHHG3 has two FCC certified ZigBee modules place orthogonally on the board for a wireless connectivity with store’s Zigbee network. SRHHG3 User Guide Page 10 5 FCC Compliance Statements This device complies with Part 15 of the FCC rules. Operation is subject to following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received including interference that may cause undesired Operation of this device. FCC Caution:…

Text truncated - open the document above for the full version.

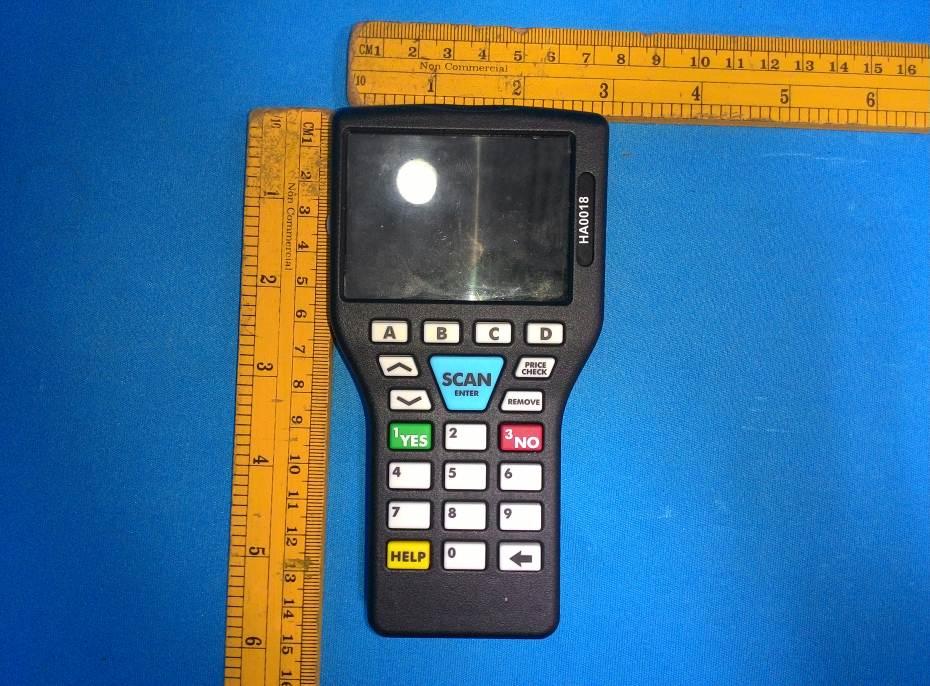

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 1 von 4 Page 1 of 4 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 2 von 4 Page 2 of 4 EUT Side View EUT Side View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 3 von 4 Page 3 of 4 EUT Dimensional View EUT Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 4 von 4 Page 4 of 4 EUT Dimensional View

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 1 von 1 Page 1 of 1 Label Diagram Location Diagram

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 1 von 6 Page 1 of 6 EUT internal View EUT Sectional View without LCD www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 2 von 6 Page 2 of 6 EUT LCD Front View EUT LCD Rear View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 3 von 6 Page 3 of 6 EUT without Keypad EUT Rear View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 4 von 6 Page 4 of 6 EUT Modules EUT Module-1 www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 5 von 6 Page 5 of 6 EUT Module-2 EUT Rear view of Circuit Board www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 6 von 6 Page 6 of 6 EUT Battery Section EUT Barcode Reader Circuitry

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 1 von 1 Page 1 of 1 Radio Frequency Human Exposure Evaluation: The EUT has two Zigbee radio modules. The combined output power of the modules is 4.11dBm i.e.2.58mW. The Minimum separation distance from radiating antenna to the enclosure is more than 3mm When the standalone SAR test exclusion of section 4.3.1 is applied to an antenna that transmits simultaneously with other antennas, the standalone SAR must be estimated according to the following to determine simultaneous transmission SAR test exclusion: (Max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√ f (GHz)/x] W/kg for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR, and x = 18.75 for 10-g SAR. For this EUT, the SAR estimated is 0.179W/kg by using the above formula. Hence further measurement of SAR is not required as per 447498 D01 General RF Exposure Guidance v05r02

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 1 von 3 Page 1 of 3 Test Setup Photo Test Setup Photo www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 2 von 3 Page 2 of 3 Test Setup Photo Test Setup Photo www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 19660156 001 Seite 3 von 3 Page 3 of 3 Test Setup Photo
