PBR-SZMDLNR1CC2530 ZigBee Module

SRNMRG User Guide Rev 1.2 Page 1 SRNMRG (CC2530 ZigBee MODULE) USER GUIDE SRNMRG User Guide Rev 1.2 Page 2 Contents 1 Introduction .......................................................................................................... 4 1.1 Purpose and scope .................................................................................................. 4 1.2 Revision History ...................................................................................................... 4 2 Module Application Circuit ..................................................................................... 5 2.1 Sample Application Connections ............................................................................. 5 2.2 Compliance Limits ................................................................................................... 6 2.3 Module Power Supply ............................................................................................. 6 3 Antenna Options and PCB Footprint........................................................................ 7 3.1 Footprint Overview ................................................................................................. 7 3.2 Module Footprint .................................................................................................... 8 4 Agency Statements ................................................................................................ 9 4.1 Federal Communication Commission Interference Statement................................. 9 4.2 ETSI (European Telecommunications Standards Institute) Statement ..................... 9 4.3 RF Exposure ............................................................................................................ 9 4.4 End Product Labelling............................................................................................ 10 5 Contact Detail ..................................................................................................... 11 SRNMRG User Guide Rev 1.2 Page 3 Figures Figure 1: SRNMRG Application Circuit ................................................................................... 5 Figure 2: Header Board Footprint Overview .......................................................................... 7 Figure 3: SRNMRG Module Footprint overview ..................................................................... 8 Tables Table 1: Compliance Limit ..................................................................................................... 6 SRNMRG User Guide Rev 1.2 Page 4 1 Introduction 1.1 Purpose and scope The purpose of this document is to provide details regarding the use of CC2530 ZigBee Module (SRNMRG). This document describes the connections between CC2530 Module and header board. This connection details can be used to mount Module on other Host Board. 1.2 Revision History Date Change Description Revision 14-Sep-2012 Initial release 1.0 15-OCT-2012 Sec 2.2 Updated 1.1 29-OCT-2012 Sec 2.2 Updated for compliance note 1.2 SRNMRG User Guide Rev 1.2 Page 5 2 Module Application Circuit 2.1 Sample Application Connections Figure 1 shows the circuit connection between SRNMRG Module and CC2530 Header board. Header board provide the power supply to the SRNMRG Module and also debug header for programming the CC2530. Figure 1: SRNMRG Application Circuit Please refer SRNMRG datasheet for module pin description. Based on application requirements host device can be interfaced with other pins on the module. Please refer TI- CC2530 user guide for connection/state information of unused pins. SRNMRG User Guide Rev 1.2 Page 6 2.2 Compliance Limits Depending on the country where the module is used, proper power level needs to be set to meet compliance limit to ensure the certification of module. Table 1 shows the register value configuration for RF Power to meet compliance limit for ETSI standard. Table 1: Compliance Limit Compliance TX POWER Register value ETSI 0XF5 Note: The register value used for FCC compliance is maximum value and cannot be increased by end user. The RF Output Power configuration is not accessible to End User. 2.3 Module Power Supply The SRNMRG Module can operate between 2.7V to 3.6V power level. However, it is recommended to provide nominal 3.3VDC supply to Module VCC and GND pins. For details of VCC – GND pins; please refer Module datasheet. SRNMRG User Guide Rev 1.2 Page 7 3 Antenna Options and PCB Footprint SRNMRG (CC2530 Module) has PCB Inverted F Antenna designed on Board. 3.1 Footprint Overview Below figure shows the footprint detail of the Header board for SRNMRG Module. The Header Board (or Host Board) Footprint will be designed as per the Module footprint as mentioned in datasheet. Figure 2: Header Board Footprint Overview SRNMRG User Guide 3.2 Module Footprint Figure 3 shows the Module footprint over the Header board Figure 3: SRNMRG Module Footprint overview SRNMRG User Guide Rev 1.2 Page 9 4 Agency Statements 4.1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates; uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which t…

Text truncated - open the document above for the full version.

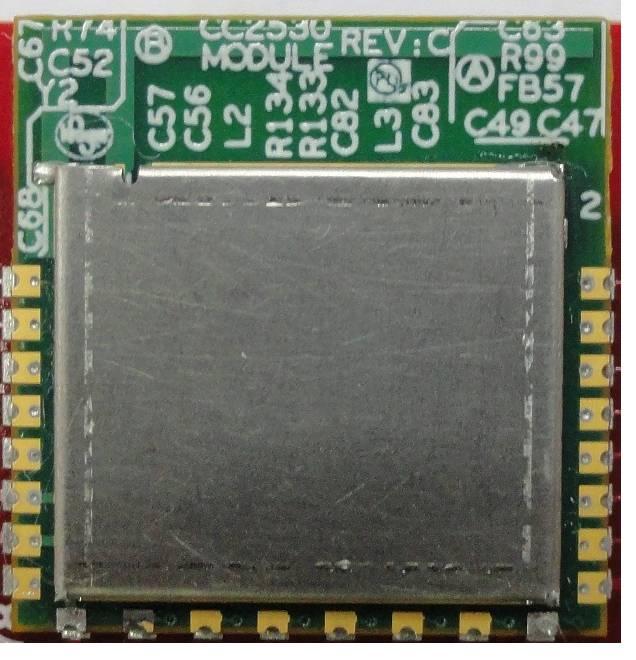

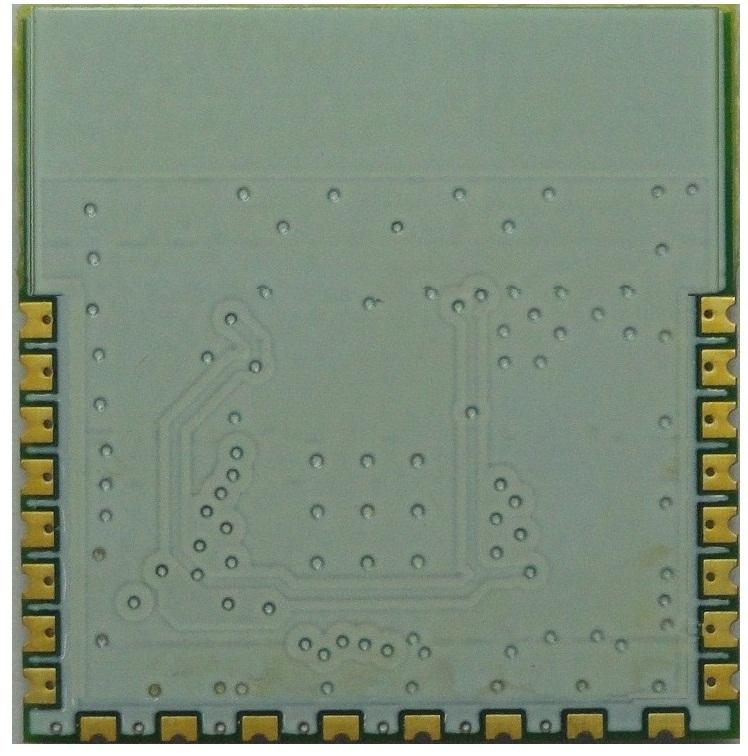

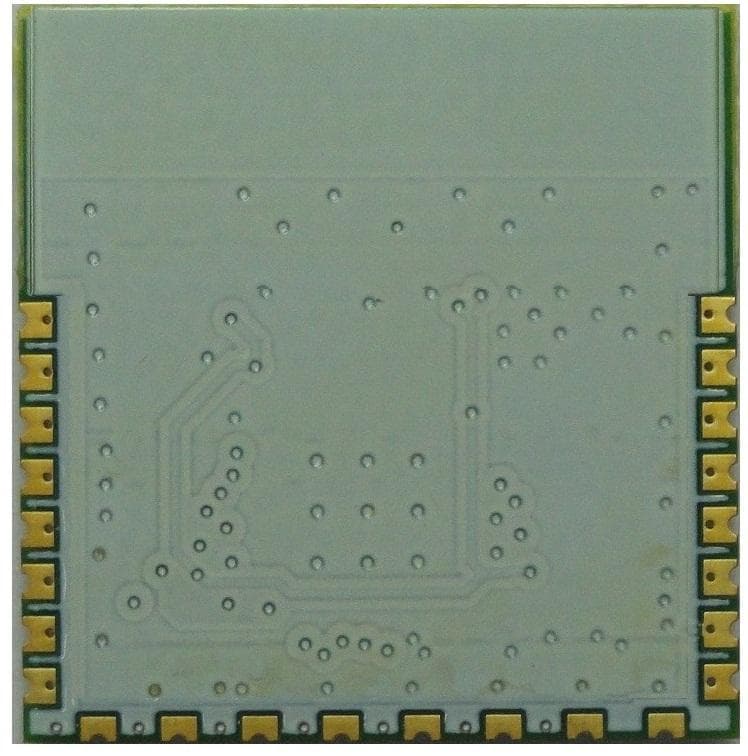

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 01200091 001 Seite 1 von 2 Page 1 of 2 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 01200091 001 Seite 2 von 2 Page 2 of 2 EUT Dimensional View

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 01200091 001 Seite 1 von 1 Page 1 of 1 Label Diagram Location Diagram

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 01200091 001 Seite 1 von 1 Page 1 of 1 EUT with Shield Opened

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 01200091 001 Seite 1 von 1 Page 1 of 1 Radio Frequency Human Exposure Evaluation: The highest RF output power of the EUT at 2405 MHz was measured 01.12dBm which is less than 20mW. Since maximum peak output power of the transmitter is <60/f (GHz) mW, i.e. 1.3mW<24.94(=60/2.405) mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Produkte Products TÜV Rheinland LGA Products GmbH  Tillystraße 2  D - 90431 Nürnberg  Tel.: +49 911 655 5225  Fax: +49 911 655 5226 Mail: [email protected]  Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 01200091 001 Seite 1 von 27 Test Report No.: Page 1 of 27 Auftraggeber: Client: The Kroger Co. 11450 Grooms Rd. Blue Ash, OH 45242 United States Gegenstand der Prüfung: Test item: CC2530 ZigBee MODULE Bezeichnung: Identification: SRNMRG Serien-Nr.: Serial No. Engineering Sample Wareneingangs-Nr.: Receipt No.: 1403021240 Eingangsdatum: Date of receipt: 21.07.2012 Prüfort: Testing location: Refer Page 4 of 27 for test facilities Prüfgrundlage: Test specification: FCC Part 15, Subpart C ANSI C63.4-2003 Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test items passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. 82/A, 3rd Main, West Wing, Electronic City Phase 1 Hosur Road, Bangalore – 560 100. India geprüft / tested by: kontrolliert / reviewed by: 22.08.2012 Vinay N Test Engineer 24.08.2012 Raghavendra Kulkarni Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID : PBR-SZMDLNR1 Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.: 01200091 001 Date: 14.08.2012 Page 2 of 27 Test Result Summary Clause Test Item Result FCC 15.247(b) (3) Maximum Conducted Peak Output Power Pass FCC 15.247(a) (2) 6dB Bandwidth Pass FCC 15.247(e) Power Spectral Density Pass FCC 15.247(d) Band-edge compliance Pass FCC 15.209 Spurious Radiated Emissions Pass FCC 15.205 Restricted Bands of Operation Pass FCC 15.207 Conducted Emissions on a.c Power lines Pass www.tuv.com Test Report No.: 01200091 001 Date: 14.08.2012 Page 3 of 27 Content List of Type and Measurement Instruments ............................................................. 4 General Product Information ..................................................................................... 5 Product Function and Intended Use ............................................................................................. 5 Ratings and System Details ........................................................................................................... 5 Test Set-up and Operation Mode ............................................................................... 6 Principle of Configuration Selection ............................................................................................ 6 Test Operation and Test Software ................................................................................................ 6 Special Accessories and Auxiliary Equipment ............................................................................ 6 Countermeasures to achieve EMC Compliance .......................................................................... 6 Test Methodology ....................................................................................................... 7 Radiated Emission Test ................................................................................................................. 7 Test Results ................................................................................................................. 8 Maximum Conducted Peak Output Power Section 15.247(b) (3) ......................... 8 Power Spectral Density Section 15.247(e) ............................ 11 6 dB Bandwidth Section 15.247(a)(2) ........................ 14 Band-edge Compliance Section 15.247(d) ........................... 18 Spurious Radiated Emissions and Restricted Bands of Operation Section 15.209 and 15.205 ................................................................................................................................ 23 Conducted Emission Test on a.c. Power Line Section 15.207 .............................. 25 Appendix 1: Test Setup Photo Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: FCC Label and Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Exposure Calculation www.tuv.com Test Report No.: 01200091 001 Date: 14.08.2012 Page 4 of 27 List of Type and Measurement Instruments TÜV Rheinland (India) Pvt. Ltd, Bangalore List of Test and Measurement Instruments Equipment Manufacturer Model S/N Calibration Due Date EMI Test Receiver Rohde &Schwarz ESU 40 100288 21.07.2013 EMI Test Receiver Rohde &Schwarz ESCI 100661 17.03.2013 Hybrid Log Periodic antenna ETS Lindgren 3142D 00081354 26.07.2013 Broadband Horn Antenna Frankonia HAX-18 HAX18-802 23.03.2013 Double-Ridged Waveguide Horn Antenna ETS Lindgren 116794 00133356 01-09-2013 Emission Horn Antenna ETS Lindgren 116706 00107323 24-08-2013 Active Loop Antenna Frankonia LAX-10 LAX-10-800 11-04-2013 Spectrum Analyser Agilent Technologies E4407B US41192772 17.03.2013 Testing Facilities: 1) TUV Rheinland (India) Private Limited No. 108, West Wing Electronic city Phase I Bangalore – 560100 www.tuv.com Test Report No.: 01200091 001 Date: 14.08.2012 Page 5 of 27 General Product Information Product Function and Intended Use The SRNMRG Module is desig…
