PD9100BNHUIntel Centrino Wireless-N 100

Intel® PROSet/Wireless WiFi Connection Utility User's Guide file:///C|/Documents%20and%20Settings/dcobb1/Desktop/Holbert%2014.0%20Proset%20User%20Guide/html/index.htm[9/24/2010 5:51:48 PM] Intel® Wireless Adapter Information Guide Supported wireless adapters: Intel® Centrino® Ultimate-N 6300 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® WiFi Link 5300 Intel® WiMAX/WiFi Link 5150 Intel® WiFi Link 5100 Intel® WiFi Link 1000 Intel® Wireless WiFi Link 4965AGN Intel® Wireless WiFi Link 4965AG Intel® PRO/Wireless 3945ABG Network Connection Intel® PRO/Wireless 3945BG Network Connection Intel® Centrino® Wireless-N 1030 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 100 With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. This guide contains basic information about Intel adapters. It includes information about several adapter properties that you can set to control and enhance the performance of your adapter with your particular wireless network and environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs. Adapter Settings Regulatory Information Specifications Important Information Support Warranty Glossary Information in this document is subject to change without notice. © 2004–2010 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet Intel® PROSet/Wireless WiFi Connection Utility User's Guide file:///C|/Documents%20and%20Settings/dcobb1/Desktop/Holbert%2014.0%20Proset%20User%20Guide/html/index.htm[9/24/2010 5:51:48 PM] all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless LAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant." September 23, 2010 Adapter Settings file:///C|/Documents%20and%20Settings/dcobb1/Desktop/Holbert%2014.0%20Proset%20User%20Guide/html/adaptusr.htm[9/24/2010 5:51:48 PM] Back to Contents Adapter Settings The Advanced tab displays the device properties for the WiFi adapter installed on your computer. This version of Intel® PROSet/Wireless WiFi Software is compatible with the following adapters: Intel® Centrino® Ultimate-N 6300 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® WiFi Link 5300 Intel® WiMAX/WiFi Link 5150 Intel® WiFi Link 5100 Intel® WiFi Link 1000 Intel® Wireless WiFi Link 4965AGN Intel® Wireless WiFi Link 4965AG Intel® PRO/Wireless 3945ABG …

Text truncated - open the document above for the full version.

Intel Corporation 100 Center Point Circle Columbia, SC 29210 September 15, 2010 American TCB 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA Subject: Model 100BNHMW IEEE 802.11 b/g/n PCIe Card FCC ID’s: PD9100BNH and PD9100BNHU Gentlemen: Please be advised that the model 100BNHMW IEEE 802.11 b/g/n PCIe card is manufactured for the global market but when marketed in North America under FCC ID’s PD9100BNH or PD9100BNHU the EEPROM will be programmed at the factory to only operate and actively scan on these specific channels: Channels 1-11, 2412-2462MHz 802.11b mode Channels 1-11, 2412-2462MHz 802.11g mode Channels 1-11, 2412-2462MHz 802.11n mode (20MHz channel) Channels 3-9, 2422-2452MHz 802.11n mode (40MHz channel) The following channels will be programmed at the factory to passively scan and will only listen and cannot send a probe request to initiate communication on these specific channels. Ad-hoc mode is always disabled on these passive channels. Channels 12 &13, 2467 & 2472MHz 802.11b mode Channels 12 &13, 2467 & 2472MHz 802.11g mode Channels 12 &13, 2467 & 2472MHz 802.11n mode (20/40MHz channel) This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us at 803-216-2344. Sincerely, Steven C. Hackett Wireless Regulatory Engineer

Page 1 of 1 American TCB 6731 Whittier Avenue, Suite C110 McLean, VA. 22101 October 5, 2010 Ref: FCC ID PD9100BNHU, Industry Canada 1000M-100BNHU To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for a n 802.11bgn module pursuant to the following rules: Subpart B of Part 15 of FCC Rules (CFR 47) – Requirements for PC Peripherals Subpart C of Part 15 of FCC Rules (CFR 47) RSS-Gen Issue 2, June 2007, “General Requirements and Information for the Certification of Radiocommunication Equipment” RSS-210, Issue 7, June 2007, “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” For FCC purposes this is considered a composite device as it falls into equipment codes JBP, and DTS. A limited modular approval is requested for this device as this module can be installed by the user. Limitations on the host into which the module can be installed are provided via a BiOS Lock mechanism to ensure that it is only functional in approved host systems. A description of this mechanism is provided as part of the Operational Description documentation. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark Briggs Staff Engineer

100 Center Point Circle Columbia, SC 29210 Authority to Act as Agent August 27, 2010 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: NTS/Elliott Labs is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: August 27, 2011 By: Steven C. Hackett (Signature 1 ) (Print name) Title: Wireless Regulations Engineer On behalf of: Intel Corporation (Company Name) Telephone: 803-216-2344

100 Center Point Circle Columbia, SC 29210 September 15, 2010 Subject: Confidentiality Request for FCC ID: PD9100BNHU Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Operational Description/BiOS Lock Description Short Term Permanent Schematics Short Term Permanent Parts List - Licensed Devices Short Term Permanent Tune-Up Procedure - Licensed Devices Short Term Label & Location Photo Short Term Test Setup Photos Short Term Permanent* User’s Manual Intel Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ATCB in the event information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, Steven C. Hackett By: __________________________ ________________________ 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

Intel Corporation 100 Center Point Circle Columbia, SC 29210 Modular Approval Requirements Attestation FCC ID: PD9100BNHU Limited Modular Approval is being requested for this device under the ID’s listed above. Modules authorized under these ID’s are intended for installation into the host systems by the end users. In order to ensure compliance with all modular requirements, including RF exposure, the host system will be provided with a feature in BiOS that will allow operation of authorized modules only. The BiOS feature will lock-out any unauthorized devices from operation with the host system. The following paragraphs detail the modular requirements and the manner in which the devices meet them. The module meets all of the technical specifications applicable to the frequency band of operation. The module has its own RF shielding. The module contains a shield which covers the critical RF components; this shield is located on the top side of the board located next to the antenna connectors. All modulation and data input(s) are buffered. Data to the modulation circuit is buffered on the module; please refer to the “theory of operation” document for full details. The module has its own power supply regulation and local reference oscillator. The module contains its own power supply regulation and the rf reference oscillator is contained within the module. Please refer to the schematics and “theory of operation” documents for more detail. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The certification submission contains a detailed description of all antennas that will be used with the module. The module connects to its antenna via using an UFL type connector. This antenna connector is a non-standard connector. The antenna tested was a PIFA type and the data sheet is included in the application. Intel Corporation 100 Center Point Circle Columbia, SC 29210 For Industry Canada, the module meets certification labeling requirements. Host devices that contain separately certified modules do not need to be re-certified, provided that they meet the following conditions:  The host device, as a stand alone unit without any separately certified modules, complies with all applicable Radio Standard Specifications.  The host device and all the separately certified modules it contains jointly meet the safety requirements of RSS-102, if applicable.  The host device complies with the certification labeling requirements of each of the modules it contains. The module is appropriately labeled refer to the label and label location drawings contained within this application. For the FCC, the modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. Test data contained in this application is for the device tested as a stand-alone device. Radiated spurious emissions data and AC conducted emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators has been provided. For the FCC, the modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” The module is appropriately labeled (refer to the label and label location drawings contained within this application). Information to the integrator of this device regarding the labeling requirements for the host system is contained in the instructions provided with the module. The modular transmitter must comply with any applicable RF exposure requirements. The module meets the requirements for a mobile device that may be used at separation distances of more than 20cm from the human body. Refer to the MPE calculation data sheet. If the module is classified as a portable device due to antenna separation distance of less than 20cm from users then compliance for RF exposure rules will be demonstrated for those particular product configurations according to permissive change policies.

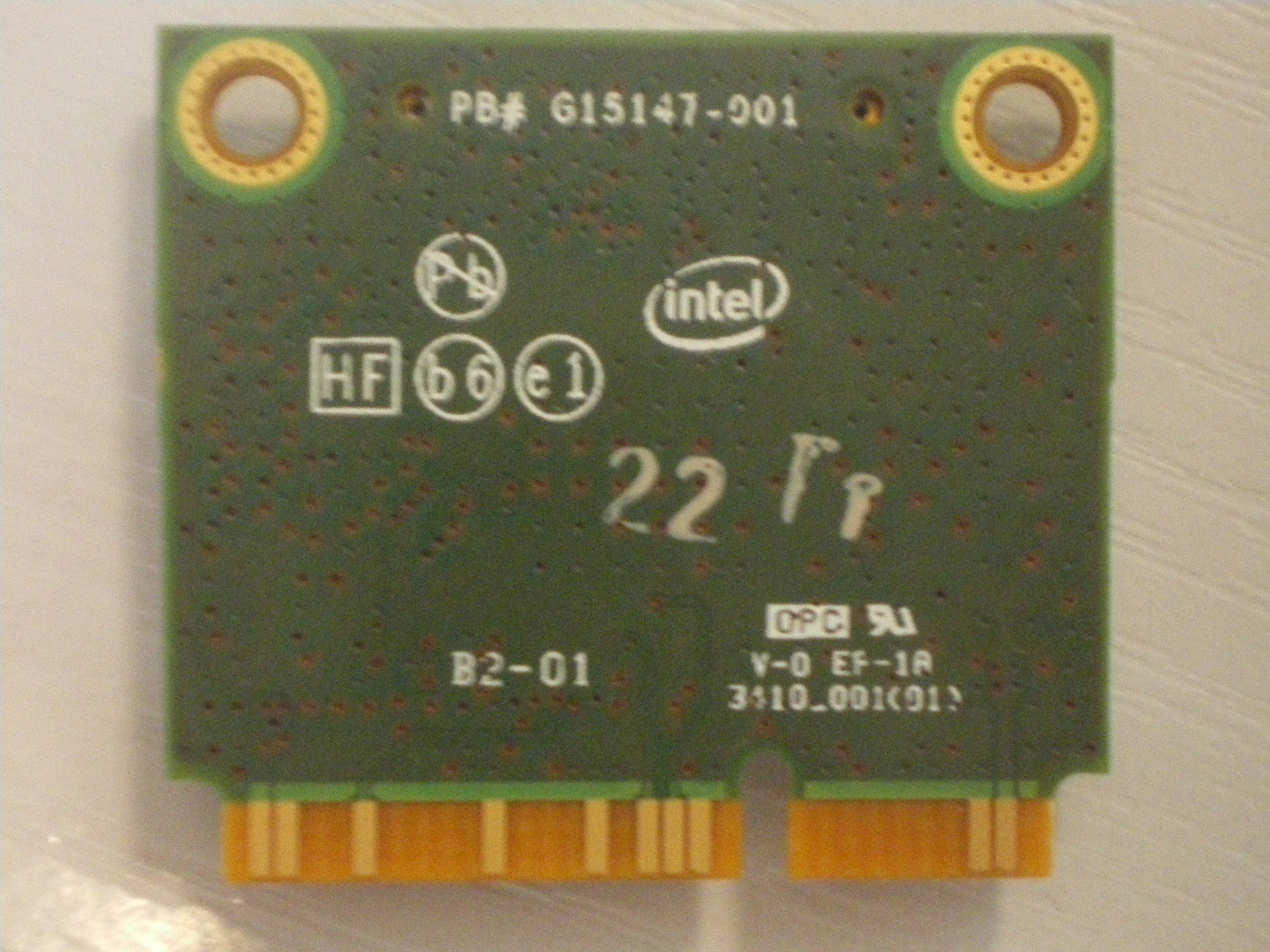

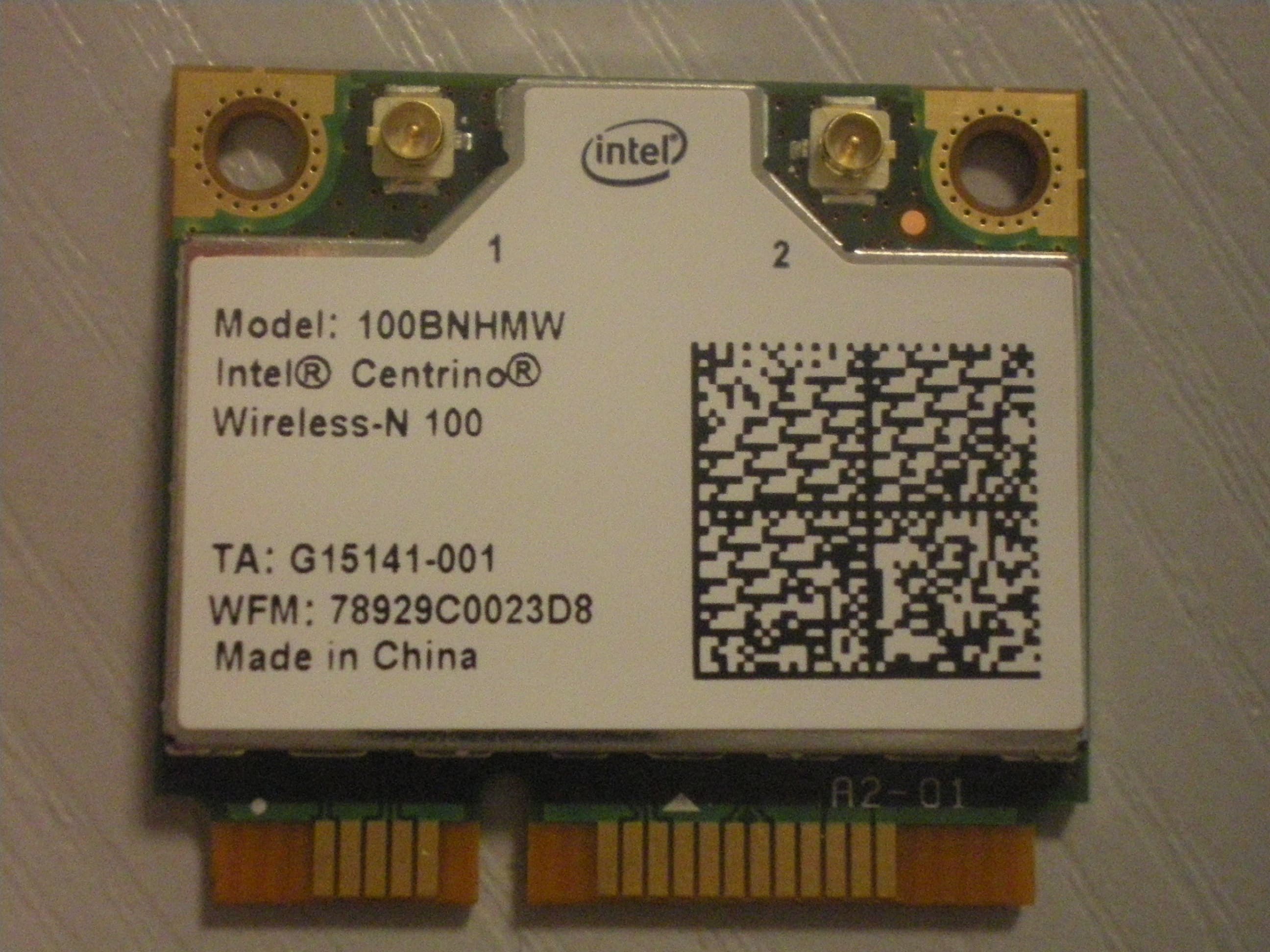

Label wraps around onto the other side of the board. The side of the label with the FCC ID appears on the back of the board.

MPE Calculations The device is not a portable device (i.e. intended to be worn on the body or be hand- held), and it is classified as being for use in mobile host devices. The user’s manual specifies a minimum separation distance of at least 20cm between the host device and end users, consistent with this classification. FCC part 1.1310, Table 1 limits the power density for uncontrolled exposure. The power density, P d (mW/cm 2 ) calculated from the maximum EIRP, P t (mW) and the distance, d (m), between the transmitting antenna and the closest person, can be calculated using: P d = P t /(4 πd 2 ) Frequency MPE Limit (mW/cm 2 ) Output Power (mW) Max. Antenna Gain (dBi) EIRP (mW) Pd at 20cm (mW/cm 2 ) Distance where Pd = limit (cm) 2412 to 2462 MHz 1.00 42.7 3.2 89.1 0.02 2.7 As shown in the calculations above, the power density 20cm from the device is below the maximum permitted level for uncontrolled exposure. The power of 42.7mW (16.3dBm) is the highest output power for all operating modes and all channels.

File: R80787 Rev 1 Page 1 of 21 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 2 / RSS 210 Issue 7 FCC Part 15 Subpart C Model: Intel® Centrino® Wireless-N 100 (model 100BNHMW) IC CERTIFICATION #: 1000M-100BNH and 1000M-100BNHU FCC ID: PD9100BNH and PD9100BNHU APPLICANT: Intel Corporation 100 Center Point Circle Suite 200 Columbia, SC 29210 TEST SITE(S): Elliott Laboratories 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 REPORT DATE: October 19, 2010 FINAL TEST DATES: September 21, 22, 23, 24, 27 and 28, 2010 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Staff Engineer Elliott Laboratories Elliott Laboratories is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report, except where noted otherwise. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories Elliott Laboratories -- EMC Department Test Report Report Date: October 19, 2010 File: R80787 Rev 1 Page 2 of 21 REVISION HISTORY Rev# Date Comments Modified By - 10-06-2010 First release 1 10-19-2010 Reissued to correct the EUT description table. Dave Guidotti Elliott Laboratories -- EMC Department Test Report Report Date: October 19, 2010 File: R80787 Rev 1 Page 3 of 21 TABLE OF CONTENTS REVISION HISTORY .............................................................................................................................................. 2 TABLE OF CONTENTS .......................................................................................................................................... 3 SCOPE........................................................................................................................................................................ 4 OBJECTIVE .............................................................................................................................................................. 4 STATEMENT OF COMPLIANCE......................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS ............................................................................................................ 5 TEST RESULTS SUMMARY ................................................................................................................................. 6 DIGITAL TRANSMISSION SYSTEMS (2400 – 2483.5MHZ) ............................................................................ 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS........................................................................ 6 MEASUREMENT UNCERTAINTIES..................................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 8 GENERAL.............................................................................................................................................................. 8 ANTENNA SYSTEM ............................................................................................................................................ 8 ENCLOSURE......................................................................................................................................................... 8 MODIFICATIONS................................................................................................................................................. 8 SUPPORT EQUIPMENT....................................................................................................................................... 9 EUT INTERFACE PORTS .................................................................................................................................... 9 EUT OPERATION ................................................................................................................................................. 9 TEST SITE............................................................................................................................................................... 11 GENERAL INFORMATION ............................................................................................................................... 11 CONDUCTED EMISSIONS CONSIDERATIONS ............................................................................................ 11 RADIATED EMISSIONS CONSIDERATIONS ................................................................................................ 11 MEASUREMENT INSTRUMENTATION .......................................................................................................... 12 RECEIVER SYSTEM .......................................................................................................................................... 12 INSTRUMENT CONTROL COMPUTER .......................................................................................................... 12 LINE IMPEDANCE STABILIZATION NETWORK (LISN)............................................................................. 12 FILTERS/ATTENUATORS ................................................................................................................................ 13 ANTENNAS......................................................................................................................................................... 13 ANTENNA MAST AND EQUIPMENT TURNTABLE ..................................................................................... 13 INSTRUMENT CALIBRATION......................................................................................................................... 13 TEST PROCEDURES .................................................................................................................…

Text truncated - open the document above for the full version.

TEST CONFIGURATION PHOTOGRAPHS (DTS) AC Power Port Conducted Emissions Radiated Emissions
