PD92011BWLANWireless LAN Module

b Installation Guide Compaq 802.11b MultiPort Module Document Part Number: 225839-001 June 2001 This guide provides information on installing and setting up the 802.11b MultiPort Module as well as tips on solving common problems. 225839g1.book Page i Wednesday, June 13, 2001 10:45 AM © 2001 Compaq Computer Corporation Compaq and the Compaq logo Registered in U.S. Patent and Trademark Office. Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States and other countries. All other product names mentioned herein may be trademarks of their respective companies. Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. Installation Guide First Edition (June 2001) Document Part Number: 225839-001 225839g1.book Page ii Wednesday, June 13, 2001 10:45 AM Installation Guideiii Contents 1 Getting Started Using a Wireless Local Area Network. . . . . . . . . . . . . . . 1–1 Features and Requirements . . . . . . . . . . . . . . . . . . . . 1–2 Selecting a Network Mode. . . . . . . . . . . . . . . . . . . . . . . . 1–2 Ad Hoc Networking Mode . . . . . . . . . . . . . . . . . . . . 1–3 Infrastructure Networking Mode . . . . . . . . . . . . . . . . 1–3 2 Installing Hardware and Drivers Installing the MultiPort Module and Drivers . . . . . . . . . . 2–1 Removing the MultiPort Module . . . . . . . . . . . . . . . . . . . 2–5 3 Installing Software Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3–1 Installing Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1 225839g1.book Page iii Wednesday, June 13, 2001 10:45 AM ivInstallation Guide A Troubleshooting Using the World Wide Web . . . . . . . . . . . . . . . . . . . . . . . A–1 Preparing to Call Technical Support . . . . . . . . . . . . . . . . A–1 B Regulatory Compliance Notices Wireless Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1 Class B Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . B–2 Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–2 Declaration of Conformity for Products Marked with the FCC Logo—United States Only . . B–3 Canadian Regulatory Wireless Notice . . . . . . . . . . . . . . . B–4 Class B Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . B–4 European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . B–5 Japanese Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–6 225839g1.book Page iv Wednesday, June 13, 2001 10:45 AM Installation Guide1–1 1 Getting Started The Compaq 802.11b MultiPort Module allows you to access wireless Local Area Networks, share a local printer and files with others in your network, access the Internet, and roam about the office—wire-free. This wireless Local Area Network solution is designed for both large and small businesses, and it is scalable so that you can add users and new network features as your networking needs grow. Using a Wireless Local Area Network This product is a Local Area Network (LAN) device. A LAN is two or more computers that are connected to each other in order to share files or common equipment such as a printer or a modem. A wireless LAN provides the same functionality of a wired network, but it eliminates the need to install networking cables and other networking equipment. Not only is a wireless LAN easier to deploy, but it also allows for “roaming.” For example, when using a portable computer with a Compaq 802.11b MultiPort Module, you can roam from a conference room to an office without being disconnected from the network. 225839g1.book Page 1 Wednesday, June 13, 2001 10:45 AM 1–2Installation Guide Getting Started Features and Requirements A wireless LAN includes the following features:
Support for the IEEE 802.11b Standard
2.4-GHz band operation
Network speeds up to 11 Mbps
Wired Equivalent Privacy (WEP) encryption To participate in a wireless LAN, you need the following:
Compaq 802.11b MultiPort Module
Software CD containing application, drivers, software reference guide, and help file
A portable computer with a MultiPort, equipped with a CD drive, and running Microsoft Windows 98, Windows Me, or Windows 2000 Selecting a Network Mode A wireless LAN can be configured for two different modes of operation. While each method has its advantages, one may be better suited for your needs. Review the following configurations to determine which mode is best for you and the hardware and software you need to build your network.
Ad hoc networking
Infrastructure networking 225839g1.book Page 2 Wednesday, June 13, 2001 10:45 AM Getting Started Installation Guide1–3 Ad Hoc Networking Mode Also called “peer-to-peer” networking, this mode is the easiest to deploy and is ideal for small offices. As a user on this type of network, you are able to share files with other employees, print to a shared office printer, and access the Internet through a shared modem. However, with ad hoc networking your computer is only able to communicate with other wireless computers that are within range and in your wireless workgroup. Infrastructure Networking Mode The key difference between an infrastructure wireless LAN and an ad hoc wireless LAN is the addition of one extra element—an access point. Unlike “peer-to-peer” networking, where networked computers send data directly to each other, networked computers using the infrastructure networking mode communicate with each other through a dedicated access point. The 802.11b MultiPort Module is compatible with any WiFi (Wireless Fidelity) interoperability certified access point, such as the Compaq WL300, WL4…

Text truncated - open the document above for the full version.

May 28, 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an applications for certification. Applicant: Intel Corporation Product: 802.11b module Model: Agency series PE3010 FCC ID: PD92011BWLAN Dear Sir/Madam, We, Intel Corporation would like to request that the schematic diagrams and system block diagrams, labeled Exhibit 6, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No. Title Drawing No. Sheet No. 1.Schematics "Compaq USB PRISM II.V" 2 Electrical BOM P/N 125347C 3 Mechanical BOM P/N 124044C 4 Processing Gain results P/N N/A 5 Card Block Diagram P/N N/A If you have any queries, please do not hesitate to contact Yogi Shah at (503) 712-9290. Yours truly, Thomas C. Gilmore General Manager Wireless LAN Operation

Barry Quinlan From:<[email protected]> To:<[email protected]>; <[email protected]> Sent:Tuesday, June 26, 2001 7:23 PM Attach:Modular Approval Request.doc; FCC label requirement.doc; Label.pdf; Processing Subject:RE: PD92011BWLAN Page 1 of 2 7/1/2001 > -----Original Message----- > From: David Light > Sent: Tuesday, June 26, 2001 8:04 AM > To: Tom Tidwell > Subject: FW: PD92011BWLAN > > > > -----Original Message----- > From: Jon D. Curtis [SMTP:[email protected]] > Sent: Monday, June 25, 2001 4:36 PM > To: David Light; Davida Hanson > Subject: PD92011BWLAN > > Dear David and Davida, > > Thank you for your business. I have the following issues to resolve on > this one before we proceed to the grant. > > 1. The attached public notice has a requirement for a letter to be > filed when requesting modular approvals. Eight points from the public > notice must be addressed in the letter. I note that you have attempted > to address some of them on page 7 of the test report, but I would prefer > if you would take them in public notice order within the body of the > letter that you will submit requesting modular approval for this > device. In addition, I draw your attention to points 5 and 6 of the > requirements where I have not been able to establish from the submitted > materials that you are in compliance. Point 5 requires that the device > be tested outside of any other housing and it appears that you tested > inside of a laptop. You may need to avail yourselves of the LMA > procedures at the end of the public notice. For point 6, you may find > it necessary to tell me more about the label if this product is ever > provided to end users already installed in a laptop such that the label > on the board is not visible. [Tom Tidwell] I have attached a letter that addresses each point. The device actually snaps onto the top of the laptop case and is removable by the user. The manufacturer will provide instructions to the OEM when the device is sold as a module. > <<Modular Approval Request.doc>> <<FCC label requirement.doc>> > > 2. Can you explain further the configuration change from line conducted > to radiated emissions? Line conducted emissions were performed in a > system configuration, whereas radiated emissions seems to have been done > in a minimal configuration which only included the laptop. What is the > rationale? [Tom Tidwell] The radiated emissions for the device as an unintentional radiator were tested in the full configuration. Since the radio module was being tested as a stand-alone device, we did not fully configure the PC with peripherals for the intentional (restricted bands) testing. The Powerline conducted emissions test was done when the product was being tested as an unintentional radiator and was fully configured. We simply put the radio into TX mode and repeated the conducted emissions test. > 3. The label exhibit appears to contain a blank white area on the > product. We need a drawing or photo of the actual label to be applied > to the product. In addition, please comment on the label material and > the adhesive. For modular approval, please address all items in point 6 > of the public notice on modular approvals. [Tom Tidwell] I am attaching the label. The label is printed with indelible ink and is made of UL approved material since it also serves as the UL label. > <<Label.pdf>> > > 4. I can find no processing gain report in the materials submitted. If > you wish, I can grant this application without processing gain data > under the provisional requirements of DA 00-2317. Otherwise, please > submit a processing gain report. [Tom Tidwell] <<Processing Gain.xls>> > -- > Jon D. Curtis, P.E. > > Director of Engineering > Curtis-Straus LLC > > One Stop Laboratory for NEBS, EMC, > Product Safety, and Telecom Testing. > 527 Great Road > Littleton, MA 01460 USA > Voice 978-486-8880 Fax 978-486-8828 > email: jcurtis@curtis -straus.com > WWW.CURTIS -STRAUS.COM > << File: modular tranmitter approval public notice.PDF >> Page 2 of 2 7/1/2001

label location.jpg (640x480x24b jpeg)

PD92011BWLAN

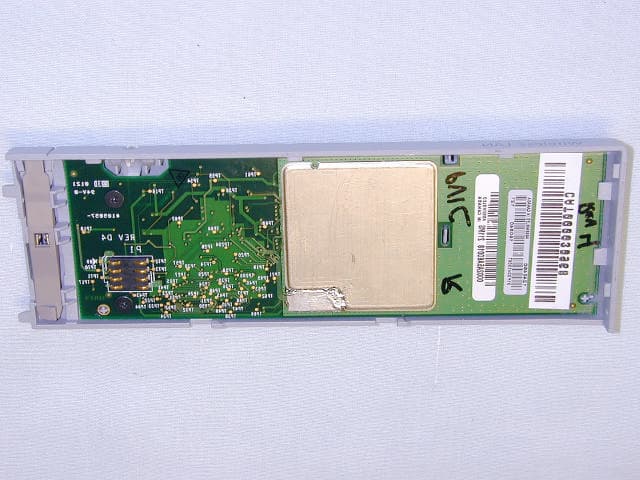

Birdrock 2.4 GHz WLAN Card – Technical Description The Birdrock 2.4 GHz Wireless LAN card is an IEEE 802.11b compliant product based on the Intersil PRISM II.V Direct-Sequence Spread Spectrum Wireless LAN chipset. The available data rates are 1Mbps DBPSK, 2Mbps DQPSK, 5.5Mbps CCK, and 11Mbps CCK. This product operates in the 2.4 GHz ISM band, with channels 1-14 available, depending on the restrictions of local regulatory authorities. The ISL3873 MAC / baseband processor “combo” chip performs all of the necessary MAC layer processing, baseband processing functions (spreading, scrambling, differential encoding, etc) as well as implementing the 5V USB 1.1 host bus functionality. A 48MHz clock oscillator is required for USB interface in the combo chip, while a 44MHz oscillator provides the clock for the baseband functions in the combo chip. The I/Q signalling between the combo chip and the IF quadrature modulator is at a rate of 11Mbps. The combo chip also provides closed loop gain control for both the transmitter and receiver. The HFA3783 chip contains the quadrature modulator for both transmitter and receiver, as well as variable- gain IF amplifiers for both transmit and receive. The HFA3783 also features an on-chip synthesizer for accurate intermediate frequency (IF) generation and control; the 44MHz oscillator used for the combo chip serves as the source of the reference frequency. A local oscillator of frequency 748MHz is divided down to produce an IF of 374MHz. Control signals from the combo chip are used to set the HFA3783 into either transmit or receive mode exclusively, allowing for the use of a single SAW filter to be shared between the two modes. As such, this product is capable of only half-duplex operation. The ISL3685 converts between the IF and the radio frequency (RF) channels for both the transmitter and receiver. A local oscillator of 2.038 – 2.110GHz supplies this chip and produces the 14 frequency channels from 2.412 – 2.484GHz. An on-chip synthesizer uses the 44MHz oscillator again as the source of the reference frequency. Power amplification for the transmitter is accomplished by the ISL3985, which has an on-chip power detector for closed loop control of the output power. Two Rangestar antennas of maximum gain 5dBi are used in a diversity scheme.

This prediction, along with the following photograph, demonstrate the following: 1) The power density levels at a distance of 20 cm. are well below the maximum levels allowed by the FCC regulations. At a distance of 5 cm. the power density levels are still below the maximum specified by the FCC regulations. 2) A minimum separation distance of 20 cm. can practically be maintained during normal use of the equipment. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:17.00(dBm) Maximum peak output power at antenna input terminal:50.11872(mW) Antenna gain(typical):5(dBi) Maximum antenna gain:3.162278(numeric) Prediction distance:20(cm) Prediction frequency:2400(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.03153(mW/cm^2) Maximum allowable antenna gain:20.0127(dBi) 2 4R PG S π = Antenna Location 6" ruler

NEMKO Test Report:1L0303RUS1 Applicant: Intel Corporation 15250 Ave. of Science SN1-02 San Diego, CA 92128 Equipment Under Test:802.11b 2.4GHz Wireless LAN module Model: Agency Series PE3010 FCC ID:PD92011BWLAN In Accordance With:FCC Part 15, Subpart C, 15.247 Direct Sequence Spread Spectrum Transmitters Tested By:Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date:6/18/01 Total Number of Pages:46 NEMKO Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER FCC ID.:PD92011BWLAN EQUIPMENT:Agency Series PE3010PROJECT NO.:1L0303RUS1 Page 2 of 46 Table of Contents Section 1. Summary of Test Results.......................................................................4 Section 2. Equipment Under Test (E.U.T.).............................................................6 Section 3. Powerline Conducted Emissions............................................................9 Section 4. Minimum 6 dB Bandwidth...................................................................10 Section 5. Maximum Peak Output Power.............................................................13 Section 6. RF Exposure........................................................................................17 Section 7. Spurious Emissions (conducted)..........................................................18 Section 8. Spurious Emissions (radiated)..............................................................20 Section 9. Peak Power Spectral Density...............................................................27 Section 10. Minimum Processing Gain.................................................................28 Section 11. Test Equipment List...........................................................................32 ANNEX A - TEST DETAILS...............................................................................33 ANNEX B - TEST DIAGRAMS...........................................................................43 NEMKO Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER FCC ID.:PD92011BWLAN EQUIPMENT:Agency Series PE3010PROJECT NO.:1L0303RUS1 Page 3 of 46 NEMKO Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER FCC ID.:PD92011BWLAN EQUIPMENT:Agency Series PE3010PROJECT NO.:1L0303RUS1 Page 4 of 46 Section 1.Summary of Test Results Manufacturer:Intel Corporation Model No.:Agency Series PE3010 Serial No.:None General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Direct Sequence Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit Modular Approval THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 NEMKO Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. NEMKO Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. NEMKO Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER FCC ID.:PD92011BWLAN EQUIPMENT:Agency Series PE3010PROJECT NO.:1L0303RUS1 Page 5 of 46 Summary Of Test Data NAME OF TESTPARA. NO.SPEC.RESULT Power Line Conducted Emissions15.207(a) 48 dBμV Complies Minimum 6 dB Bandwidth15.247(a)(2)500 kHzComplies Maximum Peak Power Output15.247(b)(1)1 WattComplies Spurious Emissions (Antenna Conducted) 15.247(c)-20 dBc/100kHzComplies Spurious Emissions (Restricted Bands) 15.247(c)Table 15.209(a)Complies Peak Power Spectral Density15.247(d)+8 dBm/3kHzComplies Processing Gain15.247(e)12.9 dBComplies Footnotes: NEMKO Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER FCC ID.:PD92011BWLAN EQUIPMENT:Agency Series PE3010PROJECT NO.:1L0303RUS1 Page 6 of 46 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Frequency Band: 902 – 928 MHz 2400 – 2483.5 MHz 5725 – 5850 MHz Tuning Range: 2412 - 2462 MHz Channels 1 - 11 User Frequency Adjustment: Software controlled. Not adjustable by user. NEMKO Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER FCC ID.:PD92011BWLAN EQUIPMENT:Agency Series PE3010PROJECT NO.:1L0303RUS1 Page 7 of 46 Description of configurations Two revisions of the EUT were tested. The two versions are identical except that version 5 has slightly different biasing of the PA. The result of this bias change is to slightly lower the rf power output (by less than 1 dB). Both versions were tested and it was found that version 4 represents worst-case emissions. Even so, very little difference was seen between the two versions. Modular approval rationale The EUT meets with the FCC requirements for a modular approval on the following merits: 1) The EUT is a complete rf transmitter. The only connections to the EUT are data modulation inputs and dc power. 2) The rf power density levels are low enough to ensure compliance with FCC exposure regulations at a distance of 5 cm.( 2 inches). Any applications for this module would ensure that a minimum separation distance of 20 cm. would be maintained during use. 3) It is understood that the various platforms in which this transmitter may operate will require separate testing and/or approval for unintentional emissions. 4) The transmitter module ha…

Text truncated - open the document above for the full version.

Data Rate 11Mb/s Modulation CCK System Loss Lsys=2 PG=Es/No+Lsys+J/S Desired Signal level = -60dBm. Channel #6 FrequencyJammer LevelJ/SPGProcessing Gain = 12.9 2445.00-53.306.725.1 2444.95-53.206.825.2 2444.90-53.106.925.3 2444.85-53.406.625 2444.80-53.406.625 2444.75-53.806.224.6 2444.70-53.906.124.5 2444.65-54.305.724.1 2444.60-54.705.323.7 2444.55-54.805.223.6 2444.50-55.304.723.1 2444.45-55.404.623 2444.40-55.404.623 2444.35-55.804.222.6 2444.30-55.804.222.6 2444.25-56.503.521.9 2444.20-56.803.221.6 2444.15-56.303.722.1 2444.10-57.202.821.2 2444.05-57.202.821.2 2444.00-58.801.219.6 2443.95-57.902.120.5 2443.90-58.00220.4 2443.85-58.301.720.1 2443.80-58.701.319.7 2443.75-59.600.418.8 2443.70-59.300.719.1 2443.65-59.500.518.9 2443.60-59.600.418.8 2443.55-59.900.118.5 2443.50-60.20-0.218.2 2443.45-60.10-0.118.3 2443.40-60.40-0.418 2443.35-60.70-0.717.7 2443.30-60.80-0.817.6 2443.25-61.40-1.417 2443.20-60.90-0.917.5 2443.15-61.00-117.4 2443.10-61.10-1.117.3 2443.05-61.30-1.317.1 2443.00-62.20-2.216.2 2442.95-61.90-1.916.5 2442.90-61.30-1.317.1 2442.85-61.40-1.417 2442.80-61.50-1.516.9 2442.75-61.90-1.916.5 2442.70-61.90-1.916.5 2442.65-62.10-2.116.3 2442.60-62.30-2.316.1 2442.55-62.50-2.515.9 2442.50-62.70-2.715.7 2442.45-62.70-2.715.7 2442.40-62.80-2.815.6 2442.35-63.00-315.4 2442.30-62.80-2.815.6 2442.25-62.70-2.715.7 2442.20-62.70-2.715.7 2442.15-62.80-2.815.6 2442.10-62.90-2.915.5 2442.05-63.00-315.4 2442.00-63.20-3.215.2 2441.95-63.90-3.914.5 2441.90-63.80-3.814.6 2441.85-64.00-414.4 2441.80-64.80-4.813.6 2441.75-64.40-4.414 2441.70-64.30-4.314.1 2441.65-64.20-4.214.2 2441.60-64.30-4.314.1 2441.55-64.40-4.414 2441.50-64.40-4.414 2441.45-64.30-4.314.1 2441.40-64.40-4.414 2441.35-64.30-4.314.1 2441.30-64.30-4.314.1 2441.25-64.30-4.314.1 2441.20-64.70-4.713.7 2441.15-64.40-4.414 2441.10-64.50-4.513.9 2441.05-64.40-4.414 2441.00-65.30-5.313.1 2440.95-64.30-4.314.1 2440.90-64.30-4.314.1 2440.85-64.20-4.214.2 2440.80-64.60-4.613.8 2440.75-66.30-6.312.1 2440.70-64.60-4.613.8 2440.65-64.60-4.613.8 2440.60-64.70-4.713.7 2440.55-64.80-4.813.6 2440.50-65.00-513.4 2440.45-65.10-5.113.3 2440.40-64.90-4.913.5 2440.35-65.00-513.4 2440.30-64.90-4.913.5 2440.25-64.80-4.813.6 2440.20-64.70-4.713.7 2440.15-64.70-4.713.7 2440.10-64.90-4.913.5 2440.05-65.10-5.113.3 2440.00-66.00-612.4 2439.95-65.30-5.313.1 2439.90-65.40-5.413 2439.85-65.00-513.4 2439.80-65.30-5.313.1 2439.75-66.80-6.811.6 2439.70-66.20-6.212.2 2439.65-65.50-5.512.9 2439.60-65.60-5.612.8 2439.55-66.00-612.4 2439.50-66.20-6.212.2 2439.45-65.70-5.712.7 2439.40-65.40-5.413 2439.35-65.50-5.512.9 2439.30-65.60-5.612.8 2439.25-65.50-5.512.9 2439.20-65.60-5.612.8 2439.15-65.40-5.413 2439.10-65.50-5.512.9 2439.05-65.50-5.512.9 2439.00-65.50-5.512.9 2438.95-65.60-5.612.8 2438.90-65.20-5.213.2 2438.85-65.20-5.213.2 2438.80-66.20-6.212.2 2438.75-65.70-5.712.7 2438.70-65.10-5.113.3 2438.65-65.30-5.313.1 2438.60-65.40-5.413 2438.55-65.60-5.612.8 2438.50-65.80-5.812.6 2438.45-65.50-5.512.9 2438.40-65.50-5.512.9 2438.35-65.30-5.313.1 2438.30-65.50-5.512.9 2438.25-66.30-6.312.1 2438.20-66.10-6.112.3 2438.15-65.20-5.213.2 2438.10-64.90-4.913.5 2438.05-64.80-4.813.6 2438.00-65.70-5.712.7 2437.95-65.90-5.912.5 2437.90-64.80-4.813.6 2437.85-65.00-513.4 2437.80-65.00-513.4 2437.75-65.80-5.812.6 2437.70-65.20-5.213.2 2437.65-65.40-5.413 2437.60-65.30-5.313.1 2437.55-65.30-5.313.1 2437.50-65.30-5.313.1 2437.45-65.30-5.313.1 2437.40-65.30-5.313.1 2437.35-65.50-5.512.9 2437.30-65.20-5.213.2 2437.25-65.10-5.113.3 2437.20-65.00-513.4 2437.15-65.00-513.4 2437.10-65.10-5.113.3 2437.05-65.10-5.113.3 2437.00-65.20-5.213.2 2436.95-65.20-5.213.2 2436.90-65.10-5.113.3 2436.85-65.10-5.113.3 2436.80-65.10-5.113.3 2436.75-65.10-5.113.3 2436.70-65.10-5.113.3 2436.65-65.00-513.4 2436.60-65.10-5.113.3 2436.55-65.20-5.213.2 2436.50-65.30-5.313.1 2436.45-65.30-5.313.1 2436.40-65.20-5.213.2 2436.35-65.30-5.313.1 2436.30-65.30-5.313.1 2436.25-66.10-6.112.3 2436.20-65.90-5.912.5 2436.15-65.10-5.113.3 2436.10-65.10-5.113.3 2436.05-65.00-513.4 2436.00-65.10-5.113.3 2435.95-65.50-5.512.9 2435.90-65.20-5.213.2 2435.85-65.30-5.313.1 2435.80-65.60-5.612.8 2435.75-65.60-5.612.8 2435.70-65.50-5.512.9 2435.65-65.60-5.612.8 2435.60-65.80-5.812.6 2435.55-65.80-5.812.6 2435.50-65.80-5.812.6 2435.45-66.10-6.112.3 2435.40-66.10-6.112.3 2435.35-65.80-5.812.6 2435.30-65.60-5.612.8 2435.25-65.40-5.413 2435.20-66.60-6.611.8 2435.15-65.40-5.413 2435.10-65.50-5.512.9 2435.05-65.50-5.512.9 2435.00-65.70-5.712.7 2434.95-65.60-5.612.8 2434.90-65.50-5.512.9 2434.85-65.50-5.512.9 2434.80-65.50-5.512.9 2434.75-65.90-5.912.5 2434.70-65.60-5.612.8 2434.65-65.60-5.612.8 2434.60-65.50-5.512.9 2434.55-65.80-5.812.6 2434.50-65.80-5.812.6 2434.45-65.60-5.612.8 2434.40-65.60-5.612.8 2434.35-65.60-5.612.8 2434.30-66.20-6.212.2 2434.25-66.60-6.611.8 2434.20-67.20-7.211.2 2434.15-65.50-5.512.9 2434.10-65.20-5.213.2 2434.05-65.50-5.512.9 2434.00-66.30-6.312.1 2433.95-65.10-5.113.3 2433.90-65.00-513.4 2433.85-65.10-5.113.3 2433.80-65.20-5.213.2 2433.75-64.90-4.913.5 2433.70-65.20-5.213.2 2433.65-65.20-5.213.2 2433.60-65.20-5.213.2 2433.55-65.00-513.4 2433.50-64.80-4.813.6 2433.45-65.00-513.4 2433.40-65.00-513.4 2433.35-64.70-4.713.7 2433.30-64.60-4.613.8 2433.25-65.00-513.4 2433.20-64.90-4.913.5 2433.15-64.40-4.414 2433.10-64.50-4.513.9 2433.05-64.60-4.613.8 2433.00-65.20-5.213.2 2432.95-64.40-4.414 2432.90-64.30-4.314.1 2432.85-64.10-4.114.3 2432.80-64.10-4.114.3 2432.75-65.10-5.113.3 2432.70-64.10-4.114.3 2432.65-64.00-414.4 2432.60-64.00-414.4 2432.55-64.10-4.114.3 2432.50-64.20-4.214.2 2432.45-64.00-414.4 2432.40-64.10-4.114.3 2432.35-64.20-4.214.2 2432.30-64.40-4.414 2432.25-64.90-4.913.5 2432.20-64.10-4.114.3 2432.15-64.00-414.4 2432.10-64.30-4.314.1 2432.05-64.00-414.4 2432.00-64.70-4.713.7 2431.95-63.90-3.914.5 2431.90-63.30-3.315.1 2431.85-63.30-3.315.1 2431.80-63.10-3.115.3 2431.75-63.20-3.215.2 2431.70-63.20-3.215.2 2431.65-63.10-3.115.3 2431.60-63.10-3.115.3 2431.55-63.20-3.215.2 2431.50-63.10-3.115.3 2431.4…

Text truncated - open the document above for the full version.

NEMKO Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER FCC ID.:PD92011BWLAN EQUIPMENT:Agency Series PE3010PROJECT NO.:1L0303RUS1 Page 26 of 46 Radiated Photographs—Radiated Emissions
