PD93945BGXComputer Peripheral

Intel(R) PRO/Wireless 3945ABG Network Connection User Guide With your wireless network card, you can access wireless networks, share files or printers, or even share your Internet connection. All of these features can be explored with a wireless network in your home or office. This wireless local area network (WLAN) solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. Your Intel(R) PRO/Wireless 3945ABG Network Connection adapter is compatible with 802.11a, 802.11b and 802.11g wireless standards. Operating at 5 GHz or 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All of your wireless network connections are easily managed by Intel(R) PROSet/Wireless software. Profiles that are set up through the Intel PROSet/Wireless software provide enhanced security measures with 802.1x network authentication. NOTE: The software is compatible with the Intel(R) PRO/Wireless 3945BG Network Connection, Intel(R) PRO/Wireless 2915ABG Network Connection and the Intel(R) PRO/Wireless 2200BG Network Connection. Table of Contents l Use Intel PROSet/Wireless Software l Connect to a Network l Use Profiles l Set up Security l Troubleshooting l Administrator Tool l Glossary l Wireless Network Overview l Security Overview l Specifications l Customer Support l Safety and Regulatory Information l Warranty l Adapter Registration Information in this document is subject to change without notice. © 2004–2005 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124- 6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "Important Notice FOR ALL USERS OR DISTRIBUTORS!!!! Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Since wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless WLAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant." November 2005 Back to Contents Use Intel(R) PROSet/Wireless Software: Intel(R) PRO/Wireless 3945ABG Network Connection User Guide l Use Intel PROSet/Wireless as your Wireless Manager l Start Intel PROSet/Wireless l Start Intel PROSet/Wireless from the Taskbar m Taskbar Icons m Tool Tips and Desktop Alerts l Intel PROSet/Wireless Main Window m Wireless Networks List m Connection Status Icons m Network Properties m Connection Details m Profiles List l Intel PROSet/Wireless Menus l Tools Menu m Application Settings m Intel Wireless Troubleshooter m Administrator Tool l Advanced Menu m Adapter Settings m Advanced Statistics m Use Windows to Manage Wi-Fi l Profiles Menu m Manage Profiles m Manage Exclusions l Enable and Disable the Radio l Install and Uninstall the Software Use Intel PROSet/Wireless as your Wireless Manager Intel(R) PROSet/Wireless is used to setup, edit and manage network profiles to connect to a network. It also includes advanced settings such as power management and channel selection for setting up ad- hoc networks. If you use Microsof…

Text truncated - open the document above for the full version.

January 16, 2006 American TCB 6731 Whittier Ave., Suite C110 McLean, VA 22101 Gentlemen: The attached documentation is provided in support of a formal submission to your organization for a modular approval of an intentional unlicensed transmitter. On behalf of our client, Aegis Labs has included an application for a Grant of Equipment Authorization pursuant to Subpart C of part 15 of FCC Rules (47 CFR) regarding intentional radiators. The data within the test report demonstrates the equipment was tested in a manner described under Part 2 and 15 of the Code of Federal Regulations. This is a modular approval of the Intel PRO/Wireless 3945ABG Network Connection (no 802.11a support), (MN: WM3945ABG BGX, FCC ID: PD93945BGX), which is a WLAN adapter (802.11b and 802.11g). It was tested externally to a computer chassis with a set of Ethertronics multi-band antennas continuously transmitting and receiving form the MAIN and AUX antenna ports. If there are any additional questions or if further information is needed, please contact us at your earliest convenience. Sincerely, Johnny Candelas Aegis Labs, Inc. Test Technician Enclosure (1 Emissions Test Report + Exhibits) AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com

AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com TRANSMITTER MODULAR APPROVAL ATTESTATION January 16, 2006 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: PD93945BGX Gentlemen: The following attestation addresses the eight requirements to support modular approval as required by the FCC Public Notice DA00-1407 “Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding and does not rely upon the shielding provided by the device into which it is installed in order to comply with Part 15 limits. 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. 3 The modular transmitter has its own power supply regulator. 4 The modular transmitter has an antenna that complies with section 15.203 and 15.204(c) of the FCC rules. It has a UFL type of connector at the transmitter end and is soldered to the antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user. 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer. 6 The modular transmitter will be labeled with its own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior label will read as follows: “Contains Transmitter Module FCC ID” or “Contains TXFCCID”. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1). Also, SAR data is available if necessary. If there are any additional questions or if further information is needed, please contact us at your earliest convenience at (949) 459-7886. Sincerely, Johnny Candelas Aegis Labs, Inc. Test Technician

Product Overview Intel ® PRO/Wireless 3945ABG Network Connection Product Description: An embedded 802.11a/b/g network adapter operating in the 2.4 GHz and 5 GHz spectrum. This solution is based on the Mini Card form factor designed to meet the space and size requirements for thin and light notebook PCs. Key Features:
IEEE 802.11a/b/g standard tri-mode Wi-Fi CERTIFIED* Wireless LAN support (2.4GHz and 5GHz) +
Up to 54 Mbps data rates (Note: 802.11b up to 11Mbps and 802.11a/g up to 54 Mbps data rates)
Industry standard wireless LAN security support is available (802.1X, WEP, WPA, AES § ) ‡
Cisco* Compatible Extensions (such as LEAP and CKIP) support available on certain models. Check with your PC manufacturer for Cisco security support. §
Support for antenna diversity enables optimized WLAN performance for multi-antenna systems.
Intel ® Wireless Coexistence System capability enables Bluetooth* co-existence
Support for QoS through 802.11e EDCA with Admission Control
Flexible Roaming with multiple triggers and sensitivity
BGX version available without support for 802.11a Model Name Intel® PRO/Wireless 3945ABG Network Connection Dimensions (H x W x D) 2.00 in x 1.18 in x 0.18 in (50.95mm x 30mm x 4.5mm) Weight 0.006 KG Antenna Interface Connector Hirose* U.FL-R-SMT mates with cable connector U.FL-LP-066 Dual Diversity Antenna On-board dual diversity switching support for systems designed with two antennas Radio ON/OFF control ◊ Supported by both hardware and software Connector Interface MiniCard form factor, based on PCI-E electrical interface LEDs output Link, Activity Operating Temperature 0 to +80° Celsius Humidity Non-Operating 50 to 92% RH non-condensing (at temperatures of 25°C to 80°C) Technical Specifications Operating System Microsoft* Windows* XP (Professional, Home, Tablet), 2000 Wi-Fi Alliance Wi-Fi CERTIFIED* for 2.4 GHz and 5GHZ band and WPA WHQL YES WLAN Standard IEEE 802.11a, IEEE 802.11g and IEEE 802.11b Channel Support Channels 1 through 11 Architecture Infrastructure or ad hoc (peer-to-peer) Roaming 1 802.11a, 802.11g and 802.11b compliant for seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g) Security§ AUTHENTICATION LEAP § , WPA § ,802.1X, EAP-TLS ENCRYPTION CKIP, TKIP, 128-bit and 64-bit WEP Product Safety UL, C-UL, CB (IEC 60590) Products Available Model Name Intel® PRO/Wireless 3945ABG Network Connection WM3945ABG Intel® PRO/Wireless 3945ABG Network Connection (no 802.11a support) WM3945ABG BGX Technical Specifications continued Intel ® PROSet/Wireless Software ◊ As part of Intel ® PRO Network Connection Software, Intel ® PROSet/Wireless software provides driver consistency. Intel ® PROSet/Wireless software helps enable a superior mobile experience by providing: * Other names and brands may be claimed as property of others. + Wireless connectivity and some features may require you to purchase additional software, services or external hardware. Availability of public wireless LAN access points limited and some hotspots may not support Linux-based Intel ® Centrino ® mobile technology systems. System performance measured by MobileMark* 2005. System performance, battery life, wireless performance and functionality will vary depending on your specific operating system, hardware and software configurations. See http://www.intel.com/products/centrino/more_info for more information. § Some security solutions may not be supported by your PC’s operating system and/or by your PC manufacturer. Check with your PC manufacturer for details on availability ◊ Intel ® PROSet/Wireless software may not be supported by your PC manufacturer. Check with your PC manufacturer for details on availability. ‡ AES requires PC software upgrade that will be available in 2H'04 and requires access point support. Available on 802.11 b/g only. Check with your PC manufacturer for availability. ^ WME support requires a WME enabled access point and requires a PC software upgrade that will be available in 2H'04. Available on 802.11 b/g only. Check with your PC manufacturer for details on availability. 1 Roaming is supported only between each respective band and mode of access points. Information in this document is provided in connection with Intel products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice. For the most current product information, please visit: http://www.intel.com/network Intel and the Intel logo are trademarks or registered trademarks of the Intel Corporation or its subsidiaries in the United States and other countries. Copyright © Intel Corporation, 2005. All rights reserved. Intel ® PROSet/Wireless Software v10.0 • Enhanced even simpler User Interface • Added IT Administration Tool capabilities o Install Package Creator o Central Control over driver & app settings o Single Sign On for Microsoft* and Novell* networks • Enhanced VoIP usage model o New VoIP API for QoS o VoIP Profiles and Statistic reporting o Wide band codec support • Additional Profile management capabilities • New ISV applications via API (central management, VoIP – Softphone applications, hotspots) • OS: Microsoft Windows XP*, Microsoft Windows 2000*, Linux driver • Hardware Support: 2200BG, 2915ABG, 3945ABG, 3945BG, 3945ABG BGX • Note: Some features only supported on 3945ABG, 3945BG and 3945ABG BGX

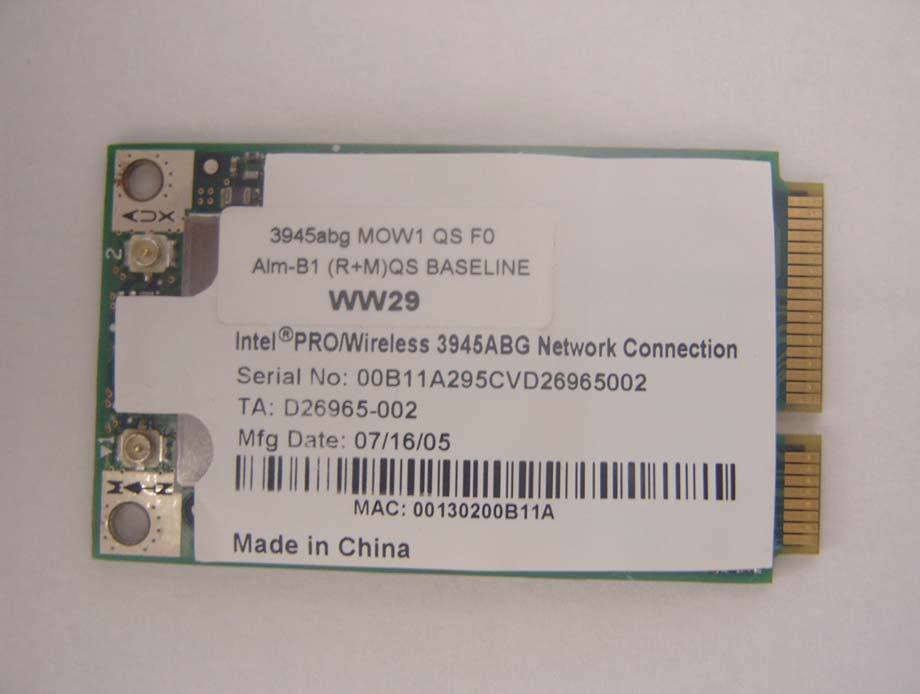

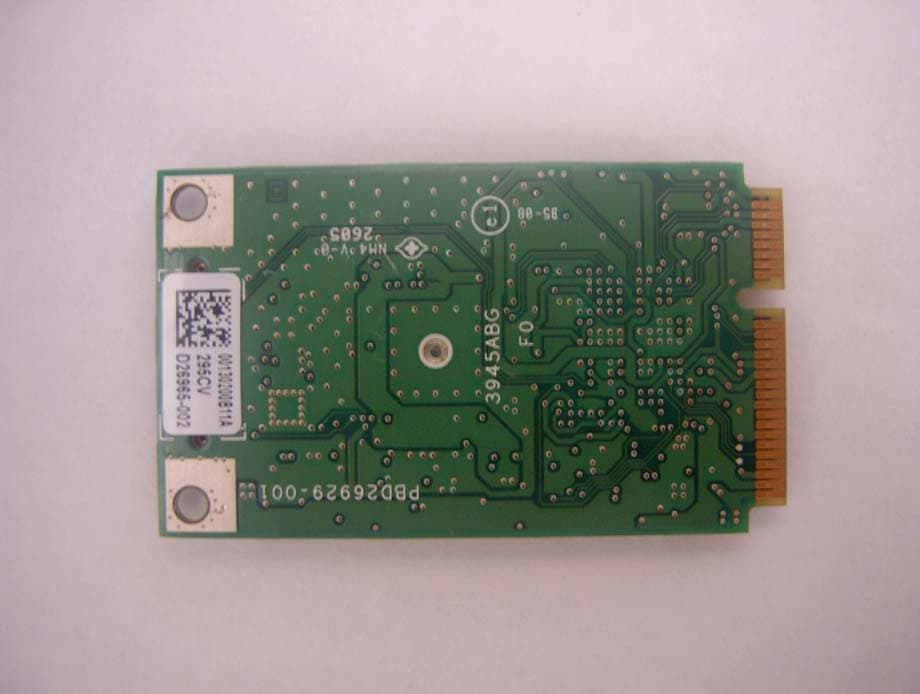

Top View Bottom View

Top View “Insulation removed” Bottom View “Insulation removed” Top View “Shielding removed”

The MPCI-8 model, part of the IMD Family of WLAN Internal Antennas, is a single element internal (embedded) antenna module for Worldwide WLAN applications. MPCI-8 supports 802.11a/b/g protocols throughout the world including the newly licensed 4.9 MHz Japanese spectrum. The MPCI-8 module is a complete solution consisting of one GS Isolated Magnetic Dipole™ (IMD) antenna with a high performance cable and connector. The IMD antenna’s small size and high isolation properties make the MPCI-8 easy to integrate into notebooks and other mobile devices, while offering the ability to be used in a diversity configuration. Ethertronics’ proprietary and patented IMD antenna technology offers three distinct advantages over traditional internal antennas: High Performance • High efficiency • Up to 50% higher signal strength than other internal antennas High Isolation/Selectivity • Minimal coupling between antennas (isolation of 20- 40 dB) • Ideal for diversity applications • Reduced EMI with surrounding components • Makes integration easy Shaping Technology • Controls and redirects the near-field electromagnetic distribution of the antenna’s wave • Optimizes antenna performance by improving signal strength and data quality inside buildings, in noisy environments and in fringe network coverage areas • Less interaction with surrounding objects The MPCI-8 module is ideally suited for manufacturers where performance, size and costs are critical. The design’s low profile, small form factor and industry standard cabling/connectors are suited for high volume applications. Standard assemblies are available or the antenna can be configured to suit individual OEM requirements. Advantages: WLAN 9605 Scranton Road, Suite 850 tel +(1) 858.550.3820 San Diego, CA 92121 • U.S.A. fax +(1) 858.550.3821 www.ethertronics.com [email protected] Ethertronics Applications: Notebooks • Tablet PCs Portable Computers • Printers Worldwide WLAN Coverage • Single internal antenna module covers worldwide WLAN frequency bands saving cost and valuable space • Supports WLAN bands for today’s standards allowing one configuration to support all markets Spatial Diversity • Individual MPCI-8 modules can be placed in close proximity to other IMD antennas with reduced risk of coupling from one to another Better Performance • Increased range/data throughput • Improved sensitivity in low signal environments Flexible Integration • MPCI-8 module’s high isolation offers consistent performance across multiple platforms and requires minimal space making placement easier • Standard cables and connectors make for easy connection to MPCI cards Worldwide Support • Regional technical support and FAEs are available to help speed the integration process • Manufacturing by Far East suppliers means quick turnaround and lower import costs WLAN Technologies: WiFi (802.11a/b/g) MPCI-8 (mini-PCI) Internal Antenna Module IMD WLAN Internal Antenna Module MPCI-8 2.4/4.9/5.2/5.8 GHz 37 x 4 x 5 mm (Antenna) 2.390-2.490/4.900-5.100 GHz/5.150-5.350/5.470-5.900 GHz Internal (Embedded) Antenna Specifications Typical Return Loss: Electrical Specifications: Antenna Radiation Patterns: 2.390-2.490 GHz Band 4.900-5.900 GHz Band Main-pol Cross-pol Mechanical Specifications: H-plane ( zx ) E-plane ( zy ) -30 dB -20 dB -10 dB 0 dB z y -30 dB -20 dB -10 dB 0 dB z y Typical Characteristics (Free Space) Size 40 x 52 x 6 mm (Antenna, 37 x 4 x 5 mm) Module Weight 5 g Packaging Individually packaged Cable/Connector Hirose Electric Co., U.FL-LP-088 or equivalent Cable Length 450 mm standard (50-500 mm available when specified) Model: MPCI-8 Module 2.390-2.490 GHz Band 4.900-5.100 GHz Band 5.150-5.350 GHz Band 5.470-5.900 GHz Band Peak Gain 3 dBi 3 dBi 5 dBi 5 dBi Efficiency 75 % 65 % 65 % 65 % VSWR Match 2.1 : 1 2.1 : 1 2.1 : 1 2.1 : 1 Front to Back Ratio -2 dB -10 dB -10 dB -10 dB Feed Point Impedance 50 ohms unbalanced (other if required) Power Handling 2 Watt cw Polarization Linear Shielding Ratio 6 to 1 (near field) Typical © 2003 Ethertronics. All rights reserved. Ethertronics, the Ethertronics logo, shaping antenna technology and Isolated Magnetic Dipole are trademarks of Ethertronics. All other trademarks are the property of their respective owners. 081803 22.533.544.555.566.57 -30 -25 -20 -15 -10 -5 0 Frequency, (GHz) dB -30 dB -20 dB -10 dB 0 dB x z Specifications subject to change without notice. -30 dB -20 dB -10 dB 0 dB z x

MPE Calculations Systems operating under the provision of 47 CFR 1.1307(b)(1) shall be operated in a manor that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The MPE calculation for this exposure is shown below. Using the Antennas with highest output power: The peak radiated output power (EIRP) is calculated as follows: Antenna Frequency (GHz) Power input to the antenna (P) (dBm) Power gain of the antenna (G) (dBi) EIRP (P+G) (dBm) EIRP Log -1(dBm/10) (mW) Ethertronics 2.4 25.02 3.00 28.02 633.87 EIRP = P + G Where P = Power input to the antenna (mW). G = Power gain of the antenna (dBi) The numeric gain (G) of the antenna with a gain specified in dB is determined by: Antenna Frequency (GHz) Antenna Gain (G) (dBi) Numeric Antenna Gain Log -1(dBm/10) (dB) Ethertronics 2.4 3.00 2.00 G = Log -1 (dB antenna gain/10) Power density at the specific separation: Antenna Frequency (GHz) Power input to the antenna (P) (mW) Numeric Power Gain of the Antenna (G) (dB) Maximum Power Spectral Density S=PG/(4R 2 π) (mW/cm 2 ) Maximum Power Spectral Density Limit (mW/cm 2 ) Ethertronics 2.4 317.69 2.00 0.126 1.00 S = PG/(4R 2 π) Where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1mW/cm 2 . The power density at 20cm does not exceed the 1mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

Page 1 of 27 Report Number: INTEL-051210F Revision Number: N/A Test Report Pertaining To: Equipment Under Test Model Number Serial Number Intel PRO/Wireless 3945ABG Network Connection (no 802.11a support) WM3945ABG BGX 00B11A295CVD26965002 MEASUREMENTS PERFORMED IN ACCORDANCE WITH International Regulatory Standard(s) FCC CFR 47, PART 15 SUBPART B CLASS B Certificate Number: 1111.01 PREPARED FOR: PREPARED BY: Intel Corporation Aegis Labs, Inc. 2111 NE 25 th Avenue 22431 Antonio Parkway B160-417 Hillsboro, Oregon 97124 Rancho S. Margarita, CA 92688 Contact(s): Mr. Robert Paxman Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Mr. Johnny Candelas Test Report #: INTEL-051210F Test Report Revision: N/A The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. APPENDICES REPORT BODY A B C D TOTAL PAGES PAGES 27 6 5 3 4 45 Page 2 of 27 Report Number: INTEL-051210F Revision Number: N/A TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 04 2.0 SUMMARY OF REGULATORY LIMITS............................................................ 05 3.0 DEFINITIONS................................................................................................. 06 4.0 APPROVAL SIGNATURES................................................................... 07 5.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION............................... 08 6.0 DESCRIPTION OF EUT CONFIGURATION............................................. 09 6.1 Arrangement and Location of EUT and Host Equipment..................................... 09 6.2 EUT Description and Configuration................................................................................ 10 6.2.1 Product Description....................................................................................................... 10 6.2.2 EUT Configuration........................................................................................................ 11 6.3 List of Internal EUT Sub-Assemblies and Host Equipment........................................... 12 6.4 I/O Cabling Diagram and Description............................................................................. 13 6.5 List of Accessory / Host Equipment – Power Cables...................................................... 14 6.6 EMC Test Hardware and Software Measurement Equipment......................................... 15 6.7 Operating Modes................................................................................................ 16 6.7.1 Conducted and Radiated Emissions............................................................................... 16 7.0 TEST EQUIPMENT SETTINGS AND FUNCTIONS................................................. 17 7.1 Test Equipment “State of the Instrument for Conducted Emissions Measurements”...... 17 7.2 Decision Tree for Peak Detector Measurements................................................ 19 7.3 Test Equipment “State of the Instrument for Radiated Emissions”.............................. 20 7.4 Conducted Emissions Test Setup..................................................................................... 21 7.5 Conducted Emissions Site Diagram................................................................................. 22 7.6 Radiated Emissions Test Setup........................................................................................ 23 7.7 Radiated Emissions Site Diagram - Side View and Plan View....................................... 24 8.0 MODIFICATIONS AND RECOMMENDATIONS........................................ 26 Page 3 of 27 Report Number: INTEL-051210F Revision Number: N/A TABLE OF CONTENTS (Continued) SECTION TITLE PAGE 9.0 SAMPLE CALCULATIONS.......................................................................................... 27 APPENDICES A Test Data B Photographs – Test Setups C Calibration Correction Table D Accreditation Certificates Page 4 of 27 Report Number: INTEL-051210F Revision Number: N/A 1.0 CERTIFICATION OF TEST DATA Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs are furnished by RF technicians and engineers with accredited qualifications and training credentials to carry out their duties. The object of this report is to present test results which shall prove that the conducted and radiated emission levels of the EUT are within the acceptable limits as specified under Section 2.0 pertaining to indexed items 1-5 of this report. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the Equipment Under Test (EUT) under the requirements specified in the global emissions standard as described below. However, the format and contents contained within this report do not reflect all the information required for agency submittals when certification for equipment authorization is mandatory. The entity and/or person(s) for which this report has been prepared acknowledge that such a report in its entirety has been recognized for verification purposes only. The test results contained in this report are only representative of the test sample tested as described in Section 6.0 of this report The following countries shall accept this report as evidence that an accredited commercial EMC laboratory has properly tested the EUT and that the information contained herein can be used for application to the appropriate agency for which certification or approval is required. This information may be used by the manufacturer to make a self-declaration that this eq…

Text truncated - open the document above for the full version.

Maximum Peak Output Power Measurement Setup Conducted Emissions at Antenna Terminal Setup AC Conducted Emissions Measurement (Front View) Setup AC Conducted Emissions Measurement (Rear View) Setup Radiated Emissions Measurement (Front View) Setup Radiated Emissions Measurement (Rear View) Setup
