PD962205ANSUIntel Centrino Advanced-N 6205

Intel® Wireless Adapter Information Guide Supported wireless adapters: Intel® Centrino® Wireless-N 100 (Available for Windows* 7 only) Intel® Centrino® Wireless-N 105 (Available for Windows* 7 only) Intel® Centrino® Wireless-N 130 (Available for Windows* 7 only) Intel® Centrino® Wireless-N 135 (Available for Windows* 7 only) Intel® WiFi Link 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Wireless-N 2200 (Available for Windows* 7 only) Intel® Centrino® Wireless-N 2230 (Available for Windows* 7 only) Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6235 (Not available for Windows Vista) Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. This guide contains basic information about Intel adapters. It includes information about several adapter properties that you can set to control and enhance the performance of your adapter with your particular wireless network and environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs. Adapter Settings Regulatory Information Specifications Important Information Support Warranty Glossary Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and 802.11n (draft 2.0) wireless standards. Operating at 5 GHz or 2.4 GHz frequency at data rates of up to 450 Mbps, you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your WiFi adapter maintains automatic data rate control according to the access point location and signal strength to achieve the fastest possible connection. All of your wireless network connections are easily managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced security measures with 802.1X network authentication. Information in this document is subject to change without notice. © 2004–2011 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless LAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant." September 7, 2011 Back to Contents Adapter Settings The Advanced tab displays the device properties for the WiFi adapter installed on your computer. How to Access At the Intel® PROSet/Wireless WiFi Connection Utility, Advanced Menu click Adapter Settings. Select the Advanced…

Text truncated - open the document above for the full version.

Intel Corporation 100 Center Point Circle Columbia, SC 29210 January 10, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 USA Subject: Model 62205ANSFF Wireless LAN mini-PCIe Card FCC ID: PD962205ANSU Gentlemen: Please be advised that the Model 62205ANSFF 802.11abgn Wireless LAN mini-PCIe card is manufactured for the global market but when marketed in the U.S. under FCC ID: PD962205ANSU the non-volatile memory (NVM) will be programmed at the factory to only actively scan and operate on these specific channels during normal WLAN operation. During Wi-Fi Direct mode the device may act as a group owner (GO) to establish a peer-to- peer (P2P) network including conditions when no master device is present on these specific channels. Channels 1-11, 2412-2462MHz 802.11b mode Channels 1-11, 2412-2462MHz 802.11g mode Channels 1-11, 2412-2462MHz 802.11n mode (20MHz channel) Channels 3-9, 2422-2452MHz 802.11n mode (40MHz channel) The following dynamic frequency selection (DFS) channels will be programmed at the factory to passively scan and will only listen for a master device and cannot send a probe request to initiate communication on these DFS channels. Client software and drivers will never enable the device to act as a master or GO for operation in DFS frequency bands and therefore ad-hoc mode is always disabled on these passive scan DFS channels. Channels 52-64, 5260-5320MHz 802.11a mode Channels 52-64, 5260-5320MHz 802.11n mode (20 MHz channel) Channels 54-62, 5270-5310MHz 802.11n mode (40MHz channel) Channels 100-140, 5500-5700MHz 802.11a mode Channels 100-140, 5500-5700MHz 802.11n mode (20 MHz channel) Channels 102-134, 5510-5670MHz 802.11n mode (40MHz channel) This device meets the requirements of FCC Part 15.202 and accordingly the following non- DFS channels will be programmed at the factory to passively scan and will only listen for a master device and cannot send a probe request to initiate communication during normal WLAN operation. When operating in Wi-Fi Direct mode these non-DFS channels may operate as a P2P client device or GO to establish a P2P network if, and only if, a master Intel Corporation 100 Center Point Circle Columbia, SC 29210 device is present and network communication is maintained between a master device and the GO. Channels 12 &13, 2467 & 2472MHz 802.11b mode Channels 12 &13, 2467 & 2472MHz 802.11g mode Channels 12 &13, 2467 & 2472MHz 802.11n mode (20MHz channel) Channels 10 &11, 2457 & 2462MHz 802.11n mode (40MHz channel) Channels 36-48, 5180-5240MHz 802.11a mode Channels 36-48, 5180-5240MHz 802.11n mode (20 MHz channel) Channels 38-46, 5190-5230MHz 802.11n mode (40MHz channel) Channels 149-165, 5745-5825 802.11a mode Channels 149-165, 5745-5825MHz 802.11n mode (20 MHz channel) Channels151-159, 5755-5795 802.11n mode (40MHz channel) This information when programmed into the NVM will not be accessible and can not be changed by the end user. The transmitter is approved as a non-software defined radio and OEMs and third party system integrators do not have the ability through software to allow configuration controls that would permit the device to operate outside the grant conditions per FCC KDB 594280. Sincerely, Steven C. Hackett Wireless Regulatory Engineer Intel Corporation – Mobile Wireless Group

Intel Corporation 100 Center Point Circle Columbia, SC 29210 January 10, 2012 American CB 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA Subject: Model 62205ANSFF 802.11abgn WiFi PCIe Adapter Card FCC ID: PD962205ANSU Gentlemen: Please be advised that for the Model 62205ANSFF adapter card all final calibrated output power adjustments are made during the assembly process and all maximum output power levels and operational parameters are programmed into the EEPROM prior to shipment from the factory. The information programmed into the EEPROM is not accessible and can not be changed by OEMs or end users. There are no OEM or end user installation adjustments that can be made therefore there is no tune-up procedure provided. If you have any questions please do not hesitate to contact us at 803-216-2344. Sincerely, Steven C. Hackett Wireless Regulatory Engineer

100 Center Point Circle Columbia, SC 29210 Authority to Act as Agent January 10, 2012 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Sporton International Inc. is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: January 10, 2013 By: Steven C. Hackett (Signature 1 ) (Print name) Title: Wireless Regulations Engineer On behalf of: Intel Corporation (Company Name) Telephone: 803-216-2344

100 Center Point Circle Columbia, SC 29210 January 10, 2012 Subject: Confidentiality Request for FCC ID: PD962205ANSU Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Antenna Specification Short Term Permanent Operation Description/HW Theory of Operation Short Term Permanent Operational Description/BiOS Lock Description Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual Intel Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 90 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ATCB in the event information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, Steven C. Hackett By: __________________________ ________________________ (Signature/Title 2 ) (Print Name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Intel Corporation 100 Center Point Circle Columbia, SC 29210 Modular Approval Requirements Attestation FCC ID: PD962205ANSU This device is a self contained, physically delineated, component for which compliance was demonstrated independent of any host operating conditions and complies with all requirements of FCC Part 15.212(a)(1). The details of these requirements and the manner in which the devices meet them are summarized below. The module must have its own RF shielding. The module contains a metal shield which covers all RF components and circuitry; please refer to the external photographs filed with this description. All modulation and data input(s) are buffered. Data to the modulation circuit is buffered on the module; please refer to the “theory of operation” document filed with this application for full description. The module has its own power supply regulation and local reference oscillator. The module contains its own power supply regulation and the rf reference oscillator is contained within the module. Please refer to the schematics and “theory of operation” documents filed with this application for full description. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The certification submission contains a detailed description of all antennas that will be used with the module. The module connects to its antenna via using an UFL type connector. This antenna connector is a non-standard connector. The antenna tested was a PIFA type and full details are contained in the data sheet included in this application. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Test data contained in this application is for the device tested as a stand-alone device connected externally to a PC. See test set-up photographs filed with this application. For the FCC, the modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the Intel Corporation 100 Center Point Circle Columbia, SC 29210 enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” The module is appropriately labeled (refer to the label and label location drawings contained within this application). Information to the integrator of this device regarding the labeling requirements for the host system is contained in the instructions provided with the module. The modular transmitter must comply with any applicable RF exposure requirements. The module meets the requirements for a mobile device that may be used at separation distances of more than 20cm from the human body. Refer to the MPE calculation data sheet. If the module is classified as a portable device due to antenna separation distance of less than 20cm from users then compliance for RF exposure rules will be demonstrated for those particular product configurations according to permissive change policies Modules authorized under this ID are intended for installation into the host systems by the end users. In order to ensure compliance with all modular requirements, including RF exposure, the host system will be provided with a BiOS-lock feature that will allow operation of authorized modules only. The BiOS-lock feature will lock-out any unauthorized devices from operation with the host system.

Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255 Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255 Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255 Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255 Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255

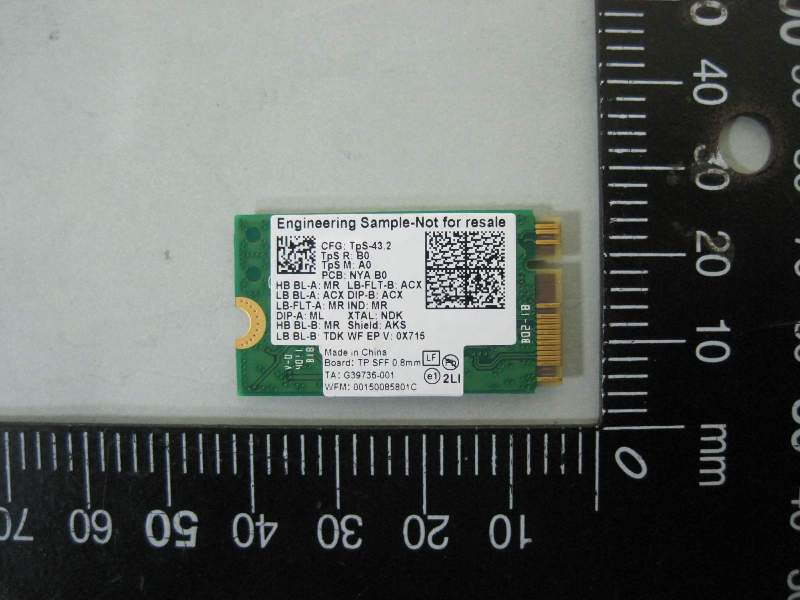

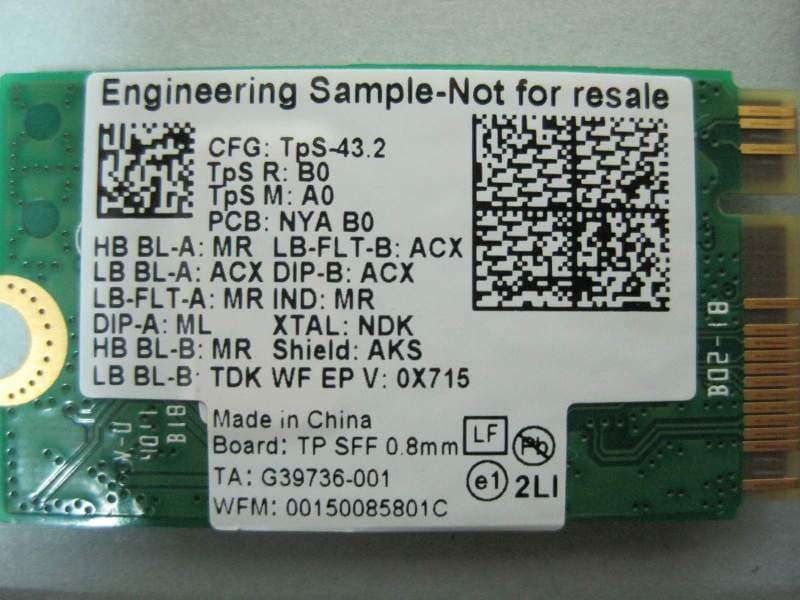

Photo shows label placement on card

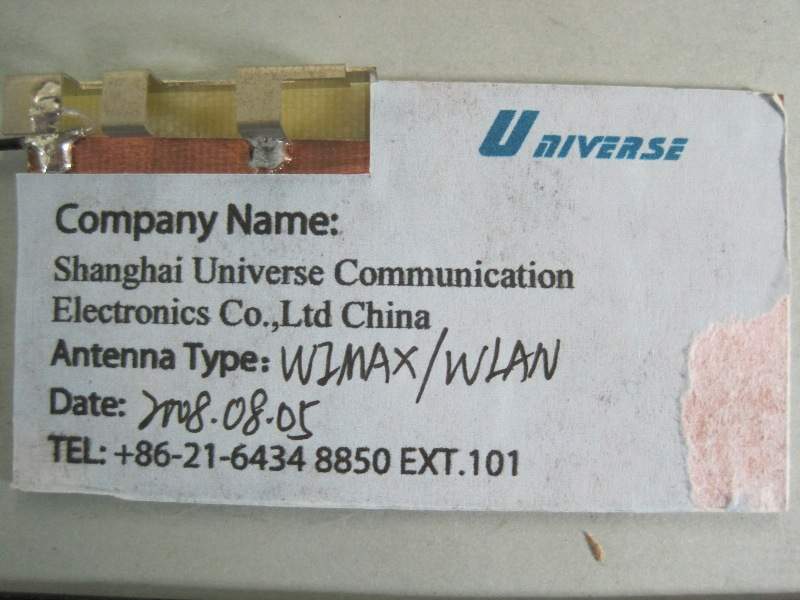

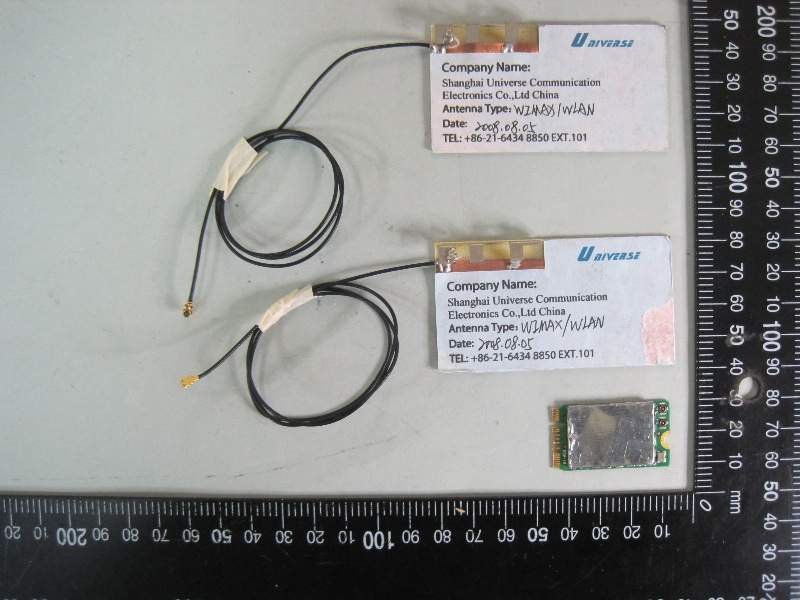

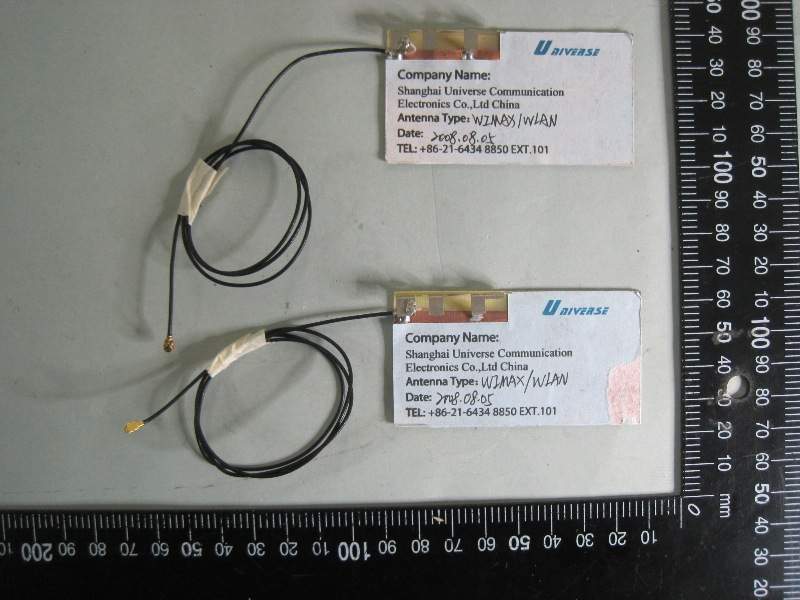

Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255 Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255 Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255 Report No.: 1D1211 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2012 FAX : 886-2-2696-2255

Report No.: FR&CR1D1211 FCC ID: PD962205ANSU Page No. : B1 of B3 IC: 1000M-62205ANSU Appendix B. Maximum Permissible Exposure Report No.: FR&CR1D1211 FCC ID: PD962205ANSU Page No. : B2 of B3 IC: 1000M-62205ANSU 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR&CR1D1211 FCC ID: PD962205ANSU Page No. : B3 of B3 IC: 1000M-62205ANSU 1.3. Calculated Result and Limit For 5GHz UNII Band: Max Conducted Power for IEEE 802.11n20, Chain A+B / 2TX : 16.58 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.80 3.0200 16.5753 45.4499 0.027320 1 Complies For 5GHz ISM Band: Max Conducted Power for IEEE 802.11n20, Chain A+B / 2TX : 16.64 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 16.6404 46.1360 0.029040 1 Complies For 2.4GHz Band: Max Conducted Power for IEEE 802.11n40, Chain A / 1TX : 16.69 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.20 2.0893 16.6900 46.6659 0.019407 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC / IC Dynamic Frequency Selection Test Report Applicant’s company Intel Corporation Applicant Address 100 Center Point Circle Suite 200 Columbia, SC 29210 FCC ID PD962205ANSU IC 1000M-62205ANSU Product Name Intel Centrino Advanced-N 6205 Brand Name Intel Model Name 62205ANSFF Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 RSS 210 Issue 8 Test Freq. Range 5250~5350 / 5470~5725 MHz Received Date Dec. 01, 2011 Final Test Date Dec. 19, 2011 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407 and RSS 210 Issue 8. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ&CZ1D1211 Report Format Version: 01 Page No. : i of ii FCC ID: PD962205ANSU Issued Date :Jan. 18, 2012 IC: 1000M-62205ANSU Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Standard Requirement ....................................................................................................................................................................... 3 3.2. Product Specification Table ................................................................................................................................................................ 3 3.3. Accessories ......................................................................................................................................................................................... 5 3.4. Table for DFS Band Carrier Frequencies ............................................................................................................................................. 5 3.5. Antenna Information on DFS Band ...................................................................................................................................................... 6 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ............................................................................. 7 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring ......................................................................... 7 4.2. DFS Response requirement values ...................................................................................................................................................... 8 4.3. Radar Test Waveforms Minimum Step ................................................................................................................................................. 8 4.4. Short Pulse Radar Test Waveforms ...................................................................................................................................................... 9 4.5. Long Pulse Radar Test Waveform ...................................................................................................................................................... 10 4.6. Frequency Hopping Radar Test Waveform ....................................................................................................................................... 13 4.7. Conducted Calibration Setup .......................................................................................................................................................... 15 4.8. Radar Waveform Calibration Procedure .......................................................................................................................................... 15 4.9. Calibration Deviation ........................................................................................................................................................................ 15 4.10. Radar Waveform Calibration Result ................................................................................................................................................. 16 5. TEST SETUP AND TEST RESULT ............................................................................................................................ 17 5.1. Test setup .......................................................................................................................................................................................... 17 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement ... 22 6. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 31 7. TEST LOCATION.............................................................................................................................................. 32 8. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 33 APPENDIX A TEST PHOTOS............................................................................................................A1 ~ A2 Report No.: FZ&CZ1D1211 Report Format Version…

Text truncated - open the document above for the full version.

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC / IC RADIO TEST REPORT Applicant’s company Intel Corporation Applicant Address 100 Center Point Circle Suite 200 Columbia, SC 29210 FCC ID PD962205ANSU IC 1000M-62205ANSU Manufacturer’s company Intel Corporation Manufacturer Address 2111 NE 25th Avenue, Hillsboro, OR 97124 USA Product Name Intel Centrino Advanced-N 6205 Brand Name Intel Model Name 62205ANSFF Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 RSS 210 Issue 8 Industry Canada RSS-Gen Issue 3 Test Freq. Range 5150 ~ 5350MHz / 5470 ~ 5725MHz Received Date Dec. 01, 2011 Final Test Date Dec. 26, 2011 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5350MHz / 5470 ~ 5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart E, RSS 210 Issue 8 and Industry Canada RSS-Gen Issue 3. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 4 3.1. Product Details ..................................................................…
