PD97265NGWireless Network Adapter

Intel® WiFi Adapter Information Guide index.htm[10/29/2013 5:51:24 PM] Intel® WiFi Adapter Information Guide This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below. However, note that newer features provided in this software release are generally not supported for older, legacy adapters. The following adapters are supported on this release for Windows* 8 and Windows* 8.1 with Windows* 7 drivers from Intel®: Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6230 The following adapters are supported on this release for Windows* 8 with Windows* 8 drivers from Intel®: Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 The following adapters are supported on this release for Windows* 8.1 with Windows* 8 drivers from Intel®: Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 The following adapters are supported on this release for Windows* 8.1 with Windows* 8.1 drivers from Intel®: Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. Intel® WiFi Adapter Information Guide index.htm[10/29/2013 5:51:24 PM] This guide contains basic information about Intel adapters. It includes information about several adapter properties that you can set to control and enhance the performance of your adapter with your particular wireless network and environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs. Adapter Settings Regulatory Information Specifications Important Information Support Warranty Glossary Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and 802.11n (draft 2.0) wireless standards. Operating at 5GHz or 2.4GHz frequency at data rates of up to 450 Mbps, you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your WiFi adapter maintains automatic data rate control according to the access point location and signal strength to achieve the fastest possible connection. All of your wireless network connections are easily managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced security measures with 802.1X network authentication. Information in this document is subject to change without notice. © 2004–2013 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless LAN adapters (e.g., the EEPROM…

Text truncated - open the document above for the full version.

100 Center Point Circle Columbia, SC 29210 Authority to Act as Agent February 25, 2014 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: AT4 Wireless is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). Intel retains the rights to communicate or obtain information directly from ACB or AT4 Wireless at our discretion at any time regarding applications made on our behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: February 25, 2015 By: Steven C. Hackett (Signature 1 ) (Print name) Title: Wireless Regulations Engineer On behalf of: Intel Mobile Communications (Company Name) Telephone: 803-216-2344

100 Center Point Circle Columbia, SC 29210 February 25, 2014 Subject: Confidentiality Request for FCC ID: PD97265NG and PD97265NGU Pursuant to FCC 47 CRF 0.457(d) and 0.459 the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Antenna Specification Short Term Permanent Operation Description/HW Theory of Operation Short Term Permanent Operational Description/BT FHSS Description Short Term Permanent Operational Description/BiOS Lock Feature Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Intel Mobile Communications has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Steven C. Hackett By: __________________________ ________________________ (Signature/Title 1 ) (Print Name)

Intel Corporation 100 Center Point Circle Columbia, SC 29210 Modular Approval Requirements Attestation FCC ID: PD97265NG and PD97265NGU Modular Approval is being requested for this device under the ID’s listed above. This device is a self contained, physically delineated, component for which compliance was demonstrated independent of any host operating conditions and complies with all eight requirements of FCC Part 15.212(a)(1). The details of these requirements and the manner in which the devices meet them are summarized below. The module must have its own RF shielding. The module contains a metal shield which covers all RF components and circuitry; this shield is located on the top side of the board located next to the antenna connectors. All modulation and data input(s) are buffered. Data to the modulation circuit is buffered on the module; please refer to the “theory of operation” document filed with this application for full description. The module has its own power supply regulation and local reference oscillator. The module contains its own power supply regulation and the rf reference oscillator is contained within the module. Please refer to the schematics and “theory of operation” documents filed with this application for full description. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The certification submission contains a detailed description of all antennas that will be used with the module. The module connects to its antenna via using an UFL type connector. This antenna connector is a non-standard connector. The antenna tested was a PIFA type and the data sheet is included in the application. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Test data contained in this application is for the device tested as a stand-alone device connected externally to a PC. See test set-up photographs filed with this application. For the FCC, the modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the Intel Corporation 100 Center Point Circle Columbia, SC 29210 enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” For Industry Canada, the module meets certification labeling requirements for Category I Equipment. The module is appropriately labeled (refer to the label and label location drawings contained within this application). Information to the integrator of this device regarding the labeling requirements for the host system is contained in the instructions provided with the module. The modular transmitter must comply with any applicable RF exposure requirements. The module meets the requirements for a mobile/portable device that may be used at separation distances of more than 8mm from the human body. Refer to the RF Exposure test report submitted with this application.

Label & Location for FCC PD97265NG Label will be placed on shield Model 7265NGW Family Labels

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Intel Mobile Communications Dates of Test: February 15-20, 2014 100 Center Point Circle, Suite 200 Test Report Number: SAR.20140201 Columbia, SC 29210 Revision C This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2013, IEC 62209-2 and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: PD97265NG & PD97265NGU IC Certificate: 1000M-72665NG Model(s): 7265NGW, 7265NGW AN, 7265NGW NB, 7265NGW BN Test Sample: Engineering Unit Same as Production MAC Address: 001500E6727E Equipment Type: Wireless Module Classification: Portable Transmitter Next to Body TX Frequency Range: 2412 – 2462 MHz; 5180 – 5320 MHz; 5500 – 5700 MHz; 5745 – 5825 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 2450 MHz (b) – 17.50 dB, 2450 MHz (g) – 17.50 dB, 2450 MHz (n20) – 17.50 dB, 2450 MHz (n40) – 17.50 dB, 5250 MHz (a) – 16.00 dB, 5250 MHz (n20) – 16.00 dB, 5250 MHz (n40) – 16.50 dB, 5250 MHz (ac) – 13.50 dB, 5600 MHz (a) – 16.00 dB, 5600 MHz (n20) – 16.00 dB, 5600 MHz (n40) – 16.50 dB, 5600 MHz (ac) – 15.00 dB, 5800 MHz (a) – 16.00 dB, 5800 MHz (n20) – 16.00 dB, 5800 MHz (n40) – 16.50 dB 5800 MHz (ac) – 15.00 dB Conducted Signal Modulation: DSSS, OFDM Antenna Type: SkyCross Electronics (Shenzhen) Co., Ltd., PIFA Antenna Application Type: Certification FCC Rule Parts: Part 2, 15C, 15E KDB Test Methodology: KDB 447498 D01 v05, KDB 248227 v01r02, KDB 616217 D04 v01 Industry Canada: RSS-102, Safety Code 6 Maximum SAR Value: 0.79 W/kg Reported Maximum Simultaneous SAR: 1.55 W/kg Reported Separation Distance: 8 mm © 2014 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................11 4. Phantom & Simulating Tissue Specifications .....................................................................12 Head & Body Simulating Mixture Characterization ................................................................12 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................13 Uncontrolled Environment .....................................................................................................13 Controlled Environment .........................................................................................................13 6. Measurement Uncertainty .................................................................................................14 7. System Validation..............................................................................................................15 Tissue Verification .................................................................................................................15 Test System Verification ........................................................................................................15 8. SAR Test Data Summary ..................................................................................................16 Procedures Used To Establish Test Signal ...........................................................................16 Device Test Condition ...........................................................................................................16 SAR Data Summary – 2450 MHz Body 802.11b ...................................................................28 SAR Data Summary – 5150 MHz Body 802.11a ...................................................................29 SAR Data Summary – 5250 MHz Body 802.11a ...................................................................30 SAR Data Summary – 5600 MHz Low Band Body 802.11a ..................................................31 SAR Data Summary – 5600 MHz High Band Body 802.11a ..................................................32 SAR Data Summary – 5800 MHz Body 802.11a ...................................................................33 SAR Data Summary – 5 GHz Body 802.11ac 80 MHz Bandwidth .............................…

Text truncated - open the document above for the full version.

Report Nº(NIE): 41273RRF.002 Page 212 of 320 2014-03-12 3. WiFi 5GHz 802.11 n40 mode Lowest Channel: 5755 MHz. Chain A Lowest Channel: 5755 MHz. Chain B Report Nº(NIE): 41273RRF.002 Page 213 of 320 2014-03-12 Highest Channel: 5795 MHz. Chain A Highest Channel: 5795 MHz. Chain B Report Nº(NIE): 41273RRF.002 Page 214 of 320 2014-03-12 4. WiFi 5GHz 802.11 ac80 mode Middle Channel: 5775 MHz. Chain A Middle Channel: 5775 MHz. Chain B Report Nº(NIE): 41273RRF.002 Page 215 of 320 2014-03-12 Section 15.247 Subclause (b) / RSS-210 A8.4. (4). Maximum output power and antenna gain SPECIFICATION The maximum peak conducted output power of the intentional radiator shall not exceed 1 watt (30 dBm). The e.i.r.p. shall not exceed 4 W (36 dBm) (Canada). RESULTS The maximum Peak Conducted Output Power was measured using the channel integration method according to point 9.1.2. of Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 558074 D01 DTS Meas Guidance v03r01 dated 09/04/2013. This method was used for 802.11ac80 mode . The maximum conducted (average) output power was measured using the method according to point 9.2.1.2. of Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 558074 D01 DTS Meas Guidance v03r01 dated 09/04/2013. This method was used for 802.11a, 802.11n20 and 802.11n40 modes . In the measure-and-sum approach for MIMO mode, the conducted emission level (e.g., transmit power or power in specified bandwidth) is measured at each antenna port. The measured results at the various antenna ports are then summed mathematically to determine the total emission level from the device. Summing is performed in linear power units (mW—not dBm). The EIRP power (dBm) is calculated by adding the declared maximum antenna gain to the measured conducted power. For MIMO mode, the Guidance on directional Gain calculations according to the Guidance for Emission Testing of Transmitters with Multiple Outputs in the Same Band 662911 D01 Multiple Transmitter Output v02r01 dated 10/31/2013 was used. The number of transmit antennas (N ANT) are 2 and the number of spatial streams (Nss) are 2 and therefore the Array Gain is 0 dB. MAXIMUM OUTPUT POWER. (See next plots of worst case: highest power). Declared maximum antenna gain: 5 dBi. 1. WiFi 5GHz 802.11 a mode Conducted (average) output power. Lowest frequency 5745 MHz Middle frequency 5785 MHz Highest frequency 5825 MHz Chain A Chain B Chain A Chain B Chain A Chain B Maximum conducted power (dBm) 15.27 15.02 15.67 14.70 15.42 15.35 Maximum EIRP power (dBm) 20.27 20.02 20.67 19.70 20.42 20.35 Measurement uncertainty (dB) ±1.5 Report Nº(NIE): 41273RRF.002 Page 216 of 320 2014-03-12 2. WiFi 5GHz 802.11 n20 mode Conducted (average) output power. Lowest frequency 5745 MHz Middle frequency 5785 MHz Highest frequency 5825 MHz Chain A Chain B Chain A Chain B Chain A Chain B Maximum conducted power (dBm) 15.49 15.13 15.26 14.88 15.36 14.89 Maximum EIRP power (dBm) 20.49 20.13 20.26 19.88 20.36 19.89 Measurement uncertainty (dB) ±1.5 MIMO Lowest frequency 5745 MHz Middle frequency 5785 MHz Highest frequency 5825 MHz Chain A+B Chain A+B Chain A+B Port A Port B Port A Port B Port A Port B Maximum conducted power (dBm) 13.49 13.19 13.18 13.20 13.36 13.74 Port A+B Port A+B Port A+B Maximum conducted power (dBm) 16.35 16.20 16.56 Maximum EIRP power (dBm) 21.35 21.20 21.56 Measurement uncertainty (dB) ±1.5 3. WiFi 5GHz 802.11 n40 mode Conducted (average) output power. Lowest frequency 5755 MHz Highest frequency 5795 MHz Chain A Chain B Chain A Chain B Maximum conducted power (dBm) 16.29 16.21 16.29 16.15 Maximum EIRP power (dBm) 21.29 21.21 21.29 21.15 Measurement uncertainty (dB) ±1.5 Report Nº(NIE): 41273RRF.002 Page 217 of 320 2014-03-12 MIMO Lowest frequency 5755 MHz Highest frequency 5795 MHz Chain A+B Chain A+B Port A Port B Port A Port B Maximum conducted power (dBm) 16.50 16.51 16.47 16.42 Port A+B Port A+B Maximum conducted power (dBm) 19.52 19.46 Maximum EIRP power (dBm) 24.52 24.46 Measurement uncertainty (dB) ±1.2 Verdict: PASS 4. WiFi 5GHz 802.11 ac80 mode Peak Conducted Output Power. Middle frequency 5775 MHz Chain A Chain B Maximum conducted power (dBm) 24.96 25.19 Maximum EIRP power (dBm) 29.96 30.19 Measurement uncertainty (dB) ±1.2 MIMO Middle frequency 5775 MHz Chain A+B Port A Port B Maximum conducted power (dBm) 24.82 25.42 Port A+B Maximum conducted power (dBm) 28.14 Maximum EIRP power (dBm) 33.14 Measurement uncertainty (dB) ±1.2 Verdict: PASS Report Nº(NIE): 41273RRF.002 Page 218 of 320 2014-03-12 Conducted (average) output power. These results are for information purposes only. Middle frequency 5775 MHz Chain A Chain B Maximum conducted power (dBm) 16.42 16.63 Maximum EIRP power (dBm) 21.42 21.63 Measurement uncertainty (dB) ±1.2 MIMO Middle frequency 5775 MHz Chain A+B Port A Port B Maximum conducted power (dBm) 16.51 16.55 Port A+B Maximum conducted power (dBm) 19.54 Maximum EIRP power (dBm) 24.54 Measurement uncertainty (dB) ±1.2 Report Nº(NIE): 41273RRF.002 Page 219 of 320 2014-03-12 1. WiFi 5GHz 802.11 a mode Middle Channel: 5785 MHz. Chain A 2. WiFi 5GHz 802.11 n20 mode SISO. Lowest Channel: 5745 MHz. Chain A Report Nº(NIE): 41273RRF.002 Page 220 of 320 2014-03-12 MIMO. Highest Channel: 5825 MHz. Chain A+B. Port A Highest Channel: 5825 MHz. Chain A+B. Port B Report Nº(NIE): 41273RRF.002 Page 221 of 320 2014-03-12 3. WiFi 5GHz 802.11 n40 mode SISO. Lowest Channel: 5755 MHz. Chain A Report Nº(NIE): 41273RRF.002 Page 222 of 320 2014-03-12 MIMO. Lowest Channel: 5755 MHz. Chain A+B. Port A Lowest Channel: 5755 MHz. Chain A+B. Port B Report Nº(NIE): 41273RRF.002 Page 223 of 320 2014-03-12 4. WiFi 5GHz 802.11 ac80 mode Peak Conducted Output Power. SISO. Middle Channel: 5775 MHz. Chain B. MIMO. Middle Channel: 5775 MHz. Chain A+B. Port A Report Nº(NIE): 41273RRF.002 Page 224 of 320 2014-03-12 MIMO. Middle Channel: 5775 MHz. Chain A+B. Port B Repo…

Text truncated - open the document above for the full version.

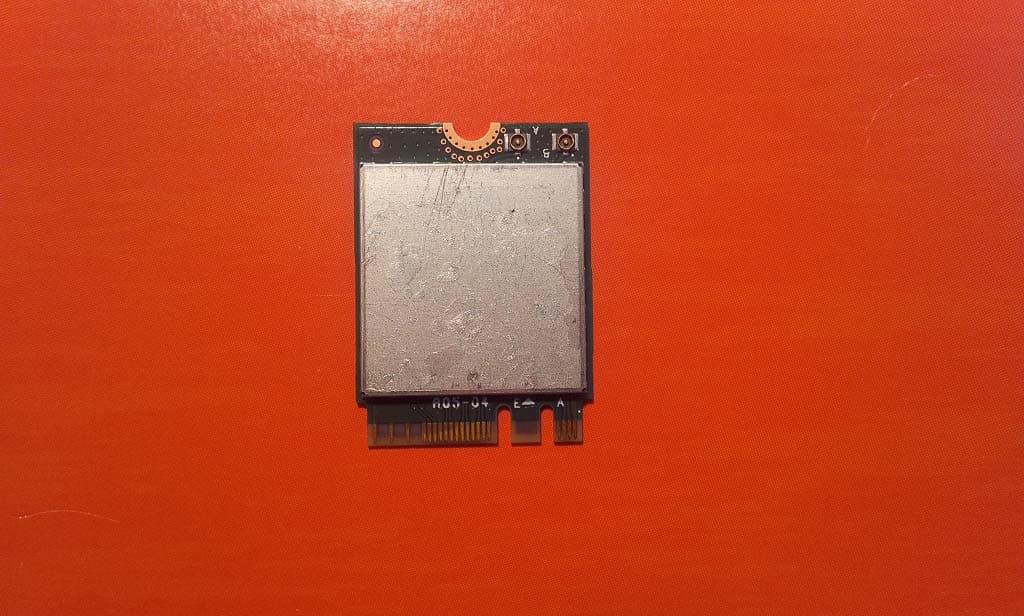

Report Nº(NIE): 41273RRF.002 Page 1 of 4 2014-03-12 APPENDIX D: Photographs Report Nº(NIE): 41273RRF.002 Page 2 of 4 2014-03-12 Fig. 1. Module frontal view Fig. 2. Module rear view Fig. 3. Antenna frontal view Report Nº(NIE): 41273RRF.002 Page 3 of 4 2014-03-12 Fig. 4. Test set-up for radiated measurements above 30MHz to 18GHz Fig. 5. Test set-up for radiated measurements above 18GHz to 40GHz Report Nº(NIE): 41273RRF.002 Page 4 of 4 2014-03-12 Fig. 6. Test set-up for conducted measurements

Report Number: SAR.20140201 Appendix C – SAR Test Setup Photos Test Position Side A 8 mm Gap © 2014 RF Exposure Lab, LLC Page 59 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Test Position Side B 8 mm Gap © 2014 RF Exposure Lab, LLC Page 60 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Test Position Side C 8 mm Gap © 2014 RF Exposure Lab, LLC Page 61 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Test Position Side D 8 mm Gap © 2014 RF Exposure Lab, LLC Page 62 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Test Position Side E 8 mm Gap © 2014 RF Exposure Lab, LLC Page 63 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Test Position Side F 8 mm Gap © 2014 RF Exposure Lab, LLC Page 64 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Test Locations © 2014 RF Exposure Lab, LLC Page 65 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Module © 2014 RF Exposure Lab, LLC Page 66 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20140201 Test System © 2014 RF Exposure Lab, LLC Page 67 of 104 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC.
