PD98260D2Intel Dual Band Wireless-AC 8260

Intel® WiFi Adapter Information Guide index.htm[5/21/2015 9:19:01 AM] Intel® WiFi Adapter Information Guide This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below. However, note that newer features provided in this software release are generally not supported for older, legacy adapters. The following adapters are supported on this release for Windows* 8 and Windows* 8.1 with Windows* 7 drivers from Intel®: Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6230 The following adapters are supported on this release for Windows* 8 with Windows* 8 drivers from Intel®: Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260 The following adapters are supported on this release for Windows* 8.1 with Windows* 8 drivers from Intel®: Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 The following adapters are supported on this release for Windows* 8.1 with Windows* 8.1 drivers from Intel®: Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 3165 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Tri-Band Wireless-AC 17260 Intel® Dual Band Wireless-AC 8260 Intel® WiFi Adapter Information Guide index.htm[5/21/2015 9:19:01 AM] With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. This guide contains basic information about Intel adapters. It includes information about several adapter properties that you can set to control and enhance the performance of your adapter with your particular wireless network and environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs. Adapter Settings Regulatory Information Specifications Important Information Support Warranty Glossary Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and 802.11n (draft 2.0) wireless standards. Operating at 5GHz or 2.4GHz frequency at data rates of up to 450 Mbps, you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your WiFi adapter maintains automatic data rate control according to the access point location and signal strength to achieve the fastest possible connection. All of your wireless network connections are easily managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced security measures with 802.1X network authentication. Information in this document is subject to change without notice. © 2004–2014 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human expo…

Text truncated - open the document above for the full version.

100 Center Point Circle Columbia, SC 29210 Authority to Act as Agent May 19, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Quietek is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). Intel retains the rights to communicate or obtain information directly from ACB or AT4 Wireless at our discretion at any time regarding applications made on our behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: May 19, 2016 By: Steven C. Hackett (Signature 1 ) (Print name) Title: Wireless Regulations Engineer On behalf of: Intel Mobile Communications (Company Name) Telephone: 803-216-2344

100 Center Point Circle Columbia, SC 29210 May 19, 2015 Subject: Confidentiality Request for FCC ID: PD98260D2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Antenna Specification Short Term Permanent Operation Description/HW Theory of Operation Short Term Permanent Operational Description/BT FHSS Description Short Term Permanent Operational Description/BiOS Lock Feature Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Intel Mobile Communications has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Steven C. Hackett By: __________________________ ________________________ (Signature/Title 1 ) (Print Name)

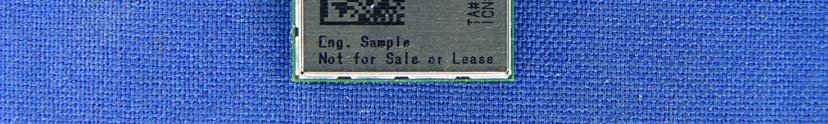

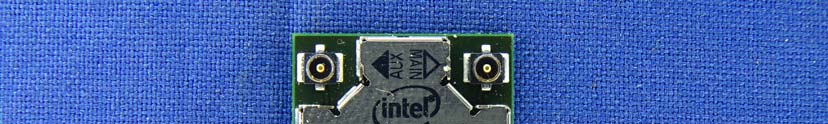

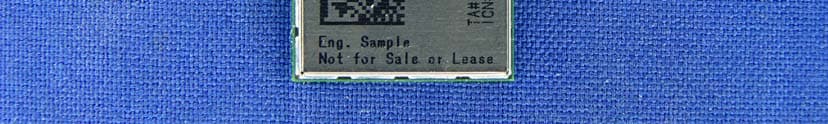

Report No.: 1540115R-RFUSP01V00 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Report No.: 1540115R-RFUSP01V00 Page : 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 1540115R-RFUSP01V00 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 1540115R-RFUSP01V00 Page : 4 of 4 (7) EUT Photo

Report No.: 1540115R-RFUSP01V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Intel® Dual Band Wireless-AC 8260 Model No. 8260D2W FCC ID PD98260D2 Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 Columbia, South Carolina 29210 USA Date of Receipt Mar. 30, 2015 Date of Declaration May 15, 2015 Report No. 1540115R-RFUSP01V00 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF any agency of the U.S. Government Report No.: 1540115R-RFUSP01V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No.: 1540115R-RFUSP01V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Intel® Dual Band Wireless-AC 8260 Test Item : RF Exposure Evaluation Test Site : No.3 OATS RF Exposure_WLAN Operation Frequency Range 2412-2462MHz, 5180-5825MHz Maximum Conducted output power 25.92dBm Antenna gain 4.97dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 390.8409 0.244191 RF Exposure_Bluetooth Operation Frequency Range 2402-2480MHz Maximum Conducted output power 11.41dBm Antenna gain 3..24dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 13.8357 0.005804 Total Power Density Power Density (WLAN) (mW/cm 2 ) Power Density (Bluetooth) (mW/cm 2 ) Total Power Density (WLAN+Bluetooth) (mW/cm 2 ) Limit (mW/cm 2 ) 0.244191 0.005804 0.249995 1 Note: The Formula of calculated the MPE is : CPD1/LPD1 + CPD2/LPD2+........etc.<1 CPD = Calculation power density LPD = Limit of power density

Report No.: 1540115R-RFUSP01V00-A Page: 1 of 88 FCC Test Report Product Name Intel® Dual Band Wireless-AC 8260 Model No. 8260D2W FCC ID. PD98260D2 Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 Columbia, South Carolina 29210 USA Date of Receipt Mar. 30, 2015 Issued Date May 15, 2015 Report No. 1540115R-RFUSP01V00-A Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1540115R-RFUSP01V00-A Page: 2 of 88 Test Report Issued Date: May 15, 2015 Report No.: 1540115R-RFUSP01V00-A Product Name Intel® Dual Band Wireless-AC 8260 Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 Columbia, South Carolina 29210 USA Manufacturer Intel Mobile Communications Model No. 8260D2W FCC ID. PD98260D2 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/ 60Hz Trade Name Intel Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.4: 2009, ANSI C63.10: 2009 Test Result Complied Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Director / Vincent Lin ) Report No.: 1540115R-RFUSP01V00-A Page: 3 of 88 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit .....................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................18 4.1. Test Equipment ......................................................................................................................................18 4.2. Test Setup ..............................................................................................................................................18 4.3. Limits.....................................................................................................................................................19 4.4. Test Procedure .......................................................................................................................................20 4.5. Uncertainty ............................................................................................................................................20 4.6. Test Result of Radiated Emission ..........................................................................................................21 5. RF ANTENNA CONDUCTED TEST........................................................................................…

Text truncated - open the document above for the full version.

Report No.: 1540115R-RFUSP01V00 Page : 1 of 4 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 1540115R-RFUSP01V00 Page : 2 of 4 Front View of Radiated Test Back View of Radiated Test Report No.: 1540115R-RFUSP01V00 Page : 3 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 1540115R-RFUSP01V00 Page : 4 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
