PD98260NGIntel Dual Band Wireless-AC 8260

Intel® WiFi Adapter Information Guide index.htm[4/10/2015 2:35:47 PM] Intel® WiFi Adapter Information Guide This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below. However, note that newer features provided in this software release are generally not supported for older, legacy adapters. The following adapters are supported on this release for Windows* 8 and Windows* 8.1 with Windows* 7 drivers from Intel®: Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6230 The following adapters are supported on this release for Windows* 8 with Windows* 8 drivers from Intel®: Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 8260 The following adapters are supported on this release for Windows* 8.1 with Windows* 8 drivers from Intel®: Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 The following adapters are supported on this release for Windows* 8.1 with Windows* 8.1 drivers from Intel®: Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wireless-N 7260 Intel® Dual Band Wireless-AC 3160 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Tri-Band Wireless-AC 17265 Intel® Dual Band Wireless-AC 8260 With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet Intel® WiFi Adapter Information Guide index.htm[4/10/2015 2:35:47 PM] connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. This guide contains basic information about Intel adapters. It includes information about several adapter properties that you can set to control and enhance the performance of your adapter with your particular wireless network and environment. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs. Adapter Settings Regulatory Information Specifications Important Information Support Warranty Glossary Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and 802.11n (draft 2.0) wireless standards. Operating at 5GHz or 2.4GHz frequency at data rates of up to 450 Mbps, you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your WiFi adapter maintains automatic data rate control according to the access point location and signal strength to achieve the fastest possible connection. All of your wireless network connections are easily managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced security measures with 802.1X network authentication. Information in this document is subject to change without notice. © 2004–2014 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by thir…

Text truncated - open the document above for the full version.

Intel Corporation 100 Center Point Circle Columbia, SC 29210 May 19, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 USA Subject: Model 8260NGW WLAN 802.11a/b/g/n/ac + BT 4.0 Adapter Card FCC ID: PD98260NG and PD98260NGU Gentlemen: Please be advised that for the Model 8260NGW WiFi/Bluetooth card all final output power levels and operational parameters are programmed into the non-volatile memory (NVM) during the assembly process. The information programmed into the NVM is not accessible and cannot be changed by the end user/installer in any way. Since there are no end user/installer adjustments that can be made there is no tune-up procedure provided. If you have any questions please do not hesitate to contact me at your convenience. Sincerely, Steven C. Hackett Product Regulations Engineer Wireless Platforms R&D [email protected]

100 Center Point Circle Columbia, SC 29210 Authority to Act as Agent May 19, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Quietek is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). Intel retains the rights to communicate or obtain information directly from ACB or AT4 Wireless at our discretion at any time regarding applications made on our behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: May 19, 2016 By: Steven C. Hackett (Signature 1 ) (Print name) Title: Wireless Regulations Engineer On behalf of: Intel Mobile Communications (Company Name) Telephone: 803-216-2344

100 Center Point Circle Columbia, SC 29210 May 19, 2015 Subject: Confidentiality Request for FCC ID: PD98260NG and PD98260NGU Pursuant to FCC 47 CRF 0.457(d) and 0.459 the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Antenna Specification Short Term Permanent Operation Description/HW Theory of Operation Short Term Permanent Operational Description/BT FHSS Description Short Term Permanent Operational Description/BiOS Lock Feature Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Intel Mobile Communications has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Steven C. Hackett By: __________________________ ________________________ (Signature/Title 1 ) (Print Name)

Intel Corporation 100 Center Point Circle Columbia, SC 29210 Modular Approval Requirements Attestation FCC ID: PD98260NG and PD98260NGU Modular Approval is being requested for this device under the ID’s listed above. This device is a self contained, physically delineated, component for which compliance was demonstrated independent of any host operating conditions and complies with all eight requirements of FCC Part 15.212(a)(1). The details of these requirements and the manner in which the devices meet them are summarized below. The module must have its own RF shielding. The module contains a metal shield which covers all RF components and circuitry; this shield is located on the top side of the board located next to the antenna connectors. All modulation and data input(s) are buffered. Data to the modulation circuit is buffered on the module; please refer to the “theory of operation” document filed with this application for full description. The module has its own power supply regulation and local reference oscillator. The module contains its own power supply regulation and the rf reference oscillator is contained within the module. Please refer to the schematics and “theory of operation” documents filed with this application for full description. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The certification submission contains a detailed description of all antennas that will be used with the module. The module connects to its antenna via using an UFL type connector. This antenna connector is a non-standard connector. The antenna tested was a PIFA type and the data sheet is included in the application. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Test data contained in this application is for the device tested as a stand-alone device connected externally to a PC. See test set-up photographs filed with this application. For the FCC, the modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the Intel Corporation 100 Center Point Circle Columbia, SC 29210 enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” For Industry Canada, the module meets certification labeling requirements for Category I Equipment. The module is appropriately labeled (refer to the label and label location drawings contained within this application). Information to the integrator of this device regarding the labeling requirements for the host system is contained in the instructions provided with the module. The modular transmitter must comply with any applicable RF exposure requirements. The module meets the requirements for a mobile/portable device that may be used at separation distances of more than 8mm from the human body. Refer to the RF Exposure test report submitted with this application.

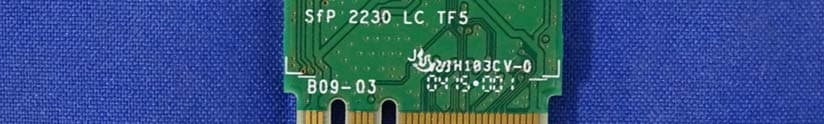

Report No.: 1540055R-RFUSP05V00 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

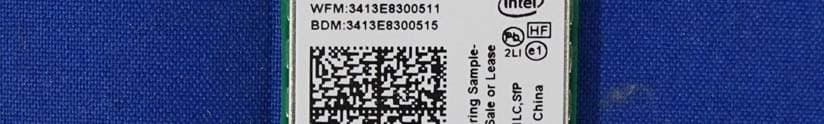

MAIN AUX Intel® Dual Band Wireless ‐ AC 8260 Model: 8260NGW FCC ID: PD98260NG IC: 1000M ‐ 8260NG Intel Mobile Communications France SAS. FCC ID.: PD98260NG, PD98260NGU Le Navigator B 505 route des Lucioles CS 70293 06905 Sophia Antipolis cedex Tel : 803-216-2344 FCC ID Label

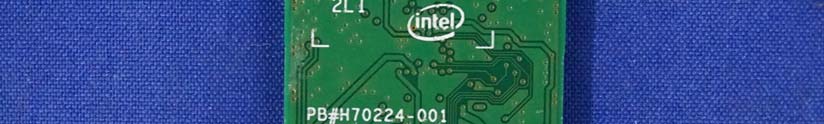

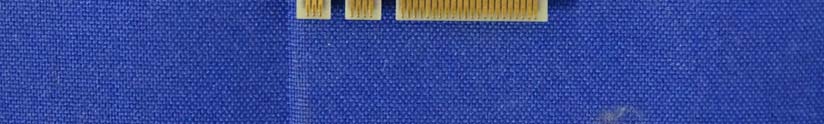

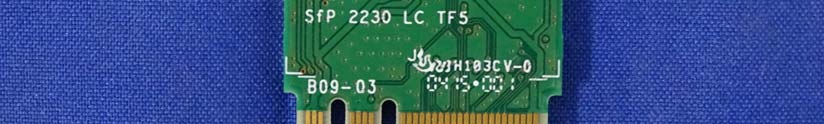

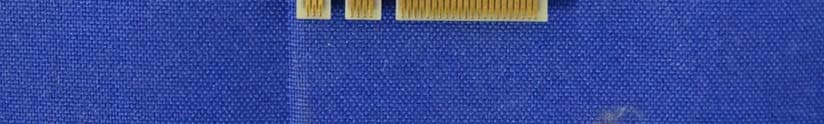

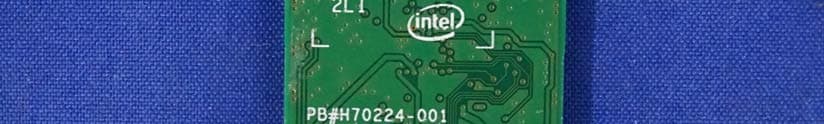

Report No.: 1540055R-RFUSP05V00 Page : 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 1540055R-RFUSP05V00 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 1540055R-RFUSP05V00 Page : 4 of 4 (7) EUT Photo

Report No. 1540055R-RFUSP01V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Intel® Dual Band Wireless-AC 8260 Model No. 8260NGW FCC ID PD98260NG, PD98260NGU Applicant Intel Mobile Communications France SAS Address Le Navigator B 505 route des Lucioles CS 70293 06905 Sophia Antipolis cedex Date of Receipt Mar. 30, 2015 Date of Declaration May 21, 2015 Report No. 1540055R-RFUSP01V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1540055R-RFUSP01V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1540055R-RFUSP01V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Intel® Dual Band Wireless-AC 8260 Test Item : RF Exposure Evaluation Test Site : No.3 OATS RF Exposure_WLAN Operation Frequency 2412-2462MHz, 5180-5825MHz Maximum Conducted output power 25.77dBm Antenna gain 4.97dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 377.5722 0.235901 RF Exposure_Bluetooth Operation Frequency Range 2402-2480MHz Maximum Conducted output power 11.47dBm Antenna gain 3..24dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 14.0281 0.005885 Total Power Density Power Density (WLAN) (mW/cm 2 ) Power Density (Bluetooth) (mW/cm 2 ) Total Power Density (WLAN+Bluetooth) (mW/cm 2 ) Limit (mW/cm 2 ) 0.235901 0.005885 0.241756 1 Note: The Formula of calculated the MPE is : CPD1/LPD1 + CPD2/LPD2+........etc.<1 CPD = Calculation power density LPD = Limit of power density

Report No.: 1540055R-RFUSP01V00-B Page: 1 of 41 FCC Test Report Product Name Intel® Dual Band Wireless-AC 8260 Model No. 8260NGW FCC ID. PD98260NG, PD98260NGU *FCC ID: PD98260NG (for OEM factory install) *FCC ID: PD98260NGU (for User Installation w/bios lock feature.) Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 Columbia, South Carolina 29210 USA Date of Receipt Mar. 30, 2015 Issued Date May 13, 2015 Report No. 1540055R-RFUSP01V00-B Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration repor t of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1540055R-RFUSP01V00-B Page: 2 of 41 Test Report Issued Date: May 13, 2015 Report No.: 1540055R-RFUSP01V00-B Product Name Intel® Dual Band Wireless-AC 8260 Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 Columbia, South Carolina 29210 USA Manufacturer Intel Mobile Communications Model No. 8260NGW FCC ID. PD98260NG, PD98260NGU EUT Rated Voltage DC 3.3V (via Mini-PCI Express slot) EUT Test Voltage AC 120V/60Hz Trade Name Intel Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.4: 2009, ANSI C63.10: 2009 KDB 558074 D01 DTS Meas Guidance v03r02 Test Result Complied Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Director / Vincent Lin ) Report No.: 1540055R-RFUSP01V00-B Page: 3 of 41 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................... 4 1.1. EUT Description ...................................................................................................................................... 4 1.2. Operational Description ........................................................................................................................... 6 1.3. Tested System Details .............................................................................................................................. 7 1.4. Configuration of Tested System .............................................................................................................. 7 1.5. EUT Exercise Software ........................................................................................................................... 7 1.6. Test Facility ............................................................................................................................................. 8 2. CONDUCTED EMISSION .................................................................................................................. 9 2.1. Test Equipment ........................................................................................................................................ 9 2.2. Test Setup ................................................................................................................................................ 9 2.3. Limits ..................................................................................................................................................... 10 2.4. Test Procedure ....................................................................................................................................... 10 2.5. Uncertainty ............................................................................................................................................ 10 2.6. Test Result of Conducted Emission ....................................................................................................... 11 3. PEAK POWER OUTPUT .................................................................................................................. 13 3.1. Test Equipment ...................................................................................................................................... 13 3.2. Test Setup .............................................................................................................................................. 13 3.3. Limit ...................................................................................................................................................... 13 3.4. Test Procedure ....................................................................................................................................... 13 3.5. Uncertainty ............................................................................................................................................ 13 3.6. Test Result of Peak Power Output ......................................................................................................... 14 4. RADIATED EMISSION ..................................................................................................................... 15 4.1. Test Equipment ...................................................................................................................................... 15 4.2. Test Setup .............................................................................................................................................. 16 4.3. Limits ..................................................................................................................................................... 17 4.4. Test Procedure ....................................................................................................................................... 18 4.5. Uncertainty ............................................................................................................................................ 18 4.6. Test Result of Radiat…

Text truncated - open the document above for the full version.

Report No.: 1540055R-RFUSP01V00 Page: 1 of 678 FCC Test Report Product Name Intel® Dual Band Wireless-AC 8260 Model No 8260NGW FCC ID. PD98260NG, PD98260NGU *FCC ID: PD98260NG (for OEM factory install) *FCC ID: PD98260NGU (for User Installation w/bios lock feature.) Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 Columbia, South Carolina 29210 USA Date of Receipt Mar. 30, 2015 Issue Date May 13, 2015 Report No. 1540055R-RFUSP01V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1540055R-RFUSP01V00 Page: 2 of 678 Test Report Issue Date: May 13, 2015 Report No.: 1540055R-RFUSP01V00 Product Name Intel® Dual Band Wireless-AC 8260 Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 Columbia, South Carolina 29210 USA Manufacturer Intel Mobile Communications Model No. 8260NGW EUT Rated Voltage DC 3.3V (via Mini-PCI Express slot) EUT Test Voltage AC 120V/60Hz Trade Name Intel Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.4: 2009, ANSI C63.10: 2009 KDB 558074 D01 DTS Meas Guidance v03r02 Test Result Complied Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Director / Vincent Lin ) Report No.: 1540055R-RFUSP01V00 Page: 3 of 678 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..................................................................................................... 5 1.1. EUT Description ............................................................................................................................ 5 1.2. Operational Description ................................................................................................................ 8 1.3. Tested System Details.................................................................................................................... 9 1.4. Configuration of Tested System .................................................................................................... 9 1.5. EUT Exercise Software ................................................................................................................. 9 1.6. Test Facility ................................................................................................................................. 10 2. Conducted Emission .................................................................................................................. 11 2.1. Test Equipment ............................................................................................................................ 11 2.2. Test Setup .................................................................................................................................... 11 2.3. Limits .......................................................................................................................................... 12 2.4. Test Procedure ............................................................................................................................. 12 2.5. Uncertainty .................................................................................................................................. 12 2.6. Test Result of Conducted Emission ............................................................................................. 13 3. Peak Power Output ................................................................................................................... 29 3.1. Test Equipment ............................................................................................................................ 29 3.2. Test Setup .................................................................................................................................... 29 3.3. Limits .......................................................................................................................................... 29 3.4. Test Procedure ............................................................................................................................. 30 3.5. Uncertainty .................................................................................................................................. 30 3.6. Test Result of Peak Power Output ............................................................................................... 31 4. Radiated Emission ..................................................................................................................... 65 4.1. Test Equipment ............................................................................................................................ 65 4.2. Test Setup .................................................................................................................................... 66 4.3. Limits .......................................................................................................................................... 67 4.4. Test Procedure ............................................................................................................................. 68 4.5. Uncertainty .................................................................................................................................. 68 4.6. Test Result of Radiated Emission ................................................................................................ 69 5. RF antenna conducted test ...................................................................................................... 173 5.1. Test Equipment ...................…

Text truncated - open the document above for the full version.

Report No.: 1540055R-RFUSP01V00 Page: 415 of 678 Product : Intel® Dual Band Wireless-AC 8260 Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 2 SISO B: Transmit - 802.11n-40BW_15Mbps(5G Band) Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5755 36.81 >20 PASS Report No.: 1540055R-RFUSP01V00 Page: 416 of 678 Product : Intel® Dual Band Wireless-AC 8260 Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 2 SISO B: Transmit - 802.11n-40BW_15Mbps(5G Band) Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5795 50.25 >20 PASS Report No.: 1540055R-RFUSP01V00 Page: 417 of 678 Product : Intel® Dual Band Wireless-AC 8260 Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 2 SISO B: Transmit - 802.11ac-80BW_32.5Mbps(5G Band) Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5775 39.09 >30 PASS Report No.: 1540055R-RFUSP01V00 Page: 418 of 678 Product : Intel® Dual Band Wireless-AC 8260 Test Item : Band Edge Test Site : No…
