PD9AX411E2Intel Wi-Fi 6E AX411

Intel(R) WiFi Adapter Information Guide index.htm[7/20/2021 7:22:10 PM] Intel® WiFi Adapter Information Guide This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below. Note that newer features provided in this software are generally not supported on older generations of wireless adapters. The following adapters are supported in Windows* 10: Intel® Wi-Fi 6E AX411 Intel® Wi-Fi 6E AX211 Intel® Wi-Fi 6E AX210 Intel® Wi-Fi 6 AX203 Intel® Wi-Fi 6 AX201 Intel® Wi-Fi 6 AX200 Intel® Wi-Fi 6 AX101 Intel® Wireless-AC 9560 Intel® Wireless-AC 9462 Intel® Wireless-AC 9461 Intel® Wireless-AC 9260 Intel® Dual Band Wireless-AC 8265 Intel® Dual Band Wireless-AC 8260 Intel® Dual Band Wireless-AC 3168 Intel® Dual Band Wireless-AC 7265 Intel® Dual Band Wireless-N 7265 Intel® Wireless-N 7265 Intel® Dual Band Wireless-AC 3165 With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet connection. All these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. This guide contains basic information about Intel adapters. Intel® wireless adapters enable fast connectivity without wires for desktop and notebook PCs. Adapter Settings Regulatory and Safety Information Specifications Support Warranty Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac and 802.11ax wireless standards. Operating at 5GHz or 2.4GHz frequency, you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your WiFi adapter maintains automatic data rate control according to the access point location and signal strength to achieve the fastest possible connection. Information in this document is subject to change without notice. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the Intel(R) WiFi Adapter Information Guide index.htm[7/20/2021 7:22:10 PM] product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless LAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system- level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries. *Other names and brands may be claimed as the property of others. © Intel Corporation. July 2021 Adapter Settings adaptusr.htm[7/20/2021 7:22:11 PM] Back to Contents Adapter Settings The Advanced tab displays the device properties for the WiFi adapter installed on your computer. How to Access Double-click on the Intel WiFi adapter in the Network adapters section of the Device Manager and select the Advanced tab. A description of the WiFi adapter settings on the Advanced tab can be found here: https://www.intel.com/content/www/us/en/support/articles/000005585/network-and-i-o/wireless-networking.html Back to Top Back to Contents Trademarks and Disclaimers Regulatory Information regs.htm[7/20/2021 7:22:18 PM] Back to Contents Regulatory Information This section provides regulatory information for the following wireless adapters: Intel® Centrino® Wireless-N 100 Intel® Centrino® Wireless-N 105 Intel® Centrino® Wireless-N 130 Intel® Centrino® Wireless-N 135 Intel® Centrino® Wireless-N 1000 Intel® Centrino® Wireless-N 1030 Intel® Centrino® Wireless-N 2200 Intel® Centrino® Wireless-N 2230 Intel® Centrino® Wireless-N + WiMAX 6150 Intel® Centrino® Advanced-N 6200 Intel® Centrino® Advanced-N 6205 Intel® Centrino® Advanced-N 6230 Intel® Centrino® Advanced-N 6235 Intel® Centrino® Advanced-N + WiMAX 6250 Intel® Centrino® Ultimate-N 6300 Intel® Dual Band Wireless-AC 7260 Intel® Dual Band Wireless-N 7260 Intel® Wirel…

Text truncated - open the document above for the full version.

100 Center Point Circle Columbia, SC 29210 September 17, 2021 Subject: Co nfidentiality Request for FCC ID: PD9AX411E2 Pursuan t to FCC 47 CRF 0.457(d) and 0.459 the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Short Term Permanent Short Term Short Term Permanent Short Term Permanent Short Term Permanent Short Term Permanent Short Term Permanent Short Term Permanent Short Term Short Term Permanent Exhibit Block Diagrams External Photos Internal Photos Operation Description/Antenna Specifica tion Operation Description/HW Theory of Op eration Operational Description/BT FHSS Description Operational Description Schematics Test Setup Photos User’s Manual Intel Mobile Communications has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Steven C. Hackett By: __________________________ ________________________ (Signature/Title 1 ) (Print Name)

         ܆       ܈     ܆         !""#$    !""#$#$  %  & '()#*$+,-  .   / ) -  011       "% &'  '()' *%&'  ''   '  '' *   +' ,(','      , (') %-    , * +('),,'   (,,' ,(',''     % ,', * ,  %&' ', ,  * , ,+ , . ''    %"/%$"$010"101 ܈2# ܆34051 Details: – The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector. See photo provided with this filing. $% &'  '+   6  0,'    1 ''  ( , (') , .,    %"/%$"$010"101 ܈2# ܆34051 Details: – Data to the modulation circuit is buffered as described in the operational description provided with the application> 7% &'  '( ( * '  %&'   ''  ( , (')* ' *' (  *,,' ,(',''    %"/%$"$010"101 ܈2# ܆34051 Details: – The module contains its own power supply regulation. Please refer to operational description filed wit h this application !% &'  , ('' 88 "/%$97:"/%$9!0+1:"/%$9!0,1:"/%$"$01: $%$0+1%&''+   ,'  ;;<<, 0 ,,+('   ' :,  *',+ 1%&';;   << 8"/%$97 ,+    +,         * '"/%$"$0+1%"/%$"$010"101 ܈2# ܆34051 Details: – The module connects to its ante nna using an UFL connector which is considered a non-standard connector. The antenna and connector specification are provided with this filing. /% &'  +   ,*:%%:'  +  +"=:$9$" +>, ,<,    ' , **%&'   ''  , +  , *('"/ * ' ,(','   % ? '  ( ++ ( :, ('' , ,   ,"/%$9=% (    6  ,,  ܆  2# '  ,: '( +@ (''  0 , "/%$=011%&' *'' ' + *' , , :' *'@(: "9,'', *+(','    *  %,,:  ' :  ,, '   ** ' +  ,,  + 0 ,"/%7"011%"/%$"$010"101 Details: – The module was tested in     described in this filing.  34051 Ƞ             A% &'  + +  ('()-+: ,  0 BC+ ,=D!=!D1% -*  .  + ('()-+:')-+ (' '     ' ,:'' ' ,(',''         + *',    %&'. + ,( * ,'' (*E&   )- 2F 4#"GE)- 2F 4#"%G ( *'. '*+ %&'H '  ,' + :. (','+,   ' ,  'I::   , *(''  (','. ' %-' ,:, ',+,   ' ,  'I% -'   ,,  ') ,+:' +  ,,+  + '  ' ,(','   %-'     ' ,:'' ' ,(',''        + *',    %&'. + , ( *,'' (*E),   01%G ( * '. '*+ %&' ,  ,'( ,,' ,,  %, ',+,   ' ,  'I%"/%$"$010"101 ܈2# ܆34051 Details: – There is a label on the module as shown in the labeling exhibit filed with this application. Host specific labeling instructions are shown in the installation manual .filed with this application. =% &'  , ('  ,,  * ,+ ' :,  * ',    '*,+'*%,  …

Text truncated - open the document above for the full version.

The information provided in this document applies to the following Intel Wireless Adapter Modules. Model FCC ID AX411E2W PD9AX411E2 Software Security Description – KDB 594280 D02v01r03 Section II General Description 1. Describe how any software/firmware update will be obtained, downloaded, and installed. Software that is accessed through manufacturer’s website or device’s management system, must describe the different levels of security as appropriate. There is no downloadable software provided by the manufacturer that can modify critical radio transmitter parameters. All critical parameters are programmed in OTP memory at the factory and cannot be modified or overridden by third parties. 2. Describe the rf parameters that are modified by any software/firmware without any hardware changes. Are these parameters in some way limited, such that, it will not exceed the authorized RF characteristics? There are no rf parameters that can be modified. All rf parameters are programmed in OTP memory at the factory and cannot be modified or overridden by third parties. 3. Describe in detail the authentication protocols that are in place to ensure that the source of the RF related software/firmware is legitimate. Describe in detail how the software is protected against modification. The firmware is programmed at the factory and cannot be modified by third parties. 4. Describe in detail any encryption methods used to support the use of legitimate RF relatedsoftware/firmware. The firmware is programmed at the factory and cannot be modified by third parties therefore no encryption is necessary. 5. For a device that can be configured as a master and client (with active or passive scanning), explain how the device ensures compliance for each mode? In particular if the device acts as master in some band of operation and client in another; how is compliance ensured in each band of operation? T his is a client mo dule only. Third‐Pa r t y Acce ss Cont rol 1. Explain if any third parties have the capability to operate a US sold device on any other regulatory domain, frequencies, or in any manner that is in Third parties do not the capability to operate in any manner that is violation of the certification in the U.S. violation of the device’s authorization if activated in the U.S.. 2. Describe, if the device permits third‐party software or firmware installation, what mechanisms are provided by the manufacturer to permit integration of such functions while ensuring that the RF parameters of the device cannot be operated outside its authorization for operation in the U.S. In the description include what controls and/or agreements are in place with providers of third‐party fu nctionality to ensure the devices’ underlying RF parameters are unchanged and how the manufacturer verifies the functionality. RF parameters are programmed into OTP memory at the factory and cannot be reprogrammed or re-flashed by third parties. 3. For Certified Transmitter modular devices, describe how the module grantee ensures that hosts manufactures fully comply with these software security requirements for U‐NII devices. If the module is controlled through driver software loaded in the host, describe how the drivers are controlled and managed such that the modular transmitter pa rameters are not modified outside the grant of authorization. There are no rf parameters that can be modified. All rf parameters are programmed in OTP memory at the factory and cannot be modified or overridden by third parties. The module is not controlled by driver software on the host and cannot override critical rf parameters stored in module OTP memory. SOFTWARE CONFIGURATION DESCRIPTION – KDB 594280 D02v01r02 Section III USER CONFIGURATION GUIDE 1. Describe the user configurations permitted through the UI. If different levels of access are permitted for professional installers, system integrators or end‐users, describe the differences. No UI provided. a) What parameters are viewable and configurable by different parties? None b) What parameters are accessible or modifiable to the professional installer or system integrator? None i) Are the parameters in some way limited, so that the installers will not enter parameters that exceed those authorized? The module micro-code reads the parameters from the module OTP memory. These parameters cannot be modified or overridden by sw drivers. ii) What controls exist that the user cannot operate the device outside its authorization in the U.S.? Default mode is always FCC compliant. Other country modes cannot be activated without receiving three independent country codes from different APs, otherwise remains in FCC default mode (always FCC compliant) c) What parameters are accessible or modifiable by the end‐user? None i) Are the parameters in some way limited, so that The module micro-code reads the parameters from the the installers will not enter parameters that exceed those authorized? module OTP memory. These parameters cannot be modified or overridden by sw drivers. ii) What controls exist that the user cannot operate the device outside its authorization in the U.S.? Default mode is always FCC compliant. Other country modes cannot be activated without receiving three independent country codes from different APs, otherwise remains in FCC default mode (always FCC compliant) d) Is the country code factory set? Can it be changed in the UI? Default country code is set in the factory and no UI is provided for modification. i)If it can be changed, what controls exist to ensure that the device can only operate within its authorization in the U.S.? Programmed for default mode which is always FCC compliant. Always set for default for all start-ups, resets, timeouts or other host or network events. e) What are the default parameters when the device is restarted? Always FCC compliant 2.Can the radio be configured in bridge or mesh mode? If yes, an attestation may be required. Further information is available in KDB Publicatio…

Text truncated - open the document above for the full version.

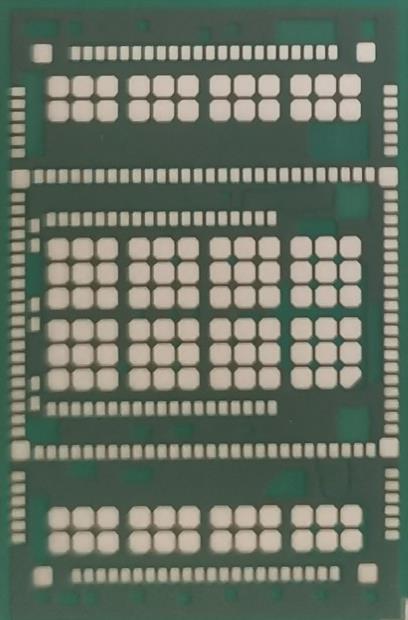

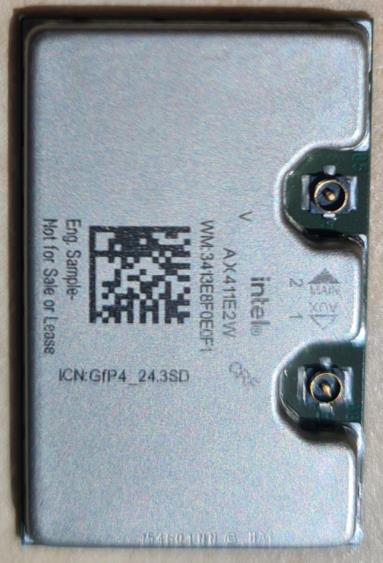

Front SideBack Side Intel®Wi-Fi6E AX411 Model: AX411E2W Without Shield Front Side w/ Marking

Intel®Wi-Fi 6E AX411 Label Information Note: Due to the small device siz e 16mm x 25mm it is too small to imprint the FCCID and IC ID on the module. The font size required would need to be < size 4 font and is considered to require magnification for legibility. The ID's will be placed in the Information Guide. External host labeling is still required once integrated into host. FCC ID: PD9AX411E2 IC: 1000M-AX411E2

Front SideBack Side Intel®Wi-Fi6E AX411 Model: AX411E2W Without Shield Front Side w/ Marking Confidential Information 1 Summary of the Test results The test fixture was made for further testing, which was shown below. 2. Test Result 2.1 RF Performance 2.1.1 S11 Measurement The S11 parameter was performed using a Hewlett Packard E5071B Network Analyzer. We use a 45cm long 1.13 cable to mitigate surface currents on the outside of the testing cable. We used no matching circuit . The S11 parameter was shown below, you could check it. SUC ANT S11 parameter Summary Band 2.3 ~2.7&3.3~3.8&5.15~5.85(GHz) 2.3 2.7 3.3 3.8 5.15 5.85 R.L (dB) -16.59 -11.22 -8.87 -8.96 -8.46 -10.04 VSWR 1.35 1.76 2.13 2.11 2.22 1.92 You could also check in detail in below figures. S11 parameter of sample antenna tested in free space

Intel Corporation S.A.S – WRF Lab 425 rue de Goa – Le Cargo B6 - 06600 Antibes, France Tel. +33493001400 / Fax +33493001401 Reference:WRF-DCS-TF-019 Version: 005 Application Date: 06/08/2021 1 of 55 N° 1-6736 Scope available on www.cofrac.fr CERTIFICATE #3478.01 TEST REPORT EUT Description WLAN and BT, 2x2 PCIe M.2 1625 adapter card Brand Name Intel® Wi-Fi 6E AX411 Model Name AX411E2W FCC/IC ID FCC ID: PD9AX411E2/ IC ID: 1000M-AX411E2 Date of Test Start/End 2021-08-12 / 2021-08-19 Features 802.11ax, Tri Band, 2x2 Wi-Fi 6E + Bluetooth® 5.2 + CDB (Concurrent Dual Band simultaneous wi-fi connection) (see section 5) Description WLAN module + Skycross antenna Applicant Intel Mobile Communications Address 100 Center Point Circle, Suite 200 / Columbia, SC 29210 / United States Contact Person Steven Hackett Telephone/Fax/ Email [email protected] Reference Standards FCC 47 CFR Part §2.1093 RSS 102, Issue 5 (see section 1) RF Exposure Environment Portable devices - General population/uncontrolled exposure Exposure Conditions Body worn SAR Result SAR Limit Maximum SAR Result & Limit 0.58 W/kg (1g) 1.6 W/kg (1g) Min. test separation distance 15mm to phantom Test Report identification 210611-03.TR07 Revision Control Rev. 00 This test report revision replaces any previous test report revision (see section 8) The test results relate only to the samples tested. Reference to accreditation shall be used only by full reproduction of test report. Issued by Reviewed by Vaso KACULINI (Test Engineer Lead) Ines KHARRAT (Technical Manager) Test Report N° 210611-03.TR07 Rev. 00 2 of 55 Table of Contents 1. Standards, reference documents and applicable test methods ......................................................................... 4 2. General conditions, competences and guarantees ............................................................................................. 4 3. Environmental Conditions ...................................................................................................................................... 5 4. Test samples ............................................................................................................................................................ 5 5. EUT Features ............................................................................................................................................................ 6 6. Remarks and comments ......................................................................................................................................... 9 7. Test Verdicts summary ........................................................................................................................................... 9 8. Document Revision History .................................................................................................................................... 9 Annex A. Test & System Description ..................................................................................................................... 10 SAR DEFINITION ................................................................................................................................................. 10 SAR MEASUREMENT SYSTEM ............................................................................................................................. 11 A.2.1 SAR Measurement Setup .......................................................................................................................................... 11 A.2.2 E-Field Measurement Probe ...................................................................................................................................... 12 A.2.3 SAM Phantom ........................................................................................................................................................... 12 A.2.4 Flat Phantom ............................................................................................................................................................. 13 A.2.5 Device Positioner ....................................................................................................................................................... 13 DATA EVALUATION .............................................................................................................................................. 14 SYSTEM AND LIQUID CHECK ................................................................................................................................ 16 A.4.1 System Check ........................................................................................................................................................... 16 A.4.2 Liquid Check .............................................................................................................................................................. 17 TEST EQUIPMENT LIST ........................................................................................................................................ 18 A.5.1 Tissue Simulant Liquid .............................................................................................................................................. 18 MEASUREMENT UNCERTAINTY EVALUATION ......................................................................................................... 19 RF EXPOSURE LIMITS ......................................................................................................................................... 20 Annex B. Test Results ............................................................................................................................................. 21 TEST CONDITIONS ............................................................................................................................................... 21 B.1.1 Test SAR Test positions relative to the phantom ............................................…

Text truncated - open the document above for the full version.

Test Report N° 210611-03.TR04 Rev. 00 60 of 94 BE-R-HIGH, SISO-B, 802.11n40-HT0, Ch11 BE-R-HIGH-2MHz, SISO-B, 802.11n40-HT0, Ch11 BE-R-LOW, SISO-B, 802.11ax20-HE0, Ch1 BE-NR, SISO-B, 802.11ax20-HE0, Ch1 BE-R-HIGH, SISO-B, 802.11ax20-HE0, Ch11 BE-R-HIGH-2MHz, SISO-B, 802.11ax20-HE0, Ch11 Test Report N° 210611-03.TR04 Rev. 00 61 of 94 BE-R-HIGH, SISO-B, 802.11ax20-HE0, Ch12 BE-R-HIGH-2MHz, SISO-B, 802.11ax20-HE0, Ch12 BE-R-HIGH, SISO-B, 802.11ax20-HE0, Ch13 BE-R-HIGH-2MHz, SISO-B, 802.11ax20-HE0, Ch13 BE-R-LOW, SISO-B, 802.11ax40-HE0, Ch3 BE-NR, SISO-B, 802.11ax40-HE0, Ch3 Test Report N° 210611-03.TR04 Rev. 00 62 of 94 BE-R-HIGH, SISO-B, 802.11ax40-HE0, Ch9 BE-R-HIGH-2MHz, SISO-B, 802.11ax40-HE0, Ch9 BE-R-HIGH, SISO-B, 802.11ax40-HE0, Ch10 BE-R-HIGH-2MHz, SISO-B, 802.11ax40-HE0, Ch10 BE-R-HIGH, SISO-B, 802.11ax40-HE0, Ch11 BE-R-HIGH-2MHz, SISO-B, 802.11ax40-HE0, Ch11 Test Report N° 210611-03.TR04 Rev. 00 63 of 94 MIMO-A BE-R-LOW, MIMO-A, 802.11n20-HT8, Ch1 BE-NR, MIMO-A, 802.11n20-HT8 Ch1 BE-R-HIGH, MIMO-A, 802.11n20-HT8, Ch11 BE-R-HIGH-2MHz, MIMO-A, 802.11n20-HT8, Ch11 BE-R-HIGH, MIMO-A, 802.11n20-HT8, Ch12 BE-R-HIGH-2MHz, MIMO-A, 802.11n20-HT8, Ch12 Test Report N° 210611-03.TR04 Rev. 00 64 of 94 BE-R-HIGH, MIMO-A, 802.11n20-HT8, Ch13 BE-R-HIGH-2MHz, MIMO-A, 802.11n20-HT8, Ch13 BE-R-LOW, MIMO-A, 802.11n40-HT8, Ch3 BE-NR, MIMO-A, 802.11n40-HT8, Ch3 BE-R-HIGH, MIMO-A, 802.11n40-HT8, Ch9 BE-R-HIGH-2MHz, MIMO-A, 802.11n40-HT8, Ch9 Test Report N° 210611-03.TR04 Rev. 00 65 of 94 BE-R-HIGH, MIMO-A, 802.11n40-HT8, Ch10 BE-R-HIGH-2MHz, MIMO-A, 802.11n40-HT8, Ch10 BE-R-HIGH, MIMO-A, 802.11n40-HT8, Ch11 BE-R-HIGH-2MHz, MIMO-A, 802.11n40-HT8, Ch11 BE-R-LOW, MIMO-A, 802.11ax20-HE0, Ch1 BE-NR, MIMO-A, 802.11ax20-HE0, Ch1 Test Report N° 210611-03.TR04 Rev. 00 66 of 94 BE-R-HIGH, MIMO-A, 802.11ax20-HE0, Ch11 BE-R-HIGH-2MHz, MIMO-A, 802.11ax20-HE0, Ch11 BE-R-HIGH, MIMO-A, 802.11ax20-HE0, Ch12 BE-R-HIGH-2MHz, MIMO-A, 802.11ax20-HE0, Ch12 BE-R-HIGH, MIMO-A, 802.11ax20-HE0, Ch13 BE-R-HIGH-2MHz, MIMO-A, 802.11ax20-HE0, Ch13 Test Report N° 210611-03.TR04 Rev. 00 67 of 94 BE-R-LOW, MIMO-A, 802.11ax40-HE0, Ch3 BE-NR, MIMO-A, 802.11ax40-HE0, Ch3 BE-R-HIGH, MIMO-A, 802.11ax40-HE0, Ch9 BE-R-HIGH-2MHz, MIMO-A, 802.11ax40-HE0, Ch9 BE-R-HIGH, MIMO-A, 802.11ax40-HE0, Ch10 BE-R-HIGH-2MHz, MIMO-A, 802.11ax40-HE0, Ch10 Test Report N° 210611-03.TR04 Rev. 00 68 of 94 BE-R-HIGH, MIMO-A, 802.11ax40-HE0, Ch11 BE-R-HIGH-2MHz, MIMO-A, 802.11ax40-HE0, Ch11 MIMO-B BE-R-LOW, MIMO-B, 802.11n20-HT8, Ch1 BE-NR, MIMO-B, 802.11n20-HT8 Ch1 BE-R-HIGH, MIMO-B, 802.11n20-HT8, Ch11 BE-R-HIGH-2MHz, …

Text truncated - open the document above for the full version.
