PD9LEN3945ABGIntel PRO/Wireless 3945ABG Network Connection

Intel(R) PRO/Wireless 3945ABG Network Connection User Guide With your wireless network card, you can access wireless networks, share files or printers, or even share your Internet connection. All of these features can be explored with a wireless network in your home or office. This wireless local area network (WLAN) solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. Your Intel(R) PRO/Wireless 3945ABG Network Connection adapter is compatible with 802.11a, 802.11b and 802.11g wireless standards. Operating at 5 GHz or 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All of your wireless network connections are easily managed by Intel(R) PROSet/Wireless software. Profiles that are set up through the Intel PROSet/Wireless software provide enhanced security measures with 802.1x network authentication. NOTE: The software is compatible with the Intel(R) PRO/Wireless 2915ABG Network Connection and the Intel(R) PRO/Wireless 2200BG Network Connection. Table of Contents l Use Intel PROSet/Wireless Software l Connect to a Network l Use Profiles l Set up Security l Troubleshooting l Administrator Tool l Glossary l Wireless Network Overview l Security Overview l Specifications l Customer Support l Safety and Regulatory Information l Warranty l Adapter Registration Information in this document is subject to change without notice. © 2004–2005 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "Important Notice FOR ALL USERS OR DISTRIBUTORS!!!! Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Since wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless WLAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant." July 2005 Back to Contents Use Intel(R) PROSet/Wireless Software: Intel(R) PRO/Wireless 3945ABG Network Connection User Guide l Use Intel PROSet/Wireless as your Wireless Manager l Start Intel PROSet/Wireless l Start Intel PROSet/Wireless from the Taskbar m Taskbar Icons m Tool Tips and Desktop Alerts l Intel PROSet/Wireless Main Window m Wireless Networks List m Connection Status Icons m Network Properties m Connection Details m Profiles List l Intel PROSet/Wireless Menus l Tools Menu m Application Settings m Intel Wireless Troubleshooter m Administrator Tool l Advanced Menu m Adapter Settings m Advanced Statistics m Use Windows to manage Wi-Fi l Profiles Menu m Manage Profiles m Import/Export m Manage Exclusions l Enable and Disable the Radio l Install and Uninstall the Software Use Intel PROSet/Wireless as your Wireless Manager Intel(R) PROSet/Wireless is used to setup, edit and manage network profiles to connect to a network. It also includes advanced settings such as power management and channel selection for setting up ad- hoc networks. If you use Microsoft(R) Windows(R) XP Wireless Zero Confi…

Text truncated - open the document above for the full version.

October 26, 2005 American TCB 6731 Whittier Ave., Suite C110 McLean, VA 22101 Gentlemen: The attached documentation is provided in support of a formal submission to your organization for a modular approval of an intentional unlicensed transmitter. On behalf of our client, Aegis Labs has included an application for a Grant of Equipment Authorization pursuant to Subpart C of part 15 of FCC Rules (47 CFR) regarding intentional radiators. The data within the test report demonstrates the equipment was tested in a manner described under Part 2 and 15 of the Code of Federal Regulations. This is a modular approval of the Intel PRO/Wireless 3945ABG Network Connection (MN: WM3945ABG, FCC ID: PD9LEN3945ABG), which is a WLAN adapter (802.11a, 802.11b and 802.11g). It was tested externally to a computer chassis with a set of Ethertronics multi- band antennas continuously transmitting and receiving form the MAIN and AUX antenna ports. This mobile / portable device is being submitted for a modular approval and will have Class II Permissive changes to add system level approvals. The systems will also have a bois lock for a user installable option. A letter explaining the bios lock will accompany the future Class II Permissive change applications. If there are any additional questions or if further information is needed, please contact us at your earliest convenience. Sincerely, Johnny Candelas Aegis Labs, Inc. Test Technician Enclosure (1 Emissions Test Report + Exhibits) AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com

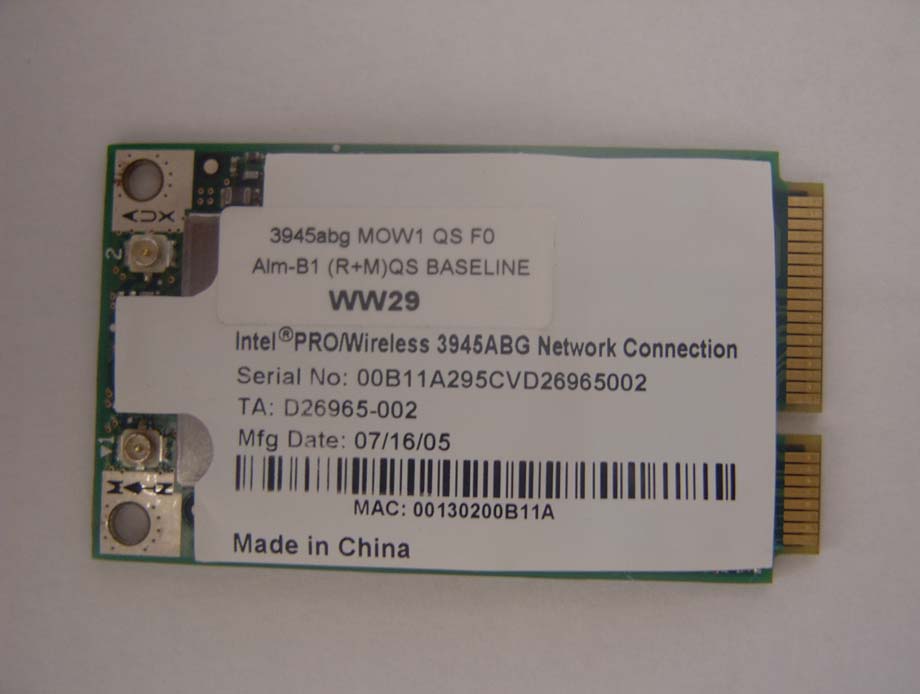

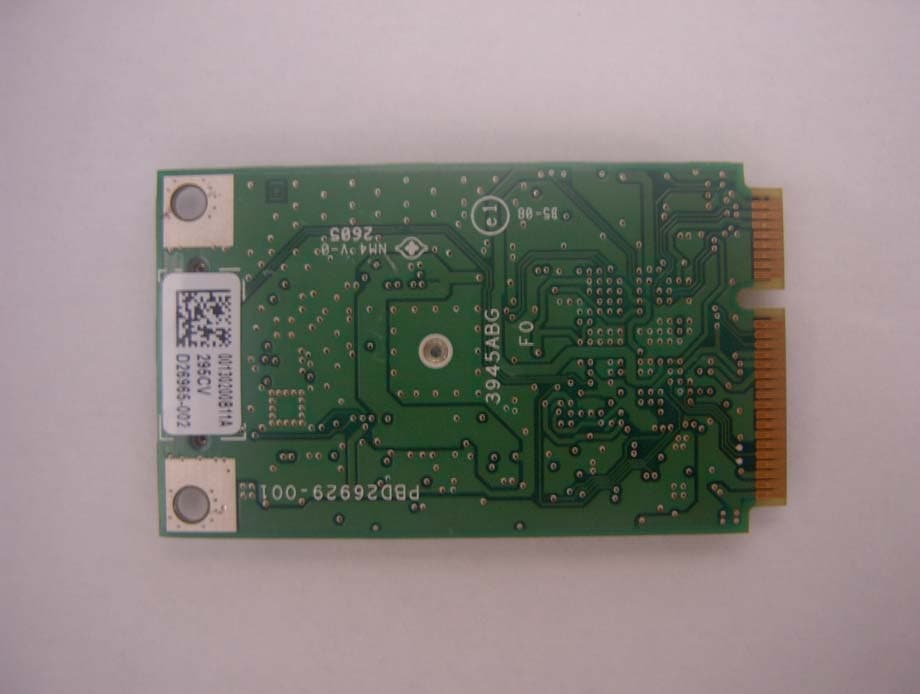

Top View Bottom View

D2303001 ASSY, LBL, PROD, 3945ABG, PS SPEC, MOW1 1. ALL DIMENSIONS PER C9199901 CURRENT REV 2. ALL TEXT/GRAPHICS TO BE BLACK UNLESS OTHERWISE INDICATED 3. LABEL MATERIAL PER C9199901 CURRENT REV T ested to C omply with F C C Standar ds FCC ID: PD9LEN3945ABG This Class B digital apparatus meets all requirements of the Canadian Interference-Causing equipment Regulations. CANADA ICES/NMB-003 Class/Classe (B) IC: 1000M-LEN3945 CNC 12-3456 N 232 SUBTEL: 12345/A-1 No1.123 ETA-123/2005-WPC Z189 P O S T E L 12345/P O S T E L /2005 MOW1 12AB3456 Use of this device strictly per Intel instructions. Specific regulatory approvals applicable only with Intel authorized components, software and antenna solutions, as installed by an Intel authorized integrator. Unauthorized modifcations will void regulatory approvals and product warranties. Model: WM3945ABG D23030-001 D23030-001

Top View “Insulation removed” Bottom View “Insulation removed” Top View “Shielding removed”

Page 1 of 27 Report Number: INTEL-051027F Revision Number: N/A Test Report Pertaining To: Equipment Under Test Model Number Serial Number Intel PRO/Wireless 3945ABG Network Connection WM3945ABG 00B11A295CVD26965002 MEASUREMENTS PERFORMED IN ACCORDANCE WITH International Regulatory Standard(s) FCC CFR 47, PART 15 SUBPART B CLASS B Certificate Number: 1111.01 PREPARED FOR: PREPARED BY: Intel Corporation Aegis Labs, Inc. 2111 NE 25 th Avenue 22431 Antonio Parkway B160-417 Hillsboro, Oregon 97124 Rancho S. Margarita, CA 92688 Contact(s): Mr. Robert Paxman Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Mr. Johnny Candelas Test Report #: INTEL-051027F Test Report Revision: N/A The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. The Racal Instrument logo is used for identification purposes only and is a registered trademark of Racal Instrument. APPENDICES REPORT BODY A B C D TOTAL PAGES PAGES 27 6 5 3 4 45 Page 2 of 27 Report Number: INTEL-051027F Revision Number: N/A TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 04 2.0 SUMMARY OF REGULATORY LIMITS............................................................ 05 3.0 DEFINITIONS................................................................................................. 06 4.0 APPROVAL SIGNATURES................................................................... 07 5.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION............................... 08 6.0 DESCRIPTION OF EUT CONFIGURATION............................................. 09 6.1 Arrangement and Location of EUT and Host Equipment..................................... 09 6.2 EUT Description and Configuration................................................................................ 10 6.2.1 Product Description....................................................................................................... 10 6.2.2 EUT Configuration........................................................................................................ 11 6.3 List of Internal EUT Sub-Assemblies and Host Equipment........................................... 12 6.4 I/O Cabling Diagram and Description............................................................................. 13 6.5 List of Accessory / Host Equipment – Power Cables...................................................... 14 6.6 EMC Test Hardware and Software Measurement Equipment......................................... 15 6.7 Operating Modes................................................................................................ 16 6.7.1 Conducted and Radiated Emissions............................................................................... 16 7.0 TEST EQUIPMENT SETTINGS AND FUNCTIONS................................................. 17 7.1 Test Equipment “State of the Instrument for Conducted Emissions Measurements”...... 17 7.2 Decision Tree for Peak Detector Measurements................................................ 19 7.3 Test Equipment “State of the Instrument for Radiated Emissions”.............................. 20 7.4 Conducted Emissions Test Setup..................................................................................... 21 7.5 Conducted Emissions Site Diagram................................................................................. 22 7.6 Radiated Emissions Test Setup........................................................................................ 23 7.7 Radiated Emissions Site Diagram - Side View and Plan View....................................... 24 8.0 MODIFICATIONS AND RECOMMENDATIONS........................................ 26 Page 3 of 27 Report Number: INTEL-051027F Revision Number: N/A TABLE OF CONTENTS (Continued) SECTION TITLE PAGE 9.0 SAMPLE CALCULATIONS.......................................................................................... 27 APPENDICES A Test Data B Photographs – Test Setups C Calibration Correction Table D Accreditation Certificates Page 4 of 27 Report Number: INTEL-051027F Revision Number: N/A 1.0 CERTIFICATION OF TEST DATA Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs are furnished by RF technicians and engineers with accredited qualifications and training credentials to carry out their duties. The object of this report is to present test results which shall prove that the conducted and radiated emission levels of the EUT are within the acceptable limits as specified under Section 2.0 pertaining to indexed items 1-5 of this report. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the Equipment Under Test (EUT) under the requirements specified in the global emissions standard as described below. However, the format and contents contained within this report do not reflect all the information required for agency submittals when certification for equipment authorization is mandatory. The entity and/or person(s) for which this report has been prepared acknowledge that such a report in its entirety has been recognized for verification purposes only. The test results contained in this report are only representative of the test sample tested as described in Section 6.0 of this report The following countries shall accept this report as evidence that an accredited commercial EMC laboratory has properly tested the EUT and that the information contained herein can be used for application to the appropriate agency for which certification or approval is requi…

Text truncated - open the document above for the full version.

Maximum Peak Output Power Measurement Setup Conducted Emissions at Antenna Terminal Setup AC Conducted Emissions Measurement (Front View) Setup AC Conducted Emissions Measurement (Rear View) Setup Radiated Emissions Measurement (Front View) Setup Radiated Emissions Measurement (Rear View) Setup
