PD9WM3945ABGIntel PRO/Wireless 3945ABG Network Connection

Intel(R) PRO/Wireless 3945ABG Network Connection User Guide With your wireless network card, you can access wireless networks, share files or printers, or even share your Internet connection. All of these features can be explored with a wireless network in your home or office. This wireless local area network (WLAN) solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. Your Intel(R) PRO/Wireless 3945ABG Network Connection adapter is compatible with 802.11a, 802.11b and 802.11g wireless standards. Operating at 5 GHz or 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All of your wireless network connections are easily managed by Intel(R) PROSet/Wireless software. Profiles that are set up through the Intel PROSet/Wireless software provide enhanced security measures with 802.1x network authentication. NOTE: The software is compatible with the Intel(R) PRO/Wireless 2915ABG Network Connection and the Intel(R) PRO/Wireless 2200BG Network Connection. Table of Contents l Use Intel PROSet/Wireless Software l Connect to a Network l Use Profiles l Set up Security l Troubleshooting l Administrator Tool l Glossary l Wireless Network Overview l Security Overview l Specifications l Customer Support l Safety and Regulatory Information l Warranty l Adapter Registration Information in this document is subject to change without notice. © 2004–2005 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "Important Notice FOR ALL USERS OR DISTRIBUTORS!!!! Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Since wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless WLAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant." July 2005 Back to Contents Use Intel(R) PROSet/Wireless Software: Intel(R) PRO/Wireless 3945ABG Network Connection User Guide l Use Intel PROSet/Wireless as your Wireless Manager l Start Intel PROSet/Wireless l Start Intel PROSet/Wireless from the Taskbar m Taskbar Icons m Tool Tips and Desktop Alerts l Intel PROSet/Wireless Main Window m Wireless Networks List m Connection Status Icons m Network Properties m Connection Details m Profiles List l Intel PROSet/Wireless Menus l Tools Menu m Application Settings m Intel Wireless Troubleshooter m Administrator Tool l Advanced Menu m Adapter Settings m Advanced Statistics m Use Windows to manage Wi-Fi l Profiles Menu m Manage Profiles m Import/Export m Manage Exclusions l Enable and Disable the Radio l Install and Uninstall the Software Use Intel PROSet/Wireless as your Wireless Manager Intel(R) PROSet/Wireless is used to setup, edit and manage network profiles to connect to a network. It also includes advanced settings such as power management and channel selection for setting up ad- hoc networks. If you use Microsoft(R) Windows(R) XP Wireless Zero Confi…

Text truncated - open the document above for the full version.

September 6, 2005 American TCB 6731 Whittier Ave., Suite C110 McLean, VA 22101 Gentlemen: The attached documentation is provided in support of a formal submission to your organization for a modular approval of an intentional unlicensed transmitter. On behalf of our client, Aegis Labs has included an application for a Grant of Equipment Authorization pursuant to Subpart C of part 15 of FCC Rules (47 CFR) regarding intentional radiators. The data within the test report demonstrates the equipment was tested in a manner described under Part 2 and 15 of the Code of Federal Regulations. This is a modular approval of the Intel PRO/Wireless 3945ABG Network Connection (MN: WM3945ABG, FCC ID: PD9WM3945ABG), which is a WLAN adapter (802.11a, 802.11b and 802.11g). It was tested externally to a computer chassis with a set of Ethertronics multi- band antennas continuously transmitting and receiving form the MAIN and AUX antenna ports. If there are any additional questions or if further information is needed, please contact us at your earliest convenience. Sincerely, Johnny Candelas Aegis Labs, Inc. Test Technician Enclosure (1 Emissions Test Report + Exhibits) AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com

AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com TRANSMITTER MODULAR APPROVAL ATTESTATION September 06, 2005 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: PD9WM3945ABG Gentlemen: The following attestation addresses the eight requirements to support modular approval as required by the FCC Public Notice DA00-1407 “Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding and does not rely upon the shielding provided by the device into which it is installed in order to comply with Part 15 limits. 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. 3 The modular transmitter has its own power supply regulator. 4 The modular transmitter has an antenna that complies with section 15.203 and 15.204(c) of the FCC rules. It has a UFL type of connector at the transmitter end and is soldered to the antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user. 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer. 6 The modular transmitter will be labeled with its own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior label will read as follows: “Contains Transmitter Module FCC ID” or “Contains TXFCCID”. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1). Also, SAR data is available if necessary. If there are any additional questions or if further information is needed, please contact us at your earliest convenience at (949) 459-7886. Sincerely, Johnny Candelas Aegis Labs, Inc. Test Technician

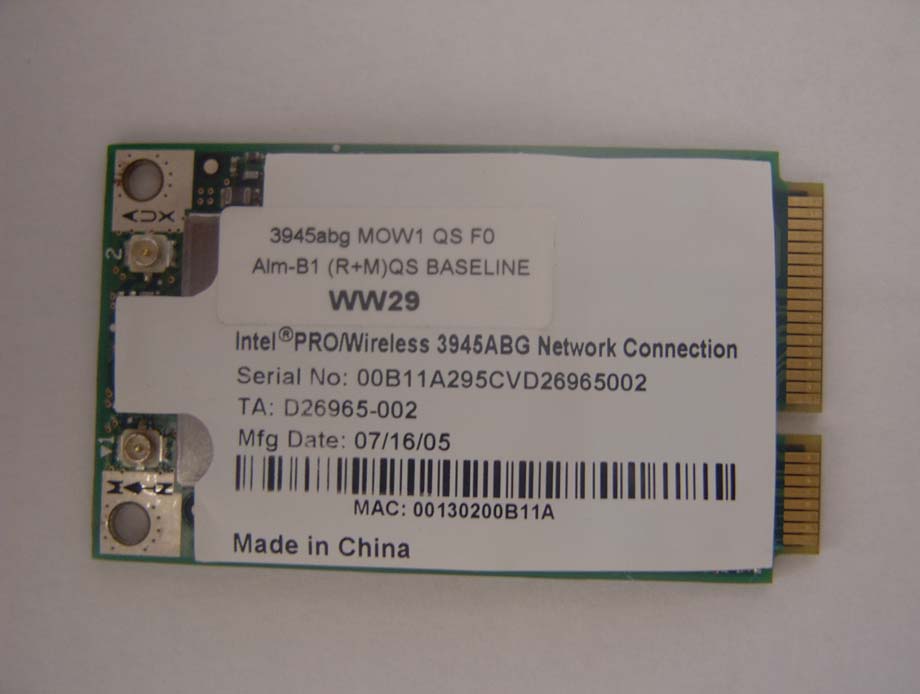

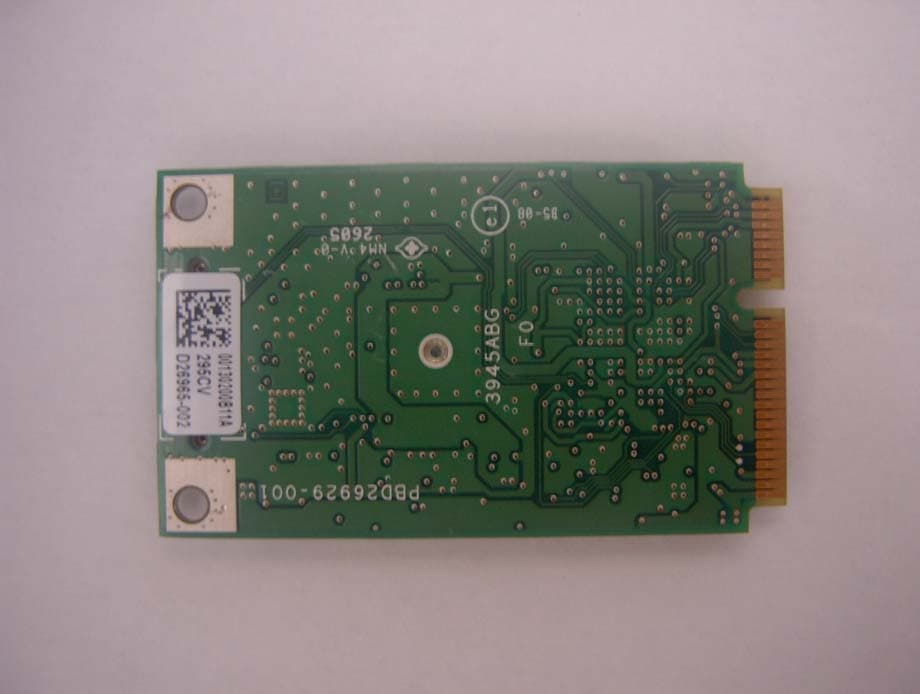

Top View Bottom View

D2303001 ASSY, LBL, PROD, 3945ABG, PS SPEC, MOW1 1. ALL DIMENSIONS PER C9199901 CURRENT REV 2. ALL TEXT/GRAPHICS TO BE BLACK UNLESS OTHERWISE INDICATED 3. LABEL MATERIAL PER C9199901 CURRENT REV T ested to C omply with F C C Standar ds FCC ID: PD9WM3945ABG This Class B digital apparatus meets all requirements of the Canadian Interference-Causing equipment Regulations. CANADA ICES/NMB-003 Class/Classe (B) IC: 1000M-3945ABG CNC 12-3456 N 232 SUBTEL: 12345/A-1 No1.123 ETA-123/2005-WPC Z189 P O S T E L 12345/P O S T E L /2005 MOW1 12AB3456 Use of this device strictly per Intel instructions. Specific regulatory approvals applicable only with Intel authorized components, software and antenna solutions, as installed by an Intel authorized integrator. Unauthorized modifcations will void regulatory approvals and product warranties. Model: WM3945ABG D23030-001 D23030-001

Top View “Insulation removed” Bottom View “Insulation removed” Top View “Shielding removed”

The MPCI-8 model, part of the IMD Family of WLAN Internal Antennas, is a single element internal (embedded) antenna module for Worldwide WLAN applications. MPCI-8 supports 802.11a/b/g protocols throughout the world including the newly licensed 4.9 MHz Japanese spectrum. The MPCI-8 module is a complete solution consisting of one GS Isolated Magnetic Dipole™ (IMD) antenna with a high performance cable and connector. The IMD antenna’s small size and high isolation properties make the MPCI-8 easy to integrate into notebooks and other mobile devices, while offering the ability to be used in a diversity configuration. Ethertronics’ proprietary and patented IMD antenna technology offers three distinct advantages over traditional internal antennas: High Performance • High efficiency • Up to 50% higher signal strength than other internal antennas High Isolation/Selectivity • Minimal coupling between antennas (isolation of 20- 40 dB) • Ideal for diversity applications • Reduced EMI with surrounding components • Makes integration easy Shaping Technology • Controls and redirects the near-field electromagnetic distribution of the antenna’s wave • Optimizes antenna performance by improving signal strength and data quality inside buildings, in noisy environments and in fringe network coverage areas • Less interaction with surrounding objects The MPCI-8 module is ideally suited for manufacturers where performance, size and costs are critical. The design’s low profile, small form factor and industry standard cabling/connectors are suited for high volume applications. Standard assemblies are available or the antenna can be configured to suit individual OEM requirements. Advantages: WLAN 9605 Scranton Road, Suite 850 tel +(1) 858.550.3820 San Diego, CA 92121 • U.S.A. fax +(1) 858.550.3821 www.ethertronics.com [email protected] Ethertronics Applications: Notebooks • Tablet PCs Portable Computers • Printers Worldwide WLAN Coverage • Single internal antenna module covers worldwide WLAN frequency bands saving cost and valuable space • Supports WLAN bands for today’s standards allowing one configuration to support all markets Spatial Diversity • Individual MPCI-8 modules can be placed in close proximity to other IMD antennas with reduced risk of coupling from one to another Better Performance • Increased range/data throughput • Improved sensitivity in low signal environments Flexible Integration • MPCI-8 module’s high isolation offers consistent performance across multiple platforms and requires minimal space making placement easier • Standard cables and connectors make for easy connection to MPCI cards Worldwide Support • Regional technical support and FAEs are available to help speed the integration process • Manufacturing by Far East suppliers means quick turnaround and lower import costs WLAN Technologies: WiFi (802.11a/b/g) MPCI-8 (mini-PCI) Internal Antenna Module IMD WLAN Internal Antenna Module MPCI-8 2.4/4.9/5.2/5.8 GHz 37 x 4 x 5 mm (Antenna) 2.390-2.490/4.900-5.100 GHz/5.150-5.350/5.470-5.900 GHz Internal (Embedded) Antenna Specifications Typical Return Loss: Electrical Specifications: Antenna Radiation Patterns: 2.390-2.490 GHz Band 4.900-5.900 GHz Band Main-pol Cross-pol Mechanical Specifications: H-plane ( zx ) E-plane ( zy ) -30 dB -20 dB -10 dB 0 dB z y -30 dB -20 dB -10 dB 0 dB z y Typical Characteristics (Free Space) Size 40 x 52 x 6 mm (Antenna, 37 x 4 x 5 mm) Module Weight 5 g Packaging Individually packaged Cable/Connector Hirose Electric Co., U.FL-LP-088 or equivalent Cable Length 450 mm standard (50-500 mm available when specified) Model: MPCI-8 Module 2.390-2.490 GHz Band 4.900-5.100 GHz Band 5.150-5.350 GHz Band 5.470-5.900 GHz Band Peak Gain 3 dBi 3 dBi 5 dBi 5 dBi Efficiency 75 % 65 % 65 % 65 % VSWR Match 2.1 : 1 2.1 : 1 2.1 : 1 2.1 : 1 Front to Back Ratio -2 dB -10 dB -10 dB -10 dB Feed Point Impedance 50 ohms unbalanced (other if required) Power Handling 2 Watt cw Polarization Linear Shielding Ratio 6 to 1 (near field) Typical © 2003 Ethertronics. All rights reserved. Ethertronics, the Ethertronics logo, shaping antenna technology and Isolated Magnetic Dipole are trademarks of Ethertronics. All other trademarks are the property of their respective owners. 081803 22.533.544.555.566.57 -30 -25 -20 -15 -10 -5 0 Frequency, (GHz) dB -30 dB -20 dB -10 dB 0 dB x z Specifications subject to change without notice. -30 dB -20 dB -10 dB 0 dB z x

MPE Calculations Systems operating under the provision of 47 CFR 1.1307(b)(1) shall be operated in a manor that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The MPE calculation for this exposure is shown below. Using the Antennas with highest output power: The peak radiated output power (EIRP) is calculated as follows: Antenna Frequency (GHz) Power input to the antenna (P) (dBm) Power gain of the antenna (G) (dBi) EIRP (P+G) (dBm) EIRP Log -1(dBm/10) (mW) Ethertronics 2.4 25.02 3.00 28.02 633.87 Ethertronics 5 20.00 5.00 25.00 316.23 EIRP = P + G Where P = Power input to the antenna (mW). G = Power gain of the antenna (dBi) The numeric gain (G) of the antenna with a gain specified in dB is determined by: Antenna Frequency (GHz) Antenna Gain (G) (dBi) Numeric Antenna Gain Log -1(dBm/10) (dB) Ethertronics 2.4 3.00 2.00 Ethertronics 5 5.00 3.16 G = Log -1 (dB antenna gain/10) Power density at the specific separation: Antenna Frequency (GHz) Power input to the antenna (P) (mW) Numeric Power Gain of the Antenna (G) (dB) Maximum Power Spectral Density S=PG/(4R 2 π) (mW/cm 2 ) Maximum Power Spectral Density Limit (mW/cm 2 ) Ethertronics 2.4 317.69 2.00 0.126 1.00 Ethertronics 5 100.00 3.16 0.063 1.00 S = PG/(4R 2 π) Where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1mW/cm 2 . The power density at 20cm does not exceed the 1mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

Page 1 of 18 Report Number: INTEL-050901F FCC ID: PD9WM3945ABG Modular Approval Test Report And Application for Grant of Equipment Authorization Pertaining To: EUT FCC ID: Intel PRO/Wireless 3945ABG Network Connection, MN: WM3945ABG PD9WM3945ABG Configuration 802.11a / 802.11b / 802.11g with a set of Ethertronics Antennas MEASUREMENTS PERFORMED IN ACCORDANCE WITH Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Certificate Number: 1111.01 APPLICANT: PREPARED BY: Intel Corporation Aegis Labs, Inc. 2111 NE 25 th Avenue 22431 Antonio Parkway B160-417 Hillsboro, Oregon 97124 Rancho S. Margarita, CA 92688 Contact(s): Mr. Robert Paxman Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Mr. Johnny Candelas Test Report #: INTEL-050901F APPENDICES REPORT BODY A TOTAL PAGES PAGES 18 75 93 Test Report Revision: None The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. Page 2 of 18 Report Number: INTEL-050901F FCC ID: PD9WM3945ABG TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 03 2.0 SUMMARY OF TEST RESULTS.............................................................. 06 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.......................................... 07 4.0 DESCRIPTION OF EUT..................................................................................... 08 4.1 EUT Description..................................................................................... 08 4.1.1 Channel Number and Frequencies................................................................ 09 4.2 EUT Configuration.................................................................................. 10 4.3 List of EUT Sub-Assemblies and Host Equipment...................................................... 11 4.4 I/O Cabling Diagram and Description............................................................................. 12 5.0 TEST EQUIPMENT AND TEST SETUPS............................................................... 13 5.1 AC Power Line Conducted Emissions............................................................ 13 5.2 Spurious Radiated Emissions...................................................................... 14 5.3 Conducted Emissions At The Antenna Port.................................................................... 14 5.4 Test and Measurement Equipment Used......................................................... 15 6.0 SAMPLE CALCULATIONS.......................................................................................... 16 7.0 MODIFICATIONS AND RECOMMENDATIONS........................................ 18 APPENDICES A Test Data Page 3 of 18 Report Number: INTEL-050901F FCC ID: PD9WM3945ABG 1.0 CERTIFICATION OF TEST DATA Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs are furnished through the use of part-time, full-time or consulting engineers with the appropriate qualifications to carry out their duties. The intended purpose of this test report is to describe the measurement procedure and to determine whether the equipment under test “EUT” complies with both the conducted and radiated limits. Limits for emissions testing are described under Subpart C of Part 15 of the FCC rules. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the Equipment Under Test (EUT) under the requirements specified in the emissions standard as described below. The test results contained in this report are only representative of the test sample tested as described in Section 3.0 of this report. Certification of the EUT is required as a prerequisite to marketing as defined in Part 2 of the FCC Rules. Prepared By: ________________________09/06/05 Johnny Candelas Date: Test Technician Aegis Labs, Inc. Reviewed By: ________________________09/06/05 Rick Candelas Date: Lab Manager Aegis Labs, Inc. Report Approved By: ________________________09/06/05 Steve J. Kuiper Date: Quality Assurance Manager Aegis Labs, Inc. Page 4 of 18 Report Number: INTEL-050901F FCC ID: PD9WM3945ABG 2.0 SUMMARY OF TEST RESULTS The test results provided within this report, indicate that the EUT has been found to be in COMPLIANCE with the test specifications based upon the following RF compliance standards: Pass/Fail determination is based upon the nominal values of the test data. 802.11a Mode (5745-5825 MHz) EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz. PASSED 5745 MHz = 16.58 MHz 5785 MHz = 16.67 MHz 5825 MHz = 16.67 MHz 15.247(b)(1) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED 5745 MHz = 19.30 dBm = 85.11 mW 5785 MHz = 20.00 dBm = 100.00 mW 5825 MHz = 19.60 dBm = 91.20 mW 15.247(b)(4) The intentional radiator shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines per Section 1.1307(b)(1). PASSED Refer to MPE Calculations Exhibit 15.247(c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest le…

Text truncated - open the document above for the full version.

Maximum Peak Output Power Measurement Setup Conducted Emissions at Antenna Terminal Setup AC Conducted Emissions Measurement (Front View) Setup AC Conducted Emissions Measurement (Rear View) Setup Radiated Emissions Measurement (Front View) Setup Radiated Emissions Measurement (Rear View) Setup
