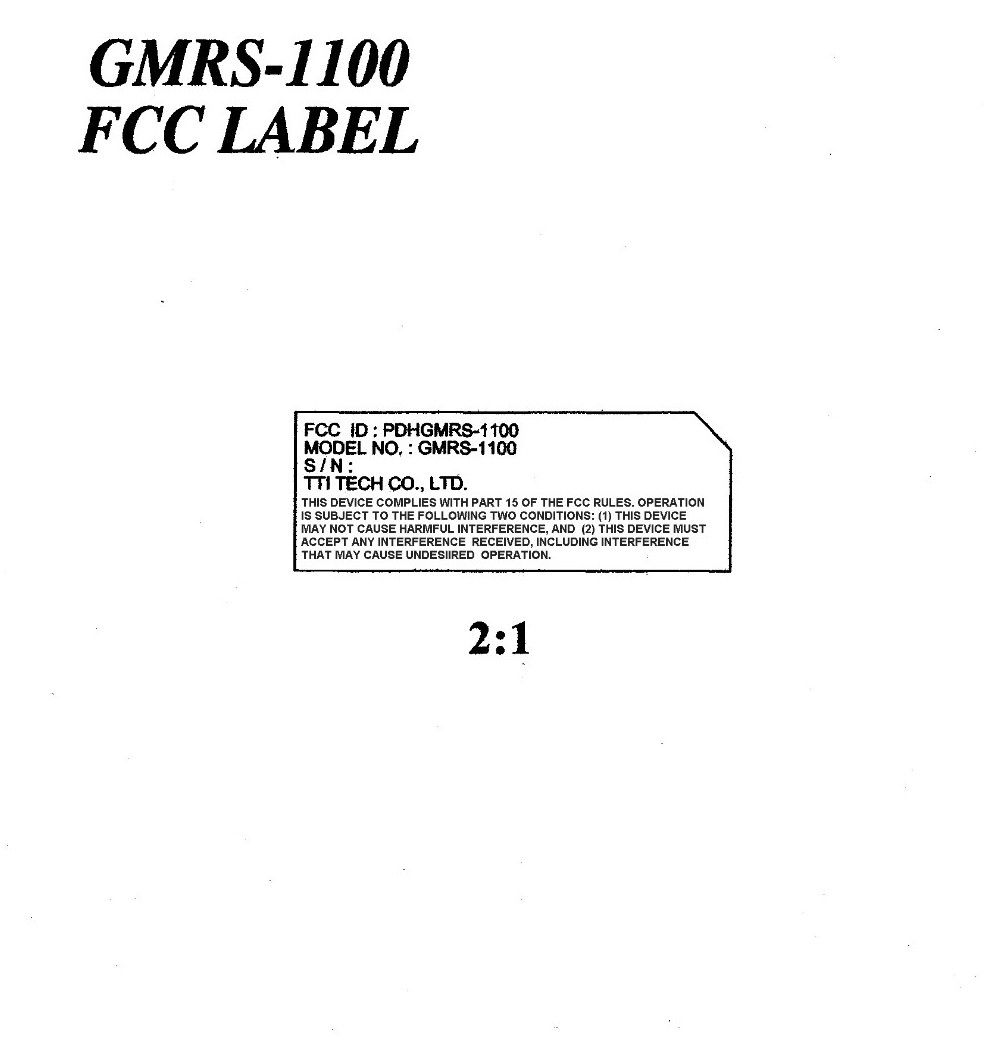

PDHGMRS-1100FRS/GMRS Combination Transceiver

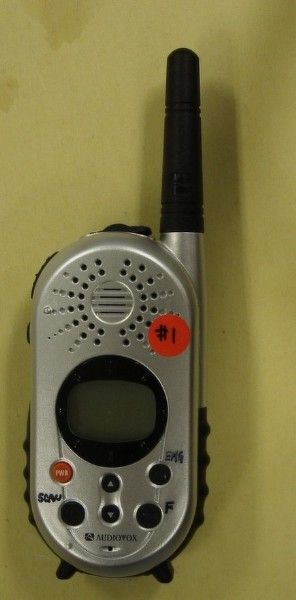

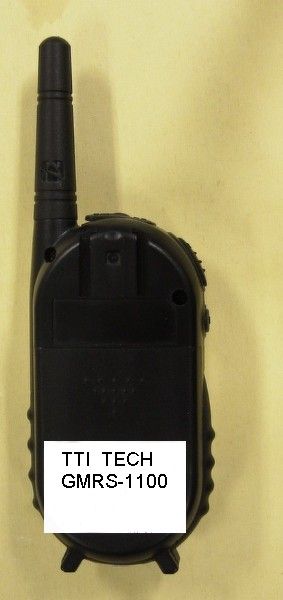

GMRS1100 Users Manual Model GMRS-1100 (FCC License Required) Model GMRS-1100 DISPLAY 1. Beep Tone Indicator: Icon appears when beep button confirmation tone is selected; icon disappears when tone is off. 2. Key Lock Indicator: Icon appears when the keypad is locked. This function disables keys such as channel up/down and MODE. 3. Monitor Indicator: Icon appears when the Monitor (M) button is pressed and the channel monitor function is activated. 4 Signal Strength Indicator: Icon appears when a signal is being received. The icon consists of five bars to indicate the received signal level. The icon also represents transmit signal power during transmission. 5. Coded Tone Controlled Squelch System (CTC) Indicator: Icon appears when the CTCSS tone function is active. 6. Large Segment Display: Indicates the channel number in use. 7. Scan Indicator: This function allows the user to scan a channel and/or a tone code 5 second to search for a valid signal. 8. Emergency Indicator: EMG Icon appears when the EMG button is pressed. (The frequency is NOT monitored by authorities). 9. Battery Level Indicator: Icon indicates the battery charge level. 10.Hi/LO Indicators: Appropriate icon appears when the transmit power is set to desired output power. 11. RogerBeep Tone On/Off Indicator: This icon appears when the Roger Beep tone is on, and disappears when tone is not in use. 12. Small Segment Display: Displays the CTCSS tone option in the channel from (00-38). 13. Dual Watch Mode Indicator: Icon appears when dual watch mode is active. 14. Voice Activated Transmission (VOX) Indicator: This function allows hands free conversation. The icon appears when the VOX mode is activated. Powering the transceiver: Your GMRS 1100 radio transceiver operates on four AAA batteries. Alkaline batteries will provide slightly better performance than rechargeable batteries. Only Audiovox approved rechargeable batteries can be recharged in the radio transceiver using the optional charging stand. Installing the batteries: Battery installation is made more convenient when the belt clip is removed. To do this, release the spring clip securing the belt clip to radio and slide the belt clip downward and away from the radio body. Next, press down with the thumb at the arrow, slide the battery cover down and lift off the battery cover. Insert four AAA batteries (alternate positive ends (+) toward the bottom of the transceiver, (starting left-to-right). 1. Using thumb, press down on battery cover at arrow and slide cover down to open. 2. Slide the cover down and then lift cover at bottom to open. Remove cover. 3. Insert four AAA batteries (positive (+) end toward the bottom begining at left side and alternating positive terminals as shown),or insert the rechargeable batteries. The following guidelines will improve performance and provide longer operating times for the GMRS-1100: 1. Do not mix old and new batteries. 2. The use of alkaline-type batteries is recommended to provide the longest operating time. 3. Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries. 4. If the unit is not to be used for an extended period of time, remove the batteries. Old or leaking batteries can cause damage to the unit and will void the warranty. GMRS-1100 OPERATIONAL MODES NOTE: To switch between GMRS and Weather Band modes, press and hold the Mode button for 2 seconds. To differentiate between operating modes, look for HI or LO indication below the battery power level indicator when in GMRS mode. In Weather Band mode, these indications are not present. Refer to the appropriate section of this manual for detailed operating instructions for each mode. When in GMRS standby mode, the transmit/receive indicator will flash once every S seconds as the unit checks for transmissions Controls: Power On/Off (15) Button Press and hold the power on/off button ( ) for at least 2 seconds. You will hear a confirming melody to indicate the unit is on. To turn the unit off, press and hold the button for at least 2 seconds. Adjusting the Volume With the unit powered on, press the Up Channel/Volume button (
) to increase volume and the Down Channel/Volume button () to decrease volume. The display will indicate the current volume level by the small number in the icon ( ) Monitor/Display Backlight Button (2) This button is used to to check activity on the current frequency before transmitting. Check activity by pressing the Monitor (M) Button longer than 2 seconds; the
 icon will apppear on the display and you will hear static if frequency is clear. Do not transmit if you hear conversation. Hold down the Monitor Button again longer than 2 seconds and the
 icon will disapppear from the display. The monitor function will temporarily bypass the squelch setting and play all signals on a given channel. This feature is useful when communicating with other parties at extreme range. By pressing the monitor button momentarily, the LCD backlight is turned on; the LCD backlight will turn off automatically in about 5 seconds, or when the monitor button is pressed momentarily once again. Push To Talk (PTT) Button (4) Pressing and holding this button will allow you to speak to any transceiver that is set to the same channel and privacy code setting as yours. Hold the transceiver approximately 1 to 2 inches from your face as you speak into the built in microphone (9). After you have finished speaking, release the PIT Button to allow reception of incoming signals. It is not possible to transmit and receive at the same time. The Transmit/Monitor LED at the upper right corner of the LCD Panel (8) will light red while the PTT Button is pressed and the signal indicator will display the relative strength of the transmitted signal. Releasing the button allows the unit to revert to standby mode. When receiving an incoming signal, the Transmit/Monitor LED indicator will light green and the received signal strength indicator ( ) will display the relative strenth of the signal…

Text truncated - open the document above for the full version.

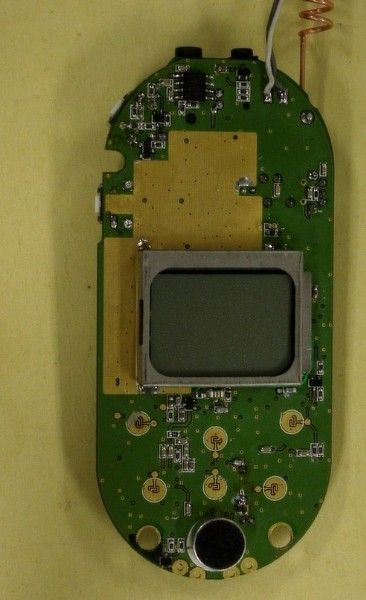

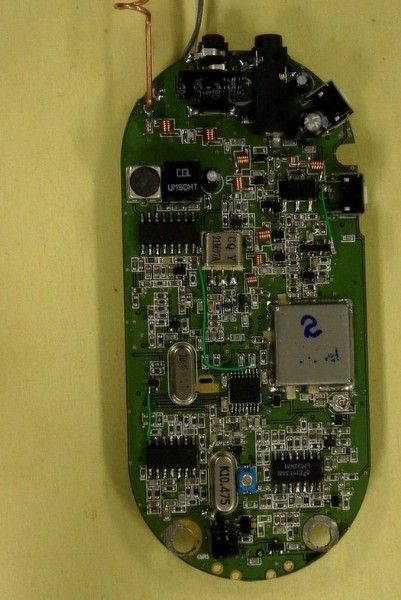

GMRS 1100 TECHNICAL DESCRIPTION Page 1 Jun 06, 2002 A). GENERAL DESCRIPTION The GMRS 1100radio is a self-contained transceiver unit with integral antenna intended for use as a general communication tool. It is designed to operate on all 22 channels allocated by the FCC for the licensed GMRS. This model also features a CTCSS system with 38 pre-defined, user selectable sub-audible tones for channel quieting. The useable range, while dependent upon terrain and other radio propagation principles, is typically five miles. The 1100 uses the maximum transmit power allowed to help ensure the maximum communication range. Features include: 22 GMRS Channels with 38 CTCSS codes, Digital Receive Volume Control, Channel Monitor, Page, Keypad Lock, and LCD Display. The unit is equipped with an external Headset option connector. Four AAA alkaline batteries that are readily available in retail outlets supply operating power. An automatic power savings feature allows the typical standby battery life to extend to more than 10 days. B). FREQUENCY DETERMINING CIRCUITS The fundamental frequency for both the transmitter and the receiver local oscillators are controlled by a phase lock loop (PLL) circuit IC102 (Toshiba TB31202, or equipvalent). The frequency of operation of the GMRS voltage controlled oscillator (VCO), composed of Q142 and Q143 operating in cascade, is phase locked to a voltage controlled crystal reference (VCXO) operating at 10.475 MHz (X102). Compensation for both temperature and power supply variations on the crystal reference is accomplished by measuring the ambient temperature and supply variation through an PWM circuit composed of diode (D101). The microcontroller (IC101) then converts these measurements to a correction voltage output through a PWM to maintain the frequency of the VCXO within the +/- 2.5 ppm requirement. The VCO is locked to the fundamental of the transmit signal in the transmit mode and is locked to the receive 1 st LO (Fundamental channel frequency minus 21.4 MHz) in the receive mode. The crystal reference frequency is fed through a doubler circuit to generate the 2 nd LO of 20.950 MHz. GMRS 1100 TECHNICAL DESCRIPTION Page 2 C). TRANSMITTER CIRCUITS The transmitter amplifies the 0 dBm signal from the VCO to approximately 30 dBm that is fed to the antenna. The transmitter is a three stage amplifier composed of Q201,202, Q203,204 and Q205. The first two stages are operated class A and the final is operated class B in full saturation to help prevent unwanted amplitude modulation. The fundamental transmit signal is fed through an elliptical low pass filter (5-pole, 2 zero) in order to suppress the harmonics to below –60 dBc. The desired frequency modulation of the carrier is accomplished by modulating the current in the VCO directly with the microphone audio signal. The microphone audio is conditioned with a three-pole high pass filter at 300 Hz (IC103A,B), a hard clipper circuit (IC103C) to limit maximum deviation to +/- 2.5 kHz and a three-pole low pass or splatter filter at 2.8 kHz (IC103D). The low pass filter insures that the occupied bandwidth of the FM modulated signal meets FCC requirements under all input conditions. D). RECEIVER CIRCUITS The received signal from the antenna is band limited to 600 Mhz by the transmitter harmonic filter. The desired signal is fed to a low noise amplifier (LNA – Q401) centered from 460 to 470 MHz that provides approximately 10 dB of gain. The output of the LNA is filtered with a Dielectric filter (SF401) with pass-band of 460 to 470 MHz and stopband attenuation of 50 dB. The filtered receive signal is one input to the 1 st mixer (Q402), the other mixer input (1 st LO) is the output of the VCO at the desired channel frequency minus 21.4 MHz. The output of the mixer is tuned to the 1 st IF of 21.4 MHz. The 1 st IF is transformer coupled for impedance matching to a crystal filter centered at 21.4 MHz with a bandwidth of 15 kHz. The filtered 1 st IF is then amplified by Q406 and fed to the 2 nd mixer input of the multi-function receiver IC (IC401). The 2 nd LO (20.950 MHz) is generated by frequency doubling the output of the 10.475 MHz VCXO that is the reference frequency for the PLL. The 2 nd mixer output of 450 kHz is filtered through a 6 section ceramic filter that in combination with the 21.4 MHz crystal filter provides approximately 50 dB of adjacent channel attenuation. The 450 kHz 2 nd IF is then amplified, limited and fed to a quadrature detector for FM demodulation. The resulting audio output signal is bandpass filtered from 300 to 3 kHz (Q408, IC103A, &IC103B) and amplified to provide 200 mW of audio power (IC402). A squelch circuit is provided (IC401 pins 10 through 11) to mute the receiver noise under low signal conditions. The squelch circuit amplifies and detects noise in a narrow bandwidth at approximately 5 kHz. When the detected noise exceeds a threshold set to trigger at approximately 12 dB SINAD receive signal strength, the audio output is muted. E). TRANSMIT/RECEIVE SWITCH When the radio is in the transmit mode, pin diode switches D201 and D202 are both turned on (representing less than 0.7 ohms). D202 allows the transmit signal to pass to the antenna and D201 shorts one leg of a T matching network (L203, L2044 and C207) GMRS 1100 TECHNICAL DESCRIPTION Page 3 to ground in the receive path. This results in a parallel tuned circuit high impedance being presented to the transmit signal so that the receive path does not load the transmit signal. In the receive mode, both D201 and D202 are off, resulting in the antenna signal being coupled into the receive LNA through the 50 ohm T matching network and the unwanted load of the transmit final amplifier is reduced to less than 1 pF by D201. F). RADIO CONTROL CIRCUIT A microprocessor (IC101) is used to control the transceiver. User stimuli is provided through a tack switch for PTT (push to talk), along with the keypad for channel selection, channel monitor, receive volume, and…

Text truncated - open the document above for the full version.

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: GMRS(General Mobile Radio Service) and FRS(Family Radio Service) Bands. Model(s): GMRS-1100 Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) Max. SAR Measurement(s): 0.915mW/g(1g) GMRS Face SAR ; 0.915mW/g(1g) GMRS Body SAR Max. RF Output Power: 1.356 W ERP(31.32dBm) GMRS ; 0.318 W ERP(25.02dBm) FRS Conducted Power: 1.765 W (32.47dBm) GMRS ; 0.572 W (27.57dBm) FRS Emission Designator: 9K50 Channel Capacity: 22 Application Type: Certification Trade Name(s): TTI FCC Rule Part(s): §95(A), 2(J) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Table of Contents Manufacture; TTI TECH CO., LTD. Eundo Bldg. Room 402, 737-19 Banpo-1dong, Seocho-ku, Seoul Korea, 137-041 FRN: 0005-8660-25 Date of Issue: August 8, 2002 Test Report No.: HCT-SAR02-0801 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 FCC ID : APPLICANT : PDHGMRS-1100 TTI TECH CO., LTD. Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr of 18 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr of 18 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC).2 1. 2 Applicant • FCC ID: PDHGMRS-1100 • EUT Type: GMRS(General Mobile Radio Service) and FRS(Family Radio Service) Bands. • Trade Name: TTI • Model(s): GMRS-1100 • Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 467.5625MHz – 467.7125 MHz (FRS) • Application Type: Certification • Classification: Licensed Portable Transmitter • Modulation(s): FM • Max SAR Measurement: 0.915mW/g(1g) GMRS Face SAR ; 0.915mW/g(1g) GMRS Body SAR • Max. RF Output Power: 1.356 W ERP(31.32dBm) GMRS ; 0.318 W ERP(25.02dBm) FRS • Conducted Power: 1.765 W (32.47dBm) GMRS ; Figure 1. SAR System 0.572 W (27.57dBm) FRS • Power Supply: (x4) AAA Alkaline batteries (1.5VDC) Manufacture(: Toshiba / : Energizer / : Rocket) • Place of Test(s): Hyundai C- TECH. EMC Lab. • Date(s) of Tests: August 7, 2002 • Report No.: HCT-SAR02-0801 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62 Company Name: TTI TECH CO., LTD. Address: Eundo Bldg. Room 402, 737-19 Banpo-1dong, Seocho-ku, Seoul, Korea Attention: Mr. Hun-Joo Lee Senior –Manager Tel. / Fax : 82- 2-518-2417 / 82- 2-31-518-2419 E-Mail : [email protected] R…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

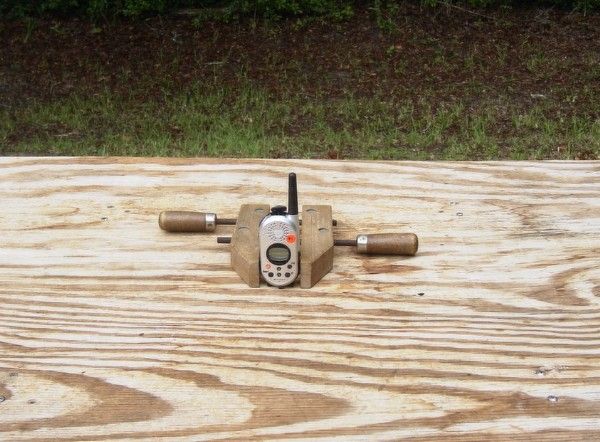

Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0701 FCC ID : BESGMRS310 DATE : July 22, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS-1100 DATE : August 8, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0801 FCC ID : PDHGMRS…

Text truncated - open the document above for the full version.
