PDHGMRS120FRS/ GMRS Combination

3. OPERATION 3.1 ICONS on LCD 1) Roger On/Off indicator : Appears while Roger tone is in use. 2) Battery indicator : Indicates the battery status 3) Receive signal indicator : Appears when receiving signal or squelch noise is existing. 4) Channel readout : Shows the current channel number. 5) SCAN indicator : Indicates that scan is enabled 6) VOX (Voice Activated Transmit) Indicator : Turning on the power while pressing PTT button activates VOX function. 7) Receive indicator : when receiving an incoming signal. 8) Transmit indicator : when the PTT button is pressed. 3.2 Key Function 1) PTT/ CALL key : Pressing and holding this button will allow you to speak to any transceiver that is set to the same channel setting as yours. The PTT Button can also be used as a two-way call ringer. Pressing the botton twice quickly will call another party on the same channel. 2) Up key : In the standby mode, Pressing this button will increment the litening volume. When in function edit mode this button will be used to adj ust the unit’s setting. 3) Down key : In the stand by mode, Pressing this botton will decrement the listening volume. When in function edit mode this button will be used to adjust the unit’s settings. 4) Power/Scan key : This button is used to power on/off and scan on/off. To turn the unit on, press and hold the power on/off button for at lest 2 seconds. You will hear a confirming melody to indicate the unit is on. To turn the unit off, press and hold the button for at lest 2 seconds. To turn the SCAN on, press and hold the power on/off button for at least 1 second. You will hear a confirming tone to indicate the SCAN on. To turn the SCAN off, press and hold the button for at lest 1 second. 5) Mode (Function) key : This button is used to select the GMRS feature settings such as Channel selection, Roger beep on/off and VOX on/off. To set the channel and roger beep, press the VOX /F button within 1 second, To enable the VOX on/off, Press the VOX /F button for 2 seconds. 3.3 Function display Transmit Indicator: Icon appears when the PTT button is pressed. Roger Beep Tone On/Off Indicator: Icon appears when the roger beep tone is selected. Icon disappears when tone is off. Low Battery Indicator: Icon indicates the low battery. Segment Display: Indicates the channel number in use. Receive Indicator: Icon appears when receiving an incoming signal. Scan Indicator: This function allows users to scan a channel to search for a valid signal. Voice Activated Transmission (VOX) Indicator: This function allows handsfree conversation. The Icon appears when the VOX mode is activated. 3.4 SETTING AND OPERATION In order to communicate with other GMRS/FRS units, both you and the receiving party must be on the same channel. GMRS-120 has 22channels indicated by the large digits on the LCD display panel. Before trying to transmit on the selected channel. 1) On/Off & Volume control Switch Radio ON : Press the power button at least for 2 seconds.You will hear confirming melody to indicated the unit is on. Radio OFF : Press the power button at least for 2 seconds. Volume setting : Press up[ ] or down[ ] button to adjust a level that is most comfortable for you while monitor is active. 2) Setting the Channel GMRS-120 has 22 main channels. * 22 Frequency channels To select the channel * Turn the radio on. * Press MODE button once, [XX] digit will blink on the LCD. XX is a channel. * Press up[ ] or down[ ]button to choose the channel. * Press the PTT button or MODE button to confirm. 3) VOX (Voice Operated Switching) This option enables you to have hands-free conversation. You do not have to operate the PTT button each time when you want to transmit. You can also choose the VOX sensitivity so suit your environment of operation. ( Ex : noisy road, motor bike, factory etc. ) To Set the VOX mode * Long Press the MODE button until the [Uo oF Or oN] appears. * VOX icon will be appeared on the LCD. 4) Roger tone This feature will give the tone signal to other parties when transmitting finished (when PTT button is released.) To activate or disable the Roger tone * Press the Mode button until [rb on or oF] and the roger icon blink on the LCD. * Press the up[ ]button or down [ ]button. * Press the PTT button or MODE button to confirm. 5) Transmitting * Press and hold the PTT button, the indicator ON. * Speak slowly and clearly * To Stop the transmission, release the PTT button. * if there are no more receiving signal for 5 seconds, the unit will go into power save mode. 6) Receiving The Coding feature reduce the possibility of interference and provide enhanced Communication. You can only listen to a call that has correct matching code. * Upon receiving a signal, the BUSY indicator ON. Important : Before transmitting or receiving to the other parties * Correct channel is selected (1 to 22) and 7) Channel Scanning This feature allows you to monitor all activated channels while scanning. To activate the Scan * Short Press the Power key button * Radio will begin scanning. * When in scan mode, the display will show each scanning channel. * After an activated channel is scaned and received signal and then if there is no more signal, the scan will resume automatically 8) Call * Click the PTT button twice quickly. 9) Battery status indicator The Battery icon will blink when the radio is in low battery power. * Low battery Warning – one segments will brinking. 10. CHANNEL DATA 1) GMRS Frequency Chart Main Channel Frequencies: Channel Frequency (MHz) Channel Frequency (MHz) 1 462.5625 12 467.6625 2 462.5875 13 467.6875 3 462.6125 14 467.7125 4 462.6375 15 462.5500 5 462.6625 16 462.5750 6 462.6875 17 462.6000 7 462.7125 18 462.6250 8 467.5625 19 462.6500 9 467.5875 20 462.6750 10 467.6125 21 462.7000 11 467.6375 22 462.7250 NOTE: Channels 1 through 7 are shared between GMRS and FRS radios. The channel number 20 is used for emergency channel. [RF EXPOSURE STATEMENT : PDHGMRS120 / TTI TECH CO., LTD.] - CAUTION! - IMPORTANT SAFETY INFO…

Text truncated - open the document above for the full version.

C:\windows\TEMP\probonholdemail.doc CORRESPONDENCE SUMMARY QUESTIONS & ANSWERS February 18, 2003 SUBJECT: TTI TECH CO., LTD. - FCC ID: PDHGMRS120 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] January 22, 2003 MARIO R DE ARANZETA TIMCO 352-472-5500 352-472-2030 [email protected] SUBJECT: TTI TECH CO., LTD. - FCC ID: PDHGMRS120 REFERENCE: JOB 22UT3 Dear MARIO R DE ARANZETA: Based upon our review of this application we have the following questions: Q-9 SAR test report: Please, specify whether the test device is a production unit or an identical prototype. This application is on hold until these questions are resolved. Please direct all responses to [email protected] . DO NOT HIT REPLY! Responses should also contain the Reference information, as shown at the top of this message. Sincerely, Bruno Clavier February 12, 2003 Bruno Clavier – 2 – February 20, 2003 C:\windows\TEMP\probonholdemail.doc Timco Engineering, Inc. TCB SECTION Ref.: TTI TECH CO., LTD.’S FCC ID: PDHGMRS120 Job # 22UT3 Dear Bruno: Per your “problem on hold” letter of 1/22/03; A-9 The tested sample was an identical prototype. Should you have any further questions, please let me know. Sincerely, Sharon Hoffman Enclosure

Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

PPPPPPPPPP fcc@label eNkNlim QXN@QRN@RPPR gmrsQRP Q Q PP drawingN@part@no name@or@tital first@used@in assembly drawnscalerev DATE : DEC 18,2002 GMRS120 FCC LABEL 2:11:1 30.0 12.8

PPPPPPPPPP fcc@label@location eNkNlim QXN@QRN@RPPR gmrsQRP Q Q PP drawingN@part@no name@or@tital first@used@in assembly drawnscalerev DATE : DEC 18,2002 GMRS120 FCC LABEL LOCATION LABEL

5. DESCRIPTION OF RADIO CIRCUIT 5-1. Frequency synthesizer Frequency synthesizerconsists of VCO, loop filter and RFIC. RFIC includes MIX,IF, Compander and PLL. Frequency synthesizer uses the PLL of thte RFIC. a) VCO VCO is composed of ONE VCO Oscillation circuit takes colpitts circuit using variable Diode. The VCO generates GMRS frequencies and consists of R3, D5, C60, L13, C64, C58, R9, R7, R4, C56, C22, R8, Q3, Q8, L11, C120, R44 . VCO control voltage through loop filter adjusts frequency and Microphone Signal through Modulation terminal makes modulation. N = VCO oscillation frequency / reference frequency If the desired frequency is 462.5625 MHz 1) TX : N = 462.5625 MHz / 0.00625 MHz = 74010 2) RX : N = [462.5625 MHz – 10.7 MHz] / 0.00625 MHz = 72298 b)PLL IC RFIC(PLL) is adjustable IC to produce the wished frequency which VCO provides through loop filter. It has internal counter using 10.25MHz. reference frequency to make 6.25kHz as reference Signal. VCO frequency from prescaled input is divided signal is compared with Reference signal phase in phase comparator. Built-in charger pump changes voltage (until two signals are in phase) and charged voltage supplies VCO through loop filter to produce the desired frequency. Frequency data associated with channel goes to PLL IC by CPU through CLOCK , DATA. PLL IC enables by strobe line of CPU. c)Loop Filter Loop filter is composed of C37, R77,C71, C66,R19, C65 and Change spulse from U3.46 to DC . And eliminates harmonic component in Pulse. It helps VCO oscillate clearly as DC voltage is supplied into Varicap. 5-2. Receiver This is composed of Dual Conversion Super Heterodyne. First IF is 10.7Mhz. Local oscillator frequency is lower in 1’st IF than Rx frequency. It is called low side injection. Second IF is 450kHz . 2’nd local oscillator Frequency comes to 10.25MHz. a) Rx / Tx Conversion Circuit Rx signal goes to Rx / Tx conversion circuit through FIXED antenna connector, low pass filter (C1,L9,C2,C9,L1,C75,L10) and receiver resonance circuit composed of L4,C21. When transmitting, Voltage through R1,D1 supplies,D2 of receive input is short and Tx is on condition. When PIN diode is off in condition of Rx, C87 resonate serially and make impedance matching at receiver bandpass filter.(C43,L14, C38,C40,C32,C30,L5) b) Front End Front-end has Q6 to provide a high sensitivity and low noise feature. It employs band pass filter to eliminate image frequency and to produce enough pass band by Q6 input and output. c) 1 st Mixer The receiver which has been amplifier in the RF front-end is provided to the base of the 1 st mixer Q7. The 1 st L/O signal provide from the VCO is supplied to the emitter of Q7 and Converted to the 1 st IF 10.7 MHz d) 1 st IF Filter The signal covered by Q7 to 10.7 MHz, the 1 st frequency, change its impedance through C48, and then is infused to the fundamental Ceramic Filter which has the center frequency of 10.7 MHz and the width of +/- 30KHz. Here, the signal reduces the image and other unwanted signal for the 2 nd IF , and changes its impedance again through the R24. This filtered signal flows in the 1 st IF amplifier of RFIC(U2). e) 2 nd Mixer, and IF, FM Detect (U2) The receiver IF signal of 10.7 MHz, which has been infused to U3 is mixed with the 2 nd L/O converted to 450 KHz, the 2 nd IF frequency. The receiver signal converted to the 2 nd IF signal frequency passed through the FL3, the ceramic filter of 450 kHz again. The squelch circuit is composed to detect the noises from the received signal demodulate in the 40 th pin of the U3. For this purpose, the noise filter is using the OP amplifier inside the f) Audio Amplifier(U10) Demodulated audio signal enters to pin4 of AF IC (U10). It comes out to pin5,8 then, it reaches at speaker. 5-3. Transmitt When Tx develops with pressing PTT switch, VCO output amplifies through Q11,Q2,Q1,Q12,Q14 transmits by antenna through low pass filter. Tx RF signal produced from Tx VCO is amplified by Buffer Q11, Driver Q2 through C11,R25, C14 and entered Q1,Q12,Q14 Power Transistor input terminal with final amplification. After this stage, the signal is emitted at antenna through 50matching circuit to low pass filter (C1,C2,L9,C9,L1,C75 ,L10) to eliminate harmonic. a) Audio Modulation and Audio Amplification Audio signal produced by external or internal microphone, limits amplification, low pass filter by R35,C80,R33,C79,R25,C95. Max. Frequency modulation deviation is adjusted by U3,VR1 keeps noise and audio from entering to VCO at time of Tx. Audio modulation and Audio Amplification has characteristic of 6/OCT pre-emphasis by R35,C80,R33,

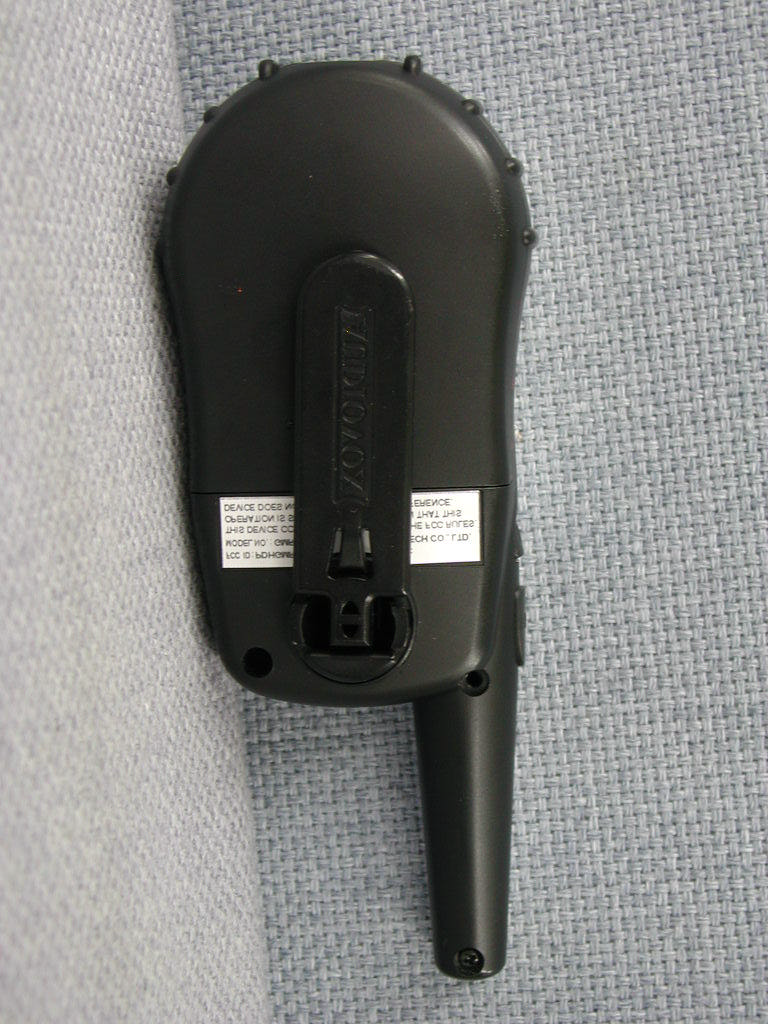

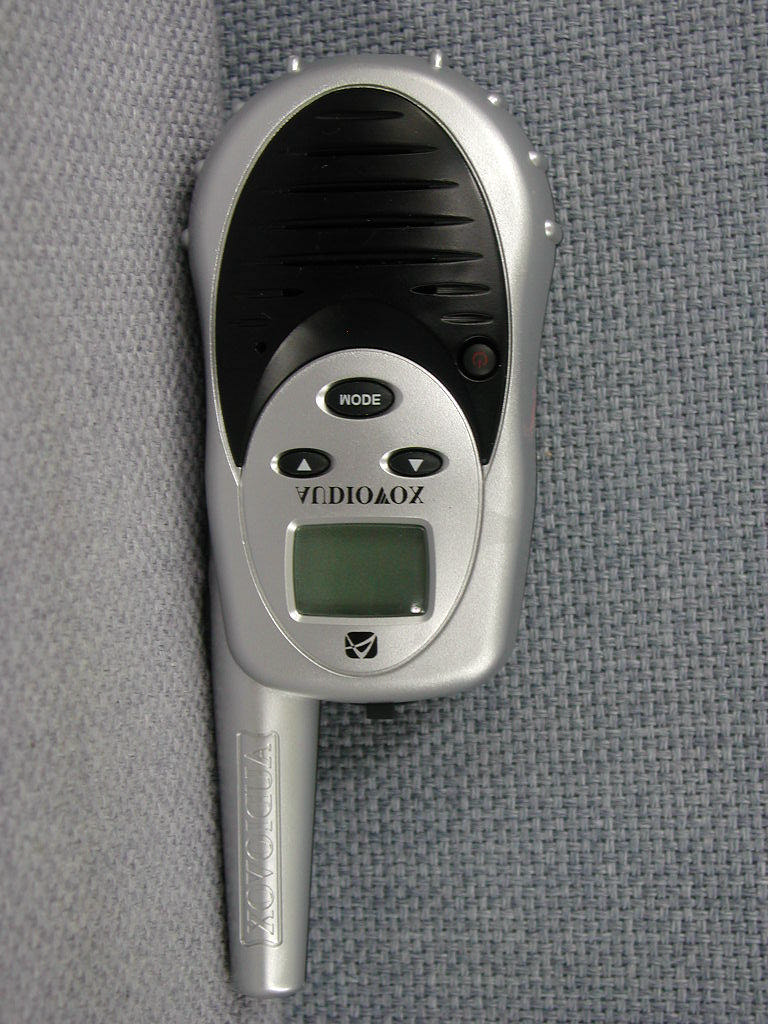

APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 REPORT #: T/TTI_PDH\22UT3\22UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS & AUDIO FREQUENCY RESPONSE GRAPH PAGE 4......MODULATION LIMITING GRAPH – 300 Hz & 1000 Hz PAGE 5......MODULATION LIMITING GRAPH - 2500 Hz & POST LIMITER PLOT PAGE 6......OCCUPIED BANDWIDTH PAGE 7......OCCUPIED BANDWIDTH PLOT PAGE 8......OCCUPIED BANDWIDTH PLOT - CW PAGE 9......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10.....UNWANTED RADIATION – GMRS PAGE 11.....UNWANTED RADIATION - FRS PAGE 12.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 13.....FREQUENCY STABILITY PAGE 14-16..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........LABEL LOCATION EXHIBIT 3A-C......EXTERNAL PHOTOGRAPHS EXHIBIT 4A-D......INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7A-F......USER'S MANUAL EXHIBIT 8A-B......OPERATIONAL DESCRIPTION EXHIBIT 9A-E......TUNING PROCEDURE EXHIBIT 10........TEST SET UP PHOTO APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 REPORT #: T/TTI_PDH\22UT3\22UT3TestReport.doc Page 1 of 16 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) TTI TECH CO., LTD. will manufacture the FCCID: PDHGMRS120 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. TTI TECH CO., LTD. EUNDO BLDG. # 402, 737-19, BANPO-1DONG SEOCHO-KU, 137-041, KOREA 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 10K7F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2.35K Bn = 2(3000)+2(2350) = 10.7K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 4.5 V, and the transmitter properly adjusted the RF output measures: GMRS - 0.27 Watts FRS - 0.288 Watts APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 REPORT #: T/TTI_PDH\22UT3\22UT3TestReport.doc Page 2 of 16 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (4.5V)(.240A) = 1.08 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 8. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See exhibits 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 S2 APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 REPORT #: T/TTI_PDH\22UT3\22UT3TestReport.doc Page 3 of 16 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. AUDIO FREQUENCY RESPONSE PLOT GOES HERE Audio Frequency Response -25 -20 -15 -10 -5 0 5 10 15 100100010000 Frequency Hz Attenuation dB APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 REPORT #: T/TTI_PDH\22UT3\22UT3TestReport.doc Page 4 of 16 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Pages 4 and 5 of report. MODULATION LIMITING PLOT – 300 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation MODULATION LIMITING PLOT – 1000 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 REPORT #: T/TTI_PDH\22UT3\22UT3TestReport.doc Page 5 of 16 MODULATION LIMITING PLOT – 2500 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log (f/3) greater than the attenuation at 1KHz. See below. Post Limiter Plot -60 -50 -40 -30 -20 -10 0 10 100010000100000 Freq. Hz Att. dB APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS120 REPORT #: T/TTI_PDH\22UT3\22UT3TestReport.doc Page 6 of 16 2.1049 Occupied bandwidth: 95.635(b)(1)(3)(7) At least 25dB on any frequency…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 10mm 10mm Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr [Tissue Liquid Depth : 15cm] 15cm Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr [Conducted Power Set-up Photographs] Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1202 FCC ID : PDHGMRS120 DATE : December 27, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TE…

Text truncated - open the document above for the full version.
