PDHGMRS122FRS/ GMRS Combination

128-XXXX 1 of General Mobile Radio Service (GMRS) Model : GMRS122-2CH Draft : Owner's Manual 1-800-290-6650 DRAFT 1-15-03(by TTI). 128-XXXX 2 of NEVER ATTEMPT TO CHARGE ALKALINE OR DRY CELL BATTER- IES, AS BATTERIES MAY BURST CAUSING PERSONAL INJURY AND DAMAGE TO THE PRODUCT. WHEN RECHARGING NICKEL METAL HYDRIDE (Ni-MH) BATTERIES WITH THE AUDIOVOX CHARGER, USE ONLY AUDIOVOX APPROVED RECHARGE- ABLE BA TTERIES. USE OF THE AUDIOVOX CHARGER WITH OTHER BRANDS OF BATTERIES IS NOT RECOMMENDED, AS BATTERY CHARGING TIMES WILL VARY WITH DIFFERENT BRANDS. REFER TO THE MANUFACTURER’S INSTRUCTIONS FOR CHARGING OTHER BRANDS OF BATTERIES. AVOID PLACING THE GMRS-3000PK RADIO TRANSCEIVER FOR PROLONGED PERIODS OF TIME IN DIRECT SUNLIGHT OR TEMPERATURES BELOW -4° F (-20° C) OR ABOVE 140 ° F (60° C). KEEP THE ANTENNA AT 1 INCH (2.5 cm) AWAY FROM YOUR HEAD AND BODY. DO NOT USE YOUR GMRS122-2CH RADIO TRANSCEIVER WITH A DAMAGED ANTENNA. PLACE THE RUBBER COVER ON JACKS WHEN NOT IN USE. GMRS LICENSE: USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC GMRS LICENSE. AN INDIVIDUAL18 YEARS OF AGE OR OLDER, WHO IS NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS FROM THE FCC; FCC FORM 159 AND FCC FORM 605 MAIN FORM AND SCHEDULE F. YOU CAN FIND THE FORMS ONLINE AT: HTTP://WWW.FCC.GOV/ FORMPAGE.HTML, OR CALL 1-800-418-3676. CAUTIONS 2 128-XXXX 3 of DRAFT 3 1. Battery Cover 2. Monitor/Function Confirmation Button 3. Detachable Carry Clip 4. Push-To-Talk (PTT) and Func- tion Confirmation Button 5. Antenna 6. External Speaker(SP.)/Micro- phone (MIC) Jacks 7. Built-in Speaker 8. Liquid Crystal Display (LCD) 9. Built-in Microphone Model GMRS122-2CH (FCC License Required) 10. Up Channel/Volume Button 11. Down Channel/Volume Button 12. MODE Button 13. Power (PWR) On/Off & SCAN Button 14. Battery Charging Contacts 14 3 5 4 1 2 9 13 11 8 10 12 7 3 (REF) 1 (REF) 6 128-xxxx 4 of DRAFT Model GMRS 122-2CH DISPLAY 4 1. RogerBeep Tone On/Off Indicator: 2. 3. Monitor Indicator: Icon appears when the Monitor ( M ) button is pressed and the channel monitor function is activated.Icon appears also when a signal is being received. The icon also represents transmit signal power during 4. Large Segment Display: Indicates the channel number in use. 5. Scan Indicator: This function allows the user to scan a channel and/or a tone code every .5 second to search for a valid signal. 6. Battery Level Indicator: Icon indicates when the battery is low level. 7. Hi/LO Indicators: Appropriate icon appears when the transmit power is set to desired output power. 7 8 6 5 4 3 2 1 9 Roger Beep tone is on, and disappears when tone is not in use. Transmit Indicator: transmission. This icon appears when the 8. Small Segment Display: Displays the CTCSS tone option in the channel from (00-38). 9. Voice Activated Transmission (VOX) Indicator: This function allows hands free conversation. The icon appears when the VOX mode is activated. 128-xxxx 5 of DRAFT 5 Equipment and Accessories Supplied 1.Radio (2) GMRS122-2CH 2.Owner’s Manual (1) 128-xxxx 3.Batteries (8)Rechargeable NiMH 4.Dual Desk-Top Charger DTC122-2CH 5.AC Wall Adapter UD-1201B Powering the transceiver: Your GMRS122-2CH radio transceiver operates on four AAA batteries. Alkaline batteries will provide slightly better performance than rechargeable batteries. Only the supplied Audiovox-approved rechargeable batteries can be recharged in the radio transceiver using the suppiled desk-top charger and associated wall adapter. This will ensure optimum performance for the GMRS122-2CH. Battery charging time is typically 10-12 hours. Use of the Audiovox charger with other brands of batteries is not recommended as battery charging times will vary. Refer to the manufacturer’s instructions for charging other brands of batteries. Batteries There are three methods of powering the GMRS122-2CH: 1. Alkaline Batteries. WARNING: Do not attempt to recharge Alkaline batteries. 2. Audiovox Rechargeable Ni-MH Batteries - (Rechargeable Ni-MH batteries, Wall Adapter and Charging Stand included). 128-xxxx 6 of DRAFT 6 2. Slide the cover down and then lift cover at bottom to open.Remove cover. 3. Insert four AAA batteries (positive (+) end toward the top begining at left side and alternating positive terminals as shown). 1. Using thumb, press down on battery cover at arrow and slide cover down to open. Use only Audiovox-approved rechargeable batteries and charger when charging batteries internal to the unit. NOTE: To extend battery life, avoid overcharging the batteries. 3. Various Brands of R echargeable Batteries - Use of the Audiovox charger with other brands of rechargeable batteries is not recommended, as battery charging times will vary with different brands of batteries.Refer to the manufacturer’s instructions for charging other brands of batteries. Installing the batteries: Battery installation is made more convenient when the carry clip is removed. To do this, release the spring clip securing the belt clip to radio and slide the belt clip upward and away from the radio body. Next, press down with the thumb at the embossed arrow, slide the battery cover down and lift off the battery cover. Insert four AAA batteries (alternate positive ends (+) toward the top of the transceiver, starting left-to-right. RELEASE BUTTON CLIP BATTERY COVER BELT CLIP COVER ARROW POSITIVE TERMINALS CLIP + + + + 128-xxxx 7 of DRAFT 7 The following guidelines will improve performance and provide longer operating times for the GMRS122-2CH: 1.Do not mix old and new batteries. 2.The use of alkaline-type batteries is recommended to provide the longest operating time. 3.Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries. 4.If the unit is not to be used for an extended period of time, remove the batteries. Old or leaking batteries can cause damage to the unit and will void the warranty. AC WALL ADAPTER/ CHARGING TRANSFORMER MODEL: UD-1201B INPUT : 110VAC OUTPU…

Text truncated - open the document above for the full version.

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] CORRESPONDENCE SUMMARY QUESTIONS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] 1/24/03 MARIO R DE ARANZETA TIMCO 352-472-5500 352-472-2030 [email protected] SUBJECT: TTI TECH CO., LTD. - FCC ID: PDHGMRS122 REFERENCE: JOB 21UT3 Dear MARIO R DE ARANZETA: Based upon our review of this application we have the following questions: 1. USERS MANUAL: Please provide us with a users manual for this application. 2. SAR test report: Please, explain the last plot provided in appendix A (page 20 of 20). 3. Please, specify in the SAR report if the device is a production unit or identical prototype. Additional information may be required based upon your answer to the above inquiries. Thank you. This application is on hold until these questions are resolved. Please direct all responses to [email protected] . DO NOT HIT REPLY! Responses should also contain the Reference information, as shown at the top of this message. Sincerely, Bruno Clavier ANSWERS – 2 – February 20, 2003 Bruno Clavier Timco Engineering, Inc. TCB SECTION Ref.: TTI TECH CO., LTD.’S FCC ID: PDHGMRS122 JOB #: 21UT3 Dear Bruno: Per your “problem on hold letter” of 1/24/03; 1. User’s Manual – is now in the file. 2. SAR test report – the applicant’s response was as follows: “As you may see in the comments “DC Power supply 6V” on page 20, the test data on page 20 in Appendix A was in the condition using an external power supply to find out the worst case SAR level for your reference. (Test Result: 0.565W/g) because FCC wanted to see the SAR level in that condition before”. 3. The tested sample was an identical prototype. Should you have any further questions, please advise. Sincerely, Sharon Hoffman Enclosure

PPPPPPPPPP fcc@label eNkNlim QSN@QRN@RPPR gmrsQRR Q Q PP drawingN@part@no name@or@tital first@used@in assembly drawnscalerev DATE : DEC 13,2002 GMRS122 FCC LABEL 2:11:1 36.7 9.9

PPPPPPPPPP fcc@label@location eNkNlim QSN@QRN@RPPR gmrsQRR Q Q PP drawingN@part@no name@or@tital first@used@in assembly drawnscalerev DATE : DEC 13,2002 GMRS122 FCC LABEL LOCATION LABEL

GMRS122 TECHNICAL DESCRIPTION Page 1 A). GENERAL DESCRIPTION The GMRS122 GMRS radio is a self-contained transceiver unit with integral antenna intended for use as a general communication tool. It is designed to operate on all 22 channels allocated by the FCC for the licensed FRS & GMRS. This model also features a CTCSS system with 38 pre- defined, user selectable sub-audible tones for channel quieting. The useable range, while dependent upon terrain and other radio propagation principles, is typically five miles. The GMRS122 uses the maximum transmit power allowed to help ensure the maximum communication range. Features include: 22 FRS, GMRS Channels with 38 CTCSS codes, Digital Receive Volume Control, Channel Monitor, Page and LCD Display. The unit is equipped with an external Headset option connector. Four AAA alkaline batteries that are readily available in retail outlets supply operating power. An automatic power savings feature allows the typical standby battery life to extend to more than 3 days. B). FREQUENCY DETERMINING CIRCUITS The fundamental frequency for both the transmitter and the receiver local oscillators are controlled by a phase lock loop (PLL) circuit IC6 (Toshiba TB31202, or equipvalent). The frequency of operation of the FRS voltage controlled oscillator (VCO), composed of Q26 and Q27 operating in cascade is phase locked to a voltage controlled crystal reference (VCXO) operating at 20.95MHz (X2). The VCO is locked to the fundamental of the transmit signal in the transmit mode and is locked to the receive 1 st LO (Fundamental channel frequency minus 21.4MHz) in the receive mode. The crystal reference frequency is shared with the 2 nd LO of 20.95MHz. C). TRANSMITTER CIRCUITS The transmitter amplifies the 0 dBm signal from the VCO to approximately 31 dBm that is fed to the antenna. The transmitter is a three stage amplifier composed of Q1,2,11,12 and Q15. The first two stages are operated class A and the final is operated class B in full saturation to help prevent unwanted amplitude modulation. The fundamental transmit signal is fed through an elliptical low pass filter (5-pole, 2 zero) in order to suppress the harmonics to below –50 dBc. The desired frequency modulation of the carrier is accomplished by modulating the current in the VCO directly with the microphone audio signal. The microphone audio is conditioned with a three- pole high pass filter at 300 Hz (IC5C,D), a hard clipper circuit (IC5A) to limit GMRS122 TECHNICAL DESCRIPTION Page 2 maximum deviation to +/- 2.5 kHz and a three-pole low pass or splatter filter at 2.8 kHz (IC5B). The low pass filter insures that the occupied bandwidth of the FM modulated signal meets FCC requirements under all input conditions. D). RECEIVER CIRCUITS The received signal from the antenna is band limited to 600 Mhz by the transmitter harmonic filter. The desired signal is fed to a low noise amplifier (LNA – Q6) centered from 460 to 470 MHz that provides approximately 10 dB of gain. The output of the LNA is filtered with a Band Pass filter (C41,L13,C10,L17,C15,L16) with pass-band of 460 to 470 MHz and stopband attenuation of 10 dB. The filtered receive signal is one input to the 1 st mixer (Q8), the other mixer input (1 st LO) is the output of the VCO at the desired channel frequency minus 21.4MHz. The output of the mixer is tuned to the 1 st IF of 21.4 MHz. The 1 st IF is transformer coupled for impedance matching to a X-tal filter centered at 21.4MHz with a bandwidth of +/-3.75Hz. The filtered 1 st IF is then amplified by Q9 and fed to the 2 nd mixer input of the multi-function receiver IC (IC1). The 2 nd LO (20.95 MHz) is generated by VCXO that is the reference frequency for the PLL. The 2 nd mixer output of 450 kHz is filtered through a 4 section ceramic filter that in combination with the 21.4MHz X-tal filter provides approximately 50 dB of adjacent channel attenuation. The 450 kHz 2 nd IF is then amplified, limited and fed to a quadrature detector for FM demodulation. The resulting audio output signal is bandpass filtered from 300 to 3 kHz (Q22) and amplified to provide 150mW of audio power (IC2). A squelch circuit is provided (IC1 pins 10 through 11) to mute the receiver noise under low signal conditions. The squelch circuit amplifies and detects noise in a narrow bandwidth at approximately 5 kHz. When the detected noise exceeds a threshold set to trigger at approximately 9 dB SINAD receive signal strength, the audio output is muted. E). TRANSMIT/RECEIVE SWITCH When the radio is in the transmit mode, pin diode switches D7 and D1 are both turned on (representing less than 0.7 ohms). D17 allows the transmit signal to pass to the antenna and D1 shorts one leg of a T matching network (L3, L15 and C4) to ground in the receive path. This results in a parallel tuned circuit high impedance being presented to the transmit signal so that the receive path does not load the transmit signal. In the receive mode, both D7 and D1 are off, resulting in the antenna signal being coupled into the receive LNA through the 50 ohm T matching network and the unwanted load of the transmit final amplifier is reduced to less than 1 pF by D1. F). RADIO CONTROL CIRCUIT A microprocessor (IC7) is used to control the transceiver. User stimuli is provided through a tack switch for PTT (push to talk), along with the keypad GMRS122 TECHNICAL DESCRIPTION Page 3 for channel selection, channel monitor, receive volume, and page. Pressing the PTT switch instructs IC7 to switch to the transmit mode. This is accomplished by loading the proper channel counter information through a 3- wire serial link to the PLL IC (IC6), turning on power to the PLL and VCO, microphone and transmit audio circuits and the transmit RF amplifiers. Pressing the call switch causes the microcontroller to transmit a warbling tone for approximately 3 seconds on the current channel selected that is used to notify another person with GMRS radio that you wish to communicate. Pressing the channel…

Text truncated - open the document above for the full version.

[RF EXPOSURE STATEMENT : PDHGMRS122 / TTI TECH CO., LTD.] - CAUTION! - IMPORTANT SAFETY INFORMATION Your wireless hand-held portable transceiver contains a radio frequency transmitter. When the PTT button is pushed, the transmitter sends out RF signals. The device is authorized to operate at a transmit duty factor not exceeding 50% using alkaline “AAA” size batteries to comply with Federal Communications Commissions (FCC) RF exposure safety level guidelines for hand-held wireless devices. This device has been tested for SAR (SPECIFIC ABSORBTION RATE) and has been found to meet the requirements for body-worn transceiver. If you wear the radio, always use the manufacturer-supplied belt clip. Use of non- manufacturer-approved accessories may exceed the FCC RF exposure guidelines. To maintain compliance with the FCC’S RF exposure guidelines, hold the transceiver at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. Unauthorized antennas, modifications, or attachments could damage the transceiver and may violate FCC regulations. GMRS License : Use of GRMS radios within the United States requires a FCC GMRS license. An individual of 18 years of age or older, who is not a representative of a foreign government is eligible to apply for a GMRS system license. You will need two forms from the FCC - FCC FORM 159 and FCC Form 605 Main Form and Schedule F. You can find the forms online at http://www.fcc.gov/formpage.html or call 1-800- 418-3676.

APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 REPORT #: T/TTI_PDH\21UT3\21UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS & AUDIO FREQUENCY RESPONSE GRAPH PAGE 4......MODULATION LIMITING GRAPH – 300 Hz PAGE 5......MODULATION LIMITING GRAPH – 1000 Hz & 2500 Hz PAGE 6......AUDIO LOW PASS FILTER PAGE 7......OCCUPIED BANDWIDTH PAGE 8......OCCUPIED BANDWIDTH PLOT PAGE 9......OCCUPIED BANDWIDTH PLOT - CW PAGE 10.....SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 11.....UNWANTED RADIATION – GMRS PAGE 12.....UNWANTED RADIATION - FRS PAGE 13.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 14.....FREQUENCY STABILITY PAGE 15-17..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........LABEL LOCATION EXHIBIT 3A-B......EXTERNAL PHOTOGRAPHS EXHIBIT 4A-C......INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8A-C......TECHNICAL DESCRIPTION EXHIBIT 9A-C......ALIGNMENT PROCEDURE EXHIBIT 10........TEST SET UP PHOTO EXHIBIT 11........SAR REPORT APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 REPORT #: T/TTI_PDH\21UT3\21UT3TestReport.doc Page 1 of 17 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) TTI TECH CO., LTD. will manufacture the FCCID: PDHGMRS122 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. TTI TECH CO., LTD. EUNDO BLDG. # 402, 737-19, BANPO-1DONG SEOCHO-KU, 137-041, KOREA 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 10K0F3E 95.631 Bn = 2M + 2DK M = 2500 Hz D = 2500 kHz Bn = 2(2500)+2(2500) = 10.0K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5 kHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: GMRS (HIGH): 0.745 Watts (LOW): 0.296 Watts FRS : 0.262 Watts APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 REPORT #: T/TTI_PDH\21UT3\21UT3TestReport.doc Page 2 of 17 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (6.0V)(.640A) = 3.84 Watts FOR HIGH POWER SETTING INPUT POWER: (6.0V)(1.50A) = 9.00 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as EXHIBIT # 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See EXHIBITS # 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 S2 APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 REPORT #: T/TTI_PDH\21UT3\21UT3TestReport.doc Page 3 of 17 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. AUDIO FREQUENCY RESPONSE PLOT GOES HERE TTI Tech Co. LTD. GMRS 122 -46 -41 -36 -31 -26 -21 -16 -11 -6 100100010000 Frequency dBmV audio response APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 REPORT #: T/TTI_PDH\21UT3\21UT3TestReport.doc Page 4 of 17 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See following pages. MODULATION LIMITING PLOT – 300 Hz TTI Tech Co. LTD. GMRS 122 0 500 1000 1500 2000 -12 dBmV Deviation 300 Hz APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 REPORT #: T/TTI_PDH\21UT3\21UT3TestReport.doc Page 5 of 17 MODULATION LIMITING PLOT – 1000 Hz MODULATION LIMITING PLOT – 2500 Hz Modulation Limiting TTI Tech Co. LTD. GMRS 122 0 500 1000 1500 2000 2500 3000 -46-36-26-16 dBmV Deviation 1000 Hz Modulation Limiting TTI Tech Co. LTD. GMRS 122 0 500 1000 1500 2000 2500 3000 -55-45-35-25-15 dBmV Deviation 2500 Hz APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS122 REPORT #: T/TTI_PDH\21UT3\21UT3TestReport.doc Page 6 of 17 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20 kH…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

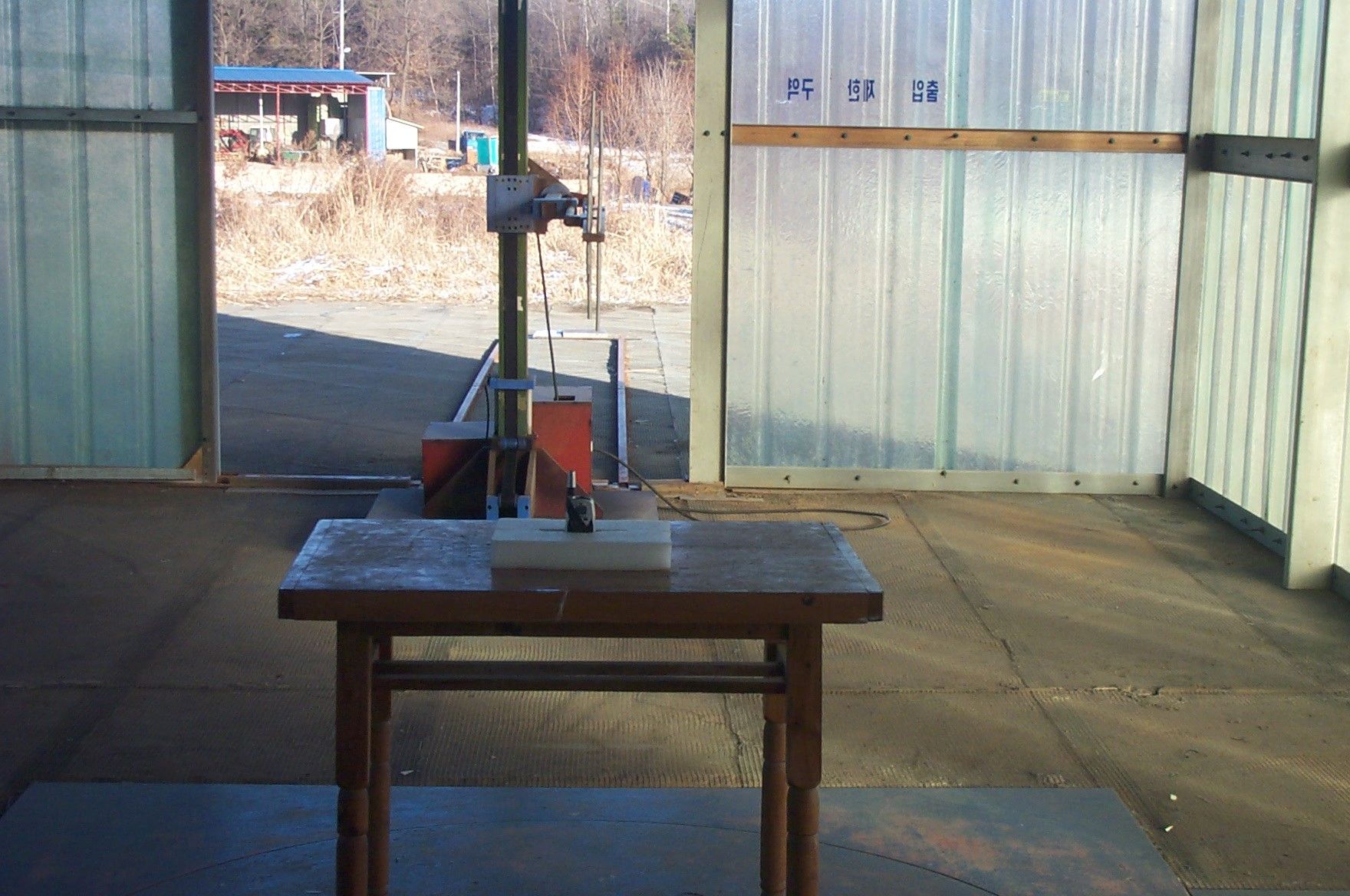

Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 25mm mm Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr [Tissue Liquid Depth : 15cm] 15cm Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr [Conducted Power Set-up Photographs] Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

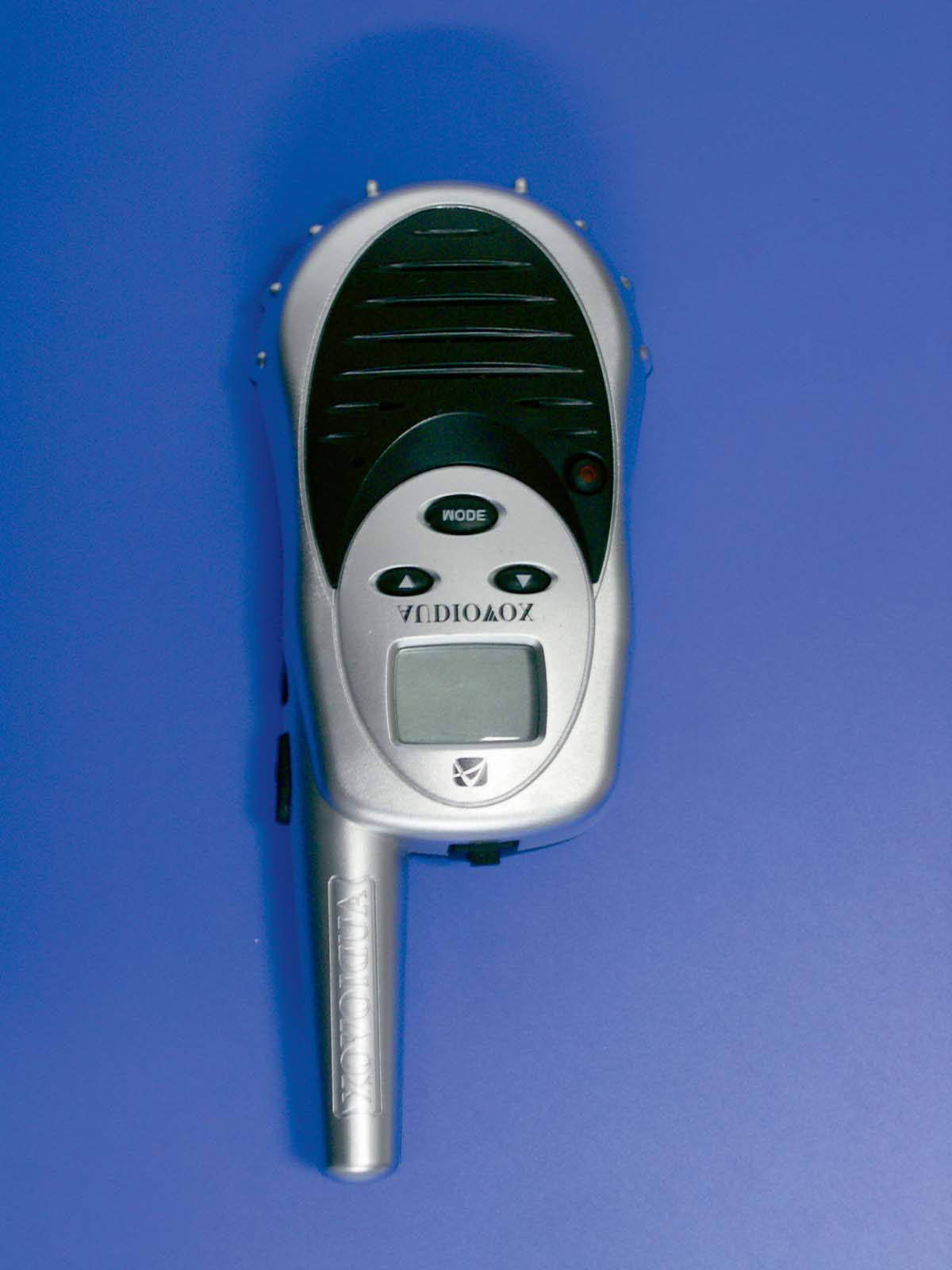

Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-1201 FCC ID : PDHGMRS122 DATE : December 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.…
