PDHGMRS200WFRS/ GMRS Combination Radio

General Mobile Radio Service (GMRS) Model : GMRS200W Owner's Manual 1-800-290-6650 NEVER ATTEMPT TO CHARGE OTHER BRANDS OF BATTERIES, DAMAGE TO THE PRODUCT. WHEN RECHARGING LITHIUM ION AS BATTERIES MAY BURST CAUSING PERSONAL INJURY AND (Li-ion) BATTERIES WITH THE AUDIOVOX CHARGER, USE ONLY AUDIOVOX APPROVED RECHARGEABLE BATTERIES .USE OF THE AUDIOVOX CHARGER WITH OTHER BRANDS OF BATTERIES IS NOT RECOMMENDED, AS BATTERY CHAR- BRANDS. REFER TO THE MANUFACTURER’S INSTRUCTI- GING TIMES WILL VARY WITH DIFFERENT ONS FOR CHARGING OTHER BRANDS OF BATTERIES. AVOID PLACING THE GMRS200W RADIO TRANSCEIVER FOR PROLONGED PERIODS OF TIME IN DIRECT SUNLIGHT OR TEMPERATURES BELOW -4° F (-20° C) OR ABOVE 140 ° F (60° C). KEEP THE ANTENNA AT 1 INCH (2.5 cm) AWAY FROM YOUR HEAD AND BODY. DO NOT USE YOUR GMRS200W RADIO TRANSCEIVER WITH A DAMAGED ANTENNA. GMRS LICENSE: USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN OLDER, WHO IS NOT A REPRESENTATAIVE OF A FOREIGN FCC GMRS LICENSE. AN INDIVIDUAL18 YEARS OF AGE OR GOVERNMENT, IS ELIGIBLE TO APPLY FOR A GMRS SYSTEM FORM 159 AND FCC FORM 605 MAIN FORM AND SCHEDULE F. LICENSE. YOU WILL NEED TWO FORMS FROM THE FCC; FCC YOU CAN FIND THE FORMS ONLINE AT: HTTP://WWW.FCC.GOV/ FORMPAGE.HTML, OR CALL 1-800-418-3676. CAUTIONS 1. Battery Cover 2. Wrist Band 3. Push-To-Talk (PTT) and Func- tion Confirmation Button 4. Antenna 7. Built-in Speaker 8. Liquid Crystal Display (LCD) 5. Built-in Microphone Model GMRS200W (FCC License Required) 10. Up Channel/Volume Button 11. Down Channel/Volume Button FUNCTION Button 6. Power (PWR) On/Off & 9. SCAN & VOX Button 8 4 3 7 5 11 12 2 (REF) Model GMRS200W DISPLAY 5.RogerBeep Tone On/Off Indicator: This icon appears when receiving status. Roger Beep tone is on, and disappears when tone is not in use. 9.Large Segment Display: Indicates the channel number in use. 4.Scan Indicator: This function allows the user to scan a channel every 5 second to search for a valid signal. 10.Battery Level Indicator: Icon indicates when the battery is low level. 7 6 5 4 3 2 1 7.Transmit Indicator: The icon also represents when radio is in transmit status. 3.Voice Activated Transmission(VOX) Indicator:This function allows hands free conversation. The icon appears when the VOX mode is activated. Equipment and Accessories Supplied 1.Radio (1)GMRS200W 2.Owner’s Manual (1)128-xxxx Powering the transceiver: Your GMRS200W radio transceiver operates on Lithium ion battery 2.Lift the battery cover. Remove the cover. 3. Insert the Li-ion battery (positive (+) terminal as shown). 1. Using thumb, push the relea- se lever at right direction. Installing the batteries: Push the release lever and lift the battery cover. Insert the Li-ion battery. WRIST POSITIVE TERMINALS BAND NOTE: Refer to the appropriate section of this manual for detailed operating instructions for each mode. GMRS200W OPERATIONAL MODES CLOCK SETTING CLOCK SETTING Controls: Power On/Off (6) Button Press and hold the power on/off button ( ) for at least 2 seconds. You will hear a confirming melody to indicate the unit is on. To turn the unit off, press and hold the button for at least 2 seconds. Adjusting the Volume With the unit powered on, press the Up Channel/Volume button ( ) to increase volume and the Down Channel/Volume button ( ) to decrease volume. The display will indicate the current volume level by the arrow icon (7 steps). Push To Talk (PTT) Button (3) Pressing and holding this button will allow you to speak to any transceiver that is set to the same channel setting as yours. Hold the transceiver approximately 1 to 2 inches from your face as you speak into the built in microphone (5). After you have finished speaking, release the PTT Button to allow reception of incoming signals. It is not possible to transmit and receive at the same time. While the PTT Button is pressed and the TX indicator on the LCD will be display. Releasing the button allows the unit to revert to standby mode. When receiving an incoming signal, the RX icon will be appear in the display. The PTT Button can also be used as a two-way call ringer. Pressing the button twice quickly will call another party on the same channel. The Transmit icon on the LCD will displayed for 3 seconds and then go out. Up Channel/Volume Button (10) In the standby mode, pressing this button will increment the listening volume. When in function edit mode this button will be used to adjust the unit's settings. Down Channel/Volume Button (11) In the standby mode, pressing this button will decrement the listening volume. When in function edit mode this button will be used to adjust the unit's settings. POWER & FUNCTION Button (6) This button is used to select various feature settings in the GMRS and FRS. Scan Button (9) Press this Button momentarily to enable or disable the scan mode. Operating Modes and Features GRMS/FRS Operation - From GMRS/FRS standby mode, press and hold the power button for 2 seconds to turn on power. - Press the MODE button so the Channel number flashes. - Select the desired channel with the Up(10) and Down(11) Buttons. incoming received signal. When receiving a call, the RX icon on the LCD appears to indicate - Press and hold the PTT button (3) to transmit, then speak into the microphone clearly and slowly. - Communication can only be accomplished when the channel and - Release PTT Button (3) to receive. CTCSS tone frequency of at least two parties are the same. Channel Selection In order to communicate with other GMRS/FRS units, both transmitting and receiving party must be on the same frequency. The GMRS200W has 22 channels (frequencies) (1-22) indicated by the large digits on the LCD display panel. Channels 1 through 7 are the shared GMRS/FRS channels. Communication with Audiovox GMRS/FRS and compatible units is possible on these 22 channels. are assigned GMRS only channels. Channels 8-14 are FRS only channels,while channels 15-22 To change the channel, - From GMRS/FRS standby mode, press the FUNCTION button(6) unti…

Text truncated - open the document above for the full version.

0000000000 LABEL LOCATION E.K.LIM APR. 8. 2003 GMRS200W 1 1 00 DRAWING. PART NO NAME OR TITAL FIRST USED IN ASSEMBLY DRAWNSCALEREV DATE : APR 8,2003 GMRS200W FCC LABEL LOCATION LABEL

FCC ID : PDHGMRS200W MODEL NO. : GMRS200W TRADE NAME : FM TRANSCEIVER THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID : PDHGMRS200W MODEL NO. : GMRS200W TRADE NAME : FM TRANSCEIVER THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 0000000000 FCC LABEL E.K.LIM APR. 8. 2003 GMRS200W 1 1 00 DRAWING. PART NO NAME OR TITAL FIRST USED IN ASSEMBLY DRAWNSCALEREV DATE : APR 8,2003 GMRS200W FCC LABEL 2:11:1 30.5 48.5

GMRS 200W TECHNICAL DESCRIPTION Page 1 April 5, 2003 A). GENERAL DESCRIPTION The GMRS 200W radio is a self-contained transceiver unit with integral antenna intended for use as a general communication tool. It is designed to operate on all 22 channels allocated by the FCC for the licensed GMRS. The useable range, while dependent upon terrain and other radio propagation principles, is typically 1.5 miles. The GMRS 200W uses the maximum transmit power allowed to help ensure the maximum communication range. Features include: 22 GMRS Channels, Digital Receive Volume Control, Page and LCD Display. The unit is equipped with an external Headset option connector. 1 Lithium Ion battery that are readily available in Bell south retail outlets supply operating power. An automatic power savings feature allows the typical standby battery life to extend to more than 10 days. B). FREQUENCY DETERMINING CIRCUITS The fundamental frequency for both the transmitter and the receiver local oscillators are controlled by a phase lock loop (PLL) circuit IC1 (Panasonic An6311 or equipvalent). The frequency of operation of the GMRS voltage controlled oscillator (VCO), composed of Q401 and Q402 operating in cascade is phase locked to a voltage controlled crystal reference (VCXO) operating at 20.95MHz (X202). The VCO is locked to the fundamental of the transmit signal in the transmit mode and is locked to the receive 1 st LO (Fundamental channel frequency minus 21.4MHz) in the receive mode. The crystal reference frequency is shared with the 2 nd LO of 20.95MHz. C). TRANSMITTER CIRCUITS The transmitter amplifies the 0 dBm signal from the VCO to approximately 21 dBm that is fed to the antenna. The transmitter is a three stage amplifier composed of Q201,202,203,204 and Q205. The first two stages are operated class A and the final is operated class B in full saturation to help prevent unwanted amplitude modulation. The fundamental transmit signal is fed through an elliptical low pass filter (5-pole, 2 zero) in order to suppress the harmonics to below –60 dBc. The desired frequency modulation of the carrier is accomplished by modulating the current in the VCO directly with the microphone audio signal. The microphone audio is conditioned with a three-pole high pass filter at 300 Hz (IC1, Mic Amp.), a hard clipper circuit (IC1) to limit maximum deviation to +/- 2.5 kHz and a three-pole low pass or splatter filter at 2.8 kHz (IC1, SP GMRS 200W TECHNICAL DESCRIPTION Page 2 amp.). The low pass filter insures that the occupied bandwidth of the FM modulated signal meets FCC requirements under all input conditions. D). RECEIVER CIRCUITS The received signal from the antenna is band limited to 600 Mhz by the transmitter harmonic filter. The desired signal is fed to a low noise amplifier (LNA – Q101) centered from 460 to 470 MHz that provides approximately 10 dB of gain. The output of the LNA is filtered with a Band Pass filter (C41,L16,C43,L17,C15,L36) with pass-band of 460 to 470 MHz and stopband attenuation of 10 dB. The filtered receive signal is one input to the 1 st mixer (Q102), the other mixer input (1 st LO) is the output of the VCO at the desired channel frequency minus 21.4MHz. The output of the mixer is tuned to the 1 st IF of 21.4 MHz. The 1 st IF is transformer coupled for impedance matching to a X-tal filter centered at 21.4MHz with a bandwidth of 3.75KHz. The filtered 1 st IF is then amplified by IC1 and fed to the 2 nd mixer. The 2 nd LO (20.95 MHz) is generated by VCXO that is the reference frequency for the PLL of IC1. The 2 nd mixer output of 450 kHz is filtered through a 4 section ceramic filter that in combination with the 21.4 MHz X-tal filter provides approximately 50 dB of adjacent channel attenuation. The 450 kHz 2 nd IF is then amplified, limited and fed to a quadrature detector for FM demodulation. The resulting audio output signal is highpass filtered from 300 (IC1) and amplified to provide 200mW of audio power (IC2). A squelch circuit is provided (IC1 pins 29 through 30) to mute the receiver noise under low signal conditions. The squelch circuit amplifies and detects noise in a narrow bandwidth at approximately 5 kHz. When the detected noise exceeds a threshold set to trigger at approximately 12 dB SINAD receive signal strength, the audio output is muted. E). TRANSMIT/RECEIVE SWITCH When the radio is in the transmit mode, pin diode switches D1 and D2 are both turned on (representing less than 0.7 ohms). D2 allows the transmit signal to pass to the antenna and D1 shorts one leg of a T matching network (L3, L15 and C4) to ground in the receive path. This results in a parallel tuned circuit high impedance being presented to the transmit signal so that the receive path does not load the transmit signal. In the receive mode, both D1 and D2 are off, resulting in the antenna signal being coupled into the receive LNA through the 50 ohm T matching network and the unwanted load of the transmit final amplifier is reduced to less than 1 pF by D1. F). RADIO CONTROL CIRCUIT A microprocessor (CPU) is used to control the transceiver. User stimuli is provided through a tack switch for PTT (push to talk), along with the keypad for channel selection, receive volume, and page. Pressing the PTT switch instructs CPU to switch to the transmit mode. This is accomplished by loading the proper channel counter information through a 3-wire serial link to the PLL of IC1, turning on power to the PLL and VCO, microphone and transmit audio circuits and the transmit RF amplifiers. Pressing the call GMRS 200W TECHNICAL DESCRIPTION Page 3 switch causes the microcontroller to transmit a warbling tone for approximately 5 seconds on the current channel selected that is used to notify another person with GMRS radio that you wish to communicate. Pressing the channel Up/Down buttons (active in receive mode only) instructs CPU to increment or decrement respectively the channel frequency by one channel from the channel previously selected. In rec…

Text truncated - open the document above for the full version.

TRANSMITTER ALIGNMENT METHOD GMRS 200W 1. Frequency Setting A. Connect a frequency counter or communications service monitor capable of at least five watt RF. B. Press the PTT switch. C. Adjust CT201 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. CT201 is located the bottom of X202. 2. Output Power Alignment A. Connect a communications service monitor or a wattmeter and dummy load to the antenna connector. B. Press the PTT switch. C. Adjust air coil (L6) by spreading or de-spreading, to achieve maximum power, not to exceed 0.1W. Note: Normally, it is not necessary. 3. Deviation Adjustment A. Connect an audio generator with 10uF coupling capacitor to the microphone jack. The audio frequency should be set at 1KHz with a level of 200mV. B. Connect an FM deviation meter or communications service monitor to the antenna connector. Set the monitor to read peak deviation. C. Press the PTT switch. D. Adjust RV2 for +/- 2.3KHz deviation. RV2 is located the left of 4.19MHz X-tal.

SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS GMRS 200W Designator Reference number Description IC1 AN6311 One chip IC (include PLL, IF, Audio amplifier) D1 KDS114 RX,TX RF Switch D2 KDS114 RX,TX RF Switch D201 KDS114 Reset for CPU D25 KDS113 Charging path D301 KDS114 VCO RX TX switch D4 KDS112 VCO B+ supply IC2 UTC34119 Speaker Amplifier IC3 XC6201B302MR 3V Regulator LED1 SML210MT Backlit LED for LCD CPU W541C250 CPU Q201 BFQ67W TX PA Q202 BFQ67W TX PA Q203 BFQ67W TX PA Q204 BFQ67W TX driver Q303 KRC404E Voltage control for low battery Q101 2SC4226 RX Frontend Q308 KTA2014E PTT switch Q102 2SC4226 I’st Mixer Q304 KRA304E Voltage control for low battery Q310 KRA306E RX B+ Q205 2SC4083 TX pre-driver Q306 KRC404E Charger detector Q309 KRA306E TX B+ Q305 KRA306E Charger Enable Q307 KRC404E VOX switch Q103 KRA226S Speaker Amplifier B+ Q304 KRC404E Charger enable Q301 KRA226S Main B+ switch Q401 2SC4083 VCO Q402 2SC4083 VCO Q403 KRC405E VCO RX/TX Switch

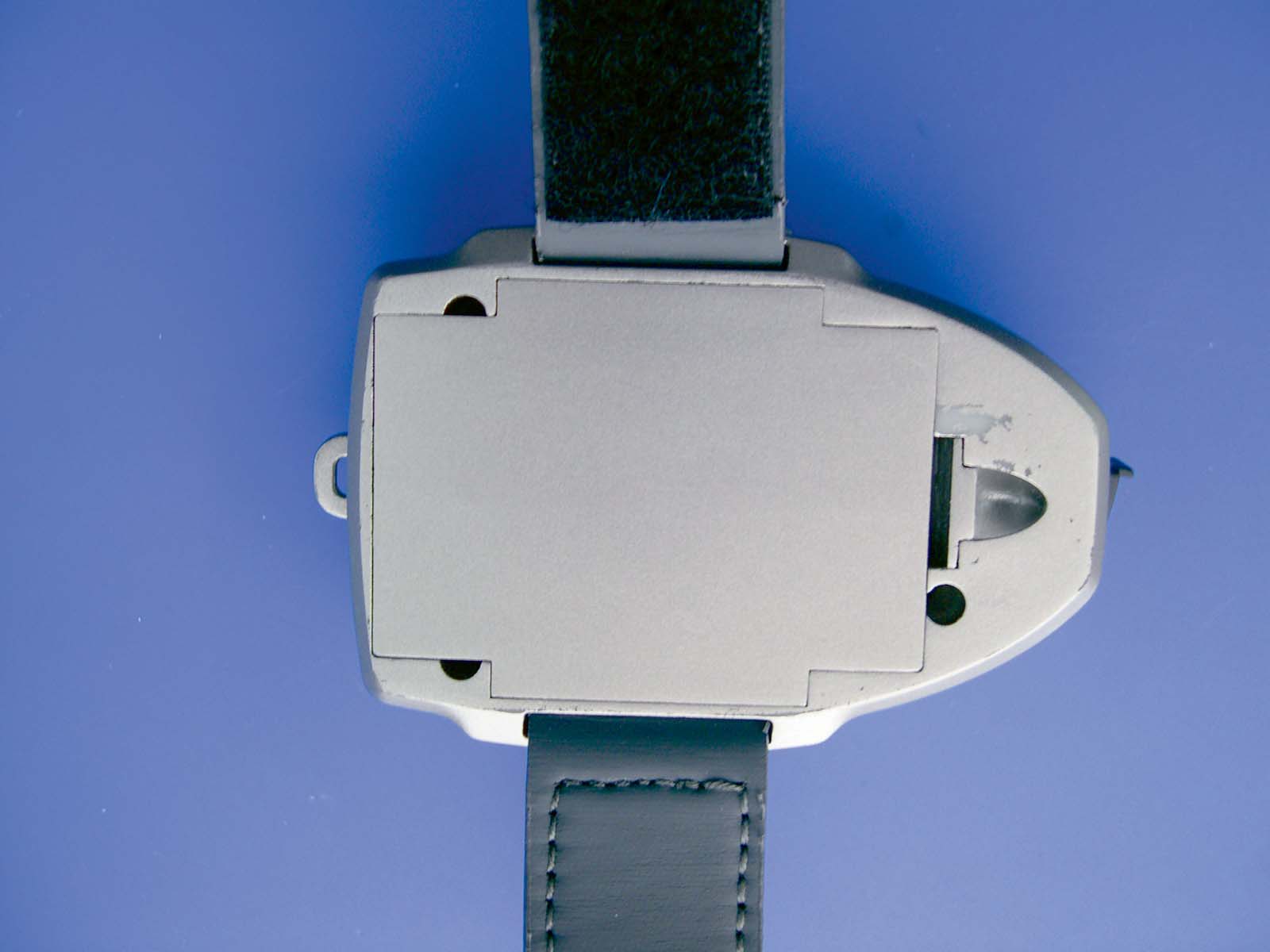

APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W TEST REPORT: PAGE 1......GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH PAGE 4......MODULATION LIMITING GRAPH – 300 Hz PAGE 5......MODULATION LIMITING GRAPHS – 1000 Hz & 2500 Hz PAGE 6......AUDIO LOW PASS FILTER GRAPH PAGE 7......OCCUPIED BANDWIDTH PAGE 8......OCCUPIED BANDWIDTH PLOT PAGE 9......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10.....UNWANTED RADIATION – GMRS PAGE 11.....UNWANTED RADIATION - FRS PAGE 12.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 13.....FREQUENCY STABILITY PAGE 14-16..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........LABEL LOCATION EXHIBIT 3.........EXTERNAL PHOTOGRAPHS EXHIBIT 4.........INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........OPERATIONAL DESCRIPTION EXHIBIT 9.........ALIGNMENT PROCEDURE EXHIBIT 10........PARTS LIST EXHIBIT 11........TEST SET UP PHOTO APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc Page 1 of 16 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) TTI TECH CO., LTD. will manufacture the FCCID: PDHGMRS200W GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. TTI TECH CO., LTD. EUNDO BLDG. # 402, 737-19, BANPO-1DONG SEOCHO-KU, 137-041, KOREA 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 10K5F3E 95.631 Bn = 2M + 2DK M = 3000 D = 1.75K Bn = 2(3000)+2(2250) = 10.5K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 3.6 V, and the transmitter properly adjusted the RF output measures: GMRS - .142 Watts FRS - .141 Watts APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc Page 2 of 16 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (3.6V)(.211A) = .76 Watts FOR HIGH POWER SETTING INPUT POWER: (3.6V)(.211A) = .76 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as EXHIBIT # 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See EXHIBIT #’S 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. The test procedure used was TIA/EIA-603. APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc Page 3 of 16 APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc Page 4 of 16 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. AUDIO FREQUENCY RESPONSE PLOT GOES HERE Audio Frequency Response -14 -12 -10 -8 -6 -4 -2 0 2 4 6 100100010000 Frequency Hz Attenuation dB APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc Page 5 of 16 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 2500 Hz. See following plots. MODULATION LIMITING PLOT – 300 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc Page 6 of 16 MODULATION LIMITING PLOT – 1000 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation MODULATION LIMITING PLOT – 2500 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS200W REPORT #: T/TTI_PDH\473KT3\473KT3TestReport.doc Page 7 of 16 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log (f/3) greater than the…

Text truncated - open the document above for the full version.
