PDHGMRS7001FRS/ GMRS Combination

128-XXXX 1 of General Mobile Radio Service (GMRS) Model : GMRS7001 Draft : Owner's Manual 1-800-290-6650 DRAFT Feb.04,2003(by TTI). 128-XXXX 2 of NEVER ATTEMPT TO CHARGE ALKALINE OR DRY CELL BATTER- IES, AS BATTERIES MAY BURST CAUSING PERSONAL INJURY AND DAMAGE TO THE PRODUCT. WHEN RECHARGING NICKEL METAL HYDRIDE (Ni-MH) BATTERIES WITH THE AUDIOVOX CHARGER, USE ONLY AUDIOVOX APPROVED RECHARGE- ABLE BA TTERIES. USE OF THE AUDIOVOX CHARGER WITH OTHER BRANDS OF BATTERIES IS NOT RECOMMENDED, AS BATTERY CHARGING TIMES WILL VARY WITH DIFFERENT BRANDS. REFER TO THE MANUFACTURER’S INSTRUCTIONS FOR CHARGING OTHER BRANDS OF BATTERIES. AVOID PLACING THE GMRS7001-2 RADIO TRANSCEIVER FOR PROLONGED PERIODS OF TIME IN DIRECT SUNLIGHT OR TEMPERATURES BELOW -4° F (-20° C) OR ABOVE 140 ° F (60° C). KEEP THE ANTENNA AT 1 INCH (2.5 cm) AWAY FROM YOUR HEAD AND BODY. DO NOT USE YOUR GMRS7001-2 RADIO TRANSCEIVER WITH A DAMAGED ANTENNA. PLACE THE RUBBER COVER ON JACKS WHEN NOT IN USE. GMRS LICENSE: USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC GMRS LICENSE. AN INDIVIDUAL18 YEARS OF AGE OR OLDER, WHO IS NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS FROM THE FCC; FCC FORM 159 AND FCC FORM 605 MAIN FORM AND SCHEDULE F. YOU CAN FIND THE FORMS ONLINE AT: HTTP://WWW.FCC.GOV/ FORMPAGE.HTML, OR CALL 1-800-418-3676. CAUTIONS 2 128-XXXX 3 of DRAFT 3 1. Battery Cover 2. Monitor/Function Confirmation Button 3. Detachable Carry Clip 4. Push-To-Talk (PTT) and Func- tion Confirmation Button 5. Antenna 6. External Speaker(SP.)/Micro- phone (MIC) Jacks 7. Built-in Speaker 8. Liquid Crystal Display (LCD) 9. Built-in Microphone Model GMRS7001-2 (FCC License Required) 10. Up Channel/Volume Button 11. Down Channel/Volume Button 12. MODE / WX Button 13. Power On/Off & Key lock button SCAN / VOX Button 14. Battery Charging Contacts 15 3 5 4 1 2 9 13 11 8 10 12 7 3 (REF) 1 (REF) 6 15. 14 128-xxxxx 4 of 4 Model GMRS7001-2 DISPLAY 1. Beep Tone Indicator: Icon appears when beep button confirmation tone is selected; icon disappears when tone is off. 2. Key Lock Indicator: Icon appears when the keypad is locked. This function disables keys such as channel up/down and MODE. 3. Monitor Indicator: Icon appears when the Monitor ( M ) button is pressed and the channel monitor function is activated. 4 . Signal Strength Indicator: Icon appears when a signal is being received. The icon consists of five bars to indicate the received signal level. The icon also represents transmit signal power during transmission. 6. Large Segment Display: Indicates the channel number in use. 7. Scan Indicator: This function allows the user to scan a channel and/or a tone code every .5 second to search for a valid signal. 9. Battery Level Indicator: Icon indicates the battery charge level. 5. Hi/LO Indicators: Appropriate icon appears when the transmit power is set to desired output power. 1 2 3 4 10 5 6 7 8 9 11 13 14 12 8. RogerBeep Tone On/Off Indicator: This icon appears when the Roger Beep tone is on, and disappears when tone is not in use. 10.Signal Receiving Indicator: Icon appears when a signal is being received. 128-xxxx 5 of 5 11. Weather Mode Indicator: Icon will be on steady when in the weather band mode. The icon will blink when in the GMRS mode with the alert active. 12.Small Segment Display: Displays the CTCSS tone option in the channel from (00-38). 13.Dual Watch Mode Indicator: Icon appears when dual watch mode is active. 14.Voice Activated Transmission (VOX) Indicator: This function allows hands free conversation. The icon appears when the VOX mode is activated. Powering the transceiver: Equipment and Accessories Supplied 1.Radio (2) GMRS7001-2 2.Owner’s Manual (1) 128-xxxx Your GMRS7001-2 radio transceiver operates on five AAA batteries. Alkaline batteries will provide slightly better performance than rechargeable batteries. Only the supplied Audiovox-approved rechargeable batteries can be recharged in the radio transceiver using the suppiled desk-top charger and associated wall adapter. This will ensure optimum performance for the GMRS7001-2. Battery charging time is typically 13-15 hours. Use of the Audiovox charger with other brands of batteries is not recommended as battery charging times will vary. Refer to the manufacturer’s instructions for charging other brands of batteries. Batteries There are three methods of powering the GMRS7001-2: 1. Alkaline Batteries. WARNING: Do not attempt to recharge Alkaline batteries. 2. Audiovox Rechargeable Ni-MH Batteries - (Rechargeable Ni-MH batteries, Wall Adapter and Charging Stand are NOT included). 128-xxxx 6 of DRAFT 6 2. Slide the cover down and then lift cover at bottom to open.Remove cover. 3. Insert five AAA batteries (positive (+) end toward the right begining at top side and alternating positive terminals as shown). 1. Using thumb, press down on battery cover at arrow and slide cover down to open. Use only Audiovox-approved rechargeable batteries and charger when charging batteries internal to the unit. NOTE: To extend battery life, avoid overcharging the batteries. 3. Various Brands of R echargeable Batteries - Use of the Audiovox charger with other brands of rechargeable batteries is not recommended, as battery charging times will vary with different brands of batteries.Refer to the manufacturer’s instructions for charging other brands of batteries. Installing the batteries: Battery installation is made more convenient when the carry clip is removed. To do this, release the spring clip securing the belt clip to radio and slide the belt clip upward and away from the radio body. Next, press down with the thumb at the embossed arrow, slide the battery cover down and lift off the battery cover. Insert five AAA batteries (alternate positive ends (+) toward the top of the transceiver, starting up-to-down. RELEASE BUTTON BATTERY COVER BELT COVER ARROW POSITIVE TERMINALS CLIP + + + + + 128-xxxx 7 of DRAFT 7 The follo…

Text truncated - open the document above for the full version.

0000000000 FCC LABEL LOCATION E.K.LIM MAR. 7. 2003 GMRS7001 1 1 00 DRAWING. PART NO NAME OR TITAL FIRST USED IN ASSEMBLY DRAWNSCALEREV DATE : MAR 7,2003 GMRS7001 FCC LABEL LOCATION LABEL

0000000000 FCC LABEL E.K.LIM MAR. 7. 2003 GMRS7001 1 1 00 DRAWING. PART NO NAME OR TITAL FIRST USED IN ASSEMBLY DRAWNSCALEREV DATE : MAR 7,2003 GMRS7001 FCC LABEL 2:11:1 37.5 11.0 FCC ID : PDHGMRS7001 TRADE NAME : FM TRANSCEIVER MODEL NO. : GMRS7001 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID : PDHGMRS7001 TRADE NAME : FM TRANSCEIVER MODEL NO. : GMRS7001 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

GMRS7001 TECHNICAL DESCRIPTION Page 1 A). GENERAL DESCRIPTION The GMRS7001 GMRS radio is a self-contained transceiver unit with integral antenna intended for use as a general communication tool. It is designed to operate on all 22 channels allocated by the FCC for the licensed FRS & GMRS. This model also features a CTCSS system with 38 pre- defined, user selectable sub-audible tones for channel quieting. The useable range, while dependent upon terrain and other radio propagation principles, is typically five miles. The GMRS7001 uses the maximum transmit power allowed to help ensure the maximum communication range. Features include: 22 FRS, GMRS Channels with 38 CTCSS codes, Digital Receive Volume Control, Channel Monitor, Page and LCD Display. The unit is equipped with an external Headset option connector. Five AAA alkaline batteries that are readily available in retail outlets supply operating power. An automatic power savings feature allows the typical standby battery life to extend to more than 3 days. B). FREQUENCY DETERMINING CIRCUITS The fundamental frequency for both the transmitter and the receiver local oscillators are controlled by a phase lock loop (PLL) circuit Combo1 (Panasonic AN6311, or equipvalent). The frequency of operation of the GMRS voltage controlled oscillator (VCO), composed of Q301,302 operating in cascade is phase locked to a voltage controlled crystal reference (VCXO) operating at 20.95MHz (X202). The VCO is locked to the fundamental of the transmit signal in the transmit mode and is locked to the receive 1 st LO (Fundamental channel frequency minus 21.4MHz) in the receive mode. The crystal reference frequency is shared with the 2 nd LO of 20.95MHz. C). TRANSMITTER CIRCUITS The transmitter amplifies the 0 dBm signal from the VCO to approximately 33 dBm that is fed to the antenna. The transmitter is a three stage amplifier composed of Q1,3 and Q11. The first two stages are operated class A and the final is operated class B in full saturation to help prevent unwanted amplitude modulation. The fundamental transmit signal is fed through an elliptical low pass filter (5-pole, 2 zero) in order to suppress the harmonics to below –50 dBc. The desired frequency modulation of the carrier is accomplished by modulating the current in the VCO directly with the microphone audio signal. The microphone audio is conditioned with a three- pole high pass filter at 300 Hz (Combo1), a hard clipper circuit (Combo1) to GMRS7001 TECHNICAL DESCRIPTION Page 2 limit maximum deviation to +/- 2.5 kHz and a three-pole low pass or splatter filter at 2.8 kHz (IC5C,D). The low pass filter insures that the occupied bandwidth of the FM modulated signal meets FCC requirements under all input conditions. D). RECEIVER CIRCUITS The received signal from the antenna is band limited to 600 Mhz by the transmitter harmonic filter. The desired signal is fed to a low noise amplifier (LNA – Q6) centered from 460 to 470 MHz that provides approximately 10 dB of gain. The output of the LNA is filtered with a Band Pass filter (SF1) with pass-band of 460 to 470 MHz and stopband attenuation of 50 dB. The filtered receive signal is one input to the 1 st mixer (Q8), the other mixer input (1 st LO) is the output of the VCO at the desired channel frequency minus 21.4MHz. The output of the mixer is tuned to the 1 st IF of 21.4 MHz. The 1 st IF is transformer coupled for impedance matching to a X-tal filter centered at 21.4MHz with a bandwidth of +/-3.75Hz. The filtered 1 st IF is fed to the 2 nd mixer input of the multi-function receiver Combo1. The 2 nd LO (20.95 MHz) is generated by VCXO that is the reference frequency for the PLL. The 2 nd mixer output of 450 kHz is filtered through a 4 section ceramic filter that in combination with the 21.4MHz X-tal filter provides approximately 50 dB of adjacent channel attenuation. The 450 kHz 2 nd IF is then amplified, limited and fed to a quadrature detector for FM demodulation. The resulting audio output signal is bandpass filtered from 300 to 3 kHz (Combo1) and amplified to provide 150mW of audio power (IC2). A squelch circuit is provided (Combo1 pins 29 through 30) to mute the receiver noise under low signal conditions. The squelch circuit amplifies and detects noise in a narrow bandwidth at approximately 5 kHz. When the detected noise exceeds a threshold set to trigger at approximately 9 dB SINAD receive signal strength, the audio output is muted. E). TRANSMIT/RECEIVE SWITCH When the radio is in the transmit mode, pin diode switches D2 and D1 are both turned on (representing less than 0.7 ohms). D2 allows the transmit signal to pass to the antenna and D1 shorts one leg of a T matching network (L3, L15 and C4) to ground in the receive path. This results in a parallel tuned circuit high impedance being presented to the transmit signal so that the receive path does not load the transmit signal. In the receive mode, both D2 and D1 are off, resulting in the antenna signal being coupled into the receive LNA through the 50 ohm T matching network and the unwanted load of the transmit final amplifier is reduced to less than 1 pF by D1. F). RADIO CONTROL CIRCUIT A microprocessor (U1) is used to control the transceiver. User stimuli is provided through a tack switch for PTT (push to talk), along with the keypad GMRS7001 TECHNICAL DESCRIPTION Page 3 for channel selection, channel monitor, receive volume, and page. Pressing the PTT switch instructs U1 to switch to the transmit mode. This is accomplished by loading the proper channel counter information through a 3- wire serial link to the PLL IC (Comno1), turning on power to the PLL and VCO, microphone and transmit audio circuits and the transmit RF amplifiers. Pressing the call switch causes the microcontroller to transmit a warbling tone for approximately 3 seconds on the current channel selected that is used to notify another person with GMRS radio that you wish to communicate. Pressing the channel Up/Down buttons (active in receiv…

Text truncated - open the document above for the full version.

GMRS7001 ALIGNMENT PROCEDURE Page 1 1. REFERENCE TEST EQUIPMENT A. HP8921A Cell site test set or HP8920A, B Communication Test Set with Spectrum Analyzer option. B. Fluke 187 Digital Voltmeter C. HP E3615A Power supply 2. TEST POINT A. ANTENNA : Test point is not prepared. Use antenna contact with ANTGND1(antenna ground). B. GMRS VCO reference voltage: Test point 1 is prepared. C. WX VCO reference voltage : Test point 2 is prepared. C. RX audio output : Speaker terminals & ear jack are prepared. D. TX Mic. Input : Use ear-jack(3.5mm) with 10uF coupling capacitor. E. Battery Vcc : Test point is not prepared. Please use mechanical contact. Plus terminal is posited on upper right corner of PCB (Battery cover side view). F. Up Key : Test point UP is prepared. G. Down Key : Test point DOWN is prepared. H. Function Key : Test point MENU is prepared. I. Monitor Key : Test point MONITOR is prepared. J. PTT Key : Test point PTT is prepared. K. Power Key : Test point PWR is prepared. L. Scan key : Test point SCAN is prepared. Note. : All key can be activated when connect with ground. 3. VCO ALIGNMENT A. Set unit to Channel 1 and connect a voltmeter to TP1 (VCO PD). B. Press & hold PTT. C. Extend L303 until the voltmeter reads 3.0V. D. Put shield-can on VCO area and monitor the voltage on TP1. The voltage should be 2.0Vdc +/-0.2Vdc. If the voltage is not 2.0Vdc +/-0.2Vdc, realign L303 until meet to requirement. E. Release PTT button so units is in receiving mode and monitor the voltage on TP1. The voltage should be in the range 2.0Vds +/-0.5V F. Set unit to channel 14. 6. Press & hold the PTT switch and observe the voltage on TP1. The voltage should be 2 – 3,5 Vdc. 7. Release PTT and observe the voltage on TP1. The voltage should read between 2.0 - 3.5 Vdc. Note : VCO shield-can should be soldered after VCO alignment is finished. 4. TRANSMITTER FREQUENCY ALIGNMENT A. Press & hold the PTT button. B. Align CT201 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. CT201 is located on the right side of 20.95MHz X-tal. GMRS7001 ALIGNMENT PROCEDURE Page 2 5. TRANSMITTER OUTPUT POWER CONFIRMATION A. Set unit to channel 1. B. Press & hold the PTT button. C. Transmit power should normally be between 0.3W to 1.8W. D. Set unit to channel 14. E. Press & hold the PTT button. Ensure that Tx Power meets 0.3W – 0.6W. 6. TRANSMITTER DEVIATION ALIGNMENT A. Connect an audio generator (600 ohms) to the ear jack. The audio frequency should be set at 1KHz with a level of 200mV RMS. B. Connect an FM deviation meter (communications test set) to Antenna contact. Set the monitor to read peak to peak divided by two [(pk-pk)/2] deviation. Set filter of equipment from 25Hz to 15KHz. C. Press & hold the PTT button. D. Align RV2 for +/- 2.1 kHz deviation (+/-0.1KHz). RV2 is located on the below of CT201. E. Decrease audio generator level until deviation reads +/- 1.5 kHz (approximately 12mV) and record generator level. Level should be between 6 mV and 10 mV. F. Confirm that transmit audio distortion is less than 5%. 7. RECEIVER ALIGNMENT A. Set the output level of the RF signal generator for -47dBm. The generator should be set for 1.5 kHz deviation at 1 kHz audio. B. Set volume level 4 (It is initial.). C. Connect Audio analyzer to TP10. D. Set equipment filter 25Hz to 15KHz. E. Align CF2 to get a maximum output level & a minimum distortion and confirm that Rx audio distortion is less than 5%. F. Confirm that Rx Sensitivity is less than –120dBm (nominally –123dBm) by reducing the output level of the RF signal generator until a 12 dB SINAD reading is achieved. H. Set SSG output level until 9dB sinad sensitivity and align RV1 until the unit is un-squelched. I. Set signal generator level to –47dBm. J. With 1.5KHz deviation at 1KHz modulation, set volume for maximum audio. Audio level should be on over than 1.9Vrms. 8. LOW BATTERY INDICATOR CONFIRMATION A. Set unit to receiving mode. Don’t set transmitter mode.. B. Set power supply voltage to 7.5V. C. Decrease power supply voltage until low battery icon blinks. 9. POWER OFF CURRENT CONSUMPTION A. Set power supply voltage to 6V and connect to unit. B. Confirm current. It must be less than 100uA. GMRS7001 ALIGNMENT PROCEDURE Page 3 10. FREQUENCIES TABLE Channel Freq. MHz Channel Freq. MHz 1 462.5625 12 467.6625 2 462.5875 13 467.6875 3 462.6125 14 467.7125 4 462.6375 15 462.5500 5 462.6625 16 462.5750 6 462.6875 17 462.6000 7 462.7125 18 462.6250 8 467.5625 19 462.6500 9 467.5875 20 462.6750 10 467.6125 21 462.7000 11 467.6375 22 462.7250

GMRS7001 SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Page 1 Designator Description Application D1 KDS114E RX TX switch D2 KDS114E RX TX Switch D4 KDS114E RX Audio Mute D5 KDS114E TX Audio Mute D201 KDS114E CPU Reset D301 KDS114E VCO RX TX Switch D25 KDS120 Charger diode LED1 SML210MT Backlit LED IC1 LM324 OP Amp IC2 LM386 Speaker Amp IC3 XC6201B402MR 4V Regulator IC5 LM324 OP Amp COMBO1 AN6311 One chip Radio IC U1 W742C81A Micro-controller Q1 NE5510279A TX PA Q2 KRC404E Speaker Amp enable Q3 BFQ67W TX Driver Q5 KRC404E CTCSS limiter Q6 2SC4226 LNA Q7 KTA2014E PTT Switch Q8 2SC4226 Mixer Q9 KRA306E WX B+ Switch Q10 KRA306E RX B+ Switch Q11 BFQ67W TX Pre-driver Q12 2SC4083 WX VCO Q13 KRA226 TX B+ Switch Q14 2SC4083 WX mixer Q15 KRC405E RX B+ Mute Q16 KRA226S Speaker Amp. Enable Q17 KRC405E TX Audio Mute Q18 KRA226S Main B+ Switch Q19 KRC401E VCO RX TX Switch Q20 KRA306E VCO B+ Switch Q21 KRA306E TX Power Hi/Low control Q22 KRA306E TX Power Hi/Low control Q23 KRC405E RX TX Switch Q301 2SC4226 VCO Q302 2SC4226 VCO

[RF EXPOSURE STATEMENT : PDHGMRS7001 / TTI TECH CO., LTD.] - CAUTION! - IMPORTANT SAFETY INFORMATION Your wireless hand-held portable transceiver contains a radio frequency transmitter. When the PTT button is pushed, the transmitter sends out RF signals. The device is authorized to operate at a transmit duty factor not exceeding 50% using alkaline “AAA” size batteries to comply with Federal Communications Commissions (FCC) RF exposure safety level guidelines for hand-held wireless devices. For body-worn operation, this device has been tested for SAR (Specific Absorbtion Rate) and meets the FCC RF exposure guidelines when used with the accessories supplied or designated for this device by the manufacturer. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use the manufacturer-supplied antenna only. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. To maintain compliance with the FCC’S RF exposure guidelines, hold the transceiver at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. GMRS License : Use of GRMS radios within the United States requires a FCC GMRS license. An individual of 18 years of age or older, who is not a representative of a foreign government is eligible to apply for a GMRS system license. You will need two forms from the FCC - FCC FORM 159 and FCC Form 605 Main Form and Schedule F. You can find the forms online at http://www.fcc.gov/formpage.html or call 1-800- 418-3676.

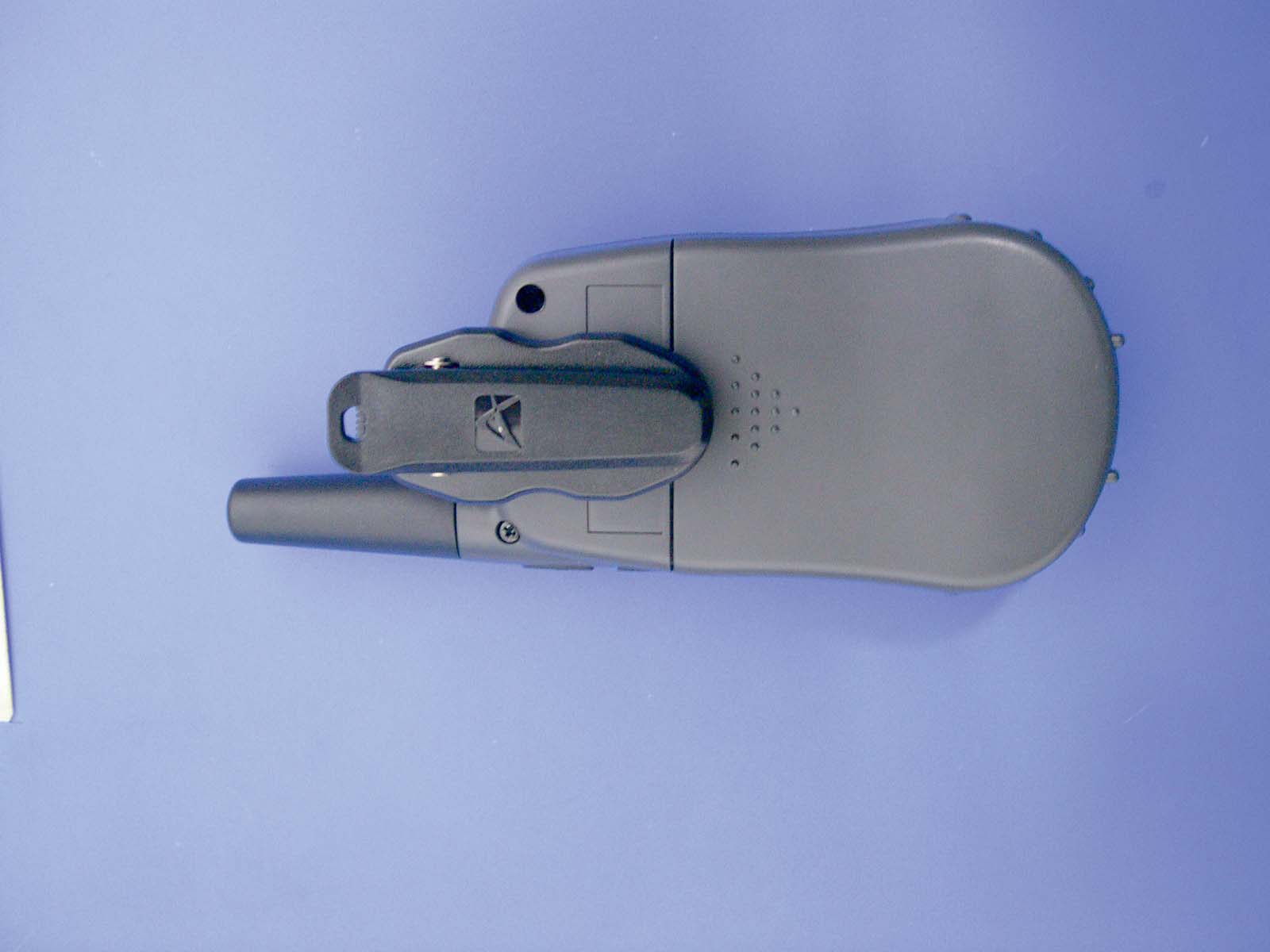

APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 TEST REPORT: PAGE 1......GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2......TECHNICAL DESCRIPTION & RF POWER OUTPUT PAGE 3......MOD. CHARACTERISTICS & AUDIO FREQUENCY RESPONSE GRAPH PAGE 4......MODULATION LIMITING GRAPH – 300 Hz PAGE 5......MODULATION LIMITING GRAPH – 1000 Hz & 2500 Hz PAGE 6......AUDIO LOW PASS FILTER GRAPH PAGE 7......OCCUPIED BANDWIDTH PAGE 8......OCCUPIED BANDWIDTH PLOT PAGE 9......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10.....UNWANTED RADIATION – GMRS PAGE 11.....UNWANTED RADIATION - FRS PAGE 12.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 13.....FREQUENCY STABILITY PAGE 14-16..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........LABEL LOCATION EXHIBIT 3.........EXTERNAL PHOTOGRAPHS EXHIBIT 4.........INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........THEORY OF OPERATION EXHIBIT 9.........ALIGNMENT PROCEDURE EXHIBIT 10........PARTS LIST EXHIBIT 11........TEST SET UP PHOTO APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc Page 1 of 16 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) TTI TECH CO., LTD. will manufacture the FCCID: PDHGMRS7001 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. TTI TECH CO., LTD. EUNDO BLDG. # 402, 737-19, BANPO-1DONG SEOCHO-KU, 137-041, KOREA 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 10K5F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2.25K Bn = 2(3000)+2(2250) = 10.5K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 7.5 V, and the transmitter properly adjusted the RF output measures: GMRS (HIGH) - 1.8 Watts GMRS (LOW) - 0.3 Watts FRS - 0.4 Watts APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc Page 2 of 16 2.1033(c)(6)(7) FRS Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR GMRS LOW POWER SETTING INPUT POWER: (7.5 V)(.297A) = 2.23 Watts FOR GMRS HIGH POWER SETTING INPUT POWER: (7.5V)(1.00A) = 7.50 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See exhibits 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. The test procedure used was TIA/EIA-603. APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc Page 3 of 16 APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc Page 4 of 16 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. AUDIO FREQUENCY RESPONSE PLOT GOES HERE Audio Frequency Response -20 -15 -10 -5 0 5 10 100100010000 Frequency Hz Attenuation dB APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc Page 5 of 16 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 2500 Hz. See Pages 4 and 5 of report. MODULATION LIMITING PLOT – 300 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc Page 6 of 16 MODULATION LIMITING PLOT – 1000 Hz MODULATION LIMITING PLOT – 2500 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation APPLICANT: TTI TECH CO., LTD. FCC ID: PDHGMRS7001 REPORT #: T/TTI_PDH\350UT3\350UT3TestReport.doc Page 7 of 16 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log…

Text truncated - open the document above for the full version.

C:\windows\TEMP\probonholdemail.doc TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] March 28, 2003 FCC REGARDING: TTI TECH CO., LTD. - FCC ID: PDHGMRS7001 SAR REPORT To Whom It May Concern: Based upon our review of the submitted SAR Report, the results indicated a “power droop” in excess of what we considered acceptable. However, the reported SAR values were well within the limits for both Body Worn and Face held configurations. We considered scaling the results by the amount of “droop” but considered this unacceptable as a first choice. Therefore, we asked for a retest using a DC Power Supply in place of batteries. This retest was performed for the worse case Body Worn configuration (20mm). The resulting power drift was recorded at 0.06dB yielding a SAR value of 1.075 W/kg for a 50% duty factor. By examining this new result, we verified the worst case SAR configuration did comply with the limits, therefore, we could reliably scale the additional values to verify compliance. An additional plot showing the described result is being submitted along with a dipole calibration plot for this requested test. A photograph of the test set-up which shows the EUT, phantom, and DC Power Supply is also included as part of the submission. Based on the results of the retest, this EUT does comply with the SAR limit of 1.6 W/kg. We will show on the “Grant” the worst case Body Worn Configuration value at 1.075 W/kg and the worst case Face Held configuration scaled up to 1.315 W/kg. These values meet the limits criterion. Very truly yours, Frank (for) Sid Sanders

Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 26, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 26, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 26, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 26, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 26, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 08, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 08, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0301 FCC ID : PDHGMRS7001 DATE : March 08, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.:…

Text truncated - open the document above for the full version.
