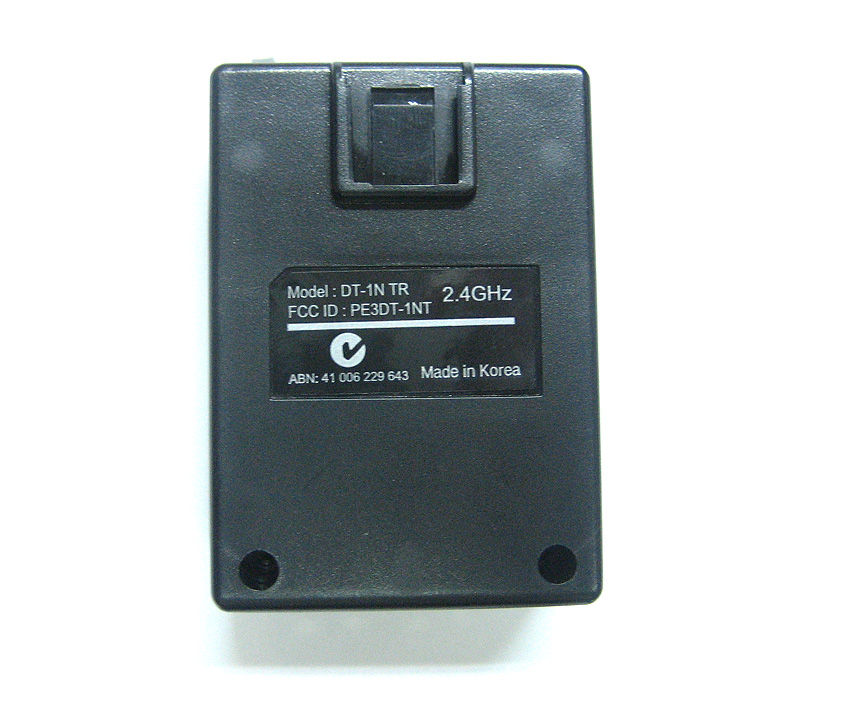

PE3DT-1NTDIGITAL TRANSMISSION SYSTEM

2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION USER’S MANUAL (IMPORTANT SAFETY INSTRUCTIONS & FCC NOTICE) ISV CO.LTD 2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION √ IMPORTANT SAFETY INSTRUCTIONS When using your equipment, basis safety precautions should always be followed to reduce the risk of life electric shock, and injury to persons, including the following. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, or Laundry tub in a wet Basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provide for ventilation, to protect it from overheating. These openings should never be blocked or covered. The opening should never should never be placed near or over a radiator or heat register. This product should not be placed in a built in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instruction. Adjust only those control that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified ISV CO.LTD 2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Avoid using a TRANSIMITTER (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the TRANSIMITTER to report a gas leak in the vicinity of the leak. √ SAFETY INFORMATIONS FOR DT-1NEW Your TRANSIMITTER contains a low power transmitter. When the Push-to Talk button is pushed it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50% in MARCH 2007 the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. CAUTION: To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 0.5 inches (1.25 centimeters) from your face, with the antenna pointed up and away from the face, if you wear the handset on your body while using the headset accessory, use only the manufacturers supplied belt clip for this product and ensure that the antenna is at least 1 inch (2,5centimeters) from your body when transmitting. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. This phone (device) has an output power of max 8.5mW, which no warning statements required. Now this phone (device) designed to be hold transmitter and antenna at least 1inchs(2.5cm) from your Face. Therefore this phone (device) satisfies RF exposure compliance. ISV CO.LTD 2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION √ IMPORTANT Read this manual before attempting to setup or use this instrument. If contains important Information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. √ WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of moisture. If accidentally dropped into water, this product should immediately by unplugged from the AC outlet jack. THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL. ! " INSTALLATION PRECAUTION 1. Never install docking station wiring during a lighting storm. 2. Never install power jacks in wet locations unless the jack is specially designed for wet locations. 3. Never touch insulated power terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. " MAINTENANCE 1. Use a damp cloth to the plastic cabinet. A mind soap will help to remove grease or oil. Never use polish, solvents, abrasives or strong detergents since these can damage the finish. 2. Your phone should b…

Text truncated - open the document above for the full version.

USER’S MANUAL (IMPORTANT SAFETY INSTRUCTIONS & FCC NOTICE) (DT-1NEW Transmitter and BASE) √ IMPORTANT SAFETY INSTRUCTIONS When using your equipment, basis safety precautions should always be followed to reduce the risk of life electric shock, and injury to persons, including the following. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, or Laundry tub in a wet Basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are providing for ventilation, to protect it from overheating. These openings should never be blocked or covered. The opening should never should never be placed near or over a radiator or heat register. This product should not be placed in a built in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instruction. Adjust only those control that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Avoid using a TRANSIMITTER (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the TRANSIMITTER to report a gas leak in the vicinity of the leak. √ SAFETY INFORMATIONS FOR DT-1NEW - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment must be installed and operated in accordance with provided instructions and hold the transmitter and antenna at least 0.5 inches (1.25 centimeters) from your face, with the antenna pointed up and away from the face, if you wear the transmitter on your body while using the headset accessory, use only the manufacturers supplied belt clip for this product and ensure that the antenna is at least 0.5 inch (1,25centimeters) from your body when transmitting. When you press the talk button, it sends out radio frequency (RF) signals. The TRANSMITTER is transmitting the Audio signal. Or when the active-low digital signal exists on the video-on input pin of the BASE (Docking–station), a recorder icon is displayed on the LED window of the transmitter. The TRANSMITTER operates Auto talk mode and it is transmitting the Audio signal too. CAUTION: To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 0.5 inches (1.25 centimeters) from your face, with the antenna pointed up and away from the face, if you wear the transmitter on your body while using the headset accessory, use only the manufacturers supplied belt clip for this product and ensure that the antenna is at least 0.5 inch (1,25centimeters) from your body when transmitting. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. This device has an output power of max 10mW, which no warning statements required. Now this device designed to be hold transmitter and antenna at least 0.5inches from your Face. Therefore this device satisfies RF exposure compliance. <Wearing Transmitter on your waist or arm> <Base (docking station) + VCR in the Vehicle> √ IMPORTANT Read this manual before attempting to setup or use this instrument. If contains important Information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. √ WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of moisture. If accidentally dropped into water, this product should immediately by unplugged from the AC outlet jack. THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL. ! " INSTALLATION PRECAUTION 1. Never install docking station wiring during a lighting storm. 2. Never install power jacks in wet locations unless the jack is specially designed for wet locatio…

Text truncated - open the document above for the full version.

April 5, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: PE3DT-1NT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Technical Description PE3DT-1NT - Technical Description.PDF Schematics Diagram(s) PE3DT-1NT - Schematic.PDF Block Diagram PE3DT-1NT - Block Diagram.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION Parts Lists ISV CO.LTD NO.PARTLOCATIONQ'TY ASS`Y / SET1.0 1 2작성일자 : 2007. FEB, 27 3REV:02 Transmitter Ass'Y 1 DT-1NEW Antenna2.0 2 Battery 600mAH Ni-MH1.0 3 JACK,MIC,EJ3512J1021.0 4 MIC 0B-27L40, Ass'y DIPMIC1.0 5 SWITCH,SLID,IS-2245ST,DIPSW1001.0 6 CVM MODULE1.0 7 Buzzer ,853TBZ1001.0 8 NJM2871AF03U102 1.0 9 DIODE,LED,BL-B2141-AA/GREEND100,D1022.0 10 DIODE,LED,BL-B5141-AV/ RED 3MMD1011.0 11 CONNECTOR,SD-53047-0210,2P,DIPJ1001.0 12 RES,CHIP,000,J,1608,1/16WR105,R124,R1413.0 13 RES,CHIP,152,J,1608,1/16WR1041.0 14 RES,CHIP,101,J,1608,1/16WR108,R1452.0 15 RES,CHIP,104,J,1608,1/16W R102,R125,R126,R131,R14 0 5.0 16 RES,CHIP,103,J,1608,1/16W R110,R112,R122,R123,R13 2,R138 6.0 17 RES,CHIP,102,J,1608,1/16W R111,R113,R114,R115,R11 7,R120,R146 7.0 18 RES,CHIP,222,J,1608,1/16WR128,R1302.0 19 RES,CHIP,224,J,1608,1/16WR1071.0 20 RES,CHIP,223,J,1608,1/16WR1211.0 21 RES,CHIP,330,J,1608,1/16WR1181.0 22 RES,CHIP,331,J,1608,1/16WR200,R2012.0 23 RES,CHIP,470,J,1608,1/16WR100,R101,R127,R1294.0 24 RES,CHIP,474,J,1608,1/16WR1061.0 25 RES,CHIP,561,J,1608,1/16WR1161.0 26 RES,CHIP,684,J,1608,1/16WR1191.0 27 CAP,CHIP,47uF, TANTAL,B2 Size 10VC1111.0 28 CAP,CHIP,10uF, TANTAL,A Size 6.3VC101.C106,C108,C1224.0 29 CAP,CHIP,1uF, TANTAL,A Size 6.3VC1071.0 30 CAP,CHIP,104Z,1608,16V/Y5V C104,C109,C113,C117,C11 8,C119 6.0 31 CAP,CHIP,105Z,1608,16V/Y5VC110,C1212.0 32 CAP,CHIP,5R6,C,1608,50V/COG C115,C116,C102,C103,C10 5,C112,C120,C123,C124,C 125,C126,C127,C128,C139, C140,C200,C201,C202,C20 3,C204,C205 21.0 33 TR, CHIP KTA1505YQ100,Q1062.0 34 TR, CHIP KTC3875SYQ104,Q105,Q1013.0 35 TR, CHIP KRC107SQ1031.0 36 TR, CHIP KTC3876SYQ1021.0 37 DIODE ZENER 4.7V SMDD105,D1062.0 38 DIODE LS4148D104,D107,D1093.0 39 DIODE RF PINDIODE BAR64V-02V GS08D200,D2012.0 40 DIODE ZENER PTZ5.1BD1031.0 41 SWITCH,TACT,IT118SW1011.0 42 CPU, ATMEGA88V10AUU1011.0 43 Hand Main PCB 1.0 DT-1N HAND TRANSMITTER PARTS LIST 1 / 2 NO.PARTLOCATIONQ'TY 기구 사출 t/m front 1 사출 t/m back 1 사출 belt clip 1 사출 knob power 1 사출 HOOK S/W 2 knob inuse 1 cover mic 1 cusion buzzer 1 double side tape 1 pvc plate/부직포 1 T/M CH terminal 4 c-mic busing 1 screw t/s bh+t2 2.0x5l fzy 1 screw exa socket m2.0x5l bk 2 CUSION C-MIC CUSION T/M LABEL SEARIAL1 LABEL FCC1 INSERT 3.6*72 BOX1 AIR POLY 1 2 / 2

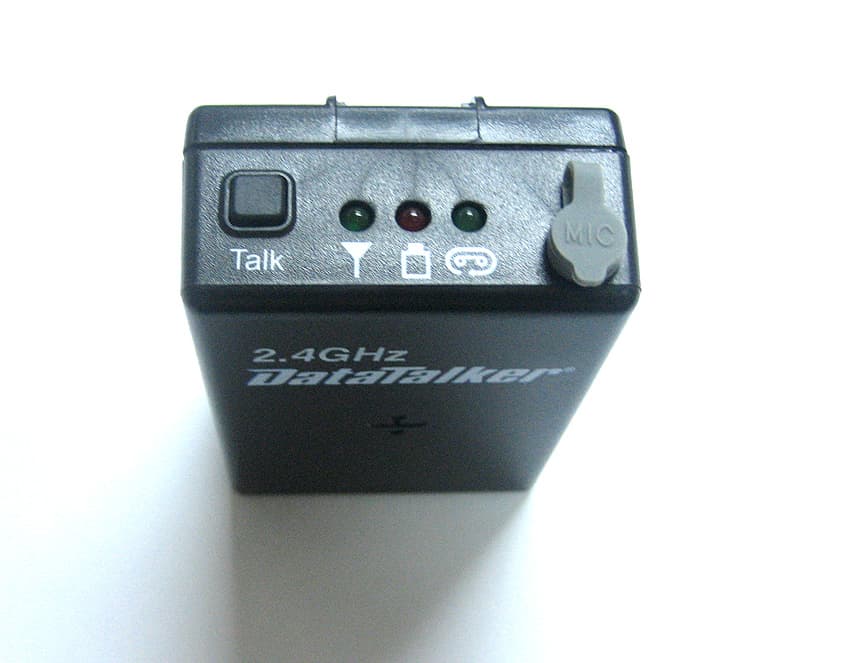

2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION General Description ISV CO.LTD 2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION DT-1NT/NR 2.4GHz Frequency Hoping Digital TRANSMITTER AND Base INSTRUCTION MANUAL DT-1NT/NR consists of a Base and transmitter. Read these instructions carefully for correct use and retain it for reference in future. SYSTEM CONFIGURATION Control BASE VCR Transmitter • 95 channels are possible in the 2400~2483 MHz bandwidth. • Transmission range reaches up to 350 meters in free area. • DT-1NT/NR conforms to RF regulations of FCC part 15. • Power: 12 VDC, Adaptor: For Charging 9VDC 400 mA Class 2 transformer wall adaptor provided. • Interconnection: RJ jack & cord provided • Dimension: Transmitter 66(L) × 46 (W) × 24 (H) mm BASE 75 (L) × 73(W) × 65 (H) mm • Color: black & black • Do not use this product near water, i.e., near a bathtub, wash bowl, kitchen sink or laundry Hub, in a wet basement, or near a swimming pool. • Do not use this product to report a gas leak in the vicinity of the leakage area. FEATURES • Longer range • Better voice quality • 95 channels operation • Auto talk • Auto stand-by • 3 stage output power selectable • 16 million auto-security code combination • LED indicator for out of range warning • High performance chipset • Low battery LED indicator • Ni-MH battery (3.6 VDC, 600 mAh) • VCR on-work display • Internal & external microphone ISV CO.LTD 2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION PIN DESCRIPTION OF THE BASE OUTPUT PORT Pin #1: AUDIO_OUT (output from the port) Pin #2: VIDEO_ON (active low input into the port) Pin #3: AUDIO_GND Pin #4: REC_OUT/TALK_MODE (output from the port) Pin #5: 12V VDC_IN (input into the port) Pin #6: SIG_GND CHARGING THE BATTERY (FULL CHARGE) 1. Once the BASE has power connection, place the transmitter in its cradle on the BASE. 2. Leave the transmitter on the cradle for at least 12 hours for a full charge. PREPARING FOR INITIAL USE 1. Ensure that the fully charged before initial use. 2. Check line and power connections to the BASE. 3. Select the ON position of power switch 4. Push the TALK button of the transmitter to check the operation. OPERATION 1. Supply 12 VDC power into the BASE using the provided AC adaptor. 2. Separate the transmitter from the BASE and turn on the transmitter. 3. Push the TALK button on the transmitter. When the antenna icon on the LED of the transmitter is displayed steadily, the communication channel between the BASE and transmitter has been setup and the transmitter is transmitting the audio signal. On the other hand, when the antenna icon blinks, the frequency channel between the BASE and transmitter does not match. Place the transmitter in its cradle on the BASE. Put Transmitter on the Receiver (Charging). Press and hold TR's talk button over 5 sec’s. Unhold the talk button. The TR+RE' Green LED is blinking 5 times and will be heard a confirm tone. the communication channel has been setup and the transmitter is ready to operate normally. 4. When the antenna icon is displayed on the LED window of the transmitter by pressing the toggling TALK button, the transmitter is transmitting the audio signal and the BASE outputs the active-high digital signal on the talk-mode output pin. 5. When the active-low digital signal exists on the video-on input pin of the BASE, a recorder icon is displayed on the LED window of the transmitter. 6. When the distance between the BASE and transmitter is within the coverage area, both the recorder and antenna icons are displayed steadily by providing the video-on signal on the BASE. On the other hand, when the distance between the BASE and transmitter is out of the coverage area, the recorder icon turns off and the antenna icon blinks. 7. When recording is finished, turn off the transmitter and place it in its cradle on the BASE for charging. ISV CO.LTD 2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION SPECIFICATIONS 1. Frequency Hoping / RF channel exclusion / Dual slot Antenna Diversity 2. Audible / LED display Out of Range warning. 3. Audible / LED display Low battery warning. 4. Earphone jack (transmitter Free) 5. Charging Status Indicator (Charging / Full charge) 6. Talk On/Off Key 7. Recording On/Off Indicator 8. AUTO Link, VCR On/Off (The base station is On /OFF control) 9. Recording Output signal 10. Transmitter Power switch control 11. Frequency Range: 2401.056MHz ~ 2482.272MHz 12. Up to longer Range 13. Data speed (via air interface) : 24kbit/sec 14. Modulation: GFSK 15. Channels: 95 (Channel spacing 0.864MHz) 16. Rx/Tx slots: 4/4 17. Fast Frequency hoping: Up to 800 hops/sec 18. Standard Compliance: FCC part 15.247/249 ISV CO.LTD 2.4GHz FHHS DIGITAL Transmitter/Docking MODEL: DT-1NT/NR USA VERSION Frequency Table ISV CO.LTD DT-1NEW Frequncy Table CHANNEL FRQUENCY(MHZ) CHANNEL FRQUENCY(MHz) 02401.056482442.528 12401.920492443.392 22402.784502444.256 32403.648512445.120 42404.512522445.984 52405.376532446.848 62406.240542447.712 72407.104552448.576 82407.968562449.440 92408.832572450.304 102409.696582451.168 112410.560592452.032 122411.424602452.896 132412.288612453.760 142413.152622454.624 152414.016632455.488 162414.880642456.352 172415.744652457.216 182416.608662458.080 192417.472672458.944 202418.336682459.808 212419.200692460.672 222420.064702461.536 232420.928712462.400 242421.792722463.264 252422.656732464.128 262423.520742464.992 272424.384752465.856 282425.248762466.720 292426.112772467.584 302426.976782468.448 312427.840792469.312 322428.704802470.176 332429.568812471.040 342430.432822471.904 352431.296832472.768 362432.160842473.632 372433.024852474.496 382433.888862475.360 392434.752872476.224 402435.616882477.088 412436.480892477.952 422437.344902478.816 432438.208912479.680 442439.072922480.544 452439.936932481.408 462440.800942482.272 472441.664

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ISV CO., LTD. FCC ID: PE3DT-1NT REPORT #: THRU-704001 TABLE OF CONTENTS Test Report Product Name: Digital Transmission System FCC ID: PE3DT-1NT Applicant: ISV Co., Ltd. 102-705 Bucheon Techno park 364 Samjung-Dong, O-jung-Gu, Bucheon, korea Date Receipt:04/02/2007 Date Tested: 04/12/2007 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ISV CO., LTD. FCC ID: PE3DT-1NT REPORT #: THRU-704001 TABLE OF CONTENTS APPLICANT: ISV Co., Ltd.. FCC ID: PE3DT-1NT TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1.............TEST PROCEDURE PAGE 2-4...........RADIATION INTERFERENCE PAGE 5.............NUMBER OF HOPPING CHANNELS PAGE 6-7...........DWELL TIME OF A HOPPING CHANNEL PAGE 8-10..........OCCUPIED BANDWIDTH PAGE 11............CARRIER FREQUENCY SEPARATION PAGE 12-14.........POWER OUTPUT PAGE 15............SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 16-17.........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 18-20.........RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND PAGE 21............POWER LINE CONDUCTED INTERFERENCE PAGE 22-23.........EQUIPMENT LIST PAGE 24-25.........RF EXPOSURE REQUIREMENT EXHIBITS INCLUDING: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ISV CO., LTD. FCC ID: PE3DT-1NT REPORT #: THRU-704001 1 of 25 TEST PROCEDURE BANDWIDTH 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth and the span set as shown on plot. POWER OUTPUT: The RF power output was measured radiated EIRP. ANTENNA CONDUCTED EMISSIONS: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ISV CO., LTD. FCC ID: PE3DT-1NT REPORT #: THRU-704001 2 of 25 APPLICANT: ISV Co., Ltd.. FCC ID: PE3DT-1NT NAME OF TEST: RADIATION INTERFERENCE Rules Part No.: 15.209 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: * Tuning Frequency : 2401.056MHz No Emission Frequency (MHz) Meter Reading dBuV/m Ant. Polaritry Correction Factor dB Cable Loss dB Field Strength (dBuv/m) Margin (dBuv) Limit (dBuv/m) 1 79.20 11.7 H 7.9 1.3 20.9 -19.1 40.0 2 80.30 12.5 V 8.1 1.3 22.0 -18.0 40.0 3 125.60 10.5 H 11.9 1.9 24.2 -19.3 43.5 4 200.30 9.9 H 10.9 2.5 23.3 -20.2 43.5 5 258.60 10.6 V 12.8 3.2 26.6 -19.4 46.0 6 302.40 11.9 V 16.1 3.4 31.4 -14.6 46.0 7 402.30 9.7 H 15.5 4.2 29.4 -16.6 46.0 8 531.50 8.5 H 17.8 5.1 31.4 -14.6 46.0 9 607.80 7.8 V 19.5 5.6 32.9 -13.1 46.0 10 680.30 8.0 H 21.2 6.1 35.3 -10.7 46.0 11 752.30 5.0 H 21.0 6.5 32.5 -13.5 46.0 12 862.60 6.3 V 23.4 7.1 36.8 -9.2 46.0 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-2003 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Pre-selector, a Hewlett Packard Model 85650A Quasi-Peak adapter, and an appropriate antenna – see the test equipment list. The bandwidth of spectrum analyzer was 100 kHz with an appropriate sweep speed. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. PERFORMED BY: Kyoung Moon Choi DATE: 04/12/07 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ISV CO., LTD. FCC ID: PE3DT-1NT REPORT #: THRU-704001 3 of 25 APPLICANT: ISV Co., Ltd.. FCC ID: PE3DT-1NT NAME OF TEST: RADIATION INTERFERENCE Rules Part No.: 15.209 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: * Tuning Frequency : 2441.664MHz No Emission Frequency (MHz) Meter Reading dBuV/m Ant. Polaritry Correction Factor dB Cable Loss dB Field Strength (dBuv/m) Margin (dBuv) Limit (dBuv/m) 1 39.90 12.9 V 12.8 0.8 26.5 -13.5 40.0 2 69.50 14.5 V 5.6 1.2 21.3 -18.7 40.0 3 72.90 10.5 H 6.2 1.3 18.0 -22.0 40.0 4 85.50 11.7 V 9.4 1.4 22.5 -17.5 40.0 5 194.90 12.4 H 14.8 2.5 29.7 -13.8 43.5 6 197.10 10.9 H 15.4 2.5 28.8 -14.7 43.5 7 510.60 12.9 H 17.9 5.0 35.8 -10.2 46.0 8 574.50 8.7 V 18.5 5.4 32.6 -13.4 46.0 9 592.10 6.1 V 18.8 5.5 30.4 -15.6 46.0 10 684.20 6.7 H 21.2 6.1 34.0 -12.0 46.0 11 859.20 5.8 H 23.3 7.1 36.2 -9.8 46.0 12 884.80 5.7 V 23.6 7.2 36.5 -9.5 46.0 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-2003 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Pre-selector, a Hewlett Packard Model 85650A Qu…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ISV CO., LTD. FCC ID: PE3DT-1NT REPORT #: THRU-704001 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] APPLICANT: ISV CO., LTD. FCC ID: PE3DT-1NT REPORT #: THRU-704001
