PE3DT-1RDIGITAL WIRELESS MIC

USER’S MANUAL (IMPORTANT SAFETY INSTRUCTIONS & FCC NOTICE) √ IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basis safety precautions should always be followed to reduce the risk of life electric shock, and injury to persons, including the following. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, or Laundry tub in a wet Basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provide for ventilation, to protect it from overheating. These openings should never be blocked or covered. The opening should never should never be placed near or over a radiator or heat register. This product should not be placed in a built in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instruction. Adjust only those control that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Avoid using a TRANSIMITTER (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the TRANSIMITTER to report a gas leak in the vicinity of the leak. √ SAFETY INFORMATIONS FOR DT-1 Your TRANSIMITTER contains a low power transmitter. When the Push-to Talk button is pushed it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50% in August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. CAUTION : To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 0.5 inches (1.25 centimeters) from your face, with the antenna pointed up and away from the face, if you wear the handset on your body while using the headset accessory, use only the manufacturers supplied belt clip for this product and ensure that the antenna is at least 1 inch (2,5centimeters) from your body when transmitting. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. This phone (device) has an output power of max 32mW, which no warning statements required. Now this phone (device) designed to be hold transmitter and antenna at least 0.5inchs from your Face. Therefore this phone (device) satisfies RF exposure compliance. √ IMPORTANT Read this manual before attempting to setup or use this instrument. If contains important Information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. √ WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of moisture. If accidentally dropped into water, this product should immediately by unplugged from the AC outlet jack. THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL. " INSTALLATION PRECAUTION 1. Never install docking station wiring during a lighting storm. 2. Never install power jacks in wet locations unless the jack is specially designed for wet locations. 3. Never touch insulated power terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. " MAINTENANCE 1. Use a damp cloth to the plastic cabinet. A mind soap will help to remove grease or oil. Never use polish, solvents, abrasives or strong detergents since these can damage the finish. 2. Your phone should be situated away from heat sources such as radiators, heater, stoves or Any other appliance that produces heat. " CAUTION To reduce the risk of fire or injure to persons, read and follow these instructions: 1. Use only the following type and the size battery : 1200mAh, 3.6V (LI-ION 1200Ma/3.6V, or equivalen…

Text truncated - open the document above for the full version.

G G G G 102-705 PUCHEON TECHNOPARK 364, SAMJUNG DONG, OJUNG GU, PUCHEON CITY, KYUNGGIDO, SOUTHKOREA 421-809 Tel: 82-32-234-0700 Fax: 82-32-327-1125 Website : http://www.isvco.com I S V Co., Ltd International Science Venture Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: PE3DT-1R & PE3DT-1T. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematic Diagram(s) Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jeong Hun Kim

DT-1R FCC label Location (640x480x16M jpeg)

G G G G 102-705 PUCHEON TECHNOPARK 364, SAMJUNG DONG, OJUNG GU, PUCHEON CITY, KYUNGGIDO, SOUTHKOREA 421-809 Tel: 82-32-234-0700 Fax: 82-32-327-1125 Website : http://www.isvco.com I S V Co., Ltd International Science Venture FCC MARKING/LABEL FOR PART 15 G yŒŠŒŒ™Gsˆ‰Œ“G {™ˆ•š”››Œ™Gsˆ‰Œ“G G t–‹Œ“GaGk{TXGiG mjjGpkGa GwlZk{TXyG GGGGGGGGGGGGG tˆ‹ŒG•Gr–™ŒˆG G G t–‹Œ“GaGk{TXG{yG ~hyupunGaG”ˆ GŒŸ—“–‹ŒGG ‹š—–šŒ‹G–G•G™ŒG–™Gžˆ›Œ™G t‹  sT–• ”ˆ™’ 102-705 PUCHEON TECHNOPARK 364, SAMJUNG DONG, OJUNG GU, PUCHEON CITY, KYUNGGIDO, SOUTHKOREA 421-809 Tel: 82-32-234-0700 Fax: 82-32-327-1125 Website : http://www.isvco.com I S V Co., Ltd International Science Venture In The Manual FCC NOTICE Certification or DoC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION.

102-705 PUCHEON TECHNOPARK 364, SAMJUNG DONG, OJUNG GU, PUCHEON CITY, KYUNGGIDO, SOUTHKOREA 421-809 Tel: 82-32-234-0700 Fax: 82-32-327-1125 Website : http://www.isvco.com I S V Co., Ltd International Science Venture FCC MARKING/LABEL FOR PART 15

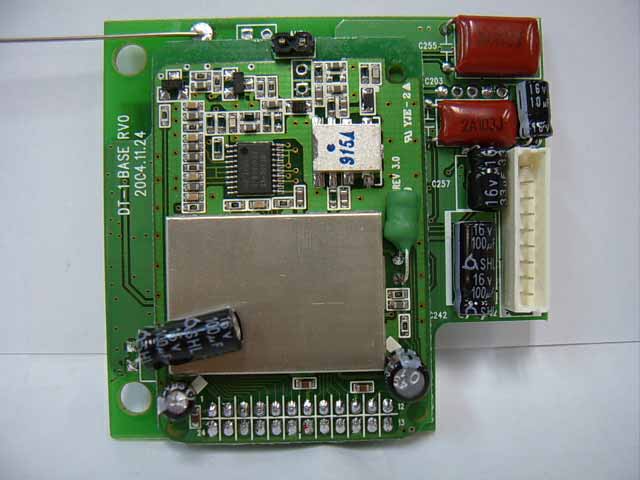

charger pcb bottom (640x480x16M jpeg) charger pcb top (640x480x16M jpeg) led pcb bottom (640x480x16M jpeg) led pcb top (640x480x16M jpeg) receiver pcb bottom(without RF) (640x480x16M jpeg) receiver pcb bttom (640x480x16M jpeg) receiver pcb top (640x480x16M jpeg) receiver RF pcb bottom (640x480x16M jpeg) receiver RF pcb top (640x480x16M jpeg)

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: ISV Co.,LTD.. FCC ID: PE3DT-1R REPORT :THRU-412003 COVER SHEET Test Report Product Name: 900MHz Wireless police MIC FCC ID: PE3DT-1R Applicant: ISV Co.,LTD.. 1102-705 Pucheon-Techonopark 364, Samjung-Dong, Ajung-Gu Date Receipt: 12/14/2004 Date Tested: 12/17/2004 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: ISV Co.,LTD.. FCC ID: PE3DT-1R REPORT :THRU-412003 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: ISV Co.,LTD.. FCC ID: PE3DT-1R TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2-3.............TEST PROCEDURES PAGE 4...............POWER LINE CONDUCTED INTERFERENCE PAGE 5-8.............OCCUPIED BANDWIDTH PAGE 9-12............PEAK POWER OUTPUT PAGE 13..............RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND DUTY CYCLE PAGE 14-18...........RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED PAGE 19-22...........POWER SPECTRAL DENSITY EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: ISV Co.,LTD.. FCC ID: PE3DT-1R REPORT :THRU-412003 Page 1 of 22 APPLICANT: ISV Co.,LTD.. FCC ID: PE3DT-1R TEST EQUIPMENT LIST DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2005.04.07. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2005.04.07. Spectrum Display 85662A Hewlett Packard 2542A12429 2005.04.07. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2005.04.07. RF Preselector 85685A Hewlett Packard 2648A00504 2005.04.07. Pre-Amplifier 8449B Hewlett Packard 3008A00375 2005.04.07. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2005.04.07. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2005.04.07. Bico-Antenna 94455-1 Eaton 977 2005.03.17. Log-Periodic Antenna 3146 EMCO 2051 2005.03.17. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2005.03.17. Horn Antenna SAS-571 A.H Systems 414 2005.03.17. Spectrum Analyzer R3261C Advantest 71720189 2005.04.07. LISN KNW-242 Kyoritsu 8-923-2 2004.07.17. LISN 8012-50-R- 24 Solar 8379121 2004.07.17. Loop Ant 6507 EMCO 1435 2004.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2005.04.07. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2005.04.07. Frequency Counter CMC251 Tektronic CMC-251TW52489 2005.04.07. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: ISV Co.,LTD.. FCC ID: PE3DT-1R REPORT :THRU-412003 Page 2 of 22 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written Approval of THRU &ENGINEERING. Shielded interface cables were used in all cases except for cables connecting to the telephone line and the power cords. A test program was run which simulated a normal data transmission on a network. POWER LINE CONDUCTED INTERPERENCE: The procedure used ANSI STANDARD C63,4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10 KHz with an appropriate sweep speed. The ambient temperature of the UUT was 9 with a humidity of43%. BANDWIDTH 6.0dB : The measurement were made with the spectrum analyzer’s resolution bandwidth (RBW)=300 KHz and the video bandwidth (VBW) =300 KHz and the span set as shown on plot. POWER OUTPUT: The RF power output was measured at the antenna feed point by removing the permanent antenna and connecting the UUT to a spectrum analyzer, HP Model No.8866B, RBW=3MHz, VBW>or=RBW, span=5MHz. ANTENNA CONDUCTED EMISSIONS: The RBW=100KHz, VBW > or = RBW and the spectrum was scanned from 30MHz to the 10 th Harmonic of the fundamental. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth (RBW) of the spectrum analyzer was 100KHz up to 1GHz and 1.0MHz above 1 GHz with an appropriate sweep speed. The VBW above 1.0 GHz was = 1.0 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the UUT was 9 with a humidity of 43%. 15.247(d) POWER SPECTRAL DENSITY: The peak within the pass band was located with a RBW set to 30KHz and a span of 5 MHz, slightly greater than the 6dB bandwidth, then the emission was centered on the display and the span and RBW reduced. A 2MHz span, 3KHz RBW, and a sweep time to sweep time set to 670 seconds. Since spectral line spacing could not be resolved, the noise power density method was used. The response was then plotted, a correction factor of measured using the noise power density and adding the correction of 35dB and any attenuation used was added. 15.247(e) : PROCESSING GAIN, This gain is supplied by the manufacturer of the UUT. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: ISV Co.,LTD.. FCC ID: PE3DT-1R REPORT :THRU-412003 Page 3 of 22 2.1033(b) (4) ANTENNA AND GROUND SYSTEM : This unit uses a short, inductively loaded, antenna element for the base unit and the handset. The antenna is permanently attached to the unit and no provision is made for connection to an external antenna. No ground connection is provided. The only ground in use is the…
