PE3IP-240RWireless Mouse Receiver

ISV Co., Ltd.

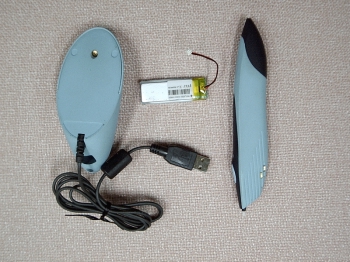

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Oct 16, 2003
Application Purpose: Original Equipment
Date of Application: Oct 16, 2003
Equipment Note: Wireless Mouse Receiver
Company: ISV Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V User’s Manual 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V G Mouse User’s Guide http://www.fingersystemusa.com/ 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V mjjGuv{pjlG G G G G G G G G G G G This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : G TGyGGGGGUG G TGpGGGGGGGUG G TGjGGGGGGGGGGGG GGGGGGGGUG G TGjGGGGGGV{}GGGUG G uv{lG aG{GGGGGG GGG{}GGG G ¡G G G G UG zG G G G G NG GGGGUG G {opzGkl}pjlGjvtwsplzG~p{oGwhy{GX\GvmG{olGmjjGy|slzUGGG vwlyh{pvuGpzGz|iqlj{G{vG{olGmvssv~punG{~vGjvukp{pvuzaG OXPG{opzGkl}pjlGthGuv{Gjh|zlGohytm|sGpu{lymlylujlSGhukG OYPG{opzGkl}pjlGt|z{Ghjjlw{GhuGpu{lymlylujlGyljlp}lkSG pujs|kpunGpu{lymlylujlG{oh{GthGjh|zlG|uklyzpylkGvwlyh{pvuUG 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V G Mouse User’s Guide IPMO-030926 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Thank You Thank you for purchasing the i-pen Mouse. You have made an excellent choice for your next digital input device. i-pen Mouse is designed to be used for many functions with ease. Trademarks The following are registered trademarks of FingerSystem Inc.: i-pen, i-pen logo, and FingerSystem logo. FingerSystem is a trademark of FingerSystem Inc. Other product names mentioned in this guide may also be trademarks or registered trademarks of their respective owners. Proprietary Statement The digitally encoded software included with your i-pen is Copyrighted © 2003 by FingerSystem Inc. All Rights Reserved. This software may not be reproduced, modified, displayed, transferred, or copied in any form or in any manner or on any media, in whole or in part, without the express written permission of FingerSystem Inc. Copyright Notice This manual is Copyrighted © 2003 by FingerSystem U.S.A., Inc., 9237 Eton Ave., Chatsworth, CA 91311. All Rights Reserved. This document may not be copied, in whole or part, not transferred to any other media or language, without written permission of FingerSystem U.S.A., Inc. Manual Notice FingerSystem U.S.A., Inc. reserves the right to make changes to this manual and to the equipment described herein without notice. Considerable effort has been made to ensure that this manual is free of inaccuracies and omissions. However, FingerSystem U.S.A., Inc. makes no warranty of any kind including, but not limited to, any implied warranties of merchantability and fitness for a particular purpose with regard to this manual. FingerSystem U.S.A., Inc. assumes no responsibility for, or liability for, errors contained in this manual or for incidental, special, or consequential damages arising out of the furnishing of this manual, or the use of this manual in operating the equipment, or in connection with the performance of the equipment when so operated. Registering i-pen Mouse Mail – Fill out and send in the registration card enclosed in your shipment. Online – Go to http://www.fingersystemusa.com/registration/ 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Contents Description................................................................................................................................................................. 1 Shipment Contents – 1 Features – 1 Specifications – 1 Bundled Softwares – 1 Documentation Set – 1 System Requirements............................................................................................................................................... 2 Installing i-pen Mouse Driver and Softwares.......................................................................................................... 2 Windows 98 Second Edition – 4 Using i-pen Mouse.................................................................................................................................................... 7 Helpful Tips on Using i-pen Mouse – 7 Optical Character Recognition – 9 i-pen Mouse Pad - 9 Using i-pen Control Center....................................................................................................................................... 9 Speed – 10 Double Click – 10 i-pen Info - 10 Using Web-Memo™................................................................................................................................................. 11 Required Environments – 11 Internet Explorer Window Using Web-Memo™ – 11 Tool Selection Pallet – 12 Using Finger White™.............................................................................................................................................. 13 Finger White™ Window – 13 Finger White™ System Tray Icon – 13 Tool Selection Pallet – 14 Using ritePen™(Applicable for English only)...........................................................................................................15 System Requirements – 15 ritePen™ Window – 15 ritePen™ System Tray I…

Text truncated - open the document above for the full version.

Block Diagram

2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Block Diagram

Internal Photos

2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V PCB Layout

Operational Description

2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V International Science Venture 2.4GHz Wireless Optical Pen–Mouse 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V General Description 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Basic Feature List WIRELESS OPTICAL PEN MOUSE HIGH FASHIONABILITY DESIGN 40 CHANNEL OPERATION 400 CPI RESOLUTION 2^16 SECURITY CODES AUTO-SECURITY CODE COMBINATION RANDOM ID SETTING FIEXIBLE APPLICATION SOFTWARE LONG RANGE ( 15m ) IN-USE USB PORT Transmitter Unit feature List (pen-mouse) INNER ANTENNA ACTIVE / STAND BY / POWER SAVE THREE MODE AUTO STAND-BY & POWER SAVE FAST WAKE-UP LOW BATTERY INDICATOR( LED BLINKING) POWER ON/OFF SWITCH Receiver Unit Feature list (PC USB interface & Charger) INNER ANTENNER. CHARGING INDICATOR LED. BATTERY LEVEL DISPLAY. - RED -> EMPTY. - ORANGE(RED+GREEN) -> MIDDLE. - GREEN -> GOOD 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Specification 1. Reference Specifications Designed to conform to RF regulations Designed to conform to SAFETY regulations POWER : 5V DC 100mA USB POWER ON COMPUTOR I NTERCONNECTION : USB PORT 2. General specifications DESCRIPTION TX RX TRANSMITTER 2402.762405.10MHz Frequency range RECEIVER 2402.76 ~ 2405.1MHz Number of RF Channels 40 Channels Channel spacing 60KHz Frequency Stability Within· 2.5ppm RF Output power Less than 0.1mW Usable sensitivity -100dBm Type of Data modulation FM (F3E) ID Code Element EEPROM Transmitter 3.7VDC, 400mA Li-Polymer Battery Supply voltage Receiver 5VDC USB Power Operating Temperature 0 50 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Frequency Table 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Channel space : 60KHz 1st I.F : 21.69MHz RECEIVER(MHz) TRANSMITTER(MHz) CH RX TX REMARK 1 2402.76 2402.76 2 2402.82 2402.82 3 2402.88 2402.88 4 2402.94 2402.94 5 2403.00 2403.00 6 2403.06 2403.06 7 2403.12 2403.12 8 2403.18 2403.18 9 2403.24 2403.24 10 2403.30 2403.30 11 2403.36 2403.36 12 2403.42 2403.42 13 2403.48 2403.48 14 2403.54 2403.54 15 2403.60 2403.60 16 2403.66 2403.66 17 2403.72 2403.72 18 2403.78 2403.78 19 2403.84 2403.84 20 2403.90 2403.90 21 2403.96 2403.96 22 2404.02 2404.02 23 2404.08 2404.08 24 2404.14 2404.14 25 2404.20 2404.20 26 2404.26 2404.26 27 2404.32 2404.32 28 2404.38 2404.38 29 2404.44 2404.44 30 2404.50 2404.50 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V RECEIVER(MHz) TRANSMITTER(MHz) CH RX TX REMARK 31 2404.56 2404.56 32 2404.62 2404.62 33 2404.68 2404.68 34 2404.74 2404.74 35 2404.80 2404.80 36 2404.86 2404.86 37 2404.92 2404.92 38 2404.98 2404.98 39 2405.04 2405.04 40 2405.10 2405.10 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Block Diagram 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Circuit Diagram 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Circuit Explanation 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Transmitter Circuit Description The data which inputted in optical-sensor is transformed to X,Y co-ordinate data at IC3. IR-LAMP FIG.1 X,Y co-ordinate data which is transformed into Digital signal at CPU(IC4 ) and transmitted to TX DATA port. TX DATA PORT CPU PIN22 FIG.2 The data which inputted by tact switch is transformed to “click data” at IC4 and transmitted to TX DATA port. FIG.3 Transmitter is set on receiver then id-data, which inputted to id-data port, is transferred to CPU and id-data is transferred to EEPROM. ID-DATA FIG.4 GUIDE OPTICAL SENSOR IC(IC3) CPU PIN18,19,20,21,25 OPTICAL SENSOR IC(IC3) TACT S/W(LEFT) CPU PIN9 PIN16 TACT S/W(RIGHT) PIN10 PIN12 CPU PIN5 EEPROM 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V The output voltage of battery is regulated 3.7v and is used by main supplying voltage of transmitter CPU and TX-power. If transmitter is placed on the receiver, resistor R1, R2 and diode D2 control charge current. CHG 3V FIG.5 D2 REGULATOR IC BATT PIN25 CPU BATT 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Receiver Circuit Description The signal from RF circuit are transmitted the DATA-DETECTION-CIRCUIT and detected data. RF FIG.6 A CPU receives the data from the DATA-DETECTION-CIRCUIT and process USB data, which is processed by CPU and transfer USB port. D+ D- FIG.7 The transmitter send BATTERY-LEVEL-DATA to the receiver then the receiver display BATTERY- LEVEL by LED color. BAT-LEVEL-DATA LED DISPLAY FIG.8 DATA-DETECTION-CIRCUIT Q3,Q4 PIN3 CPU DATA-DETECTION-CIRCUIT Q3,Q4 PIN3 CPU PIN17 PIN18 USB PORT TRANSMITTER RECEIVER 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V The output voltage of USB port is regulated 5v, which is voltage is used by main supplying voltage of receiver CPU and RX power. If transmitter is placed on the receiver, resistor R1, R3 detects charging and resistor R10 control charge current. 5V USB-PORT 3V CHG-DET CHG-DET FIG.8 If transmitter is placed on the receiver, CPU makes a new ID-CODE by random processing and store EEPROM and transfer transmitter using ID-DATA port. ID-DATA ID-DATA FIG.9 R10 REGULATOR IC TRANSMITTER R1,R3 PIN12 CPU CPU PIN9 PIN11 EEPROM PIN5 ID-DATA PORT 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V RF Circuit Description TX Part The signal that made in the CPU enters into the TX-DATA port on RF circuit. The signal is modulated by the L917(21.24MHz).This signal is mixed with the VCO frequency. The RF signal enters into the transmission power AMP transistor (Q1). The signal amplified in the Q1, Q905 enter by the BAND-PASS-FILTER U906 (2403MHz). After passing the BAND-PASS-FILTER U906, transmit toward to the antenna. The final transmission RF signal is 2402.76MHz 2405.10MHz. LOCAL OSC TX-DATA PORT ANTTENA OUT FIG.10 X901 is X-RAL generating RF–reference signal and should be adjusted by TC901 accurately. REF-OSC(21.24MHz) FIG.11 L917 AMPTX MIXERTX AMP BAND PASS FILTER PLL IC PLL ICX-TAL 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V…

Text truncated - open the document above for the full version.

Parts List/Tune Up Info

2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Parts List 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V 2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V

Schematics

2400 MHz WIRELESS OPTICAL PEN - MOUSE MODEL : I-PEN PRO I S V Circuit Diagram
