PE3KT-24NRDIGITAL TRANSMISSION SYSTEM

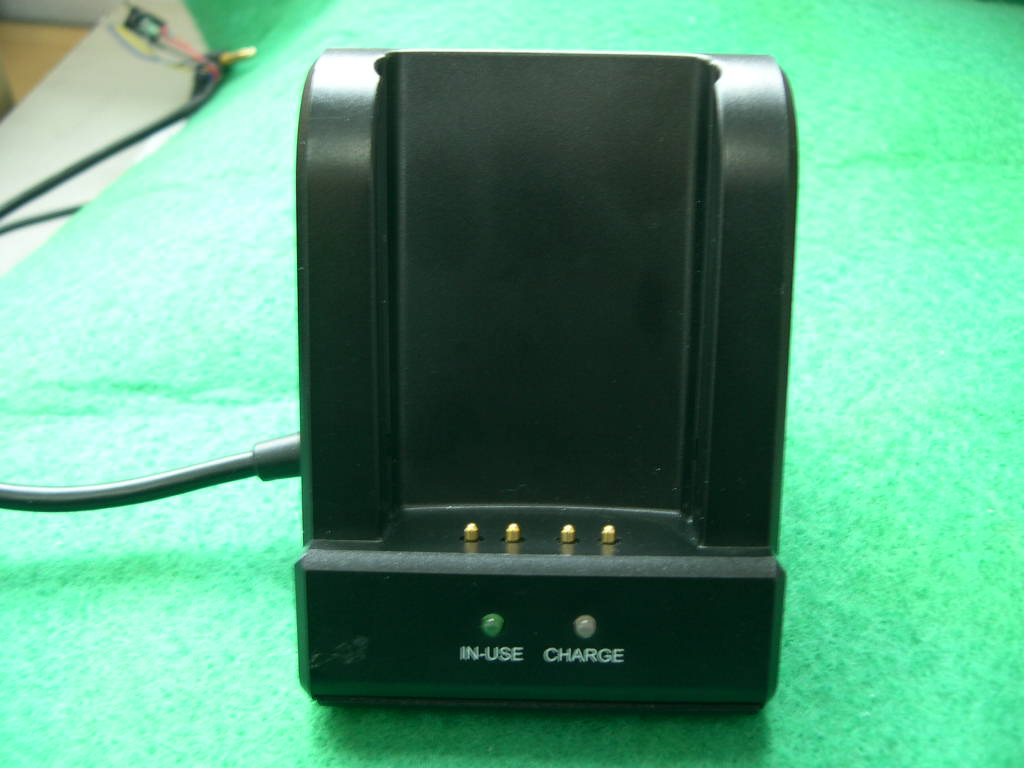

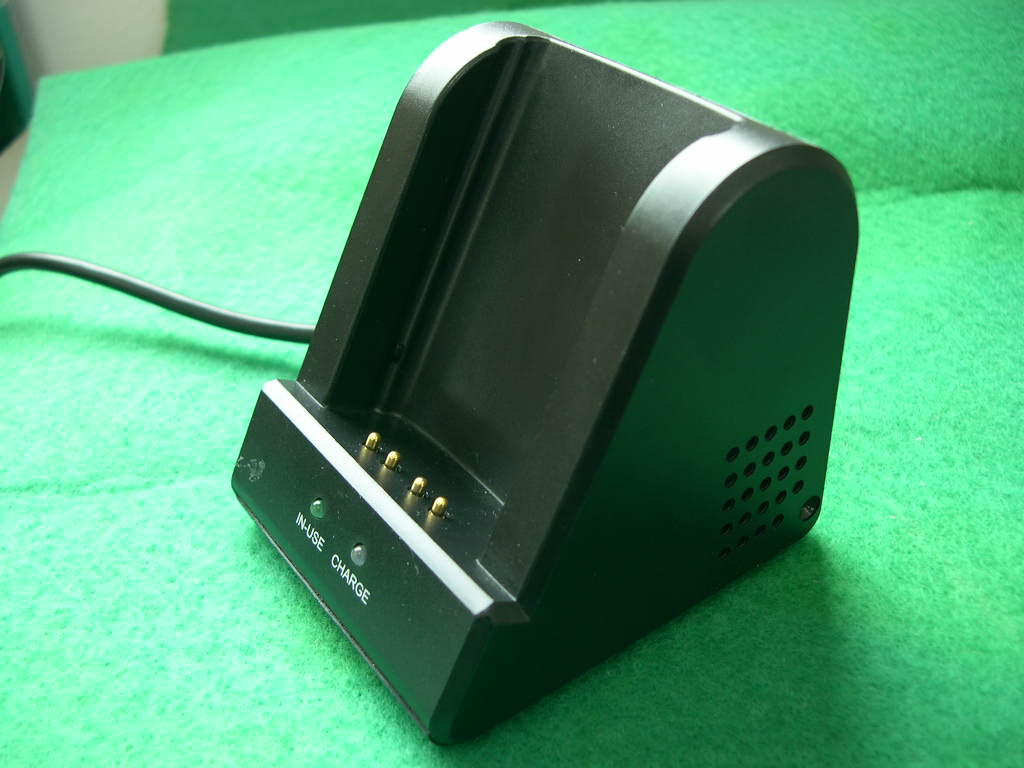

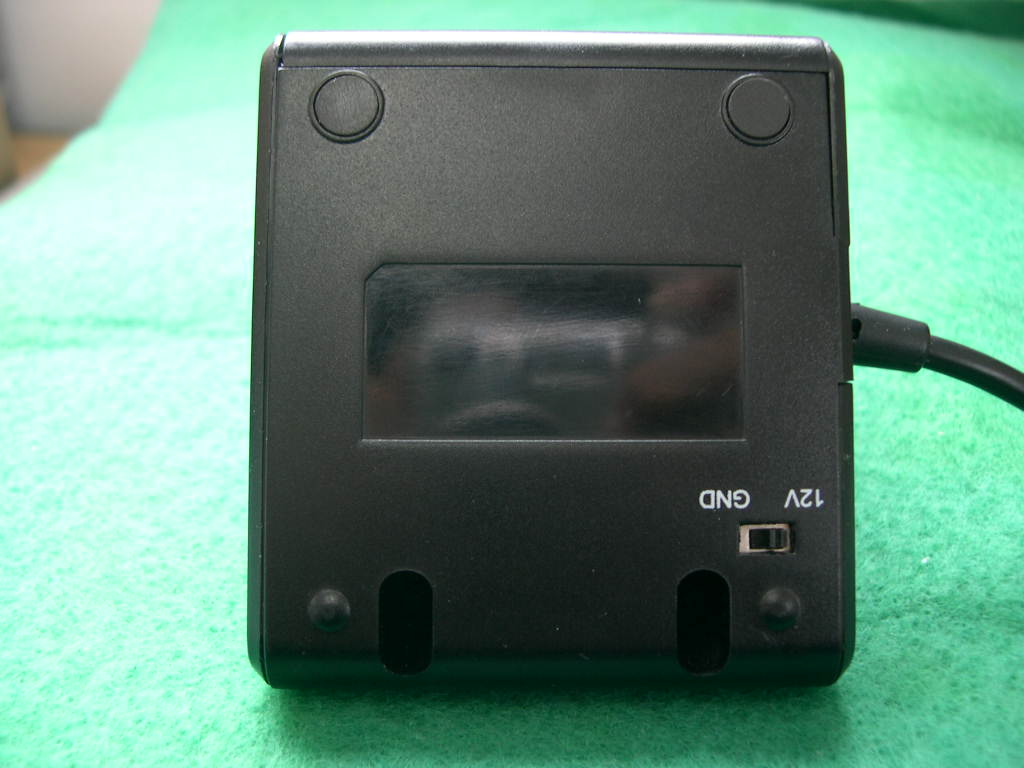

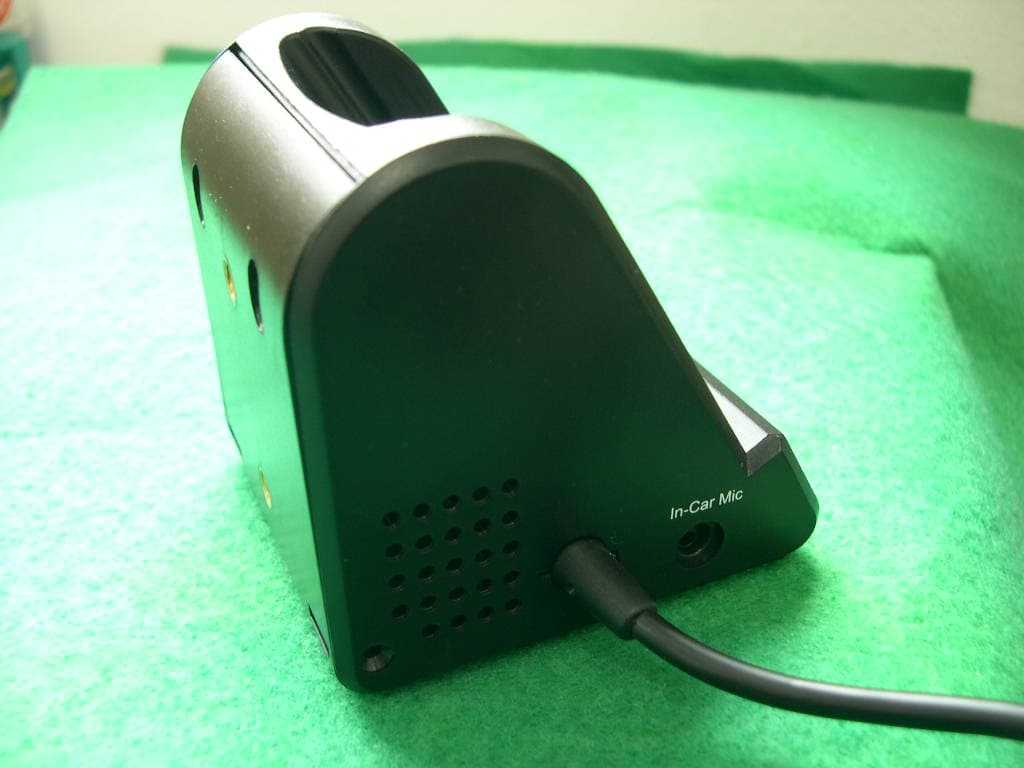

General Description KT-24N 2.4GHz Frequency Hoping Digital TRANSMITTER AND Base INSTRUCTION MANUAL KT-24N consists of a Base and transmitter. Read these instructions carefully for correct use and retain it for reference in future. SYSTEM CONFIGURATION • 95 channels are possible in the 2400~2483 MHz bandwidth. • Transmission range reaches up to 350 meters in free area. • KT-24N conforms to RF regulations of FCC part 15. • Power: 12 VDC, Adaptor: For Charging 9VDC 400 mA Class 2 transformer wall adaptor provided. • Interconnection: RJ jack & cord provided • Dimension: Transmitter 66(L) × 46 (W) × 24 (H) mm BASE 80 (L) × 70(W) × 74 (H) mm • Color: black & black • Do not use this product near water, i.e., near a bathtub, wash bowl, kitchen sink or laundry Hub, in a wet basement, or near a swimming pool. • Do not use this product to report a gas leak in the vicinity of the leakage area. FEATURES • Longer range • Better voice quality • 95 channels operation • Auto on • Auto stand-by • 2 transimitters • Beep sound on/off switch • LED indicator for out of range warning • High performance chipset • Low battery LED indicator VCR Control BASE sleave master • Li-ion battery (3.7 VDC, 1200 mAh) • VCR on-work display • Internal & external microphone PIN DESCRIPTION OF THE BASE OUTPUT PORT Connector wire Pin #1 : MIC trigger (blue) Pin #2 : Panic Trigger (black) Pin #3 : Inside car mic trigger(yellow) Pin #4 : GND(orange) Pin #5 : 12V VDC_IN (red) Pin #6 : VIDEO_ON (brown) Audio jack Pin #1 AUDIO_GND Pin #2 AUDIO_OUT (output from the port) Pin #3 car mic out CHARGING THE BATTERY (FULL CHARGE) 1. Once the BASE has power connection, place the transmitter in its cradle on the BASE. 2. Leave the transmitter on the cradle for at least 4 hours for a full charge. 3. Charge LED stays red during charging and turns green after full charge. PREPARING FOR INITIAL USE 1. Ensure that the fully charged before initial use. 2. Check line and power connections to the BASE. 3. Select the ON position of power switch 4. Push the TALK button of the transmitter to check the operation. OPERATION 1. Supply 12 VDC power into the BASE using the Car Battery. 2. 1) Separate the transmitter from the BASE and turn on the transmitter. 2) When In-Use LED blinks for a few seconds and stops blinking, communication channel between Base and Transmitter has been set up. When In-Use LED keeps blinking, the communication channel between Base and Transmitter does not match. 3) How to set up communication channel between Base and Master Transmitter Put Transmitter on the Base for charging. Press and hold the Talk button on the Transmitter for over 5 seconds. Release the Talk button and Green LED’s(In-Use LED)on both the Base and Transmitter blink and a confirm tone is heard. Now communication channel has been set up and Transmitter is ready to operate normally. In case of setting up communication channel by Slave Transmitter, on the other hand, The In-Use LED on Base does not blink and stays on. 4) Basically KT-24N allows the simultaneous usage of two transmitters. Though one master Transmitter is used with one Base, optionally another Transmitter (Slave) can be used. In short, one master Transmitter can be used with one Base, instead of using two master Transmitters or two slave Transmitters with one Base. Each of master Transmitter and slave Transmitter is marked on the label on each of the Transmitter. 3. When the In-Use LED on the top of Transmitter turns on by pressing the toggle Talk button, the Transmitter transmits the audio signal and the Base outputs the active-high(12V) digital signal on the Talk mode output pin. Active-high or active-low on the bottom of the Base is selectable. 4. When the active-low digital signal is transmitted to the video-on input pin of the Base, Transmitter turns on automatically. When input signal switches from active-low to high, Transmitter goes to Standby mode automatically. 5. KT-24N has Emergency function. Whether Transmitter is either in Standby mode or In-Use mode, Emergency function is operable. Siren turns on/off by pressing toggle red(EMG) button. In case toggle red(EMG) buttons on both transmitters are pressed, the siren turns on/off not independently. When the siren turns on with master Transmitter, for example, the siren turns off if pressing toggle red button of slave Transmitter once. 6. When the distance between the Base and Transmitter is within the coverage range, In-Use LED stays on, but if the distance is out of the area, In-Use LED blinks and out-of-range beep sound is heard. There is beep on/off switch on the left side of Transmitter to mute the beep tone. 7. There are two microphones on a Transmitter. One is Internal Mic and the other is External. Basically Transmitter operates with Internal Mic, but when External Mic is plugged in the Jack on the top of Transmitter, Internal Mic switches off and External Mic switches on. When External Mic is removed or damaged, Internal Mic switches on automatically. SPECIFICATIONS 1. Frequency Hoping / RF channel exclusion / Dual slot Antenna Diversity 2. Audible / LED display Out of Range warning. 3. Audible / LED display Low battery warning. 4. Earphone jack (transmitter Free) 5. Charging Status Indicator (Charging / Full charge) 6. Talk On/Off Key 7. Recording On/Off Indicator 8. AUTO Link, VCR On/Off (The base station is On /OFF control) 9. Recording Output signal 10. Transmitter Power switch control 11. Frequency Range: 2401.056MHz ~ 2482.272MHz 12. Up to longer Range 13. Data speed (via air interface) : 24kbit/sec 14. Modulation: GFSK 15. Channels: 95 (Channel spacing 0.864MHz) 16. Rx/Tx slots: 4/4 17. Fast Frequency hoping: Up to 800 hops/sec 18. Standard Compliance: FCC part 15.247/249 19.2 transimitters 20.Beep sound on/off switch USER’S MANUAL (IMPORTANT SAFETY INSTRUCTIONS & FCC NOTICE) √ IMPORTANT SAFETY INSTRUCTIONS When using your equipment, basis safety precautions should always be followed to reduce the risk of life electric shock, an…

Text truncated - open the document above for the full version.

March 31, 2008 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: PE3KT-24NR Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Technical Description PE3KT-24NR Technical Description.PDF Schematics Diagram(s) PE3KT-24NR Schematic.PDF Block Diagram PE3KT-24NR Block Diagram.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

PCB ASSY KT24N DS CPU NO ITEM spec LOCATION Q't MAKER AGENT 1 KT24N DS antenna TIN WIRE A1,A2 수삽 2.0 2 수삽 1.0 3 HEAD,CONN,,10PIN,2M/M,AN 변경 J5 수삽 1.0 4 CVM MODULE U3 수삽 1.0 56789 1011121314151617181920 1 / 3 PCB ASSY KT24N DS CPU NO ITEM spec LOCATION Q't MAKER AGENT 1 RES,CHIP,152,J,1608,1/16W R21 자삽 1.0 2 RES,CHIP,100,J,1608,1/16W R17 자삽 1.0 3 RES,CHIP,101,J,1608,1/16W R28 자삽 1.0 4 RES,CHIP,104,J,1608,1/16W R1,R22 자삽 2.0 5 RES,CHIP,103,J,1608,1/16W R6,R9,R20,R29,R30 자삽 5.0 6 RES,CHIP,102,J,1608,1/16W R3,R4,R8,R23,R24 자삽 5.0 7 RES,CHIP,183,J,1608,1/16W R2 자삽 1.0 8 RES,CHIP,273,J,1608,1/16W R7 자삽 1.0 9 RES,CHIP,331,J,1608,1/16W R41,R42 자삽 2.0 10 RES,CHIP,683,J,1608,1/16W R16 자삽 1.0 11 RES,CHIP,822,J,1608,1/16W R32 자삽 1.0 12 Tantal 4.7uF/6.3V A TYPE C37 자삽 1.0 13 Tantal 10uF/6.3V A TYPE C38 자삽 1.0 14 Tantal 33uF/6.3V B2 TYPE C40,C1 자삽 2.0 15 Tantal 220uF/6.3V C TYPE C39 자삽 1.0 16 Tantal 100uF/6.3V C TYPE C3 자삽 1.0 17 CAP,CHIP,102K,1608,50V X7R C4 자삽 1.0 18 CAP,CHIP,104Z,1608,16V/Y5V C20,C21 자삽 2.0 19 CAP,CHIP,105Z,1608,16V/Y5V C22 자삽 1.0 20 CAP,CHIP,200C,1608,16V/Y5V 2.0 21 CAP,CHIP,5R6,C,1608,50V/COG C15,C18,C19,C27,C28,C29,C30,C31,C32,C36 자삽 10.0 2 / 3 PCB ASSY KT24N DS CPU NO ITEM spec LOCATION Q't MAKER AGENT 22 DIODE LS4148 D1 자삽 1.0 23 DIODE RF PINDIODE BAR64V-02V GS08 D10,D11 자삽 2.0 24 CPU, ATMEGA88V10AU U4 자삽 1.0 25 PCB KT24N DS CPU 1.0 26 MC34119 U6 1.0 27 X-tal 7.3728MHz ATS49S 28 DIODE ZENER 4.7V SMD D8,D9 자삽 2.0 29303132333435363738394041 3 / 3 PCB ASSY KT24N DS SUB NO ITEM spec 단위 LOCATION Q't MAKER AGENT 1 PCB KT-24 SUB1 FR-4 1.0T EA 1 2 CONN HEAD 8P 1.25MM 53047-0800 EA J308 1 3 CONN ASS'Y 8PIN, AWG40, 30mm EA 1 4 LED BL-B2141-AA-AV GREEN EA D305 1 5 LED BL-BEG201 2COLOR(RED/GREEN) EA D312 1 6789 1011121314151617181920 PCB ASSY KT24N DS MAIN NO ITEM spec LOCATION Q't MAKER AGENT 1 CONN HEADER 53047-0900,9P EA J301 1 2 CONN HEADER 53047-0800 EA J307 1 3 CONN HEADER 10P,2*2MM EA J315 1 4 MIC JACK PJ2512 EA MIC 1 5 RELAY HR92DC12H EA RL2,RL1 2 6 MIC ASSY 18 feet, Mono Plug, OB27L38 EA 1 7 MIC ASSY 3.6 feet, Mono Plug, OB27L38 EA 1 8 CABLE ASSEMBLY KT24 12FT,9PIN EA 1 9 SWITCH SLIDE SS-1202RG EA SW1 1 10 CAP ELECT BIDIR 4.7uF/50V 5*11 EA C263 1 11 CAP ELECT BIDIR 22uF/16V 5*11 EA C307 1 12 choke trans 1000mH IN24N EA L304 1 1314151617181920 PCB ASSY KT24N DS MAIN NO ITEM spec LOCATION Q't MAKER AGENT 1 FET Si4435DY-REVA EA Q112 1 2 IC LTC4002ES8-4.2 EA U502 1 3 IC KIA393 EA U203 1 4 IC KIA78L05 EA U303 1 5 IC LM117MPX EA U309 1 6 TR KRC107S EA Q107,Q108,Q111,Q507, 4 7 TR KTC3876Y EA Q115,Q114 2 8 TR KTA1505Y EA Q110,Q304,Q305,Q113 4 9 DIODE B240A EA D213,D212 2 10 DIODE LS4148 EA D215,D306,D508 3 11 DIODE S1G EA D301,D307,D308,D309,D310 5 12 RES CHIP,000 ,1608,J,1/10W EA R605,R167,R169 3 13 RES ,CHIP,470,1608,J, 1/10W EA R247 1 14 RES ,CHIP,101,2012,J, 1/8W EA R801 1 15 RES,CHIP,391,J, 1608,1/10W EA R248 1 16 RES,CHIP,102,J, 1608,1/10W EA R158,R238,R246,R250,R606 5 17 RES,CHIP,152,J,1608, 1/10W EA R229,R245 2 18 RES,CHIP,222,J,1608, 1/10W EA R237,R228 2 19 RES,CHIP,242,J, 16081/10W EA R609 1 20 RES,CHIP,332,J,1608 1/10W EA R230 1 PCB ASSY KT24N DS MAIN NO ITEM spec LOCATION Q't MAKER AGENT 21 RES,CHIP,472,J,1608, 1/10W EA R168,R240,R241 3 22 RES,CHIP,103,J,1608, 1/10W EA R162,R165,R242,R254,R602 5 23 RES,CHIP,183,J,1608, 1/10W EA R243 1 24 RES,CHIP,203,J,1608, 1/10W EA R160,R239,R901 3 25 RES,CHIP,333,J,1608, 1/10W EA R171,R166 2 26 RES,CHIP,473,J,1608, 1/10W EA R164,R249 2 27 RES,CHIP,104,J,1608, 1/10W EA R170,R161 2 28 RES,CHIP,0.1 ohm, 1%,3216, 1/4W EA R601 1 29 CAP,CHIP,5R6,C,1608, 50V/COG EA C155,C156,C273,C500,C900,C90 6 30 CAP,CHIP,102,K, 1608,50V/X7R EA C154,C267,C301,C554, 4 31 CAP,CHIP,103,K,1608, 50V/X7R EA C269 1 32 CAP,CHIP,104,Z,1608, 25V/Y5V EA C264,C243,C303,C304 4 33 CAP,CHP,105,Z,1608, 16V/Y5V EA C265,C266,C276,C308 4 34 CAP,ELECT,MVG16VC100MF60TP,SMD(100U/16V),6.3*5.3 EA C315 1 35 CAP,ELECT,MVG16VC470M H10TP,SMD(470U/16V),8*10 EA C302,C306,C309 3 36 CAP,TANTAL,10uF/6.3V,A EA C239,C274 2 37 CAP,TANTAL,22uF/6.3V,A EA C245 1 38 CAP,TANTAL,33uF/10V,B2 EA C244 1 39 PCB KT24N DS MAIN FR-4 4LAYER 1.0T EA 1 40 IND SSL0804T-6R4M-S 6.8uH EA L303 1 모품목 PCB ASSY KT24N DS SUB 수삽 KT-24DS LED 동일 NO 레벨 자산구분 코 드 품 명 규격 단위 대분류명 중분류명 LOCATION 작업구분 소요량 MAKER AGENT 1 PCB KT-24 SUB1 FR-4 1.0T EA 1 TOP CIRCUIT 2 CONN HEAD 8P 1.25MM 53047-0800 EA J308 1 TIM 3 CONN ASS'Y 8PIN, AWG40, 30mm EA 1 TIM 4 LED BL-B2141-AA-AV GREEN EA D305 1 LED BRIGHT KOREA BRT 5 LED BL-BEG201 2COLOR(RED/GREEN) EA D312 1 LED BRIGHT KOREA BRT 6789 1011121314151617181920 모품목 PCB ASSY KT24N DS MAIN 수삽 NO 레벨 자산구분 코 드 품 명 규격 단위 대분류명 중분류명 R EFERENCE NUMBE R 작업구분 소요량 MAKER AGENT 1 CONN HEADER 53047-0900,9P EA J301 1 TIM 2 CONN HEADER 53047-0800 EA J307 1 TIM 3신규 CONN HEADER 10P,2*2MM EA J315 1 TIM 4 MIC JACK PJ2512 EA MIC 1 TIM 5 RELAY HR92DC12H EA RL2,RL1 2 HANKOOK RELAY 6 MIC ASSY 18 feet, Mono Plug, OB27L38 EA 1 DASAN 7 MIC ASSY 3.6 feet, Mono Plug, OB27L38 EA 1 DASAN 8 CABLE ASSEMBLY KT24 12FT,9PIN EA 1 DASAN 9 SWITCH SLIDE SS-1202RG EA SW1 1 TIM 10 CAP ELECT BIDIR 4.7uF/50V 5*11 EA C263 1 YOUSUNG 11 CAP ELECT BIDIR 22uF/16V 5*11 EA C307 1 YOUSUNG 12 choke trans 1000mH IN24N EA L304 1 신양 1314151617181920 모품목 PCB ASSY KT24N DS MAIN 자삽 NO 레벨 자산구분 코 드 품 명 규격 단위 대분류명 중분류명 R EFERENCE NUMBE R 작업구분 소요량 MAKER AGENT 1 FET Si4435DY-REVA EA Q112 1 VISHAY SHINYOUNG 2 IC LTC4002ES8-4.2 EA U502 1 LINEAR SHEENBANG 3 IC KIA393 EA U203 1 SAMSUNG 4 IC KIA78L05 EA U303 1 KEC SHINYOUNG 5 IC LM117MPX EA U309 1 6 TR KRC107S EA Q107,Q108,Q111,Q507, 4 KEC SHINYOUNG 7 TR KTC3876Y EA Q115,Q114 2 KEC SHINYOUNG 8 TR KTA1505Y EA Q110,Q304,Q305,Q113 4 KEC SHINYOUNG 9 DIODE B240A EA D213,D212 2 VISHAY SHINYOUNG 10 DIODE LS4148 EA D215,D306,D508 3 VISHAY 11 DIODE S1G EA D301,D307,D308,D309,D310 5 12 RES CHIP,000 ,1608,J,1/10W EA R605,R167,R169 3 SAMSUNG 13 RES ,CHIP,470,1608,J, 1/10W EA R247 1 SAMSUNG 14 RES ,CHIP,101,2012,J, 1/8W EA R801 1 SAMSUNG 15 RES,CHIP,391,J, 1608,1/10W EA R248 1 SAMSUNG 16 RES,CHIP,102,J, 1608,1/10W EA R158,R238,R24…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-803003 TABLE OF CONTENTS Test Report Product Name: Digital Transmission System FCC ID: PE3KT-24NR Applicant: ISV Co., Ltd. 102-705 Bucheon Techno park 364 Samjung-Dong, O-jung-Gu, Bucheon, Korea Date Receipt:03/14/2008 Date Tested: 03/14/2008 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-803003 TABLE OF CONTENTS APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1.............TEST PROCEDURE PAGE 2-4...........RADIATION INTERFERENCE(Below 1G) PAGE 5-7...........RADIATION INTERFERENCE(Receiver) PAGE 8.............NUMBER OF HOPPING CHANNELS PAGE 9-10..........DWELL TIME OF A HOPPING CHANNELS PAGE 11-13.........OCCUPIED BANDWIDTH PAGE 14............CARRIER FREQUENCY SEPARATION PAGE 15-17.........CONDUCTED POWER OUTPUT PAGE 18............SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 19-20.........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 21-23.........RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND PAGE 24............POWER LINE CONDUCTED INTERFERENCE PAGE 25 ...........EQUIPMENT LIST PAGE 26-27 ........RF EXPOSURE REQUIREMENTS EXHIBITS INCLUDING: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-802003 1 of 27 TEST PROCEDURE BANDWIDTH 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth and the span set as shown on plot. POWER OUTPUT: The RF power output was measured conducted. ANTENNA CONDUCTED EMISSIONS: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-802003 2 of 27 APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR NAME OF TEST: RADIATION INTERFERENCE Rules Part No.: 15.209 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: * Tuning Frequency : 2401.056MHz No Emission Frequency (MHz) Meter Reading dBuV/m Ant. Polaritry Correction Factor dB Cable Loss dB Field Strength (dBuv/m) Margin (dBuv) Limit (dBuv/m) 1 45.60 10.1 V 11.7 0.9 22.8 -17.2 40.0 2 56.10 8.5 V 8.8 1.1 18.3 -21.7 40.0 3 62.10 11.4 V 7.0 1.1 19.5 -20.5 40.0 4 121.40 9.2 H 11.1 1.8 22.1 -21.4 43.5 5 124.80 11.5 V 11.7 1.9 25.1 -18.4 43.5 6 195.80 8.9 H 15.1 2.5 26.4 -17.1 43.5 7 510.60 7.7 H 17.9 5.0 30.6 -15.4 46.0 8 601.40 5.4 H 19.1 5.6 30.0 -16.0 46.0 9 732.60 6.8 V 21.2 6.4 34.3 -11.7 46.0 10 741.20 5.9 H 21.1 6.4 33.4 -12.6 46.0 11 803.40 6.0 V 21.7 6.8 34.4 -11.6 46.0 12 904.50 5.8 V 23.4 7.3 36.5 -9.5 46.0 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-2003 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Pre-selector, a Hewlett Packard Model 85650A Quasi-Peak adapter, and an appropriate antenna – see the test equipment list. The bandwidth of spectrum analyzer was 100 kHz with an appropriate sweep speed. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. PERFORMED BY: Kyoung Moon Choi DATE: 03/14/08 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-802003 3 of 27 APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR NAME OF TEST: RADIATION INTERFERENCE Rules Part No.: 15.209 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: * Tuning Frequency : 2441.664MHz No Emission Frequency (MHz) Meter Reading dBuV/m Ant. Polaritry Correction Factor dB Cable Loss dB Field Strength (dBuv/m) Margin (dBuv) Limit (dBuv/m) 1 43.57 13.6 H 12.1 0.9 26.6 -13.4 40.0 2 126.31 12.7 V 12.0 1.9 26.5 -17.0 43.5 3 145.77 9.0 H 16.0 2.1 27.1 -16.4 43.5 4 194.30 10.3 H 14.7 2.5 27.4 -16.1 43.5 5 266.40 8.3 H 13.7 3.2 25.2 -20.8 46.0 6 328.00 8.7 V 16.5 3.6 28.8 -17.2 46.0 7 460.00 9.5 V 18.1 4.6 32.2 -13.8 46.0 8 589.60 9.6 H 18.8 5.5 33.8 -12.2 46.0 9 632.00 7.6 V 20.6 5.8 33.9 -12.1 46.0 10 644.00 7.9 H 20.3 5.8 34.1 -11.9 46.0 11 736.80 8.1 V 21.1 6.4 35.6 -10.4 46.0 12 920.00 5.6 H 23.2 7.4 36.2 -9.8 46.0 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-2003 using a Hewlett Packard Model 8566B spectrum analyze…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-802003 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-802003 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092 F820318835169 email [email protected] APPLICANT: ISV Co., Ltd. FCC ID: PE3KT-24NR REPORT #: THRU-802003
