PEBNAC-3000MACCESS CONTROLLER

- 2 - ⓒ Copyright 2006, NITGEN Co., Ltd. All rights reserved To Contact Us Tel. 82-31-451-9400 Fax. 82-31-451-6723 E-mail : [email protected] URL : http://www.nitgen.com ‚ Features and specifications are subject to change without notice. No part of this guide may be copied or reproduced for any purpose without the prior written authorization from NITGEN. ‚ NITGEN holds the copyright on the brands NITGEN and NITGEN logo. - 3 - Table of Contents Chapter 1 Before You Start 1.1 About the product ------------------------------------------------ 5 1.2 Features and specifications ----------------------------------- 8 1.3 Product details ---------------------------------------------------- 12 1.4 LCD screen -------------------------------------------------------- 15 1.5 How to input fingerprint ----------------------------------------- 17 1.6 Authentication types --------------------------------------------- 18 Chapter 2 Environment Setup 2.1 Menu configuration ------------------------------------------------ 25 2.2 Fingerprint Option -------------------------------------------------- 28 2.3 UI (User Interface) Option ---------------------------------------- 35 2.4 Door Option ---------------------------------------------------------- 37 2.5 System Option ------------------------------------------------------ 39 2.6 Gate Permission ---------------------------------------------------- 45 2.7 Network --------------------------------------------------------------- 48 2.8 Factory Initialization ----------------------------------------------- 52 Chapter 3 How to Use the Terminal 3.1 User Manager ------------------------------------------------------- 56 3.2 Information ----------------------------------------------------------- 70 Appendix I Network Connection Problems ------------------------ 72 Appendix II Terminal Initialization Problems ----------------------- 75 Appendix III Sound Modification Guide ------------------------------ 76 Appendix IV Direct Sunlight problems -------------------------------- 77 Appendix V FAQ (Frequently Asked Question) -------------------- 79 Appendix VI Wiegand Protocol Format -------------------------- 82 Appendix VII EMERGENCY Display -------------------------------- 83 Appendix VIII Firmware Update Problems -------------------------- 83 - 4 - Chapter 1 Before You Start 1.1 About the product - 5 1.2 Features and specifications - 8 1.3 Product details - 11 1.4 LCD screen - 14 1.5 How to input fingerprint - 16 1.6 Authentication types - 17 - 5 - 1.1 About the product „ Overview Biometric systems are recently used in various authentication systems. They are increasingly used not only in environments that require high level of security but also in many other places because they are convenient and economical. Among various biometric systems, the fingerprint recognition system takes up most of the market because it is easy to use as well as economical and capable of developing various types of applications. NITGEN, a global leader in the fingerprint recognition industry, provides various fingerprint authentication solutions such as PC security, knowledge management, vaulting service, access control, electronic approval, and financial payment. NITGEN actively responds to customer needs through continuous research, development and quality management. The NITGEN access control system is an advanced product in which core technologies of NITGEN recognized worldwide such as fingerprint recognition algorithm, optical sensors, embedded design technology, and software application technology are organically combined and optimized. In addition, unlike other existing access control systems that use passwords or ID cards only, it is free from such risks as loss of password and abuse or duplication of card, providing excellent convenience and security. It is designed to maximize operational efficiency, enabling integrated monitoring and systematic management of terminals which have been operated independently on a remote location via the network. The NITGEN access control system can use various combinations of RF card, password and fingerprint authentication. Designed to meet both universal uses and specific uses, it can be used in various customer environments including enterprises and - 6 - government agencies due to such convenient built-in features as group ID, short ID, 1:N authentication, interphone and voice instruction. This manual describes how to use NITGEN’s access control terminal (NAC-3000M). „ System configuration Component Main Features Server PC 1. Server software: Access Sever 2. Terminal communication and log data collection 3. User information and log database 4. Performing authentication Client PC 1. Client software: Remote Manager/Remote Monitor 2. User registration and management 3. Monitoring terminal status and events Network Server PC Terminal Client PC NAC-3000 M Access Server Remote Manager Remote Monitor - 7 - Terminal (NAC-3000M) 1. Performing user authentication 2. Door control You can use all features with the NITGEN access control terminal (NAC-3000M) only. If you use it with the management programs (Access Server, Remote Manager and Remote Monitor ) in network environment, you can manage a number of terminals more easily and efficiently. You can use the server and client software in one PC. - 8 - 1.2 Features and specifications „ Product features The NITGEN access control system (NAC-3000M) has the following features: ① Control and manage access of a large number of people. ② Combine several authentication types (fingerprint, password, and RF card). ③ Control multiple access control terminals via the network. ④ Manage remote systems easily (running server and client PCs independently). ⑤ Provide various additional features including user access lookup and interphone. ⑥ Real-time monitoring of access status. ⑦ Access control by period and time. ⑧ SDK (Software Developer’s Kit) is provided for development of various applications such as time & attendan…

Text truncated - open the document above for the full version.

CPU CPU OSC OSC X-TAL X-TAL MEMORY FPGA MEMORY FPGA NETWORK NETWORK RF RF SENSOR SENSOR

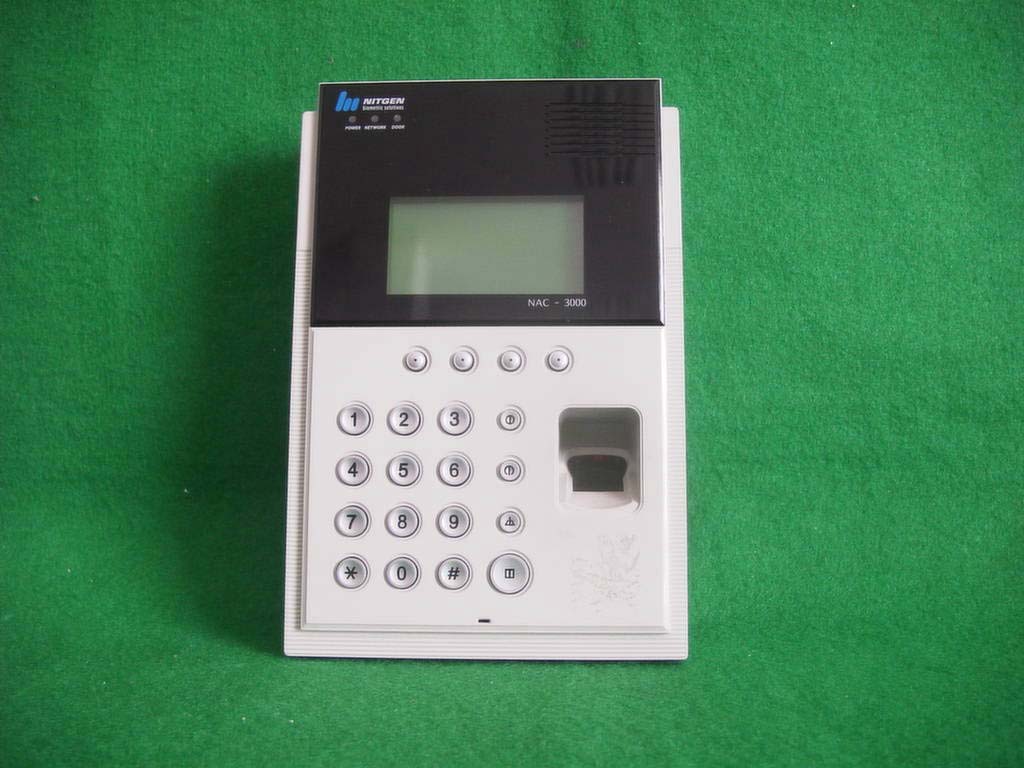

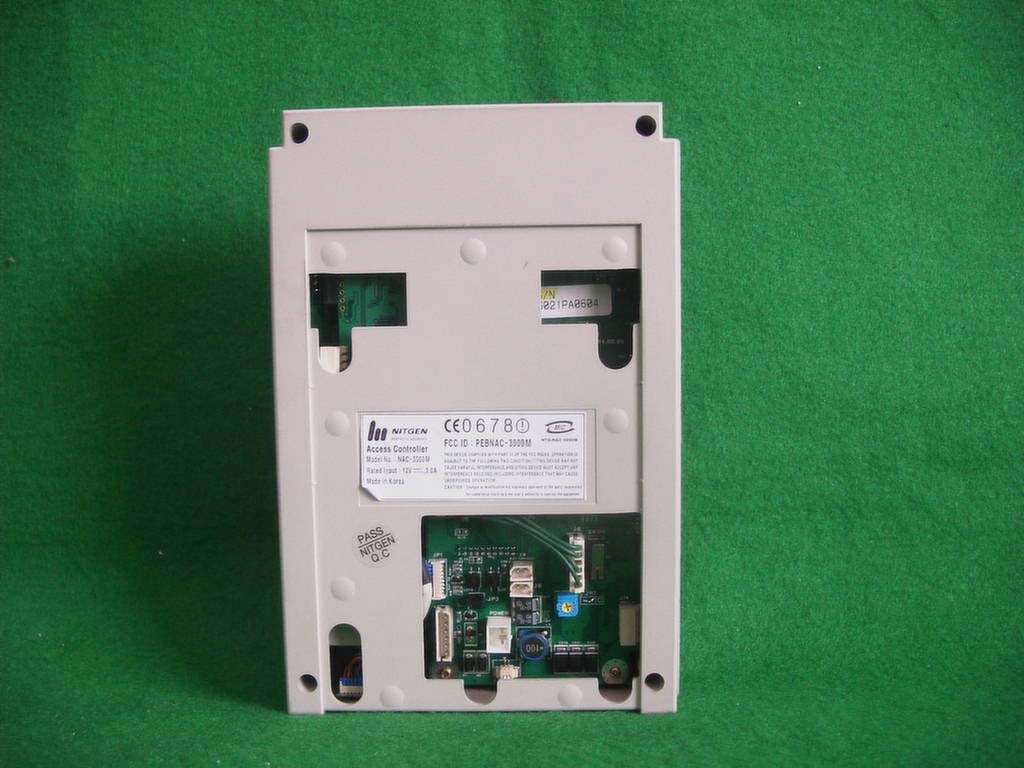

KTI07EF01003 FCC ID: - Korea Technology Institute Co., Ltd. Page 1 of 4 External photo (front) KTI07EF01003 FCC ID: - Korea Technology Institute Co., Ltd. Page 2 of 4 External photo (Rear) KTI07EF01003 FCC ID: - Korea Technology Institute Co., Ltd. Page 3 of 4 Adaptor photo (front) KTI07EF01003 FCC ID: - Korea Technology Institute Co., Ltd. Page 4 of 4 Adaptor photo (Rear)

KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label

KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 1 of 9 Internal photo (Front) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 2 of 9 Internal photo 1 (Front) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 3 of 9 Internal photo 1 (Rear) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 4 of 9 Internal photo 2 (Front) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 5 of 9 Internal photo 2 (Rear) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 6 of 9 Internal photo 3 (Front) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 7 of 9 Internal photo 3 (Rear) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 8 of 9 Internal photo 4 (Front) KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 9 of 9 Internal photo 4 (Rear)

KTI06EF07001 FCC ID: - Korea Technology Institute Co., Ltd. Page 1 of 1 Operational Description The EUT is a low power 13.56 MHz transceiver using loop coil antenna. The EUT is powered from AC Adapter (output :DC12V). The EUT is Power ON and operate continuously in TRANSMITTING and READING mode for recognizing RF ID CARD. RF ID CARD is approached to the EUT and then EUT verifies the identification of the CARD. The EUT will only be marketed to corporations. It works in conjunction with security systems in offices and factories.

Date: 2006-03-09Time : 09:29:31 오전 Title: C:\Documents and Settings\baranka\ \MCM(MIFARE).DSN바탕화면

KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 1 of 21 Test Report Test Report No.: KTI07EF01003 Registration No.: 99058 Applicant: NITGEN Co.,Ltd. Applicant Address: #Sam-Oh Bldg, 3 rd Floor, 905-4 HoGye-dong DongAn-Gu, AnYang Product: Access Controller FCC ID: - Model No. NAC-3000M Receipt No.: 07-0111 Date of receipt:January 08, 2007 Date of Issue: January 29, 2007 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2003 Rule Parts: FCC Part 15, Class B Equipment Class: Digital device Test Result: The above-mentioned product has been tested with compliance. Tested by: T.W. Lee / Engineer Approved by: G. C. Min /President Signature Date Signature Date Other Aspects: Abbreviations: * OK, Pass=passed * Fail=failed * N/A=not applicable ☞ - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 2 of 21 ≫≫ Contents ≪≪ 1. 2. 3. 4. 5. 6. 7. 8. 9. Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 List of peripherals 4.3 Uncertainty 4.4 Test Setup Radiated Emissions Conducted Emissions Frequency tolerance of carrier signal ANTENNA Requirement Emission Band Measurement 2 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 8 13 17 19 20 ≫ List of Tables Table 1 Test Data. Radiated Emissions Table 2 List of test and measurement equipment ≫ List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE Figure 3 Spectral Diagram 12 16 14 15 21 KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 3 of 21 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/2003 for measurement of radio Interference. KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 4 of 21 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment - Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 02.2007 Field Strength Meter ESIB40 100093 05.2007 LISN KNW407 8-1157-2 01.2007 LISN EM-7823 115019 05.2007 Conducted Cable N / A N / A 11.2007 - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESIB40 100093 05.2007 Spectrum Analyzer R3261C 61720417 02.2007 Pre Amplifier 8447D 2944A06874 02.2007 Loop Antenna 6502 3434 06.2007 Biconic Logarithmic Periodic Antenna VULB9163 9163-281 09.2007 Horn Antenna 3115 6443 07.2007 Open Site Cable N/A N/A 11.2007 Antenna Mast DETT-03 N/A N / A Antenna & Turntable controller DETT-04 91X519 N / A 2.3 Test Date Date of Application: January 08, 2007 Date of Test: January 22, 2007 2.4 Test Environment 23°C/37%/1006mbar KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 5 of 21 3. Description of the tested samples The EUT is a Access Controller. 3.1. Rating and Physical Characteristics Function Spec. Type 128 * 32 Dots LCD Display Language Default: Korean, English Model / Type OPP03 / Optical Sensor Resolution 500 DPI Speed 1:1 mode: less than 1 sec / 1:N mode: Application Note Authentication Algorithm FRR: less than 0.1%, FAR: less than 0.001% #of registered users Terminal 780(1 finger prints per user) 400(2 finger prints per user) TCP/IP 10 base-T Ethernet (optional) Communication RS-485 Max. 115200bps (custom requirement) Adapter 1 In: AC100V ~ 240V, 50/60Hz / Out: DC12V, 3A(24V OK) Power Adapter 2 In: AC100V ~ 240V, 50/60Hz / Out: DC 5V, 3A(24V OK) Guidelines recorded in voice Downloadable logo / firmware IP length ( 4~15 digits) Additional function Authentication results to be displayed in LED Network Board Door Control Board Optional RF Module( 125KHz HID, 13.56MHz Mifare) Storage -25°C ~ 65°C Temperature Operation -20°C ~ 60°C (with no dew condensation) Storage 15% ~ 90% RH Humidity Operation 25% ~ 85% RH 3.2 Submitted Documents - User’s Guide - Block Diagram KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 6 of 21 4. Measurement Conditions Testing Input Voltage: AC 220V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1) EUT operates a finger print job with connection to NotePc 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID Note PC Samsung SFM-3200LWN / A DOC Mouse EUNXING ELECTRONICS M2000 N / A DOC Adapter DongKwan samsung AD-9019 N / A DOC 4.3 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=KUc K = 2 ∴ U = ± 3.6dB 2) Conducted disturbance Uc = ± 0.88dB U = KUc=2 x Uc = ± 1.8dB KTI07EF01003 FCC ID:- Korea Technology Institute Co., Ltd. Page 7 of 21 4.4 Test Setup NOTE PC EUT RJ45 PS/2 SIGNAL POWER Adapter MOUSE Adapter KTI07EF01003 FCC ID:…
