PEBNAC-3000RACCESS CONTROLLER

Access Controller (NAC-3000R)

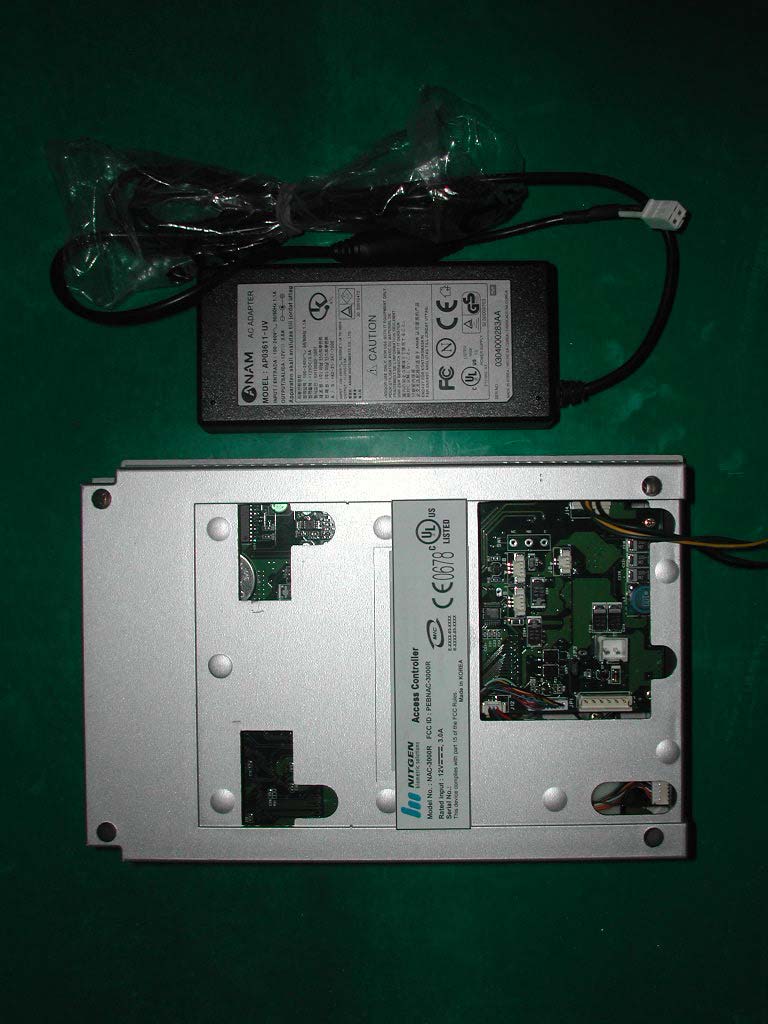

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R Label Location

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. <LABEL SAMPLE> Model No. : NAC-3000R FCC ID : PEBNAC-3000R Rated input : 12V , 3.0A Serial No.: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION; (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Access Controller E-XXXX-03-XXXX R-XXXX-03-XXXX Made in Korea LABEL LOCATION

SK TECH CO., LTD. Page 1 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R Internal Photographs of EUT LCD Keypad fingerprint Power RF Card Main SK TECH CO., LTD. Page 2 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R <Main> SK TECH CO., LTD. Page 3 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R SK TECH CO., LTD. Page 4 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R SK TECH CO., LTD. Page 5 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R <RF Card> SK TECH CO., LTD. Page 6 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R <Power> SK TECH CO., LTD. Page 7 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R <LCD> SK TECH CO., LTD. Page 8 of 8 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R <Keypad>

SK TECH CO., LTD. Page 1 of 1 SKT Operational Description

<NAC-3000R VER 1.0> 1. Connector outside 2. Connector inside 1 3. Connector inside 2 4. Power 5. Power 2 6. CPU 7. Memory 8. FPGA 9. Network 10. Reset, RTC, Buzzer, Relay 11. Voice & Amp 12. RF 13. INTERPHONE 14. AUTO ON B/D

SK TECH CO., LTD. Page 1 of 10 SKT Report No. : SKTTRT-030624-002 FCC ID: PEBNAC-3000R Certificate of Compliance Test Report No.: SKTTRT-030624-002 NVLAP CODE: 200220-0 Applicant: NITGEN Co., Ltd. Applicant Address: Sanhak Research Foundation B/D 18 th Fl. 1337-31, Seocho-Dong, Seocho-Ku, Seoul, Korea Device Under Test: Access Controller FCC ID: Model No.: Receipt No.: SKTEU03-0355 Date of receipt: June 10, 2003 Date of Issue: June 24, 2003 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 1992 Test Specification: FCC Title 47, Part 15 Subpart C Equipment Class: Part 15 Low Power Transmitter Below 1705kHz Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Chang-Min, Moon 2003. 06. 24 Approved by: Jae-Kyung, Bae 2003. 06. 24 Signature Date Signature Date Other Aspects: According to the Section 15.33 (b) (1) & (c), Radiated Emissions & Conducted Emissions were reported in Report No. SKTFCE-030621-080. Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 10 SKT Report No. : SKTTRT-030624-002 FCC ID: PEBNAC-3000R >> CONTENTS << 1. GENERAL ............................................................................................... 3 2. TEST SITE .............................................................................................. 3 2.1 Location ................................................................................................3 2.2 List of Test and Measurement Instruments ...............................................4 2.3 Test Date ...............................................................................................4 2.4 Test Environment ...................................................................................4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST .................................. 5 3.1 Rating and Physical Characteristics ..........................................................5 3.2 Submitted Documents ............................................................................5 4. MEASUREMENT CONDITIONS ............................................................... 6 4.1 Description of test configuration ..............................................................6 4.2 List of Peripherals ...................................................................................6 4.3 Type of used Cables ...............................................................................6 4.4 Uncertainty ............................................................................................6 5. TEST AND MEASUREMENTS ................................................................... 7 5.1 ANTENNA REQUIREMENT ............................................................... 7 5.1.1 Regulation .......................................................................................7 5.1.2 Result .............................................................................................7 5.2 RADIATED EMISSIONS ................................................................... 8 5.2.1 Regulation .......................................................................................8 5.2.2 Measurement Procedure ...................................................................8 5.2.3 Calculation of the filed strength limits..................................................9 5.2.4 Test Results .....................................................................................9 Table 1: Measured values of the Field strength.................................................10 SK TECH CO., LTD. Page 3 of 10 SKT Report No. : SKTTRT-030624-002 FCC ID: PEBNAC-3000R 1. GENERAL These tests were performed using the test procedure outlined in ANSI C64.4, 1992 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.209, 15.207, 15.109, and 15.107. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. TEST SITE SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea This test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code: 200220-0 and DATech for DAR-Registration No.: TTI-P-G155/97-10 SK TECH CO., LTD. Page 4 of 10 SKT Report No. : SKTTRT-030624-002 FCC ID: PEBNAC-3000R 2.2 List of Test and Measurement Instruments Equipment Type Manufacturer Model No. Serial No. Cal. Due Date 2.3 Test Date Date of Application : June 10, 2003 Date of Test : June 15, 2003 ~ June 21, 2003 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 10 SKT Report No. : SKTTRT-030624-002 FCC ID: PEBNAC-3000R 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST 3.1 Rating and Physical Characteristics Transceiver (EUT) Type (Model No.) NAC-3000R Power source AC Adapter (DC 12V) Consumption current Max 150mA Local Oscillator - Operating frequency 0.125MHz Type of Modulation ASK Rated Output < 19.2/m@300m 3.2 Submitted Documents Description of Transceiver Block diagram for Tr…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 15 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R Certificate of Compliance Test Report No.: SKTFCE-030621-080 NVLAP CODE : 200220-0 Applicant: NITGEN Co., Ltd. Applicant Address: Sanhak Research Foundation B/D, 18 th FL. 1337-31, Seocho-dong, Seocho-ku, Seoul, Korea Product: Access Controller FCC ID: PEBNAC-3000R Model No.: NAC-3000R Receipt No.: SKTEU03-0355 Date of receipt: June 10, 2003 Date of Issue: June 21, 2003 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2001 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral ※ This device has shown compliance with the conducted emissions limits in 15.107, 15.207 or 18.307 adopted under FCC 02-157(ET Docket 98-80). The device may be marketed after July 11, 2005, and is not affected by the 15.37(j) or 18.123 transition provisions. Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by:S.B.Kim/Engineer Approved by: C.H.Jung/Manager & Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 15 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R 》》 Contents 《《 Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 6 4.4 Test Setup 6 4.5 Uncertainty 7 5. EMISSION Test 10 5.1 Conducted Emissions 10 5.2 Radiated Emissions 14 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 13 Table 3 Test Data, Radiated Emissions 15 》List of Figures Figure 1 Spectral Diagram, LINE-PE 11 Figure 2 Spectral Diagram, Neutral-PE 12 SK TECH CO., LTD. Page 3 of 15 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:DAT-P-076/97-01 SK TECH CO., LTD. Page 4 of 15 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 10.2003 Artificial Mains Network ESH2-Z5 834549/011 10.2003 EMI Receiver ESHS10 835871/002 10.2003 Artificial Mains Network ESH3-Z5 836679/018 10.2003 Conducted Cable N/A N/A N/A z Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 10.2003 EMI Receiver ESVS 10 834468/008 10.2003 Spectrum Analyzer R3361A 11730187 10.2003 Amplifier 8447F 3113A05153 10.2003 Log Periodic Antenna UHALP9107 1819 10.2003 Biconical Antenna BBA9106 91031626 10.2003 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cables N/A N/A N/A 50Ω Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : June 10, 2003 Date of Test : June 10, 2003 ~ June 20, 2003 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 15 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R 3. Description of the tested samples The EUT is the Access Controller. 3.1 Rating and Physical Characteristics Section Content Size 128 * 64 Dots LCD Display Language English, Korean Model OPP01 Type Optical Resolution 500 DPI Sensor Additional Auto on / Latent Image Check Speed 1:1 mode: T < 1sec. 1:N mode -Avg. 2.5sec(1,000FP, Server) -Avg. 2sec (500FP, Terminal) -Avg. 1sec (300FP, Terminal) ※PentiumIV 1GHz, 512MB RAM Authentication Algorithm FRR: 0.1 % or less, FAR: 0.001 % or less Number of users to register Terminal 2,000 users (2 FP per 1 user) 4,000 users (1 FP 1 user) TCP/IP 10 base-T Ethernet RS-232C Max 115200 bps (optional) Communication Wiegand 26 bit, 34 bit mode(output only) ※ID Length : 4digit Case 135 (W)*45 (L)*202.5 (H) mm Size Bracket 102.4(W)*26.6(L)*157.5(H) mm Supported doors Deadbolt / Strike / EM Lock / Auto door Power Adaptor Input: AC 100 V ~ 240 V, 50/60 Hz Output: DC 12 V, 3 A Interphone MIC and Speaker included Voice instruction (English / Korean) Alarm Buzzer Downloading Logo / Firmware Additional features Variable ID length (4 ~ 15 digit) UPS (2.9Ah) Option RF Module (HID) Operation -20°C ~ 60°C (With no icing or condensation) Temperature Storage -20°C ~ 65°C Operation 25% ~ 85% RH Humidity Storage 15% ~ 90% RH 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 15 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R 4. Measureme…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-030624-002 FCC ID : PEBNAC-3000R Test set up photos

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-030621-080 FCC ID : PEBNAC-3000R Photograph 2: Setup for Radiated Emissions
