PF5-NLM155BLCD Monitor

Rev. B NewCommWorld 15.1" Color TFT-LCD Monitor Operation Manual NLM155A1 Rev. B NLM155A1 COLOR TFT-LCD Monitor OPERATION MANUAL CONTENTS .....................3,4 .....................6 ....................................7 ...............8, 9, 10 ............13, 14, 15, 16 ..............................11 ..................5 Safety Precautions International Standards Supplied Accessories Preparation Monitor Installation OSD Usage OSD Buttons OSD Operation ......17 ..............................18 Before Calling for repair service Warranty Card ..............................19 Specifications .....................12 Basic OSD Usage Rev. B Safety Precautions Improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your color TFT-LCD monitor product, please read the following precautions carefully before using the product. * All operating instructions must be read and understood before the product is operated. *These safety and operating instructions must be kept in safe place for future reference. *All warnings on the product and in the instructions must be observed closely. *All operating instructions must be followed. *Do not use attachments not recommended by the manufacturer. Useof inadequate attachments can result in accidents. *This product must be operated on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to the operating instructions. *Thepower cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product. *Ifyou plan to use a 12V DC power supply unit other than the AC adapter supplied with the product, make sure the power supply unit provides stable voltage with minimum fluctuations. *Donot overload AC outlets or extension cords. Overloading can cause fire or electric shock. *Neverinsert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product. *Donot attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified serviceperson to perform servicing. *Ifany of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug in damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing. *Incase the product needs replacement parts, make sure that the service person uses placement partsspecified by the manufacturer, or those with the same characteristicsand performance as the original parts. Use of unauthorized parts can result in fire, electricshock and/or other danger. *Uponcompletion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition. *Whenmounting the product on a wall or ceiling, be sure to install the product according tothe method recommended by the manufacturer. 3 Rev. B Safety Precautions(Continued) *Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. *Unplug the power cord from the AC outlet if you do not use the product for considerably long time. *Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement. *Keep the product away from direct rays of the Sun-light. *Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instruction. Use only the mounting hardware recommended by the manufacturer. *Whenrelocating the product placed on a cart, it must be moved with the utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart. *Thevents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation cancause overheating and/or shorten the life of the product. Do not place the product on a bed,sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed. *TheLCD panel used in this product is made of glass. Therefore, it can break when theproduct is dropped or applied with impact. Be careful not to be injuredby broken glasspieces in case the LCD panel breaks. *Keepthe product away from heat sources such as radiators, heaters, stove…

Text truncated - open the document above for the full version.

LM151X2 (TFT - LCD Panel) GH001 (Inverter) ADE2000 Analog RGB H - Sync, V - Sync, IIC DC 12V DC 3.3V Speaker (2W*2) TTL RGB*6 bit IIC Line Out Head Phone Line Out Lamp Input NLM155A1 Monitor Block Diagram Audio In (PC) Sound DC 12V ST72774 (MCU) TDA7496L (AMP) POWER DC 5V Control Signal Control Signal AXG7 - 01A 24256 ( EEPROM) IIC IIC DC 3.3V

Test report Our reference : KEL02-F01013 Page : B1 of Appendix Issued date : 2002-02-14 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL02-F01013 Page : D1 of Appendix Issued date : 2002-02-14 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the rear side of product. - FCC ID label sample

Test report Our reference : KEL02-F01013 Page : C1 of Appendix Issued date : 2002-02-14 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL02-F01013 Page : C2 of Appendix Issued date : 2002-02-14 <FRONT VIEW OF MAIN BOARD> Test report Our reference : KEL02-F01013 Page : C3 of Appendix Issued date : 2002-02-14 <REAR VIEW OF MAIN BOARD> Test report Our reference : KEL02-F01013 Page : C4 of Appendix Issued date : 2002-02-14 <FRONT VIEW OF LCD> Test report Our reference : KEL02-F01013 Page : C5 of Appendix Issued date : 2002-02-14 <REAR VIEW OF LCD>

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Jan. 16. 2002 Applicant’s Name : Newcommworld Co., Ltd. Applicant’s Address : 328-5 Songnae-1Dong, Sosa-Gu, Puchon-Shi, Kyonggi-Do, 422-814, Korea Manufacturer’s Name : Newcommworld Co., Ltd. Manufacturer’s Address : 328-5 Songnae-1Dong, Sosa-Gu, Puchon-Shi, Kyonggi-Do, 422-814, Korea Declares that the product Product Description : LCD MONITOR Brand Name : Model Number : NLM155A1...B FCC ID : PF5-NLM155B Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : Feb. 14. 2002 Report No : KEL02-F01013 Authorized Signature : M. S. CHO / President Test report Our reference : KEL02-F01013 Page : 2 of 13 Issued date : 2002-02-14 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 System Configuration Diagram 6 2.5 Preliminary testing 7 2.6 Shielded Enclosure 7 2.7 Data Reporting Format 7 2.8 Operating Condition 7 2.9 Conditioning of the EUT 7 2.10 Power Line Conducted Emissions 8 2.11 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL02-F01013 Page : 3 of 13 Issued date : 2002-02-14 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : LCD MONITOR Model Number : NLM155A1...B Serial Number : Prototype Manufacturer : Newcommworld Co., Ltd. 328-5 Songnae-1Dong, Sosa-Gu, Puchon-Shi, Kyonggi-Do, 422-814, Korea Type of Test : FCC CLASS B Report Number : KEL02-F01013 Date Tested : Jan. 16. 2002 Tested By : S. J. KIM The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL02-F01013 Page : 4 of 13 Issued date : 2002-02-14 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The NLM155A1...B is a LCD MONITOR made by Newcommworld Co., Ltd. in Korea. Refer to the user's manual for more information. 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer LCD MONITOR NLM155A1...B PF5-NLM155B Prototype Newcommworld Co., Ltd. Adapter LSE9901B1260 2K2901008 LI SHIN PC M6050 DoC 812092DRA00353 SAMSUNG Keyboard 7800 K1A114785 BTC Mouse KM-318 NONE Chuang Feng Electronics Co., Ltd. 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark Main B/D LCD ARISMOS LM151X05 NONE NONE Newcommworld Co., Ltd. LG PHILIPS LCD Korea Korea Test report Our reference : KEL02-F01013 Page : 5 of 13 Issued date : 2002-02-14 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4, 1992. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40cm from a vertical conducting plane. Power to the EUT was provided through the LISN(3725/2,EMCO) which has the Impedance vs Frequency Characteristic in accordance with the Fig.1 Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(NSLK8128,Schwarzbeck). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9cm high, approximately 2.0cm in diameter and that are spaced 6cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 1992. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATION Description Model Manufacturer Serial No Due Cal. TEST RECEIVER SPECTRUM ANALYZER ESVS10 ESH-2 ESPC 8566B Rohde & Schwarz Rohde & Schwarz Rohde & Schwarz Hewlett-Packard 825120/006 893268/004 844006/038 2421A00473 '2002.10.09 '2002.06.15 '2002.05.29 '2003.03.19 BICONICAL LOG-PERIODIC BI-LOG BICONICAL LOG-PERIODIC VHA9103 3146 VULB9160 VHA9103 USLP9143 SCHWARZBECK EMCO SCHWARZBECK SCHWARZBECK SCHWARZBECK 1271 9002-2685 3049 1728 134 '2002.05.26 '2002.05.26 '2002.08.08 '2003.06.07…

Text truncated - open the document above for the full version.

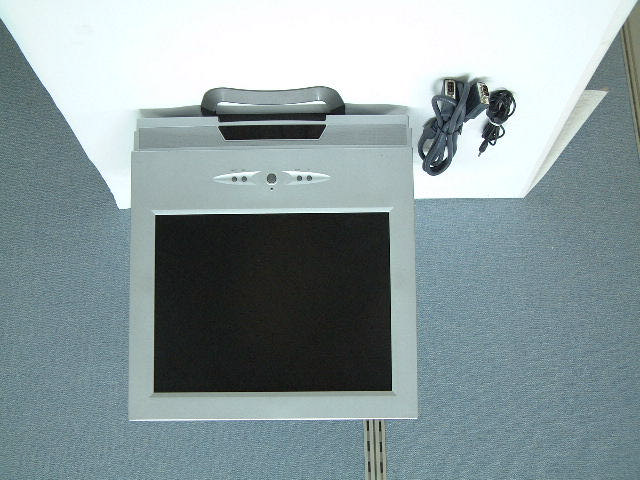

Test report Our reference : KEL02-F01013 Page : A1 of Appendix Issued date : 2002-02-14 Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL02-F01013 Page : A2 of Appendix Issued date : 2002-02-14 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL02-F01013 Page : A3 of Appendix Issued date : 2002-02-14 RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
