PF5TM800Monitor

Color TFT-LCD Monitor Operation Manual TM800 ... WSXGA NewCommWorld TM800 COLOR TFT-LCD Monitor OPERATION MANUAL CONTENTS ...............3,4 .........5 ...............6 ........................7 .....................8 ......9 ...............11,12,13 .................................18 ..............................17 .................................16 ..............................15 .....................14 SAFETY PRECAUTIONS SUPPLIED ACCESSORIES PREPARATION Remote Control Cable Connection LOCATION OF USERS CONTROL BASIC OPERATION Monitor Installation OSD USAGE Basic OSD usage Basic Setup PC Setup Video Setup ..........................................19 ..............................21 ......22 ....................................23 TV Setup PIP OSD Setup Before Calling for repair service TM800 Available PC VGA Mode SPECIFICATIONS .......................................20 Zoom Warranty Card ..............................25 ............24 INTERNATIONAL STANDARDS ........................10 SAFETY PRECAUTIONS Improper use can result in electricshock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your color TFT-LCD monitor product, please read the following precautions carefully before using the product. * All operating instructions must be read and understood before the product is operated. * These safety and operating instructions must be kept in safe place for future reference. * All warnings on the product and in the instructions must be observed closely. * All operating instructions must be followed. * Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents. * This product must be operated on a power source specified on the specification label. If you are not sure of the type of power supply used in your home,consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to the operating instructions. * The power cords must be routed properly to prevent people fromstepping on them or objects from resting on them. Check the cords at the plugs and product. * If you plan to use a 12V DC power supply unit other than the AC adapter supplied with the product, make sure the power supply unit provides stablevoltage with minimum fluctuations. * Do not overload AC outlets or extension cords. Overloading cancause fire or electric shock. *Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product. *Do not attempt to service the product yourself. Removing coverscan expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing. *If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug in damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as describedin the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing. *In case the product needs replacement parts, make sure that theservice person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger. *Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition. *When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. 3 SAFETY PRECAUTIONS(Continued) * Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. * Unplug the power cord from the AC outlet if you do not use theproduct for considerably long time. * Do not use the product near water, such as bathtub, washbasin,kitchen sink and laundry tub, swimming pool and in a wet basement. * Keep the product away from direct rays of the Sun-light. * Do not place the product on an unstable cart, stand, tripod ortable. Placing the product on an unstable base can cause the product to fall, resultingin serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instruction.Use only the mounting hardware recommended by the manufacturer. * When relocating the product placed on a cart, it must be movedwith the utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart. * The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or r…

Text truncated - open the document above for the full version.

Product Specification NewCommWorld Co., Ltd S00-02 Rev A Preliminary Preliminary New omm LM220W1 - A2MN (TFT - LCD Panel) GCCT008A (Inverter) AMP3 (AMP) ASX1P - 02A (PW364 - 01) Analog RGB H - Sync, V - Sync, IIC DC 12VAudio In (Video) DC 15V Control Signal Speaker (2W*2) Panel Link RGB*8 bit Analog RGB H - Sync, V - Sync, IIC IIC Debgging DC 15V, 5V Speaker Line Out Lamp Input Debugging TM800 Block Diagram ZTR5 (Tuner) Audio In (PC) ZVD2 (Video Decoder) VideoS - VHS TV TV Audio TV, IIC DC 15V Sound VideoS - VHS TV OSD12 (OSD) IIC, 5V, 3.3V Video (Digital RGB) IR2 (IRRCV) Panel on/off Control DC 15V Inverter Control

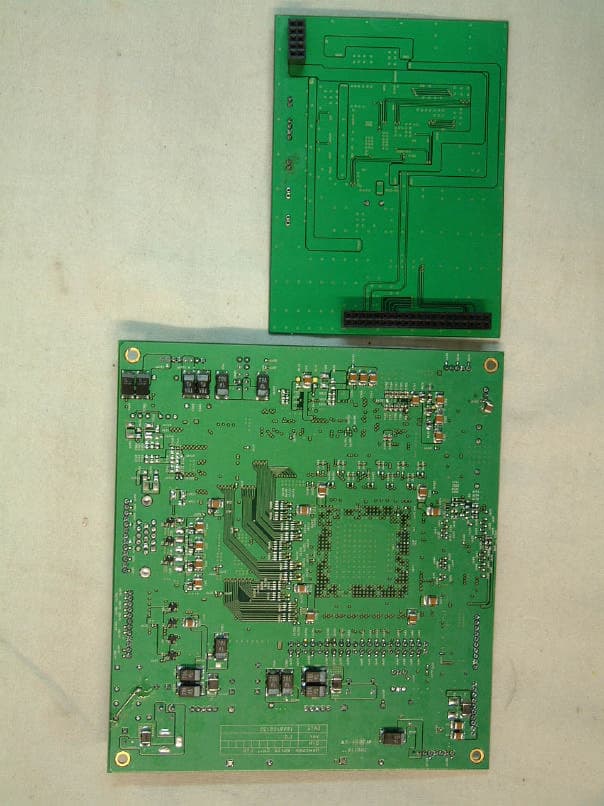

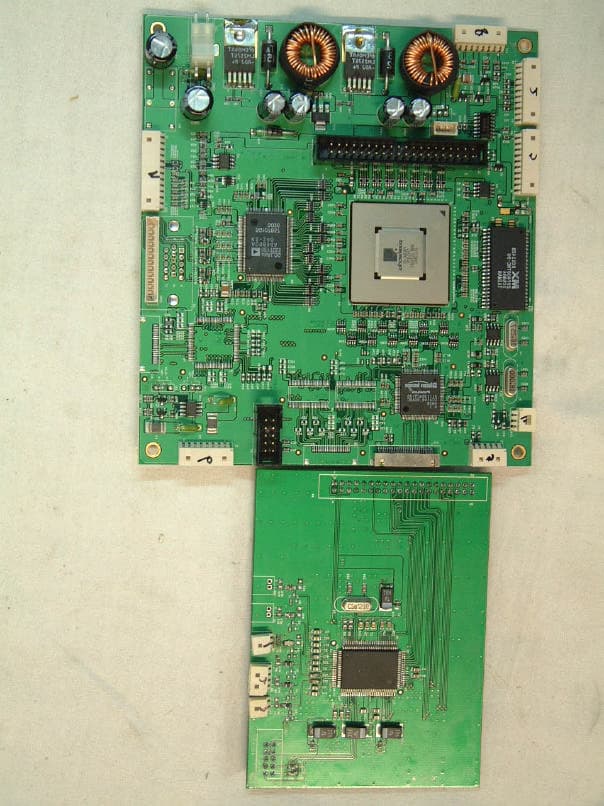

Test report Our reference : KEL01I-B011K Page : C1 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory Appendix-C : Internal Photographs of E.U.T 1 2 3 4 5 <INTERNAL VIEW OF E.U.T> 6 Test report Our reference : KEL01I-B011K Page : C2 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory 1 2 3 4 <FRONT VIEW OF MAIN BOARD> 5 6 Test report Our reference : KEL01I-B011K Page : C3 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <REAR VIEW OF MAIN BOARD> Test report Our reference : KEL01I-B011K Page : C4 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <FRONT VIEW OF LCD > Test report Our reference : KEL01I-B011K Page : C5 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <REAR VIEW OF LCD> Test report Our reference : KEL01I-B011K Page : C6 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <FONT VIEW OF CTRL BOARD> Test report Our reference : KEL01I-B011K Page : C7 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <REAR VIEW OF CTRL BOARD > Test report Our reference : KEL01I-B011K Page : C8 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <FRONT VIEW OF AMP3A BOARD > Test report Our reference : KEL01I-B011K Page : C9 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <REAR VIEW OF AMP3A BOARD > Test report Our reference : KEL01I-B011K Page : C10 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <FRONT VIEW OF LCD BOARD > Test report Our reference : KEL01I-B011K Page : C11 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <REAR VIEW OF LCD BOARD > Test report Our reference : KEL01I-B011K Page : C12 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <FRONT VIEW OF ZTR5A BOARD> Test report Our reference : KEL01I-B011K Page : C13 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory <REAR VIEW OF ZTR5A BOARD >

Test report Our reference : KEL01I-B011K Page : 13 of 13 Issued date : 2001-08-14 Korea EMC Laboratory 4. LABELING REQUIREMENT Section 15.19 of the Code of Federal Regulation 1) A CLASS B computing device subject to certification by the Commission shall be identified pursuant to par. 2.925 et Seq of this chapter. In addition, the label shall include the following statement: Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified in this Section is required to be affixed only to the main control unit. The users manual or instruction manual for the EUT shall contain the following statement or equivalent. Caution: Changes or Modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. If the EUT requires accessories such as special shielded cables and/or connectors to enable compliance with emission limits, the instruction manual for the EUT shall include appropriate instructions on the first page of the text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. For a CLASS B digital device or peripheral, the instructions furnished the user shall include the following or similar statement placed in a prominent location in the text of the manual. Note: This equipment has been tested and found to comply with the limits for a CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This Device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Test report Our reference : KEL01I-B011K Page : D1 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL01I-B011K Page : C1 of Appendix Issued date : 2001-05-10 Appendix-C : Internal Photographs of E.U.T 1 2 3 4 5 <INTERNAL VIEW OF E.U.T> 6 Test report Our reference : KEL01I-B011K Page : C2 of Appendix Issued date : 2001-05-10 1 2 3 4 <FRONT VIEW OF MAIN BOARD> 5 6 Test report Our reference : KEL01I-B011K Page : C3 of Appendix Issued date : 2001-05-10 <REAR VIEW OF MAIN BOARD> Test report Our reference : KEL01I-B011K Page : C4 of Appendix Issued date : 2001-05-10 <FRONT VIEW OF LCD > Test report Our reference : KEL01I-B011K Page : C5 of Appendix Issued date : 2001-05-10 <REAR VIEW OF LCD> Test report Our reference : KEL01I-B011K Page : C6 of Appendix Issued date : 2001-05-10 <FONT VIEW OF CTRL BOARD> Test report Our reference : KEL01I-B011K Page : C7 of Appendix Issued date : 2001-05-10 <REAR VIEW OF CTRL BOARD > Test report Our reference : KEL01I-B011K Page : C8 of Appendix Issued date : 2001-05-10 <FRONT VIEW OF AMP3A BOARD > Test report Our reference : KEL01I-B011K Page : C9 of Appendix Issued date : 2001-05-10 <REAR VIEW OF AMP3A BOARD > Test report Our reference : KEL01I-B011K Page : C10 of Appendix Issued date : 2001-05-10 <FRONT VIEW OF LCD BOARD > Test report Our reference : KEL01I-B011K Page : C11 of Appendix Issued date : 2001-05-10 <REAR VIEW OF LCD BOARD > Test report Our reference : KEL01I-B011K Page : C12 of Appendix Issued date : 2001-05-10 <FRONT VIEW OF ZTR5A BOARD> Test report Our reference : KEL01I-B011K Page : C13 of Appendix Issued date : 2001-05-10 <REAR VIEW OF ZTR5A BOARD >

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Aug. 11. 2001 Applicant’s Name : NEWCOMM World CO., LTD. Applicant’s Address : 3RD FL. Songsan Bldg. 381 Songnae-dong, Sosa-gu, Puchon-Shi Kyonggi-do, Korea Manufacturer’s Name : NEWCOMM World CO., LTD. Manufacturer’s Address : 3RD FL. Songsan Bldg. 381 Songnae-dong, Sosa-gu, Puchon-Shi Kyonggi-do, Korea Declares that the product Product Description : LCD Monitor Brand Name : NEWCOMM Model Number : TM800 FCC ID : PF5-TM800 Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : Aug. 14. 2001 Report No : KEL01I-B011K Authorized Signature : M. S. CHO / President Test report Our reference : KEL01I-B011K Page : 2 of 13 Issued date : 2001-08-14 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 System Configuration Diagram 6 2.5 Preliminary testing 7 2.6 Shielded Enclosure 7 2.7 Data Reporting Format 7 2.8 Operating Condition 7 2.9 Conditioning of the EUT 7 2.10 Power Line Conducted Emissions 8 2.11 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL01I-B011K Page : 3 of 13 Issued date : 2001-08-14 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : LCD Monitor Model Number : TM800 Serial Number : Prototype Manufacturer : NEWCOMM World CO., LTD. 3RD FL. Songsan Bldg. 381 Songnae-dong, Sosa-gu, Puchon-Shi, Kyonggi-do, Korea Type of Test : FCC CLASS B Report Number : KEL01I-B011K Date Tested : Aug. 11. 2001 Tested By : S. J. LEE The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL01I-B011K Page : 4 of 13 Issued date : 2001-08-14 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The TM800 is a LCD Monitor made by NEWCOMM World CO., LTD. in Korea. Refer to the user's manual for more information. 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type MODEL NAME FCC ID Serial No Manufacturer ------------------------------------------------------------------------------------------------------------------------------------------------ LCD Monitor TM800 PF5-TM800 Prototype NEWCOMM World CO., LTD. PC Brio BA 600/500 SG95100402 HP VTR SV-420 none SAMSUNG Keyboard SKR-1032 GJJSKR-1032 1EAC000237 SEJIN Mouse SMB-601 GJJB50PAQ SKBE020496 SEJIN Speaker 188825-301 none COMPAQ Adapter LSE9901B1565 2K3100023 LI SHIN International Enterprise Corp. 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark MAIN B/D LCD CTRL B/D AMP3A B/D LCD B/D ZTR5A B/D DAD114 LM220W1 LM220W1 CTRL AMP3A GH008 ZTR5A NONE NONE NONE NONE NONE NONE NEWCOMM World CO., LTD. LG. PHILIPS LCD NEWCOMM World CO., LTD. NEWCOMM World CO., LTD. NEWCOMM World CO., LTD. NEWCOMM World CO., LTD. KOREA KOREA KOREA KOREA KOREA KOREA Test report Our reference : KEL01I-B011K Page : 5 of 13 Issued date : 2001-08-14 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4, 1992. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40cm from a vertical conducting plane. Power to the EUT was provided through the LISN(KNW-407,Kyoritsu) which has the Impedance vs Frequency Characteristic in accordance with the Fig.1 Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(NSLK8128,Schwarzbeck). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9cm high, approximately 2.0cm in diameter and that are spaced 6cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 1992. Korea EMC Lab. was refiled in FCC in 1998. INSTRUMENTATION Description Model Manufacturer…

Text truncated - open the document above for the full version.

Test report Our reference : KEL01I-B011K Page : A1 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL01I-B011K Page : A2 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL01I-B011K Page : A3 of Appendix Issued date : 2001-05-10 Korea EMC Laboratory RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
