PFTCW-1100WLBWireless LAN

Crewave Co., Ltd.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Dec 06, 2001
Application Purpose: Original Equipment
Date of Application: Sep 05, 2001
Equipment Note: Wireless LAN
Frequency Range: 2412.00000000 - 2473.00000000
Company: Crewave Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

September 4, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Crewave Co., Ltd. FCC ID: PFTCW-1100WLB Gentlemen: Attached herewith, on behalf of Crewave Co., Ltd. is an application for Part 15.247 Certification of the following Wireless LAN: FCC ID: PFTCW-1100WLB TRADE / MODEL(s): CREWAVE CW-1100WLB EUT TYPE: Wireless LAN Tx / Rx Freq. Range: 2412.0 — 2483.5 MHz Max. RF Output Power: 0.035 W (15.47 dBm) Attached is the applicant’s measurement report data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams, schematic diagrams, operational description, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Crewave Co., Ltd.

Cover Letter(s)

December 5, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Crewave Co., Ltd. FCC ID: PFTCW-1100WLB 731 Confirmation No.: EA102288 Correspondence Reference No.: 20991 Request for Tech. Info.: 10/19/01 Dear Andy: Transmitted herewith, on behalf of Crewave Co., Ltd. is an amendment provided in response to the request for technical information dated October 19, 2001. 1. We would like to confirm that this device has the highest and lowest fundamental frequencies at 2412MHz and 2473MHz. 2. Please find attached the data for the restricted band. 3. Please find attached the antenna specifications. 4. Please find attached the revised RF Warning statement. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Crewave Co., Ltd.

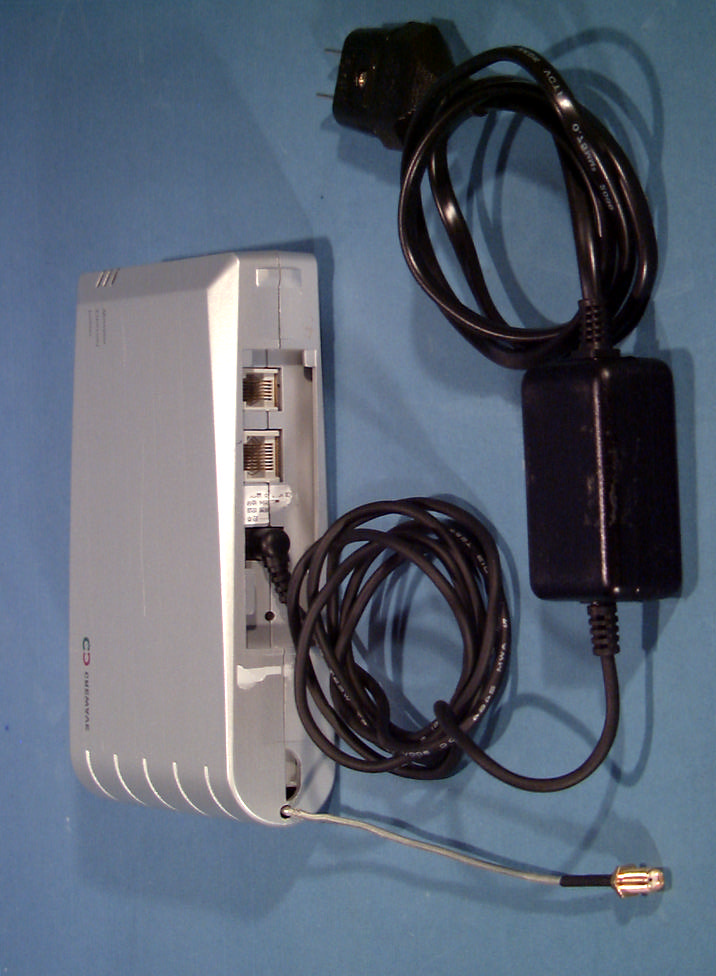

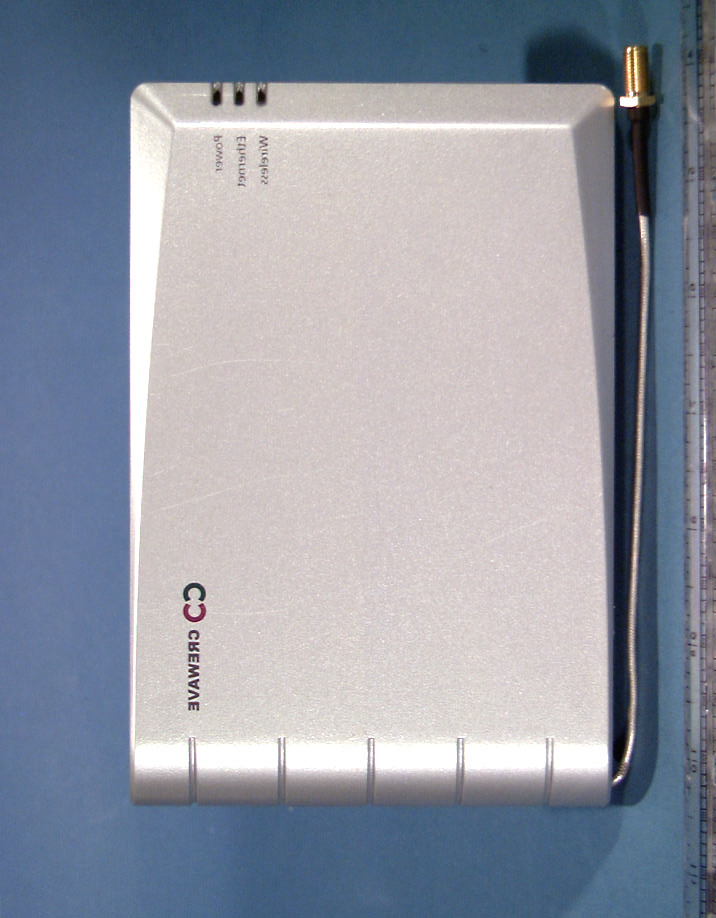

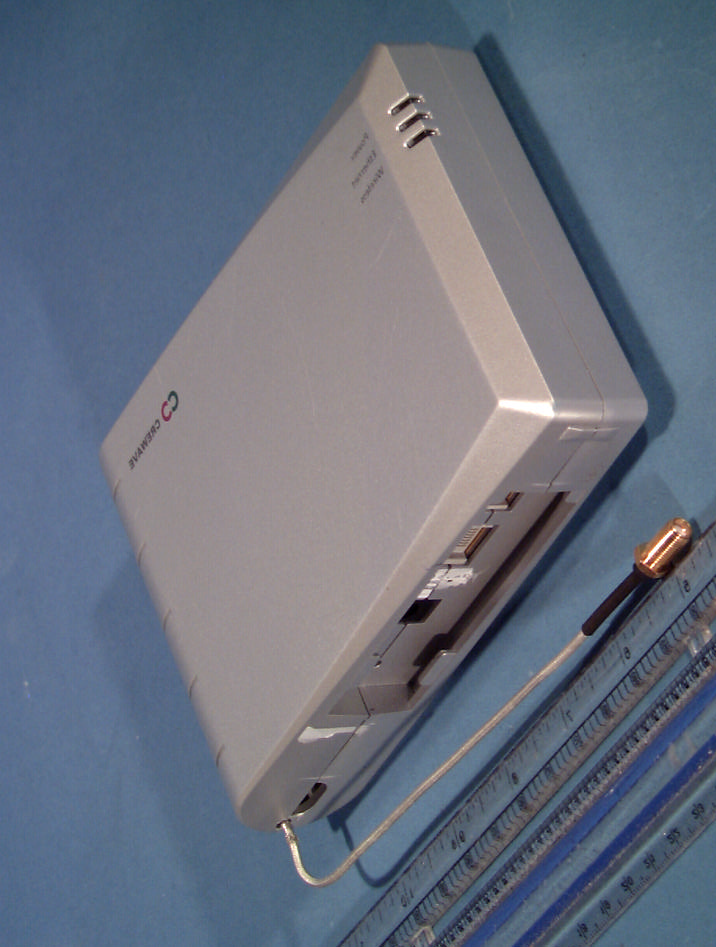

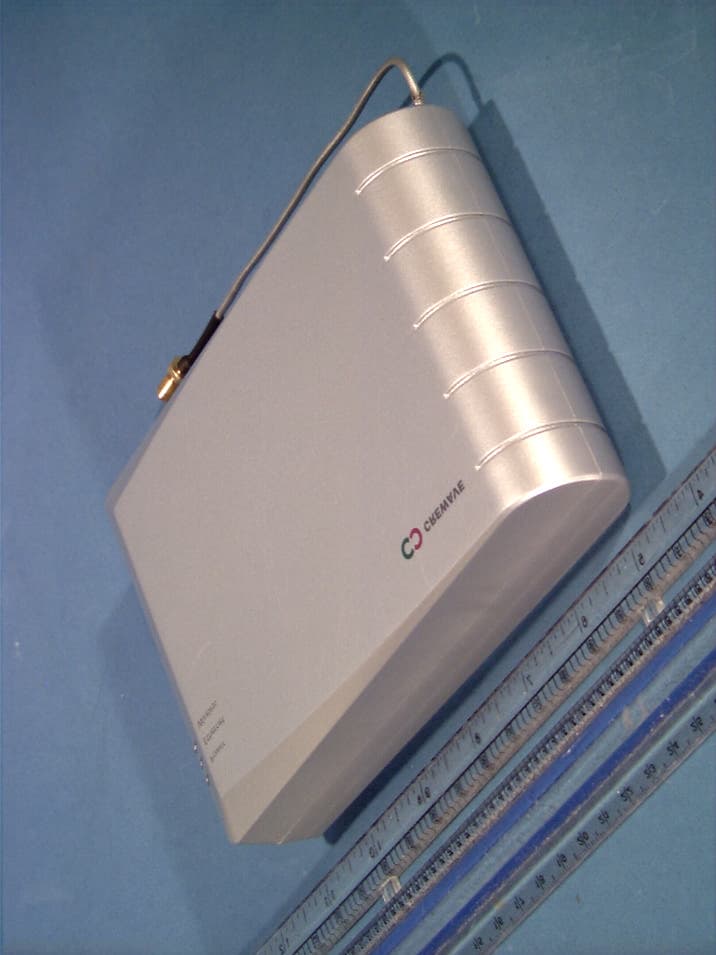

External Photos

© 2001 PCTEST Lab CREWAVE Wireless LAN NVLAP Lab Code: 100431-0 FCC ID: PFTCW-1100WLB © 2001 PCTEST Lab CREWAVE Wireless LAN NVLAP Lab Code: 100431-0 FCC ID: PFTCW-1100WLB © 2001 PCTEST Lab CREWAVE Wireless LAN NVLAP Lab Code: 100431-0 FCC ID: PFTCW-1100WLB © 2001 PCTEST Lab CREWAVE Wireless LAN NVLAP Lab Code: 100431-0 FCC ID: PFTCW-1100WLB © 2001 PCTEST Lab CREWAVE Wireless LAN NVLAP Lab Code: 100431-0 FCC ID: PFTCW-1100WLB

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID: PFTCW-1100WLB

Internal Photos

RF Exposure Info

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Operating Requirements To satisfy FCC RF exposure compliance requirements for a mobile transmitting device, this device and its antenna should generally maintain a separation distance of 20 cm or more from a person’s body. WARNING! Read this information before using your phone

Test Report

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE CREWAVE Co., Ltd. Dates of Tests: August 2-3, 2001 F7, Pureun Bldg. 28-1 Jamwon-dong, Seocho-gu Test Report S/N: 15.210719431.PFT Seoul, KOREA 137-030 Test Site: PCTEST Lab, Columbia MD Attention: Charlie Park FCC ID PFTCW-1100WLB APPLICANT CREWAVE Co., Ltd. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver (DSS) Method/System: Direct Sequence System Equipment Type: Wireless LAN Max Output Power: 0.035 W (15.47 dBm) Frequency Range: 2412 — 2483.5 MHz Trade/Model No(s).: CREWAVE CW-1100WLB This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210719431.PFT Test Report S/N: 15.210719431.PFT FCC Part 15.247 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 15.247 TABLE OF CONTENTS ATTACHMENT A – COVER LETTER ATTACHMENT B - TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCT INFORMATION 3 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 4 B. RADIATED EMISSIONS 5 C. RESTRICTED BANDS 6 D. ANTENNA REQUIREMENT 7 E. DIRECT SEQUENCE BANDWIDTH 8 F. MAXIMUM PEAK POWER OUTPUT 9 G. POWER DENSITY 10 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 11-25 FREQUENCY MEASUREMENTS (SPURIOUS) 26 PROCESSING GAIN 27-40 LIST OF TEST EQUIPMENT 41 CONCLUSION 42 ATTACHMENT C - TEST PLOTS ATTACHMENT D - FCC ID LABEL & LOCATION ATTACHMENT E - BLOCK DIAGRAM(S) ATTACHMENT F - SCHEMATIC(S) ATTACHMENT G - OPERATIONAL DESCRIPTION ATTACHMENT H - PHOTOGRAPHS OF TEST SET-UP ATTACHMENT I - EUT PHOTOGRAPHS ATTACHMENT J - USER’S MANUAL Test Report S/N: 15.210719431.PFT FCC Part 15.247 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Lab CREWAVE Wireless LAN 1 FCC ID: PFTCW-1100WLB MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.983(a) General Information Applicant Name: CREWAVE Co., Ltd. Address: F7, Pureun Bldg. 28-1 Jamwon-dong, Seocho-gu Seoul, KOREA 137-030 Attention: Charlie Park • FCC ID: PFTCW-1100WLB • Class: Spread Spectrum Transceiver (DSS) • Type: Wireless LAN • Freq. Range: 2412 — 2483.5 MHz • Method/System: Direct Sequence System (DSS) • Model No(s): CW-1100WLB • Max. RF Output Power: 0.035 W (15.47 dBm) • Rule Part(s): § 15.247 • Dates of Tests: August 2-3, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 15.210719431.PFT Test Report S/N: 15.210719431.PFT FCC Part 15.247 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Lab CREWAVE Wireless LAN 2 FCC ID: PFTCW-1100WLB INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of CREWAVE Spread Spectrum Wireless LAN. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 15.210719431.PFT FCC Part 15.247 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Lab CREWAVE Wireless LAN 3 FCC ID: PFTCW-1100WLB PRODUCT INFORMATION Equipment Description: The Equipment under test (EUT) is the Crewave CW-1100WLB wireless LAN using spread spectrum direct sequence and time division duplex techniques. Frequency Range: 2412 — 2483.5 MHz Modulation: CCK, DBPSK, DQPSK Max RF Output Power: 0.035 W (15.47 dBm) Power Consumption: 700mA Dimensions (WxHxD): 165 x 35 x 110 mm Weight (Net): 500g Test Report S/N: 15.210719431.PFT FCC Part 15.247 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Lab CREWAVE Wireless LAN 4 FCC ID: PFTCW-1100WLB Description of Tests Conducted Emissions The line-conducted facility is located inside a 16'x20'x10' shielded enclosure. It is manufactured by Ray Proof Series 81 (see Figure 2). The shielding effectiveness of the shielded room is in accorda…

Text truncated - open the document above for the full version.

Test Report

Test Report S/N: 15.210719498.PFT FCC Part 15.247 Dates of Tests: August 13-14, 2001 Certification © 2001 PCTEST Lab CREWAVE Wireless LAN USB 12 FCC ID: PFTCW-1100USB RADIATED Measurements (Fundamental & Harmonics) (Cont.) Operating Frequency: 2483 MHz Distance of Measurements: 3 meters Channel: 01 FREQ. (MHz) Level* (dBm) AFCL (dB) POL (H/V) DET QP/AVG F/S (μV/m) F/S (dBμV/m) Margin (dB) 2484.1 -89.6 33.0 V Peak 331.131 50.4 3.6 2484.3 - 88.83 33.1 V Peak 366.016 51.27 4.5 2485.6 - 93.0 33.1 V Peak 226.464 47.1 2.7 2490.0 -89.7 33.2 V Peak 323.594 50.5 3.5 2491.3 < - 132 NOTES: 1. All harmonics in the restricted bands specified in §15.205 are below the limit shown in table 2. (note: * Restricted Band) 2. All harmonics/spurs are at least 20 dB below the highest emission in the authorized band using RBW = 100kHz 3. Average Measurements > 1GHz using RBW = 1 MHz VBW = 10 Hz 4. The peak emissions above 1 GHz are not more than 20 dB above the average limit. 5. The antenna is manipulated through typical positions, polarity and length during the tests. 6. The EUT is supplied with nominal AC voltage or/and a new/fully recharged battery. 7. The spectrum is measured from 9kHz to the 10 th harmonic and the worst-case emissions are reported. 8. < - 132 are below the analyzer floor level. Figure 10. Restricted band harmonics and spurious limits. Above 1 GHz limit is 500 uV/m (54dBu/m)

Test Setup Photos
