From: willyauo [[email protected]] Sent: Saturday, June 01, 2002 3:31 AM To: Mike Kuo Subject: Re: Aero Communications Co., Ltd. FCC ID:PG8101T01 Assessment no:AN02T2035 Hi Mike: Thank you for reviewing our application project. Regarding your question, the below is our explanation and document. Q3 Reply: We have revised test report on the page 3 ,4 , 8.(please see the attached file.) Q4 Reply: Please see the test report appendix1. The duty cycle spectrum plot is attached. Q5 Reply: Please see the attached CPU description file. This device CPU IC use EM78P153E chip which is programmable free running watching timer.(please see the attached CPU IC pdf file) The program has been set to comply the FCC requirement , the duration of transmission is less than 1 second and silent period is at least 30 times of duration of transmission but in no case less than 10 seconds.(please see the attached circuit and circuit-1 pdf file) If you need any supporting document, please advise us. We will appreciate for your assistance. Thank you very much. Will Yauo / ETC Tel : 886-2-26023052 ext. 18 Mobile phone: 886-958928169 ----- Original Message ----- From: Mike Kuo <[email protected]> To: 'willyauo' <[email protected]> Sent: Friday, May 31, 2002 5:15 AM Subject: RE: Aero Communications Co., Ltd. FCC ID:PG8101T01 Assessment no:AN02T2035 Hi Will: Question #3: The test report is written to comply with 15.231(b)requirement but in accordance with your reply to question #2, this device shall comply with 15.231(e) technical requirements. Please provide revised test report and make sure to use correct limits and section number. Question #4: Since Duty Cycle is considered in radiated emission tests, please provide duty cycle spectrum plots. Question #5: The schematic diagram does not provide information to address 15.231(e) requirements. Please provide detail technical information and measured data to demonstrate the duration of transmission is less than 1 second and silent period is at least 30 times of duration of transmission but in no case less than 10 seconds. Best Regards Mike Kuo -----Original Message----- From: willyauo [mailto:[email protected]] Sent: Thursday, May 30, 2002 6:00 AM To: Mike Kuo Subject: Re: Aero Communications Co., Ltd. FCC ID:PG8101T01 Assessment no:AN02T2035 Hi Mike, Thank you for reviewing our application project. Q1 Reply: The test report has been submitted today. Please check. Q2 Reply: This transmitter is in accordance with 15.231 (e) operate at periodic rate exceeding that specified in paragraph(a) and may be employed for any type of operation. The transmitting frequency is 315 MHz and the limit is 67.6 dBuV/m according to paragraph(e), the spurios emission limit is 47.6 dBuV/m. Please see our test report page 8 , the test data can comply with those limits, but the table limit is wrong. This transmitter also comply with the requirement which he duration of each transmission shall not be greater than one second and the silent period between transmissions shall be at least 30 times the duration of the transmission but in no case less than 10 seconds. Please refer to the technical circuit diagram. If you need more supporting document , please advise us. Thank you very much. Best regards, Will Yauo / ETC ----- Original Message ----- From: Mike Kuo <[email protected]> To: Will Yauo (E-mail) <[email protected]>; Will Yauo-Personal (E-mail) <[email protected]>; <[email protected]> Sent: Thursday, May 30, 2002 9:53 AM Subject: Aero Communications Co., Ltd. FCC ID:PG8101T01 Assessment no:AN02T2035 > Question #1: There is no test report submitted. Please submit test report. > > Question #2: Please address how this transmitter comply with Periodically > transmission requirements as stated in 15.231. > > Best Regards > > Mike Kuo > Compliance Certification Services > 561F Monterey Road > Morgan Hill, CA 95037 > Tel:(408)463-0885 x:105 > Fax:(408)463-0888 > e-mail:[email protected] > http:\\www.ccsemc.com > > ========================================================== PC home ¹q¤l«H½c¡A¥Ó½Ð½Ð¦Ü: http://www.pchome.com.tw PC home Online ºô ̧ô®a®x¡G·|-û²Ä¤@¡A¥xÆW³Ì¤jªº¤J¤fºô ̄ ̧ ==========================================================

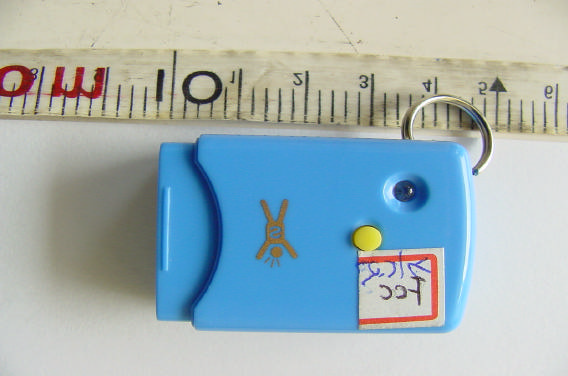

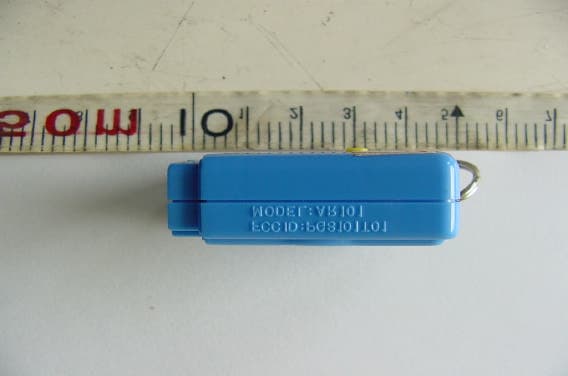

ETC Report No.:ET91R-03-116-01 FCC ID.: PG8101T01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No.:ET91R-03-116-01 FCC ID.: PG8101T01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT

ETC Report No.:ET91R-03-116-01 FCC ID.: PG8101T01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No.:ET91R-03-116-01 FCC ID.: PG8101T01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB

1. When separated, the receiver will sound one long beep and follow one long & one short beeps, the LED on both receiver side and transmitter side will flash synchronously, then you can begin to use them.(When they cannot flash synchronously, it means this turn on procedure isi fail, please repeat this operation 1. Again!). 2. Under normal operation, when the effective distance (about 5 to 10 meters) between th turn receiver and the transmitter is exceeded, the receiver’s alarm will alert continuously per second.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Reminder FCC ID. : PG8101T01 MODEL : AR101 Working Frequency : 315.034 MHz for APPLICANT : Aero Communication Co., Ltd. ADDRESS : 10F, No.123-1,Shing De Rd., San Chung City.Taipei Hsien TAIWAN Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-03-116-01 ETC Report No.:ET91R-03-116-01 FCC ID.: PG8101T01 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Aero Communication Co., Ltd. 10F, No.123-1,Shing De Rd., San Chung City.Taipei Hsien TAIWAN Manufacturer : Aero Communication Co., Ltd. 10F, No.123-1,Shing De Rd., San Chung City.Taipei Hsien TAIWAN Description of EUT : a) Type of EUT : Reminder b) Trade Name : Aero c) Model No. : AR101 d) FCC ID : PG8101T01 e) Working Frequency : 315.034 MHz f) Power Supply : DC:3V(Lithium battery CR2032) Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : May 15, 2002 Test Engineer : ( Jeff. Chung ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET91R-03-116-01 FCC ID.: PG8101T01 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION .................................................................................................................................. 1 1.1 PRODUCT DESCRIPTIO N............................................................................................................................................ 1 1.2 CHARACTERISTICS OF DEVICE:.................................................................................................................................. 1 1.3 TEST METHODOLOGY................................................................................................................................................ 1 1.4 TEST FACILITY.......................................................................................................................................................... 1 2. DEFINITION AND LIMITS.................................................................................................................................... 2 2.1 DEFINITION............................................................................................................................................................... 2 2.2 RESTRICTED BANDS OF OPERATION.......................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................... 2 2.4 LABELIN G REQ UIREMEN T.......................................................................................................................................... 4 2.5 USER INFORMATION.................................................................................................................................................. 4 3 SYSTEM TEST CONFIGURATION...................................................................................................................... 5 3.1 JUSTIFICATIO N.......................................................................................................................................................... 5 3.2 DEVICES FO R TESTED SYSTEM................................................................................................................................... 5 4. RADIATED EMISSION MEASUREMENT.......................................................................................................... 6 4.1 APPLICABLE STANDARD............................................................................................................................................ 6 4.2 MEASUREMEN T PROCEDURE...................................................................................................................................... 6 4.3 TEST DATA................................................................................................................................................................ 8 4.4 FIELD STREN GTH CALCULATIO N................................................................................................................................9 4.5 ACTIVATE TIME......................................................................................................................................................... 9 4.6 CALCULATION OF DUTY FACTOR.............................................................................................................................. 9 4.7 RADIATED TEST EQUIPMENT................................................................................................................................... 10 4.8 MEASURIN G IN STRUMEN T SETUP............................................................................................................................. 10 4.9 RADIATED MEASUREMEN T PHOTOS......................................................................................................................... 11 5. BANDWIDTH OF EMISSION.............................................................................................................................. 12 5.1 APPLICABLE STANDARD PLO T GRAPHIC OF BANDWIDTH......................................................................................... 12 5.2 BANDWIDTH TEST EQUIPMENT...........................…
