PGAM6300Wireless Bar Cade Decoder

Model 6000 Wireless Bar Code Decoder Model 6200 Wireless Host Model 6300 USB Wireless Host USER’S MANUAL 2190 Regal Parkway •• Euless, TX 76040 (817)571-9015 •• (800)648-4452 •• Fax: (817)685-6232 www.barcodepower.com American Microsystems, Ltd. M6000/M6200/M6300 User's Guide 1 FCC NOTICE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and the receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. There are no user-serviceable internal parts. Changes or modifications not expressly performed by the manufacturer will void the manufacturer’s warranty and may void the user’s legal authority to operate the equipment. FCC PRODUCT LABEL INFORMATION This device complies with FCC Part 15. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. TRADEMARK ACKNOWLEDGEMENTS IBM, AT/XT, and PS/2 are registered trademarks of International Business Machines Corporation. MS-DOS, Windows, and Notepad are trademarks of Microsoft Corporation. PSC and Quickscan 6000 (QS6000) are trademarks of PSC Corporation. Metrologic MS-941 Laser is a trademark of Metrologic Instruments, Inc. All other trademarks or registered trademarks of other companies are used only for explanation without intent to infringe. © Copyright American Microsystems, Ltd. 2002. All rights reserved. American Microsystems, Ltd. M6000/M6200/M6300 User's Guide 2 TABLE OF CONTENTS Introduction....................................................................................................... 3 Features............................................................................................................... 4 Setup Instructions M6200 Wireless Host.................................................................................. 5 M6300 USB Wireless Host........................................................................ 5 M6000 Wireless Bar Code Decoder........................................................ 6 Usage Guidelines............................................................................................. 6 Setting the Host ID.......................................................................................... 7 Setting the Portable ID................................................................................... 7 Default Settings................................................................................................ 8 Changing the Default Settings....................................................................10 Programming Guide.......................................................................................11 Code 39................................................................................................................12 UPC......................................................................................................................12 EAN......................................................................................................................13 UPC/EAN Supplements...............................................................................14 Interleaved 2 of 5..............................................................................................14 Codabar...............................................................................................................15 Code 128.............................................................................................................15 Code 93................................................................................................................16 MSI/Plessey......................................................................................................16 Code 11................................................................................................................17 Preamble.............................................................................................................17 Postamble...........................................................................................................17 Bar Code Options.............................................................................................18 Bar Code Edit....................................................................................................19 Laser/CCD Options........................................................................................20 Termination Character...................................................................................20 Host Keyboard Type.......................................................................................21 Host Transmit Speed......................................................................................21 Scan Beep............................................................................................................21 Portable Acknowledge Beep........................................................................21 Diagnostics.........…

Text truncated - open the document above for the full version.

American Microsystems, Ltd. 2190 Regal Parkway Euless, TX 76040 (817) 571-9015 M6300 Product Operation: American Microsystems’ M6300 is the host receiver for the companion M6000 wireless barcode decoder. This system provides a means of wireless transmission of barcode data and then of receiving this data at the M6300 host. The data is sent from the M6300 as simulated keyboard keystrokes via the USB interface to an IBM compatible PC. The intended uses for this product include point-of-sale and inventory applications in a business or industrial environment. The M6300 consists an Atmel ATMega103 microcontroller operating at 4 MHz, a Cypress CY7C63001A USB microcontroller operating at 6 MHz, a voltage regulator for RF power, an interface for connecting an undecoded barcode reading device (e.g. laser, wand, or CCD), a USB interface, and finally of an RF Monolithics TR1000 radio frequency transceiver with a printed circuit board (PCB) based antenna. M6300 Block Diagram:

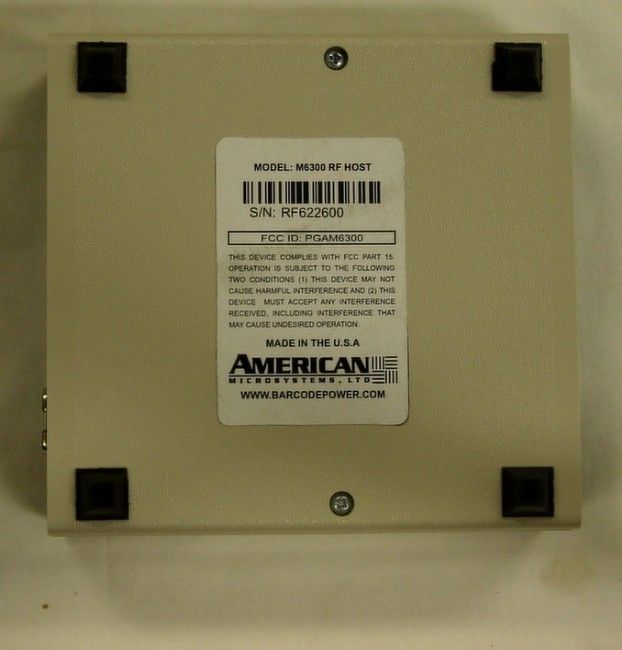

LABEL SAMPLE & LOCATION

American Microsystems, Ltd. 2190 Regal Parkway Euless, TX 76040 (817) 571-9015 M6300 Product Operation: American Microsystems’ M6300 is the host receiver for the companion M6000 wireless barcode decoder. This system provides a means of wireless transmission of barcode data and then of receiving this data at the M6300 host. The data is sent from the M6300 as simulated keyboard keystrokes via the USB interface to an IBM compatible PC. The intended uses for this product include point-of-sale and inventory applications in a business or industrial environment. The M6300 consists an Atmel ATMega103 microcontroller operating at 4 MHz, a Cypress CY7C63001A USB microcontroller operating at 6 MHz, a voltage regulator for RF power, an interface for connecting an undecoded barcode reading device (e.g. laser, wand, or CCD), a USB interface, and finally of an RF Monolithics TR1000 radio frequency transceiver with a printed circuit board (PCB) based antenna. M6300 Block Diagram:

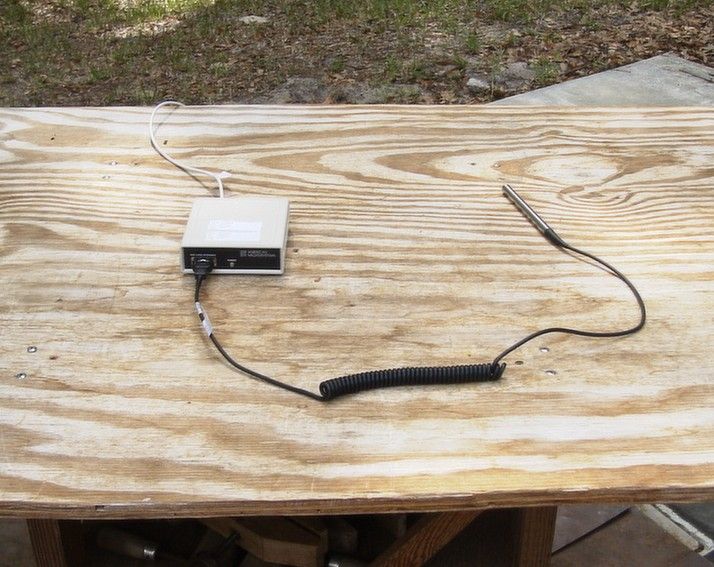

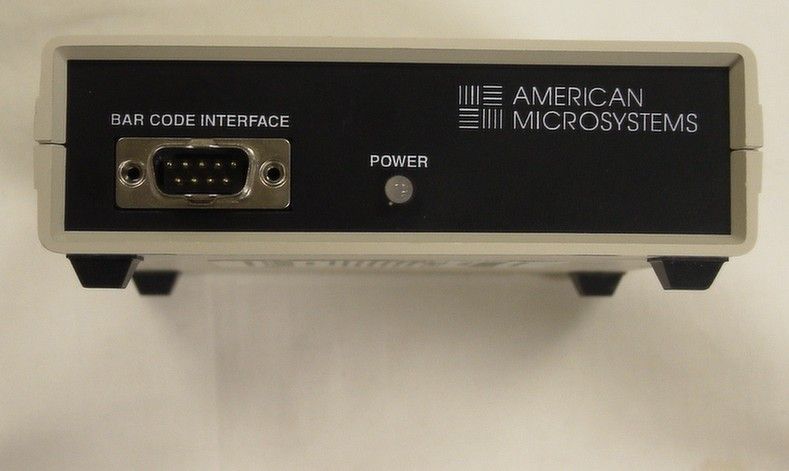

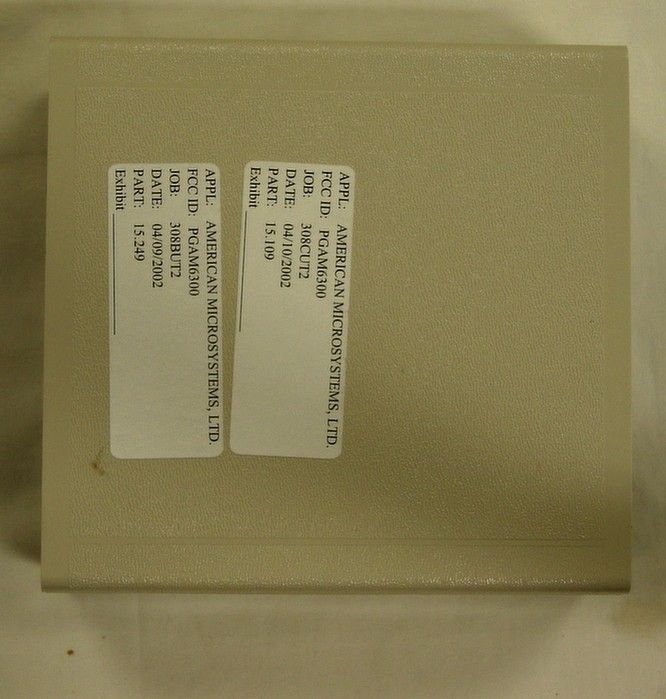

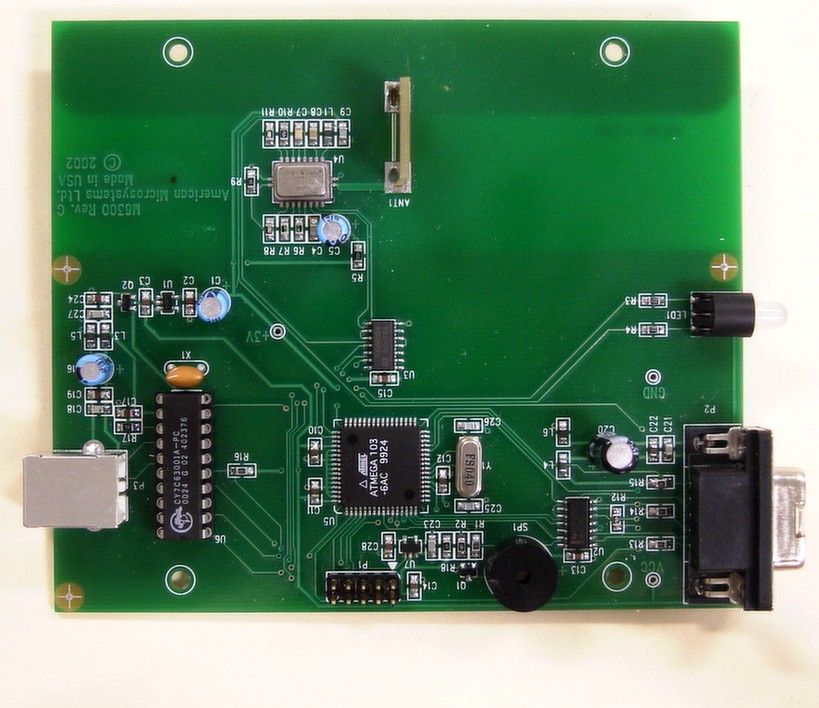

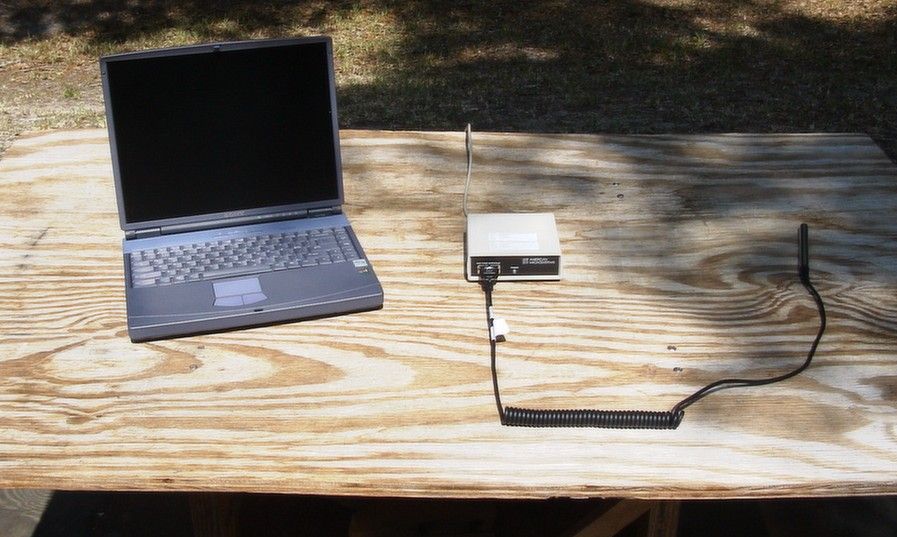

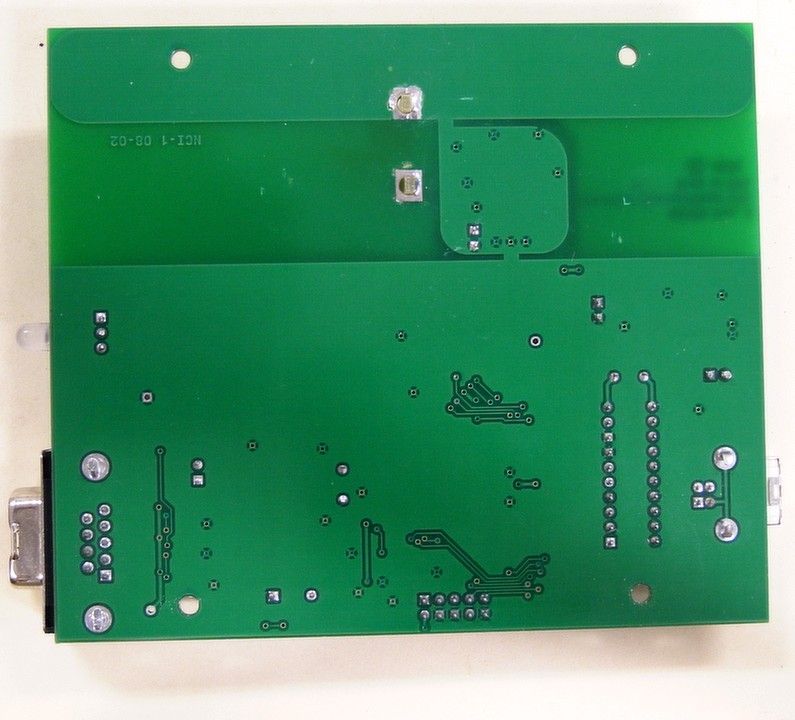

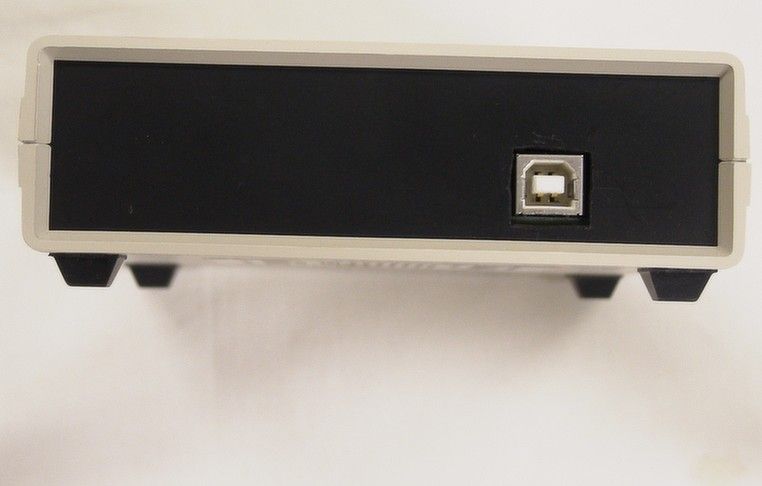

Applicant: American Microsystems, Ltd. FCC ID: PGAM6300 Report #: A/AmericanMicro_PGA\308BUT2\30BUT2TestReport.doc Page #: Table of Contents TABLE OF CONTENTS APPLICANT: AMERICAN MICROSYSTEMS, LTD. FCC ID: PGAM6300 TEST REPORT CONTAINING: PAGE 1-4...........TEST EQUIPMENT LIST PAGE 5.............TEST PROCEDURE PAGE 6-7...........RADIATION INTERFERENCE TEST DATA PAGE 8.............OCCUPIED BANDWIDTH PAGE 9.............OCCUPIED BANDWIDTH PLOTS EXHIBIT ATTACHMENTS: EXHIBIT 1...........FCC ID LABEL SAMPLE & SKETCH OF LOCATION EXHIBIT 2...........BLOCK DIAGRAM EXHIBIT 3...........SCHEMATICS EXHIBIT 4...........USERS MANUAL EXHIBIT 5...........FRONT VIEW EXTERNAL PHOTO EXHIBIT 6...........REAR VIEW EXTERNAL PHOTO EXHIBIT 7...........TOP VIEW EXTERNAL PHOTO EXHIBIT 8...........BOTTOM VIEW EXTERNAL PHOTO EXHIBIT 9...........COMPONENT SIDE INTERNAL PHOTO EXHIBIT 10..........COPPER SIDE INTERNAL PHOTO EXHIBIT 11..........OPERATIONAL DESCRIPTION EXHIBIT 12..........CONFIDENTIALITY LETTER EXHIBIT 13..........TEST SETUP PHOTO Applicant: American Microsystems, Ltd. FCC ID: PGAM6300 Report #: A/AmericanMicro_PGA\308BUT2\30BUT2TestReport.doc Page #: 1 of 9 Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 X Receiver, Beige Tower X Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/02 X RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/02 X Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/02 Receiver, Blue Tower Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/02 RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/02 Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/02 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 X Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/02 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/01 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/02 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/02 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/02 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/02 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/01 X Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/02 Applicant: American Microsystems, Ltd. FCC ID: PGAM6300 Report #: A/AmericanMicro_PGA\308BUT2\30BUT2TestReport.doc Page #: 2 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/02 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/02 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/02 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/02 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 (5/25/00) Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/02 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/02 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/03 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/02 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/02 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/02 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/03 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/03 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/03 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/02 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/02 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/03 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/03 Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/03 Applicant: American Microsystems, Ltd. FCC ID: PGAM6300 Report #: A/AmericanMicro_PGA\308BUT2\30BUT2TestReport.doc Page #: 3 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/02 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/02 Injection Probe Fischer Custom Communications F-120-9A 270 CAL 6/1/01 6/1/02 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/01 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 11/12/99 11/12/00 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/02 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/02 Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801- M2-16A 01048 CAL 8/29/01 8/29/02 Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801- M3-16A 01060 CAL 8/29/01 8/29/02 VHF/UHF Current Probe Fischer Custom Communications F-52 130 CAL 8/30/01 8/30/02 Passive Impedance Adapter Fischer Custom Communications FCC-801- 150-50-CDN 01117 & 01118 CAL 8/29/01 8/29/02 Radiating Field Coil Fischer Custom Communications F-1000-4- 8/9/10-L-1M 9859 CAL 10/15/98 10/15/99 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/02 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/02 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/02 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/02 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/02 Applicant: American Microsystems, Ltd. FCC ID: PGAM6300 Report #: A/AmericanMicro_PGA\308BUT2\30BUT2TestReport.doc Page #: 4 of 9 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/02 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/02 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/02 Egg Timer Unk CHAR 2/28/01 2/28/02 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/28/01 2/28/02 Measuring Tape, 7.5M Kraftixx 7.5M …

Text truncated - open the document above for the full version.
