PHLTXUP5000TXUP5000 5 kW Analog TV Transmitter

AUTV/5000LD LDMOS - UHF TV Solid State Amplifier Userís manual CODE: APT120A TITLE: AUTV/5000LD REV: 0 DATE: 22/10/03 SS 96 Km 113 70027 Palo del Colle (Ba) ITALY Tel. +39 (0)80 626755 Fax +39 (0)80 629262 E-mail: [email protected] Web siste: http://www.elettronika.it Registration number: IT-17686 Registration number: IT-24436 3 WARNING The apparatus described in this manual has been designed and manufactured with devices to safe- guard the users. In any case it is recommended that during any operation of installation, maintenance, miscellaneous interventions and calibrations requiring the apparatus to be switched on, THE USER TAKES ALL THE PRECAUTIONS AGAINST INCIDENTS It is required to use the proper clothes and protection gloves in order to prevent damages from inci- dental contacts with high-voltage parts. The manufacturer declines every responsibility in case the recommendations above are not followed. IMPORTANT The component lists attached to the relevant electrical diagrams indicate for each item the reference, the description and the type normally used. The Elettronika S.r.l. though reserves the right to use or supply as spare parts components with equivalent characteristics but of a different type, assuring anyway the optimal work of the apparatus in accordance with the specifications. The enclosed monographs are solely owned by Elettronika S.r.l. The use of anything enclosed in this technical manual without explicit authorization given by Elettronika S.r.l. will be prosecuted by the law. The data and technical characteristics of the apparatus described in this manual are not compelling for the manufacturer. The Elettronika S.r.l. reserves the right to make, without previous notice, modifications or updates in order to improve the quality of the product. The general conditions of supply and sale are described in the contracts. The delivery time are in accordance with the products and quantities ordered. 4 Summary of warranty We, ELETTRONIKA S.r.l., SS096 Km 113 Z.I. PALO DEL COLLE (BA) ITALY, warrant to the ORIGINAL PURCHASER of a NEW product, for a period of one (1) year from the date of purchase by the original purchaser (the ìwarranty periodî) that the new ELETTRONIKA product is free of defects in materials and workmanship and will meet or exceed all advertised specifications for such a product. This warranty does not extend to any subsequent purchaser or user, and automatically terminates upon sale or other disposition of our product. Items excluded from this ELETTRONIKA warranty We are not responsible for product failure caused by misuse, accident, or neglect. This warranty does not extend to any product on which the serial number has been defaced, altered, or removed. It does not cover damage to loads or any other products or accessories resulting from ELETTRONIKA product failure. It does not cover defects or damage caused by use of unauthorized modificstions, accessories, parts, or service. What we will do We will remedy any defect, in material or workmanship (except as excluded), in our sole discretion, by repair, replacement, or refund. If a refund is elected, then you must make the defective or malfunctioning component available to us free and clear of all liens or other encumbrances. The refund will be equal to the actual purchase price, not including interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service centers or at our factory. Expenses in remedying the defect will be borne by ELETTRONIKA, including one-way surface freight shipping costs within the United States. (Purchaser must bear the expense of shipping the product between any foreign country and the port of entry in the United States and all taxes, duties, and other customís fee(s) for such foreign shipments). How to obtain warranty service You must notify us of your need for warranty service not later than ninety (90) days after the expiration of the warranty period. We will give you an authorization to return the product for service. All components must be shipped in a factory pack or equivalent which, if needed, may Desclaimer of consequential and incidental damages You are not entitled to recover from us any consequential or incidental damages resulting from any defect in our product. This includes any damage to another product or products resulting from such a defect. Warranty alterations No person has the authority to enlarge, or modify this warranty. The warranty is not extended by the lenght of time for which you are deprived of the use of the product. Repairs and replacement parts are provided under the terms of this warranty shall carry only the unexpired portion of this warranty. Design changes We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously manufactured. Legal remedies of purchaser There is no warranty which extends beyond the terms hereof. This written warranty is given in lieu of any oral or implied warranties not contained herein. We disclaim all implied warranties, including without limitation any warranties of merchantability or fitness for a particular purpose. No action to enforce this warranty shall be commenced later than ninety (90) days after expiration of the warranty period. Warranty for electronic tubes The warranty applied for electronic tubes is the one given by the manufacturer of the tube. In the event that the product shows anomalies within the deadline of the validity of the warranty given by the manufacturer of the product itself, the buyer will have to return it to the seller with the needed documents and the written description of the defect. The seller will ship the broken tube to the manufacturer in order to effect the necessary technical tests to find out the cause of the anomaly. Meanwhile the buye…

Text truncated - open the document above for the full version.

49 _______________________________________________________________________________________________ Section 1 - Information Contents: 1.1 Description 1.2 Technical characteristics 50 1.1 DESCRIPTION The AUTV/1500LD is an amplifier operating into Band IV-V for common amplification process of the Vision and Sound carriers. The amplifier has been designed to offer to the customer high performances, high reliability and greater simplicity in his operation and maintenance procedures. The amplifiers modules employ all solid state LDMOS technology in order to obtain high gain, wide- band performances, very good linearity, reliability and high efficiency. The equipment design allows the soft degradation (RF power loss) for several transistor faulty: in fact the output combiner uses RF power resistors for unbalancing power dissipation. The unit is enclosed in a cabinet for 19î- 6U rackmounting. AUTV/1500LD LDMOS - UHF TV AMPLIFIER 51 1.2 TECHNICAL CHARACTERISTICS RF Frequency range470 - 860MHz Output power1300W PEP Video/Sound power ratio10/1 Out stage technologySolid State LDMOS Vision-Sound amplificationCommon I.M.D. (-8, -10, -16dB)Better than -54dB StandardsG, K, N Spurious and harmonics levelIn compliance with CCIR rec. RF Output impedance50W RF Output connector7/16î GENERAL Power supply230Vac, ±10%, 50/60Hz 400Vac 3P+N (on request) Power consumption3400VA at black level RS232 SocketDB9 Connector (on front panel) RS485 SocketDB9 Connector (on rear panel) Telemeasuring socketDB9 Connector (on rear panel) AGC SocketDB9 Connector (on rear panel) Power factor> = 0.9 Ambient temperature-5∞ to +45∞C Relative humidity20% - 90% AltitudeUp to 2.500 meters CoolingForced air CabinetRack 19î-6U Dimensions760x263x266mm Weight70kg PROTECTION THR. FWD Power1500W REF Power150W Unbalacing350W Temperature75∞C I DC 25A V DC Min 10V - Max 33,5V 52 This page is intentionally blank 53 _______________________________________________________________________________________________ Section 2 - Installation Contents: 2.1 Operating environment 2.2 Preliminary operations 2.3 Telemeasuring socket connections 2.4 RS232, RS485 and AGC socket connections 2.5 Preventive maintenance - Front panel - Rear panel 54 2.1 OPERATING ENVIRONMENT You can install the apparatus in a standard component rack or on a suitable surface such as a bench or desk. In any case, the area should be as clean and well-ventilated as possible. Always allow for at least 2 cm of clearance under the unit for ventilation. If you set the apparatus on a flat surface, install spacers on the bottom cover plate. If you install the apparatus in a rack, provide adequate clearance above and below. Do not locate the apparatus directly above a hot piece of equipment. 2.2 PRELIMINARY OPERATIONS Correct installation of the equipment is important for maximum performance and reliability. Antenna and earth connections must be installed with the greatest care. The equipment adjustment isnít need, because the unit is completely adjusted by our technical staff. This is the installation procedure: 1. connect the power supply cable of the exciter to the auxiliary socket on the rear panel of the amplifier; 2. connect the power supply cable of the amplifier to the electric network (230VAC). If there is the Isolator Transformer, the amplifier is provided with cable and plug; 3. connect the exciter / antenna cables respectively to the RF IN and RF OUT on the rear panel of the amplifier. WARNING!!! FOR ELECTRICAL SAFETY REASONS AND IN ORDER TO KEEP THE APPARATUS SAFE, THE GROUND TERMINAL OF THE APPARATUS MUST BE CONNECTED TO THE EXISTING GROUND- ING SYSTEM AND NOT BY USING THE SHIELD OF THE OUTPUT COAXIAL CABLE. 13 2 Three-Phase cabling Monophase cabling 55 When the apparatus is put within a combined system it is directly connected to the input splitting and output combining systems. Before fully powering the apparatus, check that the output connections of the coaxial cable to the antenna system are working. In order to this it is possible to check the indication of the reflected power at low power levels. Only if the SWR indication on the display is 0, the output power can be slowly increased. At maximum output power, some watts might be shown as reflected power. 2.3 TELEMEASURING SOCKET CONNECTIONS DB9 Socket 2.4 RS232, RS485 AND AGC SOCKET CONNECTIONS PIN N∞SIGNAL TYPEIN / OUTFUNCTION 1AnalogOutputFWD Power 2AnalogOutputREF Power 3DigitalOutputTemperature 4DigitalInputInterlock 5GND -- 6 - 7DigitalOutputFree contact (closed when alarm) 8DigitalInput 0V = ON 5V = Normal 9DigitalInput 0V = OFF 5V = Normal PIN 123456789 FUNCTIONS -TxDRxD-GND---- RS232 - DB9 Socket PIN 123456789 FUNCTIONS -Rx-Rx+5VGND-Tx-Tx+- RS485 - DB9 Socket 56 AGC - DB9 Socket PIN N∞SIGNAL TYPEIN / OUTFUNCTION 1GND -- 2DigitalOutput 0V = Normal 5V = AGC Alarm 3DigitalOutput 0V = Normal 5V = AGC Alarm 8AnalogOutputFWD Power 9AnalogOutputFWD Power 2.5 PREVENTIVE MAINTENANCE To ensure maximum performance and minimum repair trouble, we strongly recommend you to follow the below stated headlines for preventive maintenance: 1. check antenna installation and ground connection at regular intervals; 2. keep your apparatus clean and dry externally: this will ensure continuous functioning of the front panel controls; 3. if the apparatus has not been used for a long period of time combined with exposure to extreme environ- mental conditions, open the unit and make a visual inspection. Remove salt, water or ice with a moist cloth before turning the apparatus on. Check that the cooling fans are running freely. 4. for general maintenance and top performance, call an authorized service technician to give the apparatus and the complete antenna/earth connection installation a general check every 12-18 months; 5. check at regular intervals that the air intake located on the front panel is free of dust. If there is visible dust, remove it by means of a soft brush. 57 Front panel 1 2 3 45 6 DESCRIPTION 1LCD Display 2 Function keys …

Text truncated - open the document above for the full version.

103 AMPLIFIER INTERFACESCH0221AR0 Component layout SCH0221AR0 COMPONENT LIST SCH0221AR0 Part Name/NumberDescriptionQty. Comps. CC 100nFAVX 01065A 01065A CERAMIC COND4C1-4 CE 100uF100V01795B ELETT. COND.1C8 CE 100uF50V 0179501795 ELETT. COND.1C6 CE 10uF35V-S 01778A 01778A ELETTR SMD COND2C5, C7 D 1N4007 0300903009 DIODE1D1 D 6CWQ10FN03026 SMD DIODE SCHOTTKY 3,5A3D7-9 IC LM317HV04340A INTEG CIRCUIT2IC1-2 J FC-16P 02701-0270002701+02700 PCB CONNECTOR POL1J20 J SCREWCONN2 02853 02853 PCB SCREW CONNECTOR2J19, J24 J SCREWCONN3 02860 02860 PCB SCREW CONNECTOR1J18 J TESTP1.3mm 0791307913 TEST POINT17J1-17 JU JUMP2 02739-02742 02739+02742 MASCHIO PAN23JP1-2, JP4 JU JUMP3 02707-02742 02707+02742 MASCHIO PAN31JP3 R 0R33-1W-S00380 RES 1W 5% SMD 25122R1-2 R 100K-S 00065A00065A RES 1/4W 5% SMD 12061R7 R 10K-S 00053A00053A RES 1/4W 5% SMD 12061R6 R 220R-S 00033A00033A RES 1/4W 5% SMD 12061R4 R 270R-S 00034A00034A RES 1/4W5% SMD 12061R3 R 4K7-S 00049A00049A RES 1/4W 5% SMD 12061R5 TR BC856 0345503455 PNP SMD TRANSISTOR1TR1 104 105 MAINS DISTRIBUTION BOARDSCH0215AR0 Component layout SCH0215AR0 COMPONENT LIST SCH0215AR0 Part Name/NumberDescriptionQty. Comps. CC 2nF2 2kV 01045A01045A CERAMIC COND2C1-2 CNV AC-DC ATC-12SAC DC CONVERTER1CNV1 D 1N4148 0300103001 DIODE2D1-2 DL LEDG3 0305303053 GREEN LED DIODE 3mm1DL1 J CON HD515V/05-3PVEPANDUIT PCB CO3J3-5 J CON HD515V/05-4PVE02881 + 02882 PANDUIT PCB CONN1J2 J CON HD515V/05-5PVEPANDUIT PCB CO1J1 J TESTP1.3mm 0791307913 TEST POINT6J6-11 R 1K2 00420042RES 1/4W 5%1R1 RL 40.31.12 0756707567 RELE2RLY1-2 106 107 TECHNICAL CHARACTERISTICS - Input characteristics Vin:100..240Vrms REND.:80% lin@FL:16..6,5Arms PF>0.95@FL (PFC) - Output characteristics Pout:1300W on 2 outputs Vout:2 options a) 32Vdc 40A on 2 outputs b) 52Vdc 25A on 2 outputs Block Diagram 1kW 32Vdc SWITCHING POWER SUPPLY E0026 AUX PRIM AUX AUX SEC L R N S T EMI FILTER PFC POWER STAGE MAIN CONVERTER POWER STAGE +1 1 +2 +2 OUTPUT CONTROL AND PROTECTION MONITOR FLAT 10PIN Feedback inhibit inhibit 108 109 110 111 112 113 114 115 116 COMPONENT LIST 1kW 32Vdc Switching Power Supply SMT COMPONENT ITQTY STORE-CODE DESCRIPTIONREF. Page 1/2 1103.B04.0000A CHIP RES.0805 STR.MET.0.10W 0Ohm 5%R92 2203.B05.0003B100R 1% 0.1W RES. SMD 0805 100PPMR16, R42 3303.B05.0006B 10K 1% 0.1W RES. SMD 0805 100PPMR27-28, R130 4403.B05.0009B 1K 1% 0.1W RES. SMD 0805 100PPMR8, R40, R43, R105 5303.B05.0014B 27K 1% 0.1W RES. SMD 0805 100PPMR20, R45, R93 6103.B05.0020B 47K 1% 0.1W RES. SMD 0805 100PPMR5 7303.B05.0061B 4K7 1% 0.1W RES. SMD 0805 100PPMR19, R44, R94 8103.B05.0150B150R 1% 0.1W RES. SMD 0805 100PPMR84 9603.B10.0267B 4K75 1% 1% 25W RES. SMD 1206 100PPMR47-52 10903.B17.0003B 2R2 1% 0.25W RES. SMD MINIMELF 100PPMR1-2, R18, R38, R41, R46, R86-87, R167 11203.B17.0010B100K 1% 0.25W RES. SMD MINIMELF 100PPMR75-76 12103.B25.0002A 0.01R 1% 3W RES. SMD 4527 WSR3 100PPMR31 13803.D02.0004ACOND. CRM MSTR Z5U 100NF 50V 20% SMT-0805C13, C42, C45, C50, C71, C98-99, C127 14303.D02.0012A220PF 50V 5% 0805 SMD COND. CMR X7RC11, C19, C36 15303.D04.0004A 1NF 500V 10% 1206 SMD COND. CRM MSTRC8, C93-94 16503.D04.0007A 1uF 25V 10% 1206 SMD GRM42-6 (MURATA)C1, C3, C12, C18, C135 17105.B02.0014A L6565D FLYBACK QUASI-RESONANT CONTROL.IC1 18205.B04.0010ALMC6482AIM DUAL CMOS SOP-8 OP.AMPUI-2 19204.D00.0001AMMBT2222A BJT NPN 40V 1A 0.35W Hfe100-300Q3, Q20 20104.D00.0501AMMBT2907A BJT PNP -60V 0.8A 0.35W Hfe100-300Q1 21504.D00.0502A BJT PNP -80V -1A 1W Hfe 100 Ty. BCX53-16 Pk. SOT-89 (M.code: AL)Q4, Q18, Q21-22, Q27 22604.B01.0001A BAV103 SMD DIODO SILICIO 200MA 250V PKG. SOD80 D1, D22, D24-25, D27, D37 23304.K00.0002A DIODO LED VERDE SMD 1206 BRIGHTLEDDL1-3 THT COMPONENT ITQTY STORE-CODE DESCRIPTIOREF. Page 1/2 241CIRCUITO STAMPATO D.N. D06.0203A_00R02 254Morsetto Phoenix MKDS5/2-9.5J4, J6, J9-10 261RELAY 24VDC 16A G2R-1-E-24VDC OMRONK1 2750,1R 5% 3W RES. OSSIDO. MET.R103-104, R201-203 282220R 5% 3W RES. OSSIDO. MET.R4, R60 29233KOhm 5% 3W RES. OSSIDO MET.R162-163 30439R 5% 2W RES. OSSIDO MET. 250ppmR6, R15, R169, R171 312100K 5% 2W RES. OSSIDO MET. 250ppmR82, R101 117 ITQTY STORE-CODE DESCRIPTIONREF. Page 2/2 324RESISTORE A FILO 0,01R 2W 5%R3, R7, R29, R34 331Potenziometro Cermet 20Giri 2KOhm 0.5W 10% 100ppm Ty: 67WP1 3454700pF 250W COND. CRM CLASSE X1 Y2 P.7,5C6, C15, C17, C87-88 351100nF 600V 5% Cond. film mylar scat 7.5x17.5mm P.15C2 3621UF 275Vac X2COND. FILM. SCAT. 12.5x32.5mm P27.5C106, C116 371COND. FILM MYLAR SCATOLINO 4.7nF 250V 10% 5x17.5 P. 15 (mm)C5 3821uF 630V COND. FILM SCAT. 18x32.5mm P.27.5C112-113 39910uF 63 COND. RAD. POLIES. 10% P22.5 10x25 (mm)C4, C9-10, C46-49, C52, C53 401Condensatore FILM SCATOLINO 2.2uF 400V 10% P.27,5C7 412470uF 450V 20% ETL SNAP-IN 20% ins. Radiale d35 / h52mm C107-108 427COND. ETL AL 100uF 25V d6,3x11mm P.2,5C28, C40, C43, C70, C91, C96, C126 433COND. ETL AL 220uF 63V 20% ins. Radiale d20 / h42mm P7.5 C57-59 441COND. ETL 1uF 450V 20% ins. Radiale d8 / h11.5 P.3.8 (mm) C16 453INDUTTORE 22uH I-MAX 2A PASSO 200L1-2, L7 461TRASF. DI POT. T0203.04R01 D.N. STT0203_04R01T1 471TRASF. AUX T0203.05R02 D.N. STT0203_05R02T3 481BOBINA SNUBBER PFC T0211.03R01 D.N. STT0211_03R01 L9 491BOBINA CLAMPER PFC T0211.02R02 D.N. STT0211_02R02 L8 501BOBINA PFC T0203.01R00 D.N. STT0203_01R00L5 511BOBINA DI MODO COMUNE T0203.06R00 D.N. STT0203 L6 521NTC 10R DIAM. 9,5mm P.5 B57-235-S100MNTC5 531NTC EPCOS B57045K0103K000NTC1 542FUSIBILE AUTO AL 25A 32VF3-4 554CLIP PORTAFUSIBILE PER AUTO PZ1011 (OMEGA)F1-2 561P600K DIODO RADDRIZZ. SILICIO 6A 800VD12 571STTA3006CW DOPPIO DIODO ULTRA FAST TO247D10 582STT1206D TO220 D. TURBOSWITCH 600V 12AD9, D13 592STPS80H100CY 100V 4X20 MAX TO247D29, D30 601DIODO ZENER 1,3W 18V ZPY18 DO-41 5%Z9 611STP6NC90Z 900V 6A ENHAN. MODE N-MOSFETMT3 623STW45NM50 TO247 500V 45A MOSFETMF1-2, MF4 631COND. CER. MULTISTRATO 1uF 50V P.5C14 Note: within the notes: - the ëVí prefix is for Vertical mounting - the ëMí prefix stands for Mechanical details 118 UHF 5/10kW ANALOG TV FILTERCode 06663 Suitable for use in solid state A-…

Text truncated - open the document above for the full version.

January 26, 2007 Federal Communications Commission Office of Engineering Technology 445 12 th Street SW Washington, DC 20554 Dear Sir, This letter will serve to address FCC correspondence letter 32227 regarding the type certification for the Elettronika TXUP5000 broadcast transmitter. The associated FCC ID number is PHLTXUP5000. Specifically, the correspondence letter identified above seeks additional information on how the transmitter is configured regarding whether integral components are the same for both frequency ranges of the proposed grant frequencies. As the technical consultant for Elettronika, they have authorized me to provide information which should help resolve this question. It is my technical opinion that only one set of test data needs to be submitted for both frequency ranges 470-608 MHz and 614-806 MHz based upon the design of the unit. The design of the unit is such that the transmitter works over the entire 470-806 MHz with no change of parts. The only frequency dependent parts within the transmitter are the channel filter in the exciter and transmitter final bandpass filter. The exciter filter is a passive device and consists of one item that is tuned per operating channel. Likewise the transmitter final bandpass filter is a passive device and is the same block of material but it is tuned to the desired operating channel. The performance obtained at any test frequency within the entire range of 470-806 MHz will be representative of each transmitter shipped. If there are any clarifications needed or you have any questions please give me a call at the number above. Sincerely, Greg Best President Cc Maria Quintero, Elettronika America Greg Best Consulting, Inc. 9223 N. Manning Ave. Kansas City, MO 64157 816-792-2913

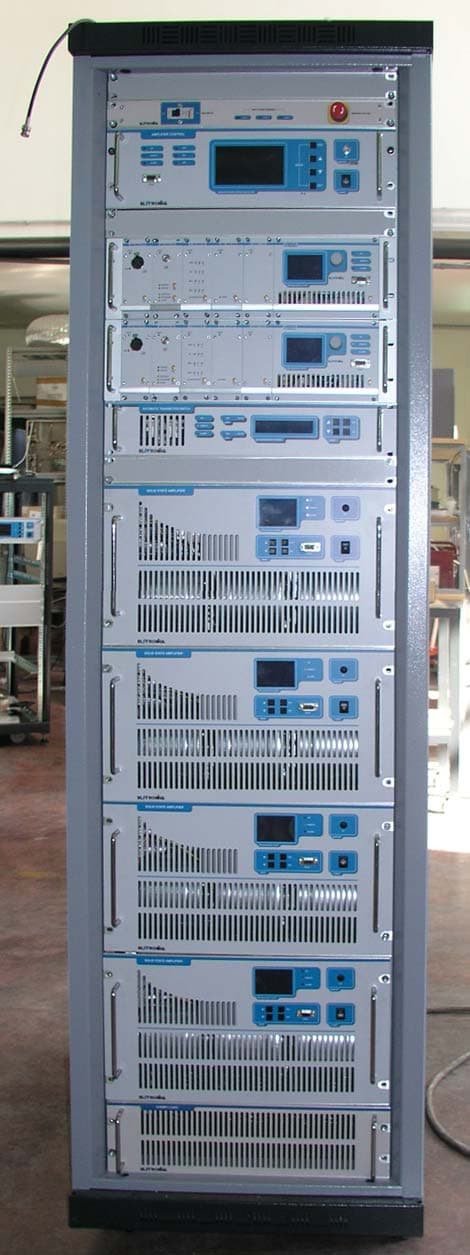

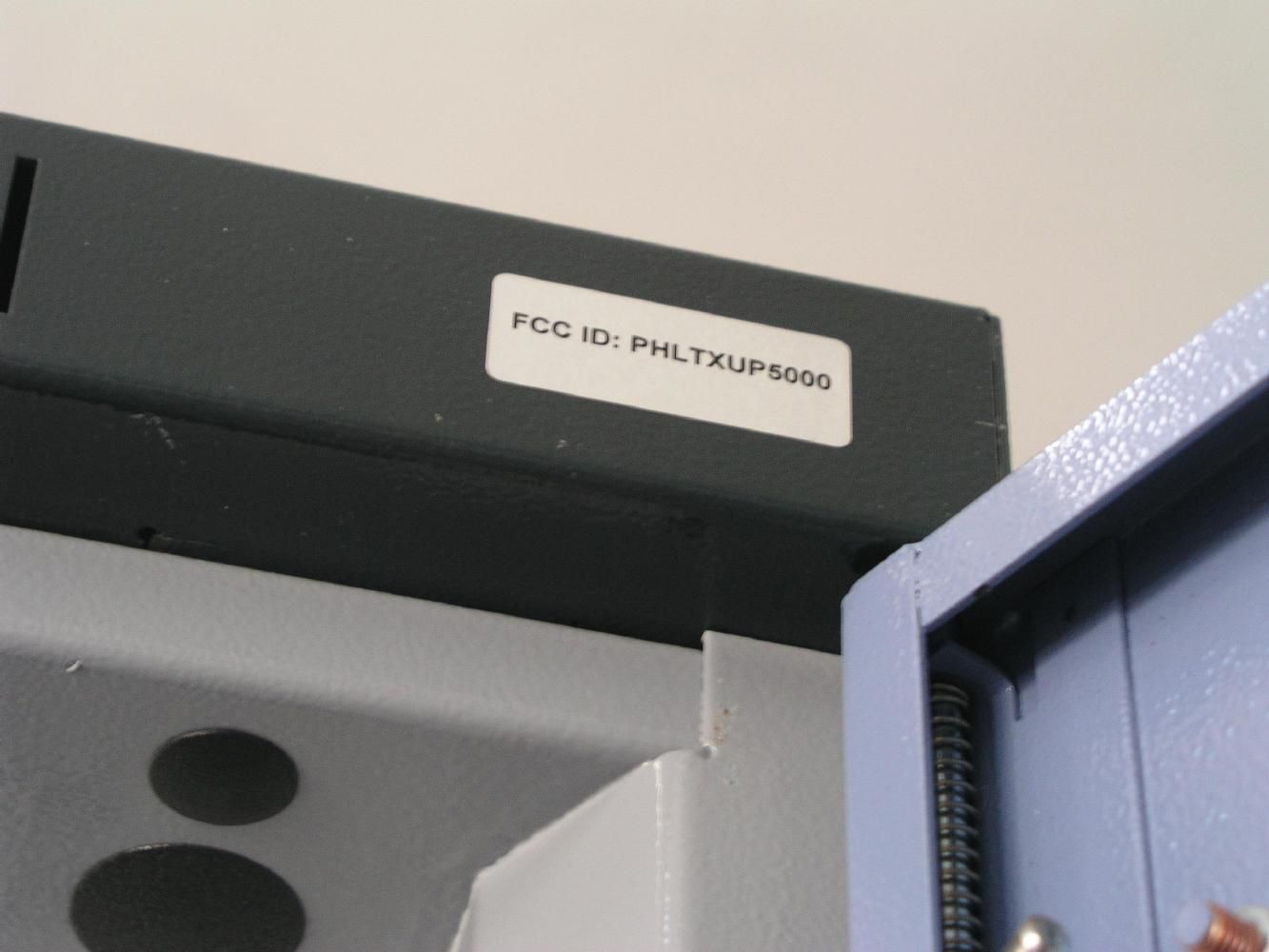

EXTERNAL CONSTRUCTION PHOTOS FRONT VIEW REAR VIEW CLOSE-UP REAR VIEW SHOWING FCC LABEL

INTERNAL CONSTRUCTION PHOTOS REAR VIEW--DOOR OPEN TOP REAR—DOOR OPEN MIDDLE REAR VIEW—DOOR OPEN BOTTOM REAR VIEW—DOOR OPEN LEFT SIDE WITHOUT SIDE PANELS RIGHT SIDE WITHOUT SIDE PANELS

AUTV/5000LD LDMOS - UHF TV SOLID STATE AMPLIFIER DESCRIPTION The AUTV/5000LD belongs to the High Power UHF products family of Television Amplifiers fully in solid state technology. The AUTV/5000LD series represents the 5kW TV Amplifier operating in the IV/V Band for Common amplification process (separate amplification available) of the Vision and Sound carriers. This Transmitters family has been designed to offer to the customer high performances, high reliability and greater simplicity in their operation and maintenance procedures. The Vision and Sound signal processing is provided for all TV Standards and all types of Audio applications (Mono & Dual sound - NICAM) together with colour systems such as PAL - NTSC - SECAM. Thanks to the amplitude and phase pre- correction circuit, it is possible to cancel the distortions in the output stage, thus cutting down the operating costs. The RF transposition in the driver is carried out by a synthesizer with various possibilities of accuracy and stability as well as precision offset locked by internal or external frequency reference. The RF amplifier is made up by four RF modules installed in a power rack, the modules are dedicated for the Vision and Sound carriers common amplification. The amplifiers employ solid state LDMOS technology in order to obtain wide band, reliability, and high efficiency. Each RF module has a built-in switching- mode power supply unit, self-protected against overcurrents and overvoltages, as well as overtemperature and VSWR for RF parameters. The cooling system is fully contained into the transmitter. The control unit provides full management of the transmitter without the presence of the operator, the system includes a central controller and several peripheral units installed in each RF module and rack. Controller and peripherals are connected by a RS485 full-duplex bus. Power supply output voltages and currents, forward and reflected power of any single power amplifier are monitorized by central control unit. In that way there is a single interface point between user and all the transmitter. The operator interface is made by a high resolution LCD graphic display and a simple keyboard, the menu is very friendly and easy to use. The Control Unit can be fully controlled in REMOTE mode via link or via modem in RS232 or other interface. The equipment design allows the soft degradation (RF power loss) for several transistors faults.

26 Part Name CodeDescriptionQty CON0145CON0145R0 POST. CASS. CONTROLLO APG012B1 05504CON0134R0 PIANO PROF. 260 ARE. p. 02047 ZN1 05525LAT. 3U PROF. 260 TAV. 424/A p. 2033 ZN2 PAN0066PAN0066R0 PANNELLO CONTR. APG012B 3U1 CON0153CON0153AR0 BASE CASS. CONTR. x APG012 ZN1 0552BKIT MANIGLIE 3-4U cod. 235.0122 02880SPINA V.DE 10A + INT. + FUS. DA PANN. BZ15011 1 SCH0239AR0SCHEDA DI CONTROLLO CON DISPLAY1 SCH0110BR0SCHEDA 3 IN. ANALOGICI MASTER APG012B1 SCH0152AR0SCHEDA COMMUTAZIONE 220VAC x APG012B1 SCH0241AR0SCHEDA IN/OUT DIGITAL SIGNAL FOR APG012C 1 E0031ALIM. SWITCHING S-60-241 07926PROTEZIONE IN GOMMA PVC PG 0871 02843SPINA SCHERM. 2 POLI cod. 525.25521 02695CONNETTORE DB9F x CAVO IU0080591 02856CONNETTORE DB25F x CAVO 525-28121 07925PROTEZIONE IN GOMMA PVC PG0751 07524AINTERR. NERI I39101 02018GE 35145D/22 BN(UG909/cxRG174)1 02035PRESA BNC/F x RG316 cod. 601401 08500CAVO RG174 50W0,30 02700CONNETTORE cod. 534-2303 FEM. 16 VIE1 02790CONNETTORE DB25M x CAVO SALDATO 525-2602 1 02871ACALOTTE PER DB25 cod. 525-26221 C0814NASTRO CONDUT. IN RAME DA 25mm 264/92750,50 V0761TAPPI NERI O 12.7 PLASTICA DP-5005 Component listAPG012C - Amplifier Control 34 COMPONENT LIST SCH0239AR0 Part Name/NumberDescriptionQty. Comps. Page 1/2 BATT BH001RB 3093_9003093 03090 BATTERY HOLDER1BATT1 BZ AI-155 0370503705 5VDC BUZZER1BZ1 CC 100nF-S 01065C01065C Y5V 1206 COND33C10, C15, C17-19, C22, C25, C28, C38, C45, C49-52, C55, C62-63, C68-69, C78, C80-85, C87-88, C90, C92-95 CC 15pF-S 0108801088 SMD 1206 COND2C74-75 CC 1nF-S 0109601096 SMD 1206 COND20C12-14, C31-33, C42-43, C53-54, C56-58, C60-61, C66, C76-77, C79, C86 CC 1uF100V-S 01760A01760A Y5V 1206 COND <<50 V>>8C21, C23, C37, C64-65, C67, C71-72 CC 220pF-S 0109301093 SMD 1206 COND8C2-9 CC 47pF-S 0110001100 SMD 1206 COND8C20, C30, C35-36, C40-41, C48, C59 CE 10uF16V-S01626B TANT. ELETTR SMD CO8C24, C26-27, C29, C34, C39, C46-47 CE 1uF50V-S 01763A01763A ELETTR SMD COND2C89, C91 CE 220uF50V LOW ESR1799A ELETTR SMD COND LOW ESR 4C16, C44, C70, C73 CE 47uF35V-S 01790A01790A ELETTR SMD COND1C11 CE 47uF50V-S 01791C01791C ELETTR SMD COND1C1 D 1N4148-S 0300203002 SMD DIODE4D12-13, D17, D19 D 50WQ06FN03019A SMD DIODE SCHOTTKY 5,5A 1D9 D BAS85-S03024 SMD DIODE SCHOTTKY8D1-8 D BAT54S03199 SMD SCHOTTKY DIODE A-K T 6D10-11, D14-16, D18 DIS WG240128B03083 240/128 DOT MATRIX LCD1LCD1 DL KA-3528SGC 0305703057 GREEN SMD LED DIODE1DL1 DL LEDG3 0305303053 GREEN LED DIODE 3mm1DL3 DL LEDR3 0305803058 RED LED DIODE 3mm4DL2, DL4, DL6-7 DL LEDY3 0305103051 YELLOW LED DIODE 3mm1DL5 IC 24LC64 0481504815 SMD INTEG CIRCUIT1IC7 IC 74HC00-S 4762A4762A SMD INTEG CIRCUIT1IC19 IC 82B715-S 04734A04734A SMD INTEG CIRCUIT1IC17 IC CD4053BC-S 04710A04710A SMD INTEG CIRCUIT1IC12 IC LM2596S-5.004580 SMD INTEG CIRCUIT1IC14 IC LM75-S 0066800668 SMD INTEG CIRCUIT1IC8 IC LMC6482-S04632 SMD INTEG CIRCUIT1IC20 IC LMC6484-S04634 SMD INTEG CIRCUIT4IC2-5 IC M41T56 0461104611 SMD INTEG CIRCUIT1IC6 IC MAX232-S 04804B04804B SMD INTEG CIRCUIT1IC16 IC MAX3080-S 0477004770 SMD INTEG CIRCUIT1IC22 IC MAX3080-S N.M.NOT MOUTED SMD INTEG CIRCUIT 1IC18 IC MAX942CSA-S04572 SMD INTEG CIRCUIT4IC9-11, IC13 IC MB90F543PF04596 SMD INTEG CIRCUIT1IC15 IC MPC100T-450I-TT04577 SMD INTEG CIRCUIT1IC21 IC ULN2003A 487004870 SMD INTEG CIRCUIT2IC1, IC23 IND MS85 10uH-S04948 INDUCTOR 2,7A1L1 IND T100uH-1.8A 495804958 TOROIDAL-STORAGE CHOKES 1L2 35 Part Name/NumberDescriptionQty. Comps. Page 2/2 INV IN-D43A-5V03085 DC/AC MODULE1INV1 J DB9_F-0∞ LT02794 PCB CONNECTOR DB9 LONG T 1J6 J FC-10P 02697-0269902697+02699 PCB CONNECTOR POL 2J11, J13 J FC-16P 02701-0270002701+02700 PCB CONNECTOR POL 2J12, J14 J FC-26P 02855-0285402855+02854 PCB CONNECTOR POL 1J10 J PAN2 0273902739 PCB CONNECTOR1J4 J PAN2 02739-40-4102739+02740+02741 PCB CONNECTO 1J5 J PAN3 0270702707 PCB CONNECTOR3J1-3 J PAN3 NOT MOUNTEDNOT MOUNTED PCB CONNECTOR 2J8-9 J SCREWCONN2 0285302853 PCB SCREW CONNECTOR1J7 JU JUMP3 02707-0274202707+02742 MASCHIO PAN34JP1-4 R 100R-S 00029A00029A RES 1/4W 5% SMD 12066R109, R114, R119-121, R123 R 10K-S 00053A00053A RES 1/4W 5% SMD 120637R22-27, R30, R32-33, R40, R47, R50, R57, R68, R81-82, R85, R90-101, R105-108, R116, R118, R122, R124 R 120R-S 00030A00030A RES 1/4W 5% SMD 12062R112-113 R 1K0-S 00041A00041A RES 1/4W 5% SMD 12065R46, R54, R87-88, R104 R 1K5-S 00043A00043A RES 1/4W 5% SMD 12062R110-111 R 22K-S 00057A00057A RES 1/4W 5% SMD 120611R18, R20-21, R28, R34, R36, R38-39, R41, R43-44 R 2K2-S 00045A00045A RES 1/4W 5% SMD 12068R19, R35, R37, R42, R45, R53, R59-60 R 330R-S 00035B00035B RES 1/4W 5% SMD 12062R89, R103 R 33R-S 00023A00023A RES 1/4W 5% SMD 12062R86, R102 R 470K-S 00073A00073A RES 1/4W 5% SMD 12068R48-49, R51-52, R55-56, R58, R65 R 470R-S 00037A00037A RES 1/4W 5% SMD 120630R10-17, R29, R31, R61-64, R66-67, R69-80, R83-84 R 4K7-S 00049A00049A RES 1/4W 5% SMD 12061R117 R 820R-S 00040A00040A RES 1/4W 5% SMD 12061R9 RL 30.22.24 0756907569 RELE5RLY1-5 RV 10K-S-H 0071500715 VARIABLE RESISTOR1R115 RV 1M-3266X00815 VARIABLE RESISTOR8R1-8 SW SWITCH-4DIP 90∞07531A PCB DIP SWITCH 90∞1SW1 SW SWITCH-8DIP07530A PCB DIP SWITCH SMD1SW2 T 06086 N 7630 76327630 7632 KTI06086 PULSANTE 24T1-4 TR BC848 0345703457 NPN SMD TRANSISTOR1TR1 XTAL 32.768k-S 0514605146 QUARTZ1XTAL1 XTAL 4MHz-S 05101A05101A QUARTZ1XTAL2 36 ANALOG INPUT BOARDSCH0110BR0 Component layout SCH0110BR0 COMPONENT LIST SCH0110BR0 Part Name/NumberDescriptionQty. Comps. CC 1206 N.M.N.M. SMD 1206 COND17C4-20 CC 1nF-S 0109601096 SMD 1206 COND3C1-3 J BNC-90G-PCB 203402034 PCB CONNECTOR3J1-3 J BNC-90G-PCB 2034N.M. BNC-90G5J4-8 J FC-16P 02701-0270002701+02700 PCB CONNECTOR POL1J9 R 0R0-S 0000100001 RES 1/4W 5% SMD 12066R13, R15, R17, R19, R21, R23 R 1206 N.M.N.M. RES 1/4W 5% SMD 120618R1-12, R14, R16, R18, R20, R22 R24 Z MICRO SOIC 8P N.M.SMD INTEG CIRCUIT NOT MOUNTED 3IC1-3 38 220VAC SWITCHING BOARDSCH0152AR0 Component layout SCH0152AR0 COMPONENT LIST SCH0152AR0 Part Name/NumberDescriptionQty. Comps. CC 2nF2 2kV 01045A01045A CERAMIC COND3C1-3 D 1N4148 0300103001 DIODE6D1-6 FUSE OMEGA C1034FUS0…

Text truncated - open the document above for the full version.

28 CONTROL AND DISPLAY BOARDSCH0239AR0 Component layout SCH0239AR0 (Bottom and Top layer) 29 30 31 32 33 37 39 41 43 44 0.47U/50V 471/1KV 471/1KV 222/500V 15V24V 104/100V104/100V 30V12V 0.47U/50V 472/100V 1U/50V 5V S-60N DIFFERENT COMPONENT: C18 103/50V C20 103/50V C13 R13 1K C31 203/100V 3022 U3 R12 5K1 C14 223/50V 2 7 6 18 5 4 3 3842 U1 R10 680 R11 7K5 R7 5K1 R14 R9 C16 221/1KV C15 471/50V 2200U/10V C22 C21 2200U/10V 2200U/10V 2200U/10V C23 C24 C25 2200U/10V 330U/35V X 330U/35V X 470U/25V 470u/25V 1000U/25V 1000U/25V X 1000U/25V 470U/25V X 330U/35V470U/25V X 470u/25V 330U/35V 330U/35V 330U/35V X U2 PC111 C12 474/250VAC C1 C28 221/250VAC C32 221/250VAC FG AC/NFG RTH1 10SP005 ZNR1 471 F 3A/250V FS1 AC/L BD1 4A/800V R1 680K/1/2W TF-096C1 LF1 472/250VAC C3 C2 472/250VAC C6 222/250VAC 104/250VAC C4 R8 22 103/50V C11 3 C9 47u/50V Q1 2SK727 1 R5 5.1 D2 FR104 R29 47K/2W 5 T1 C5 150u/400V R4 47K/2W V- R3 30K/3W R2 330/3W 473/400V C7 7 D1 EGP20J 101/1KV C8 D4D4 14-16 C20 R27 L2 C21 10-13 C22 C23 C24 R23 ZD3 JUMP R17 U2 PC111 R22 2K2 BYQ28X-200 RB009RB009RB009 BYQ28X-200BYQ28X-200BYQ28X-200 RB009 15K15K 12K 7K5 15K 20K 1K5 24K 22K R17 R14 10K D4 L2 RB016 CTB34M 2K C10 472/50V R6 2 1K5 R18 R19 R18 C18 R21 470 SHR1 TL431 SVR1 1K 100 22 R20 R23 R26 R27 560 5.1/1/2W 2K 100 390 2K 390 100 2K 22 220 220 22 5.1/1/2W5.1/1/2W 2K74K72K7 47/1/2W 10K 47/1/2W 820 0.39/2W 1K/2W 820820 0.39/2W0.39/2W 680/2W270/2W 0.39/2W 270/2W 820 TF159-1 13.8V TF161-1 TF160-1TF158-1 17.9V26.9V 33V/1W TF161-1 T1 R6 0.33/2W 39/2W R28 680 R9 5…
