PHUESES Enrollment Station

Document # 6055680 Rev 1.0, D1b 1 Enrollment Station Installation Instructions Specifications Mechanical: Electrical: 2.74” W x 4.6” L x 1.4” H Operating Voltage: 12 VDC Current Draw: 20mA Environmental: Environment: For indoor use only. Temperature Tolerance: -20º to 130º F Description The Enrollment Station is used to enroll HID format proximity cards directly into the PC software by presentation. This provides a convenient way to enroll cards whether you know the card format or not. The raw card data is read from the card and then stored in the PC software. Packing List 1 Enrollment Station 1 Installation Instructions 1 12VDC, 300mA Transformer 1 6-foot straight cord 1 DB-9 Serial Connector 1 DB-25 Serial Connector Operation To operate the Enrollment Station simply connect power and connect it to your PC as shown in the diagrams in the following sections. Once it’s connected to your PC you are now ready to enroll your cards. To enroll cards, present them over the labeled area on the top of the unit. When a card is successfully read, the Enrollment Stations responds with an audible beep. 15.21 Information to User Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Document # 6055680 Rev 1.0, D1b 2 Connecting the Transformer to the Enrollment Station The Enrollment Station is shipped with a 12VDC, 300mA plug-in transformer. To power the unit just plug the connector from the transformer into the power jack on the Enrollment Station. Then plug the transformer into a 120VAC wall outlet. Document # 6055680 Rev 1.0, D1b 3 Connecting the Enrollment Station to a PC COM port: To connect the Enrollment Station to your PC COM port, first plug the 6-foot straight cord into the RJ- 11 jack on the front. Then plug the straight cord into the DB connector. Next connect the DB connector to your COM port. You can use either the DB-9 or DB-25 connector, depending on your COM port. The diagram below shows this connection. Document # 6055680 Rev 1.0, D1b 4 427 Turnpike Street Canton, MA 02021 U.S.A. www.ieib.com

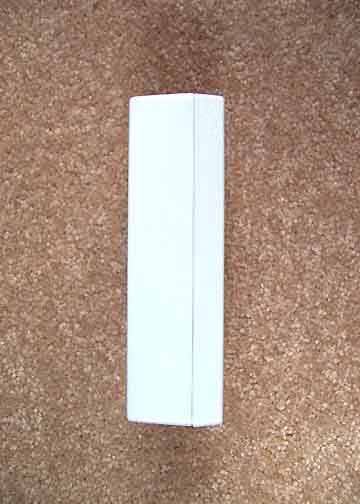

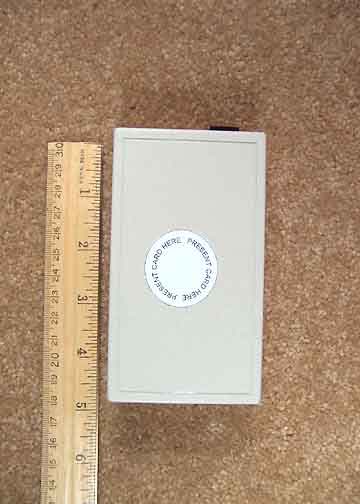

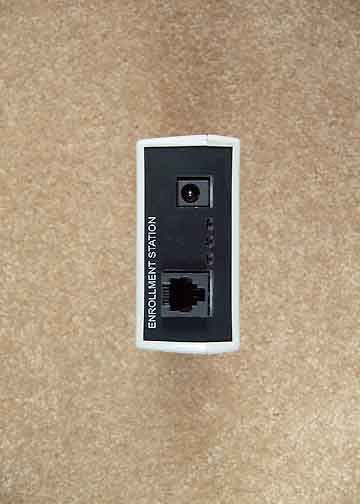

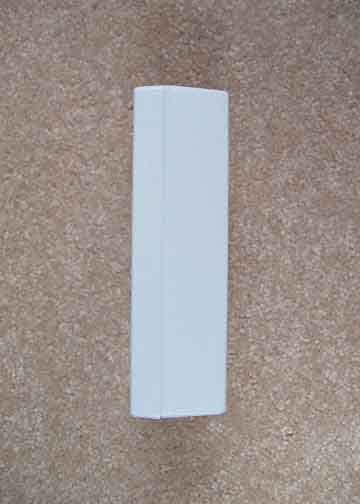

Top Bottom Side 1 Side 2 Side 3 Side 4






! "# $%%& ' ()  *+  ,'   - '  .   /+  .01   ' - ,2 , (  34 ' ()  *5  .  '*-. - 6 ( 3"4 ' ()  *.   + 5 -   )(6  .(2 -  ' *5 .  .( ( + /&
/ 0 7 8"89%  #

Interior Internal Antenna PCB Top PCB Top Closeup 1 PCB Top Closeup 2 PCB Bottom Closeup PCB Bottom Closeup 1 PCB Bottom Closeup 2

Page 1 of 33 Report No.: FC05-039 INTERNATIONAL ELECTRONICS INC. TEST REPORT FOR THE PROXIMITY CARD READER, ES ENROLLMENT STATION FCC PART 15 SUBPART C SECTIONS 15.207 & 15.209 COMPLIANCE DATE OF ISSUE: JUNE 27, 2005 PREPARED FOR: International Electronics Inc. 427 Turnpike Street Canton, MA 02021 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: 30925 W.O. No.: 83756 Date of test: June 22-23, 2005 Report No.: FC05-039 This report contains a total of 33 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 33 Report No.: FC05-039 TABLE OF CONTENTS Administrative Information .............................................................................................3 FCC to Canada Standard Correlation Matrix...................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 FCC 15.31(e) Voltage Variation......................................................................................5 FCC 15.33(a) Frequency Ranges Tested .........................................................................5 FCC 15.35 Analyzer Bandwidth Settings ........................................................................5 FCC 15.203 Antenna Requirements ................................................................................5 Eut Operating Frequency .................................................................................................5 Temperature And Humidity During Testing....................................................................5 Equipment Under Test (EUT) Description ......................................................................6 Equipment Under Test .....................................................................................................6 Peripheral Devices ...........................................................................................................6 Report of Measurements ..................................................................................................7 Table 1: FCC 15.207 Six Highest Conducted Emission Levels ..........................7 Table 2: FCC 15.209 Fundamental Emission Levels ..........................................8 Table 3: FCC 15.209 Six Highest Radiated Emission Levels: 9kHz - 30MHz ...9 Table 4: FCC 15.209 Highest Radiated Emission Levels: 30-1000MHz ............10 RSS-210 Occupied Bandwidth Plot.....................................................................11 EUT Setup........................................................................................................................12 Correction Factors............................................................................................................12 Table A: Sample Calculations .............................................................................12 Test Instrumentation and Analyzer Settings ....................................................................13 Spectrum Analyzer Detector Functions ...............................................................13 Peak..........................................................................................................13 Quasi-Peak ...............................................................................................13 Average ....................................................................................................13 EUT Testing.....................................................................................................................14 Mains Conducted Emissions................................................................................14 Radiated Emissions ..............................................................................................14 Appendix A: Test Setup Photographs..............................................................................15 Photograph Showing Mains Conducted Emissions .............................................16 Photograph Showing Radiated Emissions ...........................................................17 Photograph Showing Radiated Emissions ...........................................................18 Appendix B: Test Equipment List ...................................................................................19 Appendix C: Measurement Data Sheets ..........................................................................20 Page 3 of 33 Report No.: FC05-039 ADMINISTRATIVE INFORMATION DATE OF TEST: June 22-23, 2005 DATE OF RECEIPT: June 22, 2005 MANUFACTURER: International Electronics Inc. 427 Turnpike Street Canton, MA 02021 REPRESENTATIVE: Chris Hentschel TEST LOCATION: CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 TEST METHOD: ANSI C63.4 (2003) PURPOSE OF TEST: To demonstrate the compliance of the Proximity Card Reader, ES Enrollment Station with the requirements for FCC Part 15 Subpart C Sections 15.207 & 15.209 devices. Page 4 of 33 Report No.: FC05-039 FCC TO CANADA STANDARD CORRELATION MATRIX Canadian Standard Canadian Section FCC Standard FCC Section Test Description RSS 2105.547CFR15.203Antenna Connector Requirements RSS 2106.2.147CFR15.209General Radiated Emissions Requirement RSS 2106.347CFR15.205Restricted Bands of Operation RSS 2106.647CFR15.207AC Mains Conducted Emissions Requirement IC 3082-D784962Site File No. CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Page 5 of 33 Report…
