PHX-CPE25300Non-line of Sight Wireless Data Link

-1 Contents Contents Desktop CPEi 300 User Guide Overview . . . . . . . . . . . . . 1 Powerful Features in a Single Unit . . . . . . . . . . . 3 Front of CPE . . . . . . . . . . 3 Back of CPE . . . . . . . . . . 6 Operating Information. . . 7 Overview . . . . . . . . . . . . . 7 Before You Begin . . . . . . 7 Easy Setup . . . . . . . . . . . . 9 Advanced Setup . . . . . . 10 Before you Begin Configuration . . . . . . . . 11 Logging In to the CPE. . 11 Setup Wizard and Authentication Step 1 - Change Password 13 Step 2 - Device Time. . . 14 Step 3 - WiMAX Security 14 Step 4 - Account . . . . . . 15 Basic Configuration Personalize Menu . . . . . 17 Internet Menu . . . . . . . . 21 Status Menu. . . . . . . . . . 25 Telephony Menu . . . . . . 26 0 Contents Advanced Configuration Port Fowarding Menu. . . 36 Local Address Menu . . . 39 Control Panel . . . . . . . . . 44 Configuring TCP/IP Configuring TCP/IP in Windows 2000 . . . . . . . . 47 Configuring TCP/IP in Windows XP. . . . . . . . . . 51 Troubleshooting Power LED is Off. . . . . . 56 A Computer Cannot Log On to the CPE . . . . . 56 Cannot Connect to the Internet . . . . . . . . . . . 56 Additional Troubleshooting Help . . . . . . . . . . . . . . . . 56 Important Safety and Legal Information Disposal of Motorola Equipment in EU Countries . . . . . . . . . 62 Disposal of Motorola Networks Equipment in Non-EU countries. . . . . . 63 CMM Disclosure Copyrights and Trademarks Notice . . . . . . . . . . . . . . . 66 Copyrights . . . . . . . . . . . 66 Usage and Disclosure Restrictions. . . . . . . . . . . 67 Trademarks . . . . . . . . . . . 68 1 Desktop CPEi 300 User Guide Desktop CPEi 300 User Guide Overview Thank you for purchasing the Motorola CPE Indoor (CPEi) 300 desktop device. The Desktop CPEi allows you to connect to the wireless world easily and seamlessly without complicated installa- tion and setup procedures. In addition it offers you the ability to make Voice over Internet Protocol (VoIP) calls. The Desktop CPE indoor (CPEi) device provides the user: •Convenience — with easy plug and play functionality. Compact design. •Performance — dual antennas supply diversity technology. Best in Class range and indoor penetration. •Control — remote management capability allows easy detection and authentication once the unit is setup. •VoIP - two RJ11 ports allow for Voice over IP calls using your CPEi 300. 2 Desktop CPEi 300 User Guide Desktop CPEi 300 The features and the physical appearance of your Desktop CPEi device may differ slightly from the illustration. This product is subject to change. For the most recent documentation, visit the Product Documentation page on www.motorola.com. 3 Desktop CPEi 300 User Guide Powerful Features in a Single Unit The CPE device provides the following features: •WiMAX Authentication •WAN DHCP Client •LAN DHCP Server •Home Gateway Functions Front of CPE The Front of the CPE units contain LED Link/Activity indicators. The LEDs provide the status of the unit and signal strength indicators for easy adjustment during setup. Front of Unit 4 Desktop CPEi 300 User Guide LED Indicator Interface Power Status The Power LED indicator is: •On — power to CPE is on. •Off — power to the CPE is off. Ethernet StatusThe Ethernet LED indicator is: •On - LAN Ethernet link has been established. •Blinking - LAN Ethernet activity has been detected. •Off - LAN Ethernet link has been dropped. Signal Strength Full WiMAX Signal Strength is detected if all WiMAX Signal Strength LEDs are lit. •All WiMAX Signal Strength LEDs are off - low signal detected. •First WiMAX Signal Strength LED is lit - low signal detected. •First and second WiMAX Signal Strength LED is lit - high signal detected. 5 Desktop CPEi 300 User Guide Caution: If the Power LED and all 3 WiMAX Signal Strength LEDs are blinking, then a software upgrade is in progress. Do NOT remove power to the CPE. Note: If the Power LED is BLINKING and all 3 WiMAX Signal Strength LEDs are OFF, the CPE device is overheating, and you will not have service. WAN WiMAXWhile acquiring access to the WiMAX Network: •The Power LED is ON. •The WAN LED is OFF. •All WiMAX Signal Strength LEDs will be in vary between ON, OFF and/or BLINKING status. Once connectivity to the WiMAX Network is established: •The Power LED is ON. •The WAN LED is ON. When WiMAX traffic is detected: •The Power LED is ON. •The WAN LED is BLINKING. 6 Desktop CPEi 300 User Guide Back of CPE The back of the CPE unit contains the reset switch, AC Power Connector, Ethernet connector, Line 1 and Line 2 telephone ports, and the External Antenna Connector (accessory available from your service provider). Back of the Unit Port Descriptions Back Panel PortsDescription External AntennaExternal Antenna Connector EthernetEthernet Port PowerAC Power Connector Reset Note: Hardware Reset Button (A paperclip is recommended for accessing this button). Before resetting the CPE, ensure the power LED is ON. Phone Line 1RJ-11 port for use with VoIP. Phone Line 2RJ-11 port for use with VoIP. 7 Desktop CPEi 300 User Guide Operating Information Operating temperature for this unit is 0-40C (32-104F). Installation Overview To install the Desktop CPEi 300 Series, you need to review the following sections: •Before You Begin •Easy Setup Before You Begin Before you begin installation, check that you have received the following items with your Desktop CPEi 300: In the box with your CPE you should have: ItemDescription AC AdapterPower adapter and cord connects the Desktop CPE to an AC electrical outlet. Ethernet Cable The ethernet cable connects the Internet port on your Desktop CPE to your PC or laptop computer. Desktop CPEi 300 Quick Start Guide Provides quick installation instructions for getting your Desktop CPE up and running. 8 Desktop CPEi 300 User Guide In addition, you will also need: •A computer •An RJ-11 telephone cable (optional). Two RJ-11 telephone cables will be required if your service provider has supplied you with two telephone numbers.…

Text truncated - open the document above for the full version.

68P09281A65-A 68P09281A65-A MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc., 2007. CPEi 300 Series 12V2A Power FRONT Signal Strength Ethernet WiMAX Link/Activity Indicators BACK Getting to know your CPEi 300 External Antenna Connector Phone Line 1 Jack Phone Line 2 Jack Ethernet Connector Reset Switch AC Power Connector 12V2A L2 L1 L2L1 DRAFT All text and images are FPO PMS 286 C 100% PMS 297 C 100% A4 (210mm x 297mm) folds to A6 (105mm x 148mm) 12V2A 12V2A Computer Phone Power Cord AC Power Adapter Ethernet Cable CPEi 300 Phone Line *Optional steps L1L2 L2L1 Connect the cables in numerical order as shown. Cable Connection Guide 1 2 *6 3 4 5 *7 No computer software applications or drivers are required to complete installation. Connect the power cord and power adapter together. Plug the power adapter into the power connector on the back of the unit. Plug the power cord into an AC outlet. The unit will turn on. Plug one end of the Ethernet cable into the Ethernet connector on the back of the unit. Plug the other end of the Ethernet cable into the Ethernet connector of your computer. Plug one end of the phone line into an activated phone line connector on the back of the unit. Phone line activation is dependent upon your service contract. Plug the other end of the phone line into the phone line connector of your telephone. At your computer, open your browser and enter http://mywimax. (with a dot at the end) into the address field and press the Enter key. A wizard will start up to guide you through the installation. Follow the directions in the wizard to complete the installation. When using the wizard for the first time, use the default value provided by the wizard as the password. Procedure to Install the Unit 5 *6 *7 8 9 4 3 2 1 DRAFT PMS 297 C 100% A4 (210mm x 297mm) folds to A6 (105mm x 148mm)

Section 5 FCC ID: PHX-CPE25300 Users Manual – Regulatory Information Section 5 Regulatory Information and Users Manual Motorola, Inc., 1475 West Shure Dr, Arlington Heights, IL, 60004 Page 1 of 3 10/30/2007 Section 5 FCC ID: PHX-CPE25300 Users Manual – Regulatory Information FCC / INDUSTRY CANADA INFORMATION NOTICE: This equipment has been tested and found to comply with the Radio Frequency Radiation Exposure Limits detailed below. A minimum of 20 centimetres (8 inches) separation between this device and the operator and all other persons should be maintained. This product complies with the requirements for Radio Frequency Radiation Hazard as defined in the FCC rules 47CFR1.1307 and 47CFR2.1091 and Industry Canada Standard RSS-102. Additional information about Radio Frequency Radiation Exposure can be found on the FCC web site (www.fcc.gov ) and the Canada web site (http://canada.gc.ca/ ). Radio Frequency Radiation Exposure Limits Table 1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) (A) Limits for Occupational/Controlled Exposures 1500-100,000 --- --- 5 6 (B) Limits for General Population/Uncontrolled Exposure 1500-100,000 --- --- 1.0 30 NOTE 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Motorola, Inc., 1475 West Shure Dr, Arlington Heights, IL, 60004 Page 2 of 3 10/30/2007 Section 5 FCC ID: PHX-CPE25300 Users Manual – Regulatory Information Declaration of Conformity Compliance Information Residential Subscriber Unit Model Numbers: CPEi25300 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Declaration of Conformity Responsible Party: Motorola, Inc. 1475 West Shure Dr, Arlington Heights, IL, 60004 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE: Modification of this device may void the user’s authority to operate the equipment. The device is intended to be powered by Listed/CN ITE LPS or Class II power supply with output rated 12 V dc, 2 A minimum. Motorola, Inc., 1475 West Shure Dr, Arlington Heights, IL, 60004 Page 3 of 3 10/30/2007

Motorola, Inc., FCC ID: PHX-CPE25300 1475 West Shure Dr Arlington Heights, IL, 60004 10/30/2007 Page 2 of 4 Request for Confidentiality 10/30/2007 Motorola, Inc., 1475 West Shure Dr, Arlington Heights, IL, 60004 RE: Certification Application FCC ID: PHX-CPE25300 Please be advised that the following information is to be held confidential on behalf of Motorola, Inc.: • Section 8 - Block Diagrams • Section 9 (Parts A, B and C)– Schematics • Section 10 – Parts list • Section 11 - Technical Description This application contains technical information that Motorola, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of Motorola, Inc. in the market place. Thank you for your attention to this matter. Tim Blom Motorola, Inc.

Motorola, Inc., FCC ID: PHX-CPE25300 1475 West Shure Dr Arlington Heights, IL, 60004 10/30/2007 Page 3 of 4 Modification Letter 10/30/2007 Motorola, Inc., 1475 West Shure Dr, Arlington Heights, IL, 60004 RE: Certification Application FCC ID: PHX-CPE25300 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. The printed circuit board(s) have been updated to include all design changes in effect at the time of regulatory compliance testing. The schematics and bill of materials associated with this filing reflect any updated design changes. Thank you for your attention to this matter. Tim Blom Motorola, Inc.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 31, 2007 RE: FCC ID: PHX-CPE25300_ATCB005574 Attention: Tim Blom I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please provide the tune up procedure for the device. 2. Please note that the FCC has recently expressed concern that test labs are not testing products using approved test methods. Please note that the test report provided does not adequately address how the testing was performed. Also, while you mention TIA603, you state a much earlier version than what is accepted by the FCC. Please note that the FCC wants to see testing in accordance with TIA 603 C 2004. Please update the report reference to show the proper test methods and please provide specific indications for each test as to the procedure used to make measurements. Please note that a simple reference to TIA 603 is not sufficient to indicate just how the device was tested. 3. Please explain in what manner ANSI C63.4 was used in testing this device. Please note that TIA603 only states that the EUT setup is to follow ANSI C63.4. 4. Please note that part 27 specifically states that it is the peak power that is to be measured. Please note that while Part 27 says that measurements are to be PEAK power made using an analyzer that has been calibrated in terms of rms-equivalent voltage, this does not mean the measurement itself is RMS. Please note that the test report states that for power measurements the analyzer was set to RMS detector. The measurement is to be made with the analyzer in peak detector. Please explain and please correct as necessary to provide the proper Peak transmit power value. 5. Please note that BRS and EBS stations are subject to EIRP limits as well as peak transmit power limits. Please note that mobile stations in the BRS and EBS bands are limited to 2Watts EIRP. Please note that the max output power of the device is said to be 0.501W and the antenna gain is said to be 7.81dBi. This gives a rough calculated EIRP of 34.81dBm or 3.025W. This exceeds the limit for BRS/EBS mobile and other user devices under 27.50(h)(2). Please also note that I accordance with TIA603 the EIRP value must be measured and not calculated. Please explain and please correct/measure EIRP as necessary to comply with BRS/EBS rules. 6. Please note that the report states use of 27.53(l)(4) as the emissions limits for both conducted and radiated measurements. Please note that there is no 27.53(l)(4) paragraph and 27.53(l) does not apply to this type device. Do you mean 27.53(m)(4)? If so, please note that the limits beyond 5.5MHz removed from the band edges is 55 + 10 log (P) dB not 43_10Log P. Please review the part 27 rule part and provide proper reference to the associated emissions limits. Please correct the report as necessary. 7. Please note that EIRP for licensed devices is not a reverse calculated field strength but is instead a measured EIRP value using the antenna substitution method as required by TIS603. Please provide proper measurement data using the accepted antenna substitution method as prescribed by TIA603 and as required by FCC. 8. Please adequately explain the modes of operation used during testing of the device. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. z Page 2 October 31, 2007 Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Reply to October 31comments 18 Dec 2007 RE: FCC ID: PHX-CPE25300_ATCB005574 1. Please provide the tune up procedure for the device. The Tune-up Procedure has been uploaded to the ATCB web site. 2. Please note that the FCC has recently expressed concern that test labs are not testing products using approved test methods. Please note that the test report provided does not adequately address how the testing was performed. Also, while you mention TIA603, you state a much earlier version than what is accepted by the FCC. Please note that the FCC wants to see testing in accordance with TIA 603 C 2004. Please update the report reference to show the proper test methods and please provide specific indications for each test as to the procedure used to make measurements. Please note that a simple reference to TIA 603 is not sufficient to indicate just how the device was tested. A revised Test Report has been uploaded to the ATCB web site. 3. Please explain in what manner ANSI C63.4 was used in testing this device. Please note that TIA603 only states that the EUT setup is to follow ANSI C63.4. A revised Test Report has been uploaded to the ATCB web site. 4. Please note that part 27 specifically states that it is the peak power that is to be measured. Please note that while Part 27 says that measurements are to be PEAK power made using an analyzer that has been calibrated in terms of rms-equivalent voltage, this does not mean the measurement itself is RMS. Please note that the test report states that for power measurements the analyzer was set to RMS detector. The measurement is to be made with the analyzer in peak detector. Please explain and please correct as necessary to provide the proper Peak transmit power value. A revised Test Report has been uploaded to the ATCB web site. 5. Please note that BRS and EBS stations are subject to EIRP limits as well as peak transmit power limits. Please note that mobile stations in the BRS and EBS bands are limited to 2Watts EIRP. Please note that the max output power of the device is said to be 0.501W and the antenna gain is said to be 7.81dBi. This gives a rough calculated EIRP of 34.81dBm or 3.025W. This exceeds the limit for BRS/EBS mobile and other user devices under 27.50(h)(2). Please also note that I accordance with TIA603 the EIRP value must be measured and not calculated. Please explain and please correct/measure EIRP as necessary to comply with BRS/EBS rules. The CPEi25300 device is a Temporary Fixed product and complies to the 2 watt limit requirements for an “other user station” as defined in the FCC rules contained in 27.50(h)(2): All user stations are limited to 2.0 watts transmitter output power. The reference to “Mobile stations are limited to 2 watts” test report has been revised to read “User stations are limited to 2 watts”. Page 1 of 2 Reply to October 31comments 18 Dec 2007 RE: FCC ID: PHX-CPE25300_ATCB005574 Page 2 of 2 6. Please note that the report states use of 27.53(l)(4) as the emissions limits for both conducted and radiated measurements. Please note that there is no 27.53(l)(4) paragraph and 27.53(l) does not apply to this type device. Do you mean 27.53(m)(4)? If so, please note that the limits beyond 5.5MHz removed from the band edges is 55 + 10 log (P) dB not 43_10Log P. Please review the part 27 rule part and provide proper reference to the associated emissions limits. Please correct the report as necessary. A revised Test Report has been uploaded to the ATCB web site. 7. Please note that EIRP for licensed devices is not a reverse calculated field strength but is instead a measured EIRP value using the antenna substitution method as required by TIS603. Please provide proper measurement data using the accepted antenna substitution method as prescribed by TIA603 and as required by FCC. The CPEi25300 device is a Temporary Fixed device. The power limitations for this category are 2 watts conducted transmitter power. 8. Please adequately explain the modes of operation used during testing of the device. The modes of operation for the product are listed on page 8 of the revised test report. The laptop PC executed a test utility which was provided by the applicant to control the EUT transmitter at specific power levels during the testing, a comparison of all modulations of uplink transmissions was performed to determine the worst case modulation. The EUT was then set to the worst case modulation observed during the comparison to test all items. The worst case modulation observed for a 5MHz bandwidth was, QPSK ¾, and for a 10MHz bandwidth, QPSK ½.

Section 6 FCC ID: PHX-CPE25300 RF Exposure Information Section 6 RF Exposure Information Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 12 1/24/2008 Section 6 FCC ID: PHX-CPE25300 RF Exposure Information Radio Frequency Radiation Exposure Evaluation FCC Rules: 1.1307, 1.1310, 2.1091, 27.52 FCC Requirement: < 1mW/cm 2 General Population / Uncontrolled Exposure Standard: IEEE Std C95.3 – 2002 FCC OET Bulletin 65 Procedure: The Motorola, Inc. 802.16e WiMAX device operates as a Time Division Duplex (TDD) product with a Time Division Multiplex (TDM) frame structure. The CPEi25300 Customer Premise Equipment device is able to transmit a time division duplex (TDD) signal up to a maximum 49.4 % transmit duty cycle. To measure the RF Exposure, the CPE transmitter is enabled in test mode and set to the maximum power level. Measurements are performed at the low, mid, and high channels of each channel bandwidth, using the maximum transmitter duty cycle and both antenna polarizations. Modulation was set to QPSK ¾ rate for 5 MHz channels and QPSK ½ rate for 10 MHz channels. The transmitter power available at each of the internal antenna port connections was measured. To ensure that the spectrum analyzer was properly triggered to capture the transmission during the burst, a low level transmitter signal available on one of the non-selected ports was applied to the input port of the Analog Devices AD8319 log detector. The output signal from the AD8319 Log Detector is used to time gate the spectrum analyzer by triggering on the negative edge of the Vout signal. Conditions: Frequency = 2499, 2593, 2687 MHz for 5 MHz emissions 2501, 2593 2685 MHz for 10 MHz emissions Temperature = 25ºC Supply Voltage = 120 VAC / 60 Hz Nominal to DUT Power Supply Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 12 1/24/2008 Section 6 FCC ID: PHX-CPE25300 RF Exposure Information Test Equipment: Test Equipment Description DUT Motorola Customer Premise Equipment Model No. CPEi25300 S/N: TQ097W00PW Spectrum Analyzer Agilent E4440A S/N: MY44022791 Calibrated: 05/21/2007 Calibration due: 05/21/2009 Attenuator 20 dB, 1W Attenuator Pasternak Model PE7005-20 Calibrated by user Trigger Signal Log Detector Board, Analog Devices AD8319 (provides analyzer external trigger signal) Laptop Computer (NN1303) Dell Precision M65 S/N: CRFK 381 Calibration not required Ethernet Switch D-Link Model: DSS-5+ 5-port 10/100Mbps S/N: DT8615B009993 Calibration not required CPE Power Supply Delta Electronics, Inc. Model: EADP-24KB 12V, 2A, Rev. Level S4 S/N: HYW0728001507 Voltmeter Fluke 87 V True RMS Multimeter S/N: 87180024 Measurement level verified with meter listed below Digital Voltmeter HP 34401A S/N: MY45001201 Calibrated: 5-4-2007 / Calibration due: 5-4-2009 Radiation Hazard Meter General Microwave Corporation RAHAM Model 3 Calibrated: 12-21-2007 Calibration Due: 12-21-2009 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 12 1/24/2008 Section 6 FCC ID: PHX-CPE25300 RF Exposure Information Test Set-Ups: DUT RF Probe Computer Radiation Hazard Test Setup Diagram Laptop Computer DUT 20 dB attenuator Analog Devices AD8319 Log Amp Spectrum Analyzer Serial Data Trigger signal A1 A2 A3 A4 Radiation Hazard Meter Transmit Power Verification Test Setup Diagram Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 4 of 12 1/24/2008 Section 6 FCC ID: PHX-CPE25300 RF Exposure Information Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 5 of 12 1/24/2008 Section 6 FCC ID: PHX-CPE25300 RF Exposure Information The General Microwave RAHAM Model 3 isotropic broadband electromagnetic radiation hazard meter consists of a model 83A probe and model 481B meter. The model 83A probe employs three orthogonally-oriented thin-film thermoelectric arrays. This type of probe exhibits extremely good adherence to square-law characteristics such that the dc output from the thermocouple is proportional to the square of the electric field strength. The recorder output from the RAHAM meter is applied to the Fluke DVM. The dc level of the Recorder Output is recorded and then converted to the corresponding maximum permissible exposure value. The recorder output at a full scale reading is 124 mV. The measurements performed for this report utilize the 2 mW/cm 2 setting of the RAHAM instrument. General Information: The Motorola, Inc. CPEi25300 transmitter can apply up to 0.551 watts (27.41 dBm) of RF power, within a channel, to any one of the 4 internal antennas in the 2496-2690 MHz band. Only one antenna is selected during a transmit burst. The maximum power available at each antenna port is measured and the corresponding MPE of each antenna will be measured. The CPEi25300 has a maximum transmit duty cycle of 49.4 % and is based on a TDM frame (see test information at end of this report). Each antenna has a maximum gain of 7.81 dBi. The maximum transmitter power of 27.41 dBm as reported in the 4Ba_FCC_Part27_Test_Report will be used for calculations. Therefore, the maximum radiated transmit power would be: Burst Transmitter Power: Pmax = Ptx(dBm) + G(antenna(dBi)) Pmax = 27.41 + 7.81 = 35.22 dBim Pmax = 35.22 dBm EIRP = 3.3266 Watts EIRP The equivalent transmitter power can be adjusted for sourced based transmitter duty cycles per 47CFR2.1091 Equivalent Transmitter Power for MPE calculations: Pmax-eq = Ptx(dBm) + G(antenna(dBi)) – 10*log(duty cycle) Pmax-eq = 27.41 + 7.81 + 10*log(0.494) Pmax-eq = 27.41 + 7.81 – 3 = 32.22 dBm EIRP Pmax-eq = 1.6672 Watts EIRP = 1667.2 mWatts EIRP Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 6 of 12 1/24/2008 Section 6 FCC ID: PHX-CPE25300 RF Exposure Information Calculations: The following calculations can be used to determine the distance from the transmitting antenna that must …

Text truncated - open the document above for the full version.

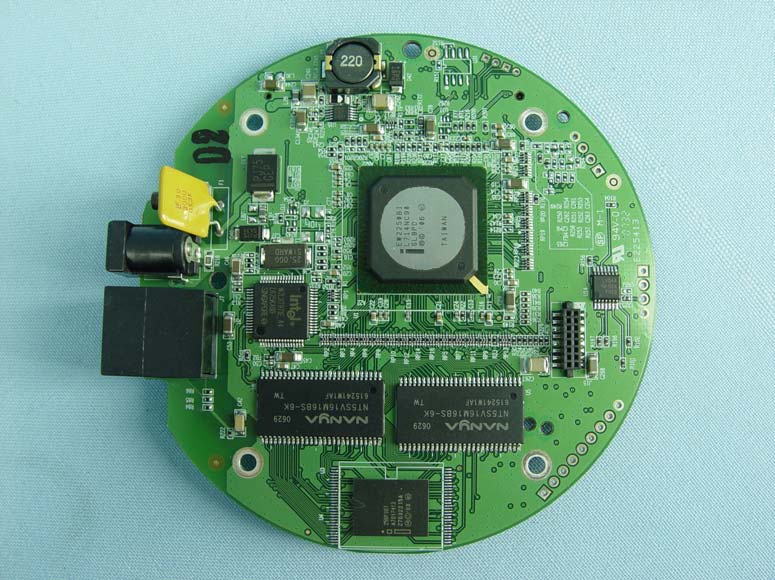

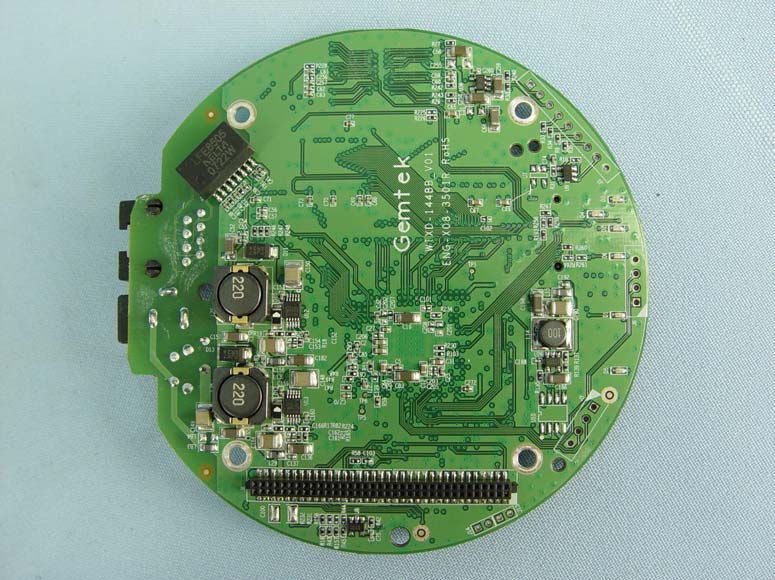

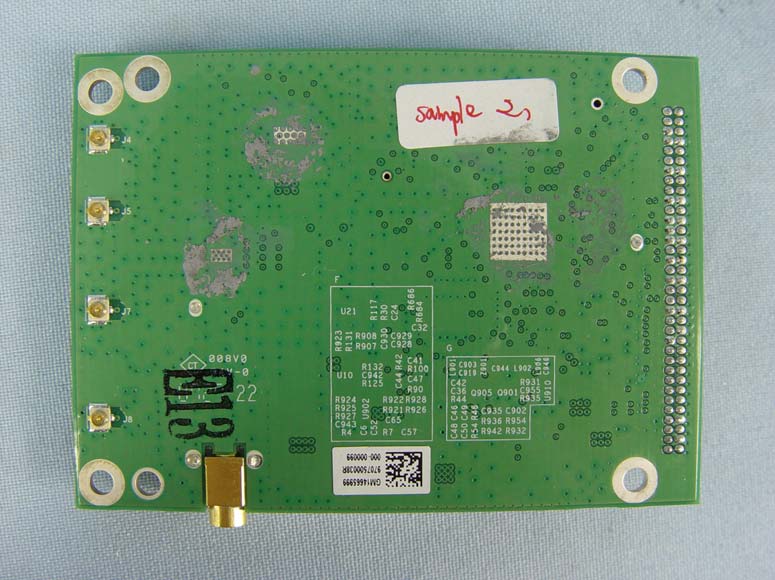

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 ACON ANTENNA WAYU ANTENNA Page 8
