PHX-PCC2510Non-Line of Sight Wireless Data Link

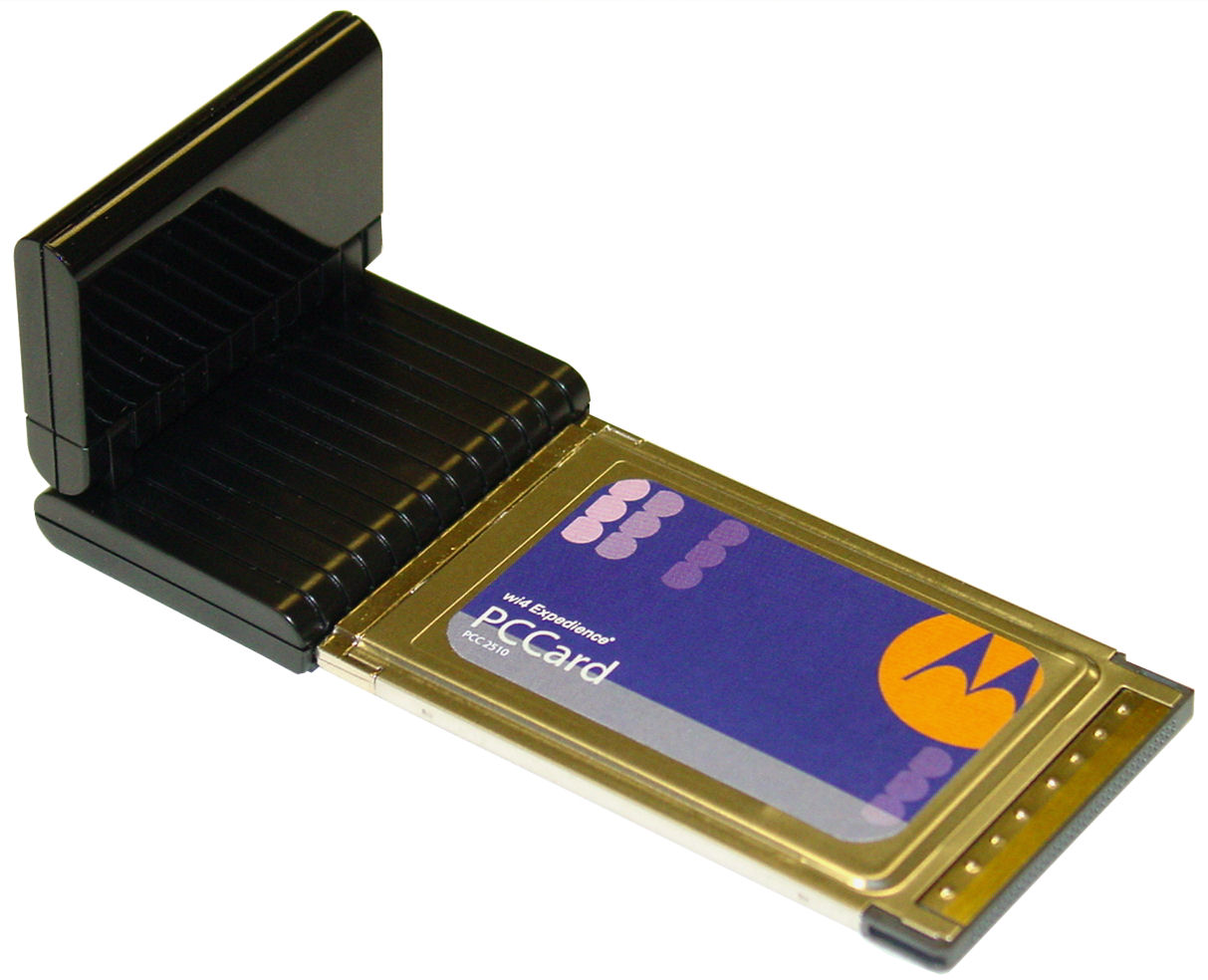

The Expedience ® plugin card provides your laptop with the highest performance broadband wireless service on the market today. To get started, please check that all the required items are in your package. Expedience ® PC Card Installation Guide Expedience Plugin Card Expedience Software CD Expedience Instruction Sheet To operate your PC Card, you will first need to install the software driver from the Expedience Software CD. To begin, insert the CD in your CD drive. Do not plug in your PC Card at this time. If the installer does not start up automatically, click START on your laptop screen, then RUN, and then type in X:/setup, where X is the drive letter for your CD drive (Usually D). After the Motorola introductory screen is displayed, please follow the instructions below to complete the installation of your Expedience PC Card. The neces- sary software is installed in two parts as shown. At this point, please plug in your PC Card To avoid interference between the Expedience connection and any WiFi service available on your computer, it is necessary to tell the computer which wireless service you want to use. Your computer will present this screen every time you plug in your PC Card. Click the Use Expedience box to start using your PC Card. Systray Icons An icon is shown in the Systray at the bottom right of the screen indicating the signal quality of the Expedience connection. Increasing signal quality is shown by an increasing number of green arcs, as shown: If the Expedience PC Card is unplugged, the “Disconnected” icon will be displayed: Signal Quality Screen Clicking on the signal quality Systray icon opens the Signal Quality screen.: The quality of the Expedience signal is indi- cated by displaying from 1-5 bars. For best results, the user may orient the computer to display the maximum number of bars. Some fluctuation in the signal quality is normal, and will not have a significant effect on the data rate of your Internet connection. In cases where there is not enough signal for a reliable connection, the system will continue to scan, and this screen will be displayed. In this case, the use of the accessory directional antenna (available separately) may be required. If the Expedience PC Card is unplugged or has been disabled using the Windows Control Panel function, this screen is displayed. Please check your PC documentation for information on enabling and disabling your Internet connections using the Control Panel. Systray Menu Functions Right-clicking on the Systray icon displays the PC Card Control screen. This screen provides access to the Signal Quality screen by clicking View Signal Strength, as well as directly providing the Control Panel Enable and Disable and Network Connections functions. Clicking Properties displays the Properties screen. The Baselist tab provides information on the base stations visible to the PC Card, with information on the signal quality available. The Advanced tab provides data on the Internet connection of your PC Card. Information on these screens is not required for normal operation of your PC Card. Clicking the Change Firewall Settings box allows you to manage the firewall function on your PC, if it is so equipped. Please contact your system administrator for informa- tion on firewalls. Click NEXT 1. Click I AGREE, then NEXT 2. The connection manager software now loads automati- cally. At the end of the loading process, Click CLOSE 3. Next, the PC Card Driver software is loaded. Click NEXT 4. The connection man- ager software now loads automatically. At the end of the loading process, Click FINISH 5. Congratulations on your purchase of the Motorola Expedience PC Card. Motorola, Inc. 2900 W. County Road 42, Burnsville, MN 55337 USA Ph. 952.929.4008 - Fax: 952.929.4080 www.motorola.com/expedience This specification is subject to change without notice. MOTOROLA, the stylized M Logo, and Expedience are registered in the U.S. Trademark and Patent Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2007. Important Regulatory and Safety Information Before installing your PC Card, please review the important regulatory and safety information in the Expedience PC Card User’s Manual on your CD-ROM.

i Installing and using the Expedience ® PC card ii Part number: ©2007 Motorola, Inc. All rights reserved. i Contents Welcome ..............................................................................................1 Before you begin ...................................................................................................1 Installing the Expedience PC card driver .......................................... 2 Plugging in the Expedience PC card ................................................. 2 Choosing an Expedience PC card network connection or a Wi-Fi connection ................................................................................ 3 Optimizing the signal ......................................................................... 5 Using the optional, external antenna ..................................................................5 Using the Signal Optimizer ..................................................................................5 Enabling or disabling the Expedience PC card connection .............. 8 Displaying Expedience PC card properties ....................................... 8 Base List tab overview ..........................................................................................9 Advanced tab overview ......................................................................................10 Disclaimer .......................................................................................... 11 Declaration of Conformity ................................................................. 11 Regulatory Requirements .................................................................. 12 RF Operational Characteristics .........................................................................12 Antenna Care .......................................................................................................12 Product Operation and EME Exposure .........................................................13 Electro Magnetic Interference/Compatibility .................................. 14 Facilities ................................................................................................................14 Aircraft ..................................................................................................................14 Medical Devices ..................................................................................................14 Operational Cautions ........................................................................ 15 Cleaning and Drying Considerations ...............................................................15 Operational Warnings ....................................................................... 15 For Vehicle With Air Bags .................................................................................15 Potentially Explosive Atmospheres .................................................................15 Blasting Caps and Blasting Areas .....................................................................15 Warranty Information ........................................................................ 16 What This Warranty Covers And For How Long .........................................16 General Provisions ..............................................................................................16 How To Get Warranty Service .........................................................................16 What Is Not Covered By The Warranty ..........................................................17 Governing Law ....................................................................................................17 Patent and Software Provisions ........................................................................18 ii 1 Welcome This document describes how to install and use your Expedience PC card to obtain wireless high-speed Internet access. You can plug the Expedience PC card into any laptop computer with a side access cardbus slot. The Expedience PC card contains an internal antenna that can connect with base stations. Once a connection is established between the Expedience PC card and a base station you can access your service provider’s network. If desired, you can enhance your connection to the network by plugging an external antenna into the PC card. Before you begin Figure 1 illustrates the Expedience PC card package contents. Figure 1Expedience PC card package contents Quick Start ibed obus posim udring adet.Abedobus posim udring a det. Ed okejfus erosi m quesum an yape i cesi. Lorem jes ge ibe pos det A bedji bedji ver o hich. Lif wanj de manit clos o man it closni. External antenna Expedience PC card Quick start guide PC card driver CD-ROM 2Installing and using the Expedience PC card Table 1 lists the standard contents in your Expedience PC card package. Installing the Expedience PC card driver Before using the Expedience PC card for the first time, install the driver for the card. 1Insert the CD-ROM into laptop PC’s CD drive. The installation program automatically runs. If the installation program does not automatically run: •From the Start menu, select Run. The Run dialog box opens. •In the Open field, type x:setup where x is the letter assigned to the laptop computer’s CD drive. • Click OK. 2To install the Expedience PC card driver software, follow the instructions that appear on your laptop’s screen. Plugging in the Expedience PC card 1After powering on your laptop, slide the Expedience PC card into the slot on your laptop. 2If you are already connected to a Wi-Fi network, you cannot connect to the network of the Expedience PC card at the same time. Connect to the network as described in the section “Choosing an Expedience PC card network connection or a Wi-Fi connection’ Table 1 Expedience PC card package components ComponentPart number Expedience PC card External antenna Expedience PC card diver CD-ROM Quick start guide Figure 2Plugging Expedience PC card into laptop computer 3 3 The Expedi…

Text truncated - open the document above for the full version.

Motorola, Inc., NextNet Wireless Product Group FCC ID: PHX-PCC2510 2900 County Rd 42 W Burnsville, MN 55337 3/16/2007 Page 3 of 4 Modification Letter 16/03/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: Certification Application FCC ID: PHX-PCC2510 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. The printed circuit board(s) have been updated to include all design changes in effect at the time of regulatory compliance testing. The schematics and bill of materials associated with this filing reflect the updated design changes. Thank you for your attention to this matter. Tim Blom Motorola, Inc.

Motorola, Inc., NextNet Wireless Product Group FCC ID: PHX-PCC2510 2900 County Rd 42 W Burnsville, MN 55337 3/16/2007 Page 2 of 4 Request for Confidentiality 3/16/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: Certification Application FCC ID: PHX-PCC2510 Please be advised that the following information is to be held confidential on behalf of Motorola, Inc.: • Section 11 - Block Diagrams • Section 12 – Schematics • Exhibit 13 – Parts list • Exhibit 14 - Technical Description This application contains technical information that Motorola, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of Motorola, Inc. in the market place. Thank you for your attention to this matter. Tim Blom Motorola, Inc.

Motorola, Inc., NextNet Wireless Product Group FCC ID: PHX-PCC2510 2900 County Rd 42 W Burnsville, MN 55337 3/16/2007 Page 4 of 4 Manufacturer’s Letter 3/16/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: Certification Application FCC ID: PHX-PCC2510 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the Federal Communications Commission (FCC) Rules and Regulations. Thank you for your attention to this matter. Tim Blom Motorola, Inc.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 23, 2007 RE: FCC ID: PHX-PCC2510_ATCB004672 Attention: Tim Blom I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that page 16 (pdf) of the manual states that unauthorized modifications may ‘violate FCC regulations”. Please note that as this is also a PC peripheral device under part 15 that this would not be an appropriate statement as the statement is to also clearly indicate to the user that unauthorized modifications could void the users authority to operate the equipment. Please provide this clear message to the user in the manual. 2. Please note that on page 16 of the manual it indicates the possibility of 802.11 WLAN transmitters may also be in the device. Please explain. 3. Please note that page 23 of the test report “5B EMC Test Report.pdf” has errors in the fields and does not properly show the EIRP values measured using antenna substitution method. Please correct the report to provide this data. 4. Please note that the setup photos for SAR show the device with the antenna in the 90 degree position. If it is possible to lay the antenna out flat then testing should be performed in that configuration also. Please verify that the antenna cannot be placed in a flattened position or that the device will not work with the antenna in a flattened position. If the device can be placed in a flattened position, please explain why SAR was not done in that position. 5. Please note that the operational description states that this device operates as a “temporary fixed device”. Please explain how a device fit into a laptop computer meets the fixed licensed transmitter category. Please explain “temporary fixed”. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dward ATCB From: Generic Office of Engineering Technology [[email protected]] Sent: 04/03/2007 4:48 PM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 160333) 04/04/07 Inquiry: Gentlemen - We are seeking ''''Permit But Ask'''' guidance for FCC ID: PHX- PCC2510. The device is a Part 27 notebook PC card with a total channel power of 1.6W and with a duty cycle of 9.16% for an average power of 143mW feeing a claimed max 7dBi antenna. The device is operating under 27.5(i) in the frequency range of 2496-2690 MHz with an actual frequency range between 2499-2687MHz. Proposed emission designators for this device are 4M96W7D and 5M48W7D. The device uses an external 7dBi antenna capability for mobile rf considerations and an internal device antenna for portable rf exposure considerations. SAR data and measured MPE data are provided. Response: installation / operating instructions mentions WiFi use - is that part of this PC Card package? assuming WiFi is not "on board" the PC Card, this FCC ID is hereby approved for initial e-filing upload - please notify within this inq. no. and await final approval to grant before completing application processing Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

April 23, 2007 RE: FCC ID: PHX-PCC2510_ATCB004672 Attention: Dennis Ward Reply to comments for FCC ID: PHX-PCC2510_ATCB004672 dated March 23, 2007. 1 Please note that page 16 (pdf) of the manual states that unauthorized modifications may ‘violate FCC regulations”. Please note that as this is also a PC peripheral device under part 15 that this would not be an appropriate statement as the statement is to also clearly indicate to the user that unauthorized modifications could void the users authority to operate the equipment. Please provide this clear message to the user in the manual. 1.1 The users manual has been updated to address this issue. A new manual has been uploaded to the web site. 2 Please note that on page 16 of the manual it indicates the possibility of 802.11 WLAN transmitters may also be in the device. Please explain. 2.1 This statement has been revised and is included in the updated manual. 3 Please note that page 23 of the test report “5B EMC Test Report.pdf” has errors in the fields and does not properly show the EIRP values measured using antenna substitution method. Please correct the report to provide this data. 3.1 A corrected test report has been uploaded to the web site. 4 Please note that the setup photos for SAR show the device with the antenna in the 90 degree position. If it is possible to lay the antenna out flat then testing should be performed in that configuration also. Please verify that the antenna cannot be placed in a flattened position or that the device will not work with the antenna in a flattened position. If the device can be placed in a flattened position, please explain why SAR was not done in that position. 4.1 The hinge feature of the plastic case which contains the integrated antenna has been designed with a positive stop which is engaged when the antenna case is positioned into the vertical or 90 degree orientation and is not designed to be extended past the 90 degree point. 5 Please note that the operational description states that this device operates as a “temporary fixed device”. Please explain how a device fit into a laptop computer meets the fixed licensed transmitter category. Please explain “temporary fixed”. 5.1 The Temporary Fixed Device category has been removed from all documents in the filing.

Section 3 FCC ID: PHX-PCC2510 External Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 3 3/16/2007 Section 3 External Photographs Section 3 FCC ID: PHX-PCC2510 External Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 3 3/16/2007 Top View of PC Card Top View of PC Card External Antenna Jack Section 3 FCC ID: PHX-PCC2510 External Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 3 3/16/2007 Bottom View of PC Card

Section 2 FCC ID: PHX-PCC2510 Label Location Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 3 3/16/2007 Section 2 Label Location Section 2 FCC ID: PHX-PCC2510 Label Location Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 3 3/16/2007 3/16/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: FCC Labeling Requirements FCC ID: PHX-PCC2510 Motorola Model No.: PCC-2510 The following label information is required by the FCC Rules and Regulations for certified devices. Thank you for your attention to these matters. Sincerely, Tim Blom Motorola, Inc., NextNet Wireless Product Group Section 2 FCC ID: PHX-PCC2510 Label Location Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 3 3/16/2007 The following FCC tamper resistant label will be attached to the PCC-2510 product with a permanent adhesive. Photograph Showing Label Location On Product

Reviewed by: FCC ID: PHX-PCC2510 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0702210095.PHX March 2, 2007 BRS/EBS Band PC Card with External Accessory Antenna Page H1 © 2007 PCTEST Engineering Laboratory, Inc. Ver. 2.5 RF Exposure Evaluation: Maximum Permissible Exposure Evaluation Prepared for: Motorola, Inc. - NextNet Wireless FCC ID: PHX-PCC2510 Reviewed by: FCC ID: PHX-PCC2510 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0702210095.PHX March 2, 2007 BRS/EBS Band PC Card with External Accessory Antenna Page H2 © 2007 PCTEST Engineering Laboratory, Inc. Ver. 2.5 Table of Contents 1 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .............................3 1.1 Introduction ................................................................................................................................................3 1.2 EUT Identification .....................................................................................................................................3 1.3 MPE Requirements Overview....................................................................................................................4 1.4 Procedure ...................................................................................................................................................4 1.4.1 Calculated MPE ..................................................................................................................................5 1.4.2 Measured MPE ...................................................................................................................................9 1.5 Conclusion ...............................................................................................................................................10 List of Tables: Table 1. Limits for Maximum Permissible Exposure (MPE) ...............................................................................3 Table 2. Calculated MPE Data..............................................................................................................................5 Table 3. MPE Measurement Data .........................................................................................................................9 Table 4. Test Equipment List ................................................................................................................................9 List of Figures: Figure 1: Transmitter at Maximum Duty Cycle Operation, (15ms sweep) ..........................................................6 Figure 2: One Complete Transmit Cycle Time, (3.615ms) ..................................................................................6 Figure 3: Pulse Width of 1 st Pulse in Pulse Train, (165.5μs) ................................................................................7 Figure 4: Pulse Width of 2 nd Pulse in Pulse Train, (165.5μs) ...............................................................................7 Figure 5: Transmit Pulse Widths, Pulse 1 and 2 ...................................................................................................8 Figure 6: MPE Measurement Test Setup Photograph.........................................................................................10 Figure 7. Calibration Certificate, EMR-300 .......................................................................................................11 Figure 8. Calibration Certificate, E-Field Probe .................................................................................................12 Reviewed by: FCC ID: PHX-PCC2510 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0702210095.PHX March 2, 2007 BRS/EBS Band PC Card with External Accessory Antenna Page H3 © 2007 PCTEST Engineering Laboratory, Inc. Ver. 2.5 1 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Motorola, Inc. – NextNet Wireless to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1210, is listed in Table 1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Identification The Motorola, Inc. – NextNet Wireless Model: PCC-2510 is a PCMCIA Card operating in the 2496 – 2690 MHz band. The device contains a permanently attached antenna and a port for an external antenna. For the MPE evaluation the device is connected to the external accessory antenna. EUT: Model: PCC-2510 Grantee: Motorola, Inc. – NextNet Wireless FCC ID: PHX-PCC2510 External Accessory Antenna: P/N: 501-0512-XXXX Antenna Gain: 7dBi The EUT was evaluated at the low, mid, and high channel of operation with the maximum transmit duty cycle. The modulation during testing was set to 4QAM. Reviewed by: FCC ID: PHX-PCC2510 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0702210095.PHX March 2, 2007 BRS/EBS Band PC Card with External Accessory Antenna Page H4 © 2007 PCTEST Engineering Laboratory, Inc. Ver. 2.5 1.3 MPE Requirements Overview Three different categories of transmitters are defined by t…
