PHX-OSU2510RFixed Non-Line of Sight Wireless Data Link

Section 7A FCC ID: PHX-OSU2510R Users Manual Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 23 4/10/2007 Section 7A Users Manual i Installing and using the Expedience Outdoor Subscriber Unit (OSU) Broadband Wireless Access System This document is intended for use by professional equipment installers. Subscribers of the high speed Internet service should not attempt to install the OSU. Part Number:104-0083-0001 ii Expedience is a trademark of Motorola. Other brand and product names may be registered trademarks or trademarks of their respective holders. Part number: 104-0083-0001-d ©2007 Motorola. All rights reserved. THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCT. FOR WARRANTY INFORMATION ON THE EXPEDIENCE OSU, CONTACT THE INTERNET SERVICE PROVIDER THAT SUPPLIED THE OSU. NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE THAT ARE PROVIDED ON THE EXPEDIENCE BROADBAND WIRELESS ACCESS MODEM CD-ROM ARE PROVIDED “AS IS” WITH ALL FAULTS. MOTOROLA DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL MOTOROLA OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OF DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS GUIDE, EVEN IF NEXTNET WIRELESS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. i CONTENTS Welcome ..............................................................................................1 Before you begin ..................................................................................1 Additional material required for installation .....................................................1 Pre-installation planning ......................................................................................1 Connecting the OSU to a computer ...................................................4 Installation overview .............................................................................................4 Cabling overview ...................................................................................................5 Installing the OSU ..............................................................................6 Selecting an installation location for the OSU ..................................................6 Installation overview .............................................................................................6 Completing the mounting bracket assembly .....................................................7 Attach the OSU and mounting bracket assembly to the outside of the building ............................................................................................................8 Fastening the OSU and mounting bracket assembly to a pole ......................8 Connecting Ethernet / power cable to OSU ......................................9 Running cables through building’s wall ...........................................10 Connecting the ground wire ..............................................................10 Installing a data line protector ..........................................................11 Plugging in the power supply ...........................................................12 Setting up the computer to receive an IP address ............................12 Configuring IP address assignment for routers ................................14 Connecting to the Internet ................................................................14 Refreshing the OSU’s connection .....................................................14 Windows users: Refreshing the connection ....................................................14 Non-Windows users: Refreshing the connection ..........................................14 Connecting the OSU to a network ....................................................14 FCC information ................................................................................15 1 Welcome This document describes how to install and use the Expedience outdoor subscriber unit (OSU) to obtain wireless high-speed Internet access. Subscribers can connect the OSU to a computer or to a small office/home office (SOHO) local area network (LAN) through a hub, switch, or router. This document is intended for use by professional equipment installers. Subscribers of the high-speed Internet service should not attempt to install the OSU. For questions about OSU operation or installation, subscribers should contact the ISP that supplied the OSU device. Before you begin This section describes items the installer or subscriber must purchase before the OSU is installed. This section also describes items you need to have available and things to consider before beginning the OSU installation. Additional material required for installation •The subscriber’s computer must be equipped with an Ethernet network interface card (NIC). The NIC is not provided with the OSU, but subscribers can purchase a NIC at most computer and electronics stores. •An RJ-45 Ethernet cable to connect the OSU plug-in power supply with the user’s computer. •Ground wire of sufficient length to run between the OSU and the home ground point. •It is recommended that the ground wire be a 6AWG, solid copper wire. •It is recommended that if a ground rod is used it should be 8 feet (2.5 m) copper. Note that most buildings have an existing ground rod outside, at the main power connection site. If desired, you can install a rod into the ground outside the building after co…

Text truncated - open the document above for the full version.

Motorola, Inc., NextNet Wireless Product Group FCC ID: PHX-OSU2510R 2900 County Rd 42 W Burnsville, MN 55337 4/10/2007 Page 1 of 4 Section 9 Correspondence Motorola, Inc., NextNet Wireless Product Group FCC ID: PHX-OSU2510R 2900 County Rd 42 W Burnsville, MN 55337 4/10/2007 Page 2 of 4 Request for Confidentiality 4/10/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: Certification Application FCC ID: PHX-OSU2510R Please be advised that the following information is to be held confidential on behalf of Motorola, Inc.: • Section 11 - Block Diagrams • Section 12 – Schematics • Exhibit 13 – Parts list • Exhibit 14 - Technical Description This application contains technical information that Motorola, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of Motorola, Inc. in the market place. Thank you for your attention to this matter. Tim Blom Motorola, Inc. Motorola, Inc., NextNet Wireless Product Group FCC ID: PHX-OSU2510R 2900 County Rd 42 W Burnsville, MN 55337 4/10/2007 Page 3 of 4 Modification Letter 10/04/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: Certification Application FCC ID: PHX-OSU2510R Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. The printed circuit board(s) have been updated to include all design changes in effect at the time of regulatory compliance testing. The schematics and bill of materials associated with this filing reflect the updated design changes. Thank you for your attention to this matter. Tim Blom Motorola, Inc. Motorola, Inc., NextNet Wireless Product Group FCC ID: PHX-OSU2510R 2900 County Rd 42 W Burnsville, MN 55337 4/10/2007 Page 4 of 4 Manufacturer’s Letter 4/10/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: Certification Application FCC ID: PHX-OSU2510R To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the Federal Communications Commission (FCC) Rules and Regulations. Thank you for your attention to this matter. Tim Blom Motorola, Inc.

MOTOROLA OSU-2510-R OUTDOOR SUBSCRIBER UNIT FCC CERTIFICATION REPORT Motorola, Inc. 2900 County Rd 42 W Burnsville, MN 55337 TABLE OF CONTENTS Section Description 1 Cover Letter 2 Labels 3 External Photos 4 Internal Photos 5A Test Report, Part A 5B EMC Test Report, Part B 6 Test Setup Photos 7A Users Manual 7B Specification Sheet 8 RF Exposure Information 9 Correspondence 10 Block Diagrams 11 Schematics 12 Parts List 13 Technical Description Appendix Analyzer Plots Not Shown in Report Section 1 FCC ID: PHX-OSU2510R Cover Letter Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 5 4/10/2007 Section 1 Cover Letter Section 1 FCC ID: PHX-OSU2510R Cover Letter Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 5 4/10/2007 To Whom It May Concern: This report is being submitted to the Federal Communications Commission for the certification of equipment pursuant to the requirements found in 47 CFR Telecommunication CHAPTER I FEDERAL COMMUNICATIONS COMMISSION, Parts 0, 1, 2, 15, and 27 as published in the Federal Register on January 18 th , 2007. The product listed in this filing has been tested in accordance with the requirements contained in the appropriate FCC Rules and Regulations. To the best of my knowledge, the tests completed for this certification submission were performed using measurement procedures consistent with accepted FCC and industry procedures and demonstrates that this equipment complies with the appropriate regulatory requirements. I hereby certify that this application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. Motorola Part Number: 900-0083-1xxx (Vertically Polarized Antenna) 900-0083-2xxx (Horizontally Polarized Antenna) Motorola Model Number: OSU-2510-RV Vertically Polarized OSU-2510-RH Horizontally Polarized Regards, Tim Blom Section Manager RF Engineering Motorola, Inc., NextNet Wireless Product Group Section 1 FCC ID: PHX-OSU2510R Cover Letter Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 4 of 5 4/10/2007 Report Summary Section Contents 1 Cover Letter 2 Labels 3 External Photos 4 Internal Photos 5 Test Report (Parts A, B) 6 Test Setup Photographs 7 Users Manual 8 RF Exposure Information 9 Correspondence 10 Block Diagrams 11 Schematic Diagrams 12 Parts List and Tuneup Information 13 Technical Description Appendix Additional Tables and Analyzer Plots Test Report Summary FCC Part 27 47CFR Rule Part Requirement Test Result 1.1310 / 2.1091 / 27.52 Radio Frequency Radiation Exposure Limits / Evaluation: Mobile devices Pass 2.1046 27.50(h)(2) RF Output Power - Temporary Fixed Pass 2.1047 27.53(l) Modulation Characteristics Pass 2.1049 27.53(l) Occupied Bandwidth Pass 2.1051 Spurious Emissions at Antenna Terminals Pass 2.1053 Field Strength of Spurious Radiation Pass 2.1055 / 27.54 Frequency Stability Pass Section 1 FCC ID: PHX-OSU2510R Cover Letter Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 5 of 5 4/10/2007 FCC Requirements Check List FCC Rule Part Description Response 0.457dii Records not routinely available for public inspection Section 9 0.459 Requests that materials or information submitted to the Commission be withheld from public inspection. Section 9 Part 27 “Application for Certification” requirements 2.947 Measurement procedure: Sections 5, 8 2.1033(c) Technical Report Required Sections 5, 8 2.1033(c)1 Name / Address of Manufacturer / Applicant Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 2.1033(c)2 FCC identifier. PHX-OSU2510R 2.1033(c)3 Manual(s) / Literature Section 7 2.1033(c)4 Type or types of emission. 27.53(l): Digital OFDM / 4M96W7D OFDM / 5M48W7D 2.1033(c)5 Frequency range. 2496 – 2690 MHz 2.1033(c)6 Power Range 0.001 Watts – 2 Watts Sections 5, 13 2.1033(c)7 Maximum power rating Section 5 2.1033(c)8 DC voltages and DC currents Sections 10, 11 2.1033(c)9 Tune-up procedure Section 12 2.1033(c)10 Schematic diagram and descriptions Sections 11, 12, 13 2.1033(c)11 Labels Section 2 2.1033(c)12 Photographs Sections 3, 4, 6 2.1033(c)13 Technical Description Section 13 2.1033(c)14 2.1046 through 2.1057 data Sections 5, Appendix 2.1033(c)15 External power amplifier Not applicable 2.1033(c)16 AM broadcast Not applicable 2.1033(c)17 Composite system Not applicable 2.1033(c)18 Software Defined Not applicable 2.1033(d) Part 20 hearing aid compatible Not applicable 2.1033(e) A single application / composite system Not applicable

Hi Dennis, I believe that the questions being asked in the KDB are listed in the filing document 5A Test Report which I have copied, highlighted in red and underlined the pertinent information below for clarification: 5A Test report page 2: 5.1 Test Strategy Verification of the performance of the Motorola, Inc. OSU-2510-R transmitter was accomplished by implementation of the procedures contained within TIA/EIA-603 and FCC requirements. Performance results contained within this Test Report and Appendix documents represent operational modes that are considered to be worst case within a functional system. Verification of product performance is presented for three frequencies across the RF bandwidth, two channel bandwidths, and four modulation levels available within an operational system. The Motorola, Inc. OSU-2510-R product has been tested with equipment that is generally available in the open market. The primary requirement for the measurement of the OSU-2510-R product is that the spectrum analyzer contain a time gating function to facilitate the measurement of the channel power and emissions mask. The time gating function is configured to only allow the spectrum analyzer to sweep when the transmitter is active. Measurements performed on the OSU-2510-R product were performed with an Agilent E4440A spectrum analyzer with the time gating capability. The Expedience system protocol utilizes all sub-channel carriers on each transmission burst. The Expedience system protocol does not make use of subchannelization. All carriers are utilized for each transmission. The Expedience system protocol does not allow for a mixed transmission within a single burst, i.e. all data within a single burst or transmission is one modulation type (4-QAM, 16- QAM, or 64-QAM). The same modulation is transmitted for the entire burst. To facilitate the product development, a test mode configuration was developed. The test mode allows for the selection of channel frequency, modulation bandwidth, and modulation type (4-QAM, 16-QAM, 64-QAM, ...). Within the test mode, a pseudo random bit sequence is used to generate the transmitted data. Emissions measurements (conducted and radiated) were also completed for both modulation bandwidths that are requested on the 731 form. Additional information on the system and modulation can be found in the section 13 Technical Description document. Regards, Tim Blom

From: Blom Timothy-FXB436 [mailto:[email protected]] Sent: 05/14/2007 3:07 PM To: [email protected] Subject: RE: kdb306386 PBA via email; ongoing KDB-submit system issues Hi Dennis, I have always applied the MPE information to our products as a result of the information contained in 1.1307 which states: From this it appears that all BRS/EBS products need MPE notification actually listed on the product itself. I concede that the 2.1091 specifications may not apply as this is a "fixed" product. My intent of listing 2.1091 within the documents is to provide an FCC reference to the 20 cm requirement and to ensure that the device is installed such that the MPE requirements are considered during installation and will be met during operation. Should I provide new documents that do not contain references to 2.1091? Regards, Tim Blom

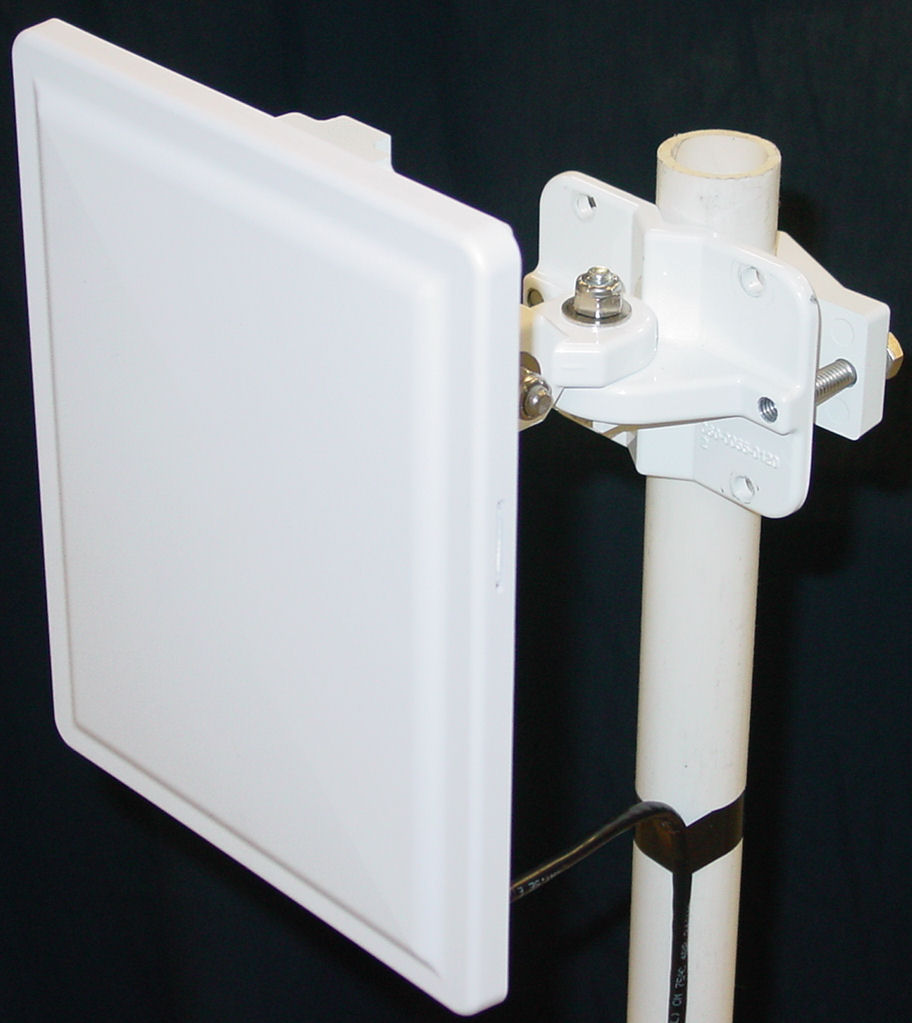

Section 3 FCC ID: PHX-OSU2510R External Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 4 4/10/2007 Section 3 External Photographs Section 3 FCC ID: PHX-OSU2510R External Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 4 4/10/2007 Front View Section 3 FCC ID: PHX-OSU2510R External Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 4 4/10/2007 Back View Section 3 FCC ID: PHX-OSU2510R External Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 4 of 4 4/10/2007 Bottom Edge View Power/Ethernet Jack Status Indicators

Section 2 FCC ID: PHX-OSU2510R Label Location Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 4 4/10/2007 Section 2 Label Location Section 2 FCC ID: PHX-OSU2510R Label Location Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 4 4/10/2007 4/10/2007 Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 RE: FCC Labeling Requirements FCC ID: PHX-OSU2510R Motorola Model No.: OSU-2510-RV OSU-2510-RH The following label information is required by the FCC Rules and Regulations for certified devices. Thank you for your attention to these matters. Sincerely, Tim Blom Motorola, Inc., NextNet Wireless Product Group Section 2 FCC ID: PHX-OSU2510R Label Location Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 4 4/10/2007 The following FCC tamper resistant labels will be attached to the OSU-2510-R products with a permanent adhesive. OSU-2510-R Label Example (Vertically Polarized Antenna) OSU-2510-R Label Example (Horizontally Polarized Antenna) Section 2 FCC ID: PHX-OSU2510R Label Location Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 4 of 4 4/10/2007 Photograph Showing Label Location On Product

Section 4 FCC ID: PHX-OSU2510R Internal Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 7 4/10/2007 Section 4 Internal Photographs Section 4 FCC ID: PHX-OSU2510R Internal Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 7 4/10/2007 Antenna Board (Vert. Polarized) Outside View Radome Inside View Section 4 FCC ID: PHX-OSU2510R Internal Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 7 4/10/2007 Antenna Board (Vert. Polarized) Inside View Antenna Plate Antenna Side View Section 4 FCC ID: PHX-OSU2510R Internal Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 4 of 7 4/10/2007 Antenna Plate Opposite Antenna Side View Main Board Installed in Chassis Section 4 FCC ID: PHX-OSU2510R Internal Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 5 of 7 4/10/2007 Main Board Top View (Shield Cover Removed) Main Board Bottom Side View Section 4 FCC ID: PHX-OSU2510R Internal Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 6 of 7 4/10/2007 Antenna Board (Horiz Polarized) Outside View Antenna Board (Horiz Polarized) Inside View Section 4 FCC ID: PHX-OSU2510R Internal Photographs Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 7 of 7 4/10/2007 Chassis With Board Removed

Section 8 FCC ID: PHX-OSU510R RF Exposure Information Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 8 4/10/2007 Section 8 RF Exposure Information Section 8 FCC ID: PHX-OSU510R RF Exposure Information Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 8 4/10/2007 8.1 Radio Frequency Radiation Exposure Evaluation FCC Rules: 1.1307, 1.1310, 2.1091, 27.52 FCC Requirement: < 1mW/cm 2 General Population / Uncontrolled Exposure Standard: IEEE Std C95.3 – 2002 FCC OET Bulletin 65 Procedure: The Motorola, Inc. Expedience system operates as a Time Division Duplex (TDD) product with a Time Division Multiplex (TDM) frame structure. The OSU-2510-R product is able to transmit a time division duplex (TDD) signal up to a maximum 14.29 % transmit duty cycle. To measure the RF Exposure, the OSU transmitter is enabled in test mode and set to the maximum power level. Measurements are performed at the low, mid, and high channels of each channel bandwidth, using the maximum transmitter duty cycle and both antenna polarizations. Modulation was set to 4 QAM. Conditions: Frequency = 2499, 2593, 2687 MHz Temperature = 25ºC Supply Voltage = 120 VAC / 60 Hz Nominal to DUT Power Supply Set-Up: DUT RF Probe Computer Radiation Hazard Test Setup Diagram Radiation Hazard Meter Section 8 FCC ID: PHX-OSU510R RF Exposure Information Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 3 of 8 4/10/2007 8.2 Test Equipment Radiation Hazard Meter: General Microwave Corporation RAHAM Model 3 Calibrated: 10-20-2005 Due: 10-20-2007 Voltmeter: Fluke 87 V True RMS Multimeter S/N: 87180024 Measurement level verified with meter listed below. HP 34401A S/N: MY45001201 Calibrated: 4-9-2005 / Calibration due: 4-9-2007 The General Microwave RAHAM Model 3 isotropic broadband electromagnetic radiation hazard meter consists of a model 83A probe and model 481B meter. The model 83A probe employs three orthogonally-oriented thin-film thermoelectric arrays. This type of probe exhibits extremely good adherence to square-law characteristics such that the DC output from the thermocouple is proportional to the square of the electric field strength. The recorder output from the RAHAM meter is applied to the Fluke DVM. The DC level of the Recorder Output is recorded and then converted to the corresponding maximum permissible exposure value. The recorder output at a full scale reading is 124 mV. The measurements performed for this report utilize the 2 mW/cm 2 setting of the RAHAM instrument. 8.3 General Information The Motorola, Inc. Expedience OSU-2510-R transmitter can apply 2 watts of RF power, within a channel, to the integral antenna in the 2496-2690 MHz band. The OSU-2510-R has a maximum transmit duty cycle of 14.29 % and is based on a TDM frame (see test information at end of this report). The vertically polarized antenna has 13 dBi of gain. Therefore, the maximum radiated transmit power would be: 14.29% Transmit Duty Cycle: Pmax = Ptx(dBm) + G(antenna(dBi)) - 10*log(duty cycle)(dB) Pmax = 33 + 13 - 10*log(0.1429) = 33 + 13 - 8.45 Pmax = 37.55 dBm EIRP = 5.688 Watts EIRP The horizontally polarized antenna has 12.2 dBi of gain. Therefore, the maximum radiated transmit power would be: 14.29% Transmit Duty Cycle: Pmax = Ptx(dBm) + G(antenna(dBi)) - 10*log(duty cycle)(dB) Pmax = 33 + 12.2 - 10*log(0.1429) = 33 + 12.2 - 8.45 Pmax = 36.75 dBm EIRP = 4.7315 Watts EIRP Section 8 FCC ID: PHX-OSU510R RF Exposure Information Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 4 of 8 4/10/2007 8.4 Calculations The following calculations can be used to determine the distance from the transmitting antenna that must be maintained to ensure that the exposure limit as defined in Table 1 of part 1.1310 (B) Limits for General Population / Uncontrolled Exposure. The formula for the following calculations are found in the OET Bulletin 65, edition 97-01 August 1997, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields”. The maximum power level from the previous calculations will be used. S = EIRP/4 πR 2 or R = (EIRP/4 πS) 0.5 2496-2690 MHz Band: S=1 mW/cm 2 R=20 cm EIRP = 5.688 W EIRP = 5.688 W EIRP = 5688 mW EIRP = 5688 mW S = 1 mW/cm 2 R = 20 cm R = (5688/(4*π*1)) 0.5 S = 5688/(4*pi*20 2 ) R = 21.2753 cm S = 1.1316 mW/cm 2 Calculated safe distance from the transmitting antenna is 21.27 cm for a point source radiation element, or the maximum field strength for a point source radiation element at 20 cm would be 1.1316 mW/cm 2 . The Motorola OSU uses a four element patch array antenna. The RF power supplied to each patch is one quarter the total power that would be supplied to a single radiating antenna as described in Bulletin 65. Because the transmitted power is distributed over a larger area, the actual signal at 20 cm will be less than the calculated value. A measurement of the signal strength at 20 cm is detailed below. The measured values of “S” have been adjusted to include the current calibration factor of the radiation hazard meter. Measurement calculations: DC voltage recorded = 33.5 mV Convert dc level to Sdc = (33.5 mV * 2 mW/cm 2 ) / 124 mV = 67 mVmW/cm 2 / 124 mV = 0.54 mW/cm 2 Apply the calibration factor S = Sdc*CF = 0.54 mW/cm 2 * 1.33 S (MPE level) = 0.72 mW/cm 2 Section 8 FCC ID: PHX-OSU510R RF Exposure Information Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 5 of 8 4/10/2007 Test Results: OSU Vertically Polarized Antenna (20 cm From OSU Case) Channel Frequency (MHz) Channel Bandwidth (MHz) Max S (mW/cm 2 ) 2499 6.0 0.69 2593 6.0 0.88 2687 6.0 0.71 2499 5.5 0.69 2593 5.5 0.90 2687 5.5 0.69 OSU Horizontally Polarized Antenna (20 cm From OSU Case) Channel Frequency (MHz) Channel Bandwidth (MHz) Max S (mW/cm 2 ) 2499 6.0 0.62 2593 6.0 0.71 2687 6.0 0.58 2499 5.5 0.58 2593 5.5 0…

Text truncated - open the document above for the full version.

Section 5 FCC ID: PHX-OSU2510R Test Report Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 1 of 50 4/10/2007 Section 5 Test Report TABLE OF CONTENTS 5.1 Test Strategy.......................................................................2 5.2 Test Equipment List ...........................................................3 5.3 RF Power Output ................................................................4 5.3.1. Conducted RF Power Output Test Results ...............................................8 5.3.2. Conducted RF Power Output Plots ...........................................................8 5.4 Modulation Characteristics .............................................15 5.4.1. Modulation Characteristics Test Results Summary ................................16 5.4.2. Modulation Characteristics Data Plots ....................................................16 5.5 Occupied and Emission Bandwidth................................17 5.5.1. Occupied and Emission Bandwidth Test Results Summary ...................18 5.5.2. Occupied Bandwidth Spectrum Analyzer Plots .......................................18 5.6 Transmitter Spurious Emissions ....................................23 5.6.1. Transmitter Spurious Emissions Plots.....................................................24 5.6.2. Second Harmonic Emissions Plots .........................................................33 5.6.3. Harmonic 3 Emissions Plots....................................................................36 5.7 Field Strength of Spurious Radiation .............................39 5.8 Frequency Stability Test ..................................................40 5.8.1. Temperature Variation Test Results........................................................42 5.8.2. Temperature Variation Spectrum Analyzer Plots ....................................43 5.8.3. Supply Voltage Variation Test Results ....................................................48 5.8.4. Supply Voltage Variation Spectrum Analyzer Plots ................................48 Section 5 FCC ID: PHX-OSU2510R Test Report Motorola, Inc., NextNet Wireless Product Group 2900 County Rd 42 W Burnsville, MN 55337 Page 2 of 50 4/10/2007 5.1 Test Strategy Verification of the performance of the Motorola, Inc. OSU-2510-R transmitter was accomplished by implementation of the procedures contained within TIA/EIA-603 and FCC requirements. Performance results contained within this Test Report and Appendix documents represent operational modes that are considered to be worst case within a functional system. Verification of product performance is presented for three frequencies across the RF bandwidth, two channel bandwidths, and four modulation levels available within an operational system. The Motorola, Inc. OSU-2510-R product has been tested with equipment that is generally available in the open market. The primary requirement for the measurement of the OSU-2510-R product is that the spectrum analyzer contain a time gating function to facilitate the measurement of the channel power and emissions mask. The time gating function is configured to only allow the spectrum analyzer to sweep when the transmitter is active. Measurements performed on the OSU-2510-R product were performed with an Agilent E4440A spectrum analyzer with the time gating capability. The Expedience system protocol utilizes all sub-channel carriers on each transmission burst. The Expedience system protocol does not make use of subchannelization. All carriers are utilized for each transmission. The Expedience system protocol does not allow for a mixed transmission within a single burst, i.e. all data within a single burst or transmission is one modulation type (4-QAM, 16- QAM, or 64-QAM). The same modulation is transmitted for the entire burst. To facilitate the product development, a test mode configuration was developed. The test mode allows for the selection of channel frequency, modulation bandwidth, and modulation type (4-QAM, 16-QAM, 64-QAM, ...). Within the test mode, a pseudo random bit sequence is …

Text truncated - open the document above for the full version.
