PIDAS1030LTE Base Station Radio

AirSpeed 1030 B48 Installation Guide Part Number: DUG01623 System Release: 17.5 Revision: A1 Published: August 2020 © Copyright by Airspan Networks Ltd., 2020. All rights reserved worldwide. Legal Notices The information contained within this document is proprietary, privileged and intended only for the recipient. As such, the information is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Ltd. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced, transmitted or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Ltd. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Ltd. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Ltd. is believed in good faith to be accurate and reliable, while every care has been taken in preparing these documents. However, Airspan Networks Ltd. does not make any representations and gives no warranties of whatever nature in respect of these documents, including without limitation, the accuracy or completeness of any information, facts and/or opinions contained therein. No responsibility is assumed by Airspan Networks Ltd. for the use of the documents nor for the rights of third parties which may be effected in any way by the use thereof. The provision of these documents (and the documents themselves) does not constitute professional advice of any kind. Any representation(s) in these documents concerning performance of Airspan Networks Ltd. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Ltd., its affiliates, directors, employees and agents shall not be held liable for any damages or losses, of any nature whatsoever, arising from any use of and/or reliance on the documents. These documents may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Ltd. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Ltd. Product performance figures quoted within this document are indicative and for information purposes only. UK WEEE Registration number: WEEE/AB0207WZ. For more information, see WEEE Information for Airspan Customers and Recyclers. Acknowledgements © Intel Corporation http://www.intel.com/ © Microsoft Corporation http://www.microsoft.com AirSpeed 1030 B48 Installation Guide DUG01610 Airspan Commercial and Internal Use 1 Table of Contents Document Information .............................................................................. 5 Abstract .................................................................................................................. 5 Revision History ..................................................................................................... 5 Warnings and Cautions ............................................................................ 6 Human Exposure to Radio Frequencies ................................................................ 6 Avertissement et Precautions d’Utilisation ............................................... 6 Exposition des personnes aux fréquences radioélectriques .................................. 6 Radio Interference ................................................................................................. 6 Modifications .......................................................................................................... 6 General .................................................................................................................. 6 Général .................................................................................................................. 6 Important Safety Instructions ............................................................................ 7 Safety ..................................................................................................................... 7 Securite .................................................................................................................. 7 Warning of Hazardous Voltages ............................................................................ 8 Attention aux Voltages Hasardeux ......................................................................... 8 Adherence to European Directive 2014/53/EU ...................................................... 8 Warning Symbols ................................................................................................... 8 Service Information ................................................................................................ 8 UL Information ....................................................................................................... 9 DECLARATION OF CONFORMITY ........................................................ 9 Maximum Output TX Power ................................................................... 11 Product Variants .................................................................................................. 11 Power Consumption ............................................................................................. 12 External Antennas (Optional) ............................................................................... 13 About This Document ............................................................................. 14 Purpose ...............................................................…

Text truncated - open the document above for the full version.

Cable Length Connector to Cable Spec Labelling DC Grounding Isolation between RF Ports Average transmission power per polarisation Peak transmission power per polarisation Recommended maximum dimensions PCB (mm) Connector type Cable Type Front to back ratio (CoPol) Polarisation Electrical Down-tilt Impedance First side-lobe level VSWR LTE band Frequency range Average gain to RF connector Azimuth HPBW Elevation HPBW Polarisation discrimination at 0° 48 3550 – 3700 MHz 17 ± 0.5 dBi 70° ± 5° 8° ± 5° 22 dB 0° 50 ohms All Antenna ports to be DC grounded 2 x N Type Male RA See Outline Drawing 117893-B ≥ 23 dB 0.141 50ohm Dual Slant ±45° ≤ -18 dB 26 dBm 115mm ± 3mm Port 1/ 2/ 3/ 4 See Outline Drawing on P2 ≤ 1.5:1 36 dBm ≥ 25 dB AW3782 Data Sheet Preliminary 3550-3700MHz, Sector Antenna, FT The parameters in this specification follow the definitions and recommendations per NGMN P-Basta, Release 9.6 © Alpha Wireless Limited 2019. Last modifiedFebruary, 05, 2020 Web: www.alphawireless.comEmail: [email protected] * Alpha Wireless are always improving products; specification subject to change without notice. AW3782Outline Drawing © Alpha Wireless Limited 2019. Last modified February, 05, 2020 Web: www.alphawireless.comEmail: [email protected] * Alpha Wireless are always improving products; specification subject to change without notice. RevisionAuthorDateDescriptionApproved by Airspan 0Petr Svarc05/02/2020Initial Release AW3782 Revision Control Sheet © Alpha Wireless Limited 2019. Last modified February, 05, 2020 Web: www.alphawireless.comEmail: [email protected] * Alpha Wireless are always improving products; specification subject to change without notice.

DATASHEET Panel AW3014AW3014 Common Name-Common Name-2 Port B42, 43 & 48 - 65⁰ 3300-3800MHz2Fixed18.065⁰ FrequencyPortsTiltGainBeamwidth PRODUCT INFORMATIONPRODUCT INFORMATION This slimline solution was developed for 0xed wireless applications APPLICATIONAPPLICATION Alpha Wireless panel antennas provide wireless network operators the highest performance and quality. Panel antennas are generally used in sectorized applications. These antennas are designed for optimal radiation patterns improving overall network performance. Various tilt options are available to address network optimization requirements. STANDARD & CERTIFICATIONSSTANDARD & CERTIFICATIONS CertificationBS EN ISO 9001:2015 FEATURESFEATURES Wide-band antenna for 3GPP bands 42, 43 & 48. Dual Cross polarization antenna +/- 45⁰ Mounting bracket with variable tilt (included) Manufactured in Ireland alphawireless.comalphawireless.com Page 4/4 Publish Date: Publish Date: 01.03.201901.03.2019Revision no: Revision no: 2323 The parameters in this specification follow the definitions and recommendations per NGMN P-Basta, Release 9.6. Panel AW3014AW3014 TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATION Electrical SpecificationsElectrical Specifications Frequency RangeMHz3300-3800MHz PolarisationDegree+/-45° Slant Linear GaindBi18.0 Azimuth BeamwidthDegree65° Azimuth Beam SquintDegree<3° Elevation BeamwidthDegree7° Electrical DowntiltDegreeT0° or T4° Electrical Downtilt DeviationDegree<1° ImpedanceOhms50 VSWR<1.5 Return LossdB>14 IsolationdB>28 Front to Back Ratio: Total Power +/-30°dB>30 Upper Sidelobe Suppression, Peak to 20ºdB>18 Cross-Polar DiscriminationdB>16 Maximum Effective Power Per PortW100 Radiation Pattern FilesRadiation Pattern Files AzimuthAzimuthElevationElevation For radiation pattern files, please login at www.alphawireless.com alphawireless.comalphawireless.com Page 1/4 Publish Date: Publish Date: 01.03.201901.03.2019Revision no: Revision no: 2323 Panel AW3014AW3014 TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATION Mechanical SpecificationsMechanical Specifications Dimensions (LxØ)mm (in)750 (29.5) x 160 (6.2) x 81 (3.1) Packing Size (LxWxD)mm (in)823(32.4) x 240(94) x 178(7) Net Weight (antenna)kg (lb)4.3 (9.4) Net Weight (mount)kg (lb)1.4 (3.1) Shipping Weightkg (lb)5.7 (12.5) Connector Type (Female)- N Type Connector Quantity-2 Connector Position-Bottom Windload Frontal (at Rated Wind Speed: 150km/h)N (Ibf)130 (30) Windload Lateral (at Rated Wind Speed: 150km/h)N (Ibf)80 (18) Survival Wind Speedkm/h (mph)200 (125) Radome Material-UV-Stabilised PVC Radome ColourRAL7035 Product Compliance Environmental--RoHS Lightning Protection--DC Grounded Cold Temperature SurvivalºC (ºF)-40 (-40) Hot Temperature SurvivalºC (ºF)70 (158) Mechanical IllustrationMechanical Illustration All measurements are in mm (in)All measurements are in mm (in) alphawireless.comalphawireless.com Page 2/4 Publish Date: Publish Date: 01.03.201901.03.2019Revision no: Revision no: 2323 Panel AW3014AW3014 TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATION Mounting Bracket KitMounting Bracket Kit CL-V-102 Mount Kit M8 2.0mm (Mount Kit included with antenna)CL-V-102 Mount Kit M8 2.0mm (Mount Kit included with antenna) Mounting Kit Tilt RangeMounting Kit MaterialMounting Kit Pole Diameter 0° to 10°Stainless Steel50mm-115mm (2" to 4.5") ORDERING INFOORDERING INFO AW3014-T0-N Zero Degrees Fixed Tilt with N Type Connectors AW3014-T4-N Four Degrees Fixed Tilt with N Type Connectors DISCLAIMER The information in this document is provided solely regarding Alpha Wireless products. The information is not a guarantee of performance or characteristics. Alpha Wireless reserves the right to modify, change, amend, improve or make corrections to this document and its products, at any time and its sole discretion without prior written consent or notice. No license to any intellectual property rights is granted or implied under this document. Alpha Wireless disclaims warranties and liabilities of any kind including non-infringement of intellectual property rights of any third party. Alpha WirelessAlpha Wireless IrelandIreland Ashgrove Business Centre, Ballybrittas, Portlaoise, Ireland Post code: R32 DT0A [email protected] +353 57 86 33847 USAUSA 11322 W 79th St, Lenexa, KS 66214, USA [email protected] +1 913 279 0008 Page 3/4 © Alpha Wireless Limited 2014 Publish Date: Publish Date: 01.03.201901.03.2019 alphawireless.comalphawireless.com Revision no: Revision no: 2323 EnquiriesEnquiries

DATASHEET Panel AW3170AW3170 Common Name-Common Name-2 Port B42 & 43 - 33⁰ 3300-3800MHz2Fixed20.533⁰ FrequencyPortsTiltGainBeamwidth PRODUCT INFORMATIONPRODUCT INFORMATION Developed for +xed wireless access applications requiring narrow Azimuth APPLICATIONAPPLICATION Alpha Wireless sector antennas are the most commonly used solution for designing high quality wireless networks. The 33 degree azimuth patterns allows to increase capacity to 6 sectors without increasing the number of sites. With additional options for +xed tilt settings enables improved optimization. STANDARD & CERTIFICATIONSSTANDARD & CERTIFICATIONS CertificationBS EN ISO 9001:2015 FEATURESFEATURES Wide-band antenna for 3GPP bands 42 & 48 Dual Cross polarization antenna +/- 45⁰ Narrow Azimuth beam to increase site capacity Mounting bracket with variable tilt alphawireless.comalphawireless.com Page 1/4 Publish Date: Publish Date: 14.11.201814.11.2018Revision no: Revision no: 1515 Panel AW3170AW3170 TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATION Electrical SpecificationsElectrical Specifications Frequency RangeMHz3300-3800MHz PolarisationDegree+/-45° Slant Linear GaindBi20.5 Azimuth BeamwidthDegree33° Azimuth Beam SquintDegree<3° Elevation BeamwidthDegree7° Electrical DowntiltDegreeT0° or T4° Electrical Downtilt DeviationDegree<1° ImpedanceOhms50 VSWR<1.5 Return LossdB>14 IsolationdB>25 Front to Back Ratio: Total Power +/-30°dB>27 Upper Sidelobe Suppression, Peak to 20ºdB>17 Cross-Polar DiscriminationdB>16 Maximum Effective Power Per PortW100 Radiation Pattern FilesRadiation Pattern Files AzimuthAzimuthElevationElevation For radiation pattern files, please login at www.alphawireless.com alphawireless.comalphawireless.com Page 2/4 Publish Date: Publish Date: 14.11.201814.11.2018Revision no: Revision no: 1515 Panel AW3170AW3170 TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATION Mechanical SpecificationsMechanical Specifications Dimensions (LxØ)mm (in)750 (29.5) x 280 (11) x 85 (3.3) Packing Size (LxWxD)mm (in)793 (31.2) x 340 (13.3) x 178 (7) Net Weight (antenna)kg (lb)6 (13.2) Net Weight (mount)kg (lb)1.5 (3.41) Shipping Weightkg (lb)7.5 (16.61) Connector Type (Female)- N Type Connector Quantity-2 Connector Position-Bottom Windload Frontal (at Rated Wind Speed: 150km/h)N (Ibf)220 (50) Windload Lateral (at Rated Wind Speed: 150km/h)N (Ibf)80 (18) Survival Wind Speedkm/h (mph)200 (125) Radome Material-UV-Stabilised PVC Radome ColourRAL7035 Product Compliance Environmental--RoHS Lightning Protection--DC Grounded Cold Temperature SurvivalºC (ºF)-40 (-40) Hot Temperature SurvivalºC (ºF)70 (158) Mechanical IllustrationMechanical Illustration All measurements are in mm (in)All measurements are in mm (in) alphawireless.comalphawireless.com Page 3/4 Publish Date: Publish Date: 14.11.201814.11.2018Revision no: Revision no: 1515 Panel AW3170AW3170 TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATION Mounting Bracket KitMounting Bracket Kit CL-V-104 Mount Kit M12 2.5mm (Mount Kit included with antenna)CL-V-104 Mount Kit M12 2.5mm (Mount Kit included with antenna) Mounting Kit Tilt RangeMounting Kit MaterialMounting Kit Pole Diameter +2° to -10°Stainless Steel50mm-115mm (2" to 4.5") ORDERING INFOORDERING INFO AW3170-T0-N Zero Degrees Fixed Tilt with N Type Connectors AW3170-T4-N Four Degrees Fixed Tilt with N Type Connectors DISCLAIMER The information in this document is provided solely regarding Alpha Wireless products. The information is not a guarantee of performance or characteristics. Alpha Wireless reserves the right to modify, change, amend, improve or make corrections to this document and its products, at any time and its sole discretion without prior written consent or notice. No license to any intellectual property rights is granted or implied under this document. Alpha Wireless disclaims warranties and liabilities of any kind including non-infringement of intellectual property rights of any third party. Alpha WirelessAlpha Wireless IrelandIreland Ashgrove Business Centre, Ballybrittas, Portlaoise, Ireland Post code: R32 DT0A [email protected] +353 57 86 33847 USAUSA 11322 W 79th St, Lenexa, KS 66214, USA [email protected] +1 913 279 0008 Page 4/4 © Alpha Wireless Limited 2014 Publish Date: Publish Date: 14.11.201814.11.2018 alphawireless.comalphawireless.com Revision no: Revision no: 1515 EnquiriesEnquiries

3300 TO 3800 MHz HIGH PERFORMANCE DISH ANTENNA The new HD Series dish antennas offered by Laird offers the system engineer the best performance available on the market. The antennas meet ETSI EN 302.326-3 DN1-DN5 specifications, the most stringent specifications for point to point backhaul antennas. The unique feed system is available in a single polarization version which can be mounted for either vertical or horizontal polarization. There is also a dual polarized version available for those systems which can utilize dual polarization to increase bandwidth or implement diversity. An optional fiberglass radome is available for added environmental protection. FEATURES • Wide band operation • Vertically or horizontally polarized • Dua l horizontal / vertical and dual-slant polarity models available • Ultralow sidelobes, meets ETSI standards • Extremely rugged for long service life in extreme environments MARKETS • 802.11 applications • OFDM systems • MIMO systems • Cellular backhaul • Point-to-point backhaul • Public safety communications • WiMAX H-plane, 3.6GHz -30 -28 -26 -24 -22 -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 -180 -150 -120 -90 -60 -30 030 60 90 120 150 180 Azimuth [°] Gain [dBi] E-plane, 3.6GHz -30 -28 -26 -24 -22 -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 -180 -150 -120 -90 -60 -30030 60 90 120 150 180 Ele v ation [°] Gain [dBi] co-pol x-pol H-plane, 3.6GHz -30 -28 -26 -24 -22 -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 -180 -150 -120 -90 -60 -30 030 60 90 120 150 180 Azimuth [°] Gain [dBi] E-plane, 3.6GHz -30 -28 -26 -24 -22 -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 -180 -150 -120 -90 -60 -30030 60 90 120 150 180 Elevation [°] Gain [dBi] co-pol x-pol 3.6 GHz H-Plane3.6 GHz E-Plane HD SERIES TM HIGH PERFORMANCE DISH ANTENNA HDDA3W TYPICAL ANTENNA PATTERNS Americas: +1.847 839.6907 [email protected] Europe: +44.1628.858941 [email protected] Asia: +86.21.5855.0827.127 [email protected] www.lairdtech.com ANT-DS-HDDA3W 0615 Any information furnished by Laird Inc. and its agents is believed t o be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness, merchantability or suitability of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2015 Laird Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other marks are trademarks or registered trademarks of Laird Inc. or an affiliate company thereof. Other product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party int ellectual property rights. Dish antenna shown with optional radome SYSTEM ORDERING HDDA3W-25-SP 25 dBi single polarity with N female connector HDDA3W-25-DP 25 dBi dual polarity with N female connector HDDA3W-29-SP 29 dBi single polarity with N female connector HDDA3W-29-DP 29 dBi dual polarity with N female connector DA5-29RADOME Fiberglass Radome Cover for 2ft (0.3m) dish DA5-32RADOME Fiberglass Radome Cover for 3ft (0.6m) dish NOTES •All shipments F.O.B. Schaumburg, IL 60173 WIND LOADING (LBS.) SPECIFICATIONS 100MPH125MPHMODEL HDDA3W-25 113177 HDDA3W-25 with Radome75116 HDDA3W-29256400 HDDA3W-29 with Radome111174 MINTYPMAXUNITSPARAMETER Frequency range (single pol.)33003800MHz Frequency range (dual pol. )33003800MHz VSWR (single pol.)1.5:11.7:1 VSWR (dual pol.)1.5:11.8:1 Impedance50OHM Cross-pol suppression>30 dB SidelobesETSI EN 302.326-3 DN1-DN5 Input power100W Mechanical downtilt30deg Pole diameter (OD)2 (50)4 (101.6)inch (mm) Operating temperature-40+70°C PARAMETERHDDA3W-25-xxHDDA3W-29-xx Gain25 dBi29 dBi Beamwidth8.5°6° Port-to-port isolation (dual pol.)>30 dB>30 dB Front-to-back>30 dB>35 dB Weight8 kg10 kg Dimensions (diameter)25.5 in (648 mm)36.5 in (927 mm) HD SERIES TM HIGH PERFORMANCE DISH ANTENNA H DDA3W

Company name: Airspan Networks Inc. Address: 777 Yamato Road Suite 310 Boca Raton FL 33431 USA AirSpeed 1030 3.55-3.7GHz (B48) statement 1) DC voltages/currents supplied to elements of the final radio frequency amplifying device for normal operation over the power range: 30 V/ 0.6 A. Name of authorized person: Zion Levy Position: Compliances Team Leader Date: July 14, 2020 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671, www.airspan.com

RF_160, Issue 04 Declaration of Authorization We Name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310 City: Boca Raton, Florida 33431 Country: USA. Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. . Address: Harakevet Industrial Zone .. City: Binyamina 30500 .. Country Israel . is authorized to apply for Certification of the following product(s): Product description:  LTE Base Station Radio . Type designation:  AirSpeed AS1030 3.550-3.700 GHz (B48). Trademark:  Airspan . Validity/ expiry date August 05, 2019 on our behalf. Date: August 05, 2020.. City: Boca Raton .. Name: Zion Levy .. (2) Function: Compliances Team Leader, R&D ............................... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310 City: Boca Raton, Florida Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PIDAS1030 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: This device is a new concept of LTE products and contains a trade secret of the company Planned Release Date STC: 180 days from the grant date (notes 2, 3, 4, 5) Date: August 05, 2020 Name and signature of applicant: Zion Levi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

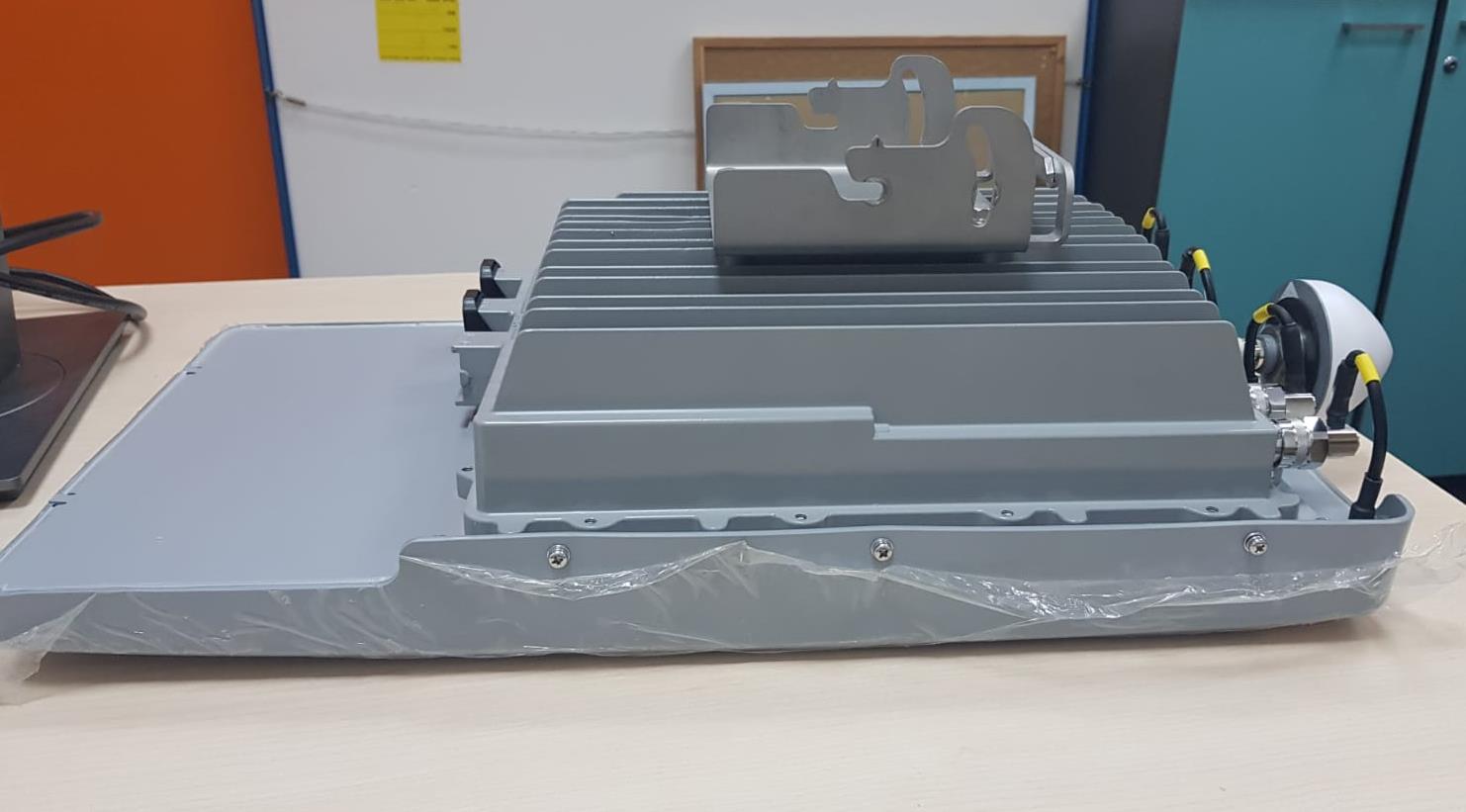

Airspan Networks Inc. FCC ID:PIDAS1030 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Airspan Networks Inc. FCC ID:PIDAS1030 Page 2 of 5 Photograph No.1 “AirSpeed 1030” base station front view Airspan Networks Inc. FCC ID:PIDAS1030 Page 3 of 5 Photograph No.2 “AirSpeed 1030” base station top view Airspan Networks Inc. FCC ID:PIDAS1030 Page 4 of 5 Photograph No.3 “AirSpeed 1030” base station side view Airspan Networks Inc. FCC ID:PIDAS1030 Page 5 of 5 Photograph No.4 “AirSpeed 1030” base station side view

Airspan Networks Inc. FCC ID:PIDAS1030 Page 1 of 1 LABEL The label is affixed on the side panel of the base radio unit as shown below. The label material is PVC with a permanent adhesive. “AirSpeed 1030 3.550-3.700 GHz (B48)” side panel, label with FCC ID:PIDAS1030 location

Airspan Networks Inc. FCC ID:PIDAS1030 Page 1 of 4 INTERNAL PHOTOGRAPHS This document contains 3 photographs Airspan Networks Inc. FCC ID:PIDAS1030 Page 2 of 4 Photograph No.1 Main board front view Airspan Networks Inc. FCC ID:PIDAS1030 Page 3 of 4 Photograph No.2 Main board close view with shields removed Airspan Networks Inc. FCC ID:PIDAS1030 Page 4 of 4 Photograph No.3 Main board second side view

Airspan Networks Inc. FCC ID: PIDAS1030 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The transceiver is classified as fixed, the calculation was done to check a safe distance. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range. The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the transmitted power, which is equal to the peak transmitter output power plus maximum antenna gain. The maximum equivalent isotropically radiated power EIRP is P T = 29.42 dBm +17.5 dBi = 46.92 dBm = 49204 mW, where 29.42 dBm is the EUT maximum output power (per port), 17.5 dBi – antenna gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { PT / (Px4)} = sqrt {49204 / 12.56} = 62.59 ≈ 63 cm. A warning about a safe distance is contained in the user manual.

Hermon Laboratories Ltd. P.O. Box 23, Binyamina 3055001, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 166 Report ID: AIRRAD_FCC.37551_Rev2 Date of Issue: 23-Aug-20 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 96 FOR: Airspan Networks Inc. LTE Base Station Radio Model: AirSpeed AS1030, 3.550-3.700 GHz (B48) FCC ID: PIDAS1030 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.37551_Rev2 Date of Issue: 23-Aug-20 Page 2 of 166 Table of contents 1 Applicant information .............................................................................................................................................. 3 2 Equipment under test attributes............................................................................................................................... 3 3 Manufacturer information ........................................................................................................................................ 3 4 Test details ............................................................................................................................................................ 3 5 Tests summary ....................................................................................................................................................... 4 6 EUT description ...................................................................................................................................................... 5 6.1 General information ................................................................................................................................................ 5 6.2 Ports and lines ....................................................................................................................................................... 5 6.3 Support and test equipment .................................................................................................................................... 5 6.4 Changes made in the EUT ...................................................................................................................................... 5 6.5 Test configuration ................................................................................................................................................... 6 6.6 Transmitter characteristics ...................................................................................................................................... 7 7 Transmitter tests according to 47CFR part 96 .......................................................................................................... 9 7.1 Maximum EIRP and maximum power spectral density ............................................................................................. 9 7.2 Peak-to-average power ratio (PAPR) test ...................................................................................…
