PIDASPOT5410B42H/B43L/B48

1 / 24 CBRS ODU User manual v0.2 4G Data Transmit Unit 2 / 24 Table of contents 1 Introduction ......................................................................................................................... 4 1.1 Purpose ....................................................................................................... 4 1.2 Scope .......................................................................................................... 4 1.3 References ................................................................................................... 4 2 Product overview ................................................................................................................. 5 2.1 Panel layout ................................................................................................. 5 2.2 LED definition .............................................................................................. 5 2.3 Hardware specifications ............................................................................... 6 2.4 Software specifications ................................................................................ 6 3 Quick installation ................................................................................................................. 7 3.1 Hardware connection ................................................................................... 7 3.2 Access ODU ................................................................................................ 13 4 User management .............................................................................................................. 15 4.1 User authorization ..................................................................................... 15 4.2 Default user account .................................................................................. 15 5 Equipment status ............................................................................................................... 16 6 Functional Configurations .................................................................................................. 17 6.1 LAN Network ............................................................................................. 17 6.1.1 Connection mode ................................................................................ 17 6.1.2 DHCP .................................................................................................. 17 6.2 LTE ........................................................................................................... 18 6.2.1 APN .................................................................................................... 18 6.2.2 PLMN search ....................................................................................... 18 6.2.3 EARFCN white list ............................................................................... 18 6.3 Firewall ..................................................................................................... 18 6.4 CBRS ......................................................................................................... 18 6.5 TR069 ....................................................................................................... 18 6.6 Application Service .................................................................................... 18 6.7 Preference ................................................................................................. 19 6.7.1 Time Setting ........................................................................................ 19 6.7.2 Password Setting................................................................................. 19 3 / 24 6.8 Security ..................................................................................................... 20 6.8.1 Firmware Update ................................................................................ 20 6.8.2 System Reboot .................................................................................... 20 7 Diagnosis ........................................................................................................................... 22 Revision History ...................................................................................................................... 23 4 / 24 1 Introduction 1.1 Purpose This document provides guidance on how to use and manage Airspan’s ODU. 1.2 Scope 1.3 References [1] WINNF-TS-0016 Version V1.2.4, “Spectrum Access System (SAS) - Citizens Broadband Radio Service Device (CBSD) Interface Technical Specification”. [2] TR069 V1.4, “CPE WAN Management Protocol”. 5 / 24 2 Product overview 2.1 Panel layout Figure 1: Front view and rear view of ODU 2.2 LED definition Figure 2: LED panel Table 1: LED definition LED LED status Device status 6 / 24 Power Blue Power on Off Power off SIM Blue SIM card initialized Off No SIM card SYS Blue System on Off System off Ethernet Blue Ethernet connected Blinking Ethernet data transmit Off Ethernet disconnected Wireless signal strength (LED 1/2/3/4) 1/2/3/4 off No service or No connection 1 on Low signal strength 1/2 on Mid signal strength 1/2/3 on Mid-high signal strength 1/2/3/4 on High signal strength 2.3 Hardware specifications 2.4 Software specifications 7 / 24 3 Quick installation 3.1 Hardware installation Installing SIM card 1. Remove the seal cover from the device by loosening the thread. 2. Insert the SIM card into the slot (attention to the card direction). 3. Replace the seal cover to the device by fastening the thread. Figure 3: Installing SIM card Installing Ethernet Cable 1. Remove the cable gland cover from the device by loosening the thread. 2.Take out the waterproof rubber (with black holder) from the device, and then remove the rubber pin. Seal cover SIM card Direction mark 8 / 24 Figure 4: Remove cable gland cover 3.Insert the Ethernet cable with plug through the cable gland cover. 4. Separate the waterproof rubber alo…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Airspan Networks Inc Address 777 Yamato Rd Suite 310, Boca Raton, Florida 33431, United States Grantee Code PID FCC ID PIDASPOT5410 Authorized Contact Name Grant Pottash Contact Email [email protected] Contact Phone +1-561-443-1009 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 09/04/2020 Print Name: Grant Pottash Title: Technical Services Director *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Airspan Networks Inc Date: August 12, 2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID:PIDASPOT5410 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Airspan Networks Inc. This authorization is valid until further written notice from the applicant. Print Name: Grant Pottash Title: Technical Services Director Signature: On behalf of Company: Airspan Networks Inc Telephone: +1-561-443-1009 E-mail: [email protected]

Airspan Networks Inc TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: PIDASPOT5410 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Parts List / BOM Tune Up Procedure The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Grant Pottash Title: Technical Services Director Signature: On behalf of Company: Airspan Networks Inc Telephone:+1-561-443-1009 E-mail: [email protected]

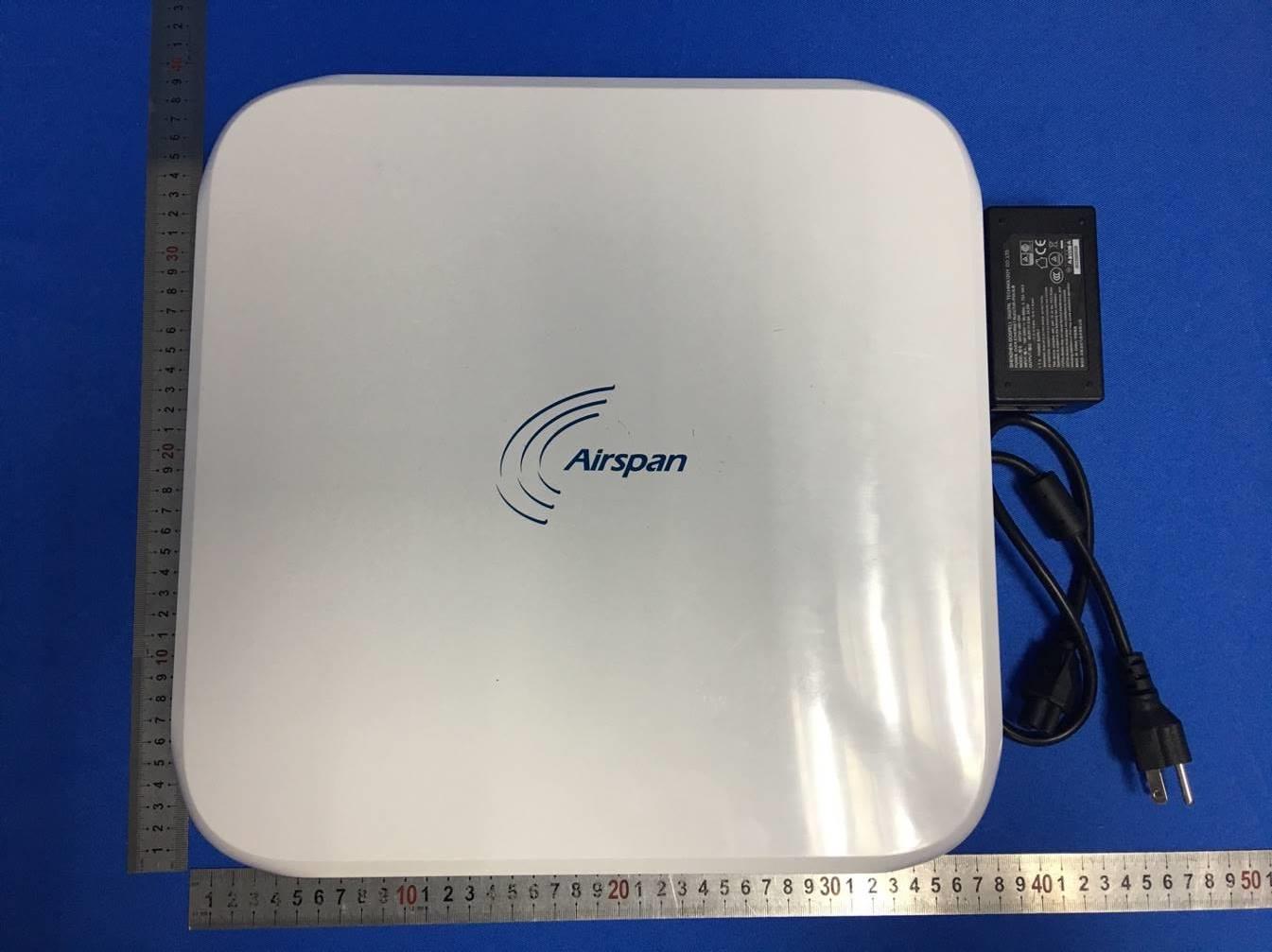

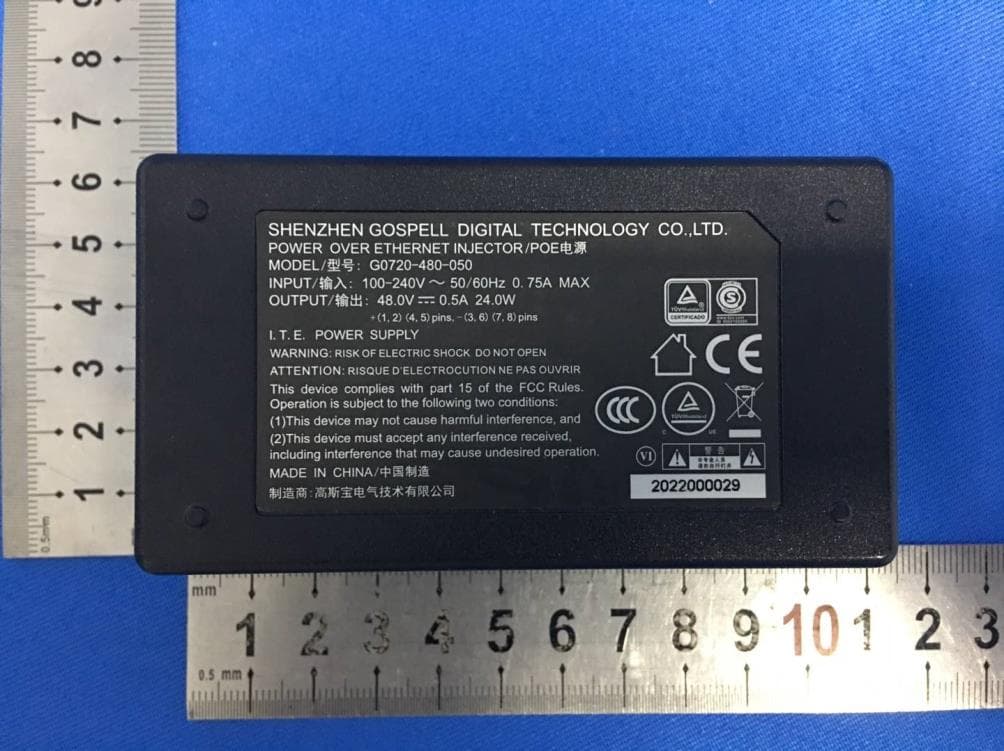

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 6 External Photos for SZEM2009009876CR FCC ID: PIDASPOT5410 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 6 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 6

T99W233.00/01/ 1 of 5 2/42 503.00672.005 503.01644.005 503.00089.015 Carton label Pallet label 1 2 3 4 2 5/42 Device label 1 Shipping label 2 1 504.01809.005 3 4 2020/06/03 2020/07/15 2020/07/16 2020/07/25 2020/07/27 Add FCC and UL logo Delete FCC and UL logo,change FCC ID position Add UL logo Add FCC statement Delete UL logo Update FCC ID number 1 2 3 4 2020/07/29 2020/08/04 Update FCC ID number 2020/08/06 5 6 7 T99W233.00/01/ 2 of 5 Joy Xu Joy Xu Joy Xu Joy Xu Joy Xu Joy Xu Joy Xu Joy Xu Device Label Bailey T99W233.00 Joy Xu 504.01809.005 1.Model:My-Pro-FC-B42H-43L-48-C12-CB ----Customer product Model 3.Device IP:192.168.1.1 2.P/N:999-48-743-US---Customer product number Font: Arial Regular 6pt Font: Arial Regular 6pt Font: Arial Regular 6pt Font: Arial Bold/Regular 6pt Font: Arial Bold/Regular 6pt Font: Arial Bold/Regular 6pt 4.SN:ASXXXXXXXXXXXYWW Total 16 digits AS— product name(fix) XXXXXXXXXXX—serial number, 00000000001 to 99999999999 Y— the last digits of year, such as 2020— 0 WW— week Barcode content: ASXXXXXXXXXXXYWW Device label (504.01809.005) on line print Barcode content: 123456789012345 Barcode content: 123456789012 5.IMEI:123456789012345 Total 15 digits follow Foxconn rule. the last digit of Check digit 6.MAC:123456789012 Total 12 digits follow Foxconn rule. 8.MADE IN XXXXX XXXXX: Producer country FCC ID:PIDASPOT5410 7.FCC ID:PIDASPOT5410 (fixed) B42H/B43L/B48 Model:My-Pro-FC-B42H-43L-48-C12-CB P/N:999-48-743-US Device IP:192.168.1.1 S/N:ASXXXXXXXXXXXYWW IMEI:123456789012345 MAC:123456789012 Power Rating:48V 0.5AMADE IN XXXXX Font: Arial Regular 6pt Code 128, code B Height: 3mm Font: Arial Bold/Regular 6pt Font: Arial Bold 8pt (fixed) (fixed) (fixed) Font: Arial Regular 6pt Label content This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Font: Arial Regular 3.5pt 503.01644.005 Carton label ArtPaper 02020/06/03First Release Joy Xu BaileyTan T99W233.00 Joy Xu T99W233.00/01/ 3 of 5 Font: Arial Bold 10pt Code 128B, height: 5mm Code 128B, height: 4mm B42H/B43L/B48 S/N:ASXXXXXXXXXXXYWW 5.S/N:ASXXXXXXXXXXXYWW ==>(same as Device label) IMEI:123456789012345 MAC:123456789012 MADE IN XXXXX Model:My-Pro-FC-B42H-43L-48-C12-CB Carton ID: 2.Carton ID: CIPPYWWXXXX, refer to Foxconn rule CIPPYWWXXXX CIPPYWWXXXX Q’TY:1pcs P/N:999-48-743-US Font: Arial Bold/Regular 10pt Font: Arial Regular 10pt Font: Arial Regular 10pt 1.Model:My-Pro-FC-B42H-43L-48-C12-CB ---- My-Pro-FC-B42H-43L-48-C12-CB Customer product Model (fixed) 3.P/N:999-48-743-US--- 999-48-743-US Customer product number (fixed) Barcode content: ASXXXXXXXXXXXYWW Barcode content: Barcode content: Barcode content:1 Barcode content: Carton label (503.01644.005) on line print Barcode content: 123456789012345 Barcode content: 123456789012 6.IMEI:123456789012345 ==>(same as Device label) 7.MAC:123456789012 ==>(same as Device label) C:Carton I:location name PP:Product line Y:the last digit of year, such as 2020— 0 WW:Week Number from 01 to 52 XXXX: serial carton number, 36 digit in the notation system (0~9,A~Z) reset from 0001 every one week 4.Q’TY:1pcs--- the quantity of product in carton (fixed) 8.MADE IN XXXXX XXXXX: Producer country 2020/06/03 T99W233.00/01/4 of 5 Joy Xu Joy Xu Joy Xu Bailey T99W233.00 503.00672.005 Shipping label 7.MADE IN XXXXX 2.Pallet ID:PIPPYWWXXXX,refer to Foxconn rule PIPPYWWXXXX 5.Q’TY: XXpcs XX 4.D\C: D\C:-----fixed YYWW YYWW 1.Model:My-Pro-FC-B42H-43L-48-C12-CB ---Customer product model (fixed) 3.P/N:999-48-743-US--- 999-48-743-US Customer product number (fixed) Barcode content: Barcode content: Barcode content: Barcode content: Barcode content: My-Pro-FC-B42H-43L-48-C12-CB Shipping label P:Pallet I:location name (refer to Foxconn lacation name) PP:Product line name YY:the last two digit of year, such as 2020— 20 Y:the last digit of year, such as 2020— 0 WW:Week Number from 01 to 52 WW:Week, Number from 01 to 52 6. Carton ID barcode: including all Carton ID XXXX: serial carton number, 36 digit in the notation system (0~9,A~Z) reset from 0001 every one week XX: the quantity of product in pallet XXXXX: Producer country MADE IN XXXXX Carton ID: B42H/B43L/B48 Model:My-Pro-FC-B42H-43L-48-C12-CB Pallet ID:PIPPYWWXXXX Q’TY:XXpcs P/N:999-48-743-US D\C:YYWW 101.6MM 165.1mm Font: Arial Regular 9pt Code 128B, height: 5mm Code 128B, height: 3mm Font: Arial Bold/Regular 9pt Font: Arial Regular 5pt Font: Arial Bold 9pt Font: Arial Bold 9pt 2020/08/04 Update label layout 1 2020/06/03 T99W233.00/01/ 5 of 5 Joy Xu PalletLabel Pallet label P/ N: 503.00089.015 label si ze: 85 * 36mm 2. P/ N T99W233.00 (fixed) : Foxco nn product number 3. PI PPYWWSSSS -P:Pallet ; -I: Location name, refer to reference -PP:Package line; -Y: the lastdigit of year -WW: week -SSSS:Serial number , (base36, resetto 0001 ev er y oneweek s) 503.00089.015 Pallet Label 1. P/N: Customer product number 999-48-743-US (fixed) 4. REV: VVSS:Product manufacturing document revision VV:the engineering version(refer to Foxconn label Rev column in the cover of the MFG document) SS:the version ofA300/A400 product(refer to Doc Rev in the cover of MFG document) Bailey T99W233.00 85 36 P/N:999-48-743-US T99W233.00 PIPPYWWSSSS REV:VVSS Font: Arial Regular 14pt Font: Arial Regular 12pt Code128BHeigh t :5mm Code128BHeigh t :5mm Font: Arial Regular 14pt Font: Arial Regular 14pt Joy Xu V1 V2 V3 V4 V5 V6 2020/07/16 2020/07/25 Delete FCC and UL logo,change FCC ID position Add UL logo 2020/07/27 Add FCC statement Delete UL logo 2020/07/29 Update FCC ID number 2020/08/04 Update FCC ID number 2020/08/06

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 6 Internal Photos for SZEM2009009876CR FCC ID: PIDASPOT5410 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 6 1 EUT Constructional Details Antenna Panel SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 6 Antenna Port 1 Antenna Port 3 Antenna Port 4 Antenna Port 2 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 6

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900987603 Page: 1 of 7 Keny Xu EMC Laboratory Manager 1 Cover RF Exposure Evaluation Report Application No.: SZEM2009009876CR Applicant: Airspan Networks Inc Address of Applicant: 777 Yamato Rd Suite 310, Boca Raton, Florida 33431, United States Manufacturer: Airspan Networks Inc Address of Manufacturer: 777 Yamato Rd Suite 310, Boca Raton, Florida 33431, United States Equipment Under Test (EUT): EUT Name: B42H/B43L/B48 Model No.: My-Pro-FC-B42H-43L-48-C12-CB Trademark: Airspan FCC ID: PIDASPOT5410 Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 Date of Receipt: 2020-08-10 Date of Test: 2020-08-10 to 2020-09-29 Date of Issue: 2020-12-16 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900987603 Page: 2 of 7 2 Version Revision Record Version Chapter Date Modifier Remark 01 2020-12-16 Original Authorized for issue by: Calvin Weng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900987603 Page: 3 of 7 3 Contents Page 1 COVER ................................................................................................................................................... 1 2 VERSION ................................................................................................................................................ 2 3 CONTENTS ............................................................................................................................................ 3 4 GENERAL INFORMATION ..................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF EUT ............................................................................................................. 4 4.2 TEST LOCATION .................................................................................................................................... 5 4.3 TEST FACILITY....................................................................................................................................... 5 4.4 DEVIATION FROM STANDARDS ................................................................................................................. 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS......................................................................................... 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 5 5 RF EXPOSURE EVALUATION ............................................................................................................... 6 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................................. 6 5.1.1 Limits .......................................................................................................................................... 6 5.1.2 Test Procedure ........................................................................................................................... 6 5.1.3 EUT RF Exposure Evaluation...................................................................................................... 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900987603 Page: 4 of 7 4 General Information 4.1 General Description of EUT Power supply: Adapter Model NO.: G0720-480-050 Input: 100-240V~50/60Hz, 0.75A Output: 48.0V, 0.5A Test voltage: AC 120V, 60Hz Cable: AC cable: 0.6m unshielded Sample Type: Mobile production LTE Operation Frequency Band: 48 Frequency range: 3550-3700 MHz Modulation Type: UL: QPSK, 16QAM, 64QAM DL: QPSK, 16QAM, 64QAM, 256QAM LTE Release Version: R11 LTE Power Class: Level 3 CA Capability MIMO: DL 4CC 2X2 MIMO DL 3CC 2X2 MIMO DL 2CC 2X2 MIMO DL 2CC 4X4 MIMO DL 1CC 2X2 MIMO DL 1CC 4X4 MIMO UL 1CC 2X2 MIMO UL 2CC SISO Support Intra-band contiguous/non-contiguous CA and support UL MIMO Antenna Type: Panel Antenna Ant 4: RX Ant 3: TX & RX Ant 2: TX & RX Ant 1: RX Antenna Gain: 18dBi SIM Card: This device has only one SIM Card sockets. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200900987603 Page: 5 of 7 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C. 4.4 Deviation from Standards None. 4.5 Abnormalities from Standard…

Text truncated - open the document above for the full version.

1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result SISO Ant 3: EIRP Test data_Test Band: 48 _ 5MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 25 0 22.65 22.49 22.43 / 18.00 40.65 40.49 40.43 47.0 PASS 16QAM 25 0 21.77 21.75 21.52 / 18.00 39.77 39.75 39.52 47.0 PASS 64QAM 25 0 20.75 20.32 20.66 / 18.00 38.75 38.32 38.66 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 10MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 50 0 22.39 22.52 22.62 / 18.00 40.39 40.52 40.62 47.0 PASS 16QAM 50 0 21.57 21.31 21.33 / 18.00 39.57 39.31 39.33 47.0 PASS 64QAM 50 0 20.44 20.48 20.63 / 18.00 38.44 38.48 38.63 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 15MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 75 0 22.27 22.43 22.38 / 18.00 40.27 40.43 40.38 47.0 PASS 16QAM 75 0 21.76 21.77 21.66 / 18.00 39.76 39.77 39.66 47.0 PASS 64QAM 75 0 20.54 20.37 20.75 / 18.00 38.54 38.37 38.75 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 20MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 100 0 22.65 22.7 22.28 / 18.00 40.65 40.7 40.28 47.0 PASS 16QAM 100 0 21.62 21.43 21.62 / 18.00 39.62 39.43 39.62 47.0 PASS 64QAM 100 0 20.45 20.58 20.43 / 18.00 38.45 38.58 38.43 47.0 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Intra-band contiguous CA for LTE Band 48 Bandwidth (MHz) Modulati on Power (dBm) Antenna Gain (dBi) EIRP (dBm) Limit (dBm) Verdict PCC SCC LCH MCH HCH LCH MCH HCH 5 20 QPSK 21.23 21.36 21.2 18.00 39.23 39.36 39.2 47.0 Pass 5 20 16QAM 21.43 21.47 21.21 18.00 39.43 39.47 39.21 47.0 Pass 5 20 64QAM 21.17 21.4 21.52 18.00 39.17 39.4 39.52 47.0 Pass 10 20 QPSK 21.23 21.24 21.73 18.00 39.23 39.24 39.73 47.0 Pass 10 20 16QAM 21.32 21.21 21.3 18.00 39.32 39.21 39.3 47.0 Pass 10 20 64QAM 21.75 21.36 21.18 18.00 39.75 39.36 39.18 47.0 Pass 15 20 QPSK 21.44 21.46 21.19 18.00 39.44 39.46 39.19 47.0 Pass 15 20 16QAM 21.63 21.12 21.43 18.00 39.63 39.12 39.43 47.0 Pass 15 20 64QAM 21.36 21.17 21.19 18.00 39.36 39.17 39.19 47.0 Pass 20 20 QPSK 21.25 21.7 21.46 18.00 39.25 39.7 39.46 47.0 Pass 20 20 16QAM 21.19 21.65 21.47 18.00 39.19 39.65 39.47 47.0 Pass 20 20 64QAM 21.7 21.68 21.51 18.00 39.7 39.68 39.51 47.0 Pass 20 5 QPSK 21.48 21.59 21.7 18.00 39.48 39.59 39.7 47.0 Pass 20 5 16QAM 21.55 21.23 21.75 18.00 39.55 39.23 39.75 47.0 Pass 20 5 64QAM 21.21 21.18 21.66 18.00 39.21 39.18 39.66 47.0 Pass 20 10 QPSK 21.6 21.76 21.67 18.00 39.6 39.76 39.67 47.0 Pass 20 10 16QAM 21.4 21.67 21.21 18.00 39.4 39.67 39.21 47.0 Pass 20 10 64QAM 21.14 21.73 21.6 18.00 39.14 39.73 39.6 47.0 Pass 20 15 QPSK 21.72 21.51 21.26 18.00 39.72 39.51 39.26 47.0 Pass 20 15 16QAM 21.35 21.53 21.16 18.00 39.35 39.53 39.16 47.0 Pass 20 15 64QAM 21.28 21.63 21.59 18.00 39.28 39.63 39.59 47.0 Pass Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Intra-band non-contiguous CA for LTE Band 48 Bandwidth (MHz) Modulati on Power (dBm) Antenna Gain (dBi) EIRP (dBm) Limit (dBm) Verdict PCC SCC LCH MCH HCH LCH MCH HCH 5 20 QPSK 21.35 21.46 21.37 18 39.35 39.46 39.37 47.0 Pass 5 20 16QAM 21.15 21.28 21.2 18 39.15 39.28 39.2 47.0 Pass 5 20 64QAM 21.46 21.44 21.28 18 39.46 39.44 39.28 47.0 Pass 10 20 QPSK 21.39 21.17 21.88 18 39.39 39.17 39.88 47.0 Pass 10 20 16QAM 21.13 21.29 21.25 18 39.13 39.29 39.25 47.0 Pass 10 20 64QAM 21.48 21.42 21.46 18 39.48 39.42 39.46 47.0 Pass 15 20 QPSK 21.58 21.59 21.18 18 39.58 39.59 39.18 47.0 Pass 15 20 16QAM 21.55 21.25 21.16 18 39.55 39.25 39.16 47.0 Pass 15 20 64QAM 21.59 21.42 21.47 18 39.59 39.42 39.47 47.0 Pass 20 20 QPSK 21.18 21.71 21.48 18 39.18 39.71 39.48 47.0 Pass 20 20 16QAM 21.34 21.74 21.53 18 39.34 39.74 39.53 47.0 Pass 20 20 64QAM 21.48 21.39 21.4 18 39.48 39.39 39.4 47.0 Pass 20 5 QPSK 21.33 21.32 21.83 18 39.33 39.32 39.83 47.0 Pass 20 5 16QAM 21.53 21.28 21.56 18 39.53 39.28 39.56 47.0 Pass 20 5 64QAM 21.4 21.2 21.53 18 39.4 39.2 39.53 47.0 Pass 20 10 QPSK 21.55 21.86 21.64 18 39.55 39.86 39.64 47.0 Pass 20 10 16QAM 21.56 21.92 20.98 18 39.56 39.92 38.98 47.0 Pass 20 10 64QAM 21.26 21.81 21.62 18 39.…
