PIZGH945782.4G Analoge Cordless Telephone

1 Contents Safety Instructions-------------------------------------------------------------------------------------------- 3 Getting Started------------------------------------------------------------------------------------------------ 5 Desk Mounting------------------------------------------------------------------------------------------------- 8 Wall Mounting------------------------------------------------------------------------------------------------- 9 Cordless Telephone Operation------------------------------------------------------------------------- 11 Preparing for Use---------------------------------------------------------------------------------------- 11 “NO LINE“ Indicator ------------------------------------------------------------------------------------ 11 Receiving Calls------------------------------------------------------------------------------------------ 11 Placing Calls--------------------------------------------------------------------------------------------- 1 2 Using the Headset Feature --------------------------------------------------------------------------- 1 3 Redial Feature------------------------------------------------------------------------------------------- 1 3 Caller ID System Operation------------------------------------------------------------------------------ 1 4 Caller ID System ----------------------------------------------------------------------------------------- 1 4 Viewing Caller Information During Incoming Calls-------------------------------------- 1 4 “MSG WAITING“ (Message Waiting) --------------------------------------------------------- 1 4 Call Waiting------------------------------------------------------------------------------------------ 1 5 Voice Mail Function------------------------------------------------------------------------------- 1 5 “C-F“ (Forwarded Call)---------------------------------------------------------------------------- 1 5 “L-D-C“ (Long Distance Call) ------------------------------------------------------------------- 1 5 Caller List-------------------------------------------------------------------------------------------------- 1 5 Viewing the Caller List----------------------------------------------------------------------------16 Placing a Call From the Caller List----------------------------------------------------------- 1 6 Editing the Caller List before Dialing-------------------------------------------------------- 1 6 Saving the Name and Number in the Caller List into the DIRECTORY---------- 1 7 Deleting All Records in the Caller List------------------------------------------------------- 1 7 Selective Deleting in the Caller List--------------------------------------------------------- 1 7 Name and Telephone Number DIRECTORY-------------------------------------------------- 1 7 Viewing the DIRECTORY------------------------------------------------------------------------ 1 7 Speed Viewing the DIRECTORY-------------------------------------------------------------- 1 8 2 Contents Saving in the DIRECTORY ---------------------------------------------------------------------- 1 8 PREFERRED CALLS------------------------------------------------------------------------------ 1 8 BLOCKED CALLS---------------------------------------------------------------------------------- 1 8 Editing a Name and Number in the DIRECTORY--------------------------------------- 1 9 Editing the Number in the DIRECTORY before Dialing------------------------------- 2 0 Placing Calls from the DIRECTORY--------------------------------------------------------- 2 1 Deleting All Records in the DIRECTORY--------------------------------------------------- 2 1 Selective Deleting in the DIRECTORY----------------------------------------------------- 2 1 Function Operation------------------------------------------------------------------------------------- 2 2 A. Language---------------------------------------------------------------------------------------- 2 3 B. Silent On/Off------------------------------------------------------------------------------------ 2 3 C. Time Set----------------------------------------------------------------------------------------- 2 3 D. Ringer Volume--------------------------------------------------------------------------------- 2 4 E. LCD Contrast ------------------------------------------------------------------------------------ 2 4 F. PBX Number------------------------------------------------------------------------------------ 2 4 G. Flash Time-------------------------------------------------------------------------------------- 2 5 H. Pause Time------------------------------------------------------------------------------------- 2 5 I. Voice Mail--------------------------------------------------------------------------------------- 2 6 J. MSG Waiting (Message Waiting)--------------------------------------------------------- 2 6 Telephone Keypad Characters--------------------------------------------------------------------- 2 7 Security--------------------------------------------------------------------------------------------------------- 2 8 Recharging the Battery Pack---------------------------------------------------------------------------- 2 9 Changing the Battery Pack------------------------------------------------------------------------------ 3 0 Problem Solving-------------------------------------------------------------------------------------------- 3 1 Technical Information------------------------------------------------------------------------------------- 3 2 FCC Requirements------------------------------------------------------------------------------------------ 3 3 Warranty-------------------------------------------------------------------------------------------------------- 3 5 Wall Mount Template------------------------------------------------------------------------------------- 3 9 3 Safety Instructions IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shoc…

Text truncated - open the document above for the full version.

9457bblk.sch-1 - Fri Feb 08 11:36:16 2002

9457hblk.sch-1 - Fri Feb 08 11:39:43 2002

FCC ID : PIZGH94578 FRONT SIDE OF EUT Number 1 FCC ID : PIZGH94578 FRONT SIDE OF Handset Number 2 FCC ID : PIZGH94578 REAR SIDE OF Handset Number 3 FCC ID : PIZGH94578 FRONT SIDE OF Base Station Number 4 FCC ID : PIZGH94578 REAR SIDE OF Base Station Number 5

The statement regarding privacy

FCC ID : PIZGH94578 FCC ID LOCATION REAR SIDE OF Handset REAR SIDE OF Base Station

FCC ID : PIZGH94578 Mechanical Construction Of Handset Number 1 FCC ID : PIZGH94578 Mechanical Construction Of Handset Number 2 FCC ID : PIZGH94578 Mechanical Construction Of Handset Number 3 FCC ID : PIZGH94578 Rear side of Main Board Of Handset Number 4 FCC ID : PIZGH94578 Front side of Main Board Of Handset Number 5 FCC ID : PIZGH94578 Mechanical Construction Of Base Station Number 6 FCC ID : PIZGH94578 Mechanical Construction Of Base Station Number 7 FCC ID : PIZGH94578 Front side of Main Board Of Base Station Number 8

FCC ID : PIZGH94578 Rear side of Main Board Of Base Station Number 9 FCC ID : PIZGH94578 Front side of Adapter Number 10 FCC ID : PIZGH94578 Rear side of Adapter Number 11 FCC ID : PIZGH94578 Rear side of Adapter Number 12 FCC ID : PIZGH94578 Telephone Line Number 13 FCC ID : PIZGH94578 Front side of Module Board Of Handset and Base Station Number 14 FCC ID : PIZGH94578 Front side of Module Board Of Handset and Base Station Number 15 FCC ID : PIZGH94578 Rear side of Module Board Of Handset and Base Station Number 16

CIDMATE International Technology Inc. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. Tel: 886-2- 2521-8658 Fax: 886-2-2561-6624 Email: [email protected] FCC ID : PIZGH94578 TECHNICAL DESCRIPTION Content HANDSET 1 RF/Audio Section 1.1 Receiver 1.2 Transmitter 1.3 Band-Pass Filter(BPF) 1.4 Alerter 1.5 Headset microphone 2 MCU 2.1 Battery Detect 2.2 Carrier Detection BASE 3 RF/Audio Sections 4 Telephone Network 4.1 Telephone Interface 4.2 Ring Detect 4.3 Sidetone Cancellation Network 5 MCU 5.1 Charging Network 5.2 Carrier Detection CIDMATE International Technology Inc. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. Tel: 886-2- 2521-8658 Fax: 886-2-2561-6624 Email: [email protected] HANDSET 1. RF/Audio Section The radio link Handset and Base is full duplex at 2400/2483.5 MHz with the 40 channels. FM modulation is used for the link. The 1 st IF frequency is 10.7MHz and the 2 nd IF frequency is 450KHz. The operating frequency for the cordless phone is selected from one of the following channels and controlled by the synthesizer U2 that is programmed by the MCU. This section is common to both handset and base as the same ICs are used LMX1602(U2), KA3361(U1) is made up of dual serial input PLL frequency synthesizer with 1000MHz prescaler. KA3361 is a narrow-band IF detector IC. 1.1 Receiver The receiver section is made of double conversion with 10.7MHz as the first and second IF. Rx signal from the duplexer circuit is amplified by a Low Noise RF transistor and passed to a Mixer (Q2), and it is converted to 10.7MHz IF and it is then double converted to 450KHz IF in the internet mixer of U1. Voice/data signal is demodulated and output from pin9 of U1. The demodulated signal is then divided into two paths, a path is fed into the data amplifier Q1, Q10. The other path will go through a de-emphasized amplifier and an expander in IC1. Recovered signal can be muted by the pin 13 of IC1,the volume level of the signal can be controlled by the push switch SW1. 1.2 Transmitter Audio signal (from Microphone for headset/Tip & Ring for base) is first fed into the amplifier and compressor inside IC1(IC2 for Base). The signal will pass through a limiter. The AGC and the limiter have the property to limit the maximum signal that feed into the transmitter so that the RF deviation is limited. The transmitter section mainly divided into two parts. They are the voice/data modulator and the Tx power amplifier. The voltage-controlled oscillator VCO operated at the Tx frequency controlled by the synthesizer is modulated by the audio and data signals. Modulated signal is amplified by the RF amplified and sending the signal to the duplexer for radiation by the antenna. 1.3 Band-Pass Filter(BPF) The function of the Two Band-Pass Filter(BPF) is to individual fed the transmitting and receiving signals to a common antenna while providing isolation and rejection of interference and other spurious signals. CIDMATE International Technology Inc. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. Tel: 886-2- 2521-8658 Fax: 886-2-2561-6624 Email: [email protected] 1.4 Alerter The alerting signals include the following: Ringing, Paging, Key beep and Low battery warning tone. These tones are generated by the MCU to the alerter through the driving circuit formed Q5,Q6 and the associated components. 1.5 Headset microphone The condenser microphone is in the headset and it biased by the resistor R6. The signal is applied to the amplifier inside IC1 2. MCU 2.1 Battery Detect The voltage detector is composed of U3 that is used to detect battery low condition. The detecting accuracy of the voltage detector is +/- 0.2V. The detect pin BAT-LOW is connected to the pin 70 of MCU. 2.2 Carrier Detection This 40 channels cordless has the features of auto-scanning. This is done by the detection of the RSSI at pin 72 of MCU of handset. During PHONE on or CHANNEL changing, the MCU will select the clearest channel for the RF communication. CIDMATE International Technology Inc. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. Tel: 886-2- 2521-8658 Fax: 886-2-2561-6624 Email: [email protected] BASE 3. RF/Audio sections The operation of the RF/Audio section is similar to that of the handset. 4. Telephone Network 4.1 Telephone interface Fuse FUSEx is for over-voltage protection. Relay RL1 controls the on/off hook state and pulse dialing. The Tip& Ring are isolated from the base circuit by the transformer T1, relay RL1. 4.2 Ring Detect When ring signal is present on the Tip Ring, and envelope waveform of the ring pattern will transfer to pin 20 of MCU by the LM324 pin 14. The MCU will read this waveform and determine whether it will send ringer command. 4.3 Sidtone Cancellation Network The sidetone cancellation is a hybrid circuit of the Tx and Rx paths of the telephone circuit formed by the Q12. 5. MCU 5.1 Charging Network Base charging circuit provides a DC current for handset battery. Resistor R129 controls the current flow. 5.2 Carrier Detection This is similar to the handset counterpart.

9457b1a0.sch-1 - Fri Feb 08 10:18:04 2002

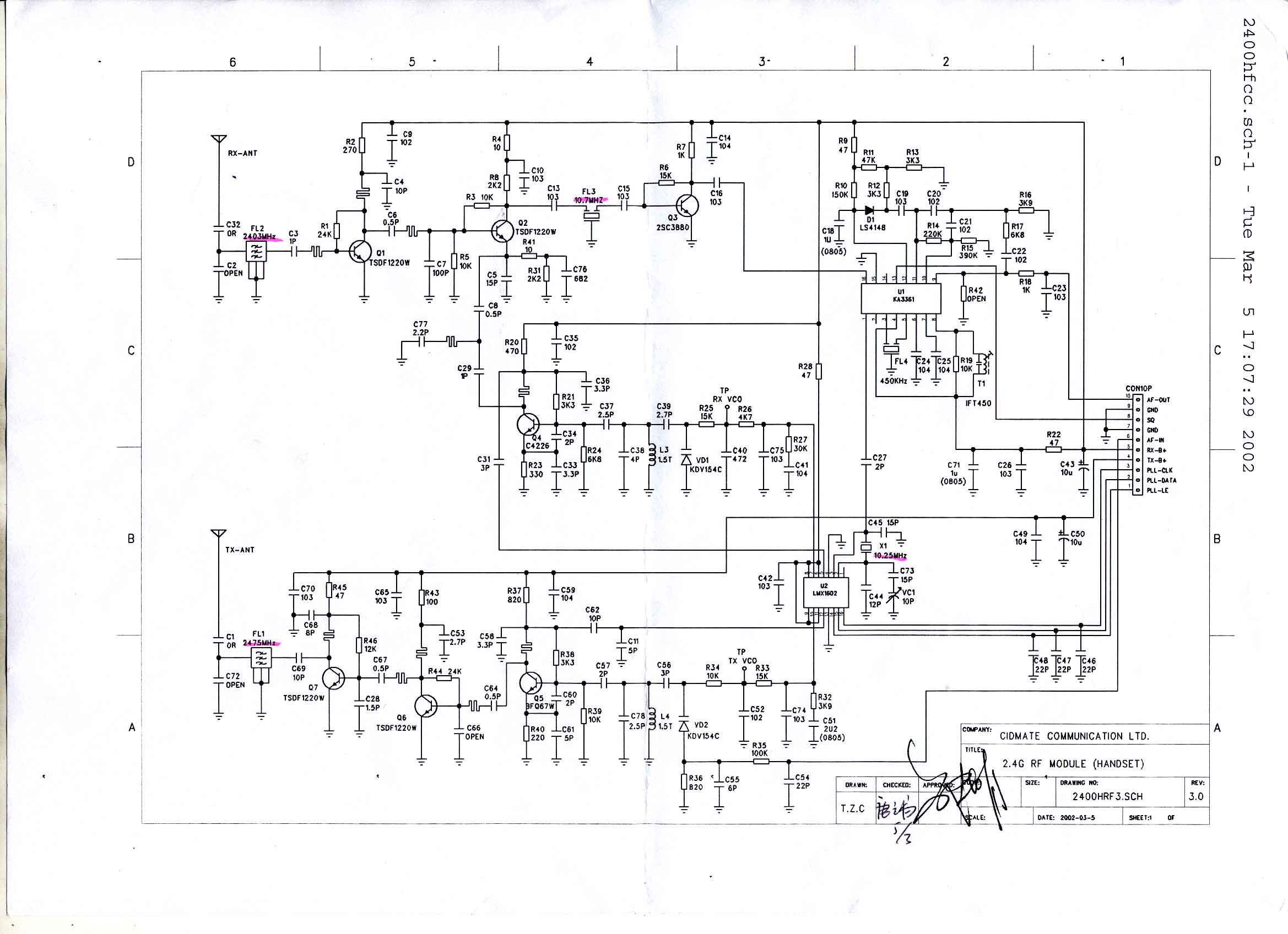

9457h1a1.sch-1 - Fri Feb 08 11:37:56 2002

FCC TEST REPORT Report No. : F220711 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : 2.4G Analog Cordless Model No. : GH9457**, GH9458** FCC ID : PIZGH94578 Filing Type : Certification Applicant : CIDMATE INTERNATIONAL TECHNOLOGY INC. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. ??The test result refers exclusively to the test presented test model / sample. ??Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ??Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Mar. 26, 2002 Table of Contents History of this test report.........................................................................................................ii CERTIFICATE OF COMPLIANCE..............................................................................................................1 1. General Description of Equipment under Test.....................................................................................2 1.1. Applicant.......................................................................................................................................................................................2 1.2. Manufacturer.................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test...................................................................................................................................2 1.4. Feature of Equipment under Test..................................................................................................................................................2 1.5. Channel Table of Equipment under Test.......................................................................................................................................3 1.6. Statement of the EUT to comply with requirement of 15.214 (d)...................................................................................................4 2. Test Configuration of Equipment under Test.......................................................................................5 2.1. Test Manner..................................................................................................................................................................................5 2.2. Description of Test System...........................................................................................................................................................5 2.3. Band edges measurement............................................................................................................................................................6 3. General Information of Test.................................................................................................................8 3.1. Test Facility...................................................................................................................................................................................8 3.2. Standard for Methods of Measurement.........................................................................................................................................8 3.3. Test in Compliance with................................................................................................................................................................8 3.4. Frequency Range Investigated......................................................................................................................................................8 3.5. Test Distance................................................................................................................................................................................8 4. Test of Conducted Powerline...............................................................................................................9 4.1. Major Measuring Instruments........................................................................................................................................................9 4.2. Test Procedures..........................................................................................................................................................................10 4.3. Typical Test Setup Layout of Conducted Powerline....................................................................................................................11 4.4. Test Result of AC Powerline Conducted Emission......................................................................................................................12 5. Test of Radiated Emission..................................................................................................................14 5.1. Major Measuring Instruments......................................................................................................................................................14 5.2. Test Procedures..........................................................................................................................................................................15 5.3. Typical Test Setup Layout of Radiated Emission........................................................................................................................16 5.4. Test Result of Radiated Emission....................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578 TEL : 886-2-2696-2468 Page No. : 17 of 36 FAX : 886-2-2696-2255 Issued Date : Mar. 26, 2002 5.4. Test Result of Radiated Emission 5.4.1. Test mode : BASE, CHANNEL 1 ??Test Distance : 3 M ??Temperature : 26?C ??Relative Humidity : 57 % ??Test Date : Mar. 21, 2002 ??Emission level (dBuV/m) = 20 log Emission level (uV/m) ??Corrected Reading : Antenna Factor + Cable Loss + Reading = Emission The Radiated Emission test was passed at minimum margin 2484.70 MHz / 48.96 dBuV/m (HORIZONTAL) Antenna Height 1 Meter, Turntable Degree 35 o . ??Spurious Emissions: Frequency Antenna Cable Reading Limits Emission Level Margin Detect Polarity Factor Loss ( MHz ) ( dB/m ) ( dB ) ( dBuV ) ( dBuV/m ) ( uV/m ) ( dBuV/m ) ( uV/m ) ( dB ) Mode 773.50 H 20.00 4.25 0.42 46.00 199.53 24.67 17.12 -21.33 Peak 800.80 H 20.31 4.35 15.48 46.00 199.53 40.14 101.62 -5.86 Peak 828.20 H 20.36 4.53 13.49 46.00 199.53 38.38 82.99 -7.62 Peak 773.50 V 20.00 4.25 0.72 46.00 199.53 24.97 17.72 -21.03 Peak 800.80 V 20.31 4.35 11.98 46.00 199.53 36.64 67.92 -9.36 Peak 828.20 V 20.36 4.53 7.83 46.00 199.53 32.72 43.25 -13.28 Peak Frequency Antenna Cable Reading Limits Emission Level Margin Detect Polarity Factor Loss ( MHz ) ( dB/m ) ( dB ) ( dBuV ) ( dBuV/m ) ( uV/m ) ( dBuV/m ) ( uV/m ) ( dB ) Mode 1601.70 H 26.08 5.16 9.88 54.00 501.19 41.12 113.76 -12.88 A.V. 1601.70 H 26.08 5.16 17.74 74.00 5011.87 48.98 281.19 -25.02 Peak 2484.70 H 28.50 6.40 14.06 54.00 501.19 48.96 280.54 -5.04 A.V. 2484.70 H 28.50 6.40 20.26 74.00 5011.87 55.16 572.80 -18.84 Peak 2484.70 V 28.50 6.40 8.86 54.00 501.19 43.76 154.17 -10.24 A.V. 2487.70 V 28.50 6.40 17.25 74.00 5011.87 52.15 405.04 -21.85 Peak FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578 TEL : 886-2-2696-2468 Page No. : 18 of 36 FAX : 886-2-2696-2255 Issued Date : Mar. 26, 2002 ??Field strength of fundamental and harmonics Frequency Antenna Cable Reading Limits Emission Level Margin Detect Polarity Factor Loss ( MHz ) ( dB/m ) ( dB ) ( dBuV ) ( dBuV/m ) ( uV/m ) (dBuV/m) ( uV/m ) ( dB ) Mode 2402.60 H 28.48 6.30 52.37 94.00 50118.72 87.15 22777.18 -6.85 A.V. 2402.60 H 28.48 6.30 52.42 94.00 50118.72 87.20 22908.68 -6.80 Peak 2402.60 V 28.48 6.30 54.19 94.00 50118.72 88.97 28086.65 -5.03 A.V. 2402.60 V 28.48 6.30 54.19 94.00 50118.72 88.97 28086.65 -5.03 Peak 4805.20 H/V - Peak, A.V. 7207.80 H/V - Peak, A.V. 9610.40 H/V - Peak, A.V. 12013.00 H/V - Peak, A.V. 14415.60 H/V - Peak, A.V. 16818.20 H/V - Peak, A.V. 19220.80 H/V - Peak, A.V. 21623.40 H/V - Peak, A.V. 24026.00 H/V - Peak, A.V. Remark “ - ”: The emission emitted by the EUT is too low to be measured except the emission listed above, Test Engineer : Benny Lee FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578 TEL : 886-2-2696-2468 Page No. : 19 of 36 FAX : 886-2-2696-2255 Issued Date : Mar. 26, 2002 5.4.2. Test mode : BASE, CHANNEL 40 ??Test Distance : 3 M ??Temperature : 26?C ??Relative Humidity : 57 % ??Test Date : Mar. 21, 2002 ??Emission level (dBuV/m) = 20 log Emission level (uV/m) ??Corrected Reading : Antenna Factor + Cable Loss + Reading = Emission The Radiated Emission test was passed at minimum margin 2486.60 MHz / 48.15 dBuV/m (HORIZONTAL) Antenna Height 1 Meter, Turntable Degree 70 o . ??Spurious Emissions: Frequency Antenna Cable Reading Limits Emission Level Margin Detect Polarity Factor Loss ( MHz ) ( dB/m ) ( dB ) ( dBuV ) ( dBuV/m ) ( uV/m ) ( dBuV/m ) ( uV/m ) ( dB ) Mode 774.10 H 20.00 4.25 -0.16 46.00 199.53 24.09 16.01 -21.91 Peak 801.50 H 20.31 4.35 14.33 46.00 199.53 38.99 89.02 -7.01 Peak 828.90 H 20.36 4.53 10.83 46.00 199.53 35.72 61.09 -10.28 Peak 774.10 V 20.00 4.25 0.87 46.00 199.53 25.12 18.03 -20.88 Peak 801.50 V 20.31 4.35 12.16 46.00 199.53 36.82 69.34 -9.18 Peak 828.90 V 20.36 4.53 7.33 46.00 199.53 32.22 40.83 -13.78 Peak Frequency Antenna Cable Reading Limits Emission Level Margin Detect Polarity Factor Loss ( MHz ) ( dB/m ) ( dB ) ( dBuV ) ( dBuV/m ) ( uV/m ) ( dBuV/m ) ( uV/m ) ( dB ) Mode 1603.00 H 26.08 5.16 12.12 54.00 501.19 43.36 147.23 -10.64 A.V. 1603.00 H 26.08 5.16 16.36 74.00 5011.87 47.60 239.88 -26.40 Peak 2486.60 H 28.50 6.40 13.25 54.00 501.19 48.15 255.56 -5.85 A.V. 2486.60 H 28.50 6.40 19.14 74.00 5011.87 54.04 503.50 -19.96 Peak 2486.60 V 28.50 6.40 6.13 54.00 501.19 41.03 112.59 -12.97 A.V. 2486.60 V 28.50 6.40 16.12 74.00 5011.87 51.02 355.63 -22.98 Peak FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578 TEL : 886-2-2696-2468 Page No. : 20 of 36 FAX : 886-2-2696-2255 Issued Date : Mar. 26, 2002 ??Field strength of fundamental and harmonics Frequency Antenna Cable Reading Limits Emission Level Margin Detect Polarity Factor Loss ( MHz ) ( dB/m ) ( dB ) ( dBuV ) ( dBuV/m ) ( uV/m ) (dBuV/m) ( uV/m ) ( dB ) Mode 2404.50 H 28.48 6.30 54.45 94.00 50118.72 89.23 28940.10 -4.77 A.V. 2404.50 H 28.48 6.30 54.51 94.00 50118.72 89.29 29140.70 -4.71 Peak 2404.50 V 28.48 6.30 53.96 94.00 50118.72 88.74 27352.69 -5.26 A.V. 2404.50 V 28.48 6.30 53.95 94.00 50118.72 88.73 27321.21 -5.27 Peak 4809.00 H/V - Peak, A.V. 7213.50 H/V - Peak, A.V. 9618.00 H/V - Peak, A.V. 12022.50 H/V - Peak, A.V. 14427.00 H/V - Peak, A.V. 16831.50 H/V - Peak, A.V. 19236.00 H/V - Peak, A.V. 21640.50 H/V - Peak, A.V. 24045 H/V - Peak, A.V. Remark “ - ”: The emission emitted by the EUT is too low to be measured except the emission listed above, Test Engineer : Benny Lee FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578 TEL : 886-2-2696-2468 Page No. : 21 of 36 FAX : 886-2-2696-2255 Issued Date : Mar. 26, 2002 5.4.3. Test mode : HANDSET, CHANNEL 1, NORMAL MODE ??Test Distance : 3 M ??Temperature : 26?C ??Relative Humidity : 57 % ??Test Date : Mar. 19, 2002 ??Emission level (dBuV/m) = 20 log Emission level (uV/m) ??Corrected Reading : Antenna Factor + Cable Loss + Reading = Emission The Radiated Emission t…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578R CE TEL : 886-2-2696-2468 Page No. : 1 of 4 FAX : 886-2-2696-2255 Issued Date : Mar,27, 2002 1.1. Photographs of Conducted Powerline Test Configuration ??The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578R CE TEL : 886-2-2696-2468 Page No. : 2 of 4 FAX : 886-2-2696-2255 Issued Date : Mar,27, 2002 SIDE VIEW FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578R CE TEL : 886-2-2696-2468 Page No. : 3 of 4 FAX : 886-2-2696-2255 Issued Date : Mar,27, 2002 1.2. Photographs of Radiated Emission Test Configuration ??The photographs show the configuration that generates the maximum emission. Handset FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F220711 SPORTON International Inc. FCC ID : PIZGH94578R CE TEL : 886-2-2696-2468 Page No. : 4 of 4 FAX : 886-2-2696-2255 Issued Date : Mar,27, 2002 Base station FRONT VIEW REAR VIEW
