PIZXG320102.4GHz ANALOG CORDLESS PHONE

Please log on to www.xactcommunication.comfor accessory & product information. 1 Contents Safety Instructions ----------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3 Getting Started ---------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --5 Desk Mounting ------------------------------------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - ---------8 Wall Mounting --------------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ----9 Cordless Telephone Operation -------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -----11 Preparing for Use --------------------------------------------------------------------------------------11 NO LINE Indicator ----------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -----11 Receiving Calls --------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - ------11 Placing Calls --------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ------12 Transferring Calls --------- - - - - - - - - - - - - - - - - - - - - - - -------------------------------------------------------13 Headset Feature --------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --13 Redial Feature ----------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --13 Caller ID System Operation --------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --14 Caller ID System ---------------------------------------------------------------------------------------14 Viewing Caller Information During Incoming Calls ----------------------------------------14 MSG WAITING (Message Waiting) -------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --------14 Call Waiting --------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---15 Voice Mail Function ---------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -15 C-F (Forwarded Call) ----------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --15 L-D-C (Long Distance Call) -------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ----15 Caller List ------------------------------------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --15 Viewing the Caller List ------------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -16 Placing a Call From the Caller List ----------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --16 Editing the Caller List before Dialing ------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -16 Saving the Name and Number in the Caller List into the DIRECTORY- - - - - - - - - - - - -17 Deleting All Records in the Caller List --------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17 Selective Deleting in the Caller List -------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17 Name and Telephone Number DIRECTORY--------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17 Viewing the DIRECTORY------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17 Speed Viewing the DIRECTORY--------------------------------------------------------------18 Saving in the DIRECTORY----------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18 PREFERRED CALLS --------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18 BLOCKED CALLS -------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18 2 Contents Editing a Name and Number in the DIRECTORY-- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -19 Editing the Number in the DIRECTORYbefore Dialing ---- - - - - - - - - - - - - - - - - - - - - - - - - - - - --20 Placing Calls from the DIRECTORY----------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---21 Deleting All Records in the DIRECTORY---- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ----21 Selective Deleting in the DIRECTORY------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --21 Function Operation ------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --22 A.Language --------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---23 B.First Ring/Silent On or Off ------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---23 C.Time Set ----------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --23 D.Ringer Volume -------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---24 E.LCD Contrast ---------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - …

Text truncated - open the document above for the full version.

11 Cordless Telephone Operation Preparing for Use Before you can use your cordless telephone, you must charge the HANDSETfor 12 hours. Failure to do so will require recharging of the BATTERYPACK more often. 1.Place the HANDSETon the BASE UNITfor 12 hours. 2.After 12 hours, remove the HANDSETfrom the BASE UNIT. Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure to do so will require more frequent charging of the BATTERYPACK. See page 29 for more information on the BATTERYPACK. NOTE: Depending on the frequency of use, once the HANDSETis fully charged, it remains functional for approximately 4 hours of continuous use and approximately 5 days when the HANDSET is off the BASE UNITin STANDBYmode. NO LINE Indicator This telephone checks for an active TELEPHONE LINE connection. If “NO LINE” appears on the LCD Screen, when the HANDSETis in STANDBYmode, no calls can be made or received from this telephone. Check that the TELEPHONE LINE CORD plugs are connected to the wall TELEPHONE JACK and the BASE UNIT TELEPHONE LINE CONNECTION JACK. If “NO LINE” continues to be displayed, check that the other phones in the house are working. If none of the phones work, contact your local phone company. Receiving Calls 1.When the phone rings, lift the HANDSETand press the button. The HANDSETLCD Screen will display “CALLS” and “TALKING”, and the BASE UNITIN USE LED indicator will light up. 2.Start your conversation. 3.To end your conversation, either press the button or place the HANDSETon the BASE UNIT. If you place the H A N D S E Ton the BASE UNIT CHARGE CRADLE, you activate the automatic STANDBYfeature. TALK TALK 12 Cordless Telephone Operation NOTE: 1.The Call Timer will start to count once you press the button. 2.The LCD Screen emits light for 5 seconds every time you press any button on the HANDSET. 3.When “CALLS” appears on the LCD Screen, it means that the HANDSETis OFF-HOOK (connected to the telephone line). Placing Calls 1.Press the button, the Call Timer starts to count. The H A N D S E TLCD Screen will display “CALLS”, and “TALKING”, and the BASE UNITIN USE LED indicator will light up. 2.Listen for a dial tone. 3.Dial the phone number. 4.When you have finished with your call, press the button again or place the HANDSETon the BASE UNIT. OR 1.Dial the phone number. 2.Press and hold down the DIAL7or the DIAL 10 or the DIAL1+ button. The BASE UNITIN USE LED indicator will light up. 3.When you have finished with your call, press the button again or place the HANDSETon the BASE UNIT. TALK 1+ # TALK TALK TALK CALLS 00 MIN 1 SEC 14 Minute Seconds Channel IMPORTANT In order to utilize the Caller ID feature, you must subscribe to Caller ID service from your local telephone company. 13 Cordless Telephone Operation Transferring Calls You can directly transfer any active call to another HANDSET. 1.HANDSETmust be on an active call. 2.Press the button. 3.When the other HANDSETanswers, the call will automatically be connected to the other HANDSET. 4.An unanswered call will ring back to the originating HANDSETif not answered within 20 seconds. Headset Feature Your telephone can utilize a headset (not included) to be connected to your HANDSETfor you to enjoy hands-free communication. Pull out the HEADSETJACK COVER, then insert the small plug at the end of the headset into the HEADSETJACK at the right side of the HANDSET. Follow the procedures discussed in “Receiving Calls” and “Placing Calls” to receive and place a call. NOTE:When you plug the headset plug into the H E A D S E TJACK it automatically mutes the MICROPHONE and SPEAKER of the HANDSET. Unplug the headset to return the HANDSETto normal use. Headsets are available at most retail outlets that sell telephone equipment. The HEADSETJACK is compatible with 2.5 mm headset plugs only. Redial Feature 1.If you get a busy tone, press the button or place the HANDSETon the BASE UNITto hang up. 2.Later, press the button again. 3.Listen for a dial tone. 4.Press the button. This will automatically redial the last telephone number you called in TALK mode. 5.When you have finished with your call, either press the button again (the BASE UNITIN USE LED indicator will turn off) or place the HANDSETon the BASE UNIT. NOTE: If you are too far away from the BASE UNIT, the HANDSETemits “beep” sounds to warn you that the background noise level is too high for proper communication between the HANDSET and the BASE UNIT. When you hear this sound, you should move closer to the BASE UNIT to reduce the noise level. Otherwise, the call will automatically cut off. TALK RE/PA SAVE TALK TALK EDIT TRANSFER 14 Caller ID System Operation Caller ID System This telephone automatically displays an incoming caller’s name and telephone number together with the date and time of the call. It records up to 80 calls and stores the data in Memory. IMPORTANT: You must subscribe to the Caller ID service from your local telephone company to utilize this feature. Viewing Caller Information During Incoming Calls 1.When there is an incoming call, the name and the telephone number of the caller will automatically appear after the first ring. Press the SHIFTRIGHTbutton to view a name of more than 11 characters. OR Caller’s telephone number will appear if the caller’s name is not available. OR “OUTOF AREA” will appear if the origin of the incoming call does not support the Caller ID system. OR “UNKNOWN” will appear if the origin of the incoming call has no name and does not support the Caller ID system. OR “PRIVATE” and/or “P---------” will appear if the caller’s name and/or telephone number is blocked. OR “DATA ERROR” will appear if wrong data was received from the telephone line. OR The name stored in the DIRECTORY will appear for an incoming call with matching telephone numbers. MSG WAITING (Message Waiting) The MSG WAITING GREEN LED indicator will blink when there is a message for you from your telephone company if you have subscribed to Voice Mail message service and …

Text truncated - open the document above for the full version.

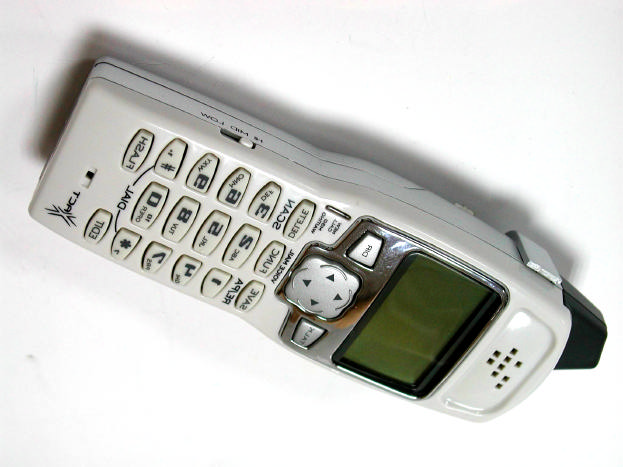

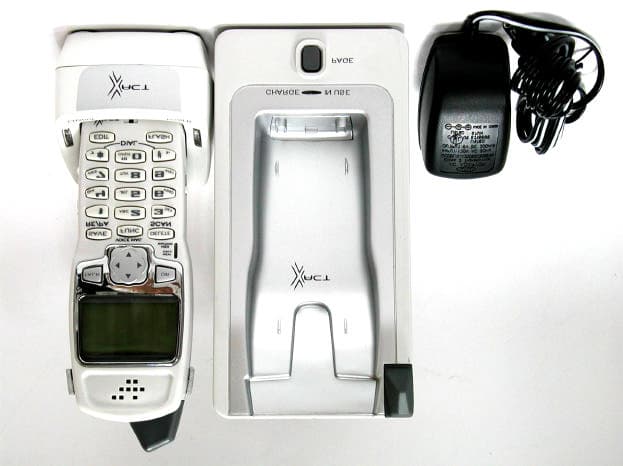

External Photos of 2.4GHz Cordless Phone 1/4 External Photos of 2.4GHz Cordless Phone 2/4 External Photos of 2.4GHz Cordless Phone 3/4 External Photos of 2.4GHz Cordless Phone 4/4

LABEL Position:

CIDMATE International Technology IMPORTANT TO ENSURE YOUR PHONE CHARGES PROPERLY ALWAYS CHARGE WITH THE KEYPAD FACE UP MODEL NO.: XG3201 FCC ID: PIZXG32010 THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECTED TO THE FOLLOWING CONDITIONS:1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. TELEPHONE EQUIPMENT FOR SERVICE PLEASE CALL 1-866-466-9228 MODEL NO. XG3201 xxxxxxxxxx S/NO.: R 2002627 CONFORMS TOANSI/UL STD, 1950 US CM QC 1A ACC HAC Licensed under U.S. Patent No. xxxxxxx FCC ID:PIZXG32010 COMPLIES WITH PART 68 FCC RULES, FCC REG. NO.:US: xxxxxxXG3201 USOC: RJ11C REN: xx PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE MADE IN CHINA MODEL NO. XG3201 CHARGEIN USE PAGE NOTE PRIOR TO INITIAL USE OR WHEN YOU HEAR A BEEP SOUND WHILE THE BATT LOW SYMBOL APPEARS, RECHARGE THE HANDSET BY PLACING IT IN ITS CRADLE IN THE BASE UNIT OVERNIGHT. IF HANDSET LOSES DIAL TONE, PLACE HANDSET IN BASE FOR 5 SECONDS. THIS WILL RESET SECURITY CODE AND RESTORE DIAL TONE. TO ALLOW PROPER CHARGING, CLEAN THE BATTERY CONTACTS ON BOTH THE HANDSET AND THE BASE UNIT ONCE A MONTH. XG2200 LABELS' LOCATION DESIGNED BY: DENG LING DATE: Feb./24/03

Internal Photos of 2.4GHz Cordless Phone (Base) 1/4 Internal Photos of 2.4GHz Cordless Phone (Base) 2/4 Internal Photos of 2.4GHz Cordless Phone (Base) 3/4 Internal Photos of 2.4GHz Cordless Phone (Base) 4/4

Internal Photos of 2.4GHz Cordless Phone (Charger) 1/1

Internal Photos of 2.4GHz Cordless Phone (Handset) 1/4 Internal Photos of 2.4GHz Cordless Phone (Handset) 2/4 Internal Photos of 2.4GHz Cordless Phone (Handset) 3/4 Internal Photos of 2.4GHz Cordless Phone (Handset) 4/4

Test Report ------------------------------------------------------------------------------ 1/33 Report No.: C5015674, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 MEASUREMENT REPORT of CORDLESS TELEPHONE Applicant : CIDMATE International Technology Inc. Model No. : XG3201**XG3200** (* could be blank, numbers or alphabetic characters) EUT : 2.4GHz Analog Cordless Phone FCC ID : PIZXG32010 Report No. : C5015674 Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------- 2/33 Report No.: C5015674, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All tests were conducted by Training Research Co., Ltd., No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.249. Applicant : CIDMATE International Technology Inc. Product Name : 2.4Hz Analog Cordless Phone Model Nane : XG3201**XG3200** (* could be blank, number or alphabetic characters) FCC ID : PIZXG32010 Report No. : C5015674 Test Date : June 26, 2003 Prepared by: Approved by: JACK TSAI FRANK TSAI Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------- 3/33 Report No.: C5015674, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents I. GENERAL 1.1 Introduction .................................................................................................................. 5 1.2 Description of EUT ...................................................................................................... 5 1.3 Description of Support Equipment ................................................................................ 6 1.4 Configuration of System Under Test .............................................................................. 6 1.5 Test Procedure ............................................................................................................. 7 1.6 Location of the Test Site ............................................................................................... 7 1.7 General Test Condition ................................................................................................. 7 II. Conducted Emissions Measurements 2.1 Test Condition & Setup ............................................................................................... 8 2.2 List of Test Instruments ................................................................................................ 8 2.3 Test Result of Conducted Emissions ............................................................................. 9 III. Radiated Emissions Measurements 3.1 Test Condition & Setup .............................................................................................. 14 3.2 List of Test Instruments ............................................................................................... 15 3.3 Test Result of Radiated Emissions ............................................................................... 16 3.4 Test Result of Spurious Radiated Emissions ................................................................. 17 IV. Verify Frequencies and Channels ............................................................................... 27 Appendix A .......................................................................................................................... 28 Appendix B .......................................................................................................................... 31 Test Report ------------------------------------------------------------------------------- 4/33 Report No.: C5015674, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 TABLES Table 1 Power Line Conducted Emissions [Channel 01].................................................... 9 Table 2 Power Line Conducted Emissions [Channel 40]................................................... 10 Table 3 Power Line Conducted Emissions [Charging by base].......................................... 11 Table 4 Power Line Conducted Emissions [Charging by charger]...................................... 12 Table 5 Power Line Conducted Emissions [Standby mode].............................................. 13 Table 6 Fundamental Emissions ...................................................................................... 16 Table 7 Radiated Emissions [Charging by Base, Horizontal]............................................. 17 Table 8 Radiated Emissions [Charging by Base, Vertical] .............................................. 17 Table 9 Radiated Emissions [Charging by Charger, Horizontal] ...................................... 18 Table 10 Radiated Emissions [Charging by Charger, Vertical] .......................................... 18 Table 11 Radiated Emissions [Base CH 01, Horizontal, 30MHz to1GHz].......................... 19 Table 12 Radiated Emissions [Base CH 01, Vertical, 30MHz to1GHz] ......................... 19 Table 13 Radiated Emissions [Base CH 01, Horizontal, 1GHz to 25GHz] ....................... 20 Table 10 Radiated Emissions [Base …

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/5 FCC ID: PIZXG32010 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Charging mode, by charger) Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 2/5 FCC ID: PIZXG32010 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Charging mode, by base) Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 3/5 FCC ID: PIZXG32010 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Operating mode) Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 4/5 FCC ID: PIZXG32010 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (BASE) Front View of the Test Configuration of X-axis of Base Rear View of the Test Configuration of Y-axis of Base Test Setup Photos ------------------------------------------------------------------------- 5/5 FCC ID: PIZXG32010 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Handset) Front View of the Test Configuration of X-axis Rear View of the Test Configuration of X-axis
